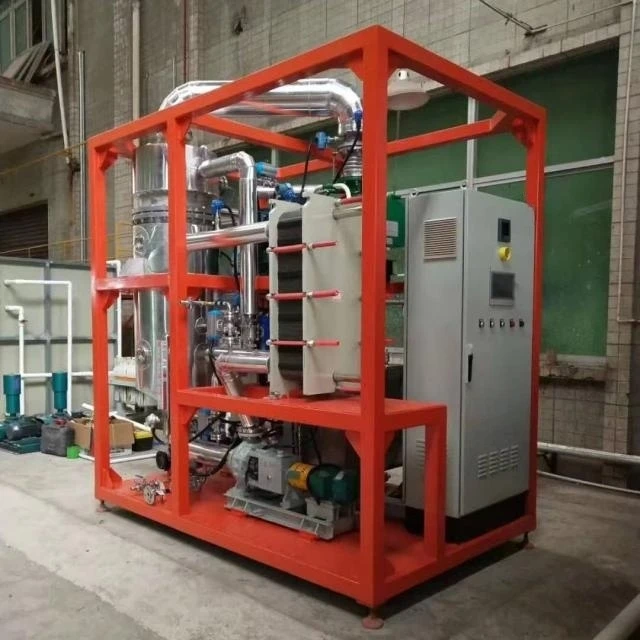

China Manufactory Crystallizer Equipment Price And Plate Heat Exchanger Evaporator On Global Digital Export Service Platform
- Category: >>>
- Supplier: Jiangsu Huigang Technology Co. Ltd.
Share on (1600907933309):
Product Overview
Description
Product Description
Product Features
1. Simple equipment; 2. Easy to operate; 3. Low equipment investment cost.
The single effect evaporator equipment is simple, relatively easy to operate, and the equipment cost is relatively low, but the production capacity of the single effect evaporator is relatively small. From the perspective of the process of single effect evaporators, due to the direct condensation and removal of the secondary steam generated by the single effect evaporator, the heat carried by it is not fully utilized. Therefore, single effect evaporators are generally suitable for situations where production capacity is small, materials are corrosive, and expensive structural materials are needed or steam is contaminated and cannot be reused. They are suitable for small-scale or intermittent production.
Working Principle
Water vapor is often used as a heating source in industry, and most of the evaporated materials are aqueous solutions. After water is evaporated, it becomes steam. For differentiation, the steam evaporated from the evaporator is generally referred to as secondary steam. The evaporation process completed in an evaporator, where the secondary steam is directly discharged after being recondensed and no longer used, is called single effect evaporation. The evaporator using this single effect evaporation method is called a single effect evaporator. Working principle: A single effect evaporator is composed of a set of heating chambers and separation chambers. The heating chamber is equivalent to a heat exchange device, and the heating medium is steam, while the separation chamber is equivalent to a gas-liquid separation device. The material liquid enters from the middle of the heating chamber, and during the entire heating chamber process, the material liquid receives heat, vaporizes water, and the concentrated material liquid is discharged from the bottom of the heating chamber. The gas vaporized from the feed liquid is called secondary steam. The secondary steam enters the condenser, and the secondary steam is directly condensed by the cooling water. The cooling water is discharged from the bottom, and non condensable gases such as air are discharged from the top.
Product Application
Single effect falling film evaporator is used for low-temperature evaporation of liquids in industries such as food, chemical, and wastewater. It can continuously feed and discharge materials, with short heating time and low evaporation temperature. The liquid can pass through the equipment once to meet the required concentration requirements. It has little impact on the color, flavor, and nutritional composition of the product, and is particularly suitable for the evaporation of heat sensitive materials such as milk.
Product Specifications
Energy consumption: 1.17T steam/ton of water, 20KW/ton of water Specification: Single module maximum 5T/D, can be combined with multiple modules 10-200T/D Material selection options: 316L, 2205/2507, titanium alloy For more details, please feel free to contact us
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

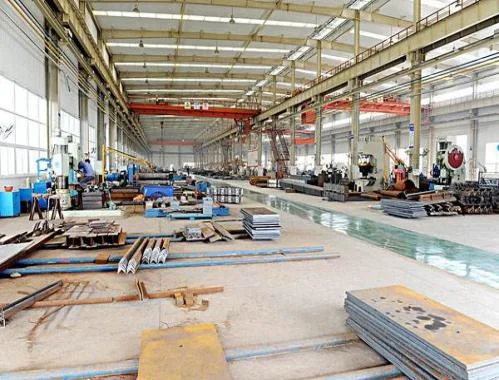

Company Profile
Jiangsu Huigang Technology, an international technology-oriented manufacturing&engineering group company,specialized in gloves making equipment,water treatment equipment,environmental protection equipment meanwhile providing services of project consulting, engineering design, construction supervision, project management and general contracting.
We have strong technical support. There are more than 300 personnel in Huigang Technology, of which 40% are professional technicians. Around 10 are Middle and senior engineer and over 30 personnel own professional registered certificates.
FAQ
1. Q: How about the quality?
A: We have one year quality guarantee, our customers have used our machines for a long time.
2.Q: How should I order?
A: Choose the products what you like, or send us your requirement, our engineer can make a project and quotation for you.(After confirming all details and signing the contract, you can do deposit or make the LC, then we produce it ,We deliver these machines by ship according to our agreement. We send the documents to you after shipment).
3.What about payment?
A: T/T and Irrevocable LC payment can be accept.
4.Lead time?
A: 2-3 weeks(depends on the style of the machine).
5.How can I get to you factory?
A: We are located in Jangsu China, which is nearby Shanghai, you can take the flight to Shanghai airport,We will arrange the driver to pick you up.You are welcome to visit our factory.
Our products are welcomed in the Mid East,Eastern Asia, Africa and the united states, and domestic with high quality low price and top-grade services. If you have any quostions, please feel free to contact with us at any time.
