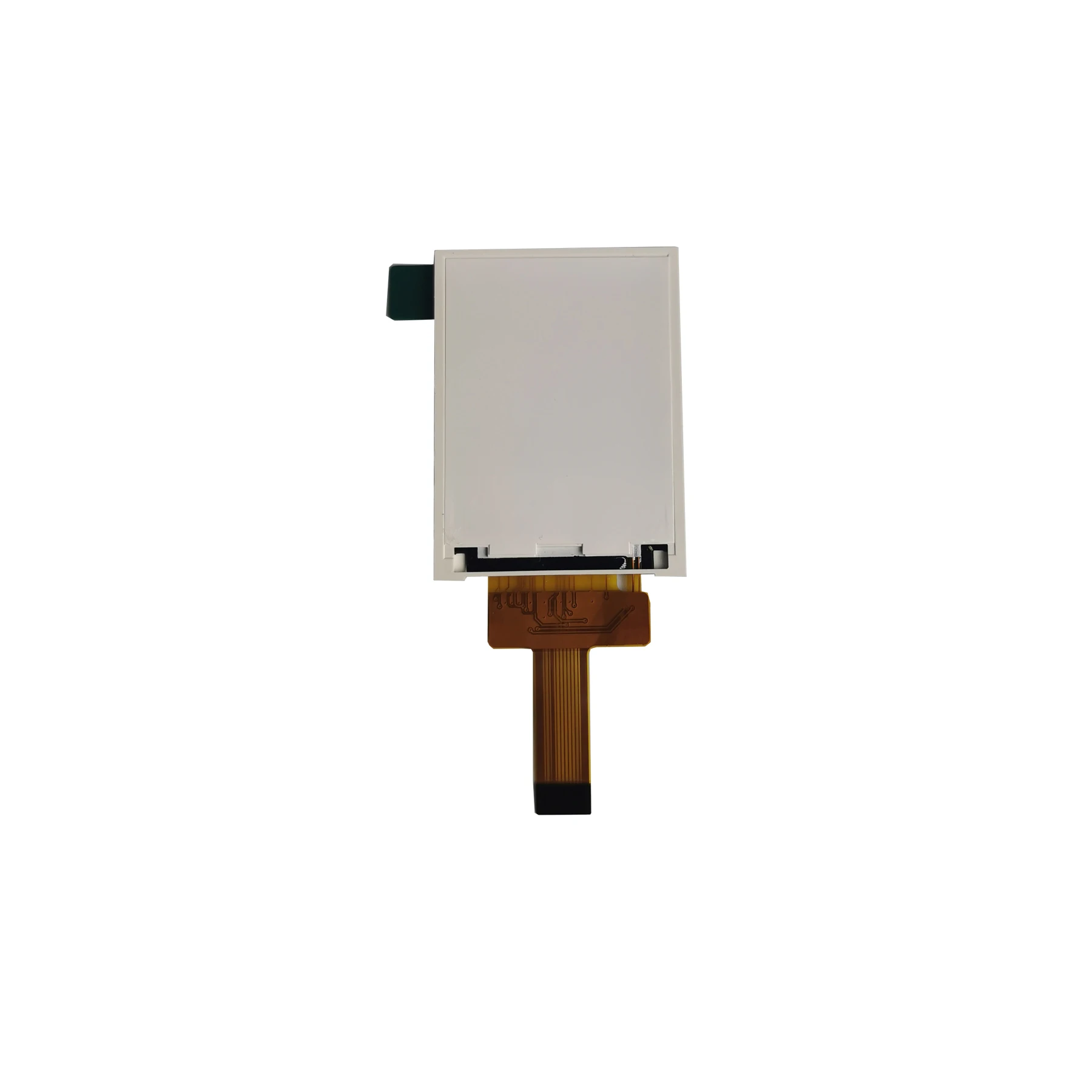

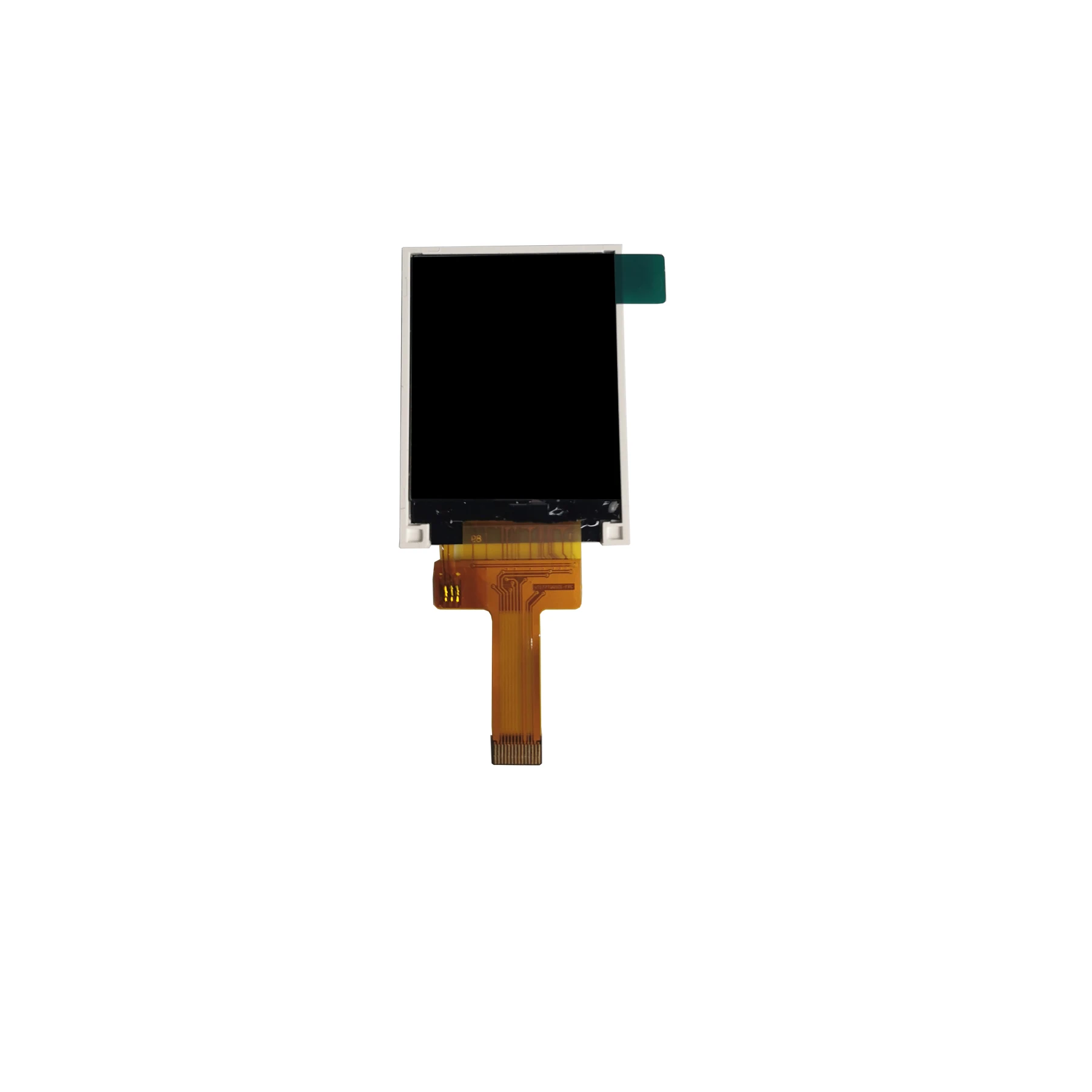

Duobond MPU 8 Bits & SPI Interface 1.77 inch RGB 128x160 LCD Module Complete Product Description
- Category: >>>
- Supplier: Shenzhen Aptus Technology Co. Ltd
Share on (1600907955433):
Product Overview
Description
Competitive price OEM 1.3"---23.8" IPS LCD module

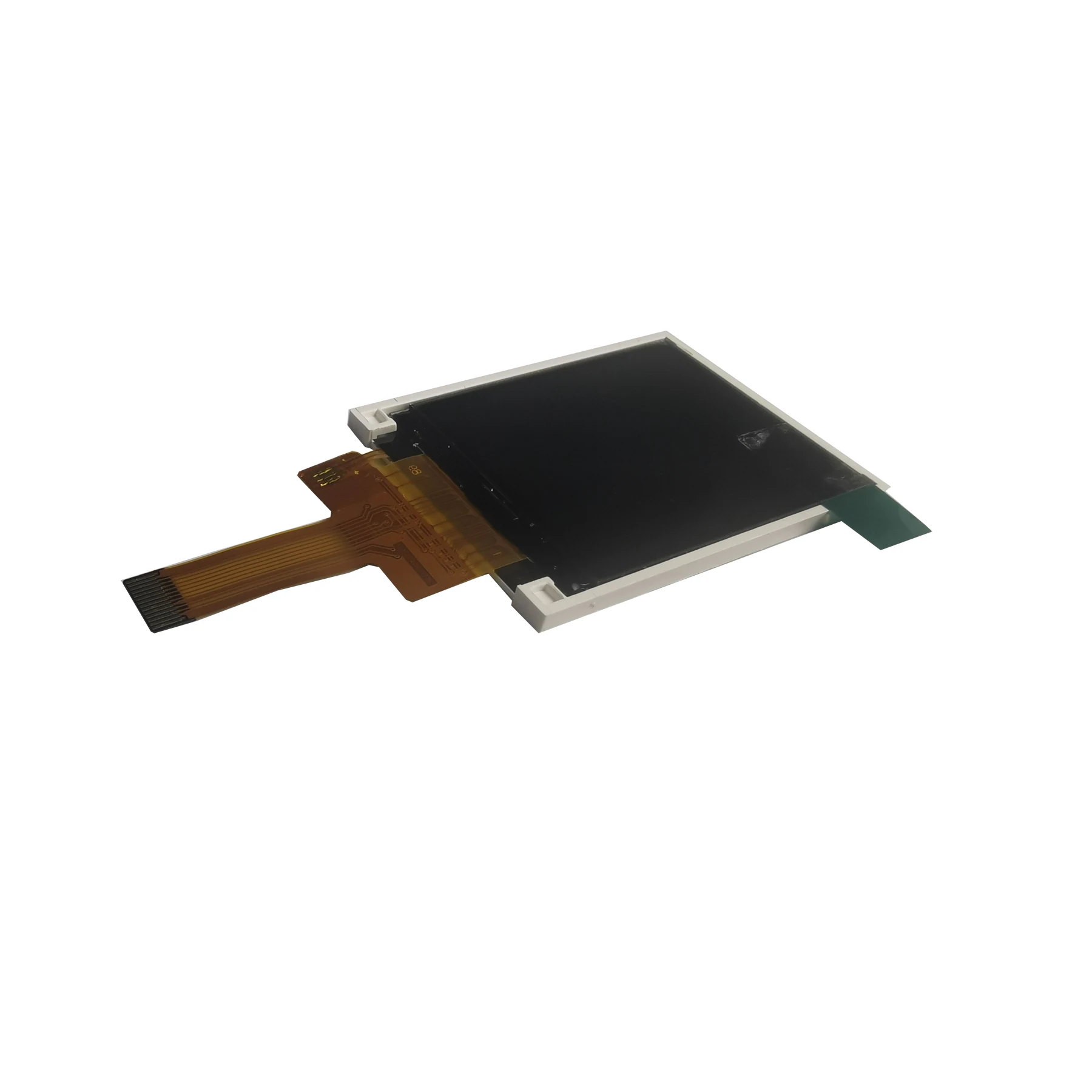

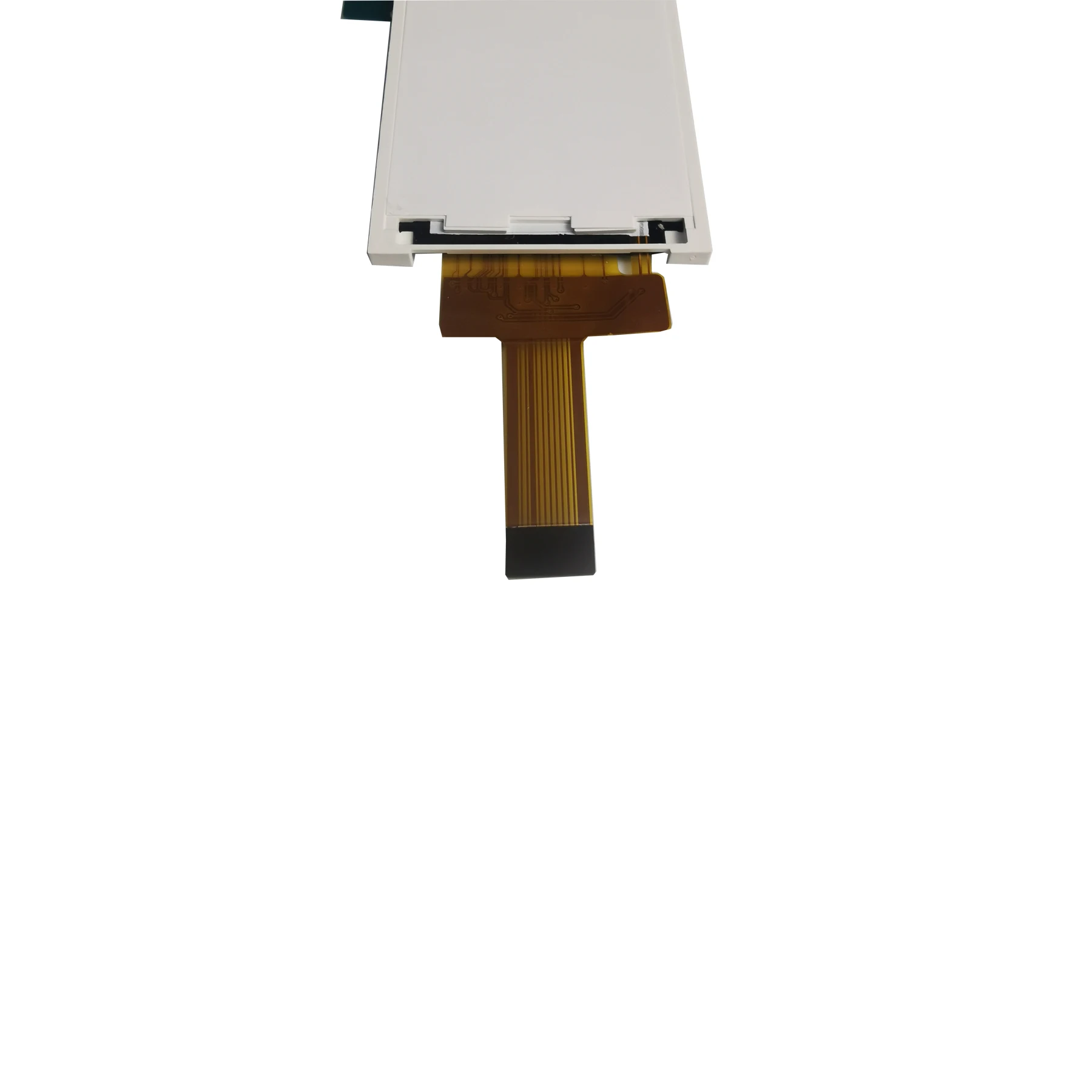

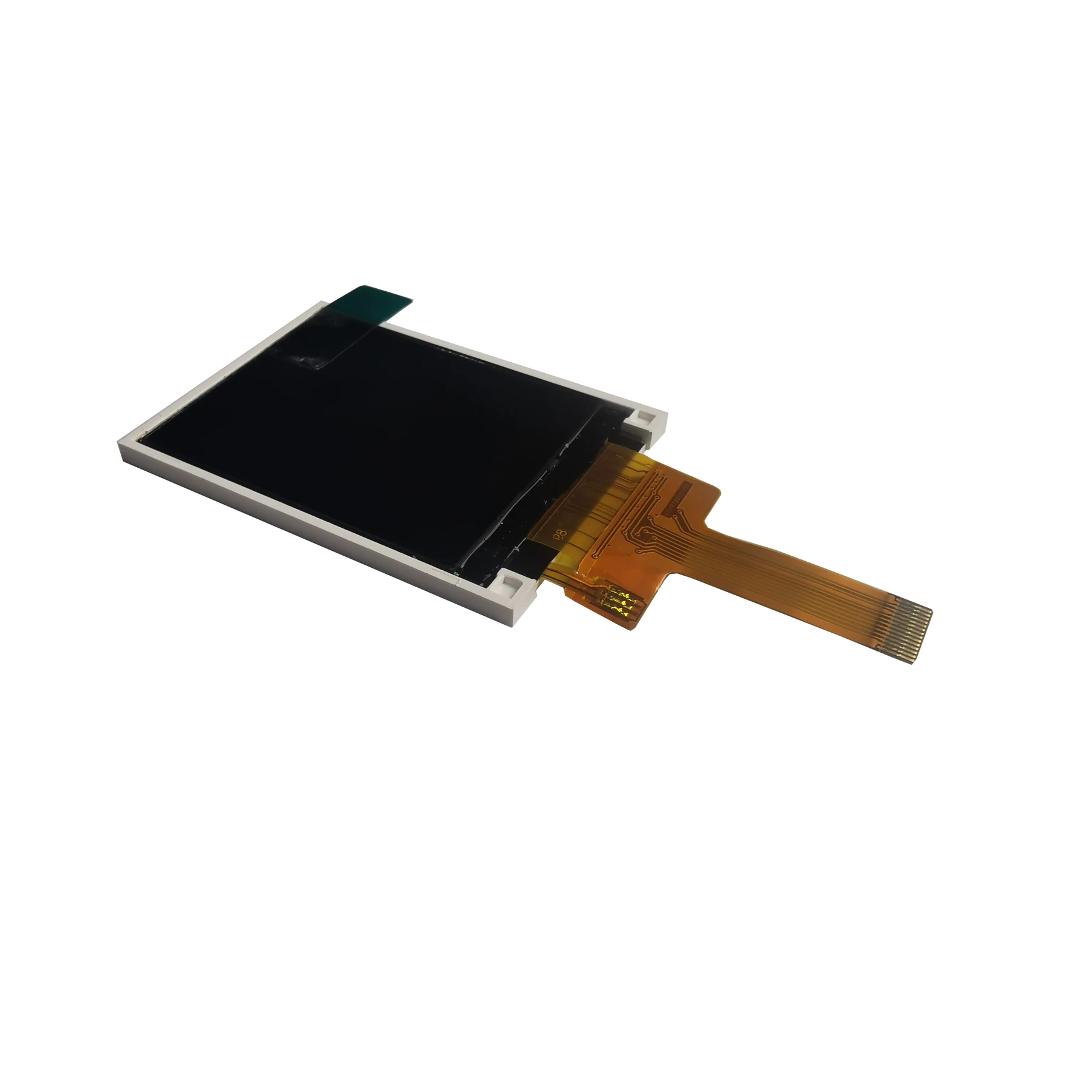

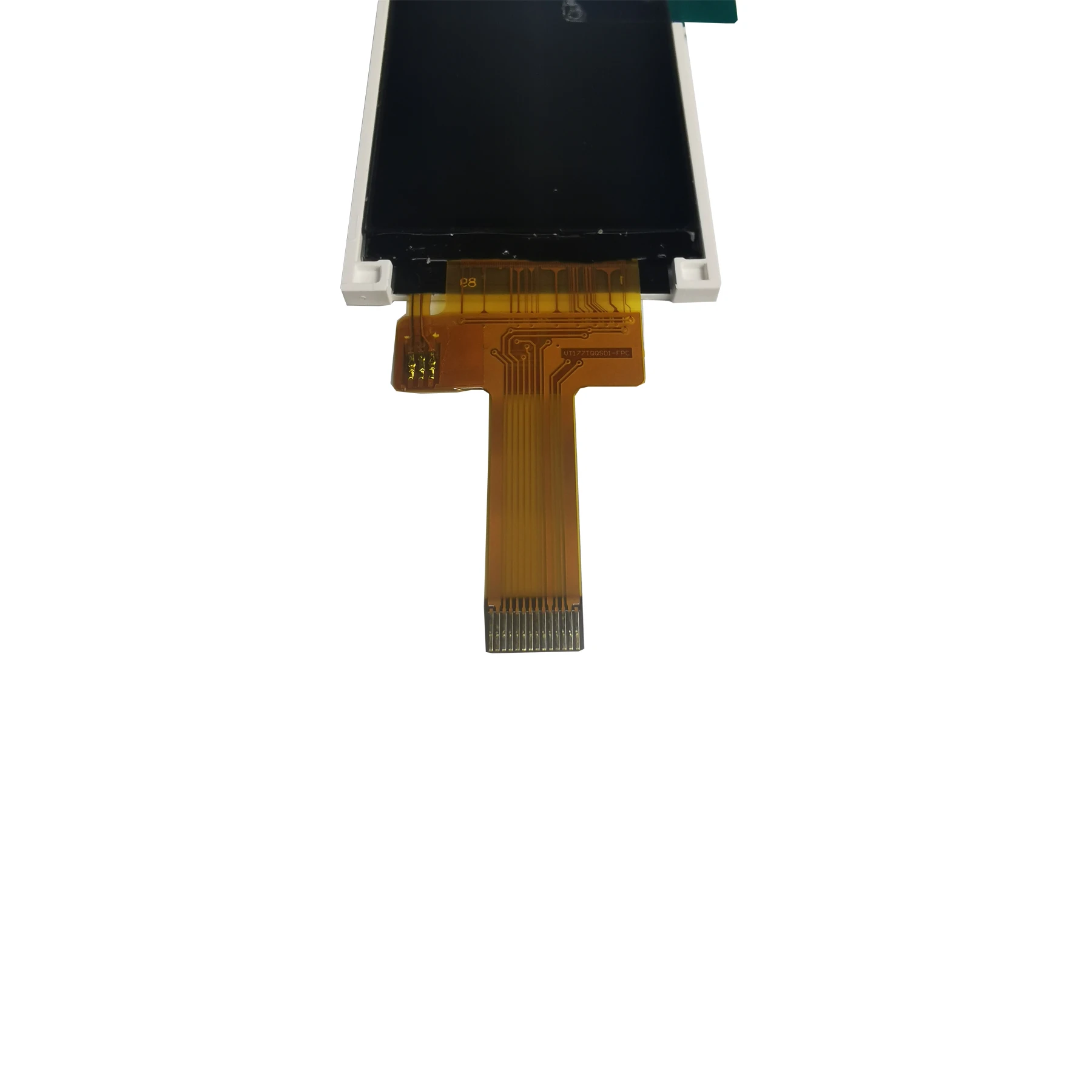

Details Images
Products Description
Item | Display Panel | Unit/note |
Display Mode | Normally black | |
LCM size | 1.77” | |
Viewing Direction | 12 o`clock | |
Input Signals | MPU 8 Bits&SPI | |

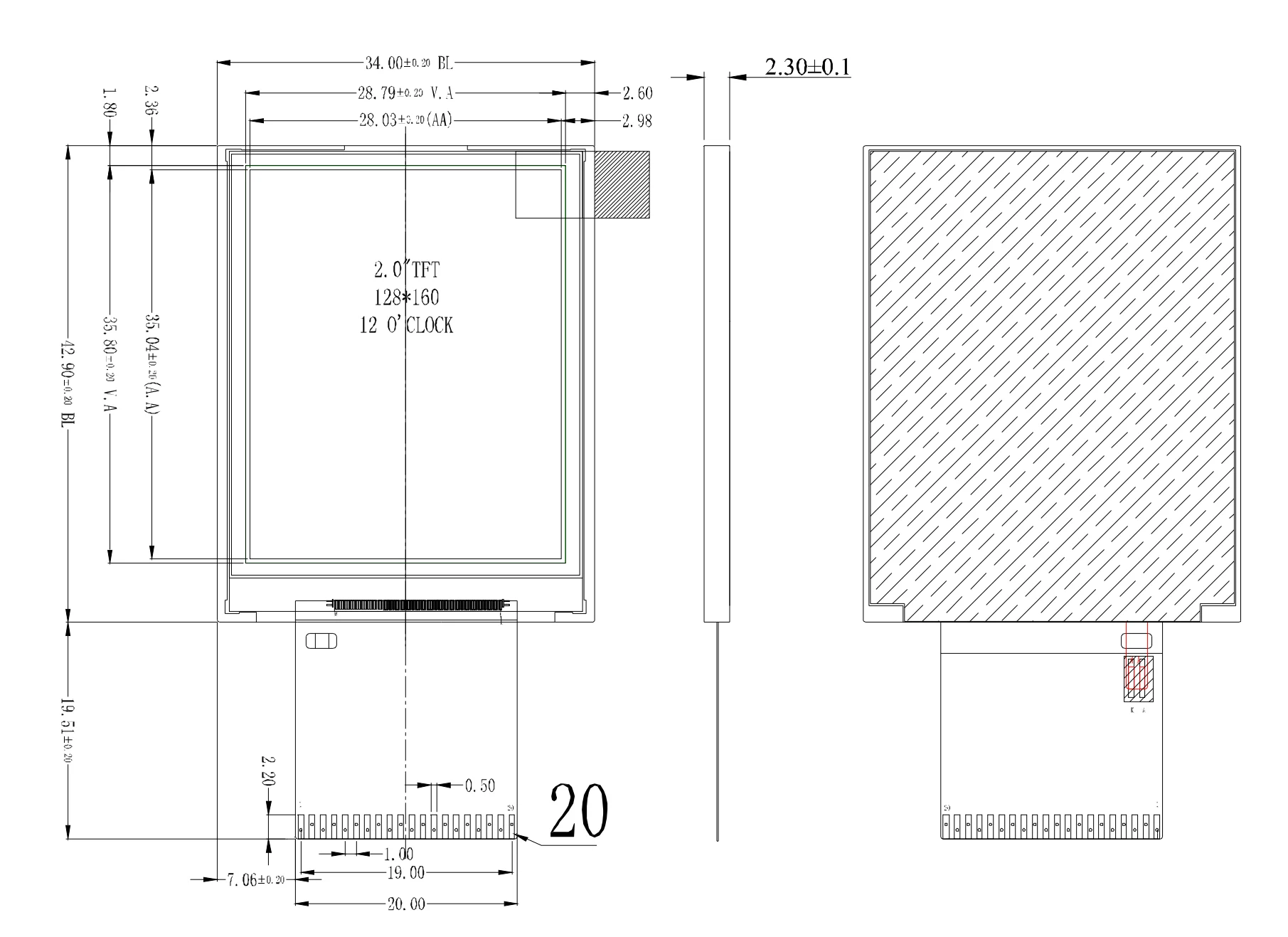

Outline Dimensions | 34.0(W)* 42.90 (H)*2.3(T) | mm |
Active Area | 28.0 (H)×35.0(W) | mm |
Number of Pixels | 128×RGB×160 | Pixels |
Drive IC | ST7735S | |
Input voltage | 2.8 | V |
Operating Temperature | -20~70℃ | |
Contrast Ratio | 500(Typ.) |

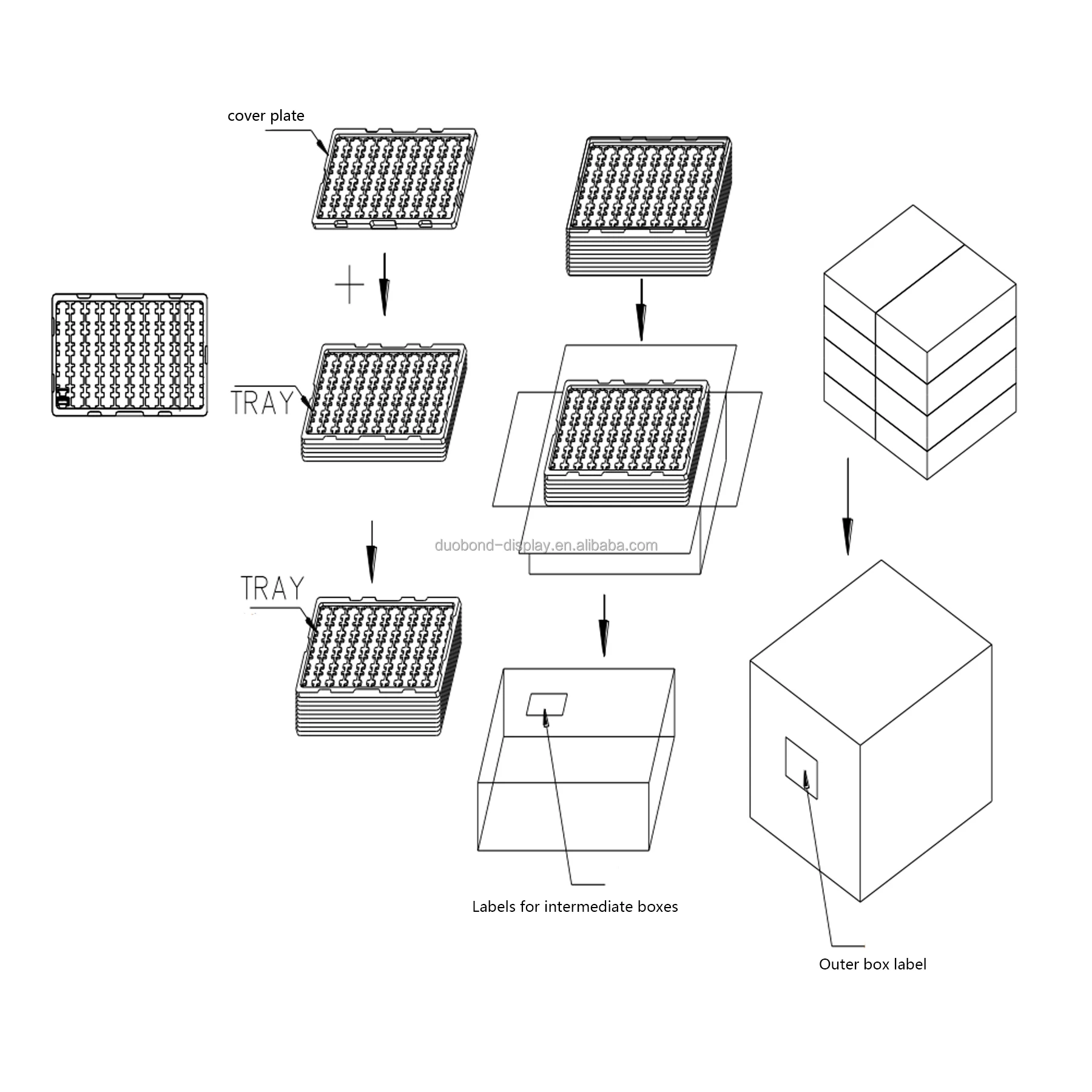

Product packaging

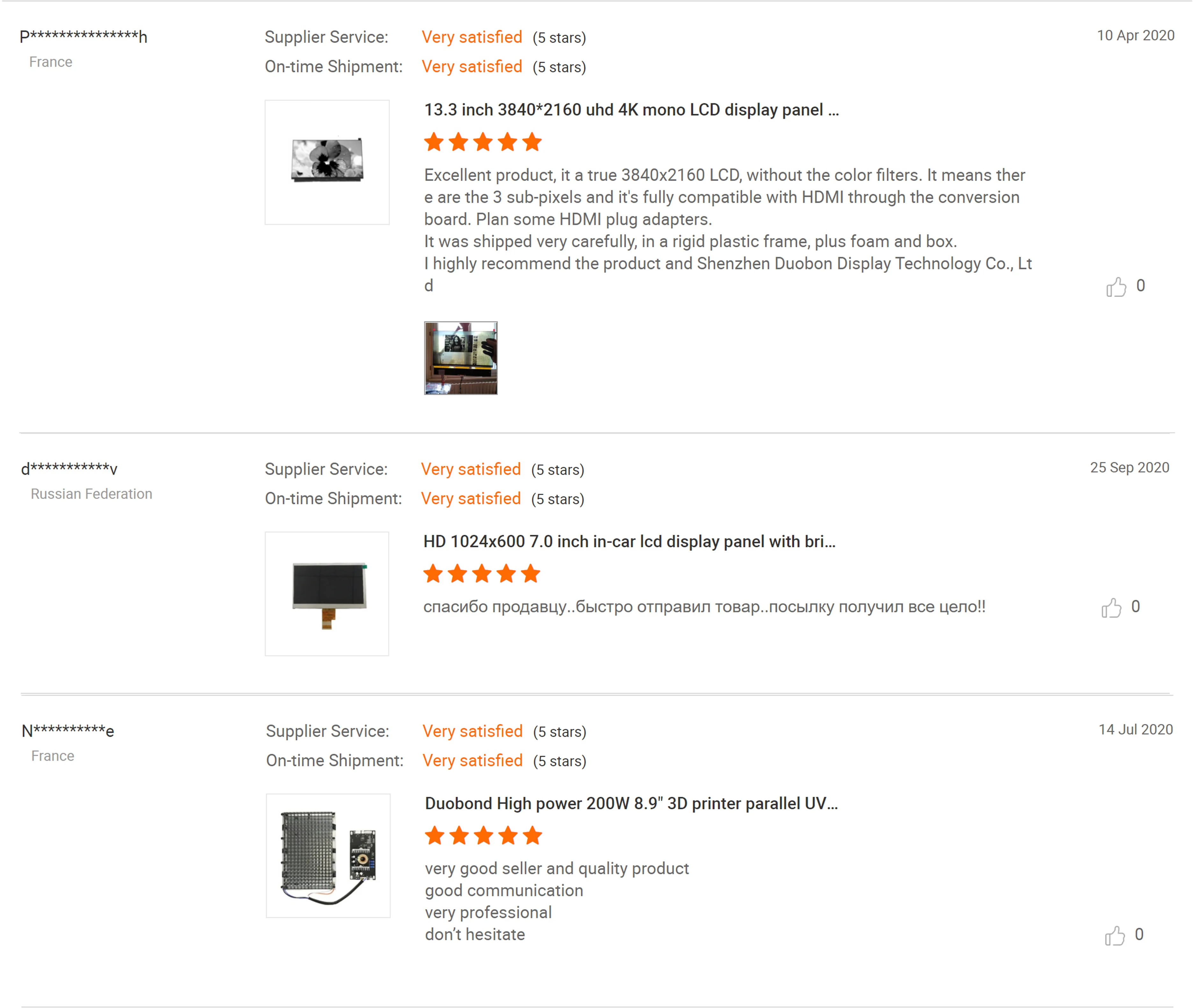

Customer Reviews
Related Products
Size | Module No. | Resolution | Outline Dimension (mm) | Active Area (mm) | Interface | Viewing angle (Typ.) |
1.33" | DBT133QH002S | 240 x 240 | 26.85(W) x 29.55(H) x 1.92(T) | 23.4(H) x 23.4(W) | MCU | 80/80/80/80 |
1.44" | DBT144QQ046S | 128 x 128 | 27.9(W) x 32.64(H) x 2.25(T) | 25.49(H) x 26.49(W) | MCU | 70/70/65/60 |
1.77" | DBT177QA002S | 128 x 160 | 34.0(W) x 42.90 (H) x 2.3(T) | 28.0(H) × 35.0(W) | MPU | 45/20/45/45 |
2" | DBT020QV035S | 240 × 320 | 51.8(H) x 36.2(W) x 2.45(T) | 40.55(H) x 30.6(W) | MPU | 80/80/80/80 |
2.31" | DBT231QA015S | 320 x 240 | 47.55 (W) x 55.2(H) x 2.8 (T) | 35.06(H) × 46.75(W) | RGB | 70/70/70/60 |
2.31" | DBT231QA033S | 320 x 240 | 45.8(W) x 51(H) x 2.5(T) | 35.06(H) x 46.75(W) | SPI | 70/70/70/60 |
2.4" | DBT024QV161S | 240 x 320 | 42.72 (W) x 60.26(H) x 2.2 (T) | 36.72(W) ×48.96 (H) | MPU | 70/70/70/60 |
2.4" | DBT024QV169S | 240 x 320 | 42.72 (W) x 60.26(H) x 2.3(T) | 36.72(W) × 48.96 (H) | SPI | 80/80/80/80 |
2.4" | DBT024QV181S | 240 × 320 | 60.26(W) x 42.72(H) x 2.25 (T) | 48.96(H) × 36.72(W) | SPI | 80/80/80/80 |
2.8" | DBT028QV049T | 240 × 320 | 69.2(W) x 50(H) x 3.6(T) | 57.6(H) x 43.20(W) | MPU | 70/60/70/70 |
3" | DBT030QA041S-B1 | 360 x 640 | 74.51(W) x 42.64(H) x 2.45(T) | 57.6(H) x 43.20(W) | MIPI | 80/80/80/80 |
3.5" | DBT035HV078S-B1 | 320 × 480 | 55.26(W) x 84.69(H) x 2.4(T) | 48.96(W) x 73.44(H) | MCU | 70/70/60/60 |
4" | DBT400WV090T | 480 × 800 | 113.4(W) x 60.24(H) x 3.36(T) | 86.4(H) x 51.84(W) | MIPI | 80/80/80/80 |
4.3" | DBT043HIV40R08 | 800 x 480 | 105.5(W)x67.2(H)x3.36(T) | 95.04(H) x 53.86(W) | LVDs | 80/80/80/80 |
7" | DBC070AIE40L05 | 720 x 720 | 150(W) x 150(H) x 4.5(T) | 125.82(H) x 125.82(W) | LVDs | 80/80/80/80 |
7" | DBT700AT9309 | 800 x 480 | 165(W) x 104.44(H) x 5.7(T) | 152.4(H) x 91.44(W) | TTL | 80/80/80/80 |
7" | DBT070TN83 | 800 x 480 | 165(W) x 104.44(H) x 5.7(T) | 152.4(H) x 91.44(W) | TTL | 80/80/80/80 |
7" | DBT070AIV30L8-B | 800 x 480 | 170.0(W) x 106.30(H) x 6.60(T) | 152.40(H) x 91.44(W) | LVDS | 80/80/80/80 |
7" | DBT070HTA40L9 | 1024 x 600 | 165.0(W) x 104.0(H) x 5.05(T) | 153.6(H) x 86.64(W) | TTL | 70/70/60/70 |
7" | DBT070BIU40M5 | 1200 x 1920 | 100.30(W)x162.10(H)x2.45(T) | 94.5(H) x 151.2(W) | MIPI | 80/80/80/80 |
7" | LQ070M1SX01 | 1200 x 1920 | 99.7(W) x 159.85(H) x 1.725(T) | 94.5(H) x 151.2(W) | MIPI | 80/80/80/80 |
7" | TM070JDHG30-00 | 1280 x 800 | 161(W) x 107(H) x 3.35(T) | 149.76(H) x 93.6(W) | LVDS | 88/88/88/88 |
7.3" | DBT073TEN40L05 | 1200 x 280 | 192.20(W) x 54.00(H) x 4.80(T) | 180(H) x 42(W) | LVDS | 70/70/60/70 |
8.8" | DBC088HIX60L01 | 768 x 768 | 176.85(W) x 176.85(H) x 1.29(T) | 158.4(H) x 158.4(W) | LVDS | 85/85/85/85 |
9" | DBT090CTV50R9 | 800 x 480 | 211.1(W) × 126.5(H) × 5.9(T) | 198(H) × 111.696(W) | TTL | 70/70/50/70 |
10.1" | DBT101IIE40L0 | 1280 x 800 | 229.46(W) x 149.1(H) x 4.5(T) | 216.96(H) x 135.6(W) | LVDS | 85/85/85/85 |
10.1" | DBT101BIU40L12 | 1920 x 1080 | 229.91(W) x 135.74(H) x 2.8(T) | 125.71(W) x 223.48(H) | LVDS | 85/85/85/85 |
10.4" | DBT104IIX30L5 | 1024 x 768 | 215.4(W) x 161.8(H) x6.5(T) | 210.4(H) x 157.8(W) | LVDS | 88/88/88/88 |
11.6" | DBT116BIU30E12 | 1920 x 1080 | 268(W) x 158(H) x 3.0(T) | 256.32(H) x 144.18(W) | eDP | 85/85/85/85 |
15.6" | NV156FHM-N61 | 1920 x 1080 | 350.66(W) x 216.25(H) x 2.45(T) | 344.16(H) x 193.59(W) | eDP | 85/85/85/85 |
