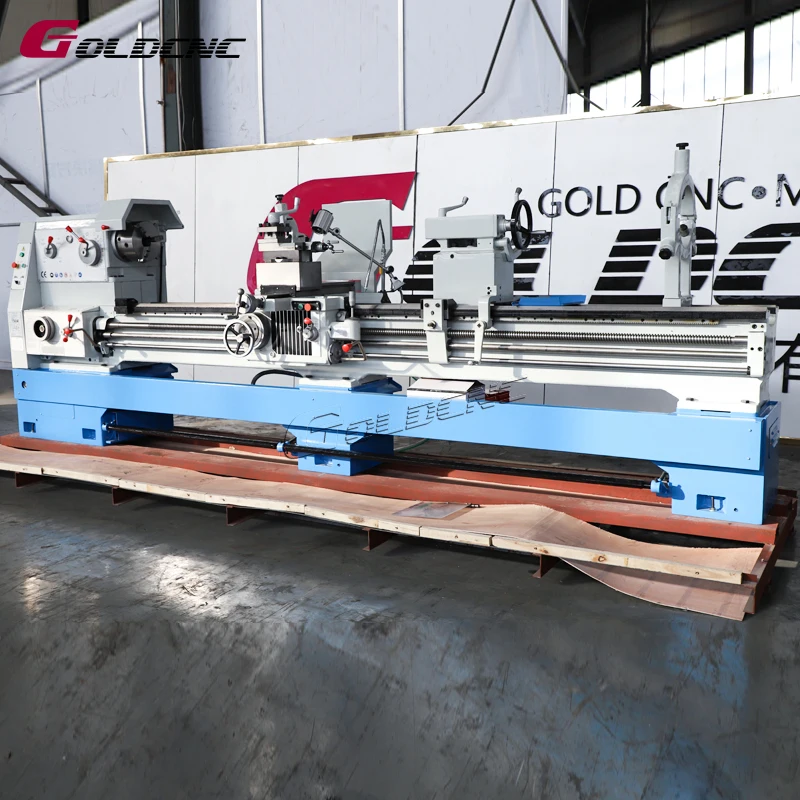

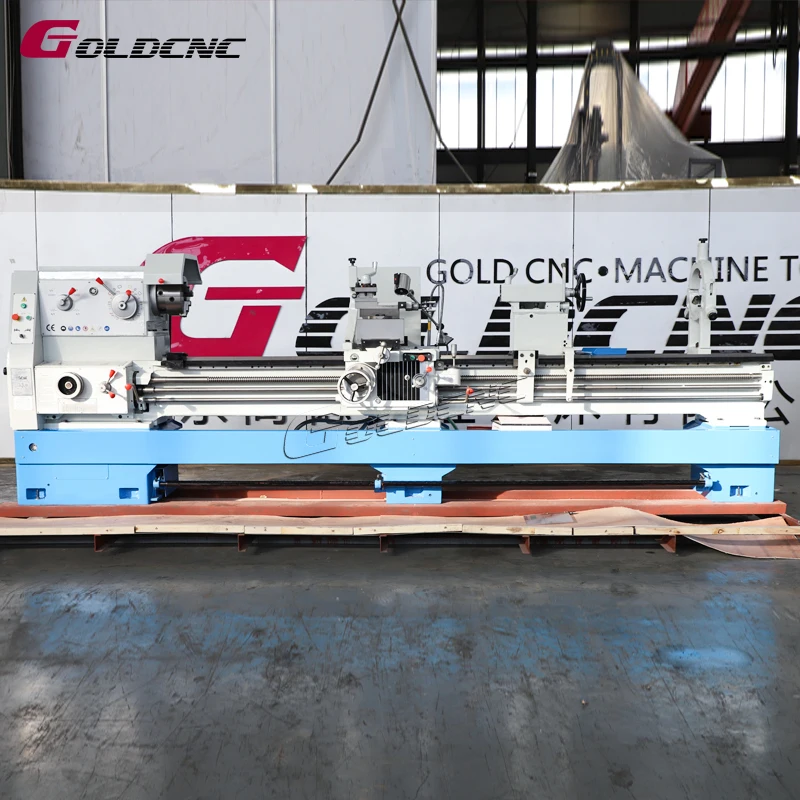

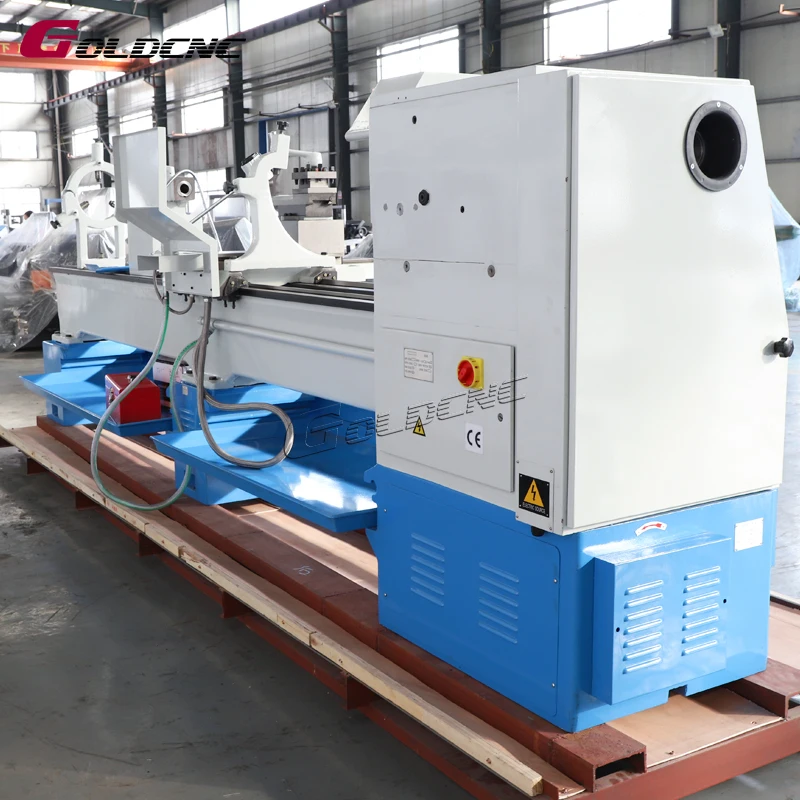

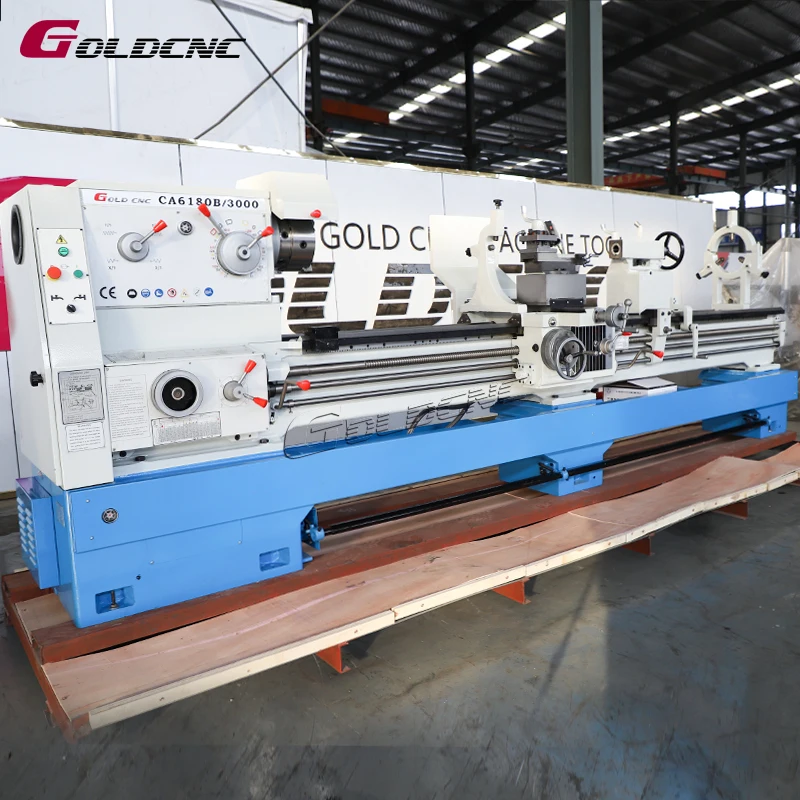

Manual Universal Lathe Machine CA6280 ca6180 Horizontal Lathe
- Category: >>>
- Supplier: Shandong Gold Cnc Machine Tool Co. Ltd.
Share on (1600907955920):
Product Overview
Description
Products Description
CA series ordinary horizontal lathe is suitable for turning internal and external cylindrical surfaces, conical surfaces and other rotating surfaces, turning all kinds of metric, British, modulus and diameter pitch threads, drilling and broaching oil grooves. It is a highly versatile horizontal lathe, which is widely applicable to the batch processing of various shaft and disc parts.
Product Paramenters
Specifications | CA6140 | CA6150 | CA6161 | CA6180 | |||||
Max. Workpiece Diameter of Bed | 400mm | 500mm | 610mm | 800mm | |||||
Max. workpiece diameter of tool holder | 220mm | 300mm | 370mm | 540mm | |||||
Max.Workpiece Length | 750/1000/1500/2000/2200/3000/4000mm | ||||||||
width of bed | 400mm | ||||||||
Cutter rod section | 25×25mm | ||||||||
Spindle axis | Spindle speed range | 16-1400rpm(24steps) | |||||||
Spindle bore | 52mm 、(80mm)、[105mm] | ||||||||
Mores | No.6(MT6)(Φ90 1:20)[Φ113:20] | ||||||||
feed | Feed Quantity | (64 kinds)(for each) | |||||||
Metric thread | (1-192mm) (44 kinds) | ||||||||
English thread | (1-24tpi) (21kinds) | ||||||||
Modular thread | 0.25-48(module 39 kinds) | ||||||||
Diameter thread | 1-96DP(37 kinds) | ||||||||
Tailstock | Tailstock spindle travel | 150mm | |||||||
Tailstock spindle diameter | 75mm | ||||||||
Taper of tailstock spindle hole | Morse NO.5 (MT5) | ||||||||
Main motor | 7.5KW(10HP) | ||||||||
Package dimensions | length 750mm | 2440×1140×1750 | |||||||
length 1000mm | 2650×1140×1750 | ||||||||
length 1500mm | 3150×1140×1750 | ||||||||
length 2000mm | 3650×1140×1750 | ||||||||
length 2200mm | 4030×1140×1750 | ||||||||
length 3000mm | 4800×1140×1750 | ||||||||
length 4000mm | 4800×1140×1750 | ||||||||
weight | Length | G.W./N.W.(KG) | |||||||
Length 750mm | 2170 /2060 | ||||||||
Length 1000mm | 2260/ 2140 | ||||||||
Length 1500mm | 2420 /2290 | ||||||||
Length 2000mm | 2790/ 2640 | ||||||||
Length 2200mm | 2940/ 2790 | ||||||||
Length 3000mm | 3450/ 3300 | ||||||||
Length 4000mm | 3750/ 3600 | ||||||||
Detailed Images

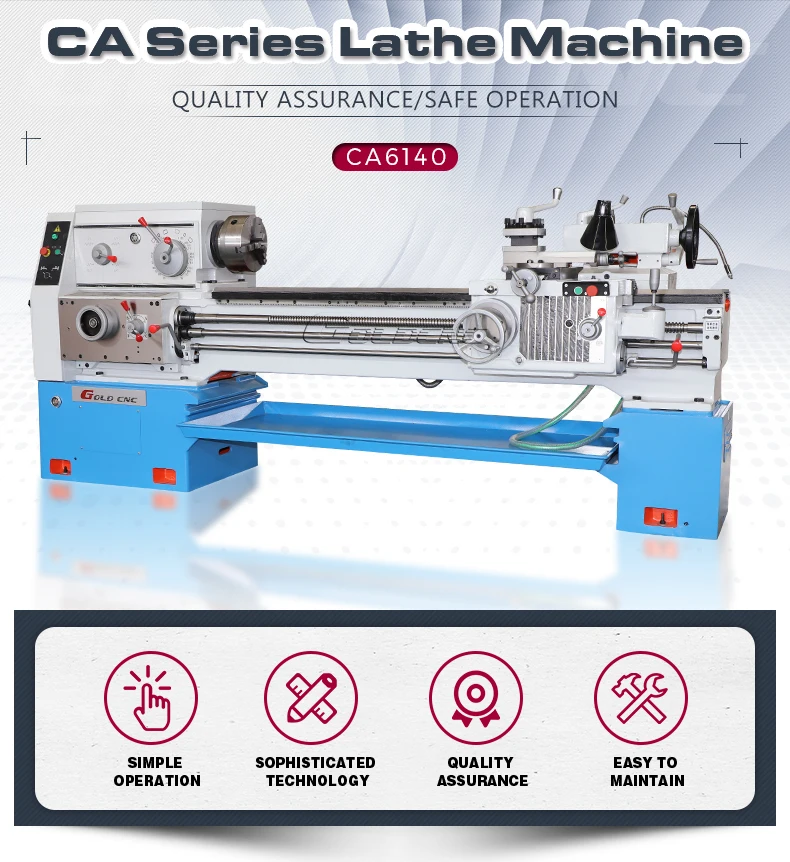

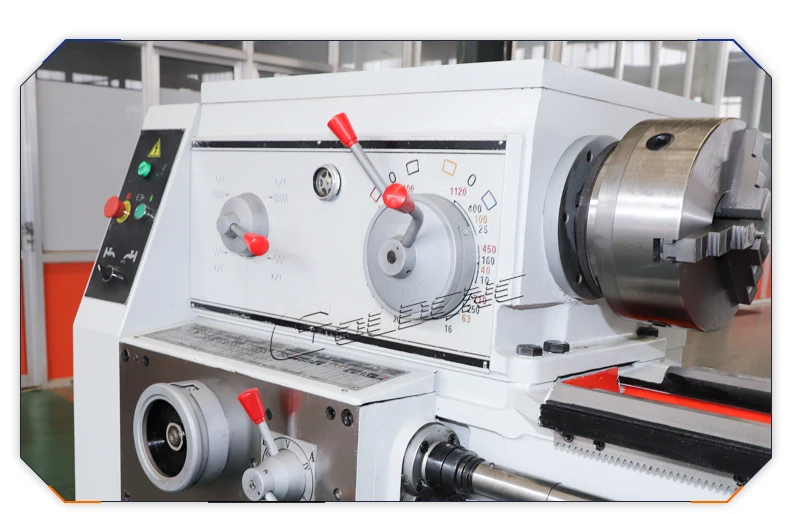

High rigidity and high rotation accuracy，automatic transmission control box.

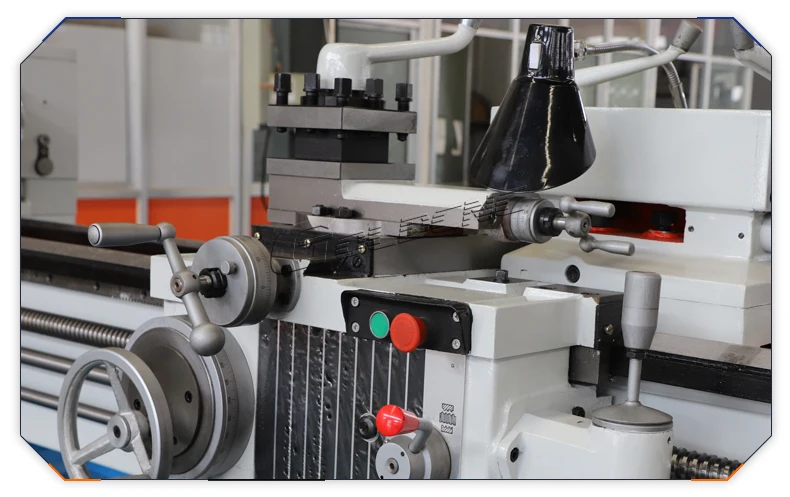

Machine tool adopts four-station high strength tool holder,tool-handle size:25x25mm.

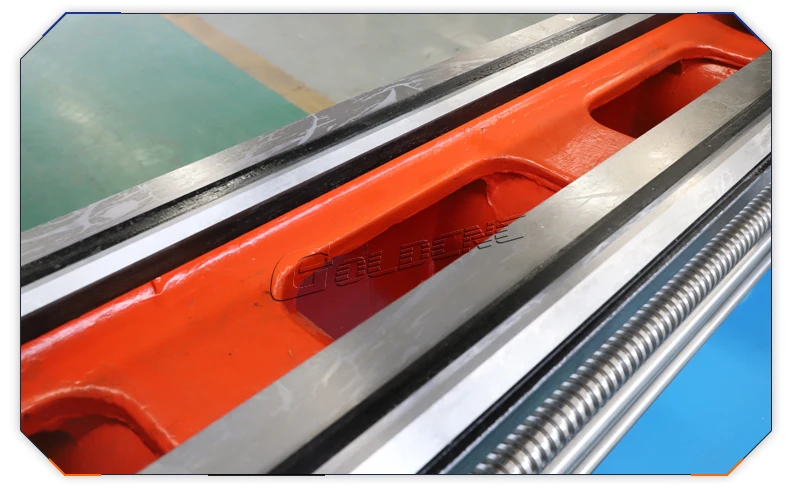

Super audio frequency quenching guide rail,with good wear resistance.

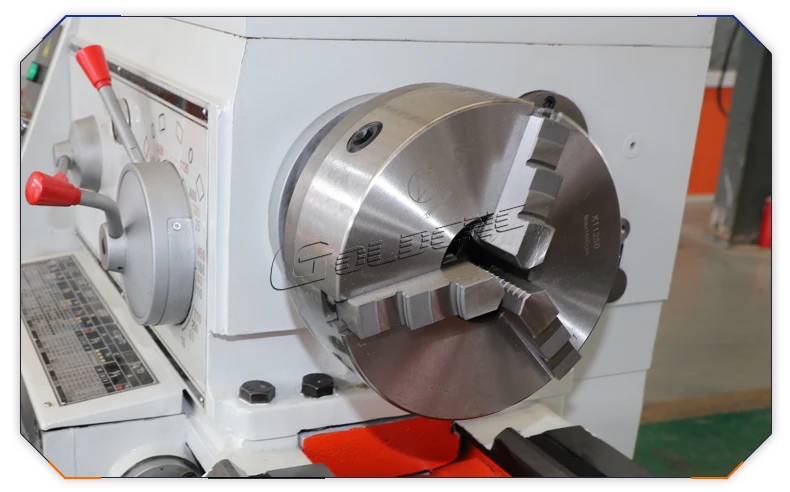

The metal three jaw chuck is conducive to clamping irregular workpiece for rapid production.
Company Introduction
Shandong GOLD CNC Machine Tool Co. Ltd. established in 1988, is a professional manufacturer engaged in the research, development, production, sale and service of CNC milling machine, CNC sawing machine, milling machine, drilling machine, lathe. We are located in Tengzhou with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
Gold CNC aims to improve the reliable service system to provide high quality products and solutions for all fields of manufacturing users. Key Components Adopt International First-class Brand.Inaddition, we have obtained certificates. Products are widely used in aerospace.automobiles, ships, electronics, mold manufacturing and other fields. Golden CNC, committed to the global manufacturing of high-end equipment. Selling well in wordwide, we have obtained CE certificate, our products are also exported to clients in such countries and regions as more than 50 countries and regions, such as the United States, Germany, Japan, Greece and Korea. We also welcome O E M and O D M orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
Packing&Shipping
FAQ
1. What is your company positioning?
GOLDCNC, dedicated to precision equipment manufacturing. Intelligent manufacturing, innovation sharing.
2. What is your manufacturing foundation?
GOLDCNC has a 15,000 square meter constant temperature assembly workshop and 100 tons of medium temperature ash tempering effect furnace. Kuraki boring and milling machine from Kurashiki, Japan, DIXI precision coordinate boring machine from Switzerland, precision rail grinder, high-speed laser cutting machine, fully computerized automatic sheet metal spraying line and other processing machines and complete sets of equipment are provided to provide strong guarantee for production machine tools.
3. How do you do quality control?
GOLDCNC develops and implements strict quality management internal control standards to achieve close monitoring of the entire machine tool design and manufacturing process. 45 inspection and testing items, 632 quality control points, 48-hour high-speed full-stroke load processing test. Germany's ZEISS three-coordinate measuring instrument, Britain's RENISHAW laser interferometer and other world-quality precision testing equipment are used to ensure the precise control of machine tool details.
4. What are your specific product processes?
Our machine tool bed, saddle, table, column, headstock and other main castings are made of cast iron and resin sand, and processed through multiple aging processes to make the machine tool extremely rigid and stable. The guide rail of the machine tool adopts a rectangular sliding guide rail, and the guide surface is subjected to high-frequency hardening treatment, and is grinded by a guide rail grinding machine. Has good accuracy retention. The guide rail is attached with anti-wearing sheet, which has small friction coefficient and strong bearing capacity.
5. What is your market advantage?
We provide not only machine tools, but one-stop solutions for machine tools.
6. Do you have after-sales service, and how to do it?
The whole machine is guaranteed for 2 years, and the service is responded immediately. Currently, we have established service agencies in some countries. In countries and regions that have not been established, we will actively and promptly solve problems for users as appropriate, and provide technical service support through telephone and video. If necessary, they will go to the customer site for on-site service.
7.What's the trade assurance?
When you look at our alibaba website, you will see the trade security, its purpose is to let every buyer confidence, it can
protect your payment, ensure that the suppliers fulfill their commitment to the date of shipment and the quality of the products (as you stated in the purchase order).If the supplier finds breach of these contractual obligations, alibaba will indemnify you for 100% of your trade guarantee.Therefore, I believe that through trade guarantees, you will have greater confidence to cooperate with us. Our company has US $300000 trade assurance limit, it can guarantee your interests.
8.Do your products support trade assurance?
Yes, our products are all supported.
GOLDCNC, dedicated to precision equipment manufacturing. Intelligent manufacturing, innovation sharing.
2. What is your manufacturing foundation?
GOLDCNC has a 15,000 square meter constant temperature assembly workshop and 100 tons of medium temperature ash tempering effect furnace. Kuraki boring and milling machine from Kurashiki, Japan, DIXI precision coordinate boring machine from Switzerland, precision rail grinder, high-speed laser cutting machine, fully computerized automatic sheet metal spraying line and other processing machines and complete sets of equipment are provided to provide strong guarantee for production machine tools.
3. How do you do quality control?
GOLDCNC develops and implements strict quality management internal control standards to achieve close monitoring of the entire machine tool design and manufacturing process. 45 inspection and testing items, 632 quality control points, 48-hour high-speed full-stroke load processing test. Germany's ZEISS three-coordinate measuring instrument, Britain's RENISHAW laser interferometer and other world-quality precision testing equipment are used to ensure the precise control of machine tool details.
4. What are your specific product processes?
Our machine tool bed, saddle, table, column, headstock and other main castings are made of cast iron and resin sand, and processed through multiple aging processes to make the machine tool extremely rigid and stable. The guide rail of the machine tool adopts a rectangular sliding guide rail, and the guide surface is subjected to high-frequency hardening treatment, and is grinded by a guide rail grinding machine. Has good accuracy retention. The guide rail is attached with anti-wearing sheet, which has small friction coefficient and strong bearing capacity.
5. What is your market advantage?
We provide not only machine tools, but one-stop solutions for machine tools.
6. Do you have after-sales service, and how to do it?
The whole machine is guaranteed for 2 years, and the service is responded immediately. Currently, we have established service agencies in some countries. In countries and regions that have not been established, we will actively and promptly solve problems for users as appropriate, and provide technical service support through telephone and video. If necessary, they will go to the customer site for on-site service.
7.What's the trade assurance?
When you look at our alibaba website, you will see the trade security, its purpose is to let every buyer confidence, it can
protect your payment, ensure that the suppliers fulfill their commitment to the date of shipment and the quality of the products (as you stated in the purchase order).If the supplier finds breach of these contractual obligations, alibaba will indemnify you for 100% of your trade guarantee.Therefore, I believe that through trade guarantees, you will have greater confidence to cooperate with us. Our company has US $300000 trade assurance limit, it can guarantee your interests.
8.Do your products support trade assurance?
Yes, our products are all supported.
