Factory Customized Fused Silica UV window Quartz Plate
- Category: >>>
- Supplier: Lianyungang Qudao Quartz Products Co. Ltd.
Share on (1600907958621):
Product Overview
Description
Product Description

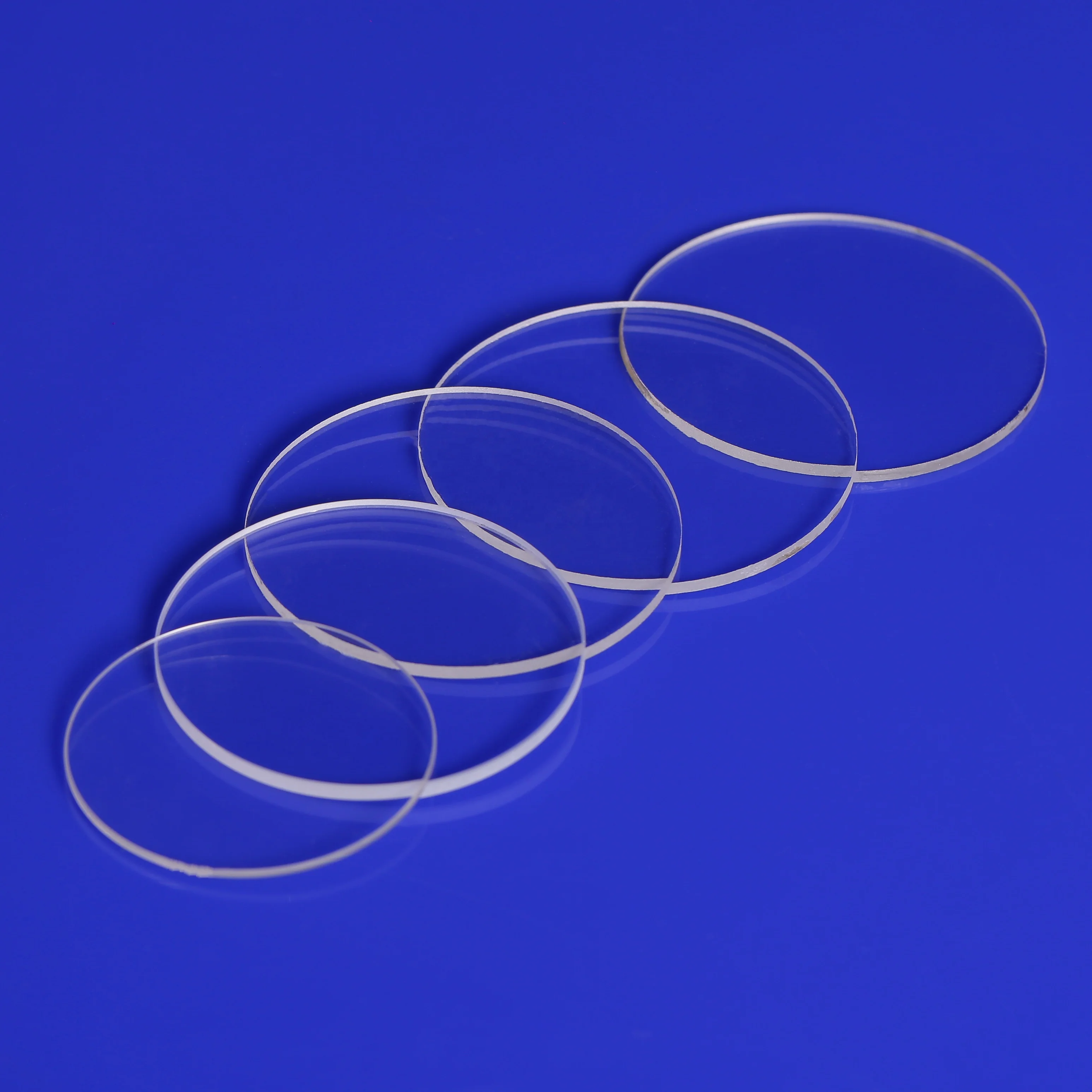

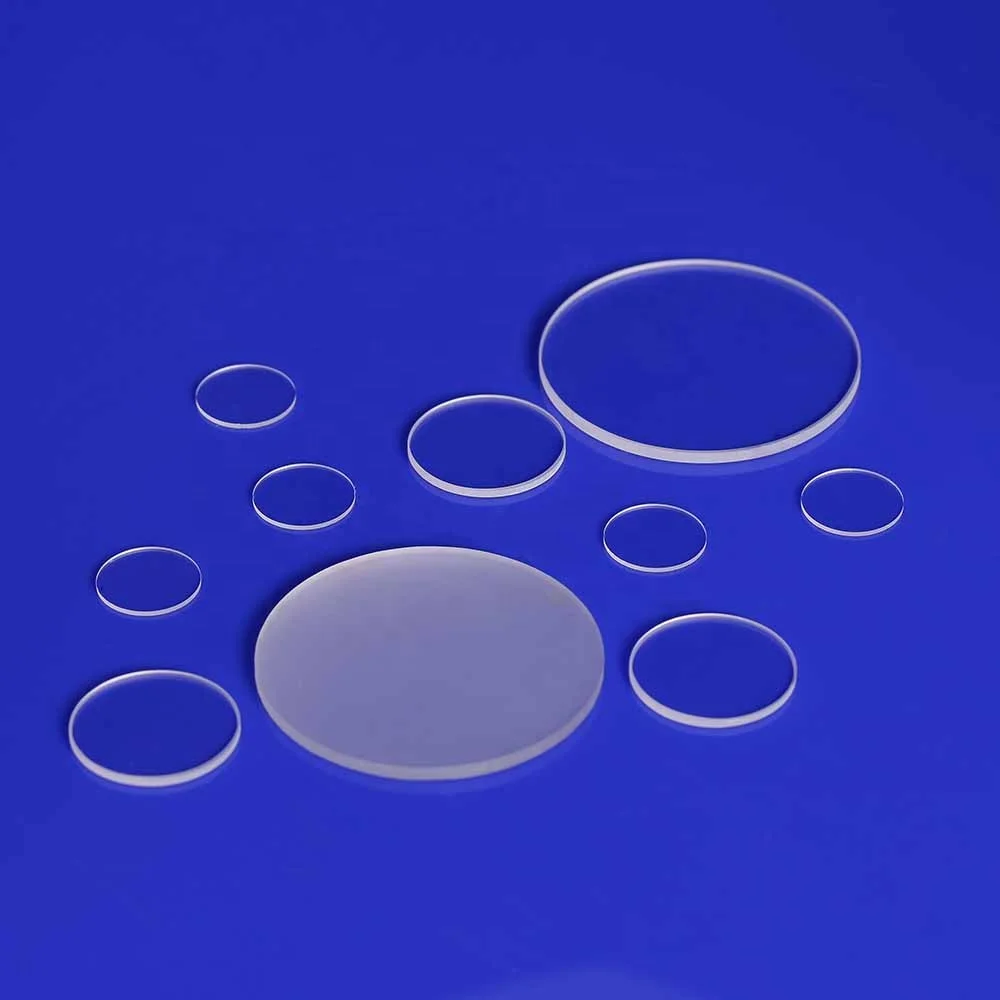

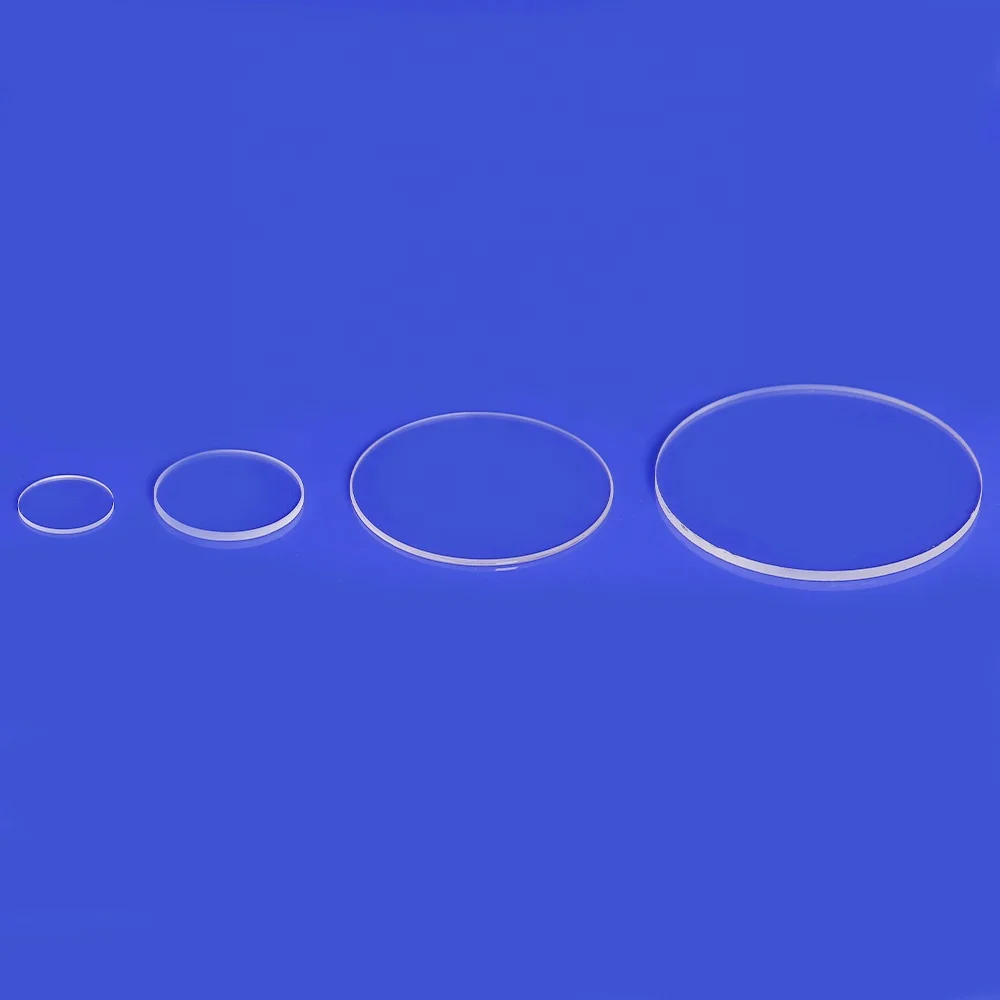

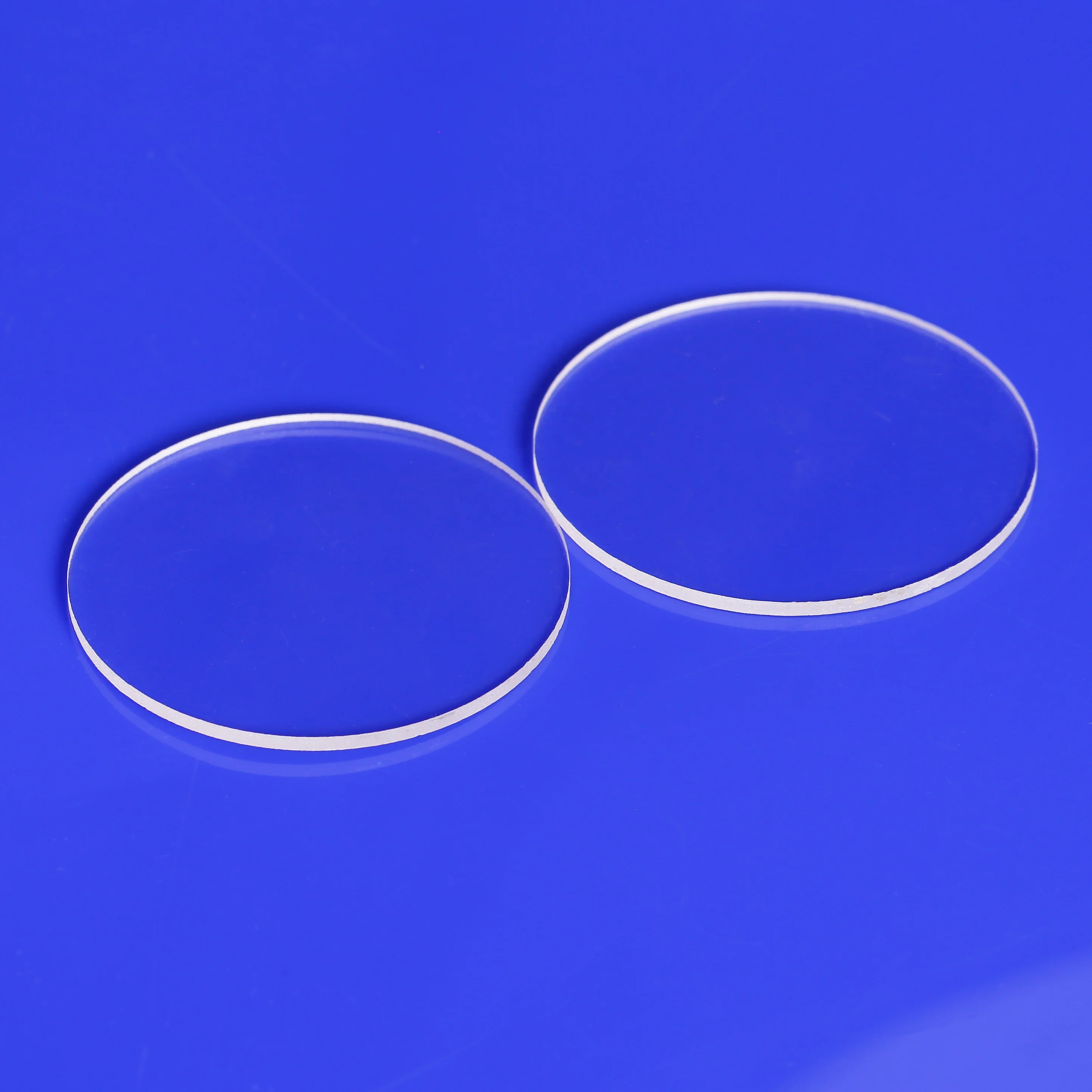

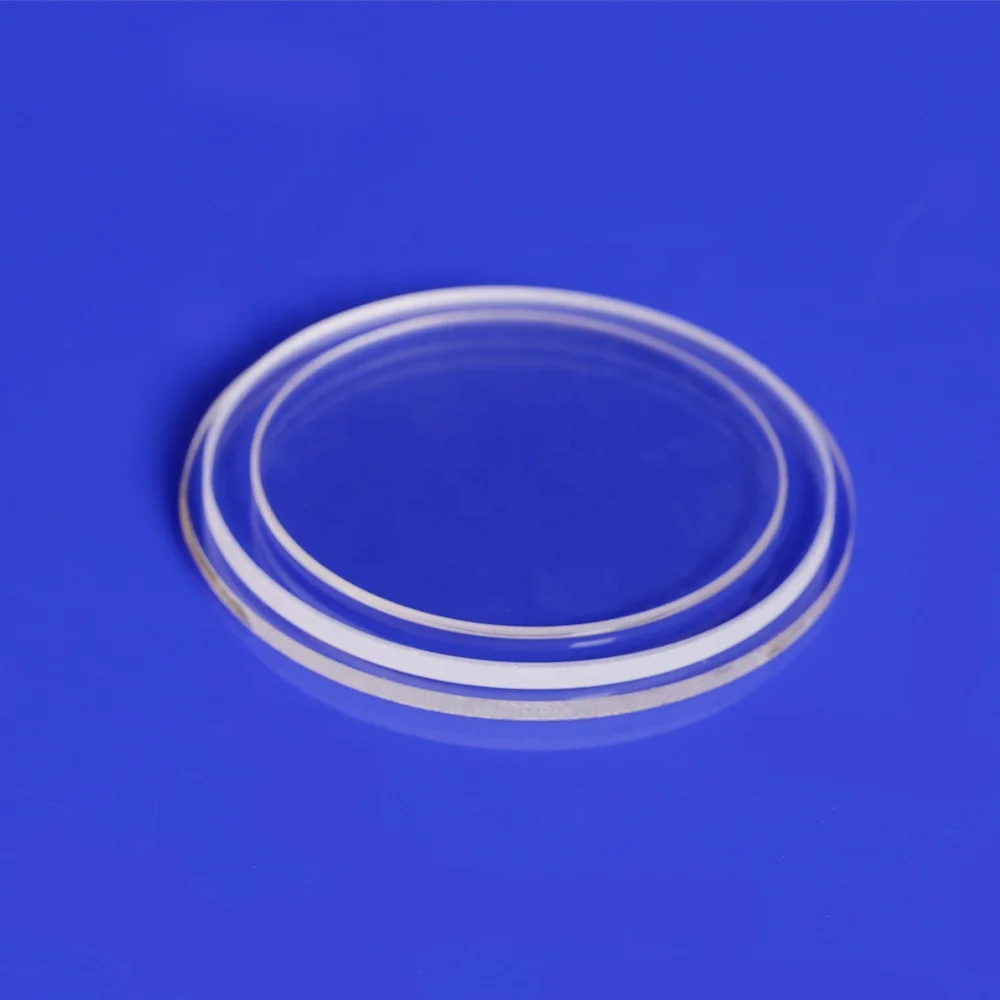

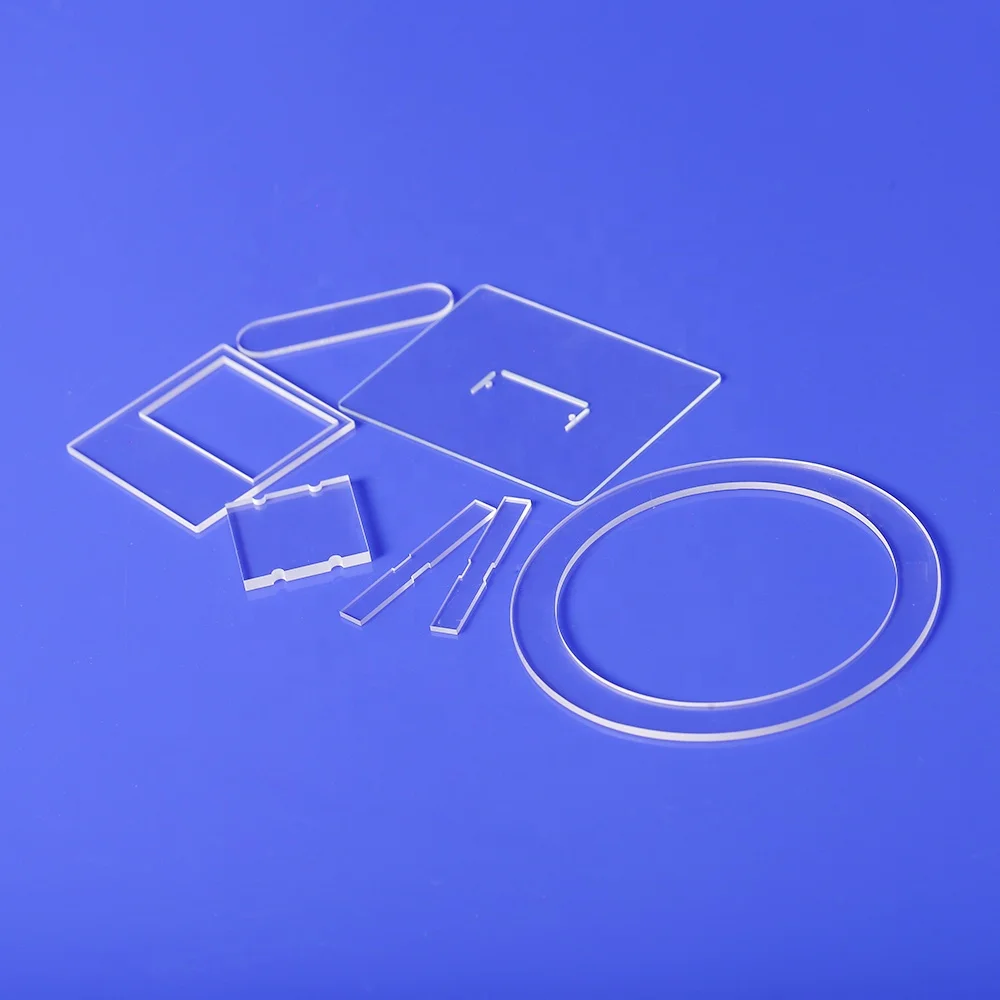

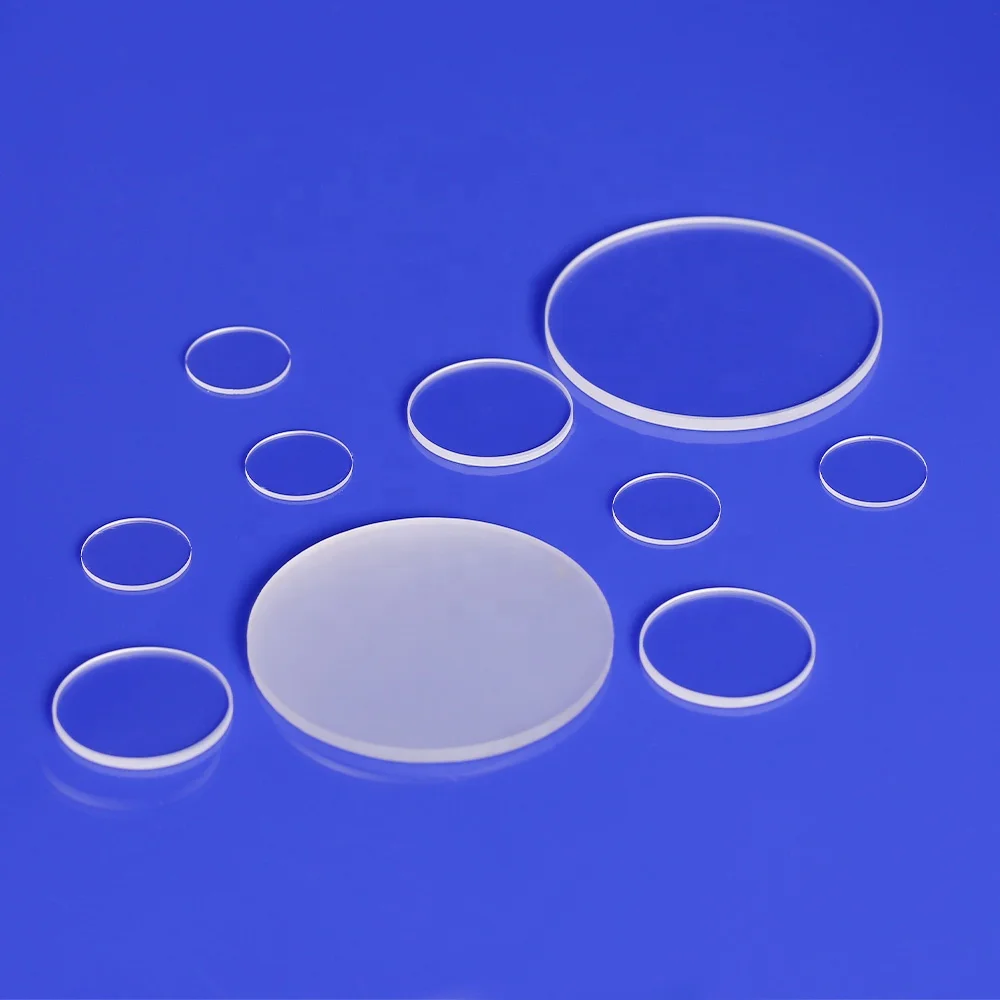

Factory Customized Fused Silica UV window Quartz Plate
Material properties of clear quartz glass plate:
High Durability
High heat resistance
High Corrosion Resistance
Low Thermal Expansion Coefficient

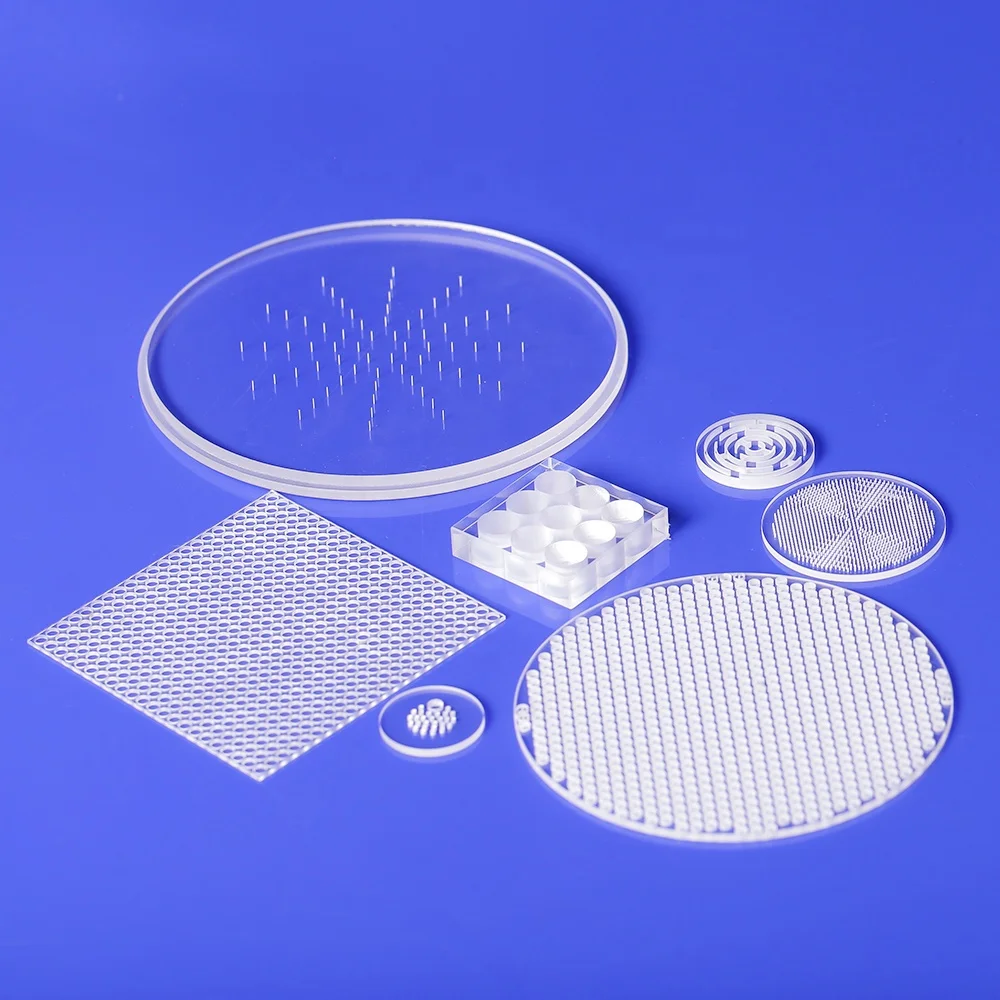

Main Application of quartz plate with CNC Slotting :
semiconductor, heating industry, muffle furnace heating, semiconductor, optical, military, chemical, mechanical,electrical,
environmental protection and other fields.
High Durability
High heat resistance
High Corrosion Resistance
Low Thermal Expansion Coefficient
Main Application of quartz plate with CNC Slotting :
semiconductor, heating industry, muffle furnace heating, semiconductor, optical, military, chemical, mechanical,electrical,
environmental protection and other fields.
Quartz Glass material Advantage
*High purity quartz with Silica content 99.99% or above.
* Very low thermal conductivity, excellent thermal vibration resistance
* Very high deformation temperature and softening temperature
* High dielectric electric field strength, low dielectric loss, and low conductivity
* Optical transmittance in an extremely wide spectral range from ultraviolet to infrared
* Very good chemical stability, does not react with water, salt solutions and most acids.
* Excellent radiation resistance.
* Very low thermal conductivity, excellent thermal vibration resistance
* Very high deformation temperature and softening temperature
* High dielectric electric field strength, low dielectric loss, and low conductivity
* Optical transmittance in an extremely wide spectral range from ultraviolet to infrared
* Very good chemical stability, does not react with water, salt solutions and most acids.
* Excellent radiation resistance.
Product Paramenters
Property Content | Property Values |
Type | CNC Slotting Quartz Plate |
Application | UV light,optical, laser |
Thickness | 0.1-200mm |
Shape | Circular Shape/Square |
Place of Origin | Jiangsu,China |
Brand Name | Qudao quartz |
Model Number | QD-PLATE |
Processing Service | Bending,Welding,Punching,Cutting,Glaze |
Product Name | Quartz glass plate |
Material | SiO2 |
Work Temperature | 1100 Degrees Celsius |
OEM | Accept |
Size | Client Requirement |
Density | 2.2g/cm3 |
Surface | Polished Treatment |
Edge | Grounded |
Purity | 99.99%SIO2 |
Package | Safety carton/wooden cases |
JGS1 | JGS2 | |
Spectal characteristics | 180-2500nm | 200-2500nm |
Average transmittance | 90% | 85% |
Bubble class | 0 | 2 |
Birefringence | 1-2 | 1-2 |
Grain structure | 1 | 2 |
Fluorescence | 1 | 2 |
Radiation performance | no changing color | sight discoloration |
Recommend Products
Company Profile
Lianyungang Qudao Quartz Products CO.,Ltd is a quartz glass products’ deep processing enterprise integrating R&D, production and sales . We have a number of cold processing and hot processing production lines for quartz glass products, and hot processing customized products are our unique advantage. Combing with our Continuous innovation in production technology, advanced production and testing Facilities &Equipment,fine workmanship and quality guarantee system , we can help you solve any problems you encounter when using quartz glass products.
Since Qudao Quartz established from 2013, with the cultural philosophy of “Take the right way and inexhaustible use” and the cornerstone of "Market-oriented, truth-seeking and mutual benefit, honesty and common development" to seek development,which make us successively become a long-term supplier of many well-known universities, major research institutes, environmental protection, medical and other famous enterprises at home and abroad. Our products are exported to Europe, America, Southeast Asia, Japan, South Korea and many other countries.
Certifications
Packing & Delivery
Packaging for quartz glass window plate:
1. Inner: 1piece / Bubble paper. Plastic air cushion film. Foam material
2. Outer: Shipping Carton Wooden case/ According to customers' requirement.
Delivery for quartz glass window plate:
1. By Air (China Post Air Mail, ePacket, DHL, UPS, TNT, FEDEX)
2. By Sea (FOB Qingdao,Shanghai etc.)
3. Both air and sea shipment is available, it's depend on your request.
3. Both air and sea shipment is available, it's depend on your request.
FAQ
1.Q:What is the material of your products?
A: The material is natural quartz and glass.
2.Q:Are you a factory or trading company?
A: We are a factory.
3.Q:How does your factory do regarding quality control?
A: Quality is priority. We have our professional quality control team to guard every step of the manufacturing.
4.Q:How can I pay for you?
A: T/T, West Union and Alibaba credit guarantee order.
5.Q:How do you ship the goods and how long does it take to arrive?
A: We usually ship by ePacket, DHL, TNT, UPS or FedEx. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
A: The material is natural quartz and glass.
2.Q:Are you a factory or trading company?
A: We are a factory.
3.Q:How does your factory do regarding quality control?
A: Quality is priority. We have our professional quality control team to guard every step of the manufacturing.
4.Q:How can I pay for you?
A: T/T, West Union and Alibaba credit guarantee order.
5.Q:How do you ship the goods and how long does it take to arrive?
A: We usually ship by ePacket, DHL, TNT, UPS or FedEx. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
