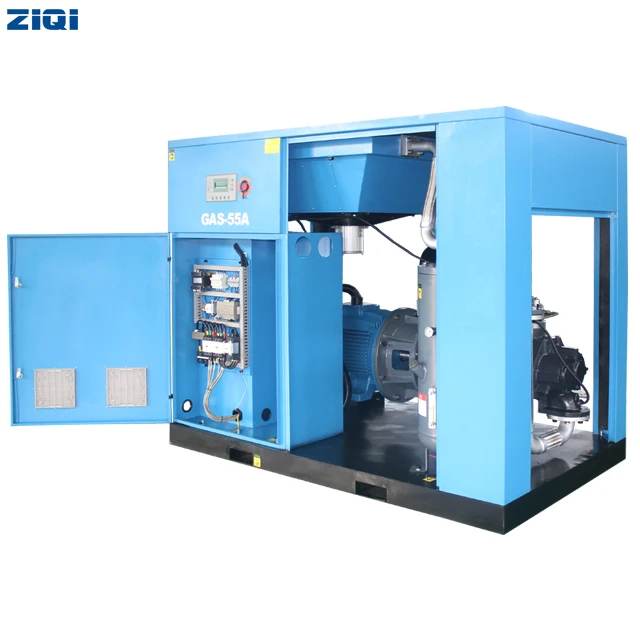

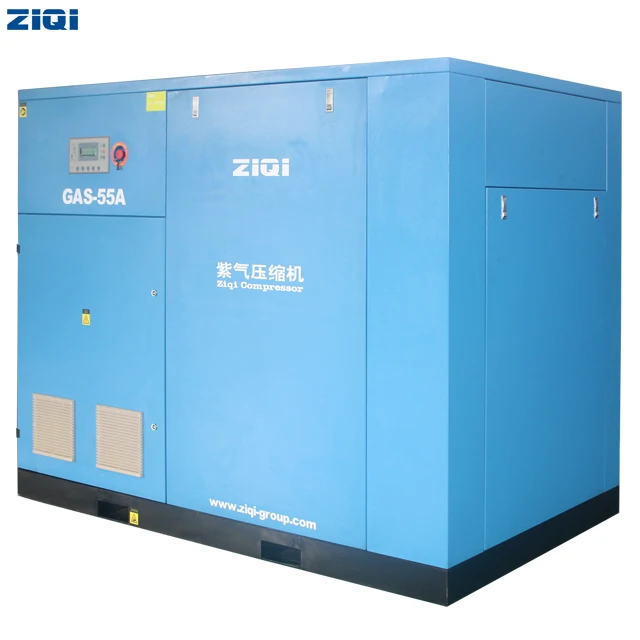

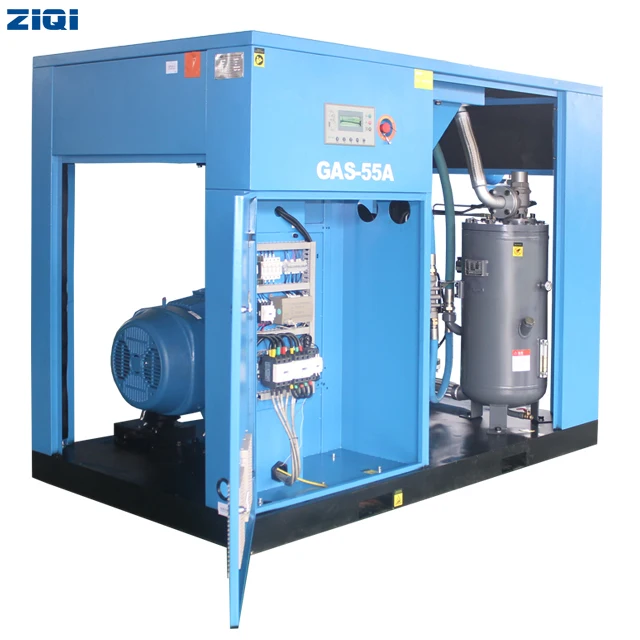

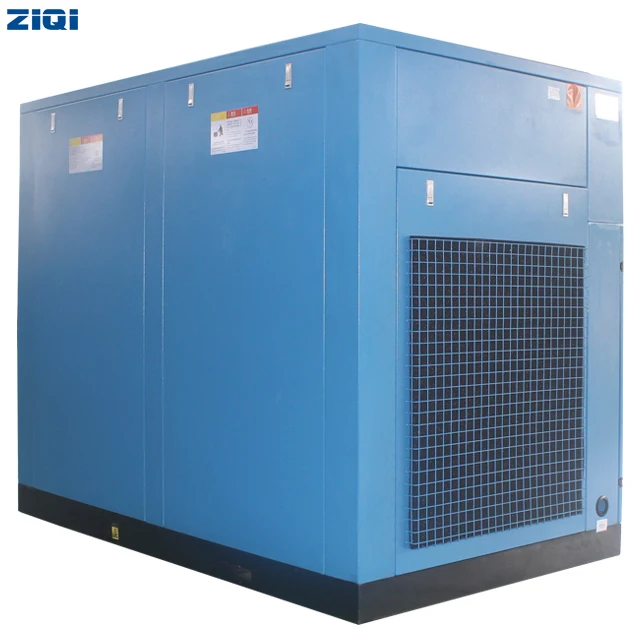

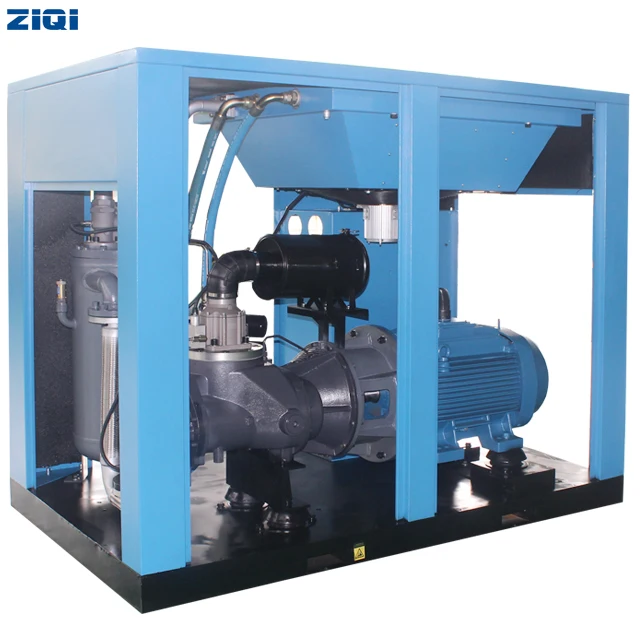

customized industrial single stage belt driven screw 55kw 380v 7bar 385cfm air compressor machine for chemistry
- Category: >>>
- Supplier: Ziqi Compressor (shanghai) Co. Ltd.
Share on (1600907959366):
Product Overview
Description
PRODUCT INTRODUCTION
OUR ADVANTAGES
Our advantages

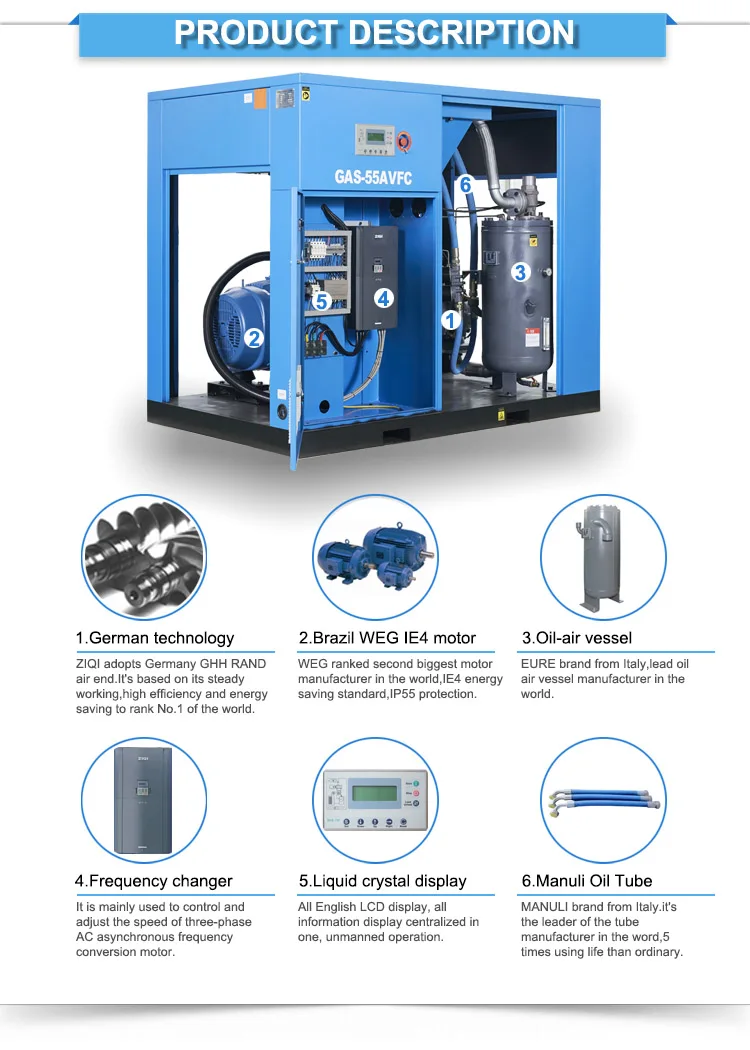

1.ZIQI oil injection rotary screw air compressor,80% components adopted global known reliable brand;
2.The core part:Screw air end,adopt USA Ingersoll Rand screw brand,origin from Germany GHH RAND,it is regarded as the biggest and earliest screw air end manufacturer in the world ;
3.Another core parts:Motor,adopt Brazil WEG IE4 motor,WEG is the second biggest motor manufacturer in the world,and with the IE4 high efficiency standard three phase induction motor ,level IP55 protection ,level F insulation and level B temperature rise;
4.Italian Manuli oil tube;
5.French Schneider electric system;
6.Sweden SKF bearings;
....
ZIQI Compressor focus on making the air compressor energy saving,durable ,stable working and low failure rate,to help the client save a large operation cost and avoid many trouble due to the machine working failure.
PRODUCT SPECIFICATIONS
Model | Exhaust pressure(Mpa) | Air displacement (m³/min) | Dimensions(mm) | Weight(KG) | Compressor series | Cooling | Starting method | ||||
L | M | H | |||||||||
GAS-7.5A VFC | 0.7 | 0.13~1.3 | 1095 | 845 | 1120 | 310 | single stage | Air-cooling | Frequency start up | ||
0.8 | 0.12~1.2 | ||||||||||
1.0 | 0.11~1.1 | ||||||||||
1.3 | 0.09~0.9 | ||||||||||
GAS-11A VFC | 0.7 | 0.18~1.8 | 1095 | 1450 | 1900 | 320 | single stage | Air-cooling | Frequency start up | ||
0.8 | 0.17~1.7 | ||||||||||
1.0 | 0.15~1.5 | ||||||||||
1.3 | 0.12~1.2 | ||||||||||
GAS-15A VFC | 0.7 | 0.27~2.7 | 1260 | 850 | 1220 | 590 | single stage | Air-cooling | Frequency start up | ||
0.8 | 0.25~2.5 | ||||||||||
1.0 | 0.23~2.3 | ||||||||||
1.3 | 0.20~2.0 | ||||||||||
GAS-18.5A VFC | 0.7 | 0.32~3.2 | 3100 | 1800 | 2065 | 600 | single stage | Air-cooling | Frequency start up | ||
0.8 | 0.30~3.0 | ||||||||||
1.0 | 0.28~2.8 | ||||||||||
1.3 | 0.24~2.4 | ||||||||||
GAS-22A VFC | 0.7 | 0.38~3.8 | 3250 | 1900 | 1965 | 610 | single stage | Air-cooling | Frequency start up | ||
0.8 | 0.36~3.6 | ||||||||||
1.0 | 0.32~3.2 | ||||||||||
1.3 | 0.28~2.8 | ||||||||||
GAS-30A VFC | 0.7 | 0.57~5.7 | 1500 | 970 | 1390 | 860 | single stage | Air-cooling | Frequency start up | ||
0.8 | 0.55~5.5 | ||||||||||
1.0 | 0.50~5.0 | ||||||||||
1.3 | 0.45~4.5 | ||||||||||
GAS-37A VFC | 0.7 | 0.68~6.8 | 875 | single stage | Air-cooling | Frequency start up | |||||
0.8 | 0.63~6.3 | ||||||||||
1.0 | 0.57~5.7 | ||||||||||
1.3 | 0.50~5.0 | ||||||||||
GAS-45A VFC | 0.7 | 0.79~7.9 | 960 | single stage | Air-cooling | Frequency start up | |||||
0.8 | 0.74~7.4 | ||||||||||
1.0 | 0.69~6.9 | ||||||||||
1.3 | 0.61~6.1 | ||||||||||
GAS-55A VFC | 0.7 | 1.09~10.9 | 2150 | 1326 | 1766 | 1730 | single stage | Air-cooling | Frequency start up | ||
0.8 | 1.04~10.4 | ||||||||||
1.0 | 0.94~9.4 | ||||||||||
1.3 | 0.86~8.6 | ||||||||||
GAS-90A VFC | 0.7 | 1.70~17.0 | 2545 | 1450 | 1900 | 2770 | single stage | Air-cooling | Frequency start up | ||
0.8 | 1.65~16.5 | ||||||||||
1.0 | 1.52~15.2 | ||||||||||
1.3 | 1.40~14.0 | ||||||||||
GAS-110A VFC | 0.7 | 2.20~22.0 | 3075 | single stage | Air-cooling | Frequency start up | |||||
0.8 | 2.08~20.8 | ||||||||||
1.0 | 1.82~18.2 | ||||||||||
1.3 | 1.60~16.0 | ||||||||||
*For more model,please contact the salesman.

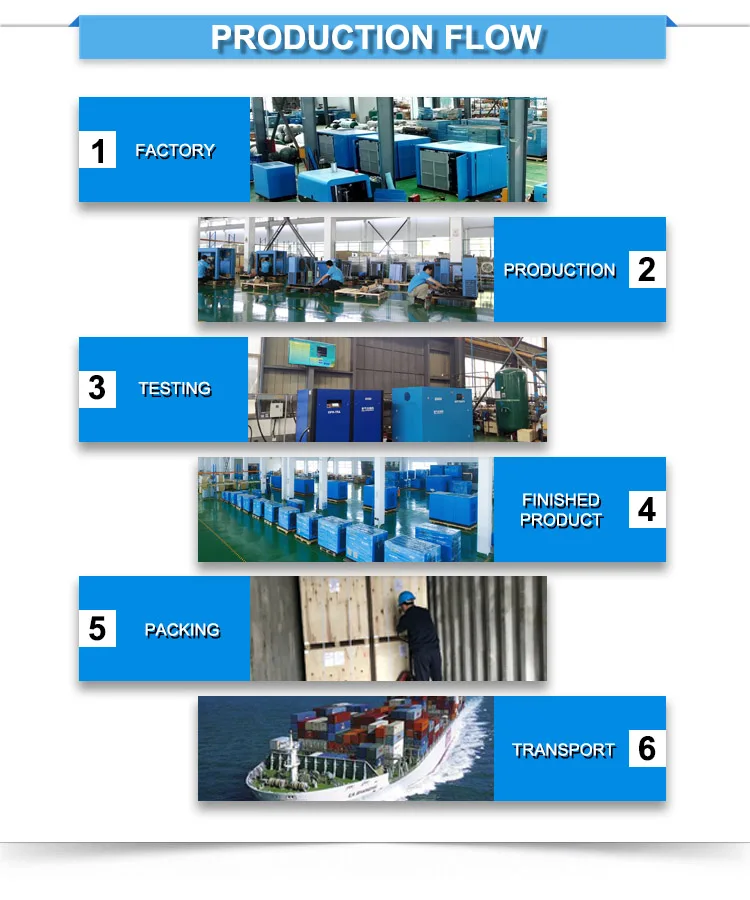

PRODUCTION FLOW
COMPANY PROFILE
CERTIFICATIONS
FAQ
Are you manufacturer?
ZIQI: Yes, we are professional air compressor manufacturer over 15 years and our factory is located in Shanghai.
How long is your air compressor warranty?
ZIQI: Air end for 2 years,other for 1 year.
Do you provide After- sales service parts?
ZIQI: Of course, We could provide easy- consumable spares.
How long could your air compressor be used?
ZIQI: Generally, more than 20 years.
How about your price?
ZIQI: Based on high quality, Our price is very competitive in this market all over the world.
How about your customer service?
ZIQI: For email, we could reply our customers' emails within 2 hours.
Do you support OEM?
ZIQI: YES, and we also provide multiple models to select. How to get quicker quotation?When you send us inquiry, please confirm below information at the same time:
* What is the air displacement (m3/min,cfm/min)?
* What is the air pressure (mpa,bar,psi)?
* What is the voltage in your factory (v/p/Hz)?
* It is ok if you need air tank, air dryer and filters.
This information is helpful for us to check suitable equipment solution and quotation quickly.
ZIQI: Yes, we are professional air compressor manufacturer over 15 years and our factory is located in Shanghai.
How long is your air compressor warranty?
ZIQI: Air end for 2 years,other for 1 year.
Do you provide After- sales service parts?
ZIQI: Of course, We could provide easy- consumable spares.
How long could your air compressor be used?
ZIQI: Generally, more than 20 years.
How about your price?
ZIQI: Based on high quality, Our price is very competitive in this market all over the world.
How about your customer service?
ZIQI: For email, we could reply our customers' emails within 2 hours.
Do you support OEM?
ZIQI: YES, and we also provide multiple models to select. How to get quicker quotation?When you send us inquiry, please confirm below information at the same time:
* What is the air displacement (m3/min,cfm/min)?
* What is the air pressure (mpa,bar,psi)?
* What is the voltage in your factory (v/p/Hz)?
* It is ok if you need air tank, air dryer and filters.
This information is helpful for us to check suitable equipment solution and quotation quickly.
