64GB 6GB Large Memory Android 10 Industrial Multi Scenario Application Handheld Device 5.5 inch HD Full Screen Mobile Computer R
- Category: >>>
- Supplier: Shenzhen Effon Limited
Share on (1600907978173):
Product Overview
Description
Product Description
Product Name | 64GB+6GB Android 10 Octa-Core IP67 Industrial Handheld 5.5Inch HD Full Screen Mobile Computer Rugged 2D QR Bar code Scanner PDAs |
Keypoint | High-speed operation performance: With the Android 10 operating system, matching 2.1GHz high-speed processor with prefect compatibility and computing capability, high-speed operating efficiency is suitable for strict application requirements. |
18W fast charge, only takes 2 hours for a full charge for 5000mAh | |
Fast bluetooth 5.0 transmit | |

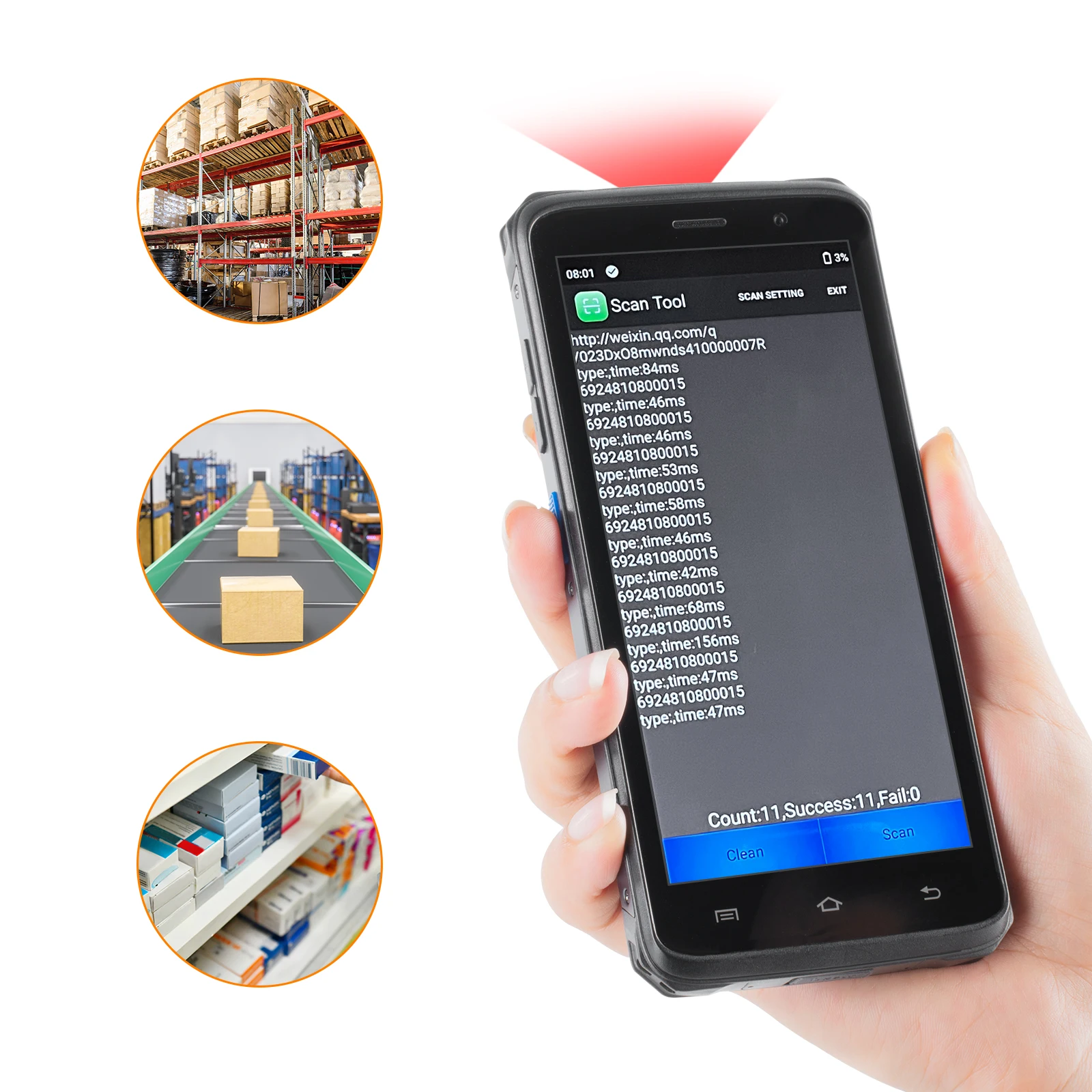

Excellent identification ability Fully support 1D, 2D and QR barcode scanning | |
Convenient appearance design: Slim and ergonomics design, it is convenient and comfortable for holding and carrying. 45.45"，720*1440, HD+ 18:9，LTPS technology | |
Abundant means of data transportation 2G,3G,4G,Wifi,Bluetooth, NFC, GPS etc. | |
Industrial-grade durability IP67 for 5000mAh built-in battery while IP65 for 6000mAh removable battery. 1.5M drop protection. Waterproof, dustproof provide a long time using without fatigue. | |
Multiple extensions Support GPS, AGPS, and Beidou compass navigation. | |
Always-available wireless connection Supports Wi-Fi 802.11 a/b/g/n/ac(DUAL：2.4GHz+5GHz) wireless communications and maintains a real-time connection with the system to ensure high efficient operation. | |
Supporting OEM and system customization including On / off page logo |
Specification
Model | TA10 | |
System Configuratio Specifications | ||
Processor | MT6771（Octa core, main frequency 2.1GHz） | |
Operating System | Android 10.0 | |
Memory | 64GB ROM+6GB RAM | |
Expansion Slot | MicroSD card（UP TO128GB，SDHC） | |
Display | 5.45"，720*1440, HD+ 18:9，LTPS | |
Touch Panel | GFF 10 touch, Glove mode/Wet hand operation | |
Front Camera | 5MP（ FF） | |
Rear Camera | 13MP PDAF Quick Focus+Night light | |
Touch Glas | Tempered glass | |

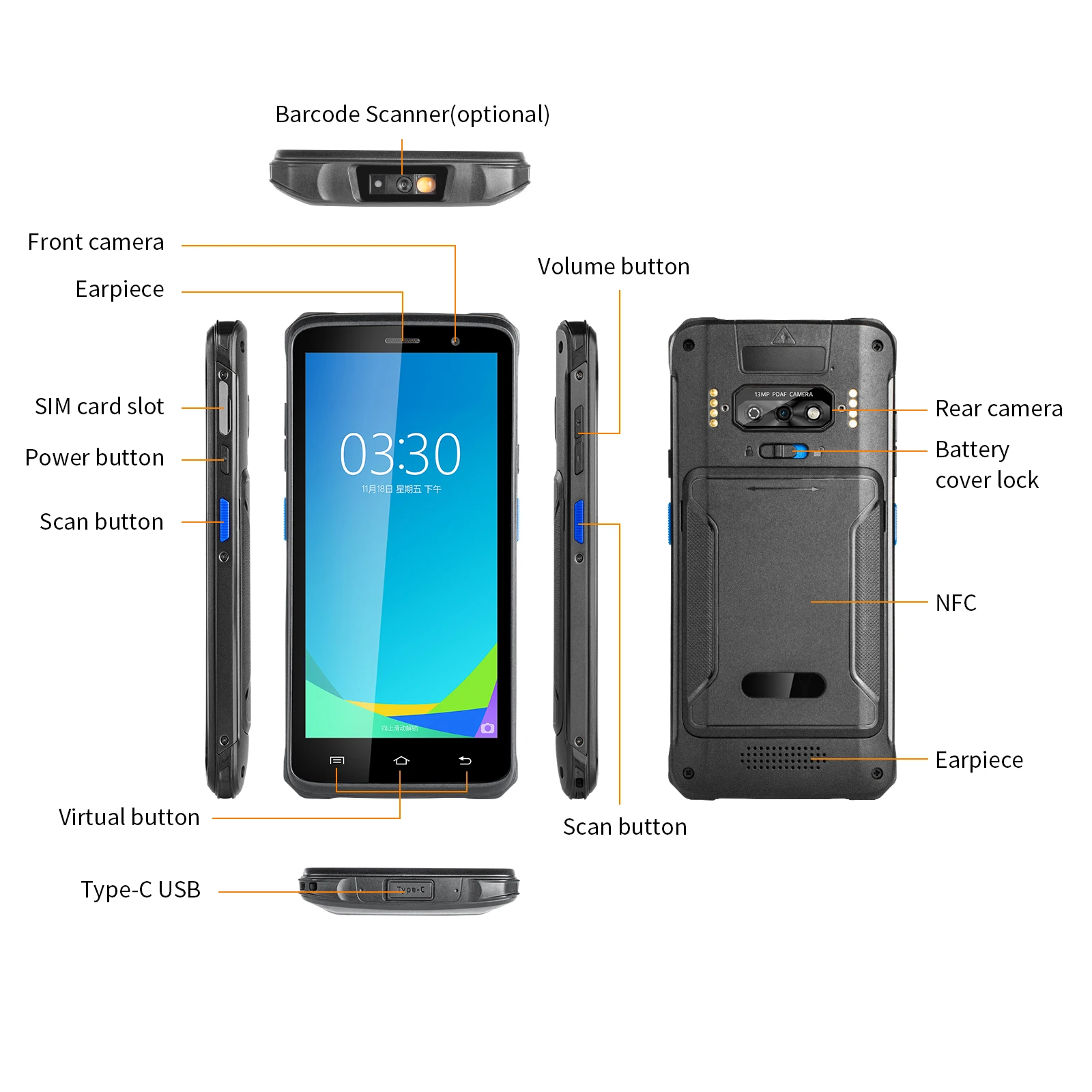

Keypad | 3 virtual, 4 physical buttons on the side (1 switch) | |

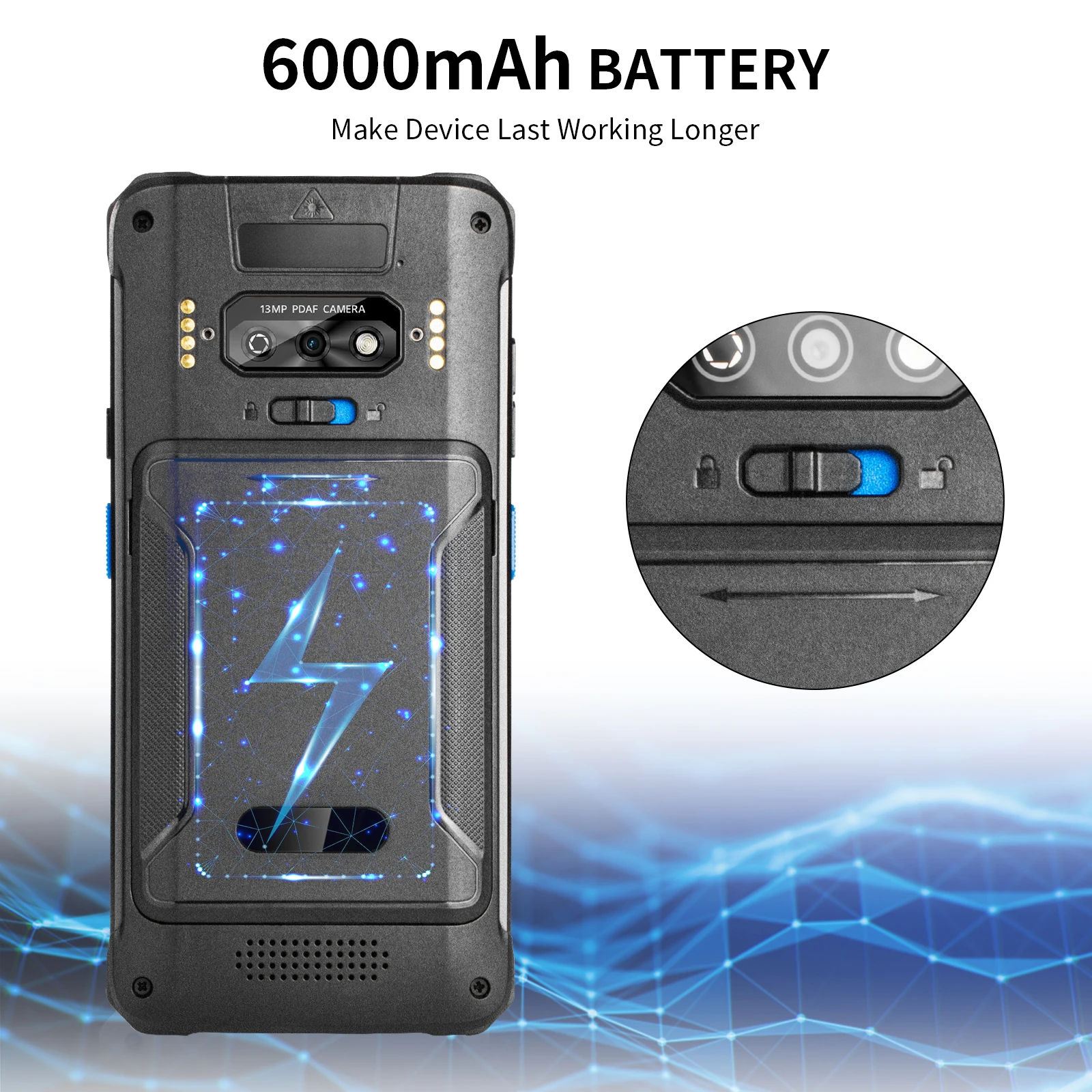

Battery Capacity | 5000mAh build-in lithium polymer battery/6000mAH/optional，discharge temperature-20~60℃ | |
Fast charge | 9V/2A | |
Speaker | 1217dual speaker＞98dB | |
Prompt | Vibration prompt /LED prompt/audio prompt | |
Vibration | Built-in vibration motor | |
Sensor | Optical distance sensor/gravity sensor/gyroscope/geomagnetic sensor/air pressure sensor | |
Communication Transmission | ||
Wireless WAN (Network frequency） | GSM：B2/B3/B5/B8 TD-SCDMA：B34/B39 WCDMA：B1/B8 TDD-LTE Bands：B34/B38/B39/B40/B41 LTE-FDD Bands：B1/B2/B3/B8 CA: B3+B3 2CA；B1+B3 2CA Optional for other special Band | |
Wireless WAN (Data Service） | GSM/TD-SCDMA/WCDMA/TDD LTE/FDD LTE | |
Wireless LAN | Wi-Fi 802.11 a/b/g/n/ac(DUAL：2.4GHz+5GHz) | |
Bluetooth | Bluetooth 5.0 | |
GPS | Support GPS/AGPS/Glonass/Beidou | |
2D Barcode Scanning | ||
Scan engine | Zebra 4770/Self-developed Scanner | |
Optical resolution | 1280*800 pixes / 844*640 pixes | |
Scan precision | ≥3mil , Code 39/128 | |
Scan Angles | Tilt:360°，Pitch:±45°，Skew:±60° | |
Laser Safety Grade | Class II | |
NFC | ||
Frequency | 13.56 MHz | |
Reading Distance | Within 2cm | |
Protocol | ISO14443A/ISO14443B | |
Special feature | Support contactless CPU card, support 2 generation ID card read | |
User Environment | ||
Operating Temp. | -20~60° | |
Storage Temp. | -40~60° | |
Humidity | 0~95% | |
Drop Specification | Marble 2M, concrete 1.5M | |
IP Grade | IP67 | |
ESD | ±12 KV air discharge； ±8 KV conductive discharge | |
Input / Output Ports | ||
USB Port | 1 PCS，Type-C USB port | |
Charger Port | 1 PCS, Type-C USB water-proof port | |
OTG | Support | |
Develop Tools | ||
Developing Tool | Android SDK | |
Supported language | Java | |
Accessories | ||

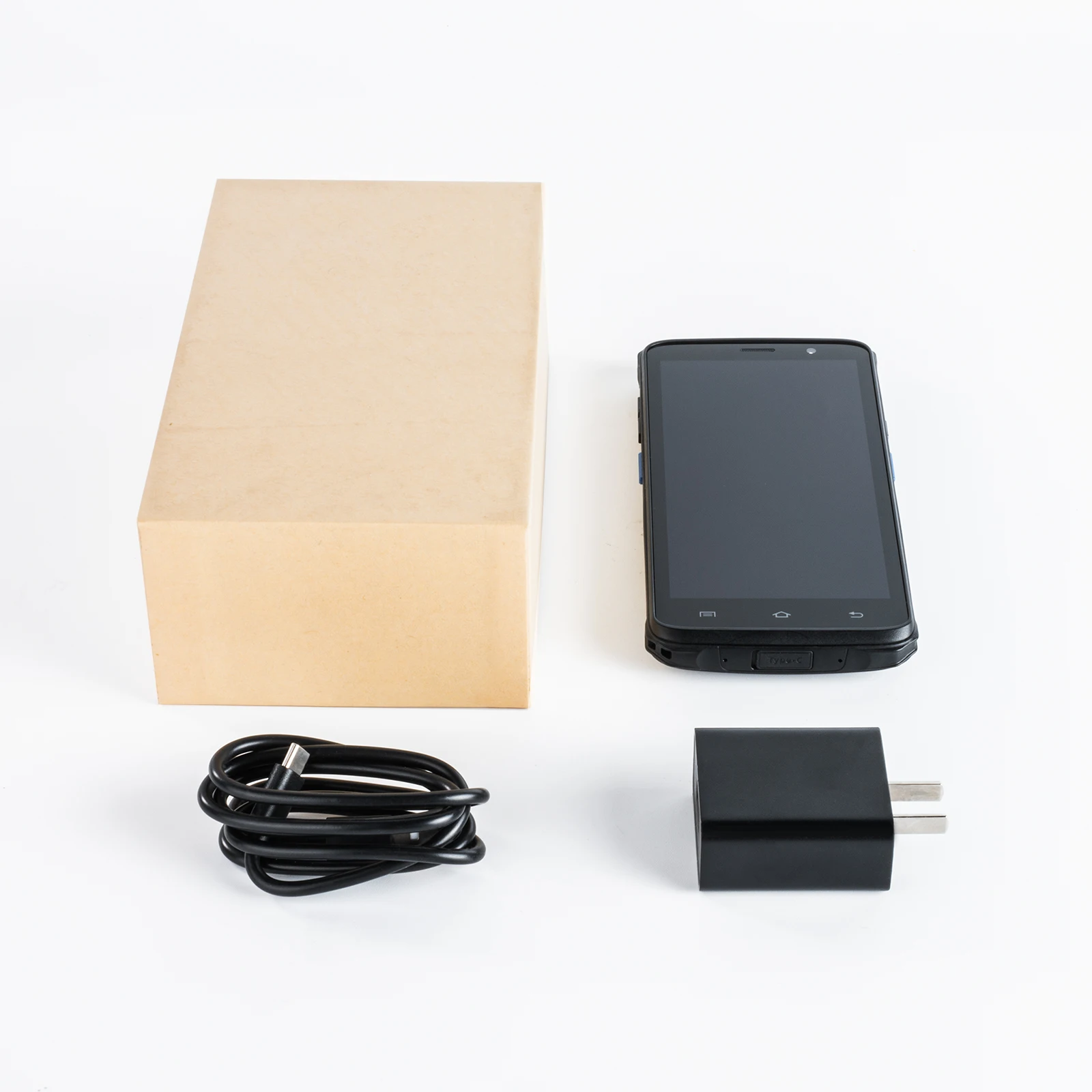

Standard | Charger, data cable, battery, lanyard, tempered film | |
Optional | Protector | |
Mechanical Parameter | ||
Dimension(LxWxD) | 159mm×75.9mm×16.5mm | |
Weight | 248g | |
Company Profile
Shenzhen Effon Limited was founded in 2008 and registered in HK as Hong Kong Unique Electronic Int' Ltd.It is a well-known domestic modern enter prise focused on technology research, product development, manufacturing, sales and services of wearable barcode device and embedded equipment. We specialized in IP65 wearable barcode scanner and POS peripheral products, as well as some data capture technology business.
