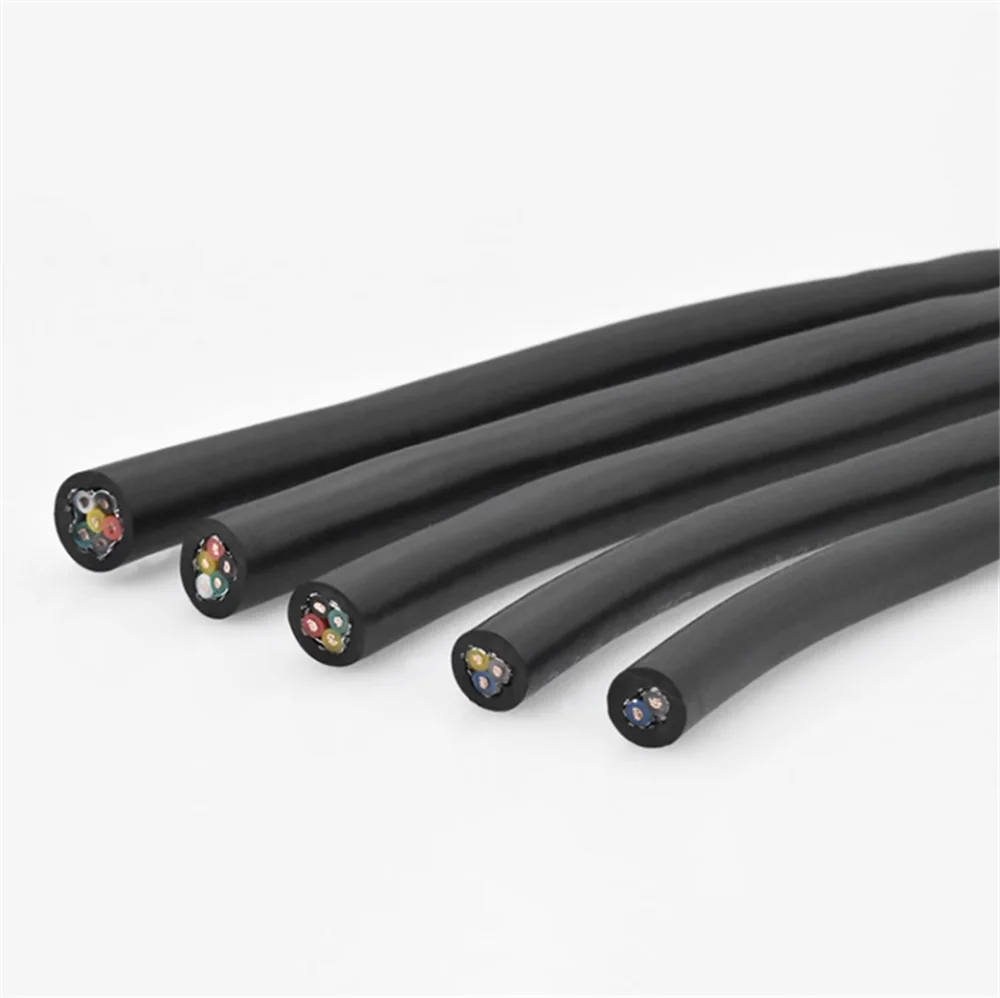

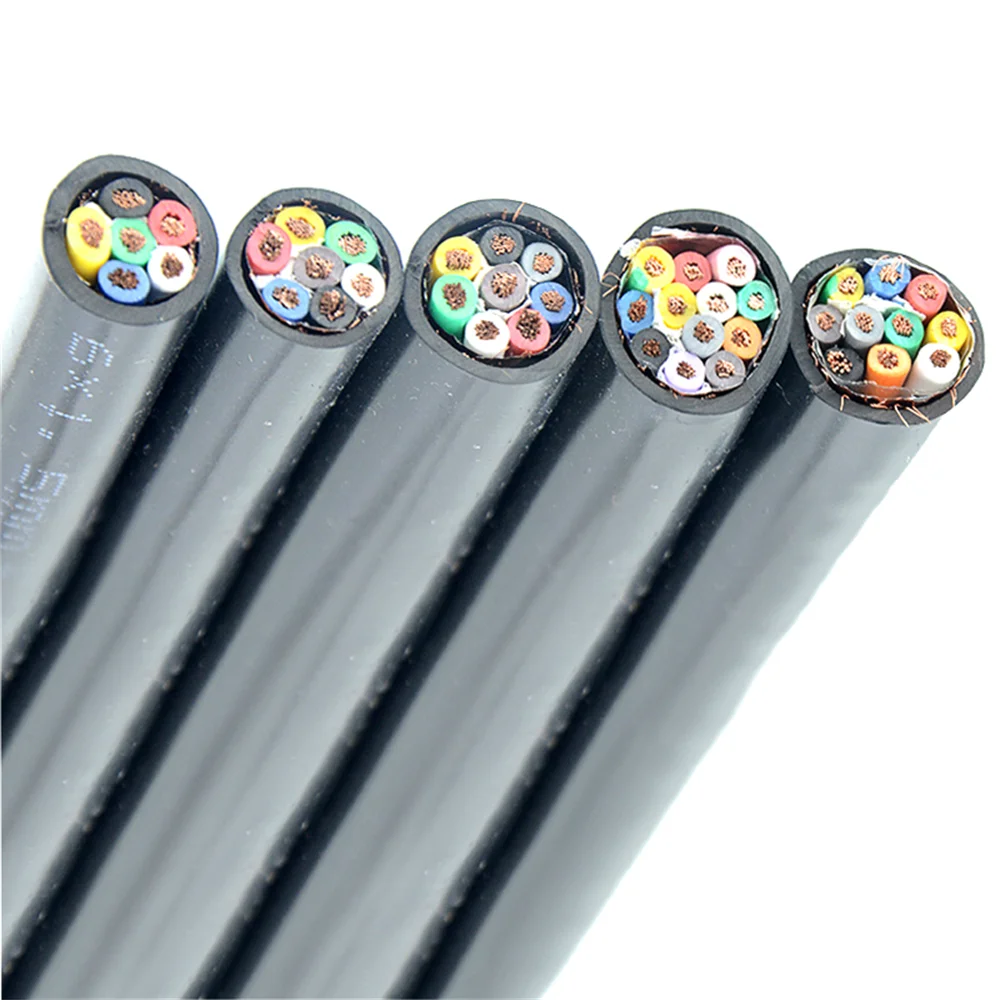

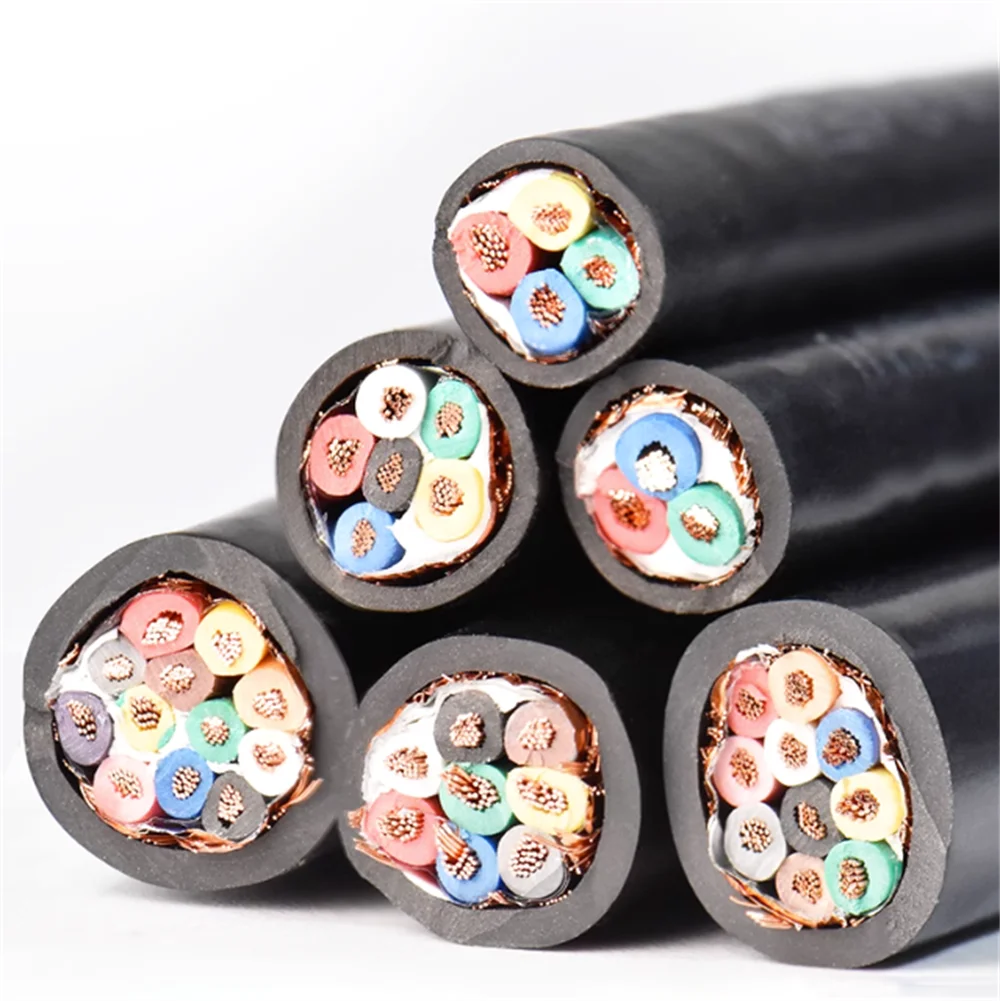

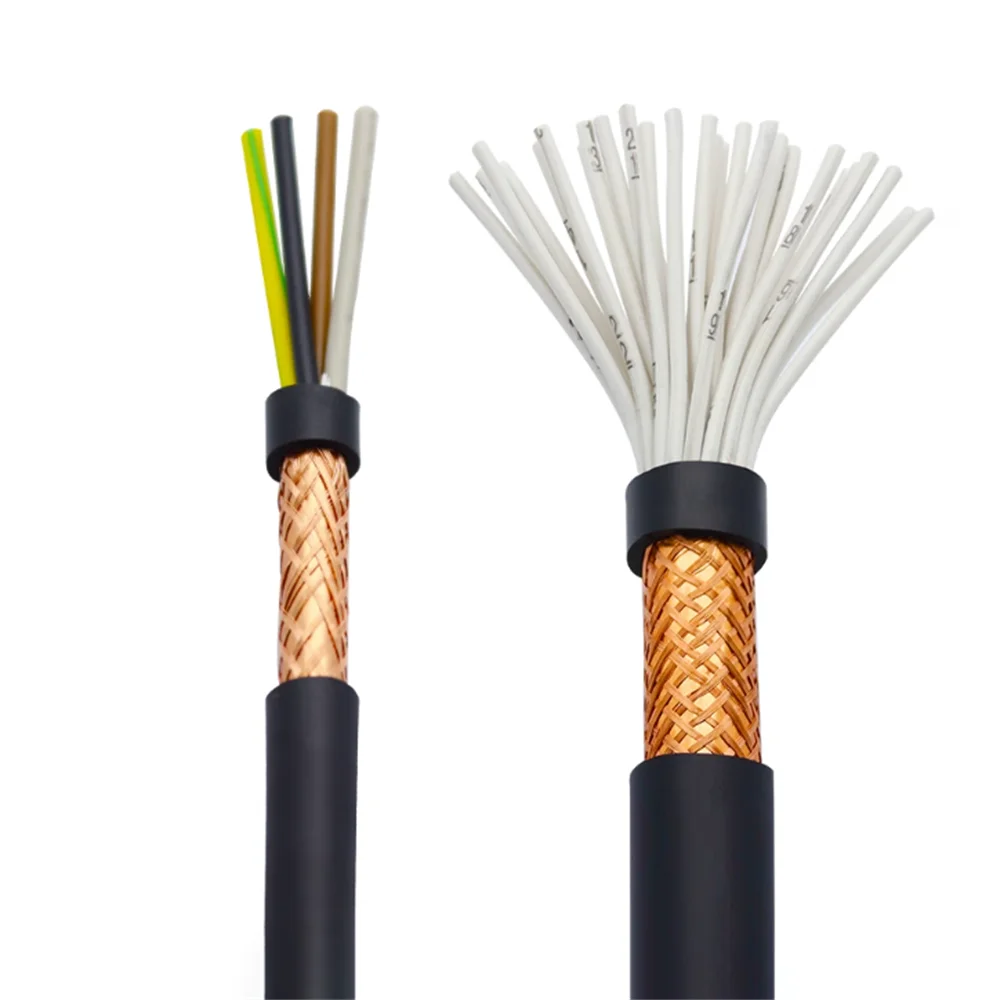

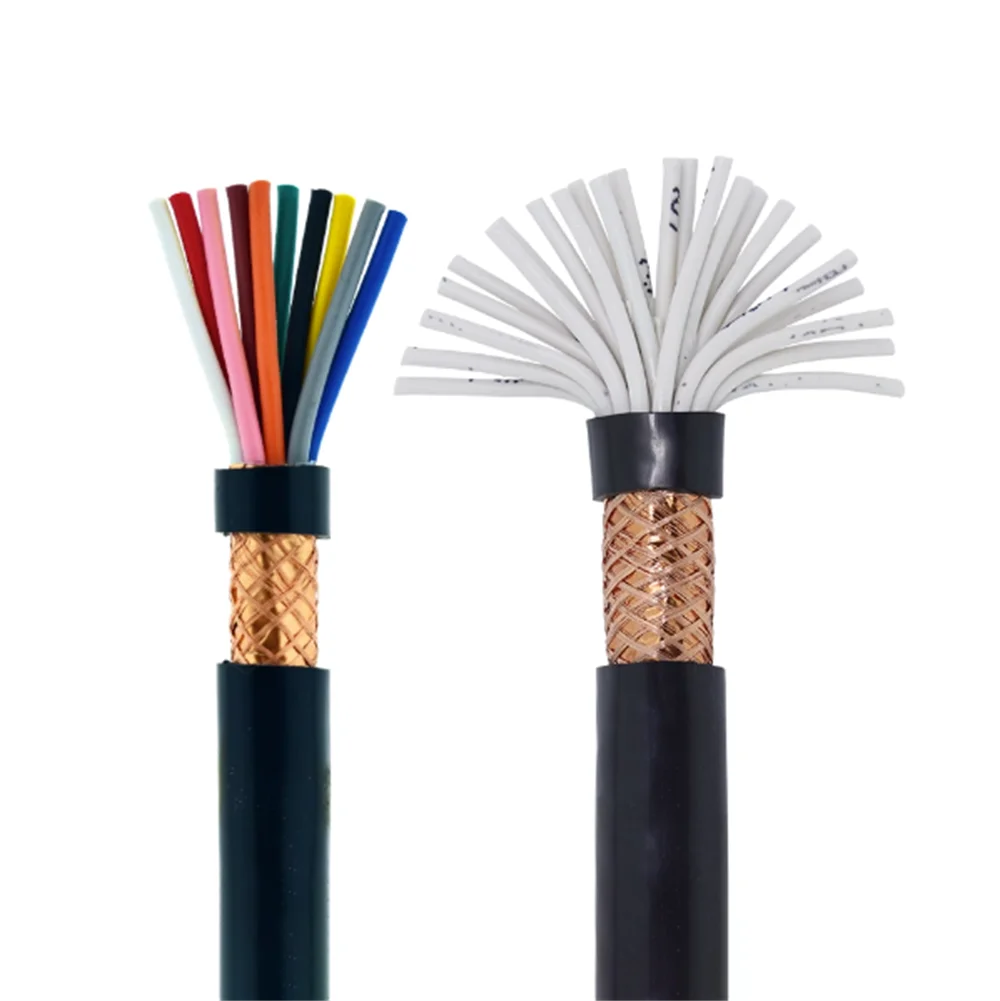

Multi Core Flexible Armoured Signal Wire, RVVP Shielded Cable 2/3/4/5/6/7/8/10 Cores Bare Copper PVC Insulated Control Cable
- Category: >>>
- Supplier: Shanghai Kmcable Group Co. Ltd.
Share on (1600907991584):
Product Overview
Description
Products Description
* Rated temperature：70℃
* Rated voltage：300/500V
* Reference standard：DIN VDE 0281-5

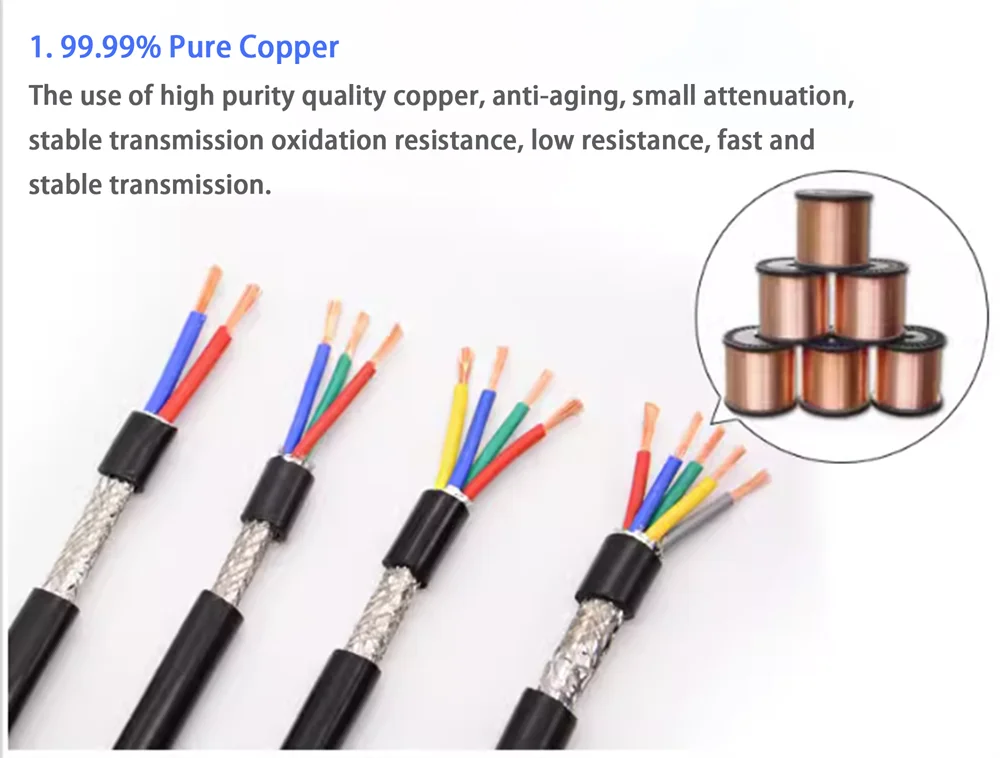

* Stranded bare copper conductor 0.75~2.5mm2

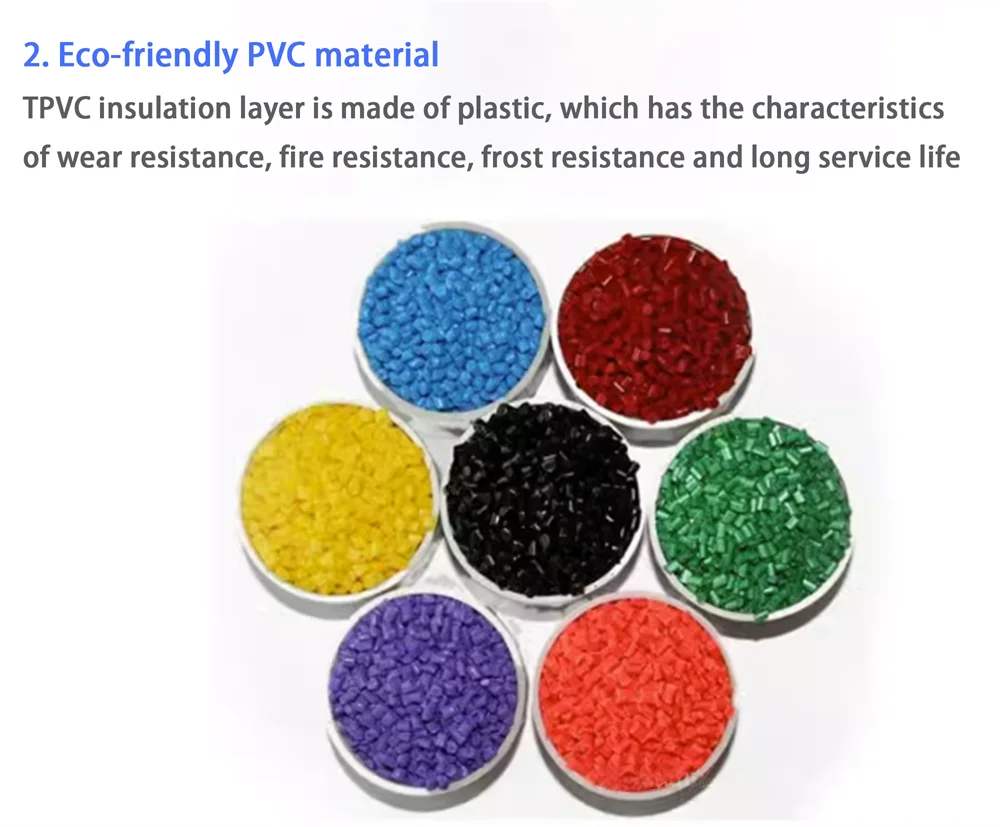

* PVC insulation , comply with ROHS environmental standard
* PVC jacket , comply with ROHS environmental standard
* Rated voltage：300/500V
* Reference standard：DIN VDE 0281-5
* Stranded bare copper conductor 0.75~2.5mm2
* PVC insulation , comply with ROHS environmental standard
* PVC jacket , comply with ROHS environmental standard

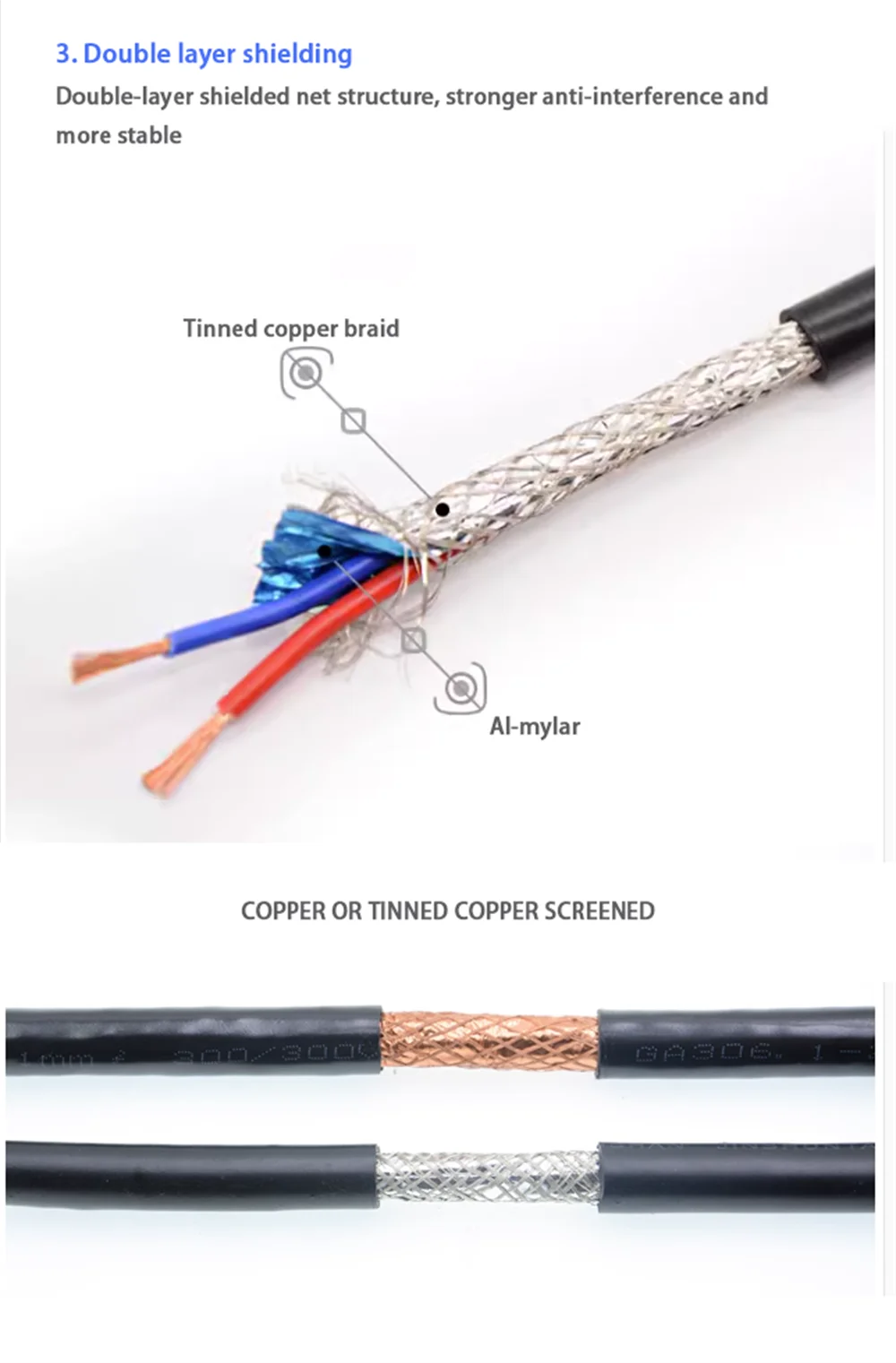

* Tinned copper or pure copper braid screen
* Passes HD 405.1 flame test

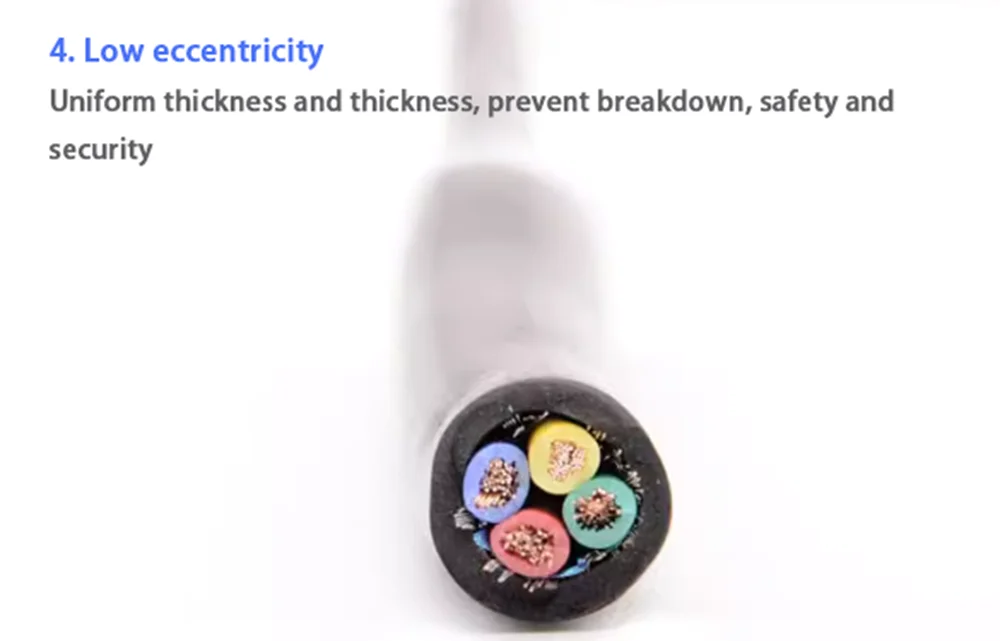

* Uniform insulation thickness to ensure easy stripping and cutting
* For general purpose use for power supply cord
* Passes HD 405.1 flame test
* Uniform insulation thickness to ensure easy stripping and cutting
* For general purpose use for power supply cord
Specifications
Model | AWG size | Insulation thickness mm | Outer diameter mm | MAX.COND. RESISTANCE (Ω/km,20℃,DC) |
2*0.75 | 18 | 0.61 | 6.8 | 26 |
3*0.75 | 18 | 0.61 | 7.1 | 10/15/20 feet |
4*0.75 | 18 | 0.61 | 7.5 | 10/15/20 feet |
5*0.75 | 18 | 0.61 | 8.6 | 10/15/20 feet |
2*1.5 | 16 | 0.71 | 8.1 | 13.3 |
3*1.5 | 16 | 0.71 | 8.9 | |
4*1.5 | 16 | 0.71 | 9.9 | |
5*1.5 | 16 | 0.71 | 10.8 | |
2*2.5 | 14 | 0.82 | 9.8 | 7.98 |
3*2.5 | 14 | 0.82 | 10.9 | |
4*2.5 | 14 | 0.82 | 11.7 | |
5*2.5 | 14 | 0.82 | 13.2 |
Details Images

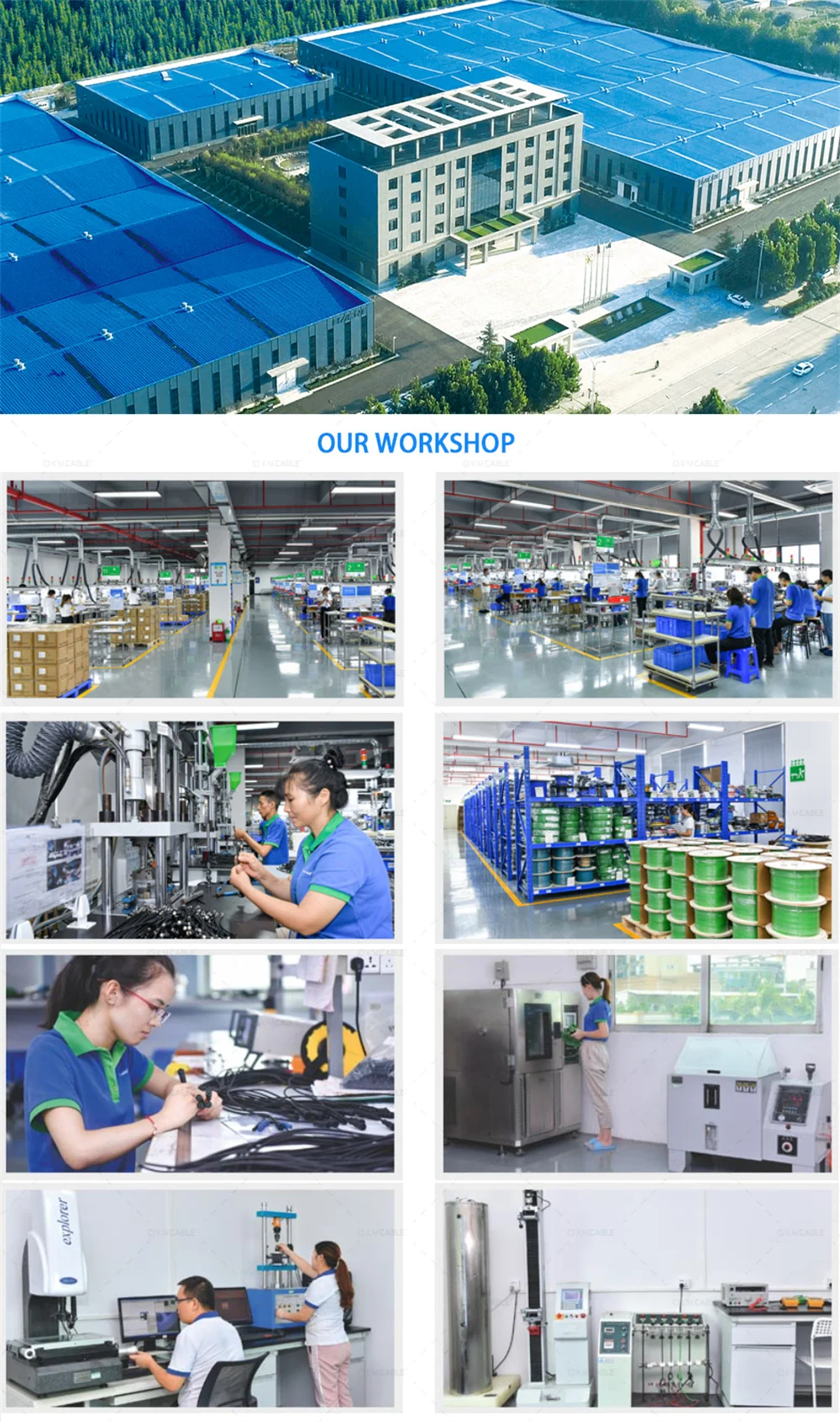

Company Profile

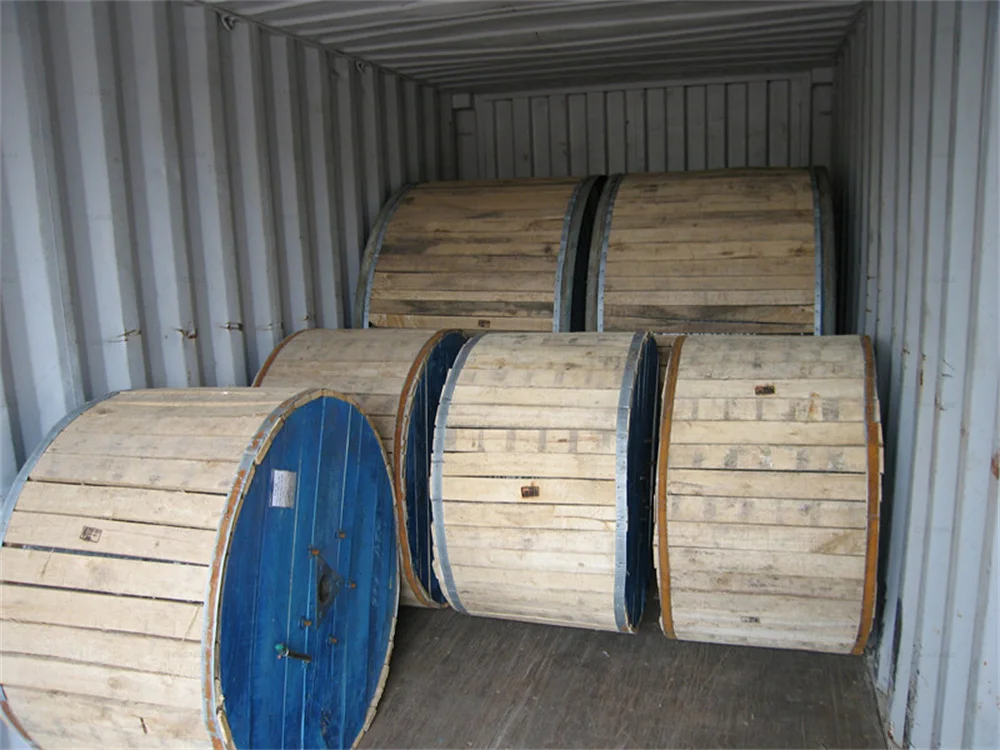

Packing and Delivery
