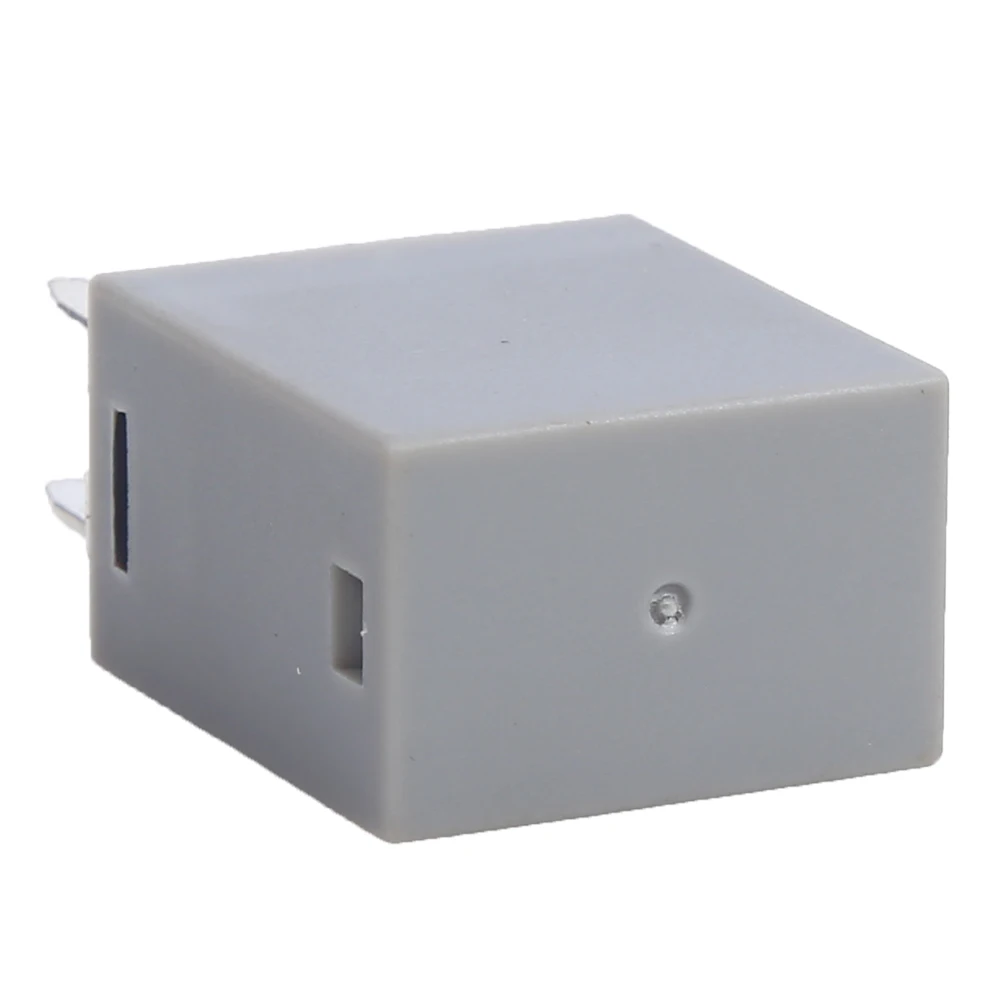

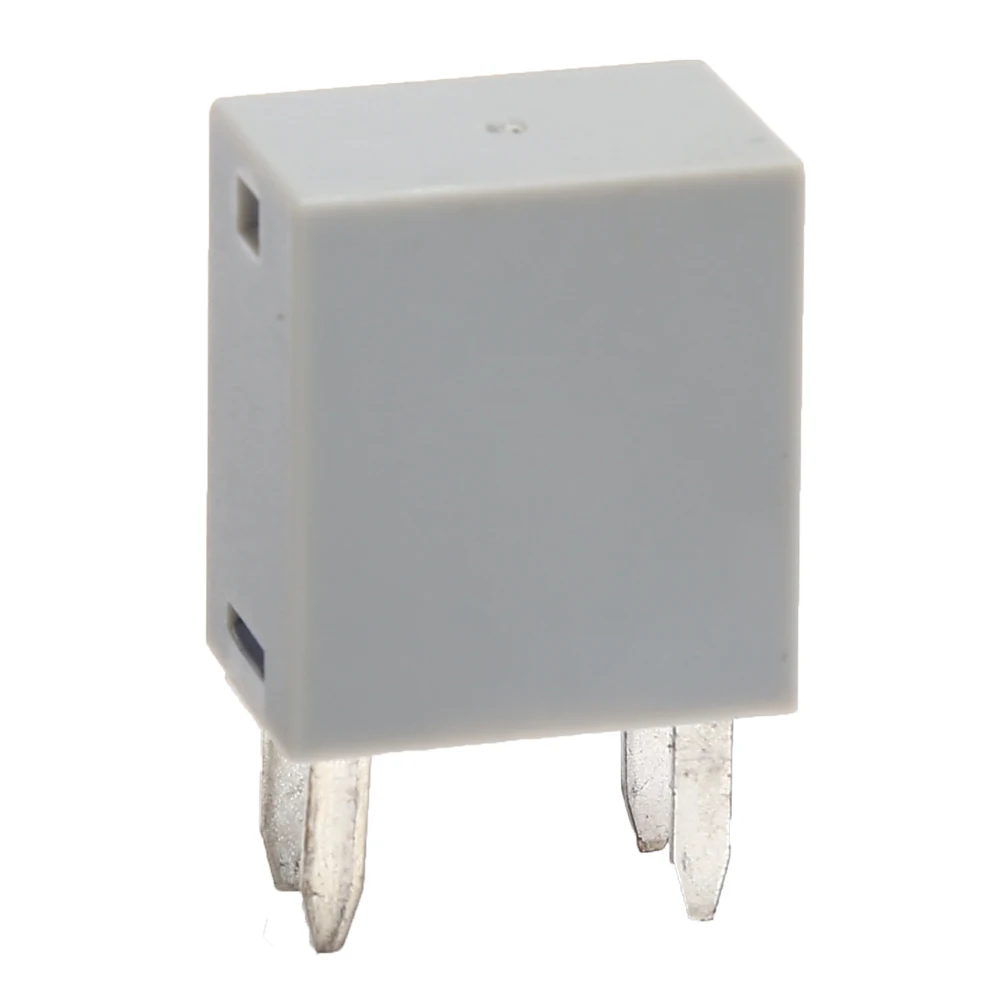

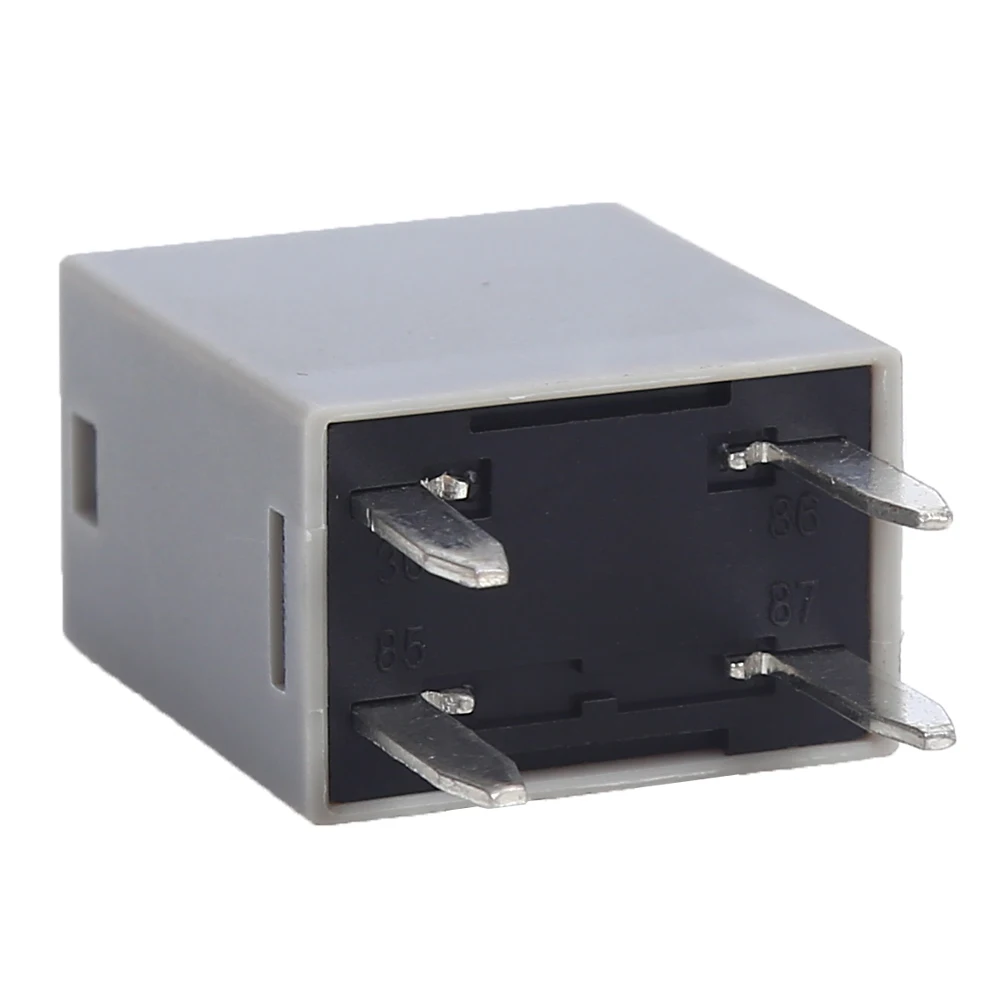

Foocle 20A/30A/40A G8V RH 1C7T R DC12 micro auto relay for car
- Category: >>>
- Supplier: Zhejiang Feileisi Electrical Technology Co. Ltd.
Share on (1600908004044):
Product Overview
Description
Features
* 30A switching capability
* 1 form A, 1 form C contact form
* 2.8mm QC terminals available

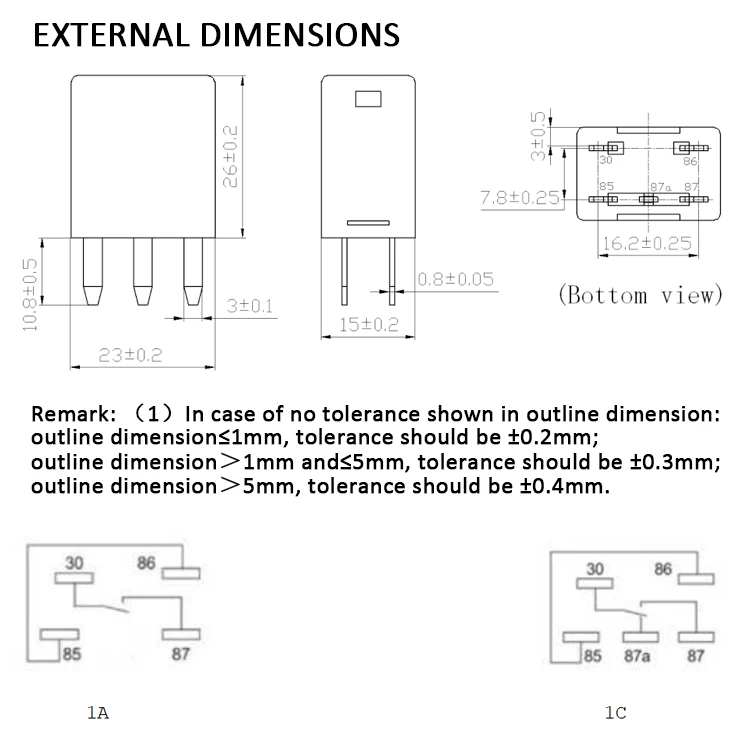

* Outline dimensions: 23.0X15.0X26.0
* 1 form A, 1 form C contact form
* 2.8mm QC terminals available
* Outline dimensions: 23.0X15.0X26.0
Specification | ||
Contact Form | 1A, 1C | |
Contact Material | AgSno2 | |
Max Operating Current | 30A | |
Max Operating Voltage | 27VDC | |
Rated Load (Resistive Load) | 1A: 30A 13.5VDC 15A 27VDC 1C: NO/NC 30A/20A 13.5VDC 15A/10A 27VDC | |
Insulation Resistance | 100MΩ | |
Dielectric Strength (Coil and Contact) | 500VAC/M | |
Ambient Temperature | -40°C~+85°C | |
Operate/Release Time | 10ms/10ms | |
Mechanical Life | 1 X106 | |
Electrical Life | 1 X105 | |
Terminal Type | Quick-connect type | |
Coil Ratings | ||||||||||||||||
Standard | Normal voltage (VDC) | Pick-up voltage (VDC) | Drop-out voltage (VDC) | Coil resistance (Q±10%) | Parallel resistance (Q±5%) | Equivalent resistance (Q±10%) | Power consumption | Max allowable overdrive voltage (VDC) | ||||||||
20 °C/85 °C | ||||||||||||||||
12 | 8.4 | 1.2 | 90 | - | - | 1.6 | 20.2/15.7 | |||||||||
12 | 8.4 | 1.2 | 80 | 680 | 79.5 | 1.8 | 20.2/15.7 | |||||||||
24 | 16.8 | 2.4 | 360 | - | - | 1.6 | 40.5/31.5 | |||||||||
24 | 16.8 | 2.4 | 320 | 2700 | 317.6 | 1.8 | 40.5/31.5 | |||||||||
