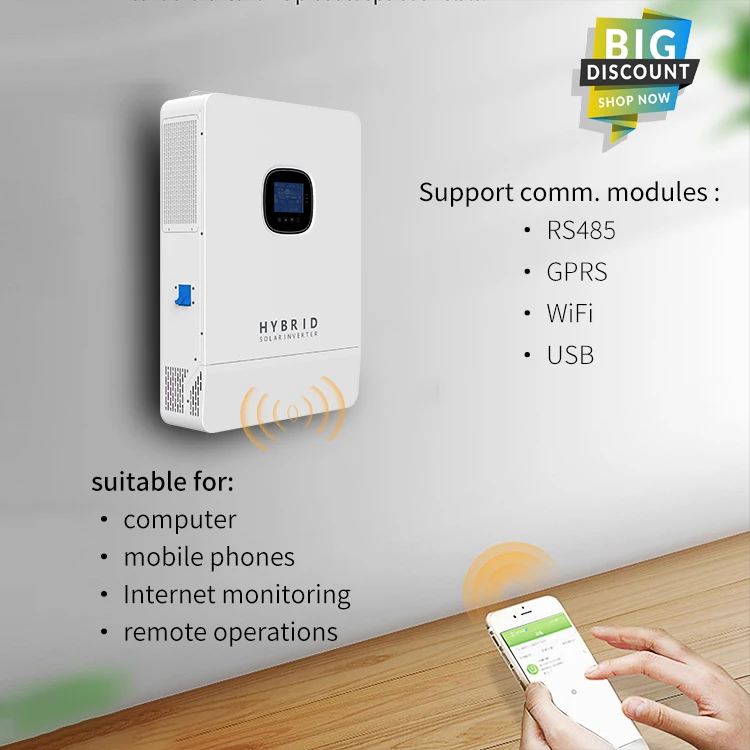

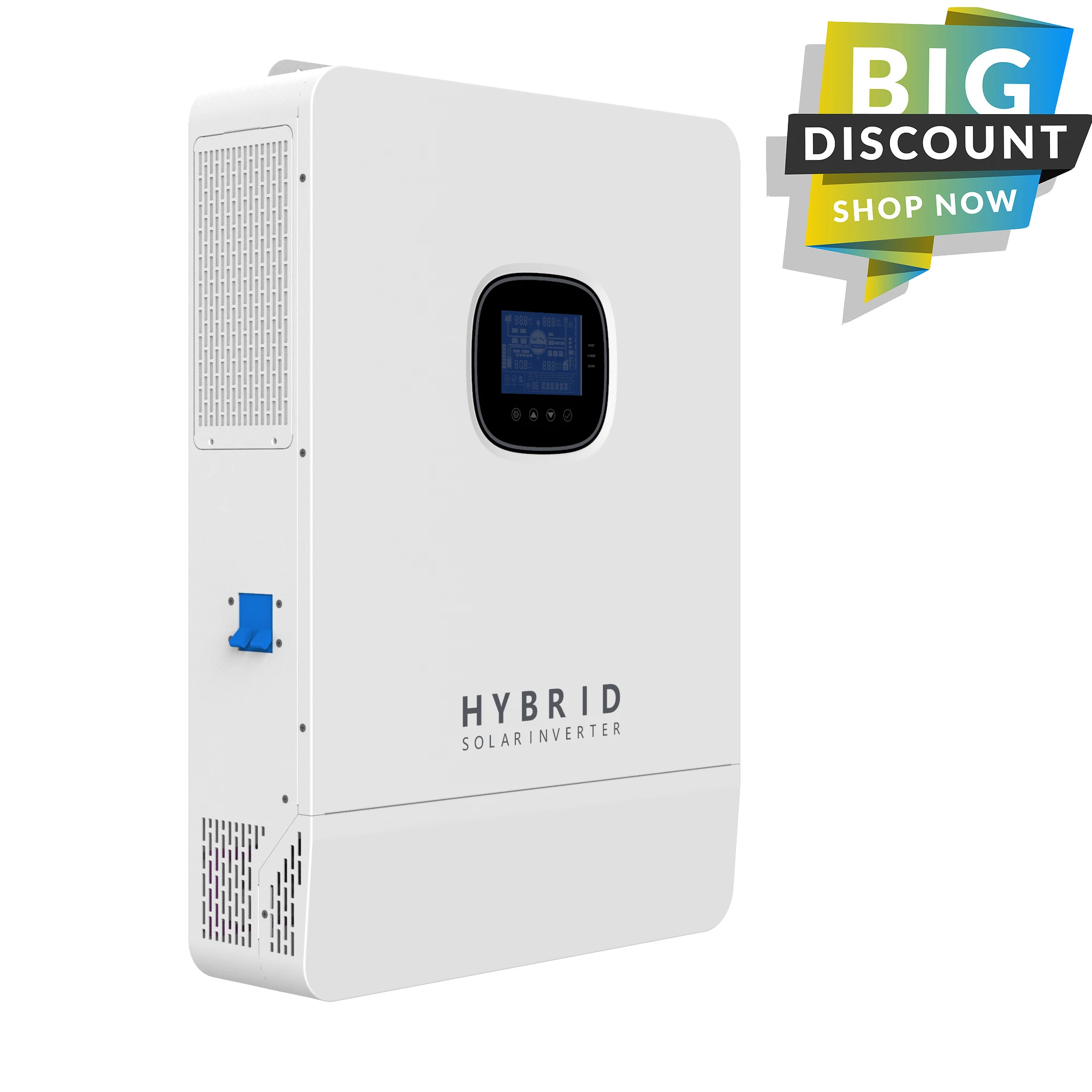

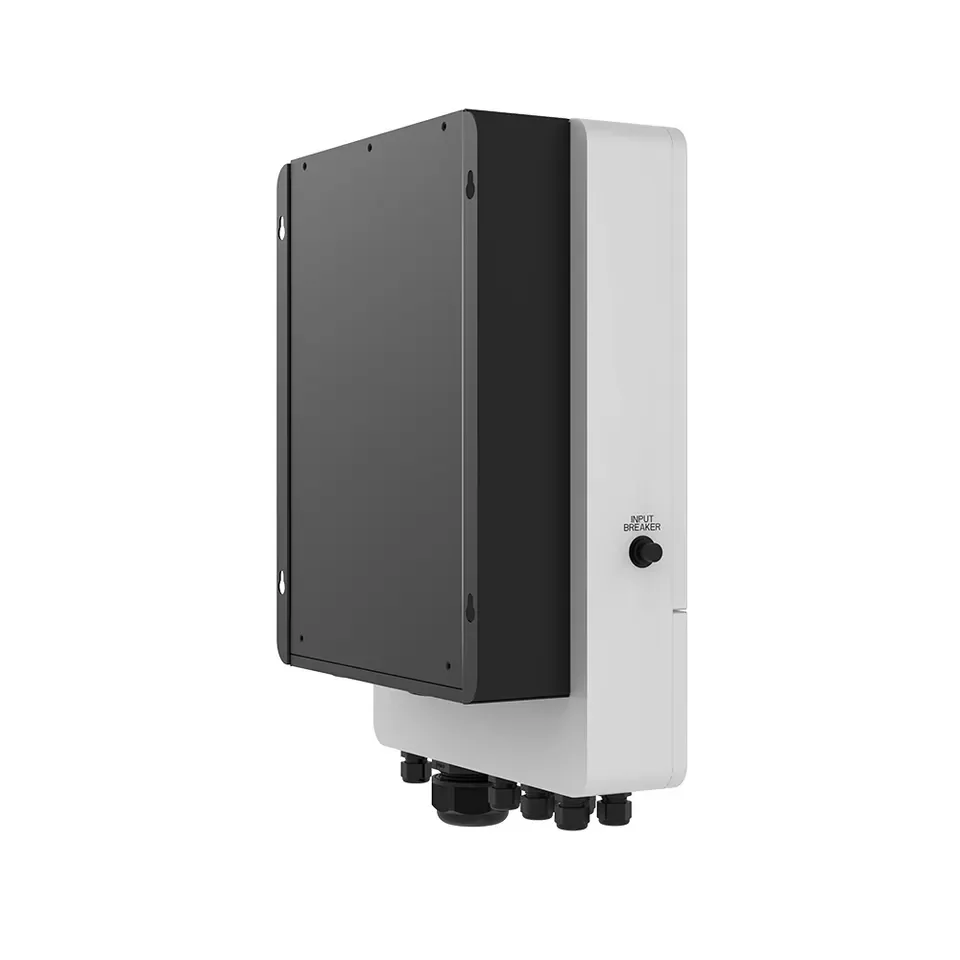

Lovsun Hybrid Inverter 5KW 6KW 8KW 10KW Solar Inverter Split Phase 48V to 110V 220V Output US Version
- Category: >>>
- Supplier: Lovsun Solar Energy Co.Ltd
Share on (1600908004178):
Product Overview
Description
Hybrid Inverter 5KW 6KW 8KW 10KW Solar Inverter Split Phase 48V to 110V 220V Output

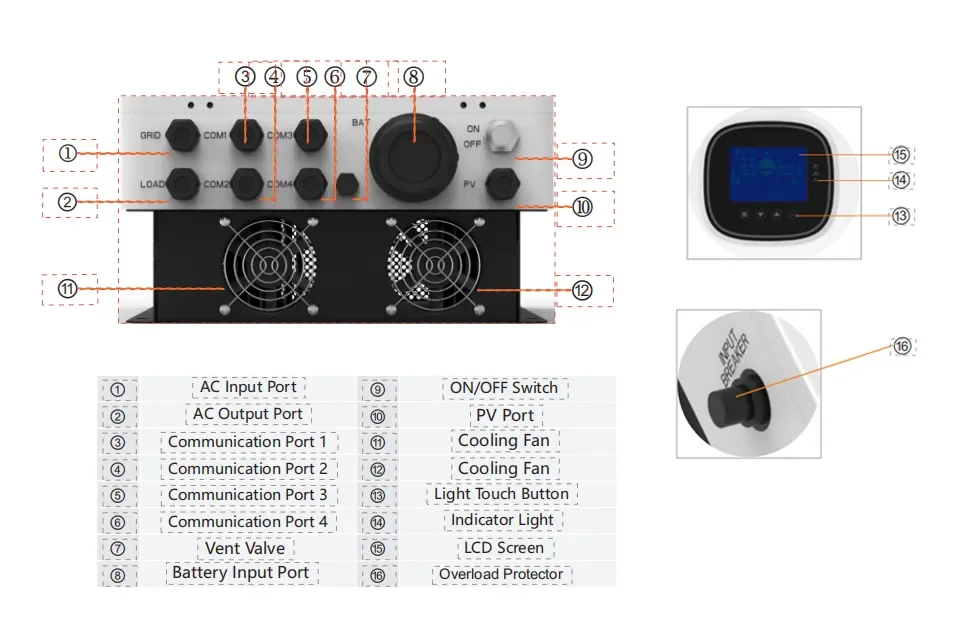

Product Description
Specification
MODEL | SPI-8K-U | SPI-10K-U | CAN BE SET | ||
INVERTER | |||||
Rated Output Power | 8000W | 10000W | |||
Max.Peak Power | 16000W | 20000W | |||
Rated Output Voltage | 120/240Vac(L1/L2/N/PE split phase) | Y | |||
Load Capacity of Motors | 5HP | 6HP | |||
Rated AC Frequency | 50/60Hz | ||||
Waveform | Pure Sine Wave | ||||
Switch Time | 10ms(typical) | ||||
Parallel Capacity | / | ||||
BATTERY | |||||
Battery Type | Li-ion / Lead-Acid / User Defined | ||||
Rated Battery Voltage | 48Vdc | ||||
Voltage Range | 40~60Vdc | Y | |||
Max.MPPT Charging Current | 200A | Y | |||
Max.Mains/Generator Charging | 100A | 120A | Y | ||
Max.Hybrid Charging Current | 180A | 200A | Y | ||
PV INPUT | |||||
Num. of MPPT Trackers | 2 | ||||
Max.PV Array Power | 11000W | ||||
Max.Input Current | 22/22A | ||||
Max.Voltage of Open Circuit | 500Vdc | ||||
MPPT Voltage Range | 125~425Vdc | ||||
UTILITY/ GENERATOR INPUT | |||||
Input Voltage Range | 90~140Vac | ||||
Frequency Range | 50/60Hz | ||||
Bypass Overload Current | 63A | ||||
EFFICIENCY | |||||
MPPT Tracking Efficiency | 99.9% | ||||
Max. Battery Inverter Efficiency | 92% | ||||
General | |||||

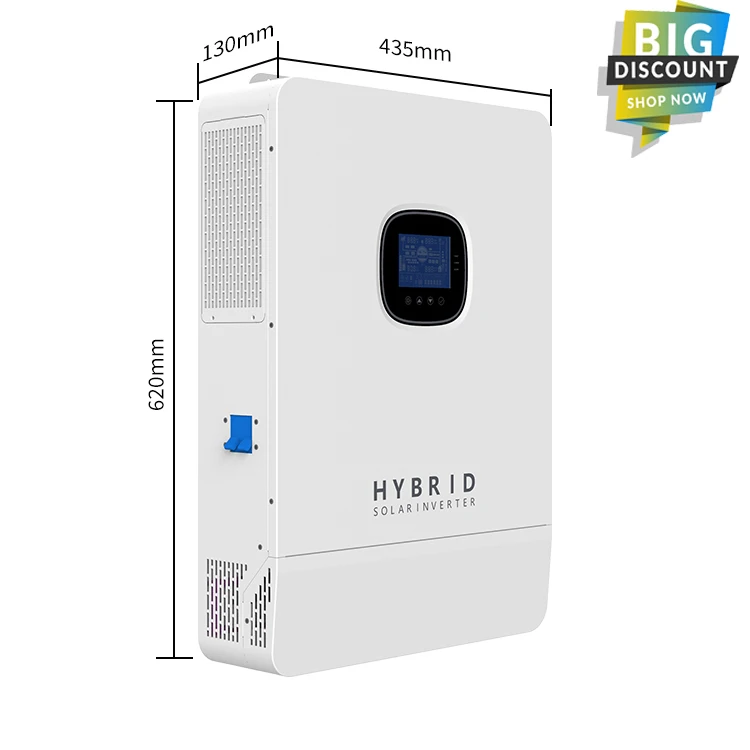

Dimensions | 620*435*130mm ( 2*1.4*0.4ft) | ||||
Weight | 20kg (44lb) | 21kg (46.3lb) | |||
Protection Degree | IP20 ，Indoor Only | ||||
Operating Temperature Range | -10~55℃,>45℃ derated | ||||
Humidity | -25°C ~ 60°C | ||||
Cooling Method | Internal Fan | ||||
Warranty | 2Years | ||||
COMMUNICATION | |||||
Embedded Interfaces | RS485/CAN/USB/ Dry contact | Y | |||
External Modules(Optional) | Wi-Fi / GPRS | Y | |||
CERITIFACATION | |||||
Safety | IEC62109-1, IEC62109-2,UL1741 | ||||
RoHs | Yes | ||||
EMC | EN61000-6-1, EN61000-6-3, FCC 15 class B | ||||

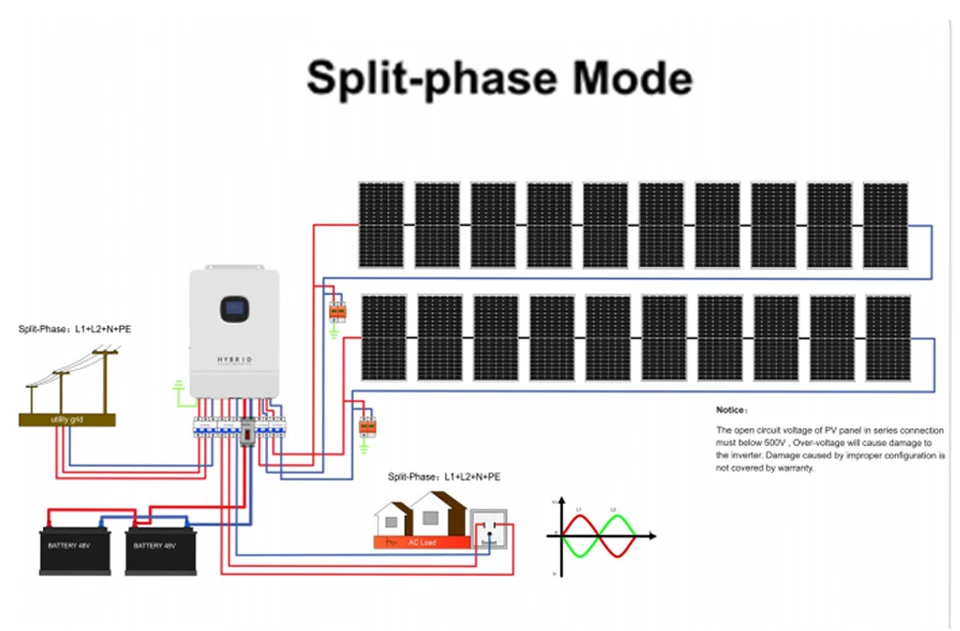

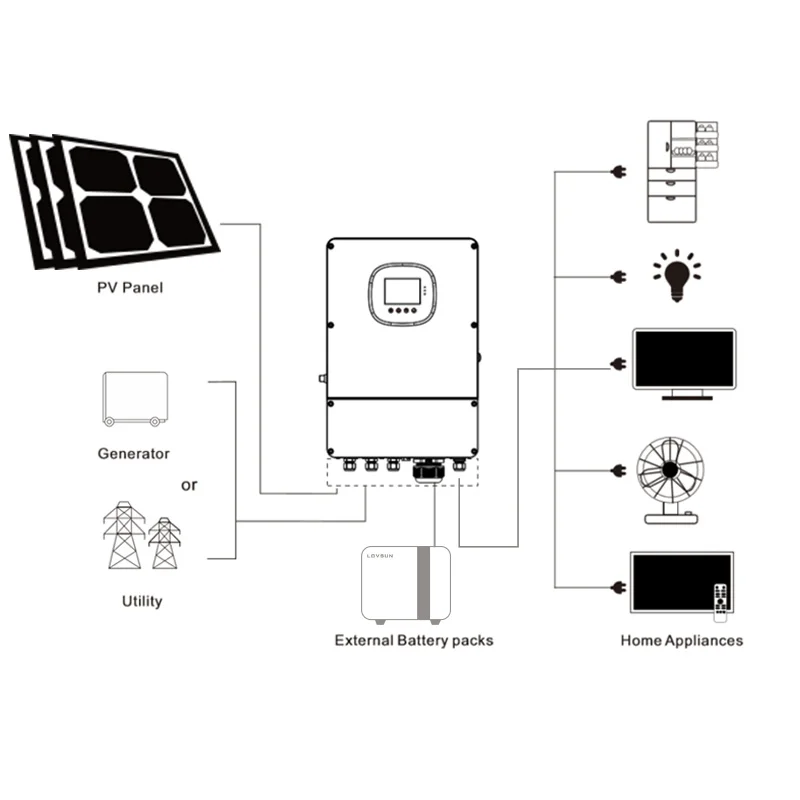

System Design

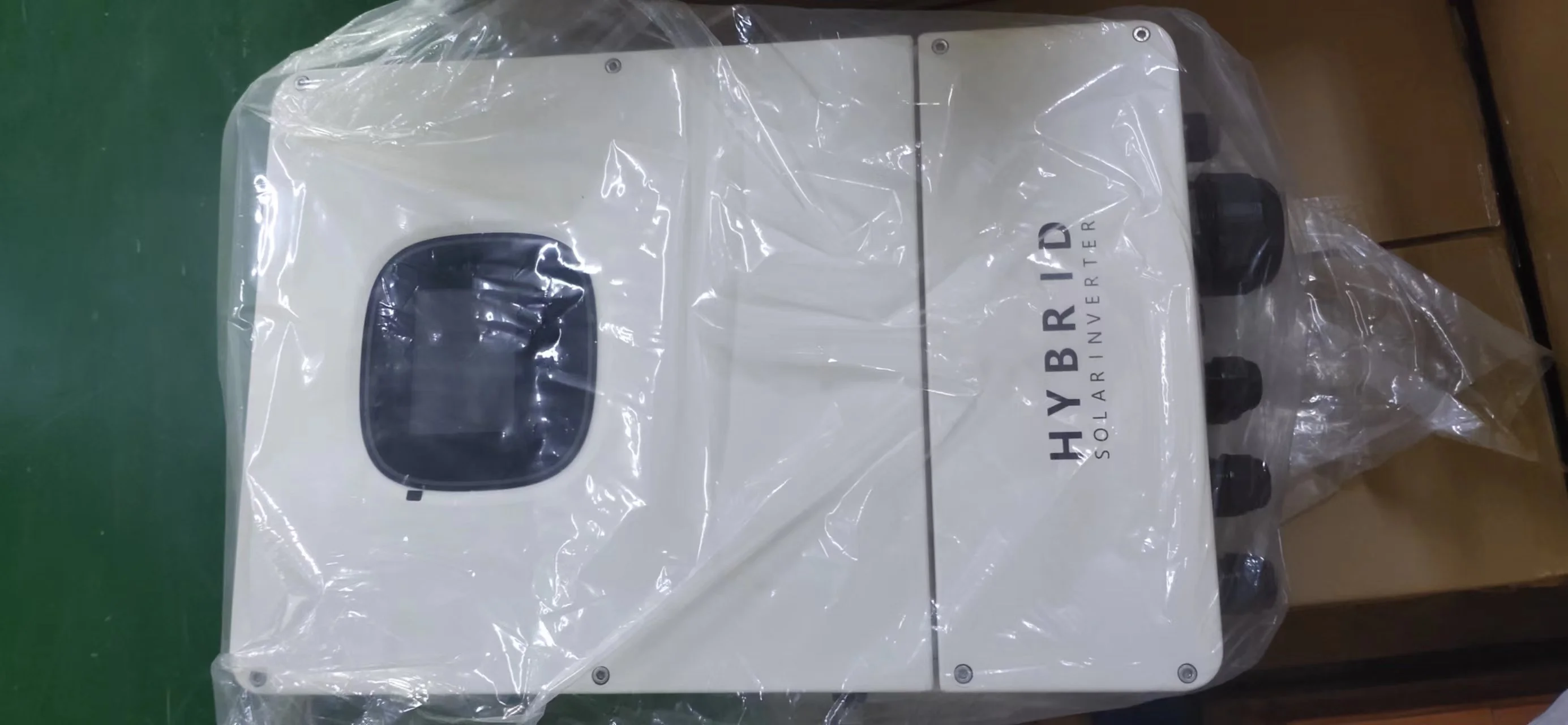

Packing
Delivery & Payment Terms
Payment Terms | T/T | EXW | 30%T/T in advance,paid the balance before shipment | ||||
FOB | |||||||
CFR(C&F) | 30%T/T in advance,paid the balance against copy of B/L | ||||||
CIF | |||||||
L/C | Optional L/C amount above 50,000usd, we can accept L/C at sight | ||||||
West Union | Optional for amount less than 5000usd | ||||||
paypal | |||||||
Delivery Time | 7~10 days after receiving payment for one container | ||||||
