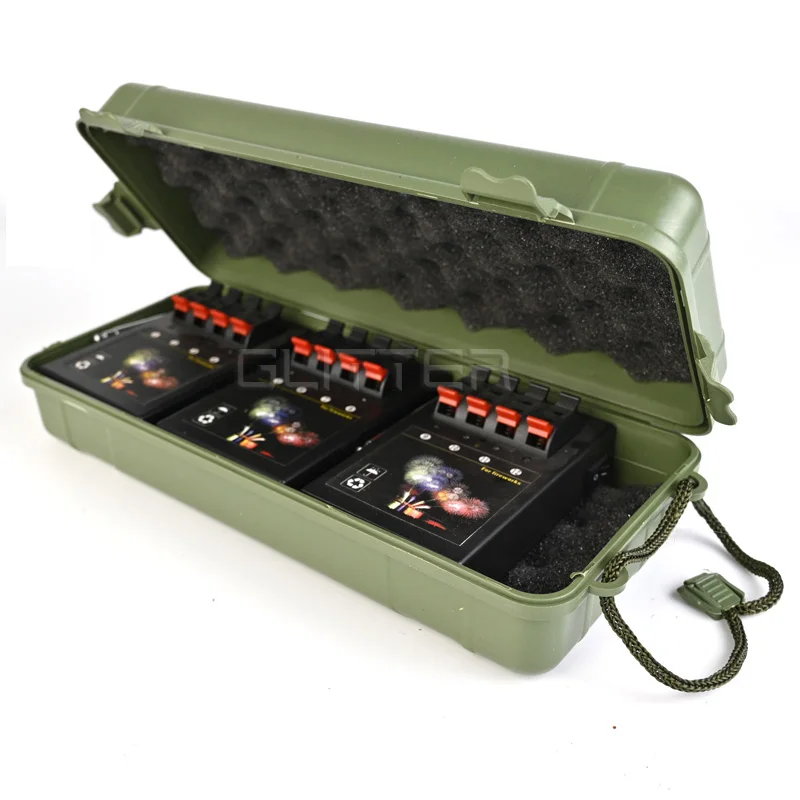

12 Channel wireless remote control electric pyrotechnic wedding stage mini receiver display cake fireworks ignition system
- Category: >>>
- Supplier: Hunan Glitter Stage Effects Co. Ltd.
Share on (1600908114045):
Product Overview
Description

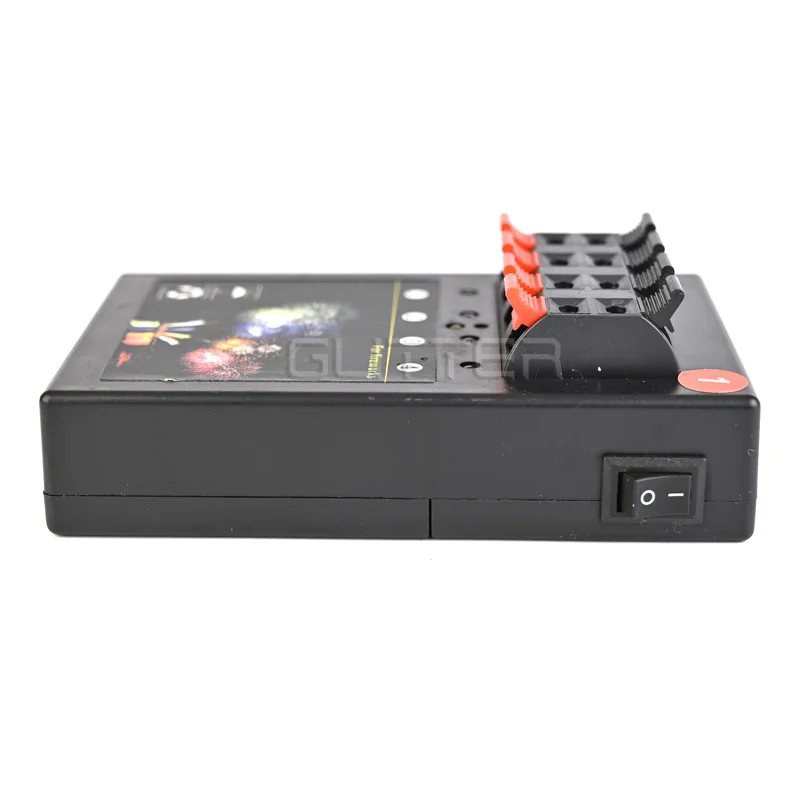

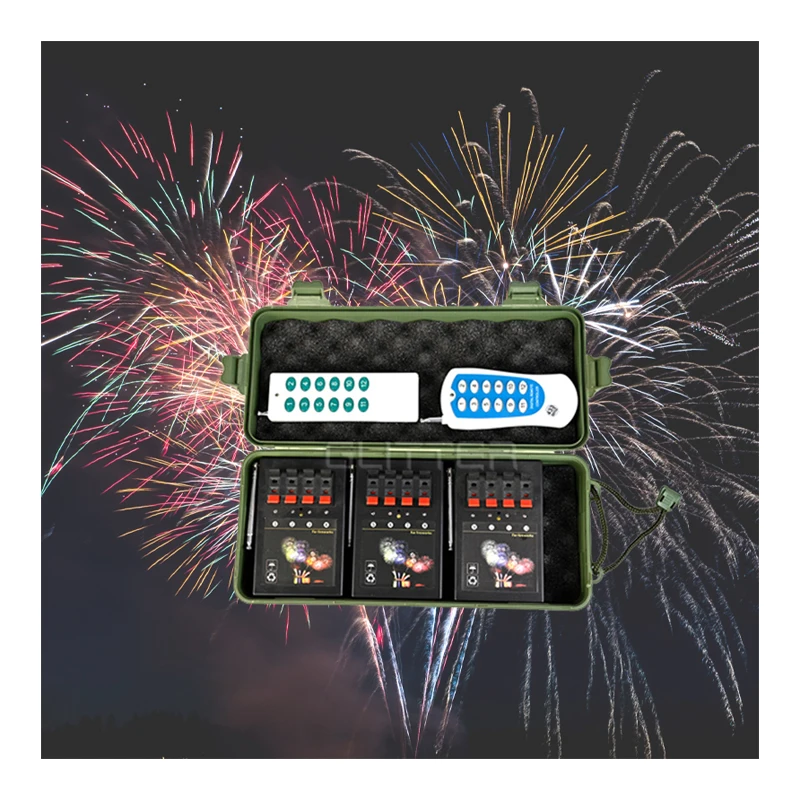

12 channel wireless remote control electric pyrotechnic wedding stage mini receiver display cake fireworks ignition system
Specification
Model Number | AM04R-3 |
Item Name | 12 channel wireless remote control electric wedding stage fireworks ignition system |
Material | Plastic |
Frequency | 433MHZ |
Ignite type | E-match and safe igniter |
Remote distance | 80-100 meters |

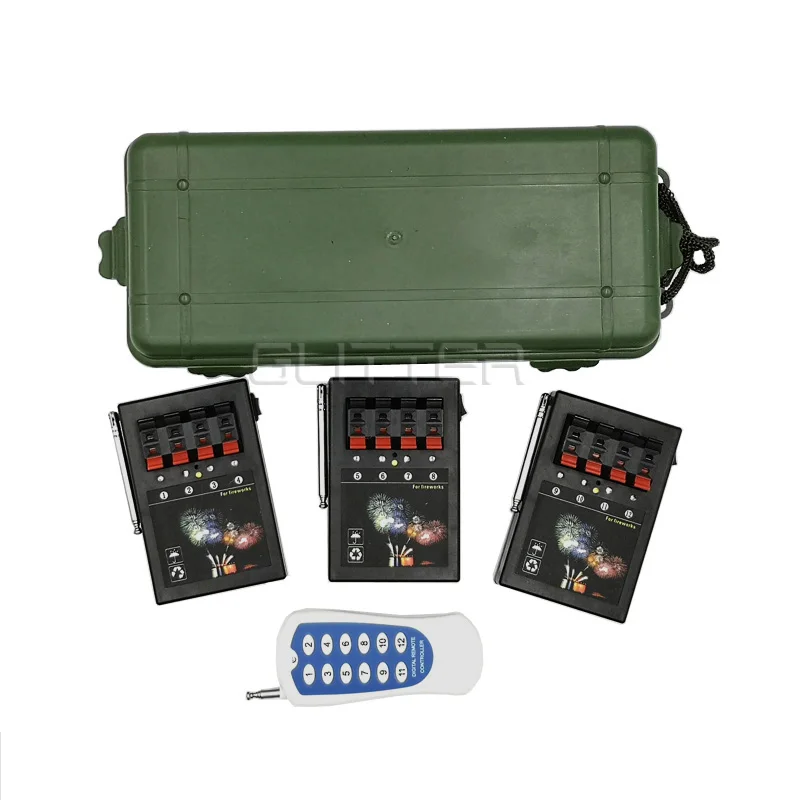

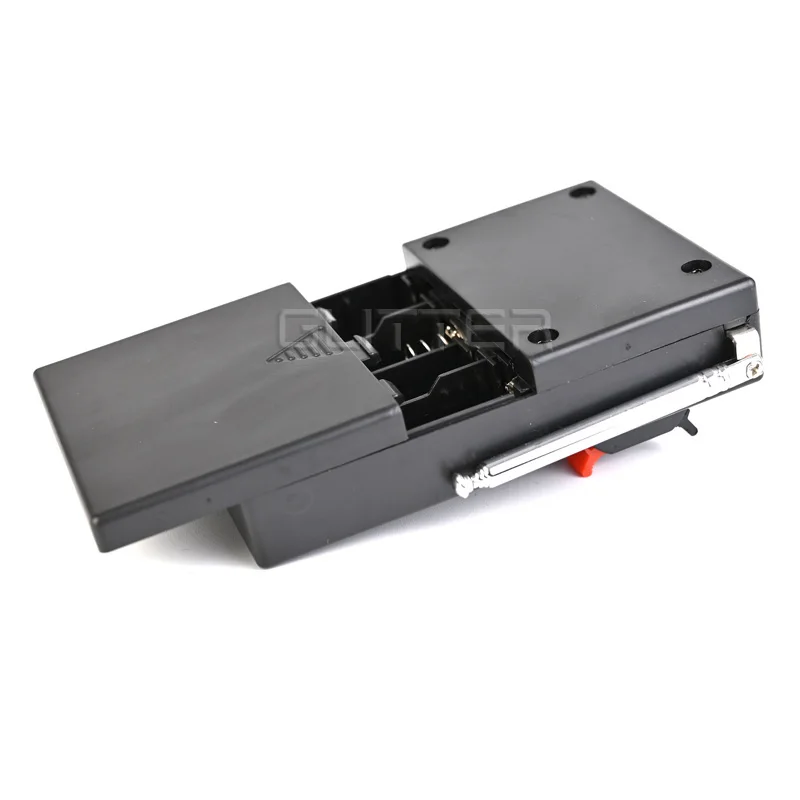

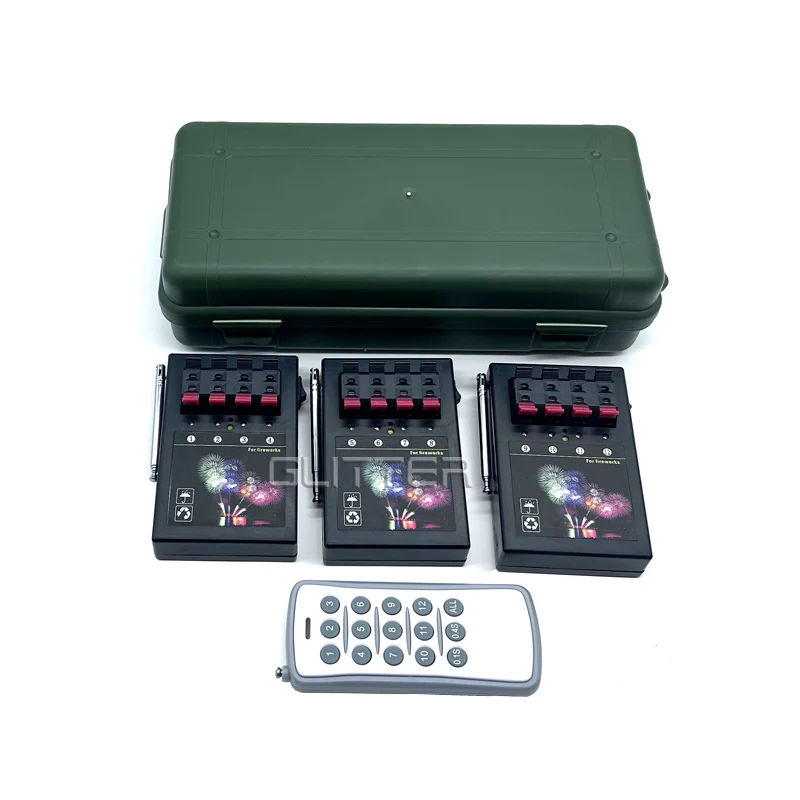

Use 4 pcs NO.5 battery to supply power, and 3 receiver will have 12 channels. Each group can fire 3-4 pieces ignitors in series
Using steps as following:
1.put the battery inside of the machine , turn on the power switch ,the light of each channel will be bright, it means the battery is normal.
2.press the button of the remote , the indicate light extinguish , it means this channel is normal and can be controlled by this remote.
3. turn off the power and connecting the ignitor with the firing system , then turn on the power, the cue light will be more
bright , it means connecting is normal.
4. make sure the button of the remote not be pressed(if the remote has on/off switch, you can turn off it at first),far away the fireworks at least 50 M, use the remote to fire.
5. setting the control number by remote (do not connect the products):
with the little stick to press the button of the electrical board, when the light (yellow) of the electrical board flashing, relax
the stick first then press A of the remote, the indicate light both of Channel A and study button, then press from A to D, the
receiver from A to D extinguish ,setting control number succeed.
Using steps as following:
1.put the battery inside of the machine , turn on the power switch ,the light of each channel will be bright, it means the battery is normal.
2.press the button of the remote , the indicate light extinguish , it means this channel is normal and can be controlled by this remote.
3. turn off the power and connecting the ignitor with the firing system , then turn on the power, the cue light will be more
bright , it means connecting is normal.
4. make sure the button of the remote not be pressed(if the remote has on/off switch, you can turn off it at first),far away the fireworks at least 50 M, use the remote to fire.
5. setting the control number by remote (do not connect the products):
with the little stick to press the button of the electrical board, when the light (yellow) of the electrical board flashing, relax
the stick first then press A of the remote, the indicate light both of Channel A and study button, then press from A to D, the
receiver from A to D extinguish ,setting control number succeed.
