Zetron MS104K SO2 Sulphur Dioxide SO2 Gas Leak Detector With Strict CPA Certification

 Arbitrary combination of 1 ~ 4 types of gases such as toxic gases, oxygen gas, carbon dioxide, inflammable and explosive gases, TVOC, and so on. Optional configuration: temperature and humidity measurements.

All the cases which requires the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.

0 ~ 1, 10, 100, 1000, 5000, 50000, 100000ppm, 200 mg/L, 100%LEL, 20%, 50%, 100%Vol, can be selected; and other ranges can be customized.

0.01ppm or 0.001ppm (0 ~ 10 ppm);
0.01ppm (0 ~ 100 ppm),
0.1ppm (0 ~ 1000 ppm),
1ppm (0 ~ 10000 ppm or more),
0.01 mg/l (0 ~ 200 mg/l),
0.1% LEL,
0.01%,
0.001% Vol

Electrochemical, catalytic combustion, infrared, thermal conductivity, PID photoionization, and so on, depending on the type of gas, range, field environment and user demand.

Electrochemical principle: 2 ~ 3 years; Oxygen gas: 2 years or 6 years can be selected; infrared principle: 5 ~ 10 years;
catalytic combustion: 3 years; thermal conductivity: 5 years; PID photoionization: 2 ~ 3 years.

≤±3% F.S (higher precision levels can be customized)

≤±2%

Repeatability

≤±2%

Uncertainty

≤±2%

T90≤30 seconds

Recovery time

≤30 seconds

Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH

-40 ℃ ~ + 70 ℃, and the optional configuration of high-temperature sampling and cooling filter handle will be possible to detect
the smoke gas at the temperature of 400 ℃ or higher.

Optional configuration: temperature at -40 ℃ ~ + 70 ℃, accuracy level at 0.5 ℃; humidity at 0 ~ 100% RH, precision level at 3 % RH

3.7VDC, 3000mA high capacity rechargeable polymer battery

2.31-inch high-definition color screen

Diffusion type measurement. The calibrated flow rate is 500 ml/minute.

It is possible to set as sound & light alarm, vibration alarm, sound & light + vibration alarm, turning off the alarm.

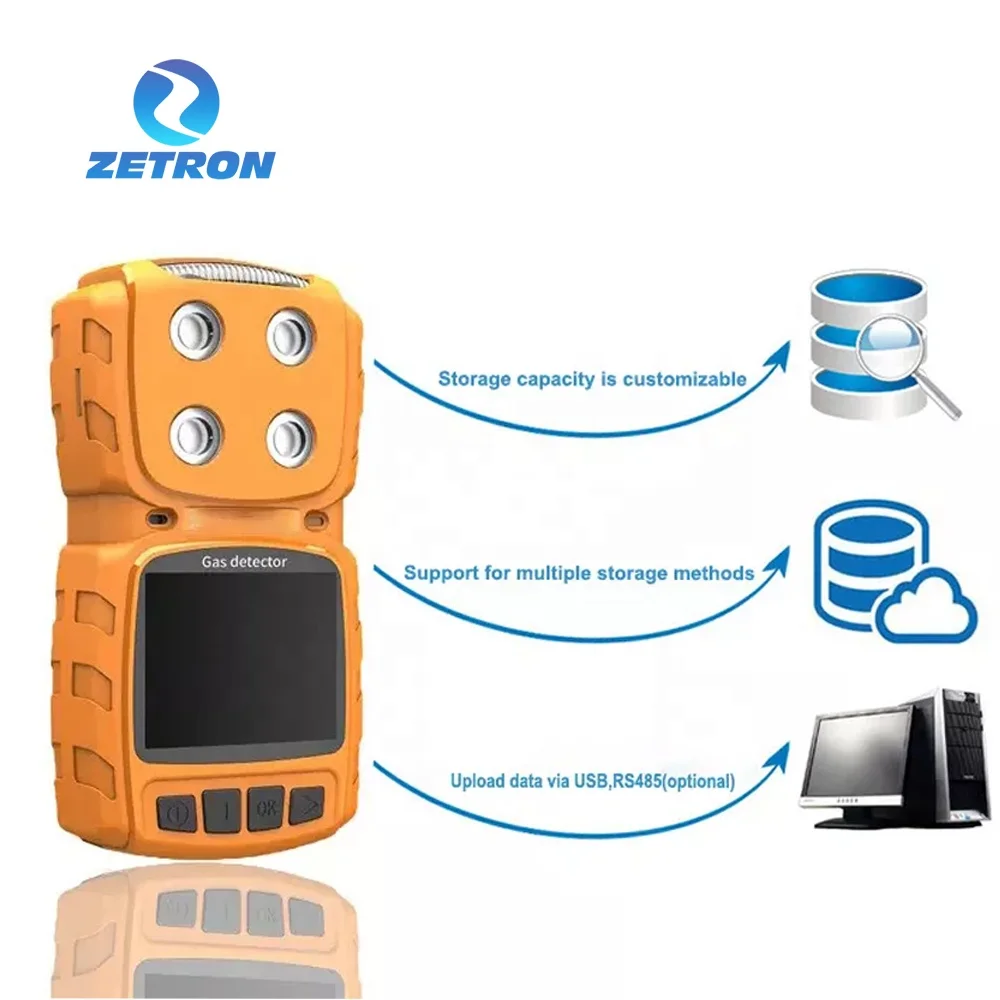

USB (charging and communication), optional: RS485 communication interface

Standard configuration is the data storage capacity for 100, 000 entries

IP65

Intrinsically safe type

Exia II CT4 Ga

130×68×34mm (L×W×H)

200g

Manual, qualification certificate, warranty card, USB charger (including the data cable), belt clip, colorful packaging box (optional high-grade aluminum instrument case)

Temperature and humidity measurement function, external gas sampling pump, 1.2 m retractable sampling handle (1-10 meter hose, and
the standard length is 1 meter), 0.4 meter stainless steel sampling handle (with dust filter, not retractable)
