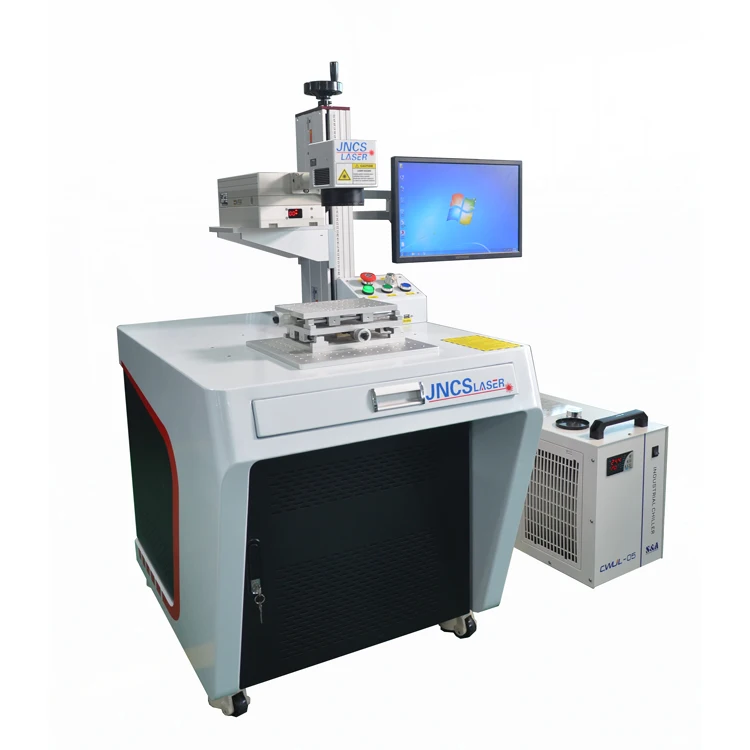

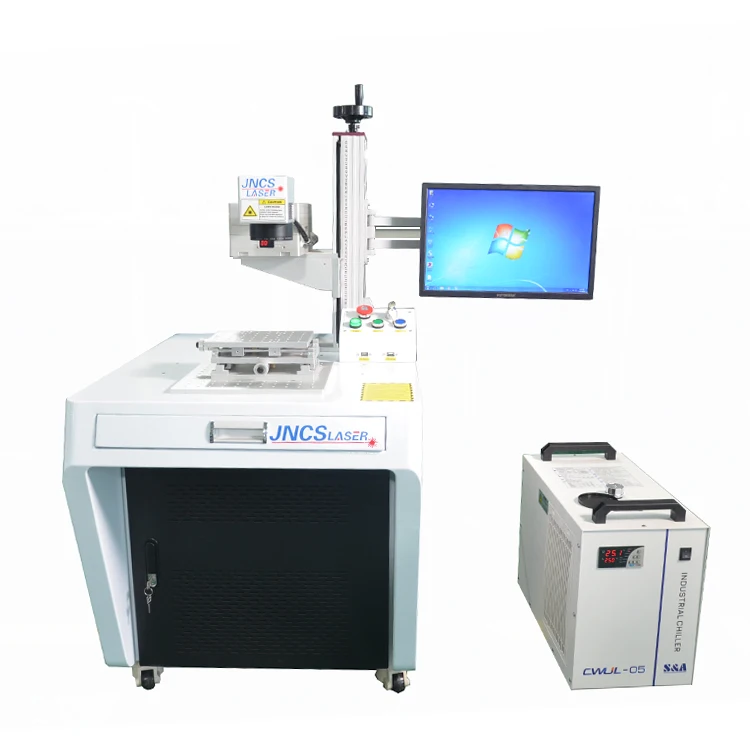

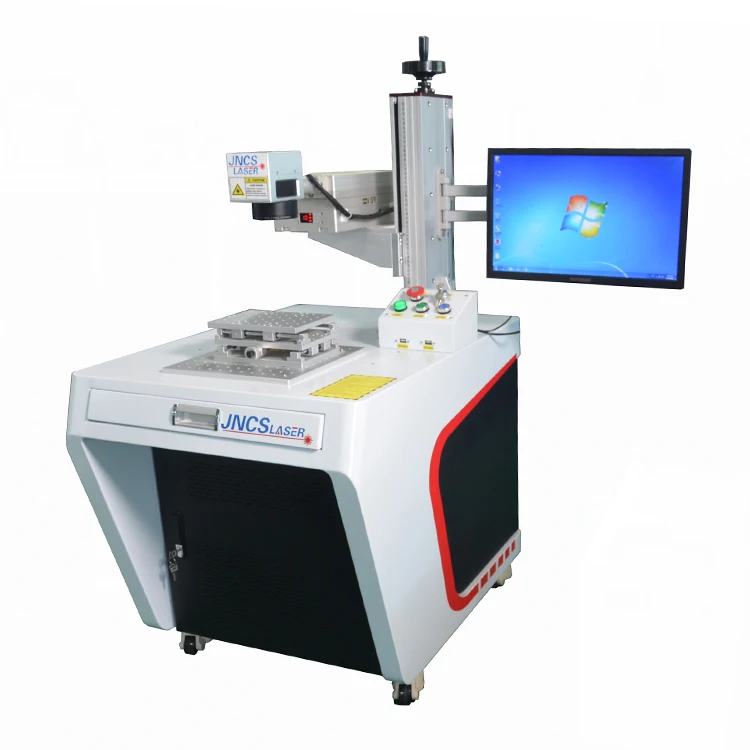

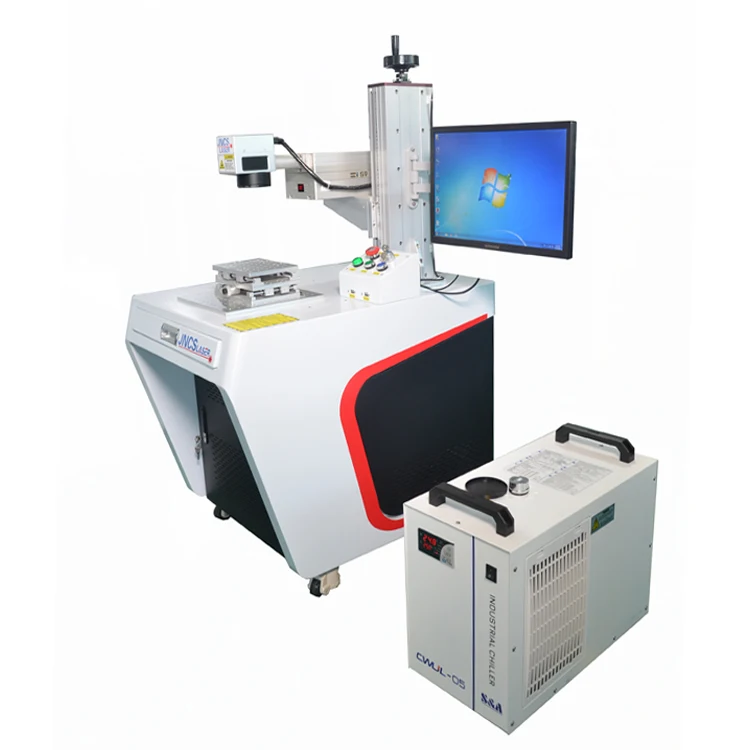

High Quality 3W 5W UV Laser Marking Machine Laser Printer Sales Good Price QR Code UV Laser Marking Machine
- Category: >>>
- Supplier: Jinan Consure Electronic Technology Co. Ltd.
Share on (1600908160110):
Product Overview
Description
Products Description
Machine Desciption
High precision UV laser marking machine adopts Ultraviolet laser which is mainly used in ultra-fine marking for plastics, including PC (polycarbonate), PP (polypropylene), PE (polyethylene), PA, ABS, PMMA, silicon, ceramics and crystal glass, now the UV laser engraving machine for sale at affordable price.
UV laser marking machine is also called UV laser engraving machine, which has high beam quality and small spot, and the processing of heat affected area is small, which can be used for ultra-fine marking, special material marking. UV laser marking machine is
suitable for processing more extensive materials, such as plastics, including PP (polypropylene), PC (polycarbonate), PE (polyethylene), ABS, PA, PMMA, silicon, glass and ceramics.
UV laser marking machine is also called UV laser engraving machine, which has high beam quality and small spot, and the processing of heat affected area is small, which can be used for ultra-fine marking, special material marking. UV laser marking machine is
suitable for processing more extensive materials, such as plastics, including PP (polypropylene), PC (polycarbonate), PE (polyethylene), ABS, PA, PMMA, silicon, glass and ceramics.

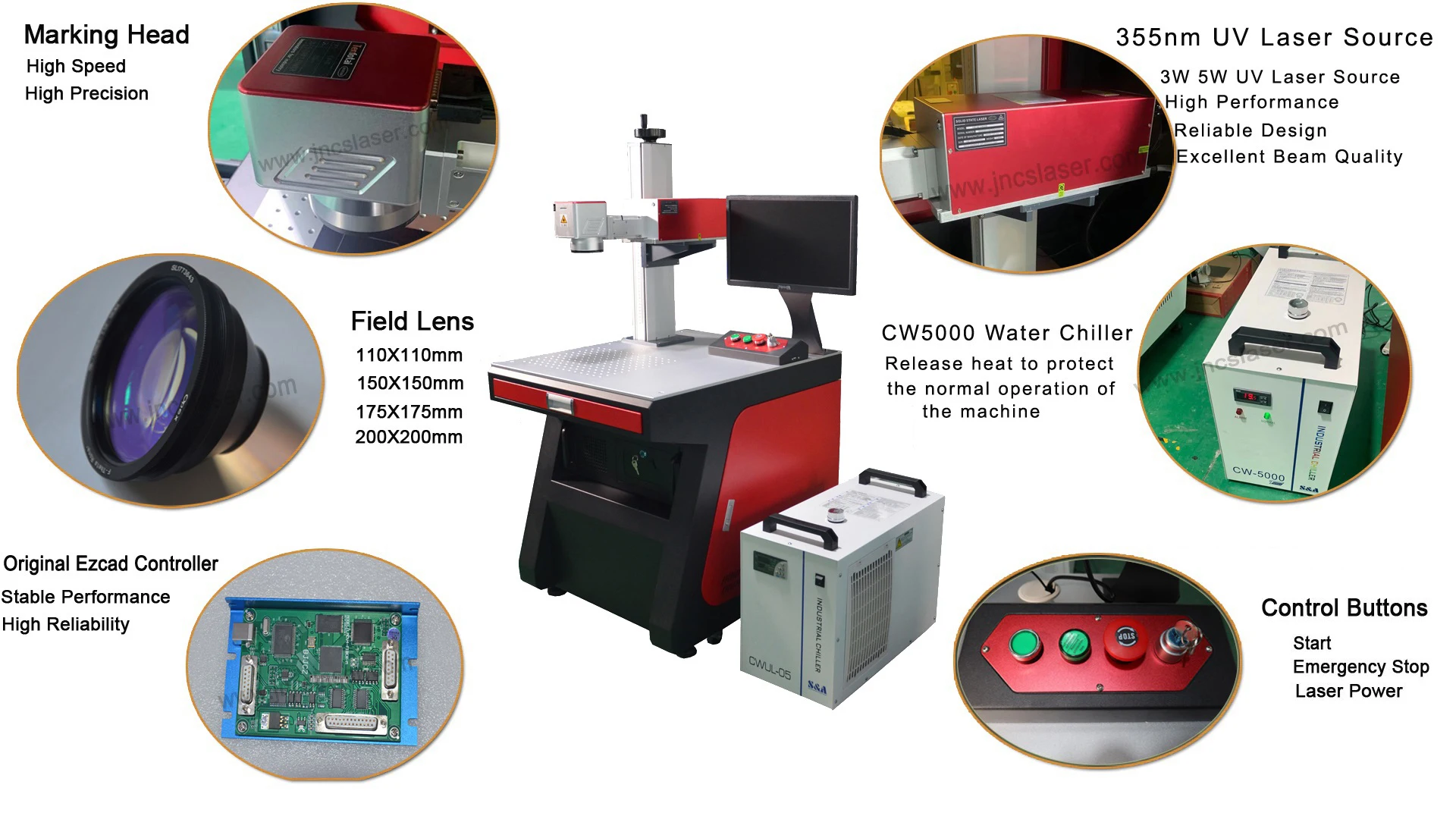

Main Feature
1. Perfect marking quality: 355nm output wavelength to reduce the thermal impact on the workpiece, high-precision galvanometer marking head can ensure fine and repeatable marking, high-precision fine spot to ensure the perfect marking results, The marking process is non-contact, the marking effect is permanent.
2. UV laser engraver machine has a large marking range.
3. Heat affected area is very small, there will be no thermal effect, the material is not deformed and charred.
4. High speed and high efficiency.
5. Machine performance is stable, small size, low power consumption.
6. The UV laser engraving machine is suitable for heat radiation reaction of large materials processing, if it's used for the production line with the automatic loading and unloading, it can realize automatic access to materials. It's suitable for the vast majority of metal and non-metallic materials on the marking industry.
2. UV laser engraver machine has a large marking range.
3. Heat affected area is very small, there will be no thermal effect, the material is not deformed and charred.
4. High speed and high efficiency.
5. Machine performance is stable, small size, low power consumption.
6. The UV laser engraving machine is suitable for heat radiation reaction of large materials processing, if it's used for the production line with the automatic loading and unloading, it can realize automatic access to materials. It's suitable for the vast majority of metal and non-metallic materials on the marking industry.
Technical Parameters
Modle | CS-UV3W CS-UV5W |
Wave length of laser | 355nm |
Laser output power | 3W 5W |
Marking speed | 400 characters per second |
Beam quality | <1.1 |
Repeated accuracy | ±0.001mm |
Working area | 110*110mm 150*150mm 175*175mm optional |
Machine power | 800W |
Minimal character | 0.1mm |
Cooling ways | Force-air Cooling |
Power supply | 220V/ 50Hz/2kVA |
Minimum line width | 0.015mm |
Support format | PLT, BMP, DXF, JPG, TIF, AI etc |
Process Material | Glass Plastic Crystal Non-metal Materials etc. |
Cooling system | Air cooling or water cooling selection |
Package Size | 91CM X 96CM X 157 CM H |
Gross Weight | 170KG |

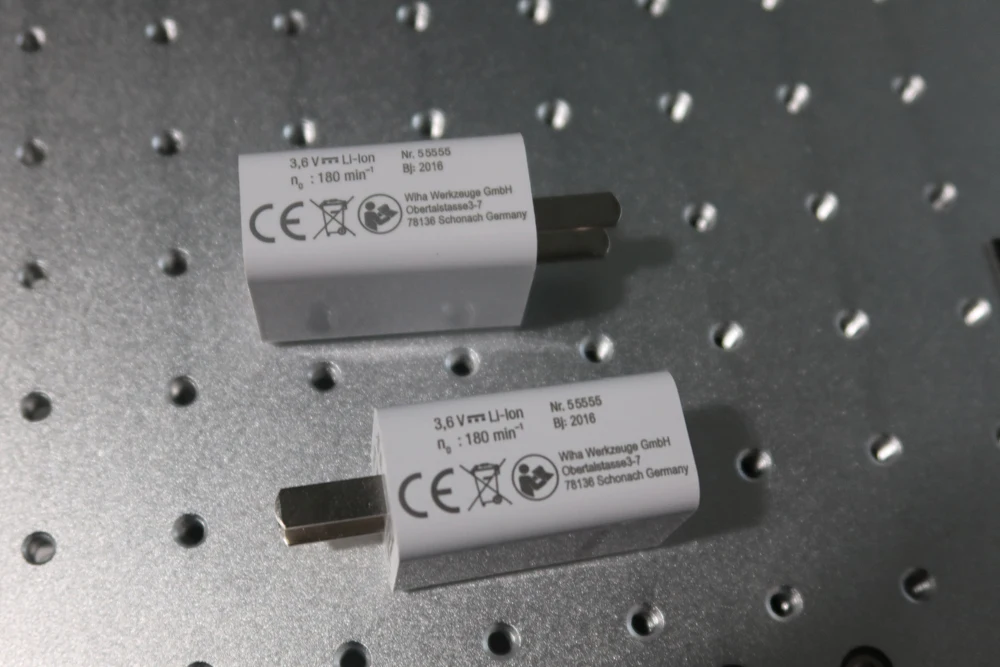

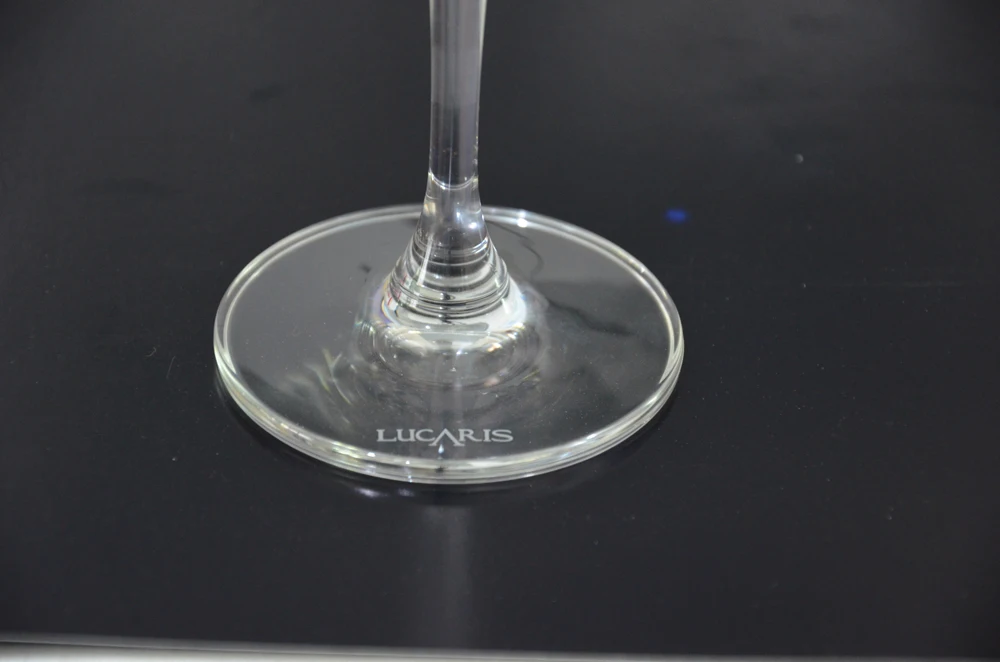

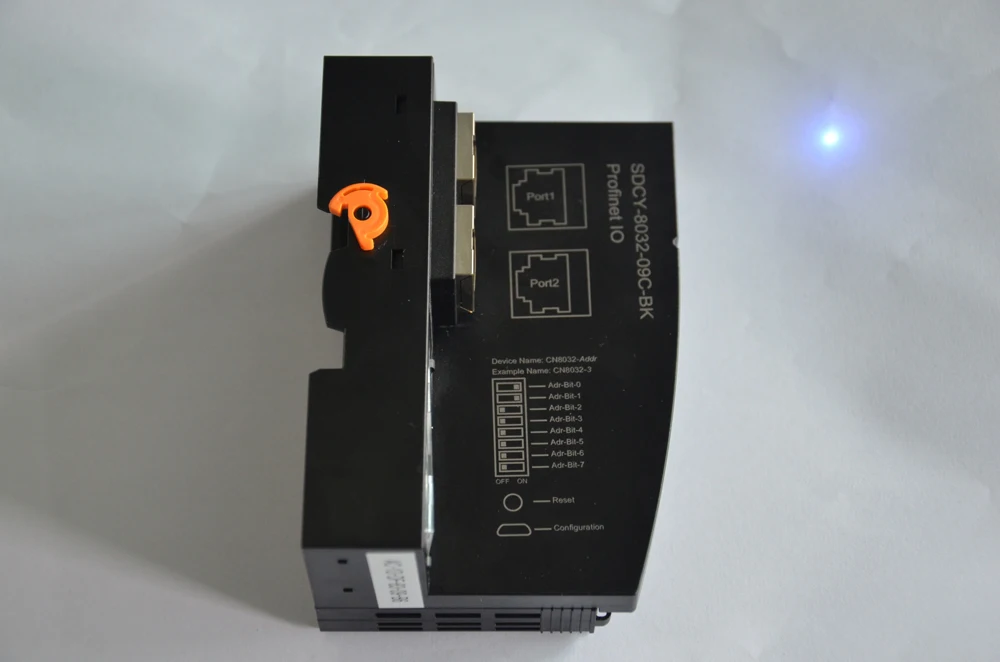

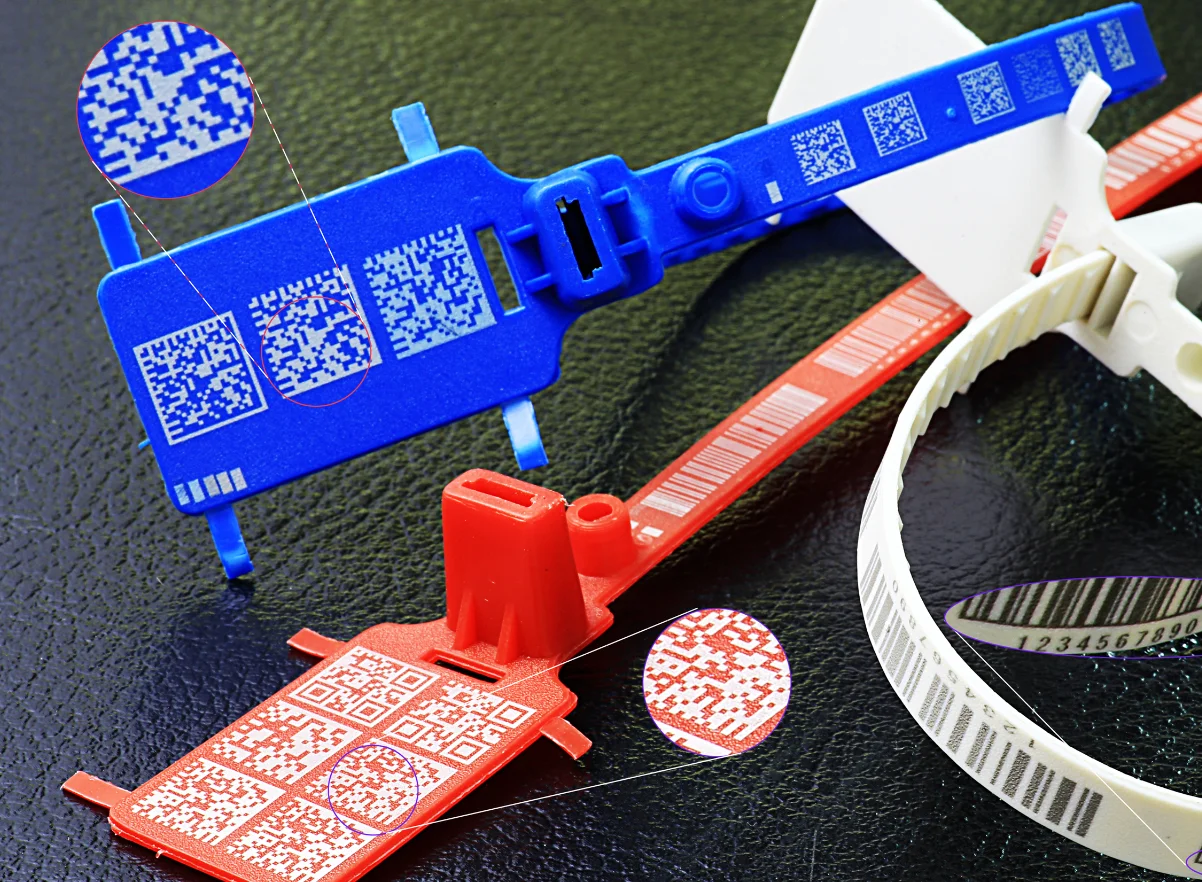

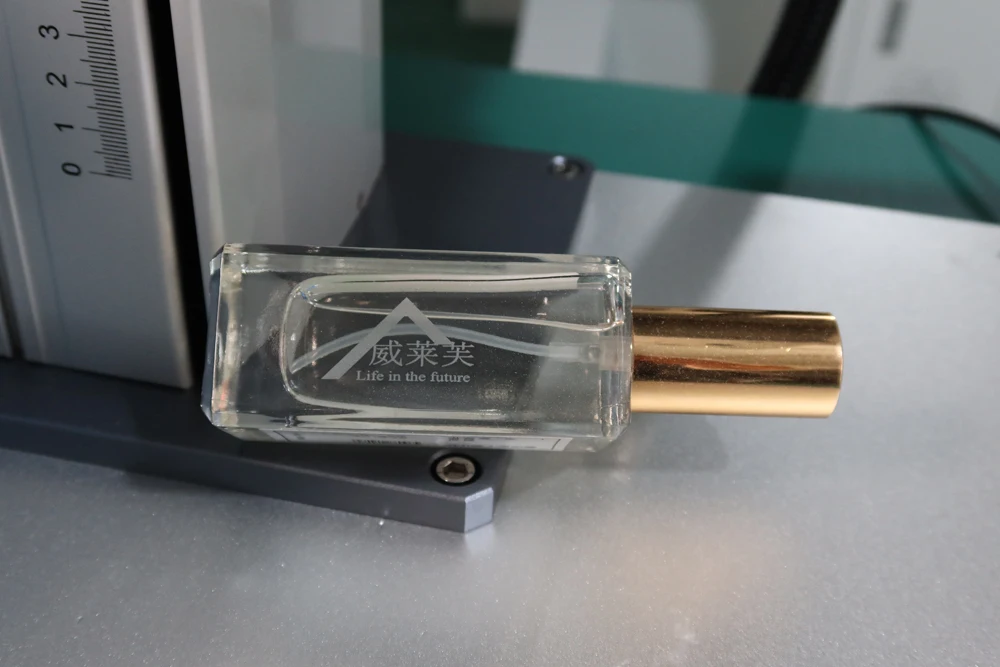

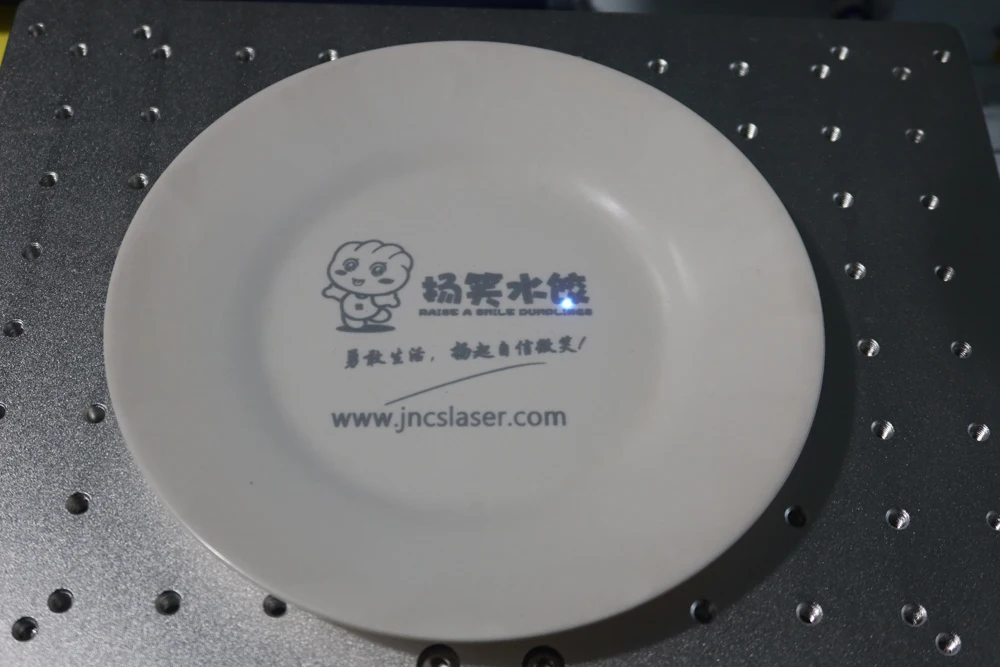

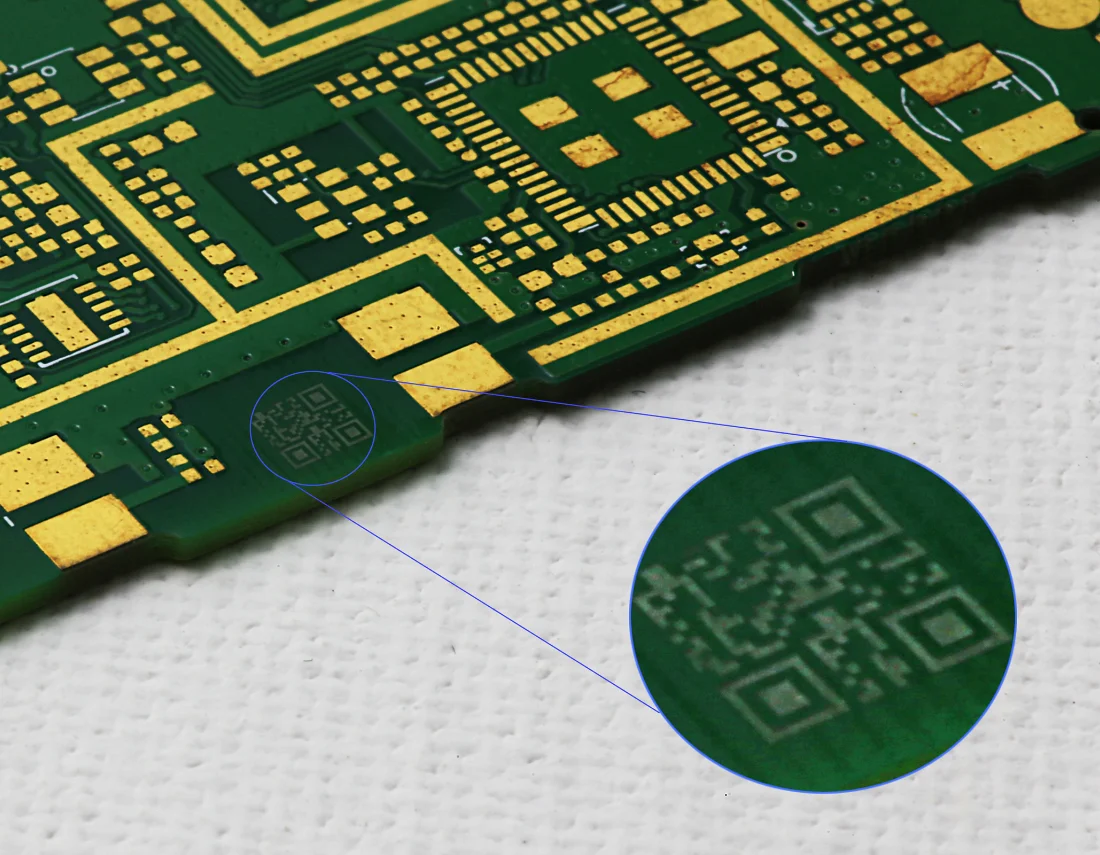

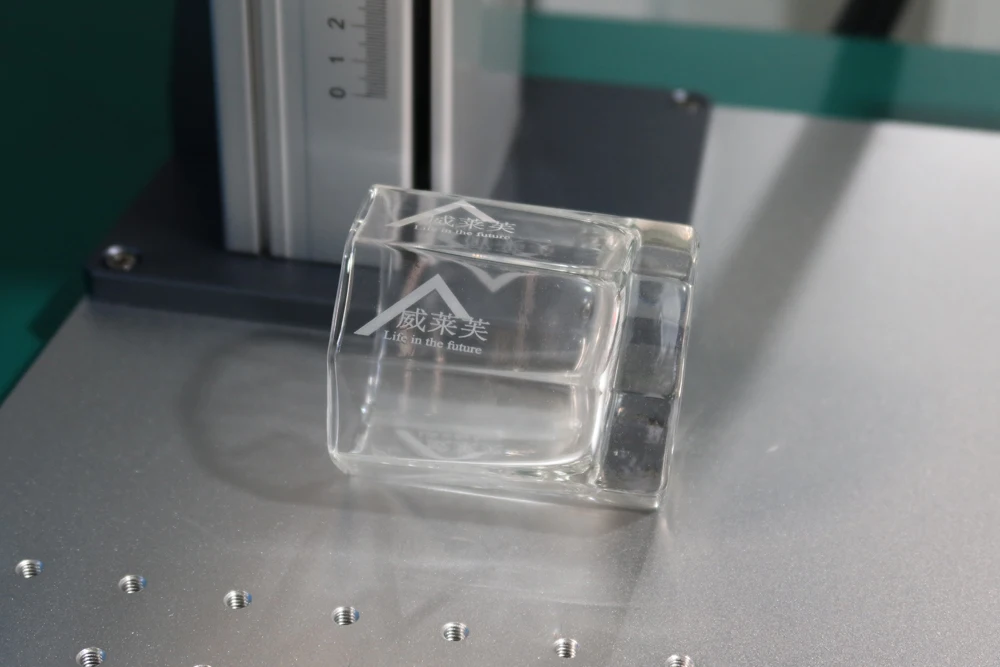

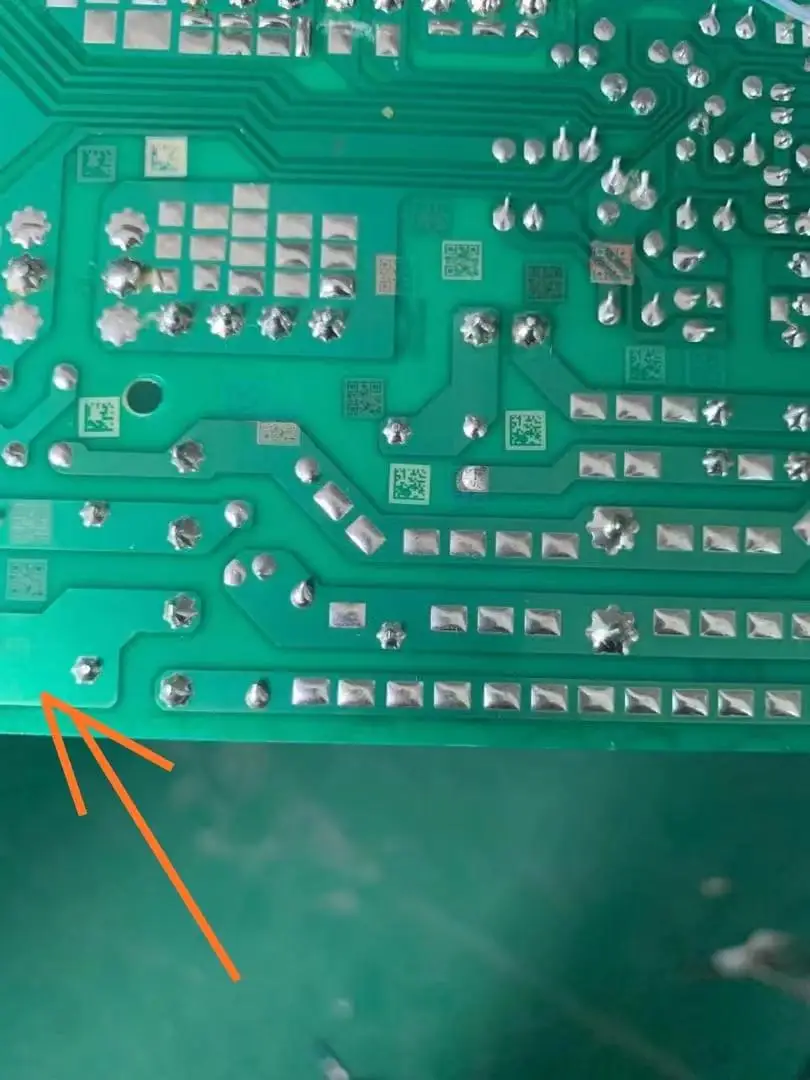

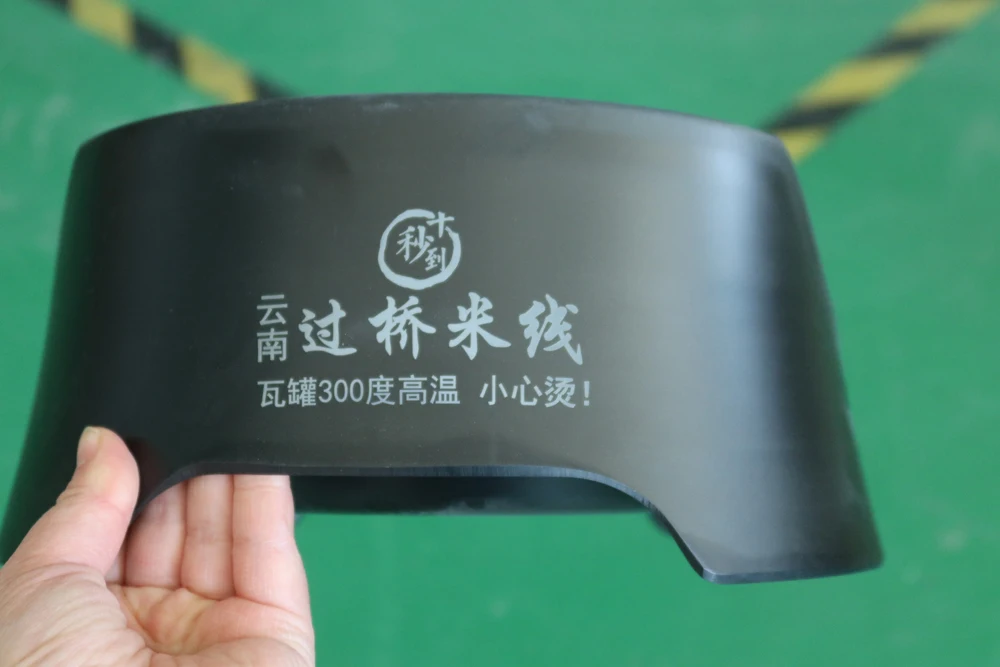

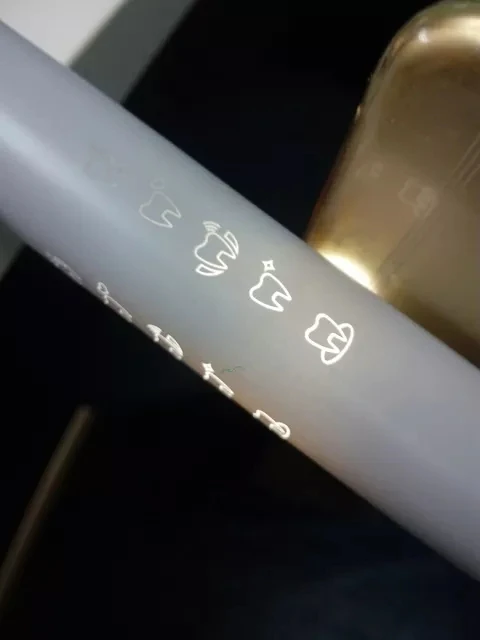

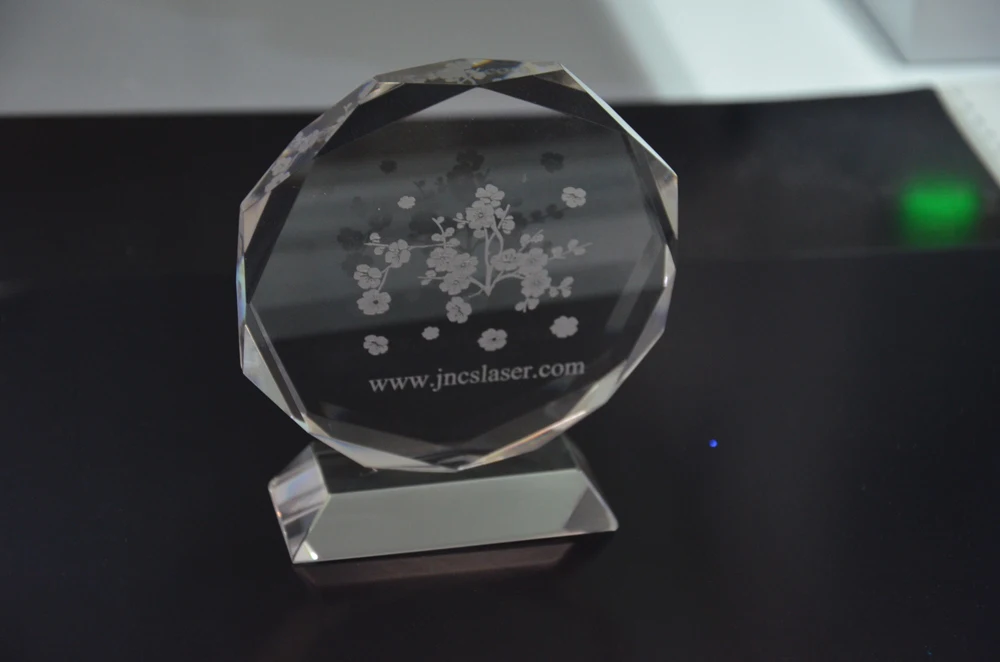

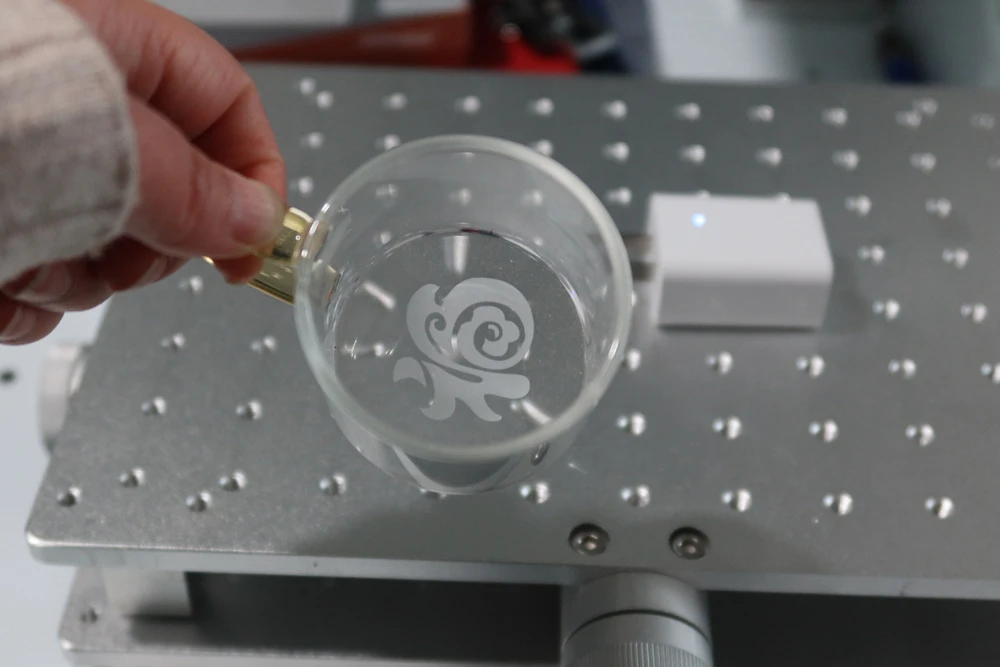

Sample Show
