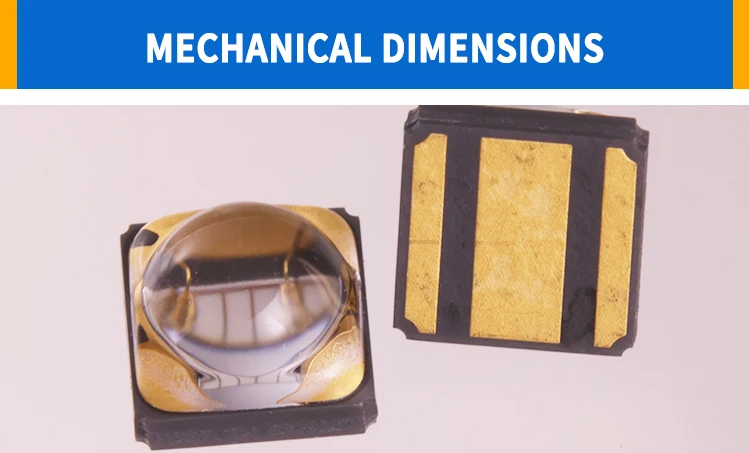

Seoul Viosys high power high quality UV LED tooth curing anti counterfeiting detection light source SVC SMD 3535 405nm UVA LED
- Category: >>>
- Supplier: Zhuhai Tianhui Electronic Co. Ltd.
Share on (1600908177253):
Product Overview
Description
UVA：365nm to 420nm Related products | ||||||||
Part Number | Product Image | Peak Wavelength | Output optical Power | Application | ||||
CUN6UB1A 3W | SMD3737, Quartz glass lens, 700mA, 3.5~3.8V Viewing angle: 60° | 365±5nm 385±5nm 395±5nm 405±5nm 415±5nm | 830~1100mW @700mA | UV curing, UV Printing adhesive and ink curing | ||||
CUN66A1G 5W | MD3535, Silicone lens, 1000mA, 3.5~3.8V Viewing angle: 120° | 365±5nm 385±5nm 395±5nm 405±5nm | 1760~2140mW@1000mA | Fluorescence detection UV torch, Leakage detection, Couterfeiting detection | ||||
CUN6HB4A 15W | SMD6868, Quartz glass lens, 2000mA, 7.8V Viewing angle: 80° | 365±5nm 385±5nm 395±5nm 405±5nm | 4000mW @2000mA | UV Curing, UV printing, UV coating, UV adhesive drying, UV torch, Dental curing | ||||
UVA:365nm to 420nm
RECOMMENDED UV APPLICAELONS
Printing and Glue Curing / Printing Ink Curing / Plant Grouth Light Source / Mosquito and
Insect Trapping /Biological Reagent / Fluorescent Lighting / Currency Counting and
Verification Equipment /Fluorescent Detection of Currency Verification / Flaw Detection /
Jewelry and Jade Detection / MedicalDetection / Biological Reagent /Beauty and Nail
Enhancement / Purple Flashlight LED......

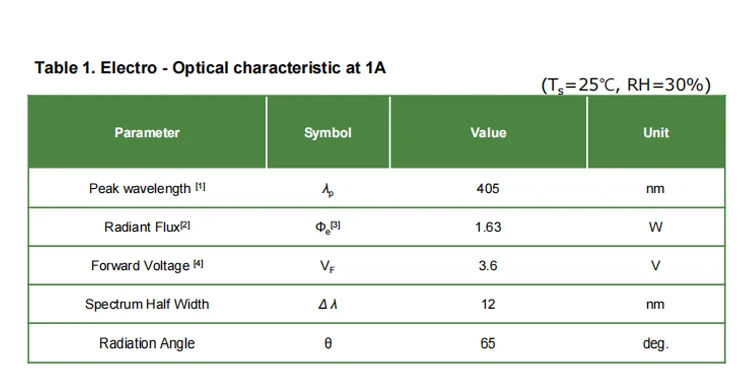

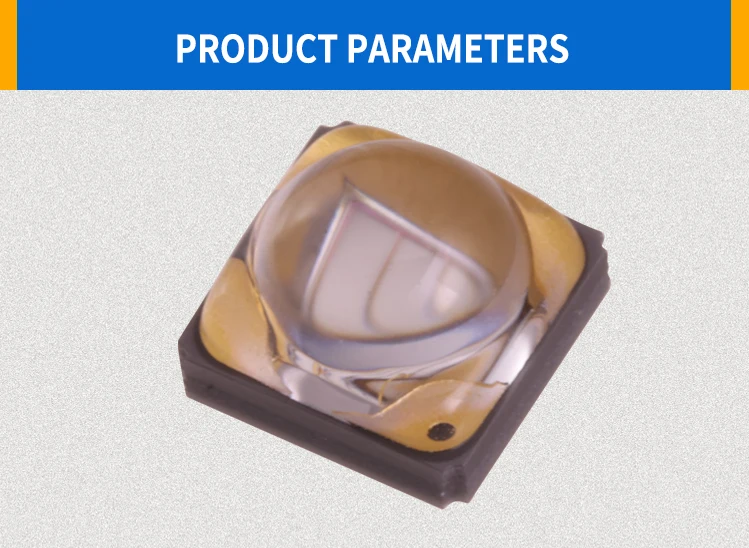

Product model | Wavelength(λp) | Voltage(Vf) | Electric current(IF) | Optical power(Φe) | View Angle(2Θ1/2) |
CUN0GB1A | 405nm | 3.6V | 1000mA | 1.63W | 65° |
