Factory Price Multi Function Dental LED 20:1 Fiber Optic Implant Motor System With Color Touch Screen
- Category: >>>
- Supplier: Shenzhen Well Armor High-Tech Co. Ltd.
Share on (1600908180529):
Product Overview
Description
Product Introduction
Product Features：
1 - Multi-function in one. Containing implantation, restoration, extraction of blocked teeth, orthopedic surgical functions. 8 program modes, can be matched with 10 different rotational speed ratio curved machine head. Surgical parameters are automatically stored and memorized without frequent settings, and the software algorithm is humanized and intelligent. Adaptable curved machine head and its functions are: Implantology:
20:1 (commonly used), 27:1, 16:1
Restoration and extraction of blocked teeth: 1:1, 1:3,
1: 4.2, 1:5 Orthopedic surgery: 3.2 :1, 4:1
1: 4.2, 1:5 Orthopedic surgery: 3.2 :1, 4:1

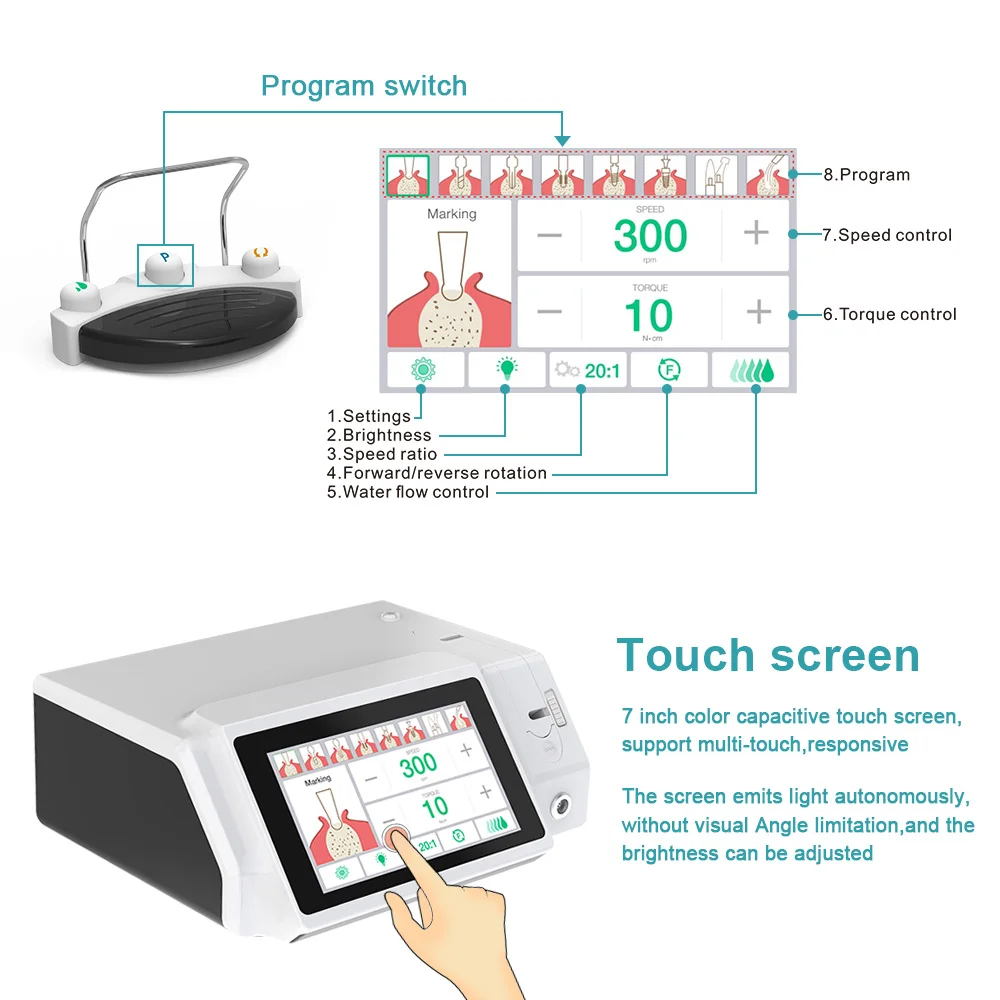

2 - Touch color screen. Adopting 7-inch true color capacitive touch screen, visual operation interface, humanized touch design, support multi-touch, responsive. Screen independent light-emitting, no viewing angle restrictions, adjustable screen brightness, strong and weak light conditions are not affected by the use.
3 - Multi-function foot pedal. Stepless variable speed foot pedal control algorithm, motor start-stop control smooth, torque, speed real-time digital display, can be freely switched to different programs, water and forward and reverse control, control effect is more intuitive.
4 - Implantation, restoration, extraction of blocked teeth and orthopedic surgery mode can be connected to external saline or sterile water to avoid sucking back and reduce cross-contamination.
5 - The motor adopts low noise motor, low power consumption intelligent control algorithm, more accurate speed control, lower power consumption and operating temperature of the whole machine.
6 - Built-in peristaltic pump design, accurate water control. Integrated housing design, smooth lines.
7 - Built-in manual, simple and convenient operation.
8 - Built-in 10 kinds of common error prompts and alarm interface, timely reminder of misoperation, better protection of the machine.

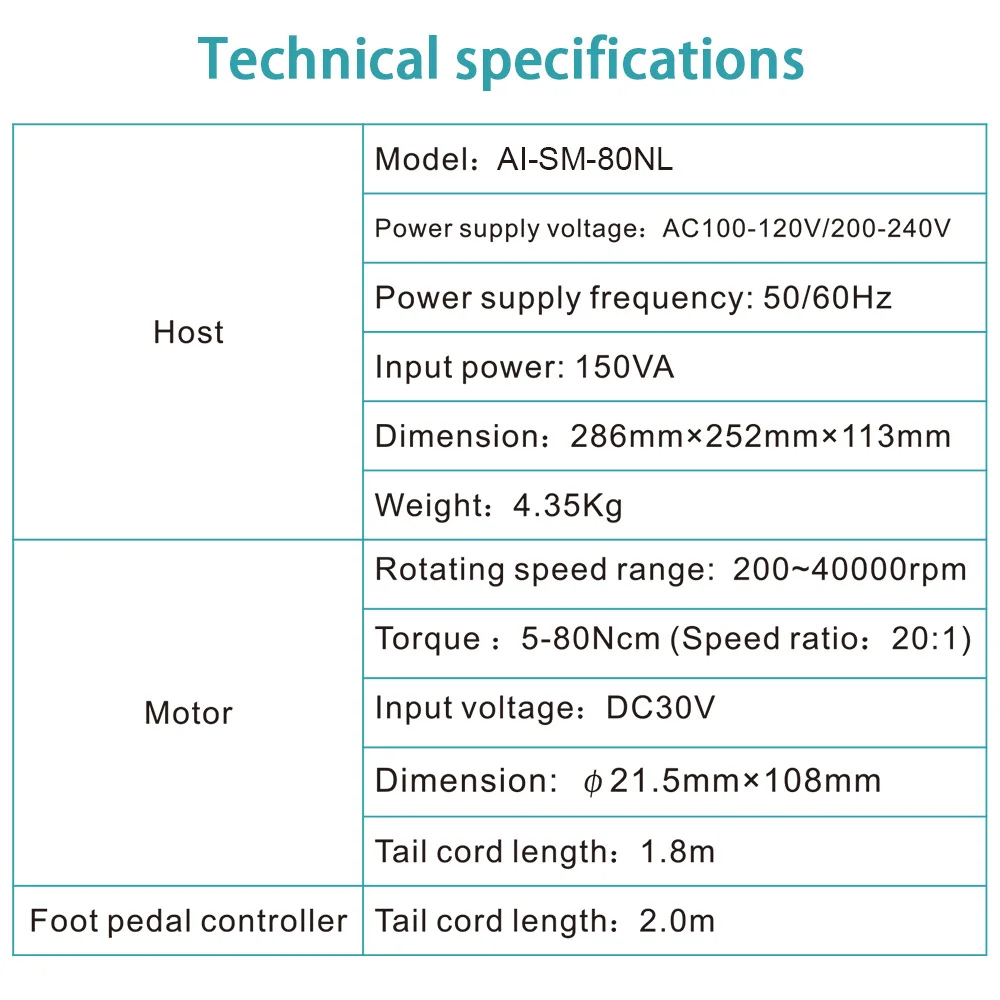

Product Paramenters
Host | ||
Product Name | Dental Implant System | |
Model | Al-SM-80NL | |
Power supply voltage | AC100-120V/200-240V | |
Power supply frequency | 50/60Hz | |
Input power | 150VA | |
Dimension | 286mm×252mm×113mm | |
Weight | 4.35Kg | |
Motor | ||
Rotating speed range | 200~40000rpm | |
Torque | 5-80Ncm(Speed ratio:20:1) | |
Input voltage | DC30V | |
Dimension | Φ21.5mm×108mm | |
Tail cord length | 1.8m | |
Tail cord length | 2.0m | |
Products Description
FAQ
Question: how long warranty does it come with? Answer: we offer two years warranties. |
Question: Hello, the full speed is 30.000 or 40.000? Answer: Motor speed: 300--40000rpm |
Question: Se puede poner el cono recto para cirugía !? Answer: yes |
Question: Is it brand COXO or Well Armor ? Answer: Brand is COXO , seller is Well Armor. we are the partner of COXO , thanks |
Question: Does it comes with irrigation tube ? Answer: yes |
Question: Viene con Trasformador de corriente para 220 volts ? Answer: No, solo funciona con voltajes de 100-110V. Es el voltaje de trabajo de América del Norte. Si necesitas un voltaje de 220V, puedes contactarnos y podemos enviarte un producto de 220V por separado. |
Question: Does this come with the handpiece? Answer: yes， with one 20:1 contra angle for implant. |
