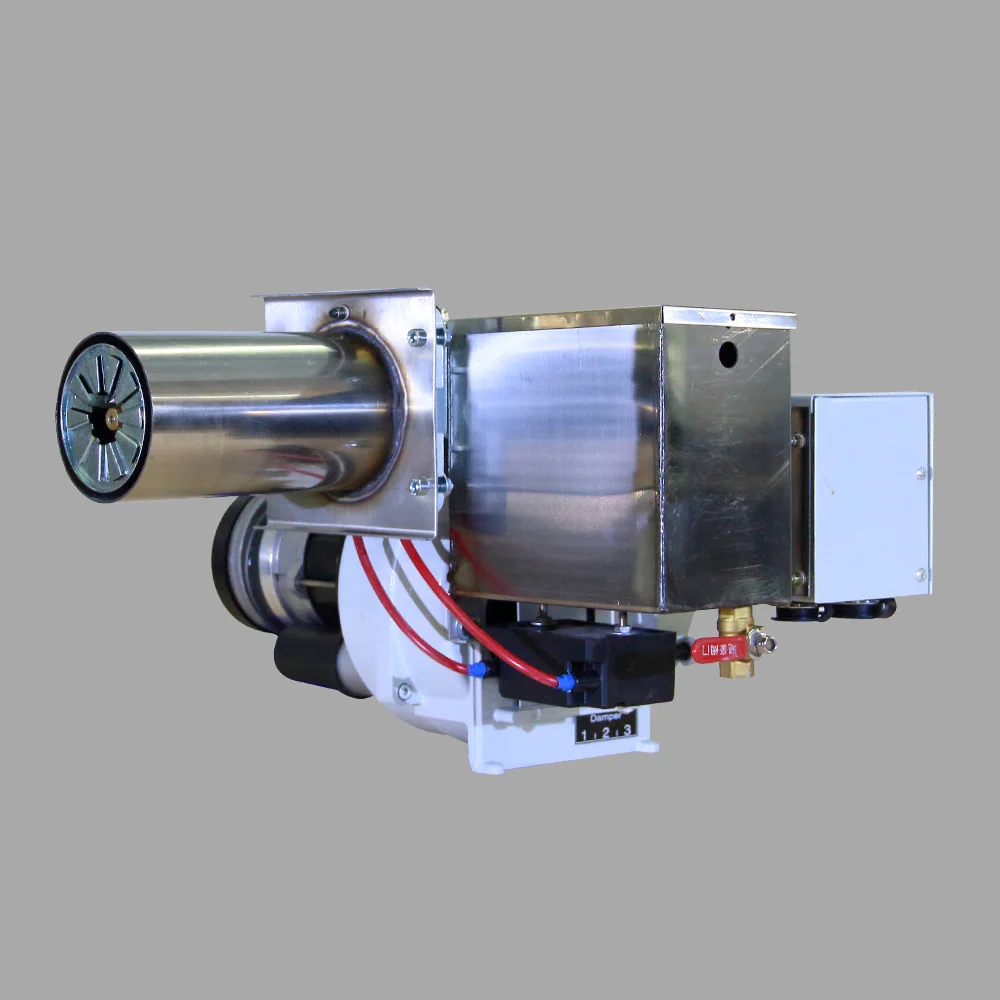

Одобренная CE, используемая горелка для отработанного масла автомобильного масла с воздушным насосом Bulit In
Одобренная CE, используемая горелка для отработанного масла автомобильного масла с воздушным насосом Bulit-In
Одобренная CE, используемая горелка для отработанного масла автомобильного масла с воздушным насосом Bulit-In
Одобренная CE, используемая горелка для отработанного масла автомобильного масла с воздушным насосом Bulit-In
Одобренная CE, используемая горелка для отработанного масла автомобильного масла с воздушным насосом Bulit-In
Одобренная CE, используемая горелка для отработанного масла автомобильного масла с воздушным насосом Bulit-In
Одобренная CE, используемая горелка для отработанного масла автомобильного масла с воздушным насосом Bulit-In

Одобренная CE, используемая горелка для отработанного масла автомобильного масла с воздушным насосом Bulit In

Share on (1600908185463):


Price:650,00 $ - 700,00 $

Quantity:


Product Overview

Description



Introducing the Enhanced KV03-A Burner Series


Since many customers require a waste oil burner with a built-in air compressor, our factory has conducted extensive research and tested various types of air pumps to observe their service life and combustion effects. Finally, we have selected two types of the most suitable air pumps, which have been modified to create two editions of the KV03 burners.

We have named the KV03 burner with an air pump as KV03-A. The first edition is called KV03-A01, representing a single stronger flame stage. The second edition is named KV03-A02, indicating two flame stages. This is the most significant difference between the two editions, although there are slight variations in operation, components, and controllers as well.

As many customers are aware, the KV03 burner is our smallest model, with a capacity of 29-34 kW and 30,000 kcal. With the success of the KV03-A burners, we are now working towards incorporating air pumps into other larger models as well. We are committed to improving quality and meeting customer satisfaction at all times.

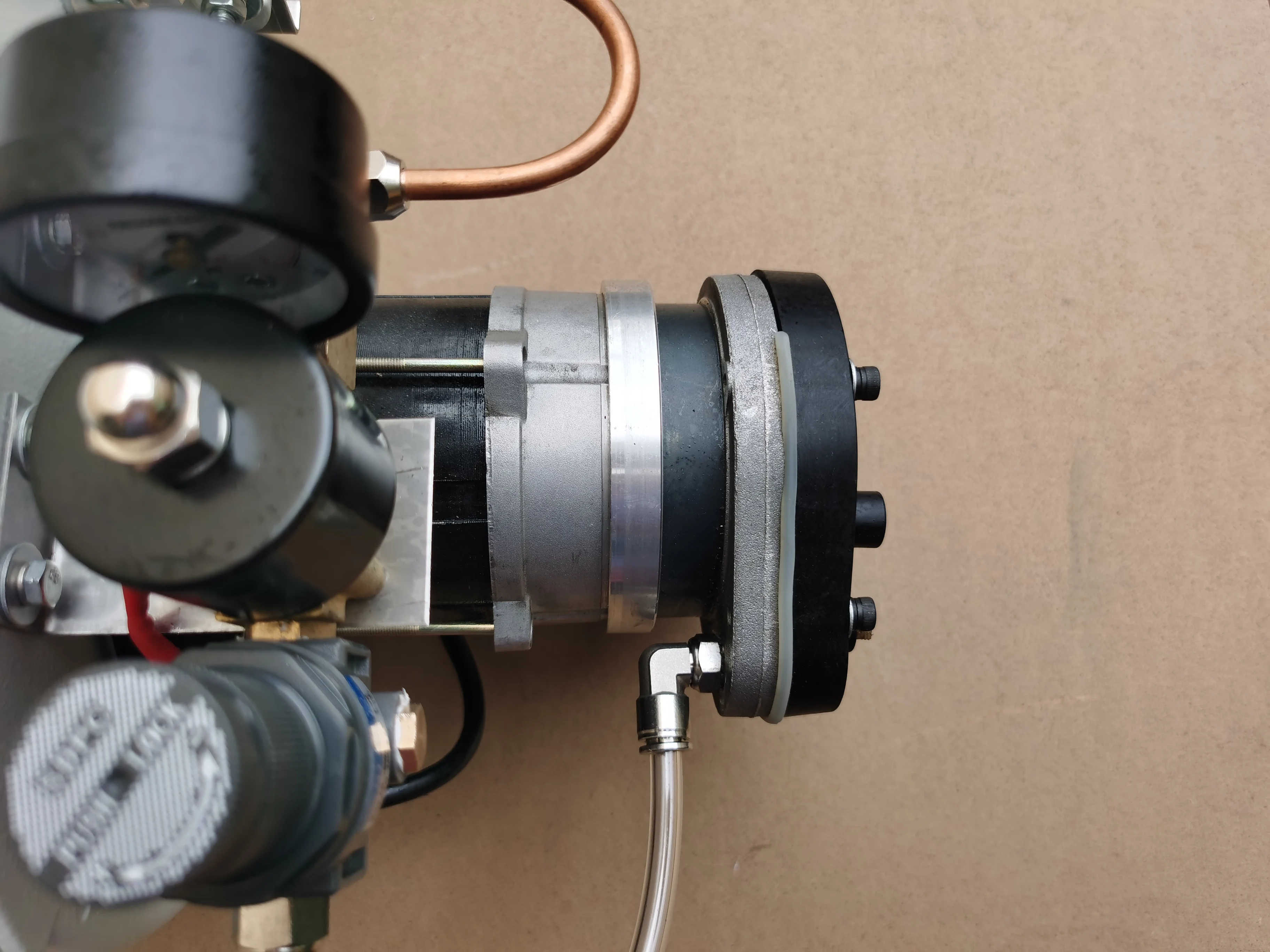

KV03-A01 has one air pump KV03-A02 has two air pumps

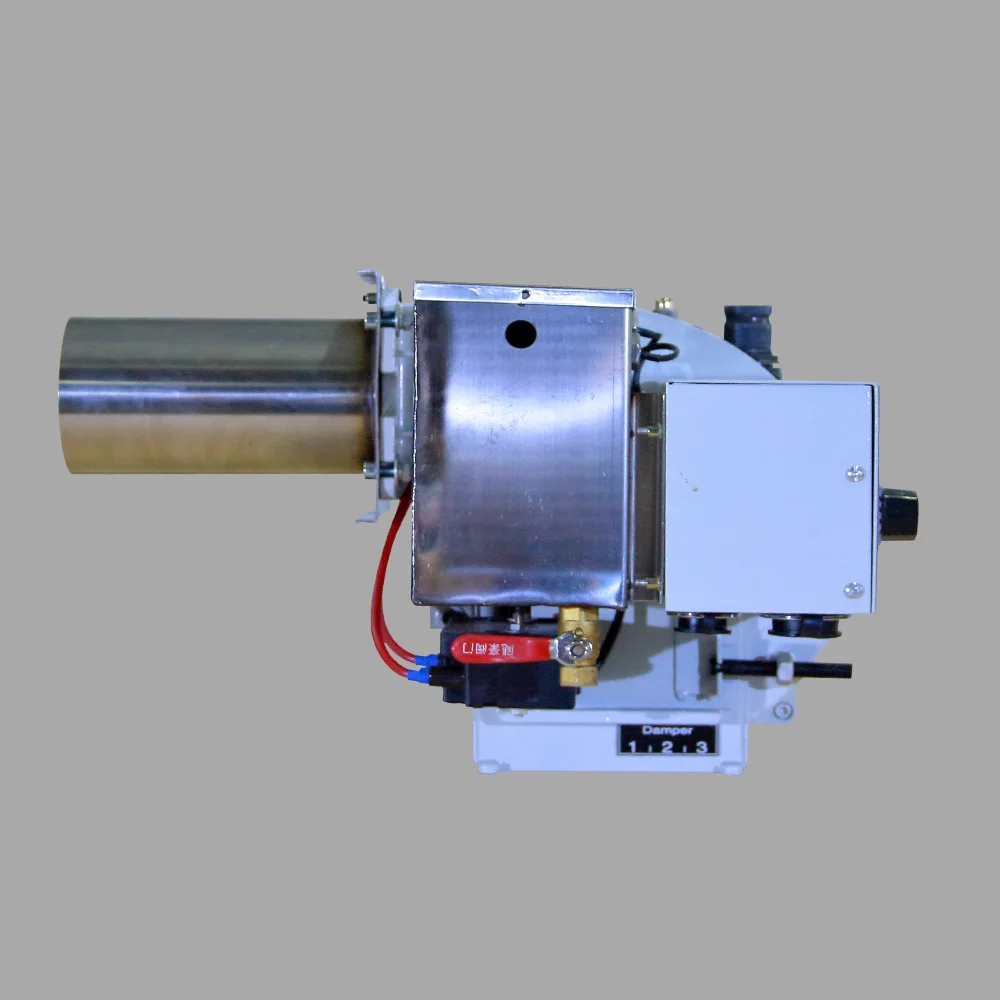

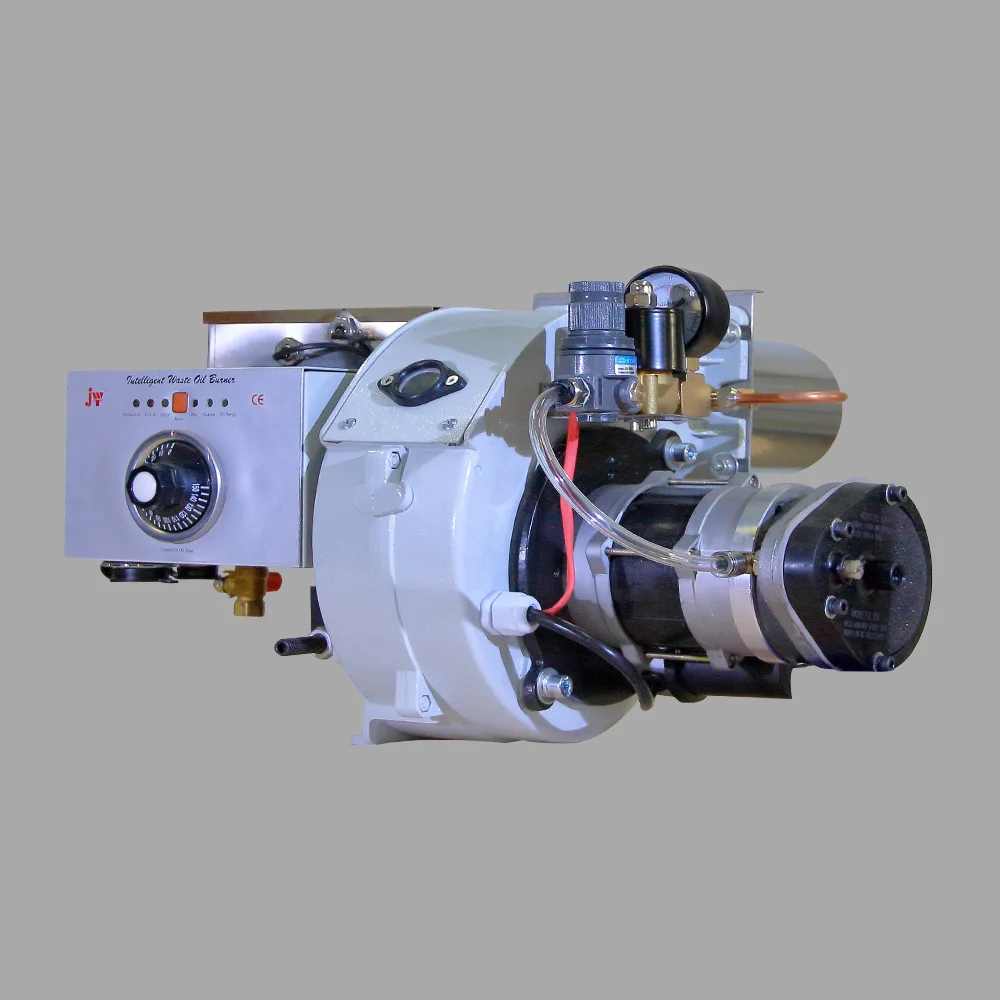

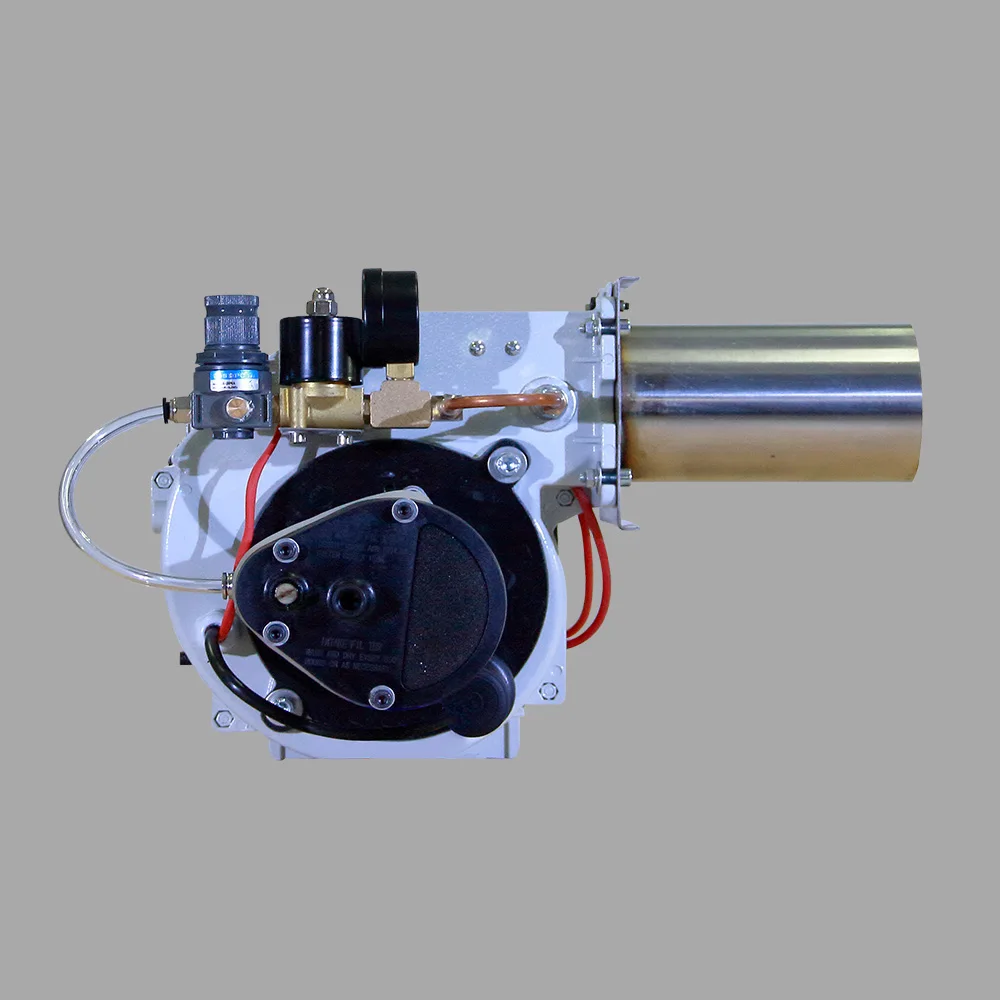

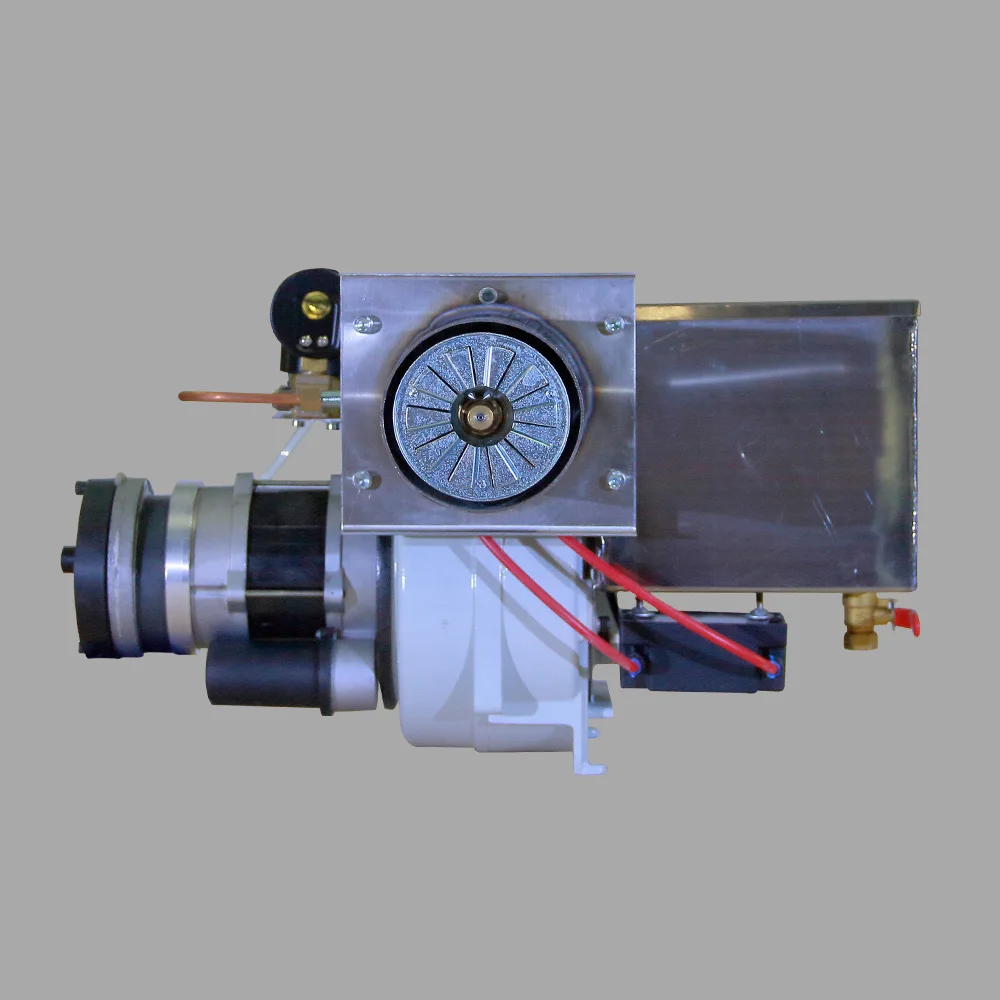

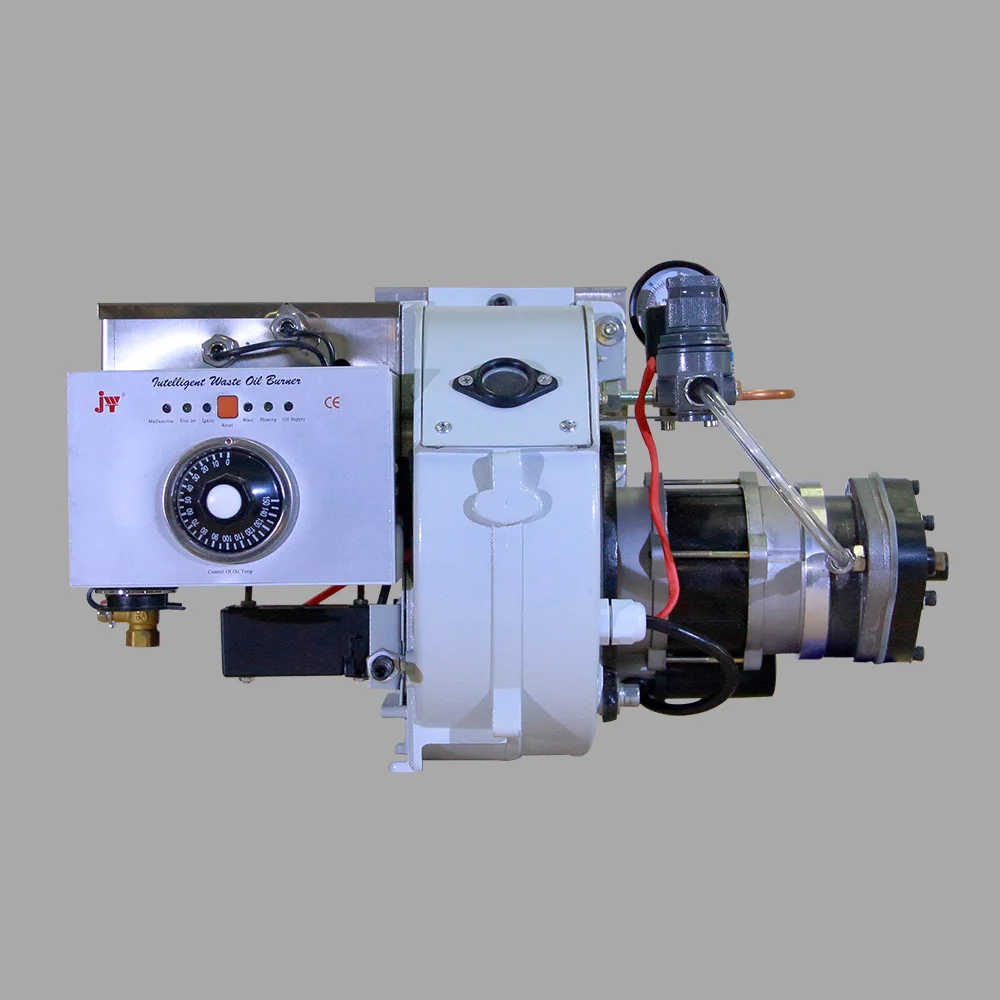

KV03-A01 Picture & Parameter




Burner Technical Data Sheet
Oil Consumption
2-3 Liter per hour




Output Power/Heat
Diesel Oil, Fuel Oil, Pyrolysis Oil, Sample-C1
will produce max
30 000Kcal/h heat, 34Kw power
Vegetable Oil will produce max
27 000Kcal/h heat, 31Kw power
Engine Oil/Waste Engine Oil will produce max
25 500Kcal/h heat, 29kw heat
Nozzle
1*1.0mm
Heating Pipe Power
1.0Kw
Motor Power
180w
Voltage
220v or 110v
Working Pressure
0.5-1.5bar


Burner Dimension Table
Tube Diamter
90mm
Tube Length
130mm
Burner Size
430*450*270mm
N.W
17Kg

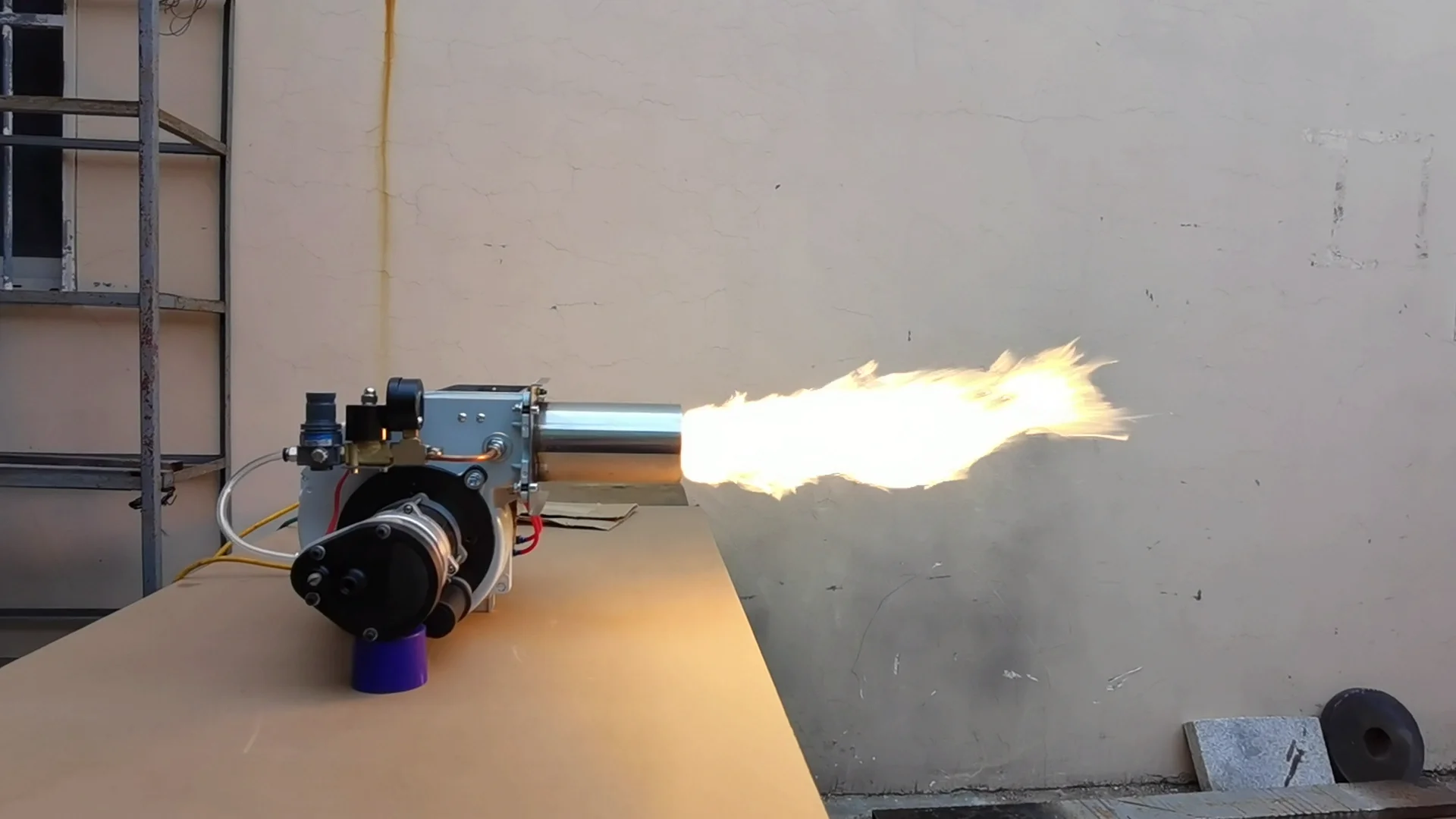

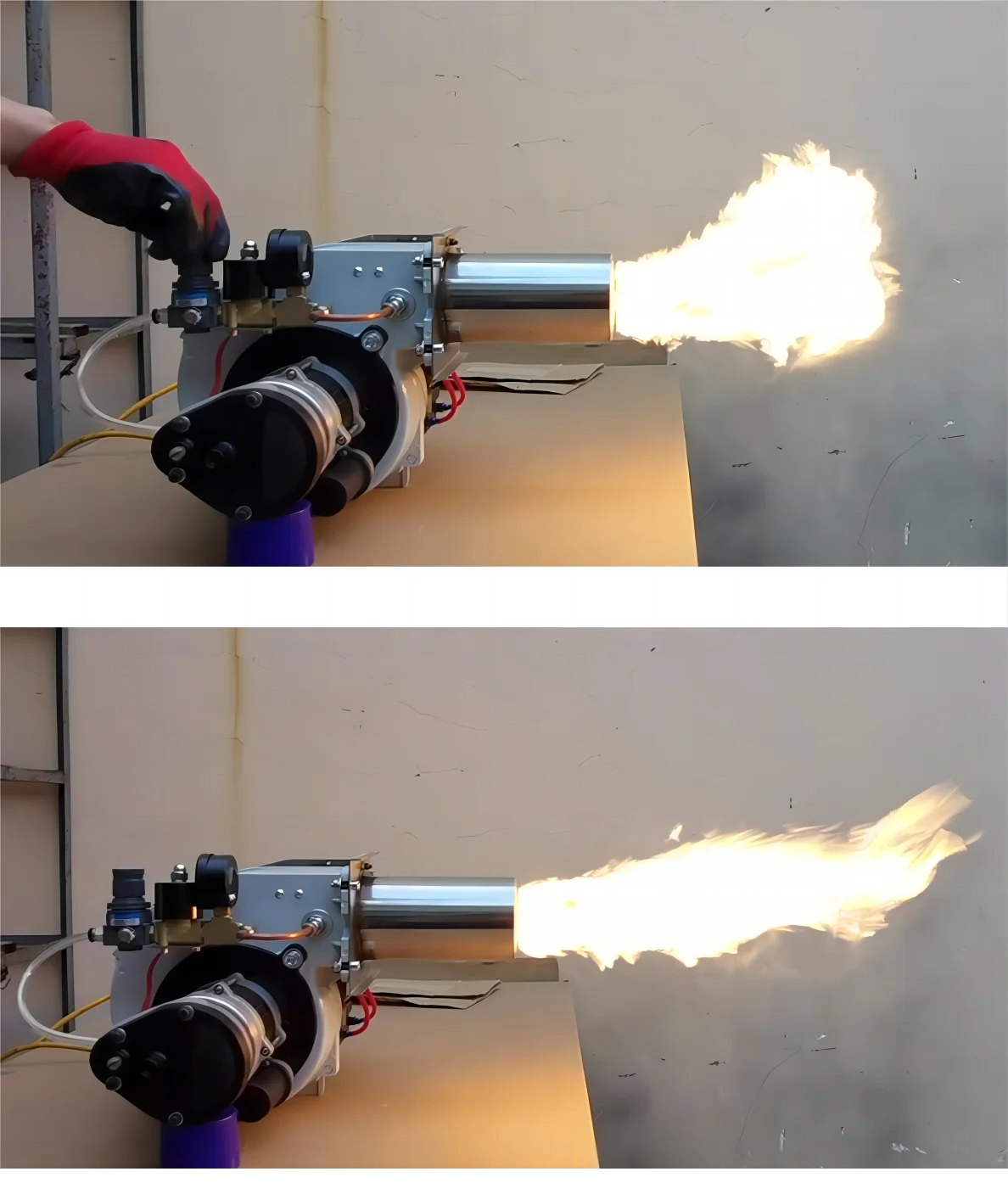

KV03-A01 Flame Display




KV03-A01 has one stronger flame stage, the flame length can be further adjusted.

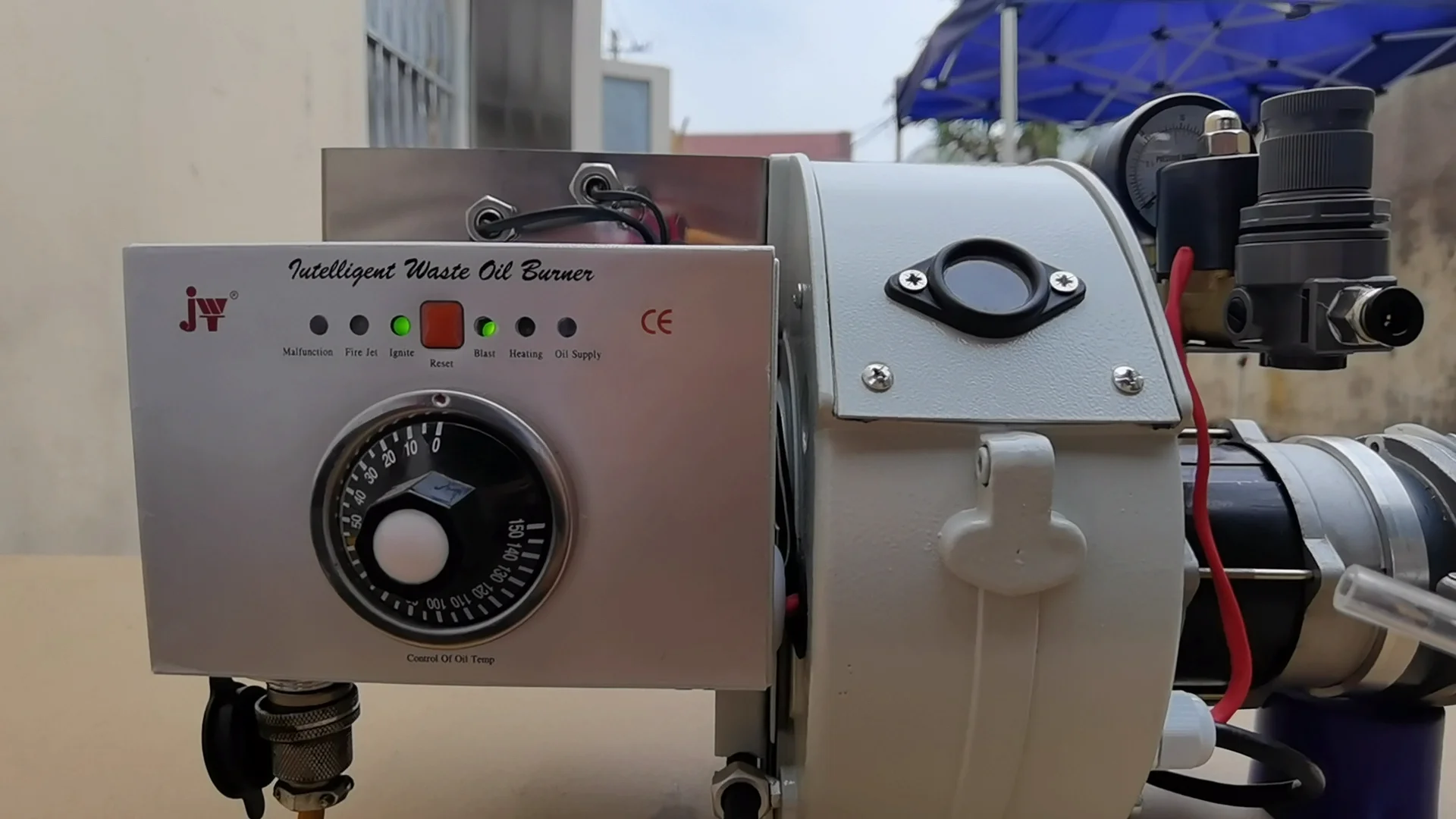

KV03-A01 Work Stage




The whole work process is fully automatically and readable, which is power on → oil pump → oil heat → fan → ignite → fire


• power on → oil pump → oil heat

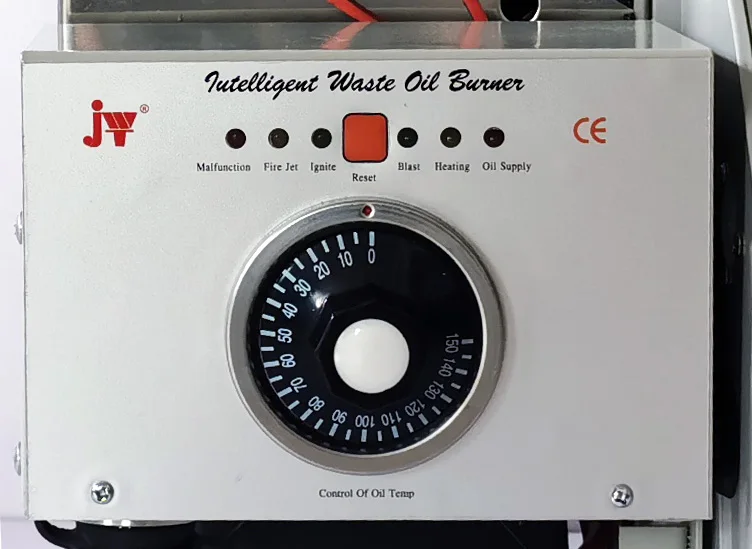

The burner has an oil pump wire, one end of which has already been connected to the burner. Please connect the other end to the oil pump and filter system that comes with the burner. Power on the burner, and it will start to pump oil to the burner's small oil tank. After pumping, please adjust the temperature controller according to the type of fuel used. If you are using waste engine oil, the heating temperature should be set to 90 degrees. The initial heating process will take approximately four minutes.


.......................................................................................................................................................................................................




• fan → ignite
After the oil heating process is complete, the fan (blast) will automatically initiate a purging phase, followed by ignition.


.......................................................................................................................................................................................................

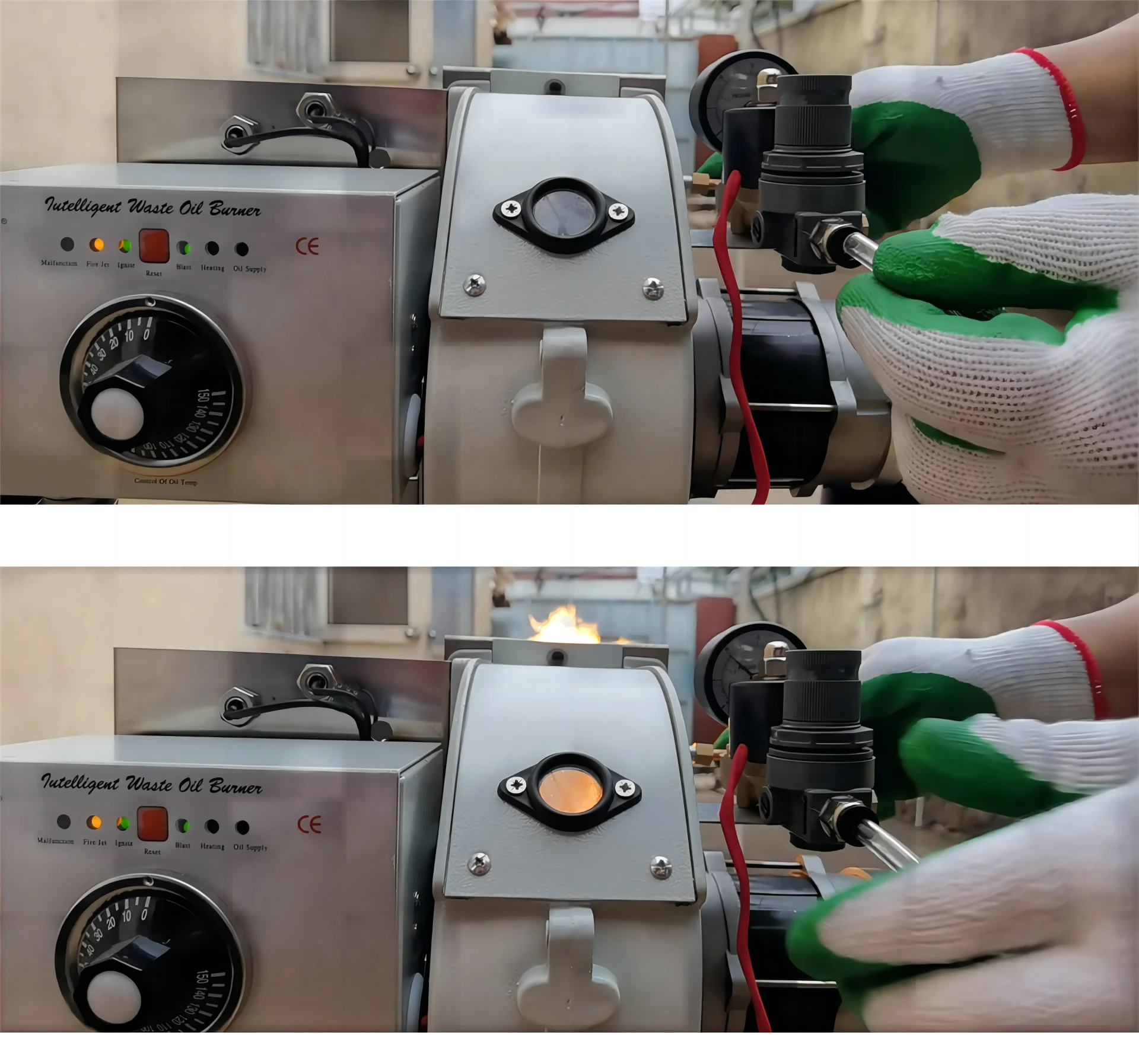

• ignite → fire

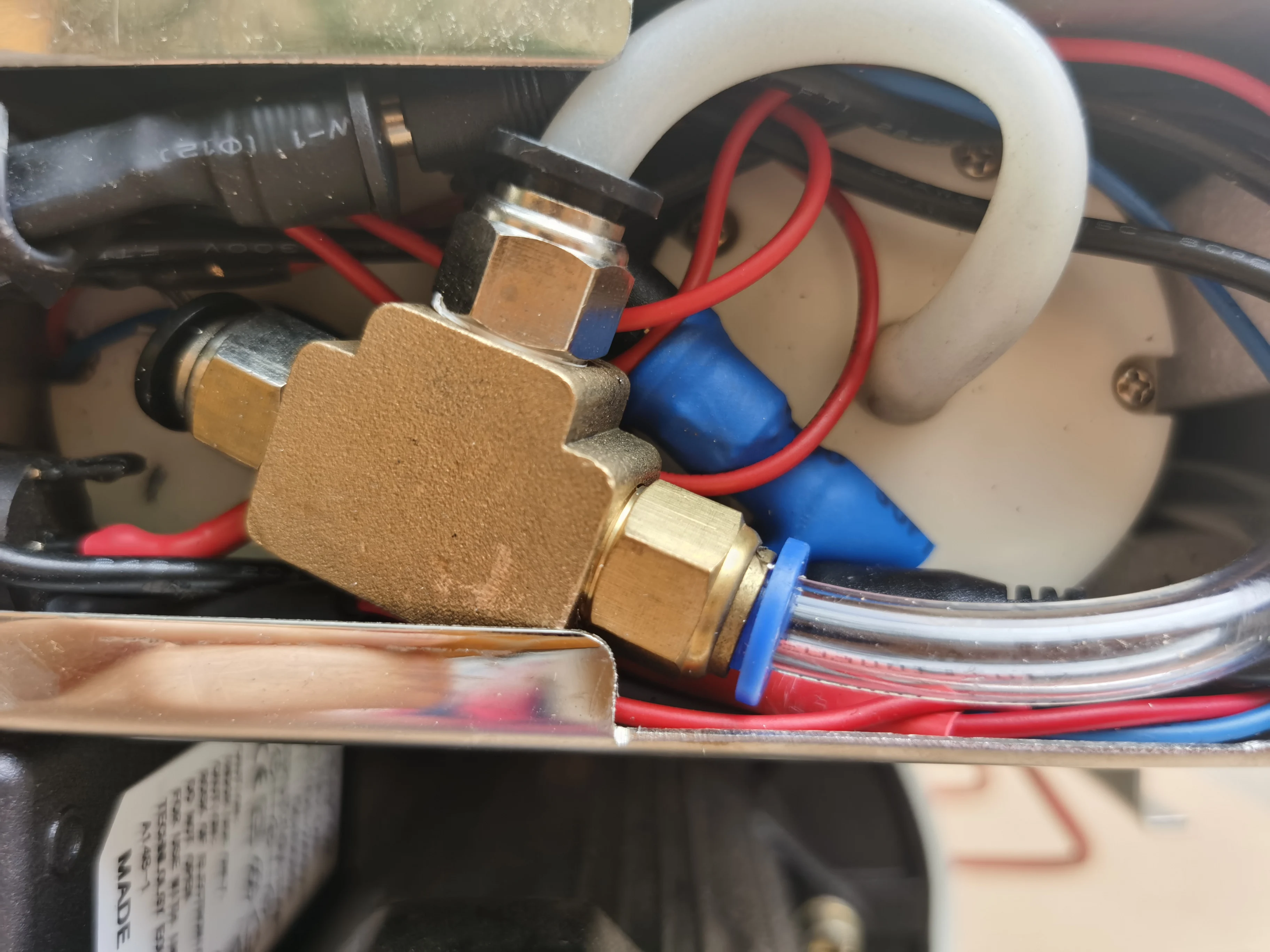

When you hear a clicking sound, it indicates that the solenoid valve is open. Please connect the air pipe at this point.




Compressed air will then enter the oil pipes, mixing with the heated oil to form a flame.


.......................................................................................................................................................................................................














•Flame length can be further adjusted by rotating the air regulator


Manufacturer Information


As an original manufacturer and direct exporter of waste oil burners for the past 15 years, we take pride in our ability to provide comprehensive service to our clients. Our facilities include a machine tool workshop, forge workshop, assembly room, quality detection department, and foreign trade team, enabling us to provide support from manufacturing to aftersales service.

Our CE-approved burners boast a unique appearance, perfect combustion effects, and mature functions.With an established track record, we have earned the trust of both our old clients and new customers, exporting bulk orders of burners annually.

How is the burner made?


Bending machine
Punch press


Welding
Assembly


Testing
Packaging
