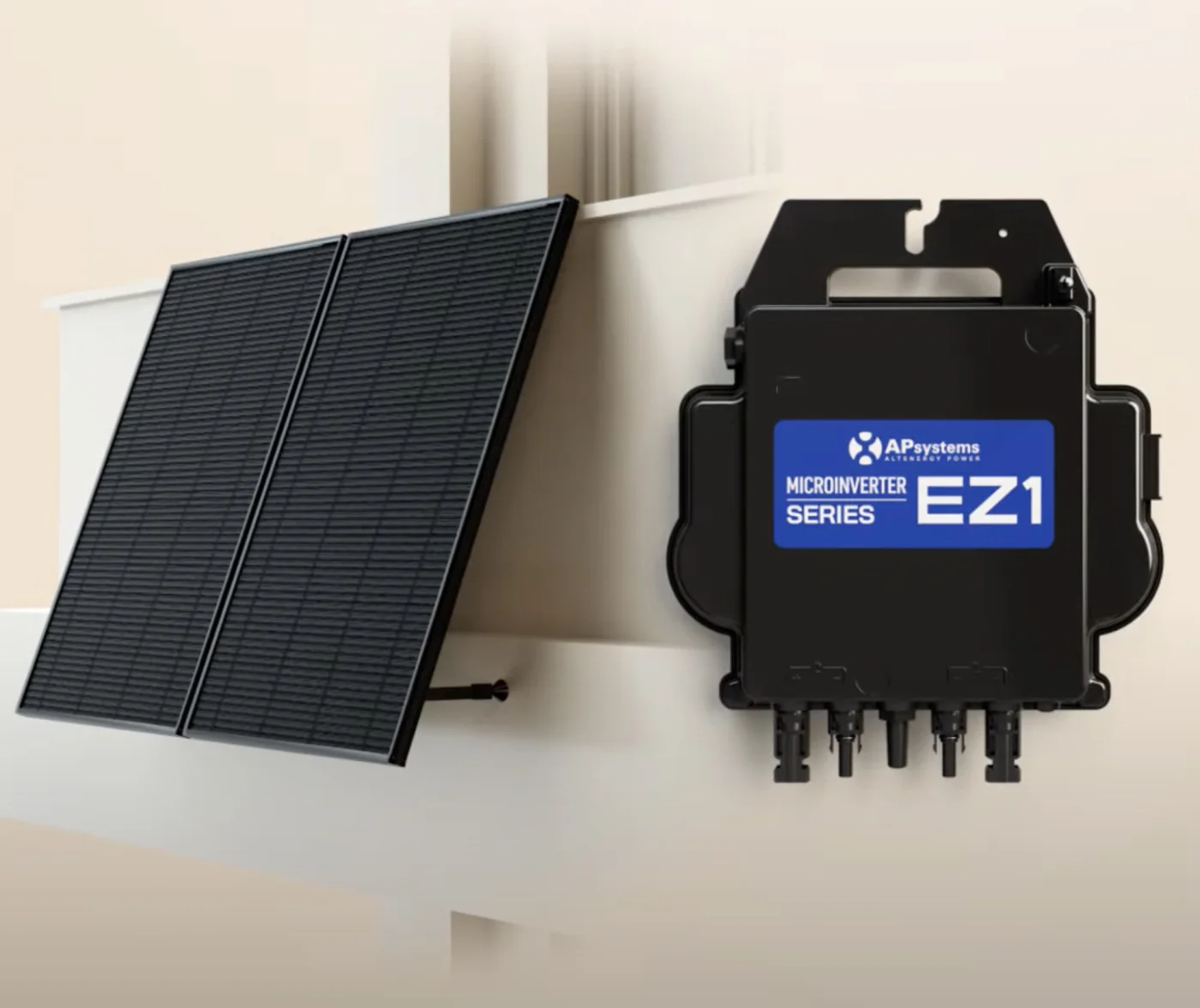

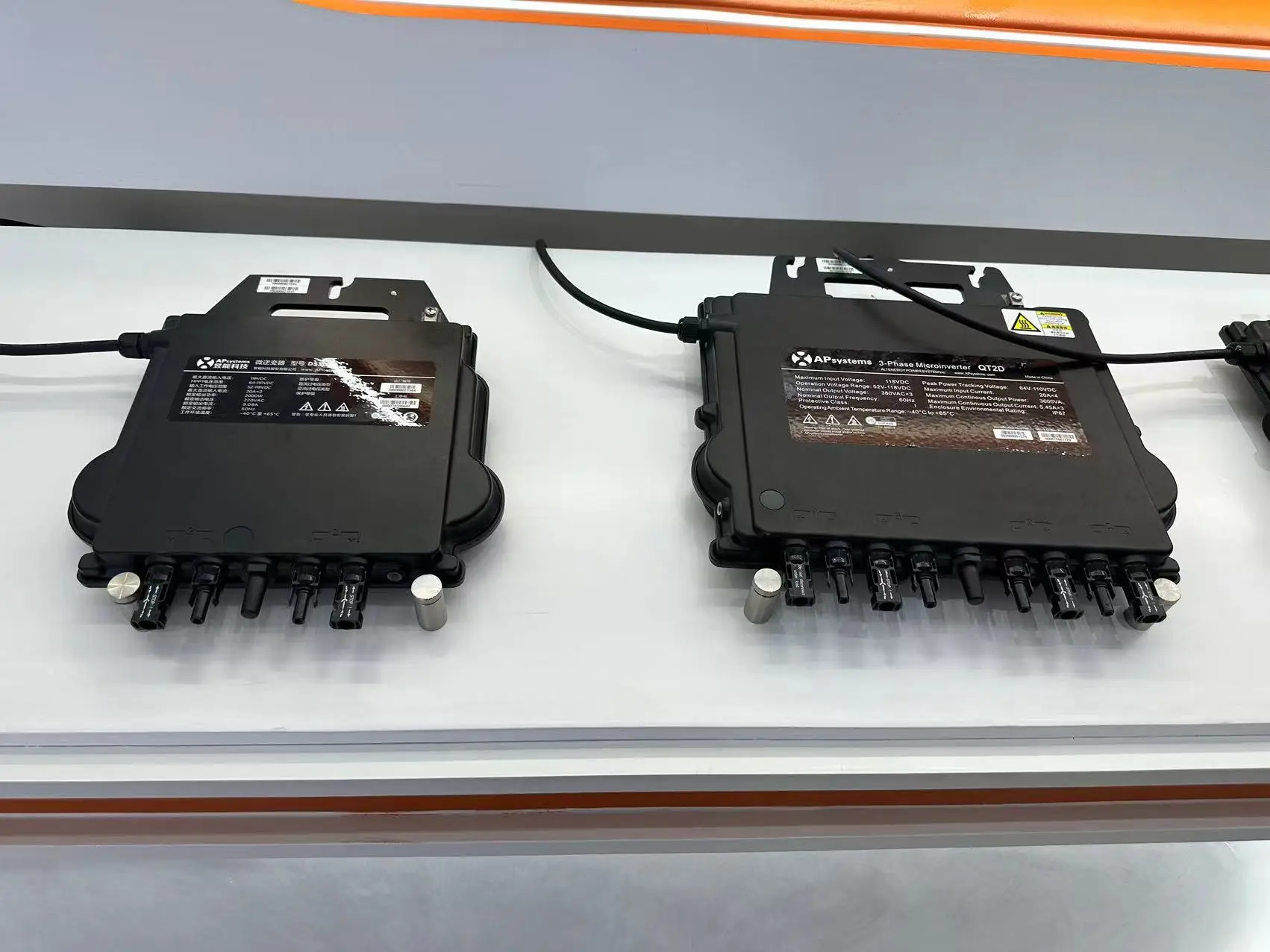

AP systems solar micro inverter 800W wifi Balcony system single phase 3 pin ac connector for apsystems micro inverter
AP systems solar micro inverter 800W wifi Balcony system single phase 3 pin ac connector for apsystems micro inverter
AP systems solar micro inverter 800W wifi Balcony system single phase 3 pin ac connector for apsystems micro inverter
AP systems solar micro inverter 800W wifi Balcony system single phase 3 pin ac connector for apsystems micro inverter
AP systems solar micro inverter 800W wifi Balcony system single phase 3 pin ac connector for apsystems micro inverter
AP systems solar micro inverter 800W wifi Balcony system single phase 3 pin ac connector for apsystems micro inverter
AP systems solar micro inverter 800W wifi Balcony system single phase 3 pin ac connector for apsystems micro inverter

AP systems solar micro inverter 800W wifi Balcony system single phase 3 pin ac connector for apsystems micro inverter

Share on (1600908192452):


Price:$145.00

Quantity:

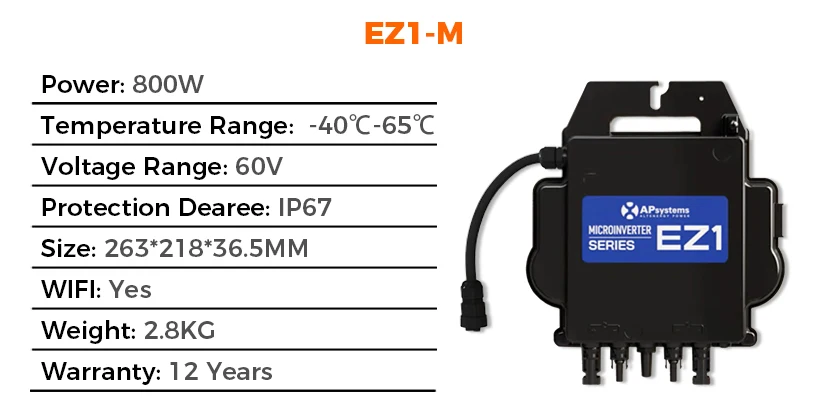

Product Overview

Description











Model
EZ1-S
EZ1-M
Region
EMEA
Input Data (DC)
Recommended PV Module Power (STC) Range
255Wp-550Wp+
300Wp-730Wp+
Peak Power Tracking Voltage
28V-45V

Operating Voltage Range
16V-60V

Maximum Input Voltage
60V

Maximum Input Current
18A x 2
20A x 2
Isc PV
22.5A x 2
25A x 2
Output Data (AC)
Maximum Continuous Output Power
600VA
600VA(3)/799VA
Nominal Output Voltage/Range(1)
230V/184V-253V
Nominal Output Current
2.6A
2.6A(3)/3.5A
Nominal Output Frequency/ Range(1)
50Hz/48Hz-51Hz
Default Power Factor
0.99
Efficiency
Peak Efficiency
97.3%

Nominal MPPT Efficiency
99.5%

Night Power Consumption
20mW

Mechanical Dat
Operating Ambient Temperature Range(2)
- 40 °C to + 65 °C

Storage Temperature Range
- 40 °C to + 85 °C

Dimensions (W x H x D)
263mm x 218mm x 36.5mm

Weight
2.8kg

DC Connector Type
Stäubli MC-4 PV-ADBP4-S2&ADSP4-S2

Cooling
Natural Convection - No Fans

Enclosure Environmental Rating
IP67

Power Cord (Optional)
Wire Size
1.5mm²

Cable Length
5M as default

Plug Type
Schuko

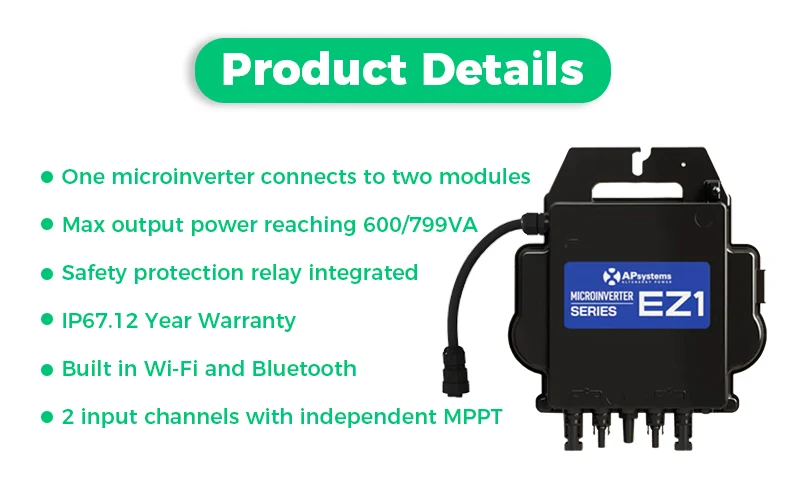

Features
Communication
Built-in Wi-Fi and Bluetooth

Maximum Units Can Be Connected(4)
2

Isolation Design
High Frequency Transformers, Galvanically Isolated

Energy Management
AP EasyPower APP

Warranty
12 Years Standard

Compliances
Safety, EMC & Grid Compliances
EN 62109-1/-2; EN 61000-1/-2/-3/-4; EN 50549-1;
DIN V VDE V 0126-1-1; VFR; UTE C15-712-1; CEI 0-21;
UNE 217002; NTS; RD647; VDE-AR-N 4105


















FAQ
1.Do you offer sample for testing purpose?
Yes,we do offer sample machine for testing.Please specify your requirements when contacting our agents.

2.What certificate do you have for micro inverters?
VDE 4105.EN50549-1.VDE0126-1-1.ABNT NBR 16149, ABNT NBR 16150, ABNT NBR62116.RD1699. UNE 206006 IN, UNE 206007-1 IN, IEEE1547.Please double check with our agents for certificates.

3.Do you support OEM?
Yes, we do support OEM, however, there's requirement on quantities of your order.

4.What kind of shipment do you offer?
We offer land, sea and air freight upon your request. Fees varies.

5.How long does it take to receive goods I ordered?
For samples, the fastest you can receive is within one week. For bulk orders,dates may vary depending on quantity.
