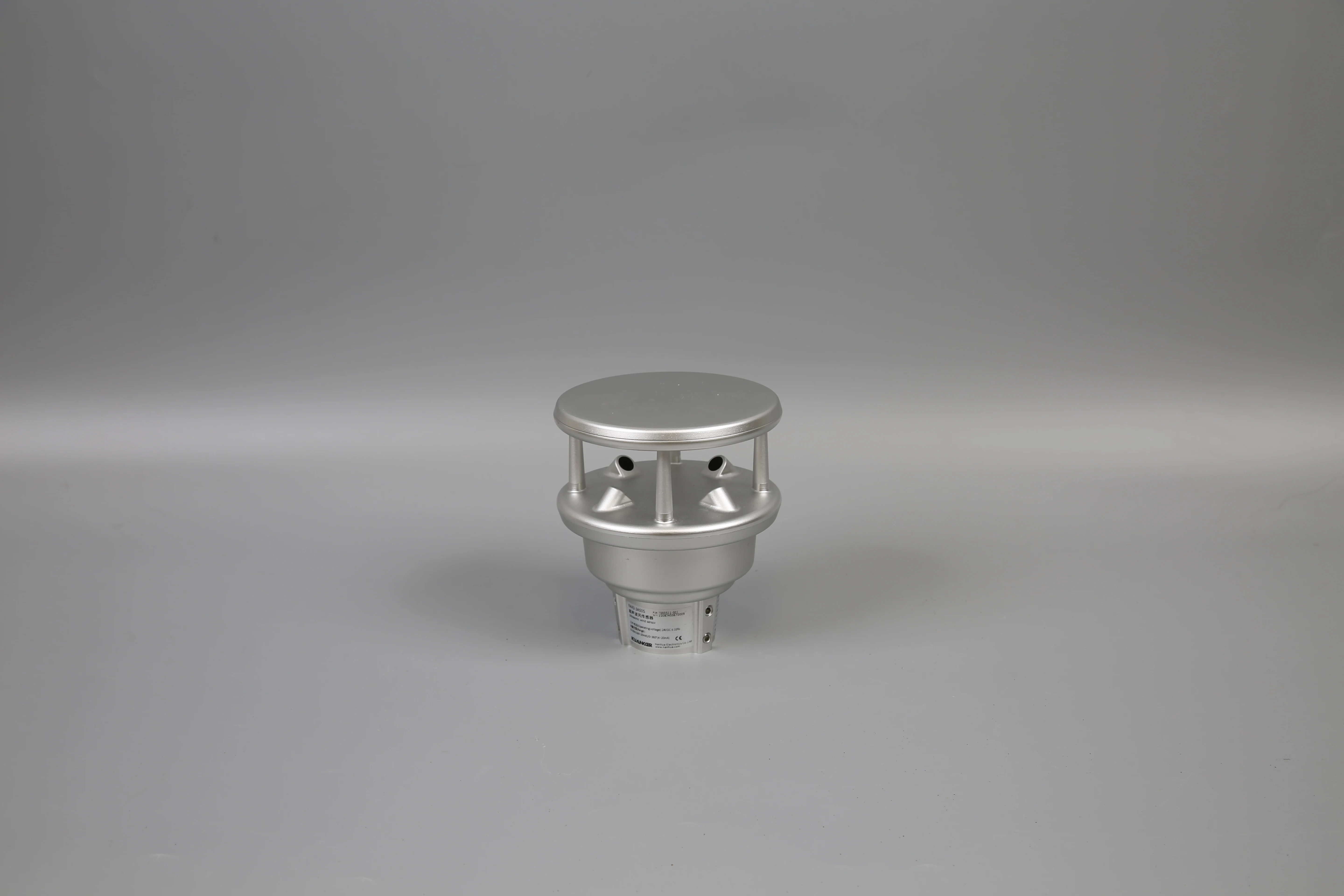

Nanhua IP66 ultrasonic wind speed and direction sensor anemometer for wind energy power ,solar tracker,photovoltic

Product Overview

Description

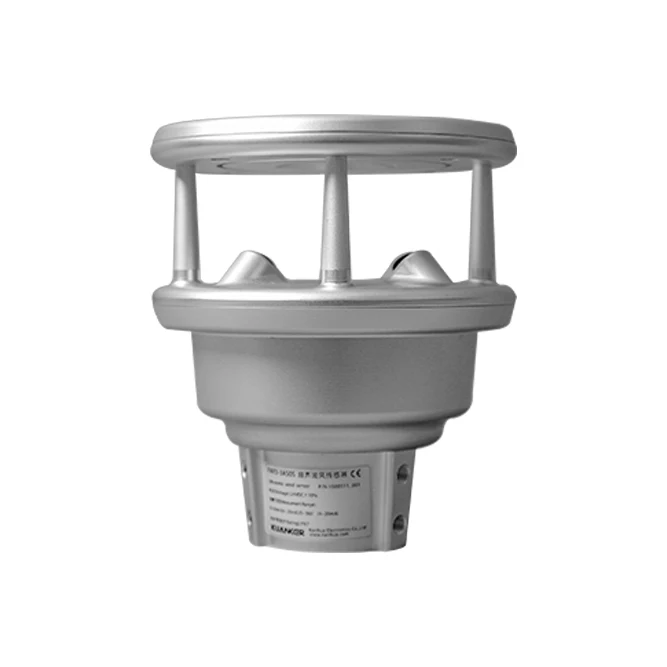

Nanhua IP66  ultrasonic wind speed and direction sensor anemometer  for wind energy power ,solar tracker,photovoltic

•


  High precision corrosion resistance








Main fuctions and features

• Adopt time difference measurement principle, strong capacity of environmental interference resistant.


• Adopt high efficiency filtering algorithm, special compensation technology design for rain, fog weathers.


• Various signal output for option.


• Multistage lightening and surge protection design.


• Power interface and signal interface full insulation design.


• Stainless steel body, corrosion resistant and high strength.

Specification



Operating voltage	DC24V	Accuracy	+-2%
Operating current	150mA Max	Resolution	1°
Heating voltage	DC24V	Mounting	Pole Mount

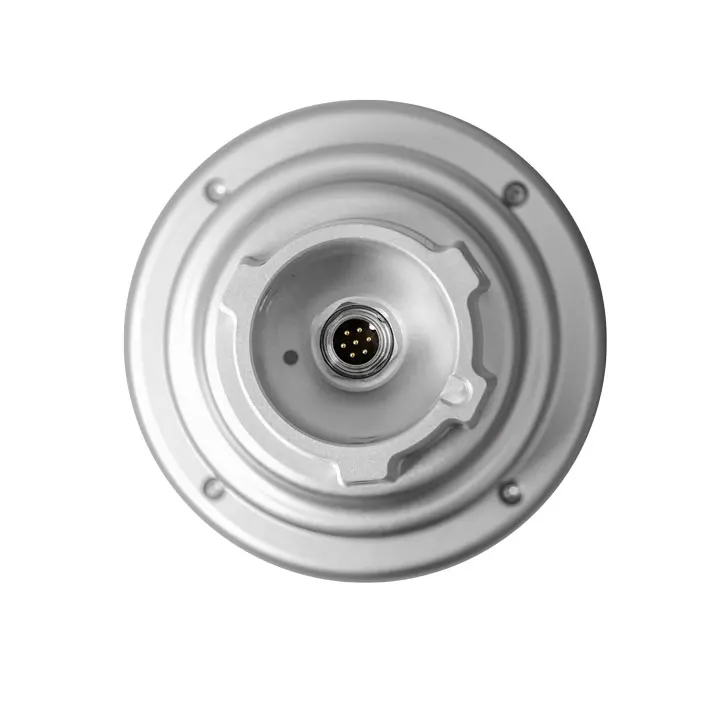

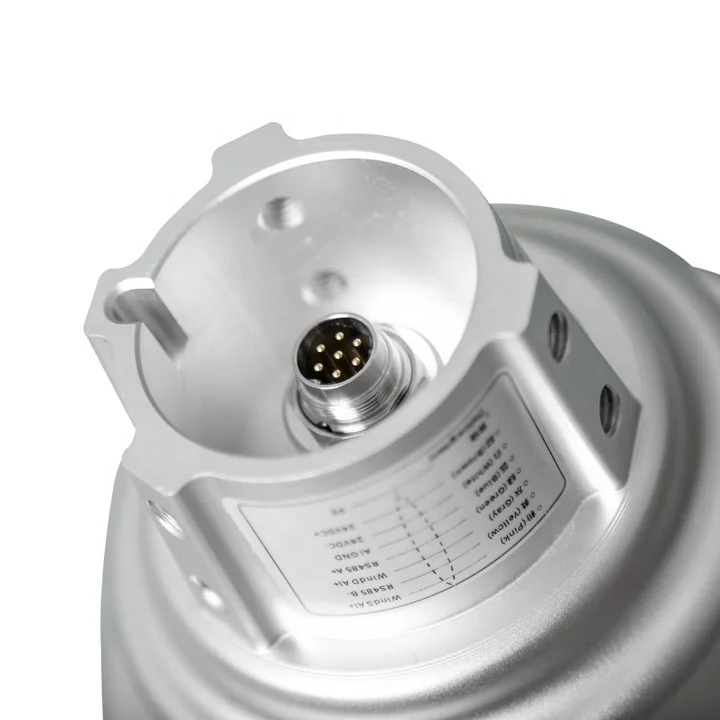

ESD/Surge	IEC61000-4-2 Contact Discharge:+-8KV IEC61000-4-2 Air Discharge:+-15KV IEC61000-4-5  line-line:+-6KV	cable configuration	7-core shielded cable with aviation plug
Signla Output	4-20mA,RS485	Measuring range	0-360°

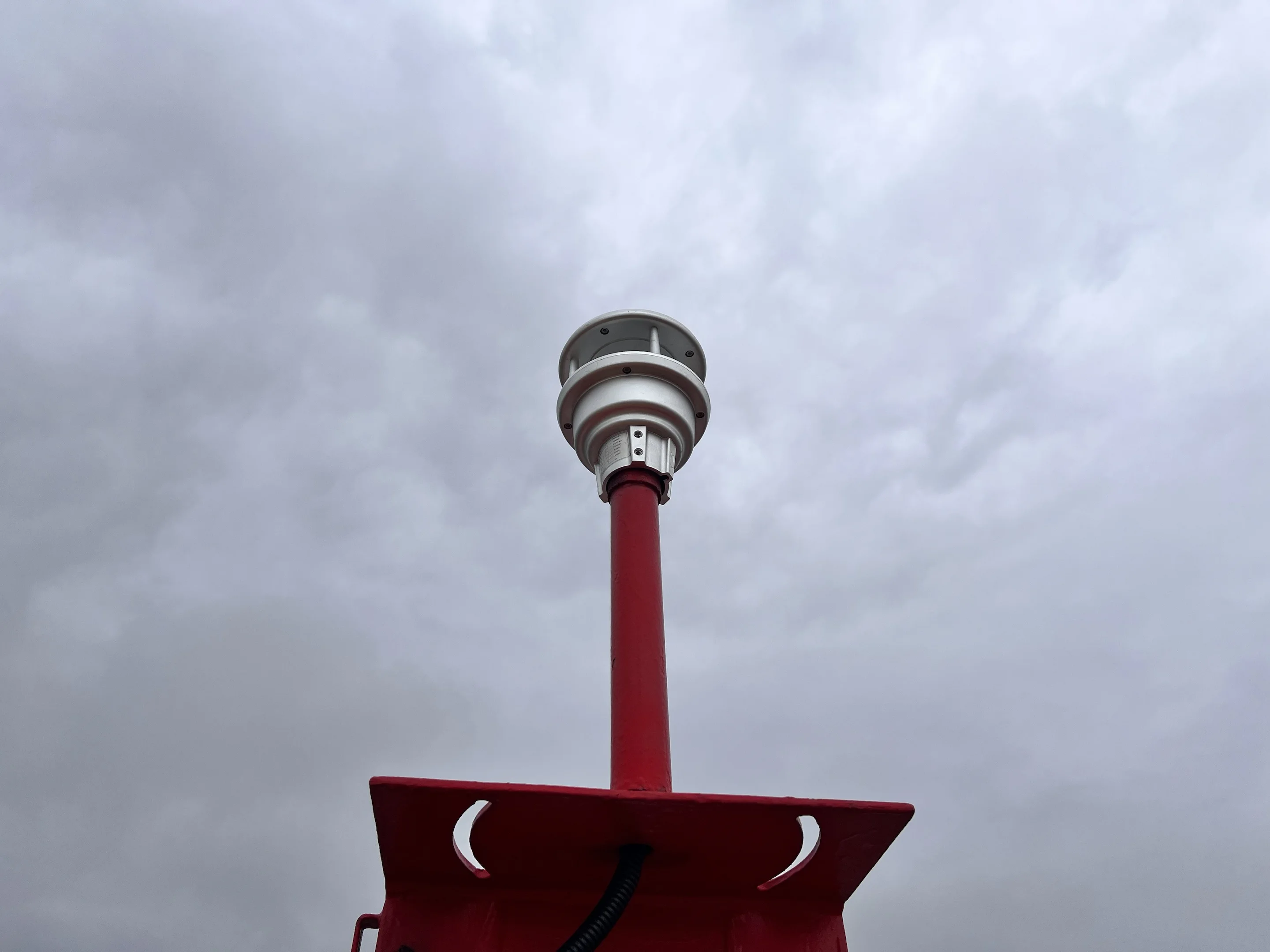

Measuring range	0-50m/s	Anti-wind level	90m/s hold for 30s
Operating temperature	-40°C ~ +70°C	IP Protection	IP66
Relative humidity	0% ~ 100% RH	Weight	1.4kg
Material	Die casting aluminum



Installation and operation

• Check whether the supply voltage does comply with the rated voltage of the lamp.


• Insert the power cable through the bottom of lamp holder, and connect them to the terminals in the base respectively.


• Follow connection diagram and set up work model. (remark: dial switch ON---1, figure---0).


• Tighten the screws between lamp housing and base.


• Screw the lamp on the mounting bracket, which should be fixed on a smooth surface with enough mechanical strength. Or you can select our mounting bracket: PJ024, PJ028 and PJ030 (installing diagram), special bracket can be customized.


• Switch on the power, and then the light works.

Notice

• The part of material of products is PC( like lamp cover and lamp shell ), so it cannot direct or indirect touch the organic solvent, such as industrial alcohol, banana oil, isopropyl alcohol, carbon tetrachloride, cyclohexanone and so on, otherwise, the product will be corroision.
