Product Overview

Description

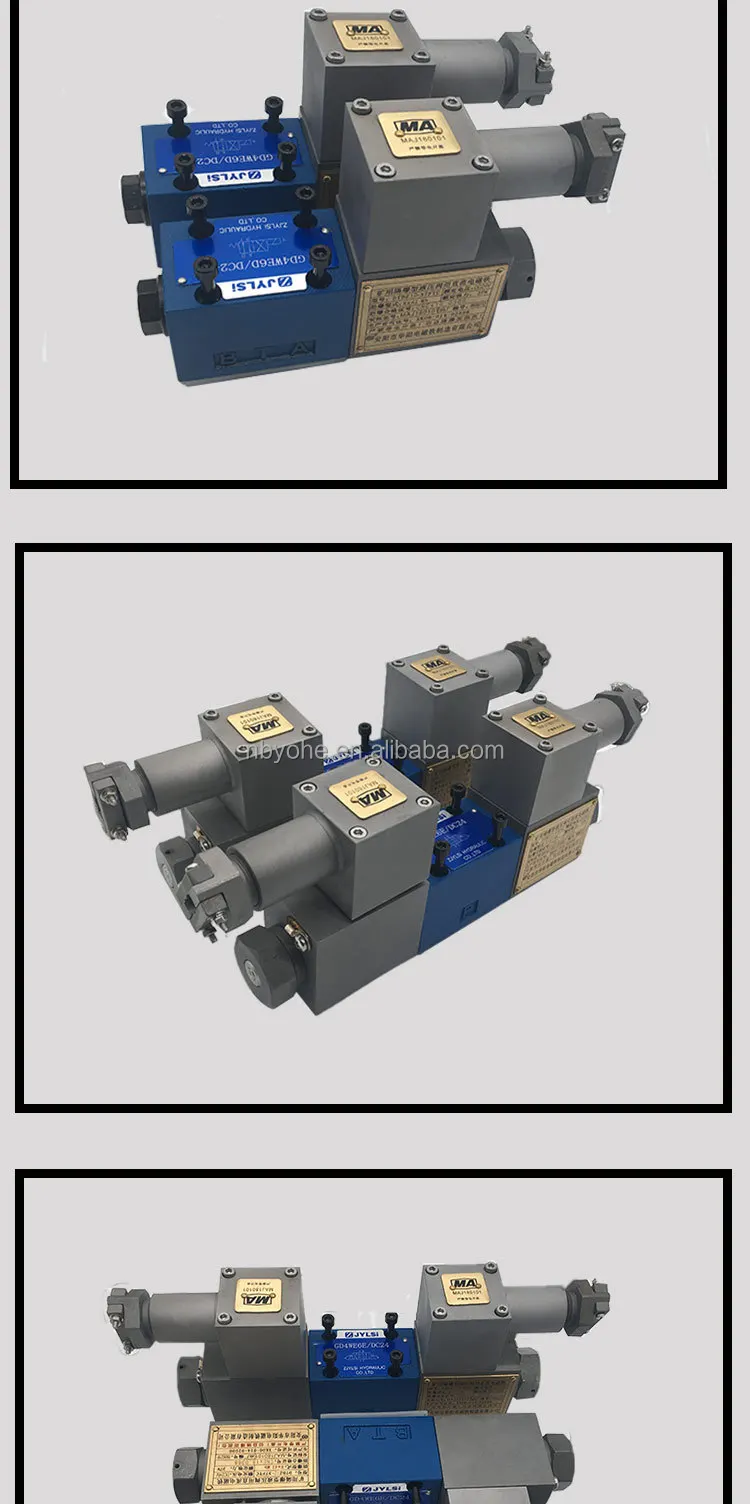

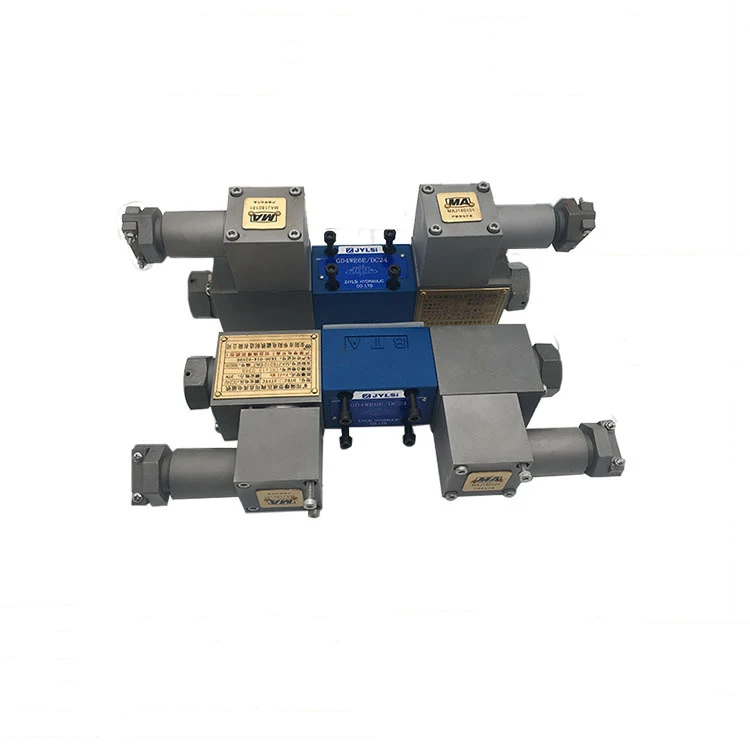

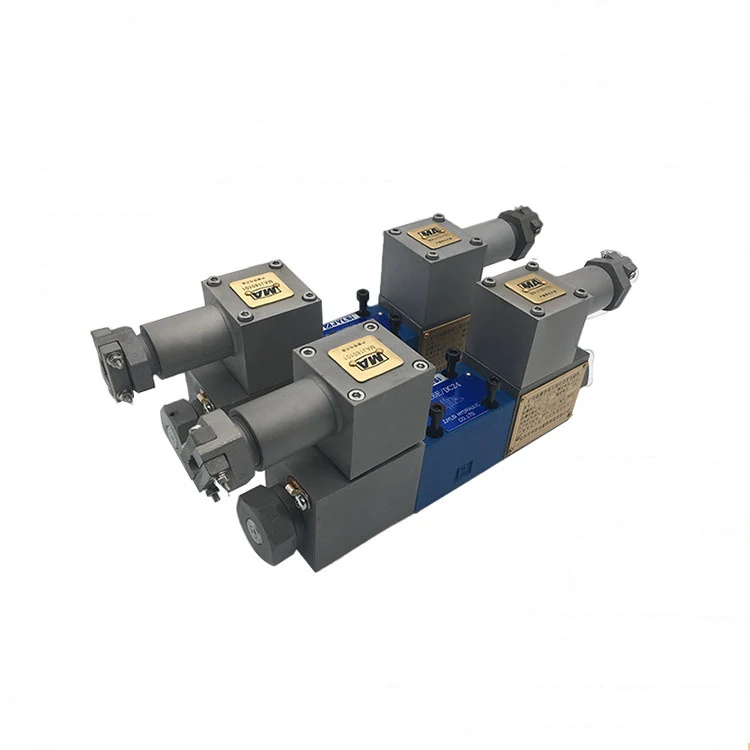

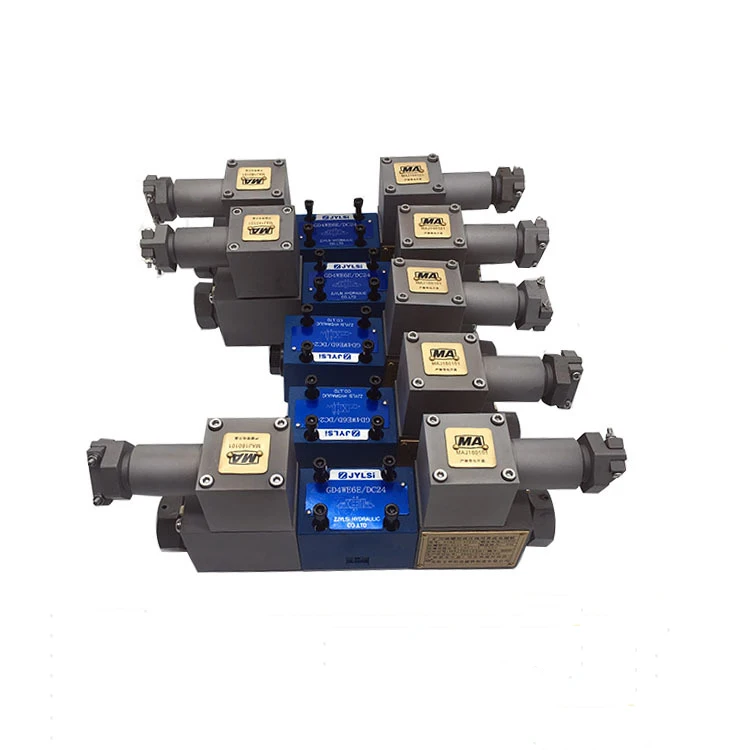

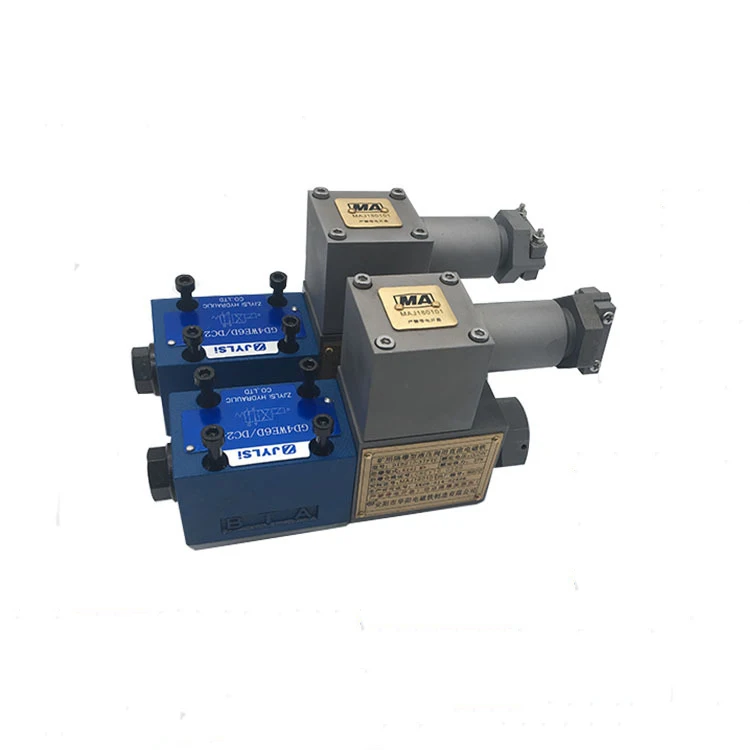

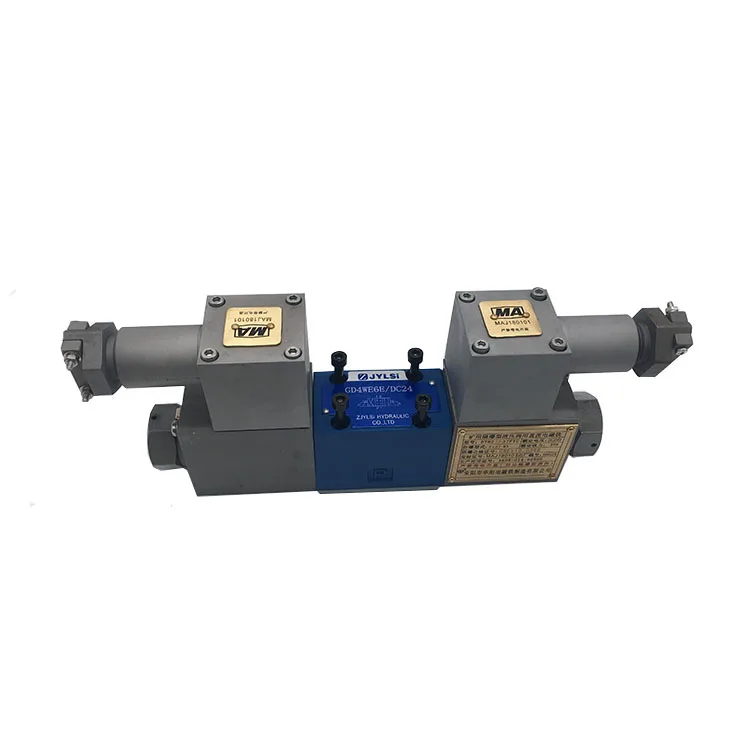

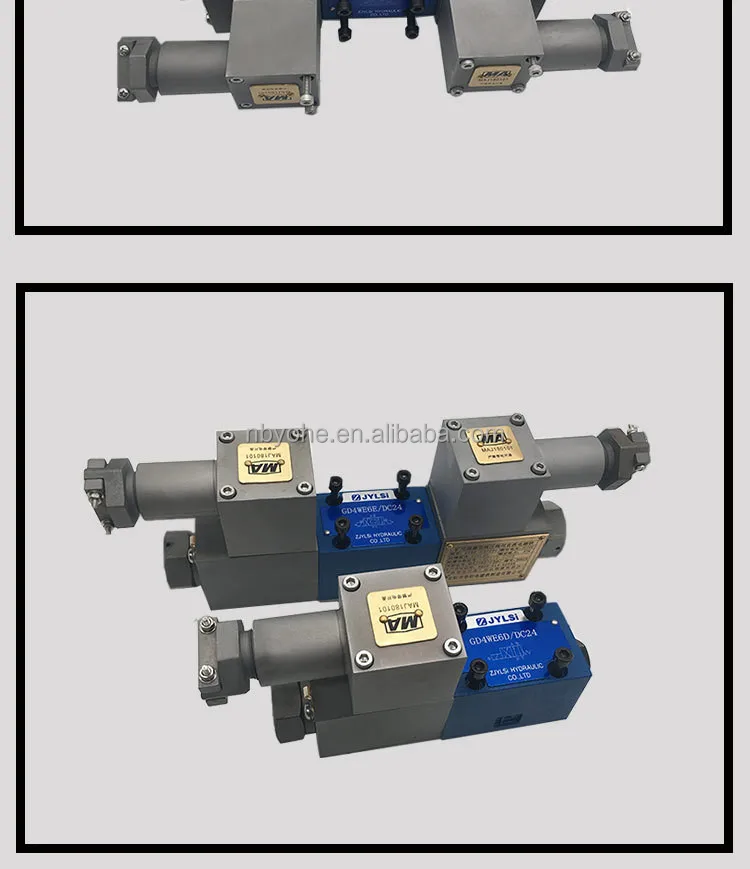

Hydraulic valve 34GDEY-H6B-T 24GDEY-H6B-T Explosion-proof electromagnetic reversing valve

Features:

-Direct solenoid actuated directional spool valve

high performance version

-Wet pin DC or AC solenoids with removable coil

-Solenoid coil can be rotated through 90 °

-It is not necessary to open the pressure tight

chamber when changing the coil

-Electrical connections either as individual or

central connections

-Hand override, optional



Functional description, section

Essentially the directional control valves consist of housing (1), one or two solenoids (2), the control spool (3),and one or two return springs (4). In the de-energized condition the control spoof (3)is held in

the neutral or initial position by means of return springs (4) (except for impulse spools).The control spool (3)is actuated via wet pin solenoids (2).

The force of the solenoids (2)acts via the plunger (5)on the control spool (3)and pushes this from its neutral position to the required end position. This gives free--flow from P to A and B to T or P to B and A to T.

When solenoid (2) is de-energized, the control spool (3) is returned to its neutral position by means of the

return springs (4). An optional hand override (6),allows movement of the control spool (3)without energising the solenoid.
