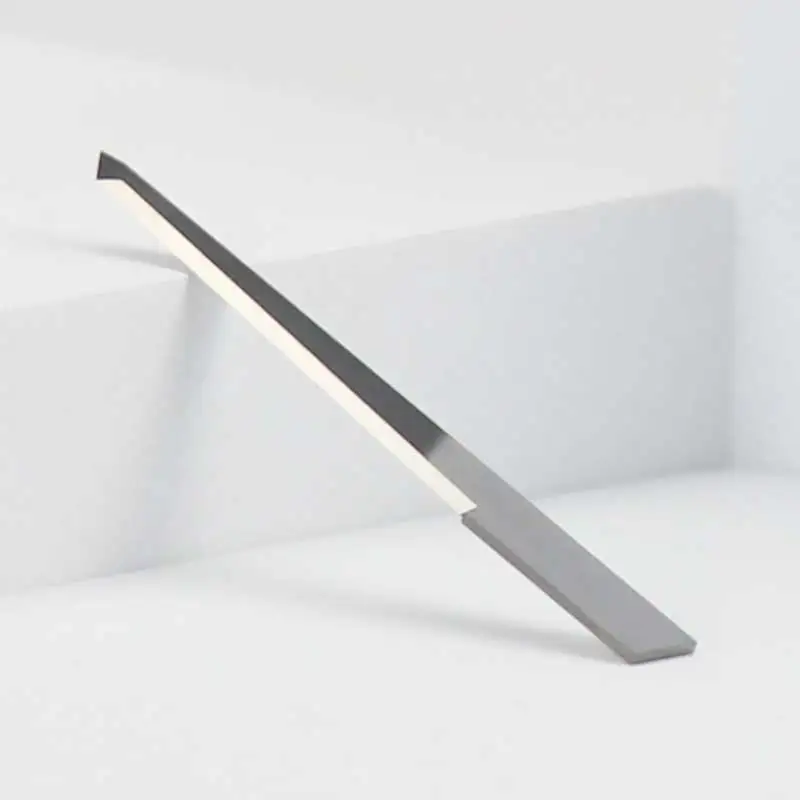

Zund S3 Z28 Z29 Oscillating Carbide Blade for CNC Oscillating Knife Cutter
- Category: >>>
- Supplier: Chengdu Passion Precision Tool Co. Ltd.
Share on (1600908276323):
Product Overview
Description

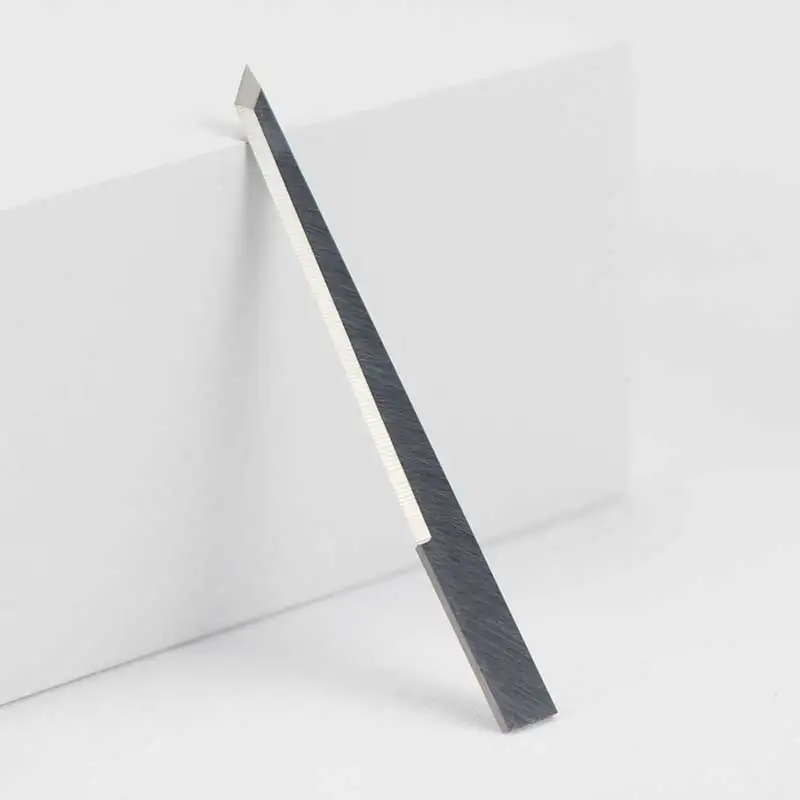

ZUND Z28
Tungsten Carbide Zund Cutter Blade Z28, commonly used for Carbon fiber, Corrugated, Nylon fabric, Polyester fabric, Sandwich board, Leather hide, etc. Long oscillating blade for soft, thick materials.

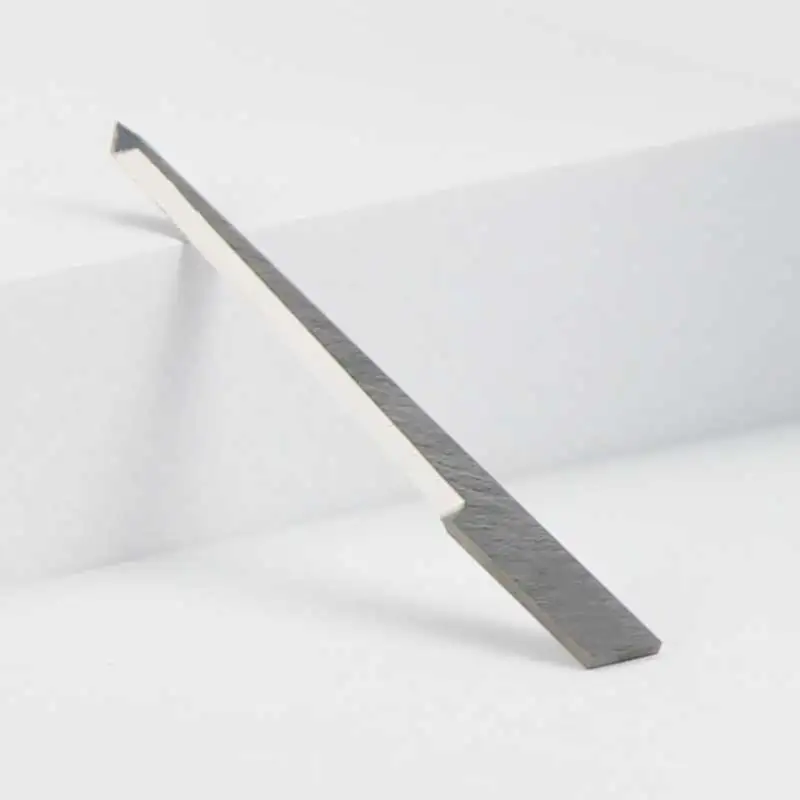

ZUND Z29
Zund Z29 has gained popularity in the industry, which is tungsten carbide cutting drag blade. These blades are known for their exceptional cutting performance and durability, making them a top choice for many professional cutters.
Product Introduction
Tungsten carbide zund cutter blade Z28 is a common blade in the zund cutting system, also suitable for Humantec, Lectra MFC, iEcho etc other cutter brand. zund Z28 blades correspond to part number 3910318, Equivalent to Esko BLD-SF428 (i-428) / G42458307, Summa 500-9814, Colex T00428, iEcho E28, Mecanumeric 100610600.

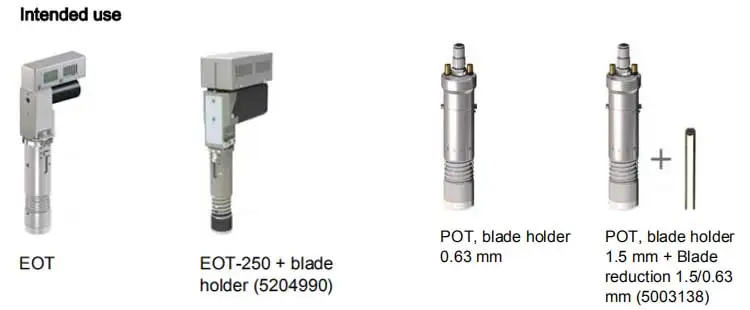

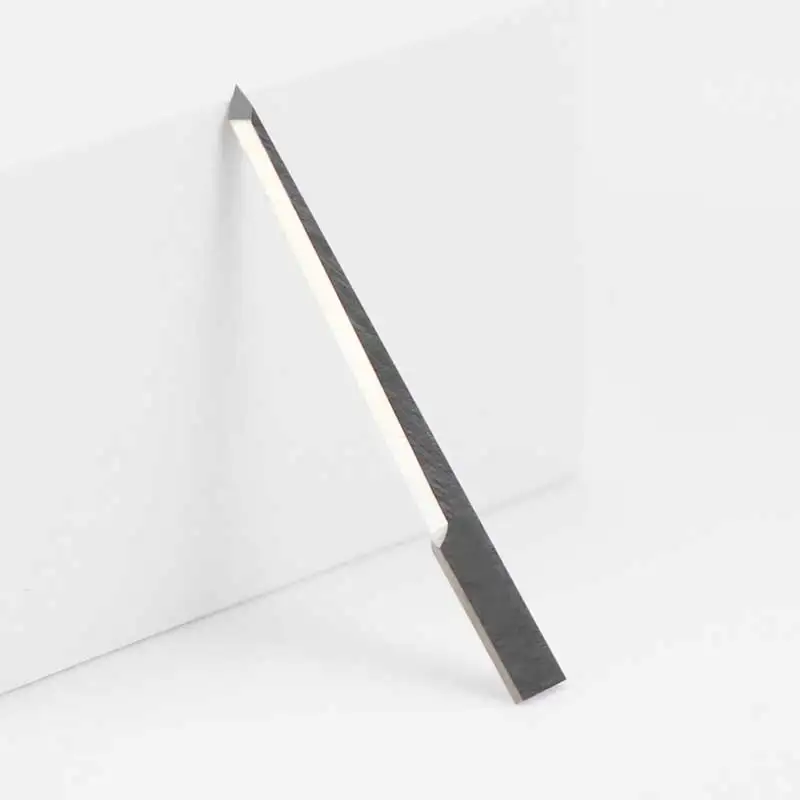

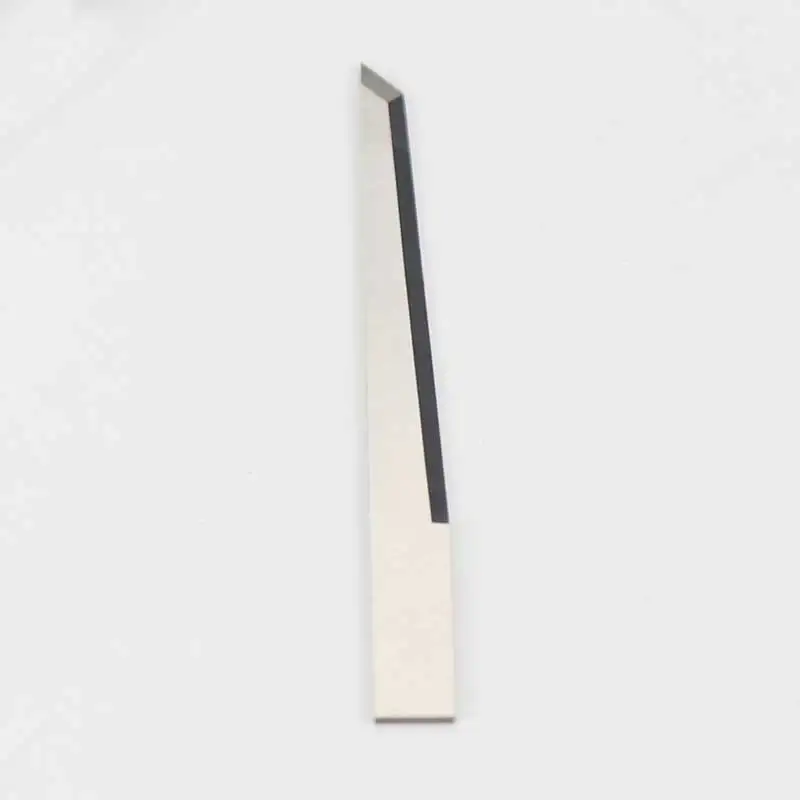

Tungsten Carbide Zund Cutter Blade Z28 is flat shank oscillation blade designed to cut small radiuses and intricate detail with cutting depth of 26mm, Blade Z28 is suitable for Zund S3, G3 & L3 digital cutters using EOT and POT tool heads.
Z28 blade with height of 38 mm, knife width 4mm, and knife thickness of 0.63 mm, These pointed oscillating blades have a cutting angle of 45°/86°.
Tungsten Carbide Zund Cutter Blade Z28 is flat shank oscillation blade designed to cut small radiuses and intricate detail with cutting depth of 26mm, Blade Z28 is suitable for Zund S3, G3 & L3 digital cutters using EOT and POT tool heads.
Z28 blade with height of 38 mm, knife width 4mm, and knife thickness of 0.63 mm, These pointed oscillating blades have a cutting angle of 45°/86°.
Product Name | Zund blade Z28 |
Code No | 3910318 |
Size | 38*4*0.63 |
Max. cutting depth | 26 mm |
Type | Oscillating blade |
Material | Tungsten Carbide |

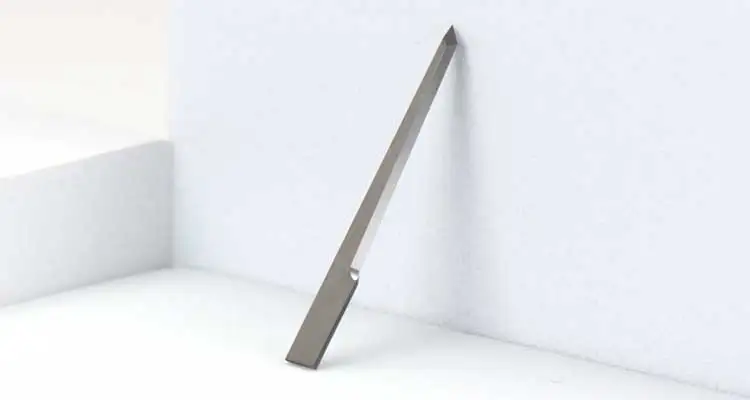

Tungsten carbide zund Z29 oscillating blades have a cutting angle of 45°/86.5°and a maximum cutting depth of 31 mm, The height of Z29 blades is 43 mm with 0.2 mm tolerance range, the width is 4 mm with 0.05 mm tolerance range, and the thickness is 0.63 mm with 0.02 mm tolerance range, degree of finish Ra 0.2.
Zund Z29 generic set of 2 blades is suitable for Zund S3, G3 & L3 digital cutters using EOT and POT tool heads, Z29 is correspond to part number 3910319, Equivalent to Esko Kongsberg: ( G42458315, 42458315, BLD-SF429 (i-429) ), iEcho: ( E29 ), Mécanuméric: 100610430.
Zund Z29 generic set of 2 blades is suitable for Zund S3, G3 & L3 digital cutters using EOT and POT tool heads, Z29 is correspond to part number 3910319, Equivalent to Esko Kongsberg: ( G42458315, 42458315, BLD-SF429 (i-429) ), iEcho: ( E29 ), Mécanuméric: 100610430.
Product Name | Zund blade Z29 |
Code No | 3910319 |
Size | 43*4*0.63 |
Max. cutting depth | 31 mm |
Type | Oscillating blade |
Material | Tungsten Carbide |
Type | Applications |
Drag blades | Used in non-powered tools such as UCT, KCT, VCT, SCT, C2. Particularly suitable for Foils, Paper, Thin folding carton, PVC,Plastic,Carpet, Light foam core etc. |
Oscillating blades | Used in EOT/POT oscillating tools. Recommended materials:Folding carton, Gasket materials, Foam, Leather,Rubber, Felt, Woven. |
Rotary blade | Ecagonal (ten-sided) blades for DRT/PRT tools. Recommended for breathable materials such as textile, carbon fibre, glass fibre,etc. |
Specification
Part No. | Code No. | Size(mm) | Part No. | Code No. | Size(mm) |
Z10 | 3910301 | 50*8*1.5 | Z42 | 3910324 | 28*6.3*0.63 |
Z11 | 3910309 | 50*8*1.5 | Z42c | 5203005 | 28.1*6.25*0.6 |
Z12 | 3910320 | 50*8*1.5 | Z44 | 3910340 | 50*8*1.5 |
Z13 | 3910321 | 50*8*1.5 | Z46 | 4800073 | 50*7.8*1.5 |
Z16 | 3910306 | 25*5.5*0.63 | Z50 | 3910335 | φ25*φ8*0.6 |

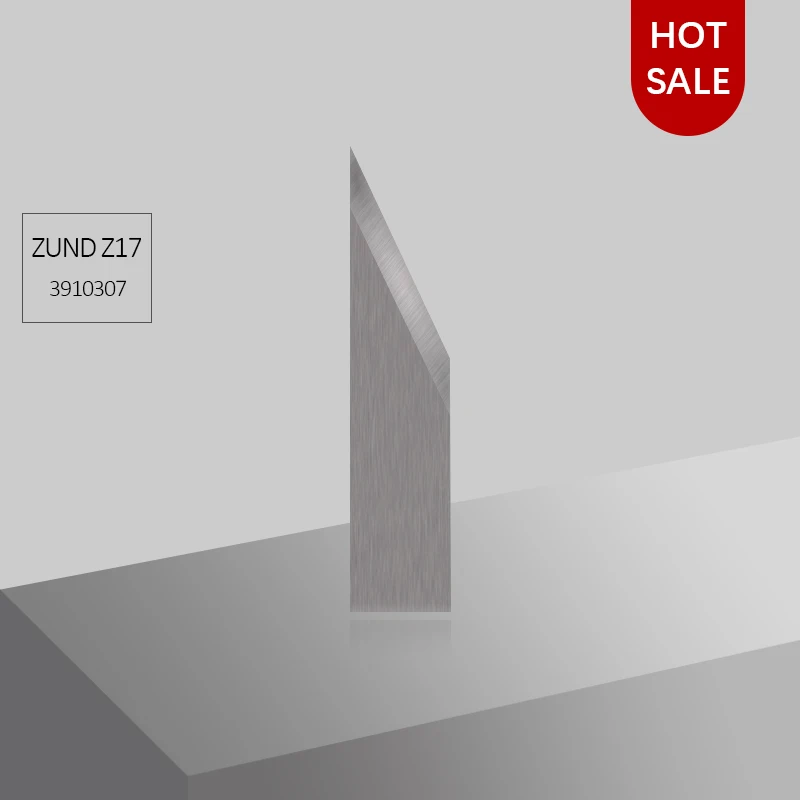

Z17 | 3910307 | 25*5.6*0.63 | Z51 | 3910336 | φ28*φ8*0.63 |
Z18 | 3910311 | 42*6*1 | Z52 | 3910337 | φ32*φ8*0.6 |

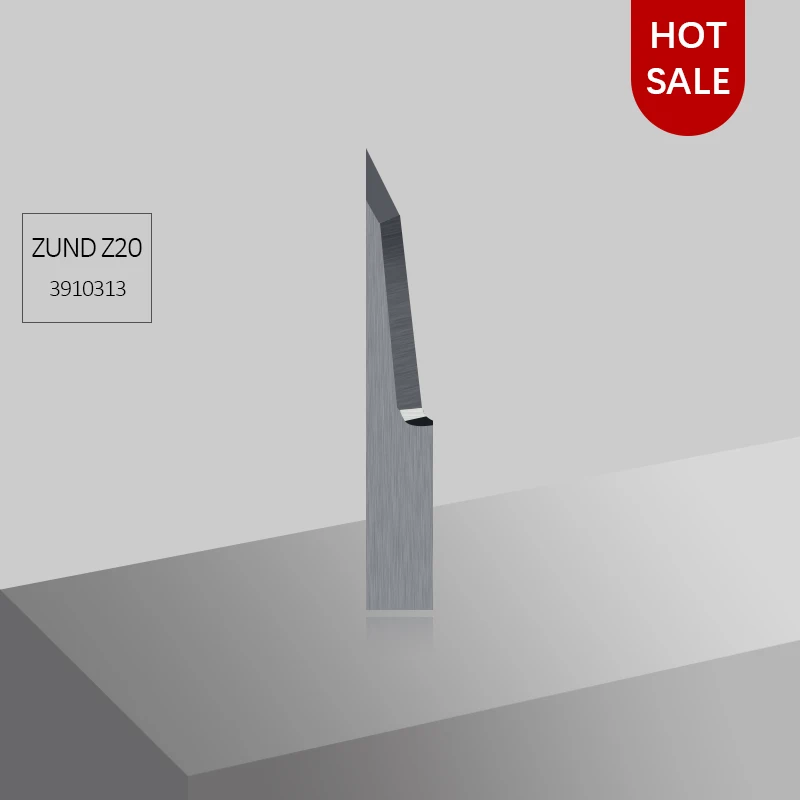

Z20 | 3910313 | 25*4*0.63 | Z53 | 4800059 | φ25*φ8*0.63 |
Z21 | 3910314 | 28*4*0.63 | Z60 | 5201345 | 28*5.5*1.5 |
Z22 | 3910315 | 25.4*4*0.64 | Z61 | 5201343 | 31*5.5*1.5 |
Z23 | 5005560 | 33*4*0.63 | Z62 | 5002488 | 27.8*5.65*0.63 |
Z26 | 3910317 | 25*5.65*0.63 | Z63 | 5002637 | 43*5.7*0.65 |
Z28 | 3910318 | 38*4*0.63 | Z64 | 5002739 | 67*5.7*1.5 |
Z30 | 3910330 | 14.5*3.3*0.63 | Z68 | 5204301 | 42*5.4*1.5 |
Z31 | 3910331 | 14.5*3.5*0.63 | Z69 | 5204302 | 47*5.4*1.6 |
Z33 | 3910333 | 26*6.3*0.63 | Z70 | 5005642 | 43*5.65*0.63 |
Z35 | 4800071 | 26*13*0.63 | Z71 | 5006045 | 50.2*8*1 |
Z41 | 3910323 | 25*5.65*0.63 | Z82 | 5205519 | 25*5.65*1.5 |
Product Application

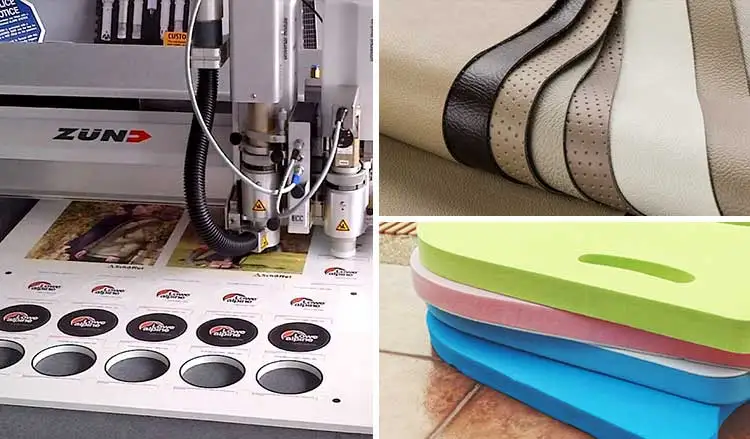

Zund blades are ideal to cut carbon fibre prepreg, carpet, corrugated plastic - PP, expanded PVC, fabric - canvas, fabric - mesh, fabric - polyester, foil, Vinyl, glass fibre prepreg, magnetic foil, paper, paperboard, plastic - PC, plastic sheet - PP, PVC banner, solid cardboard, tarpaulins. If you are looking for a high-quality tungsten carbide blade for Zund cutting machine, please contact us. Zund Z10 blades are ideal to cut carbon fibre prepreg, carpet, corrugated plastic - PP, expanded PVC, fabric - canvas, fabric - mesh, fabric - polyester, foil, Vinyl, glass fibre prepreg, magnetic foil, paper, paperboard, plastic - PC, plastic sheet - PP, PVC banner, solid cardboard, tarpaulins. If you are looking for a high-quality tungsten carbide blade for Zund cutting machine, please contact us.
About Factory

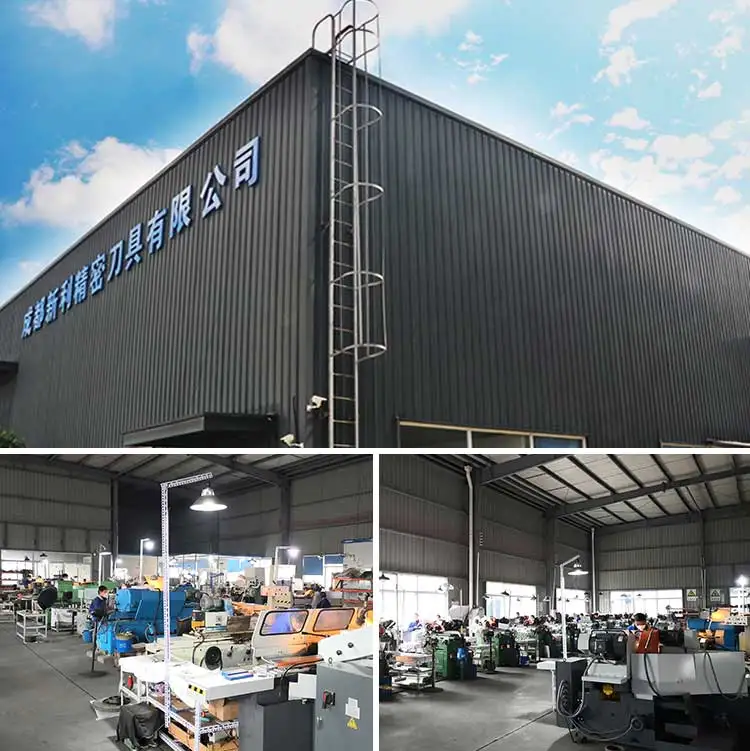

Chengdu Passion is a comprehensive enterprise specialized in designing, manufacturing and selling all kinds of industrial and mechanical blades, the factory is located in panda’s hometown chengdu city, sichuan province.
the factory occupies almost three thousand square meters and includes over one hundred and fifty stuff. “PASSIONTOOL” has experienced engineers, quality department and completed production system, which includes press , heat treatment, milling, grinding and polishing workshops.
“PASSIONTOOL” supplies all kinds of circular knives, disk blades, knives of steel inlaid carbide rings, re-winder bottom slitter, long knives welded tungsten carbide, tungsten carbide inserts, straight saw blades, circular saw knives, wood carving blades and branded small sharp blades. meanwhile, the customized product is available. .
passion's professional factory services and cost-effective products can help you to get more orders from your customers. we sincerely invite agents and distributors from various countries. contact us freely.
the factory occupies almost three thousand square meters and includes over one hundred and fifty stuff. “PASSIONTOOL” has experienced engineers, quality department and completed production system, which includes press , heat treatment, milling, grinding and polishing workshops.
“PASSIONTOOL” supplies all kinds of circular knives, disk blades, knives of steel inlaid carbide rings, re-winder bottom slitter, long knives welded tungsten carbide, tungsten carbide inserts, straight saw blades, circular saw knives, wood carving blades and branded small sharp blades. meanwhile, the customized product is available. .
passion's professional factory services and cost-effective products can help you to get more orders from your customers. we sincerely invite agents and distributors from various countries. contact us freely.
