Agricultural 6 inch Irrigation System Automatic Backwash Disc Filter
- Category: >>>
- Supplier: Beijing ZhongYuanTong Science & Technology Co. Ltd.
Share on (1600908319470):
Product Overview
Description
Product Model | Disc Filter | MOQ | 1 PC |
Recommended products
Products Show
*Backwash pressure as low as 1.5 bar.
*High efficiency of filtration and backwash.
*Water saving up to 40%.
*Energy saving up to 20%.
Technical Parameters:
Max. inlet pressure | 8.0 bar |
Min. inlet pressure | 2.0 bar |
Max temperature | 50° |
Min. backwash pressure per filter unit | 1.5 bar |
Min. backwash flow rate per filter unit | 2.0 L/sec |
pH | 4-14 |
Filter housing | Glass fiber reinforced polyamide |
Material | Polypropylene (PP) |
Disc | HDPE*/SS304/Carbon steel with an- ti-corrosive coating |
Sealing ring | NBR*/EPDM |
Model and Specification
Operation

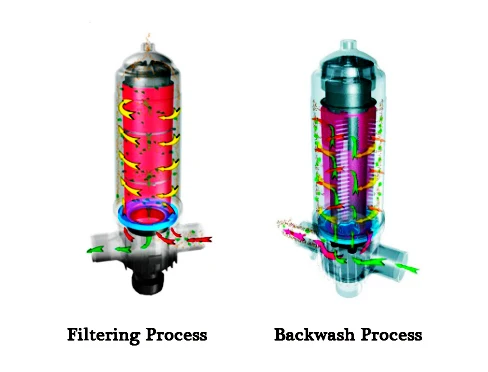

The Filtering Process：
There are thin grooves on the surface of the discs; the grooves in opposite direction between vicinity discs then make manycrossed points. The numbers of crossed points are different along with different disc precision. The crossed points form many chamber and irregular channels will intercept suspending particles better by the next crossed point after they are skipped from the previous crossed points. When there are many impurities accumulated in the grooves between discs, the disc filter will change water direction of inlet and outlet, compressed discs will open automatically and compressed water will inject to discs and rotate the discs quickly. The discs will be cleaned through injecting water and fast rotating. Then the filter will change water direction again to renew filtration status.

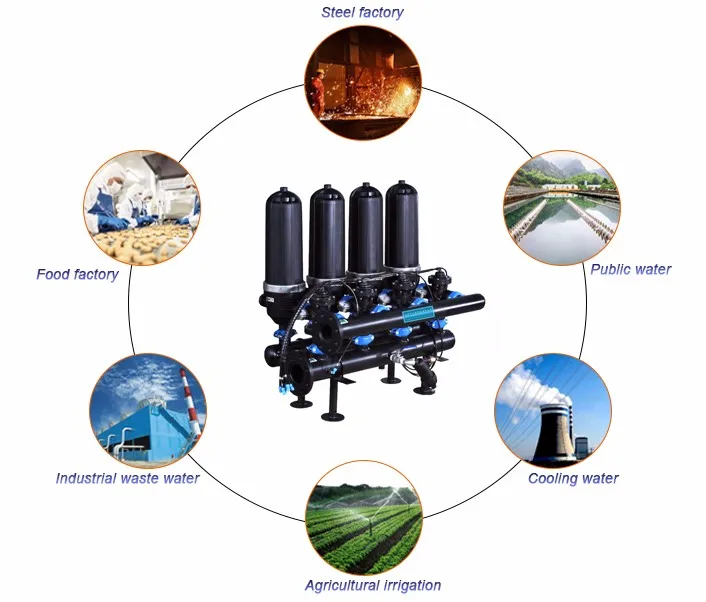

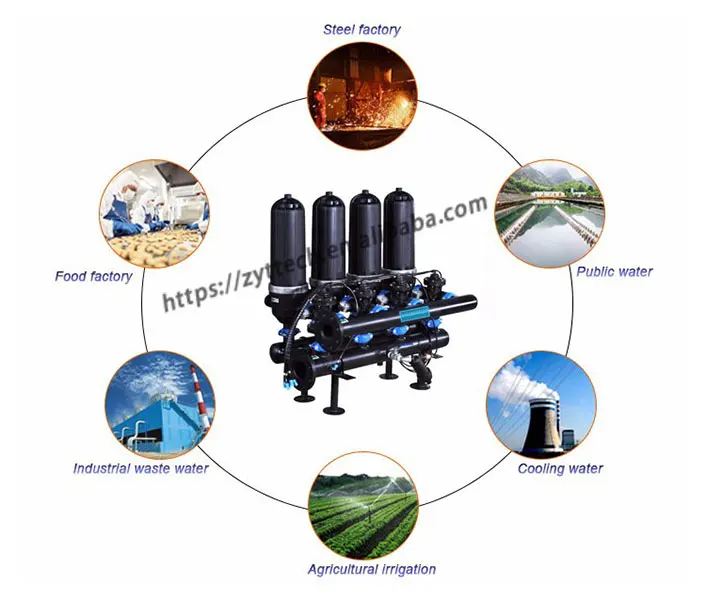

APPLICATION AREA

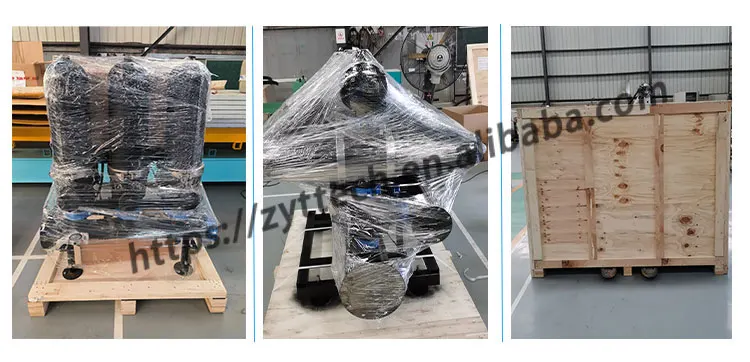

Packaging & Shipping
About Us
Why Choose Us
Q:Are you trading company or manufacturer?
A:We are factory.
Q: How long is your delivery time?
A: Generally A100 series automatic self-cleaning filter for environmental water treatment is 2sdays, and A100 series automatic self-cleaning filter for environmental water treatment is alsoaccording to quantity.
Q: Do youprovide samples ? is A100 series automatic self-cleaning filter forenvironmental water treatment free or extra?
A: Sorry, we couldnot offer the sample for free charge.
Q: What is your terms of payment?
A: Payment100ouSD, 100% in advance. Payment100ouSD, 30% TT in advancebalance before shipment.
