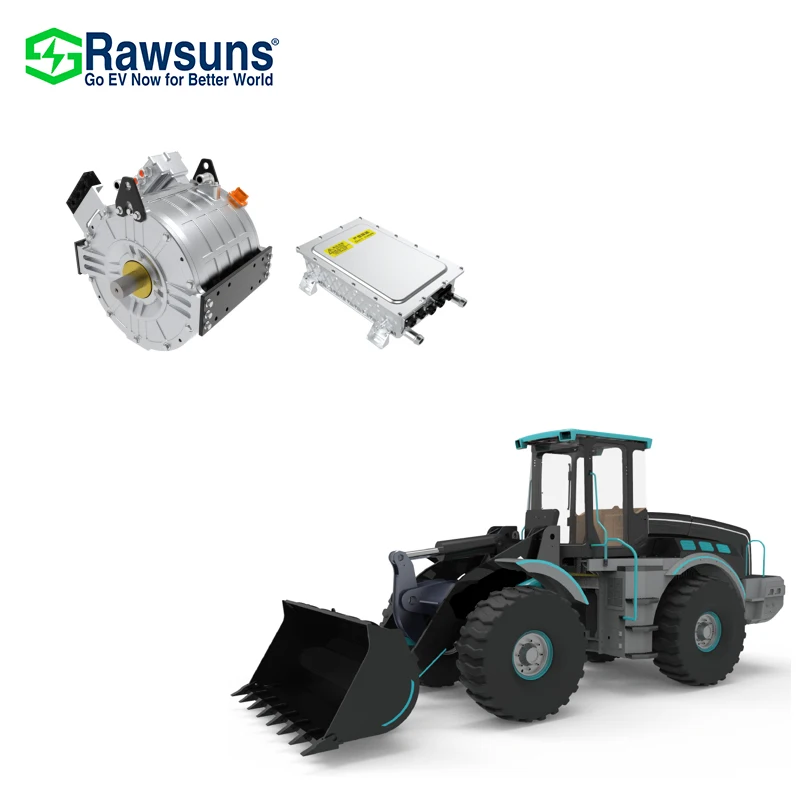

electric car motor EV conversion kit AC Motor Synchronous motor RDD2000Y 200kw 2000Nm 4000rpm electric car conversion kit
- Category: >>>
- Supplier: Rawsun Technology (shantou) Co. Ltd.
Share on (1600908323807):
Product Overview
Description
Product Description
electric car motor conversion kit AC Motor Synchronous motor RDD2000Y 200kw 2000Nm 4000rpm electric car conversion kit
Rawsun EV Conversion Kit
*Drive System
1. Component Data sheets
2. Component installation drawings
3. System Performance Plan
4. Component 3D step files
5. CANbus protocols
6. System Electrical schematic diagram
7. System Fault codes table
8. System testing report
9. Remote installation support.
10. Wiring diagram
11. Installation training
12. On site installation service (optional)
*Vehicle Control System
1. Vehicle performance simulation
2. Component Data sheets
3. Component installation drawings
4. Component 3D step files
5. CANbus protocols for all components
6. VCU control strategies
7. VCU high level software for vehicle parameter configuration
8. System Fault codes table
9. System Electrical schematic diagram
10. System CANbus topological diagram
11. Wiring diagram
12. Dashboard logic functions table
13. System bench testing report
14. System testing video
15. System operation manual
16. Remote installation support
17. Installation training
18. On site installation service (optional)
* Battery System
1. Battery System Technical Specification
2. Component installation drawings
3. Component 3D step files
4. CANbus protocols, BMS Control strategies
5. BMS software for Battery parameter configuration
6. System Fault codes table
7. System Electrical schematic diagram
8. System layout diagram+testing report+testing video+operation manual
9. Remote installation support
10. Dangerous goods transportation documentation and service
11. Installation training
12. On site installation service (optional)
Why choose us
Our product is in view of the technical ability of the vehicle manufacturing company, and provide a full range of technical data (support file list) and software, customer vehicle parameters can be modified, so that customers fully grasp the vehicle system diagnosis and repair tools and problems, which do not need to rely on other companies on after sales and service, It can directly provide after-sales service to end customers.
1. Component Data sheets
2. Component installation drawings
3. System Performance Plan
4. Component 3D step files
5. CANbus protocols
6. System Electrical schematic diagram
7. System Fault codes table
8. System testing report
9. Remote installation support.
10. Wiring diagram
11. Installation training
12. On site installation service (optional)
*Vehicle Control System
1. Vehicle performance simulation
2. Component Data sheets
3. Component installation drawings
4. Component 3D step files
5. CANbus protocols for all components
6. VCU control strategies
7. VCU high level software for vehicle parameter configuration
8. System Fault codes table
9. System Electrical schematic diagram
10. System CANbus topological diagram
11. Wiring diagram
12. Dashboard logic functions table
13. System bench testing report
14. System testing video
15. System operation manual
16. Remote installation support
17. Installation training
18. On site installation service (optional)
* Battery System
1. Battery System Technical Specification
2. Component installation drawings
3. Component 3D step files
4. CANbus protocols, BMS Control strategies
5. BMS software for Battery parameter configuration
6. System Fault codes table
7. System Electrical schematic diagram
8. System layout diagram+testing report+testing video+operation manual
9. Remote installation support
10. Dangerous goods transportation documentation and service
11. Installation training
12. On site installation service (optional)
Why choose us
Our product is in view of the technical ability of the vehicle manufacturing company, and provide a full range of technical data (support file list) and software, customer vehicle parameters can be modified, so that customers fully grasp the vehicle system diagnosis and repair tools and problems, which do not need to rely on other companies on after sales and service, It can directly provide after-sales service to end customers.
Voltage Platform | Rated/Peak Power | Rated/Peak Torque | Rated/Peak Rotating Speed | Motor Weight | |
RDD2500Y-150 | 540VDC | 80/150kW | 1091/2500Nm | 700/2400rpm | 237kg |
RDD2500Y-240 | 540VDC | 150/240kW | 1250/2500Nm | 1146/3500rpm | 257kg |
RDD3000Y | 600VDC | 180/260kW | 1200/3000Nm | 1433/3300rpm | 257kg |
RAD2500Y-360 | 620VDC | 250/360kW | 1200/2500Nm | 1989/3000rpm | 295kg |
RAD2500Y-360H | 540～650VDC | 250/360kW | 1600/2500Nm | 1492/3500rpm | 313kg |
RAD1000Y | 600VDC | 80/130kW | 500/1000Nm | 1500/3000rpm | 182kg |
RDD1800Y | 540VDC | 75/150kW | 900/1800Nm | 800/2500rpm | 178kg |
RDD2100Y | 540VDC | 85/150kW | 850/2100Nm | 955/3000rpm | 188kg |
RDD2500Y-240 | 540VDC | 120/240kW | 1200/2500Nm | 955/3400rpm | 222kg |
RDD2800Y-240 | 540VDC | 120/240kW | 1200/2800Nm | 955/3000rpm | 222kg |
RDD2800Y-350 | 600VDC | 215/350kW | 1200/2800Nm | 1711/3500rpm | 260kg |
RDD3421Y | 627VDC | 150/265kW | 1206/3421Nm | 1188/2695rpm | 306kg |
RDD2500Y-350 | 600VDC | 250/350kW | 1750/2500Nm | 1364/3500rpm | 328kg |
RDD600Y-160 | 500VDC | 100/160kW | 300/600Nm | 3200/6000rpm | 108kg |
RDD600Y-130 | 500VDC | 80/130kW | 300/600Nm | 2500/9000rpm | 110kg |
RDD1200Y | 540VDC | 60/120kW | 400/1200Nm | 1433/4000rpm | 145kg |
RDD1700Y | 540VDC | 85/150kW | 750/1700Nm | 1080/3500rpm | 183kg |
RDD2000Y | 600VDC | 90/200kW | 900/2000Nm | 955/4000rpm | 183kg |
RAD950Y | 540VDC | 100/185kW | 500/950Nm | 1910/3500rpm | 165kg |
RAD1500Y | 600VDC | 150/250kW | 800/1500Nm | 1790/3500rpm | 186kg |

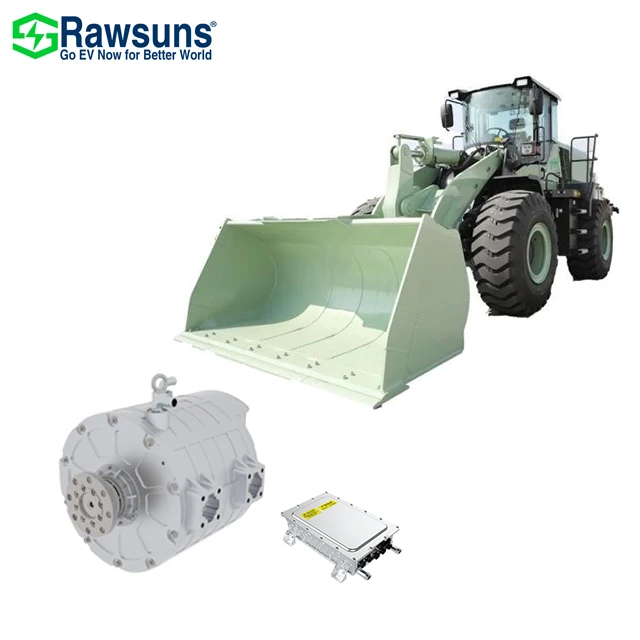

Dual motor scheme:
The hydraulic system and the walking system are independently driven, the walking system and the hydraulic system are decoupled, simple, reliable, energy saving and efficient; Walking motor torque/speed/power compound mode drive, strong power, driving force is better than the traditional equivalent tonnage transfer machine
Variable speed control positive flow system based on pilot prediction:
Variable speed control positive flow system based on pilot prediction: good handling, low speed performance, supply on demand, can reduce the overflow loss during unloading, energy saving and efficient
BMS+VCU Host Computer Software Interface

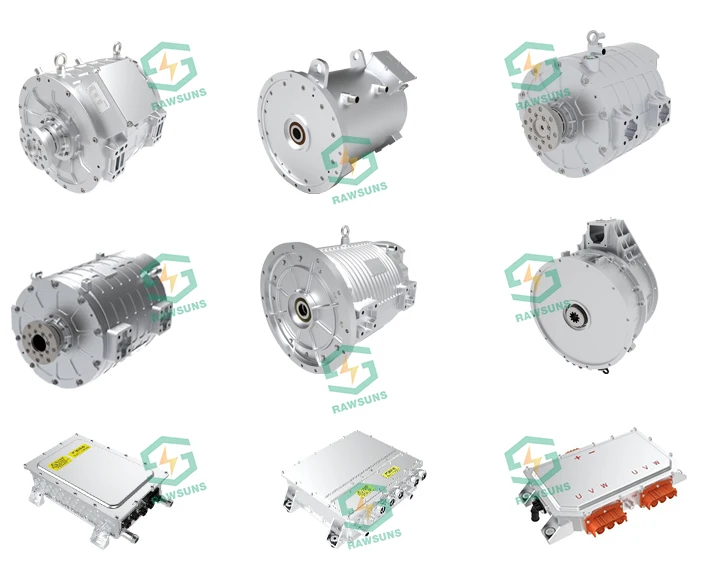

Related product

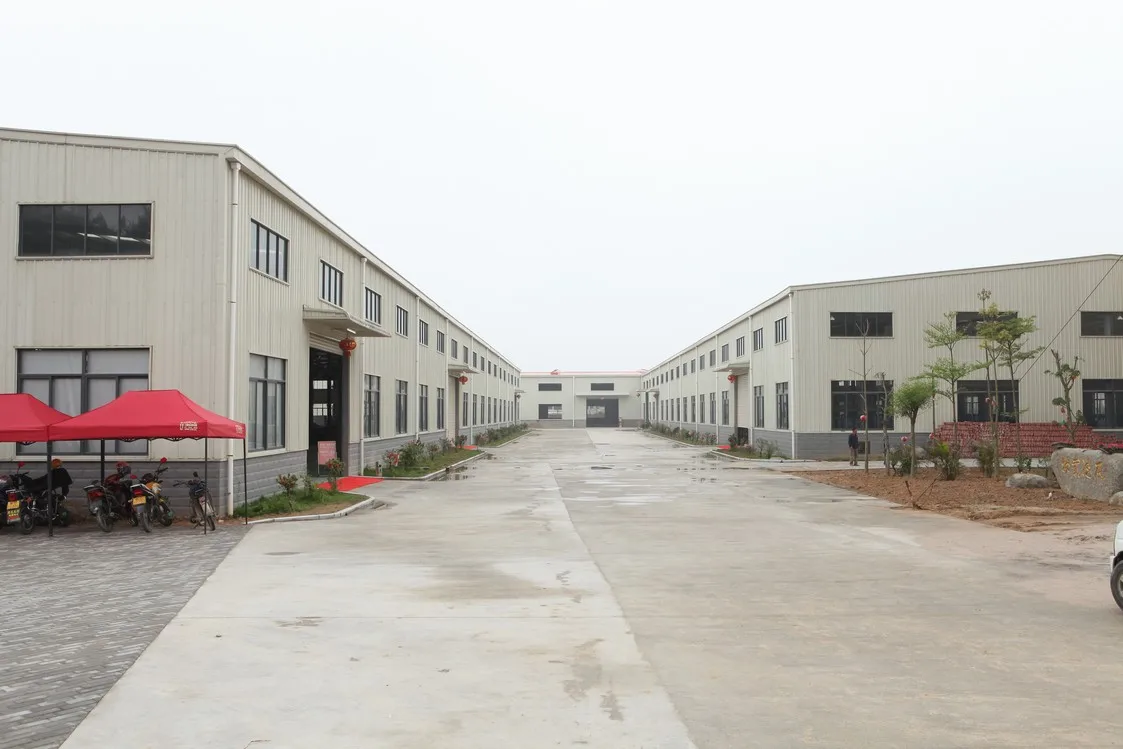

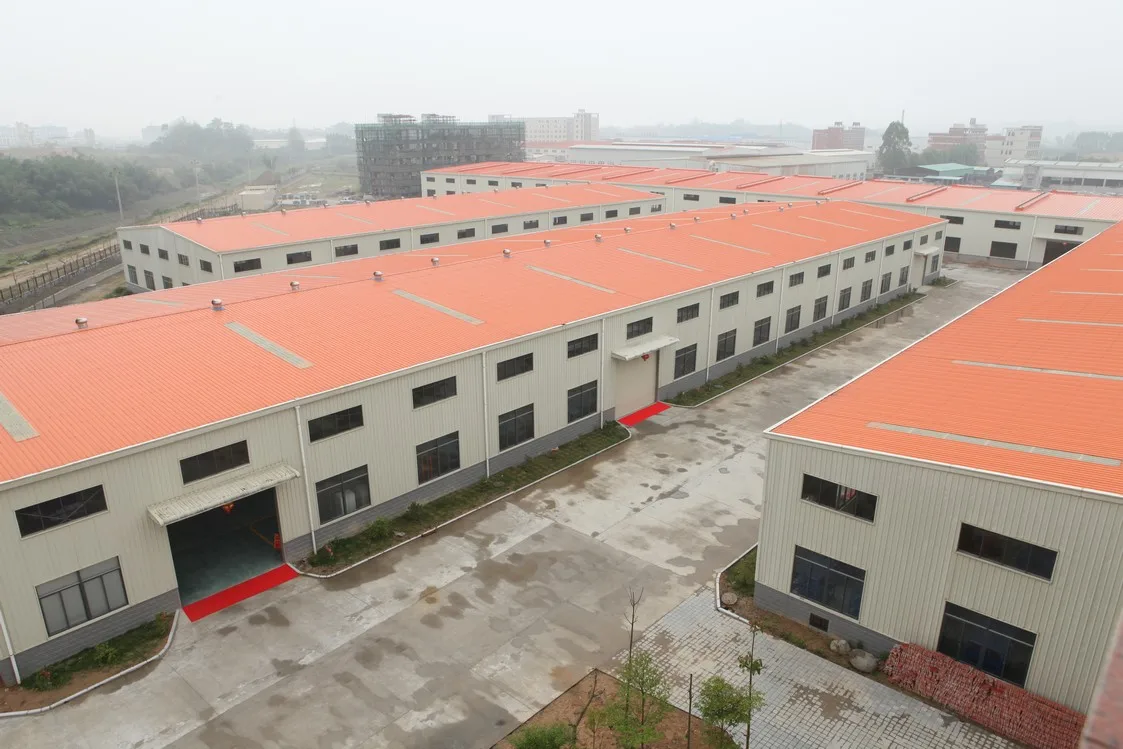

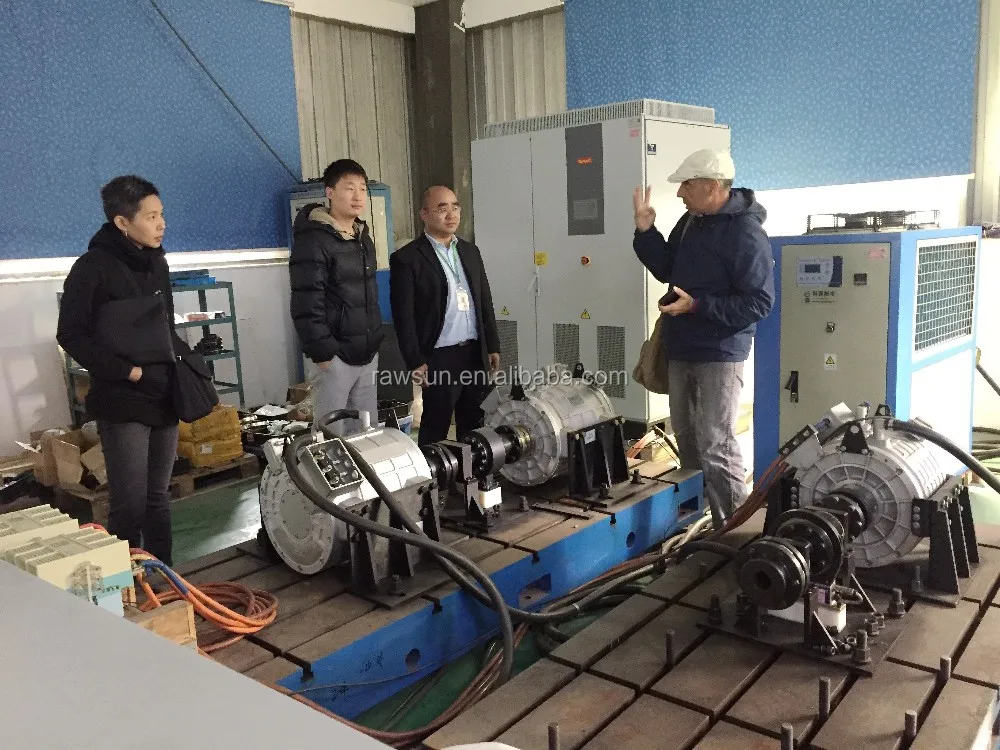

Workshop Pictures

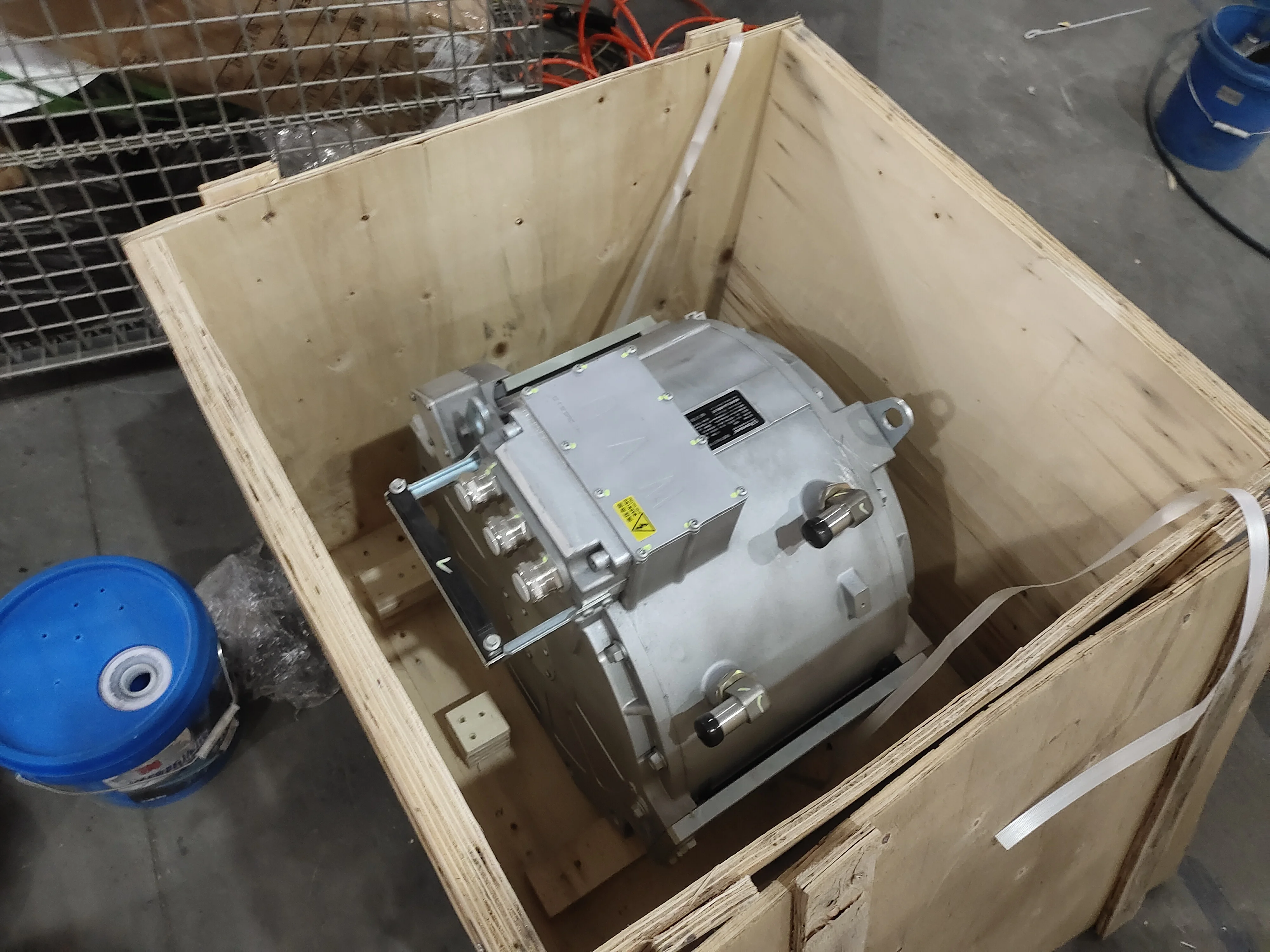

Product packaging
Company Profile
Rawsun Technology (Shantou) Co Ltd is a growing company committed to R&D, sales and service of Rawsuns complete electric propulsion solutions.
Rawsuns EV systems cover 10kw to 450 kw automotive and Marine electric systems, which include EV drive systems, EV control systems and lithium battery systems, Rawsuns EV solutions are mainly applied in electric passenger cars, special electric commercial vehicles, electric buses from 6 meters to 18 meters, electric trucks from 2 tons to 110 tons, electric boats, and electric engineering machineries. Rawsuns products conform to the trend of green environmental protection concept of all countries in the
world, Electric vehicles and electric boats with Rawsuns EV systems are conducive to reduce road exhaust pollution and oilpollution on the water surface. Rawsuns customize complete set of Rawsuns electric vehicle/electric boat solutions for overseas customers according to different vehicle parameters. Rawsuns has provided full electric systems for electric trucks, electric yachts, electric farming vehicles, electric buses, electric trucks, electric garbage trucks, electric sightseeing boats，electric winches, hybrid amphibious vehicles, electric tractors, electric heavy trucks ect.to vehicle/boat/ machinery manufacturer
customers from East Asia, Southeast Asia, Africa，Oceania , Mid-east, Europe and America.
Rawsuns are committed to promoting the electrification of the world, reducing carbon emissions, and making the world more environmentally friendly and better.
Rawsuns EV systems cover 10kw to 450 kw automotive and Marine electric systems, which include EV drive systems, EV control systems and lithium battery systems, Rawsuns EV solutions are mainly applied in electric passenger cars, special electric commercial vehicles, electric buses from 6 meters to 18 meters, electric trucks from 2 tons to 110 tons, electric boats, and electric engineering machineries. Rawsuns products conform to the trend of green environmental protection concept of all countries in the
world, Electric vehicles and electric boats with Rawsuns EV systems are conducive to reduce road exhaust pollution and oilpollution on the water surface. Rawsuns customize complete set of Rawsuns electric vehicle/electric boat solutions for overseas customers according to different vehicle parameters. Rawsuns has provided full electric systems for electric trucks, electric yachts, electric farming vehicles, electric buses, electric trucks, electric garbage trucks, electric sightseeing boats，electric winches, hybrid amphibious vehicles, electric tractors, electric heavy trucks ect.to vehicle/boat/ machinery manufacturer
customers from East Asia, Southeast Asia, Africa，Oceania , Mid-east, Europe and America.
Rawsuns are committed to promoting the electrification of the world, reducing carbon emissions, and making the world more environmentally friendly and better.
