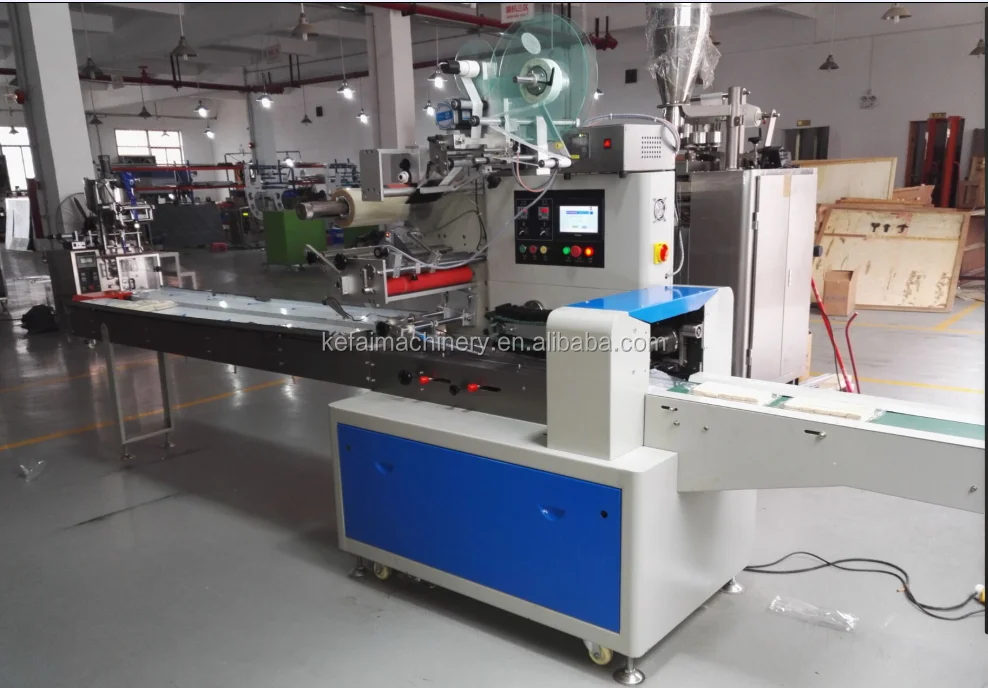

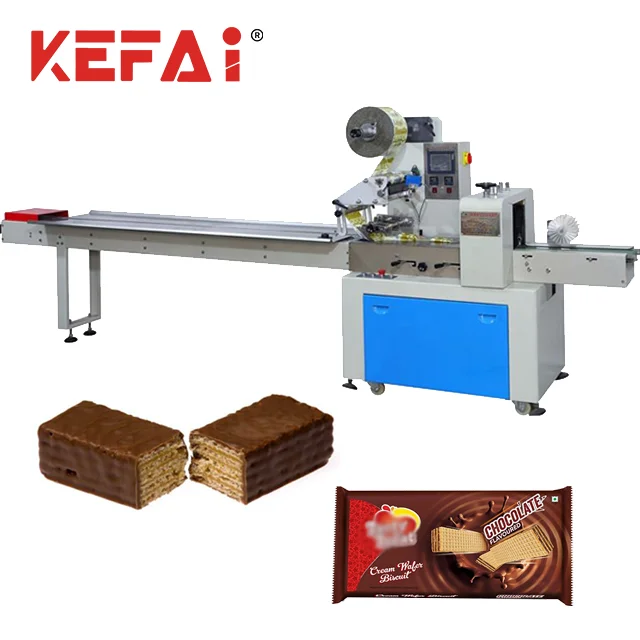

KEFAI Atomatic Horizontal Pillow Bag Wafer Bars Biscuit Cookie Flow Wrapping Packing Machine
- Category: >>>
- Supplier: Wuhan Kefai Innovation Machinery Co. Ltd.
Share on (1600908325799):
Product Overview
Description
Product Description
Features
1.Double transducer control, flexible bag length cutting, operator don’t need to adjust the unloading working
2.Human-machine operation, convenient and quick parameter setting.
3.Self diagnosis failure function, clear failure display.
4.High sensitivity optical electric color mark tracking, digital input cut position which makes the sealing and cutting more accurate.
5.Separate PID control to temperature, suitable for various packing materials.
6.Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7.Simple driving system, reliable working, convenient maintenance.
8.All the controls are achieved by software, convenient for function adjusting and upgrading.
2.Human-machine operation, convenient and quick parameter setting.
3.Self diagnosis failure function, clear failure display.
4.High sensitivity optical electric color mark tracking, digital input cut position which makes the sealing and cutting more accurate.
5.Separate PID control to temperature, suitable for various packing materials.
6.Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7.Simple driving system, reliable working, convenient maintenance.
8.All the controls are achieved by software, convenient for function adjusting and upgrading.
Application
Suitable for packaging all kinds of objects with regular solid state, such ,as bread, cake, cookie, moon cake, candy, daily necessities, paper carton or the tray , etc.
Packing Sample
Specification
item | value | ||||||
Machine type | KF02-G 250 | KF02-G 350 | KF02G--450 | KF02-G600 | |||
Film strength | Max.250mm | Max.350mm | Max.450mm | Max.600mm | |||
Bag length | B:65-190/120-280mm | B:65-190/120-280mm | 130-450mm | 130-500mm | |||
Bag width | 30-110mm | 50-160mm | 50-180mm | 100-280mm | |||
Diaphragm diameter | Max.250mm | Max.350mm | Max.450mm | Max.600mm | |||
Packing speed | 40-230bags/Min | 40-180bags/Min | 30-150 bags/Min | 20-150 bags/Min) | |||
Membrane thickness | 0.04-0.08MM | 0.04-0.12MM | 0.04-0.12MM | 0.04-0.1MM | |||
Power Specifications | 220V,50/60HZ 2.6KVA | ||||||
Machine weight | 500KG | 580KG | 650KG | 680KG | |||
Other | Inflatable device (nitrogen, air, oxygen, etc.) | ||||||
Packaging material | Opp, cpp, bopp, opp composite pe, pet, etc. | ||||||
Bag shape | Backing sealing, four sides hot, stand-up pouch, hanging hole, round hole, aircraft hole (can be customized) | ||||||
Longitudinal seal / horizontal seal | Netted sealing / straight grain, netted sealing pattern. | ||||||

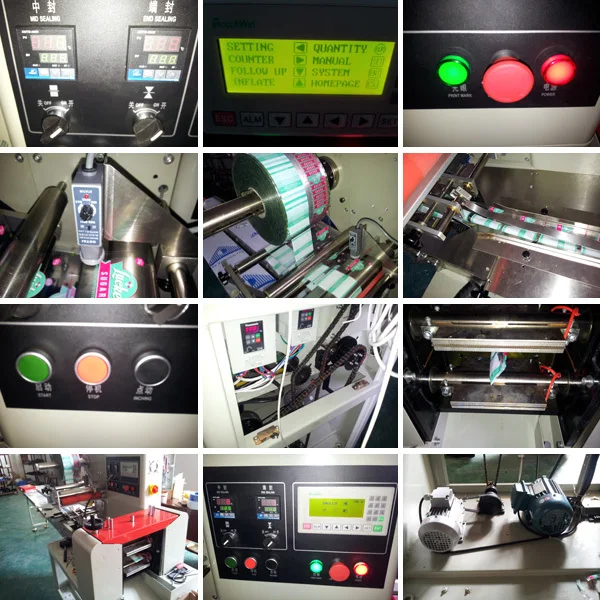

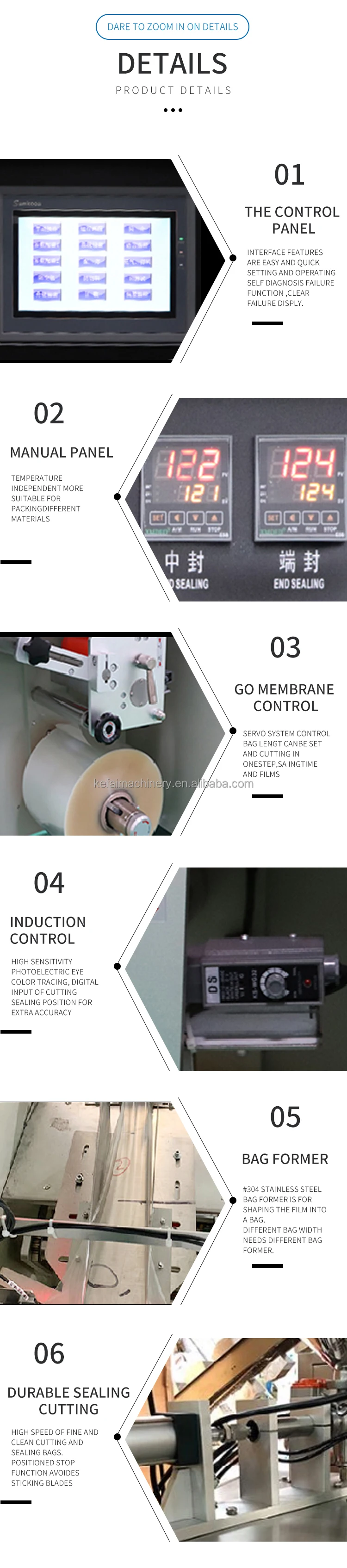

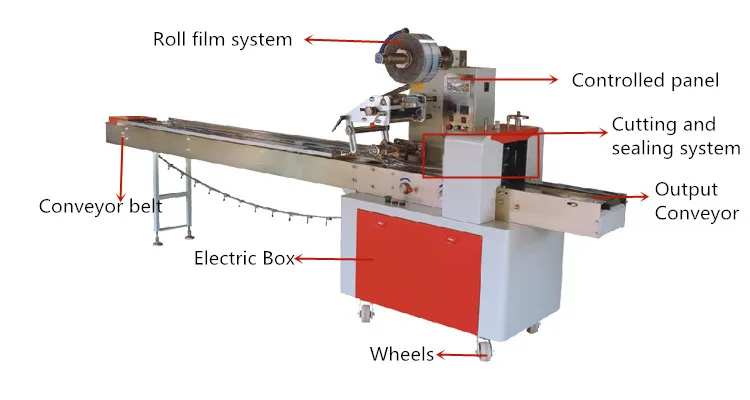

Deatils images
For More Details,
Please Send An Inquiry To Get It.
Packing & Delivery
All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, the wrapped by stretch film to protect it from moist. The precision part needs flexible package. In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory. All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.

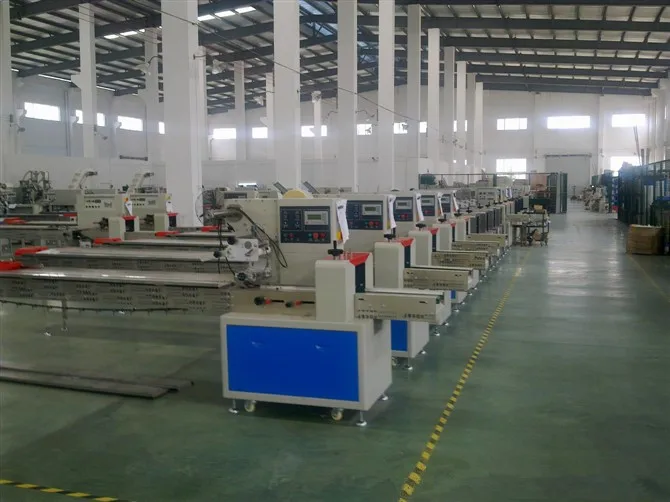

Company Profile
FAQ
1.Are you a factory or trading company?·
Our factory is located in Wuhan, Hubei and we equipped with SGS factory inspection report. We warmly welcome you to visit our factory if you have a travel plan.
2.How can i know your machine is suitable for my products?
If possible, you can send us sample and we will test on our machine. So we will shot videos and pictures for you. We can also show you online by video chatting.
3.How can i trust you for the first-time business?
You can check out our full range of business licence and certificates. And we suggest using Alibaba Trade Assurance Service for all transactions to protect your money and interest.
4.How to choose the right machine?
We will recommend the most suitable machine and solutions for you based on the product pictures, dimensions and other specifications you provided. We also will use similar product to shoot test videos for your confirmation.
5.How can i make sure about the machine quality if i order on you?
We offer 24 months warranty from shipment date. During one year we can provide parts for free due to quality problem, but human error is not included. From the second year, parts only collect cost price.
6.What should I do if I’m not able to operate the machine when we receive it?
Operation manual and videos we sent will guides you the installation and commissioning. Besides, we have professional after-sale group to customer 's site to solve any problems.we also provide 7*24 hours online technical support.
7.What about the delivery time?
In stock machine: 2-3days
Usually 2-60 Working days(depend on products).
Our factory is located in Wuhan, Hubei and we equipped with SGS factory inspection report. We warmly welcome you to visit our factory if you have a travel plan.
2.How can i know your machine is suitable for my products?
If possible, you can send us sample and we will test on our machine. So we will shot videos and pictures for you. We can also show you online by video chatting.
3.How can i trust you for the first-time business?
You can check out our full range of business licence and certificates. And we suggest using Alibaba Trade Assurance Service for all transactions to protect your money and interest.
4.How to choose the right machine?
We will recommend the most suitable machine and solutions for you based on the product pictures, dimensions and other specifications you provided. We also will use similar product to shoot test videos for your confirmation.
5.How can i make sure about the machine quality if i order on you?
We offer 24 months warranty from shipment date. During one year we can provide parts for free due to quality problem, but human error is not included. From the second year, parts only collect cost price.
6.What should I do if I’m not able to operate the machine when we receive it?
Operation manual and videos we sent will guides you the installation and commissioning. Besides, we have professional after-sale group to customer 's site to solve any problems.we also provide 7*24 hours online technical support.
7.What about the delivery time?
In stock machine: 2-3days
Usually 2-60 Working days(depend on products).
