MATS 2010H Hysteresisgraph hysteresis loop ferrite magnet
- Category: >>>
- Supplier: Hunan Linkjoin Technology Co. Ltd.
Share on (1600908327122):
Product Overview
Description
Introduction

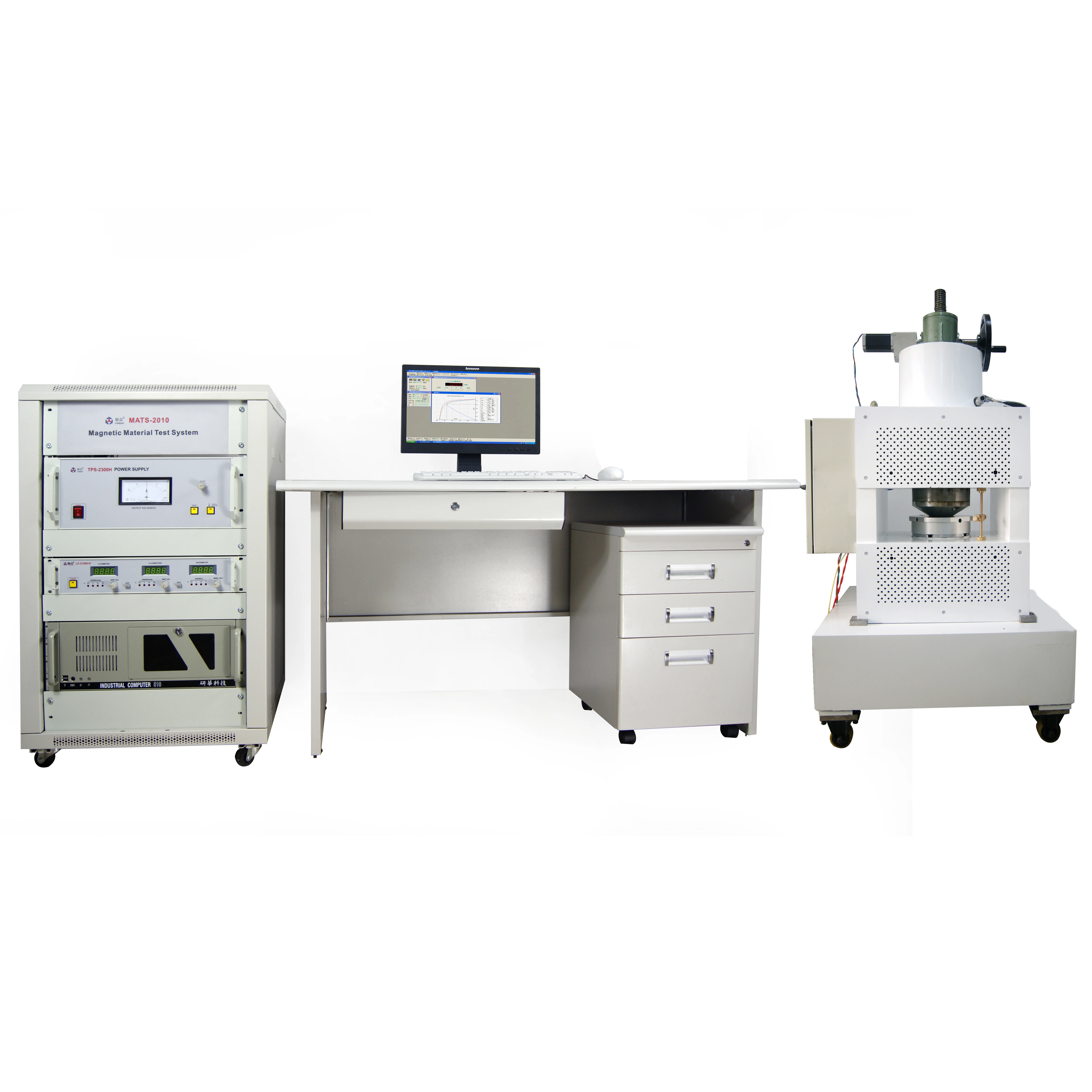

MATS-2010H Hysteresisgraph can automatically measure the Hysteresis Loop and Demagnetization Curve of permanent magnets, and accurately measure the magnetic parameters of remanence Br, coercivity HcB, intrinsic coercivity HcJ and maximum energy product (BH)max.

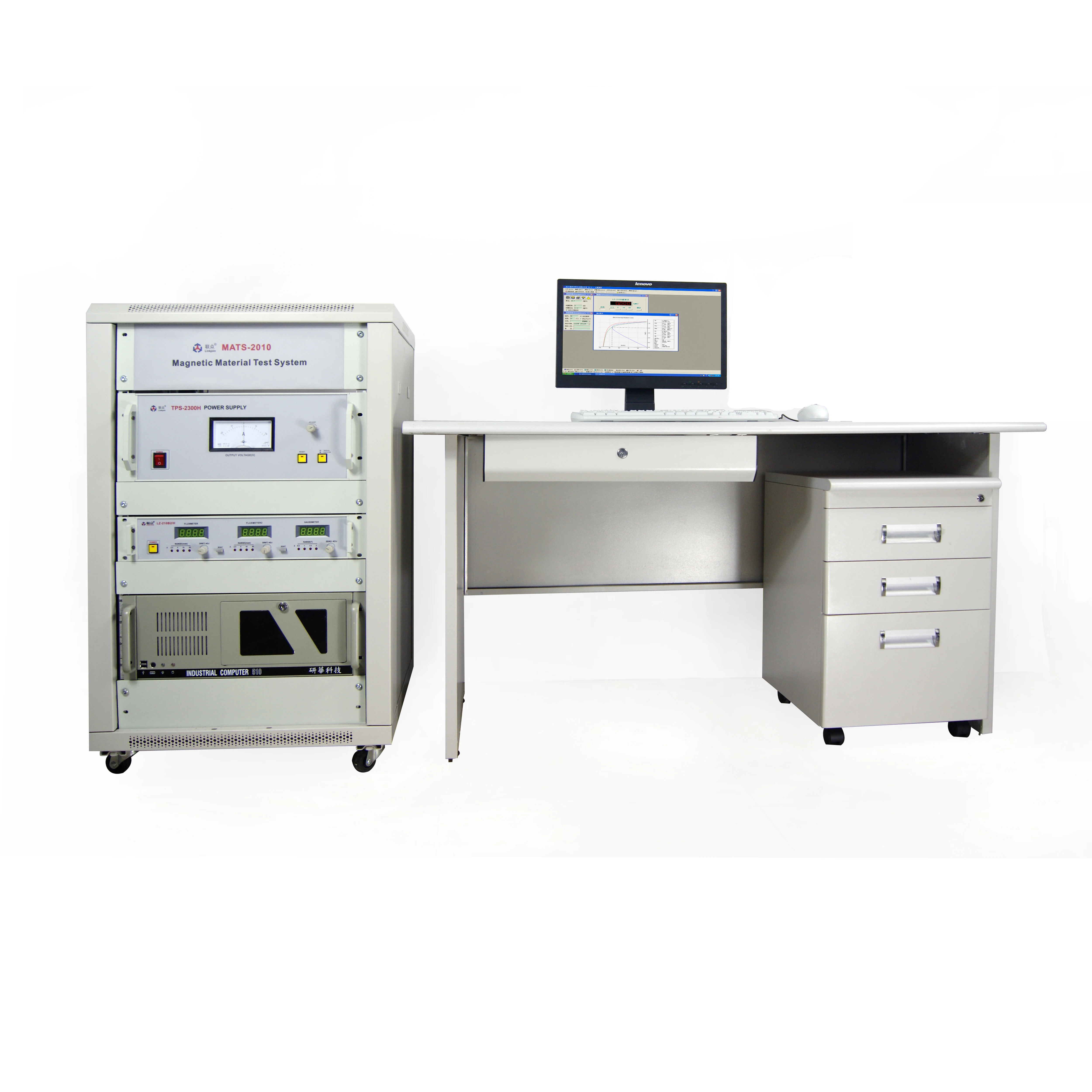

MATS-2010H Hysteresisgraph adopts ATS structure, users can customize different configurations according to different requirements. Select suitable electromagnet and corresponding test power supply according to the intrinsic coercivity and size of sample; select measuring coil and probe according to different test methods; decide whether select fixture or not according to sample shape; decide whether select temperature controller or not according to test requirements.

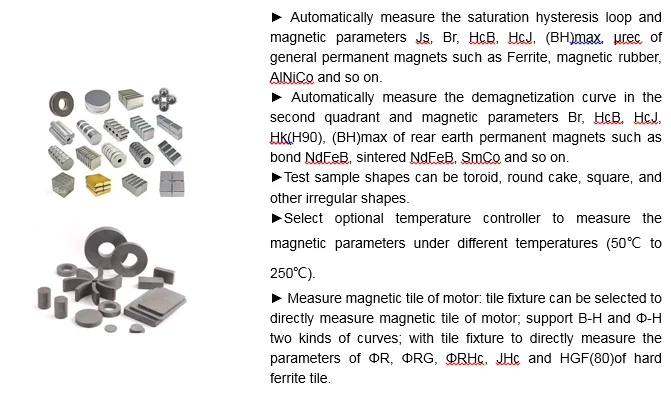

Measuring Methods

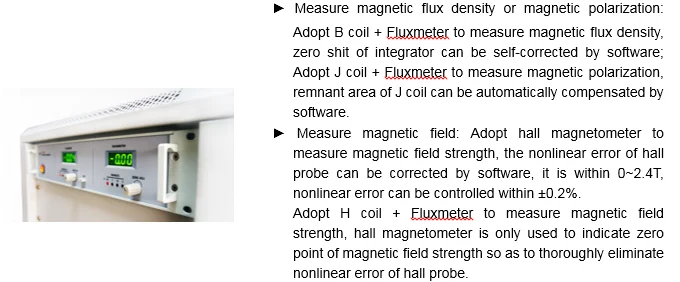

Test Items

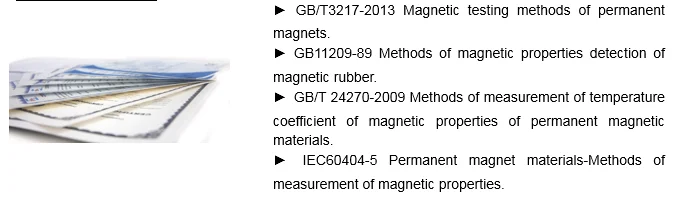

Applied Standards
Technical Data
Working Environment | |||||||||
Parameters | Specifications | ||||||||
Input power | Single-phase 220V, 50Hz or three-phase 380V, 50Hz | ||||||||
Environment | Temperature: 23±5℃; Humidity: 30~75%RH | ||||||||
External magnetic field interference | Absolutely avoid | ||||||||
Thermal balance time | 10 minutes | ||||||||

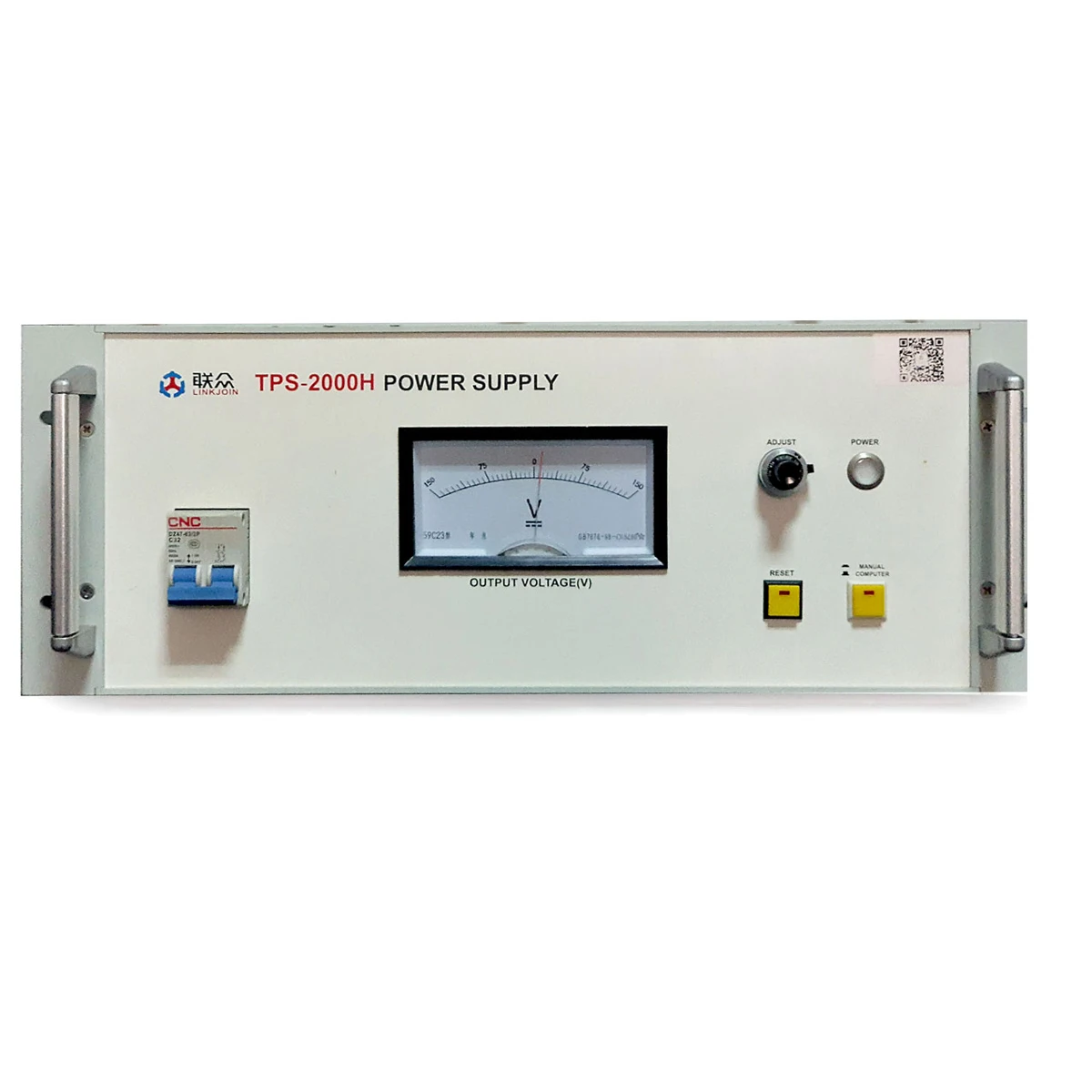

TPS-2X00 POWER SUPPLY | |||||||||
Model | TPS-2000H | TPS-2100H | TPS-2300H | ||||||
Input power | Single-phase 220V 50Hz | Single-phase 220V 50Hz | three-phase 380V 50Hz | ||||||
Output voltage | 0~±100V | 0~±180V | 0~±300V | ||||||
Output current | ± 20A (Max. Value) | ± 30A (Max. Value) | ± 60A (Max. Value) | ||||||
Stability | Superior to 0.05% | Superior to 0.05% | Superior to 0.05% | ||||||
Output protection | Over voltage, over current, short-circuit protection. | ||||||||

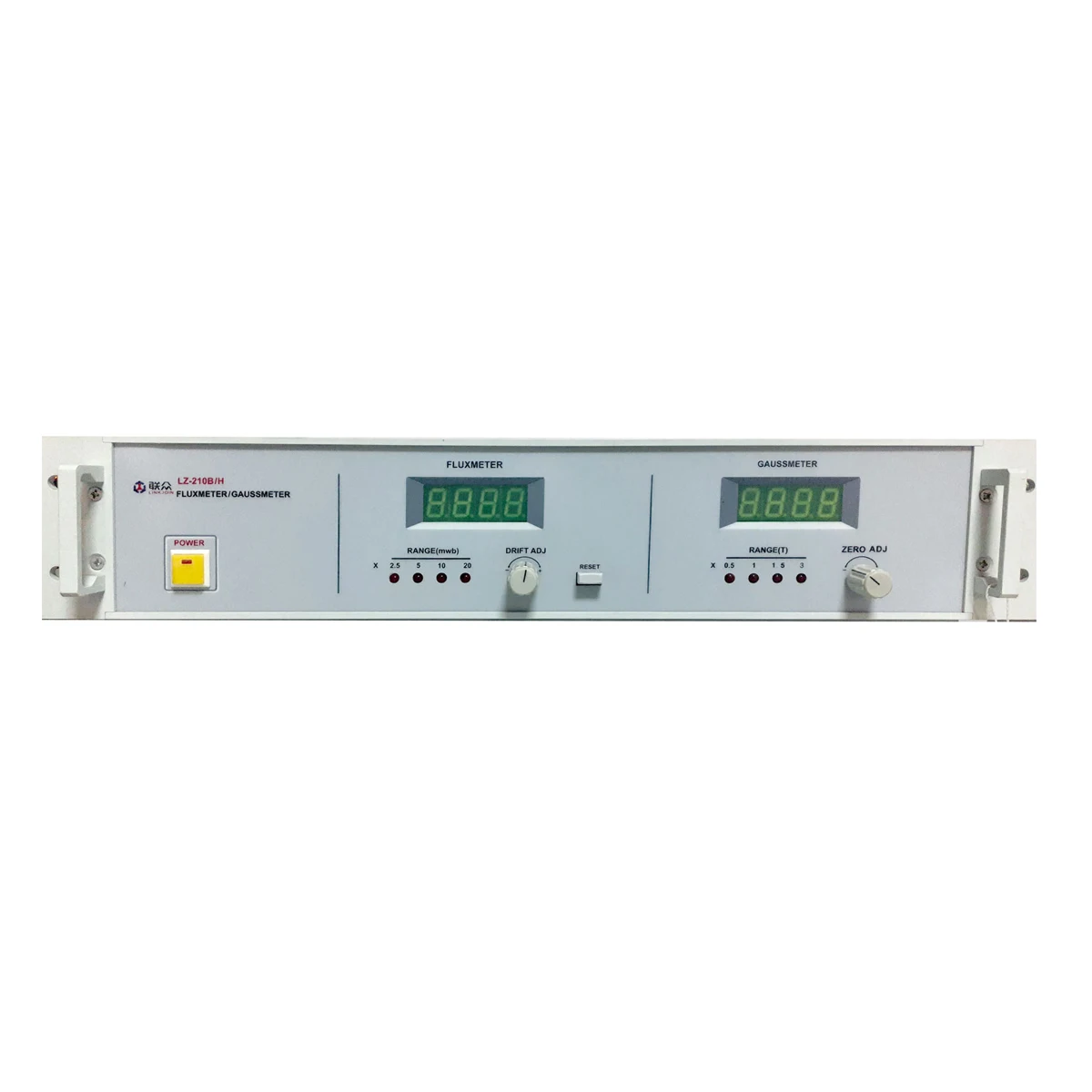

LZ-210B/H Fluxmeter/Gaussmeter | |||||||||
Model | LZ-210B/H | LZ-210B2/H | |||||||
Flux test channel | Single channel | Double channels | |||||||
Flux range | 2.5, 5, 10, 20 mWb | ||||||||
Flux test accuracy | 0.5% (full range) | ||||||||
Zero drift | 2μWb/30 sec(2.5mWb range) | ||||||||
Magnetic field range | 0.5, 1, 1.5, 3 T | ||||||||
Magnetic field test accuracy | 0.5%(full range) | ||||||||
Non-linearity | ±0.2% (software correction) | ||||||||
DCT-XXX Electromagnet | |||||||||
Model | DCT130 | DCT150 | DCT200 | DCT250 | |||||
Head space | 0~50mm (manual) | 0~50mm (manual) | 0~80mm (manual) | 0~80mm (electric) | |||||
Pole diameter | 130mm | 150mm | 200mm | 250mm | |||||
Rated current | 20A | 30A | 60A | 60A | |||||
Max. air gap magnetic field | 2.3T | 2.5T | 2.8T | 3.0T | |||||
Remarks: The maximum air gap magnetic field was measured under the condition that the pole diameter of the Fe-Co was shrunk to 80mm and the air gap was 10mm. | |||||||||
Data Acquisition Card | |||||||||
Parameters | Specifications | ||||||||
A/D, DA convert | 16Bit | ||||||||
Convert accuracy | 0.01% (full range) | ||||||||

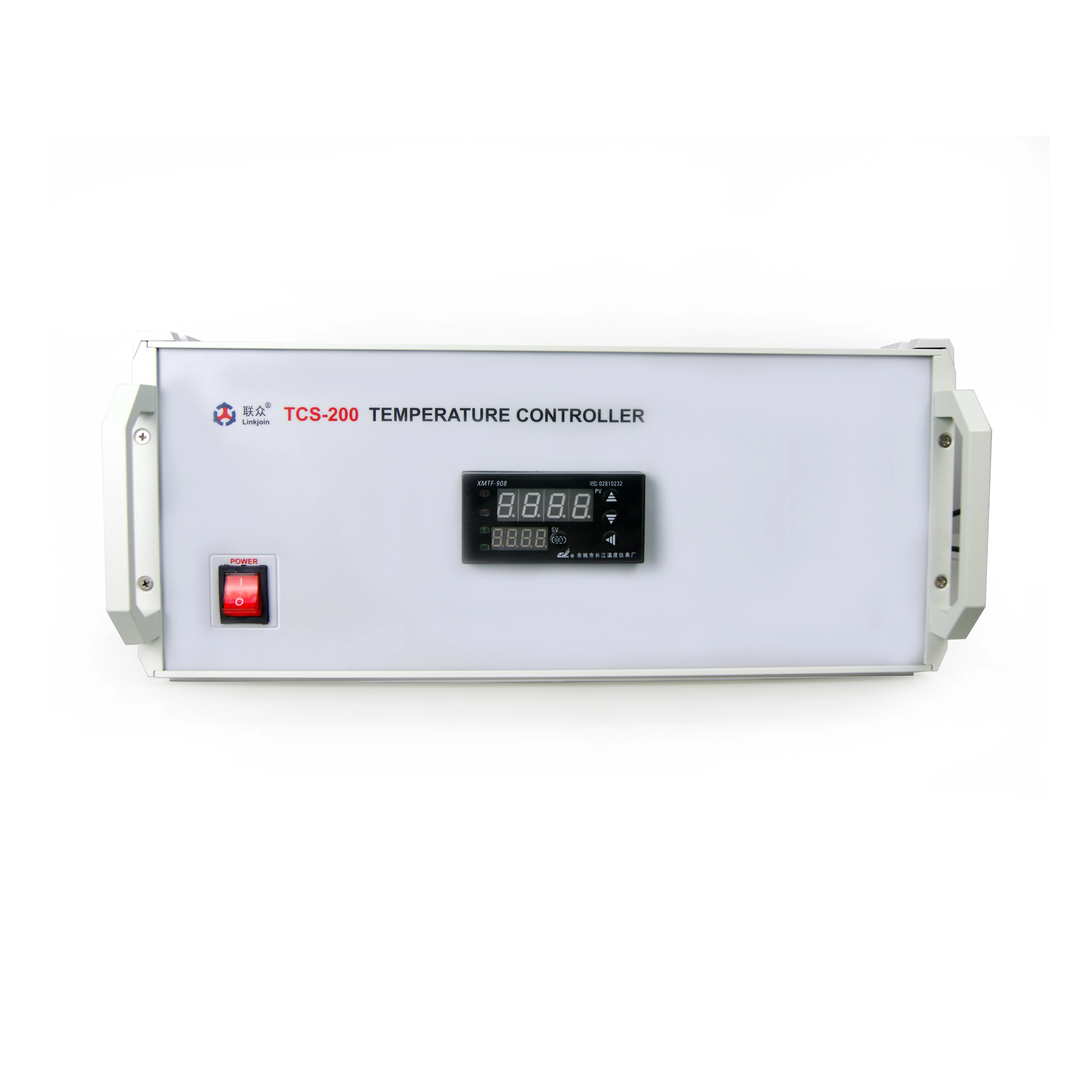

TCS-200 Temperature Controller (Optional) | |||||||||
Parameters | Specifications | ||||||||
Max. Output power | 800w | ||||||||
Temperature range | 50~200℃ | ||||||||
Accuracy | ±1°C | ||||||||
Remarks | Used together with heating pole. | ||||||||
System Technical Data: Test AlNiCo reference sample under constant temperature, technical data are as follows: | |||||||||
Measured parameters | Br(%) | HcB(%) | HcJ(%) | (BH)max(%) | |||||
Uncertainty(k=2) | 1 | 1 | 1 | 2 | |||||
Repeatability (constant temperature) | ± 0.3 | ± 0.3 | ± 0.3 | ± 1 | |||||

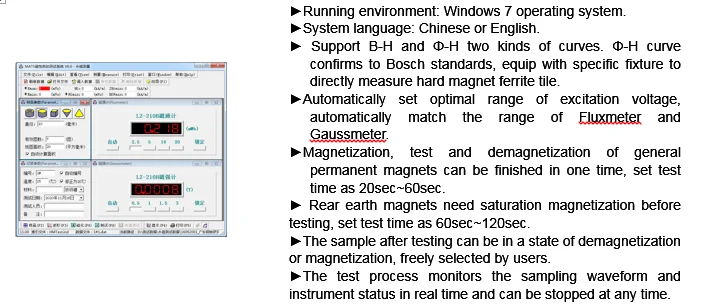

HMTest Software

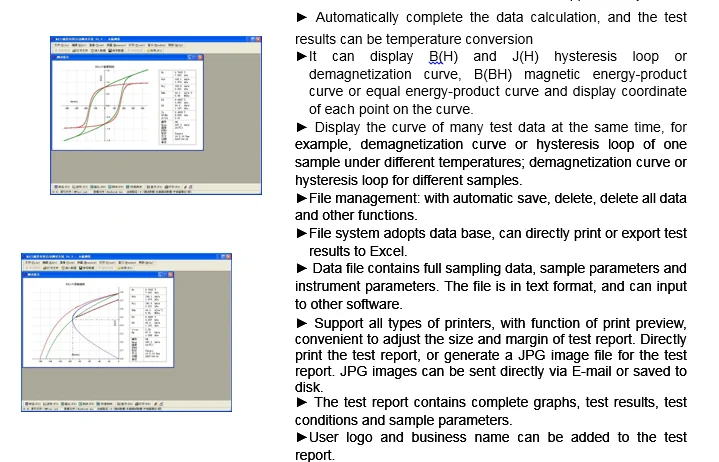

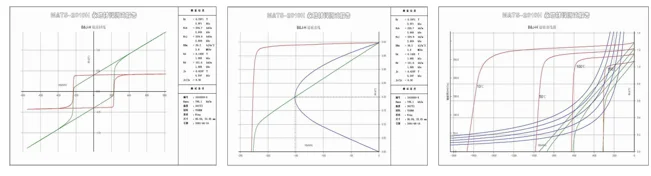

Test Curves

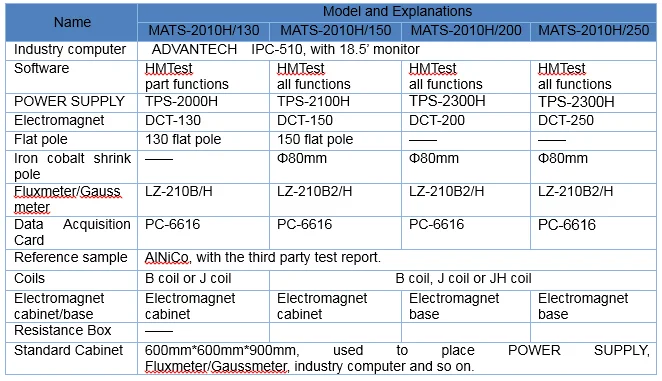

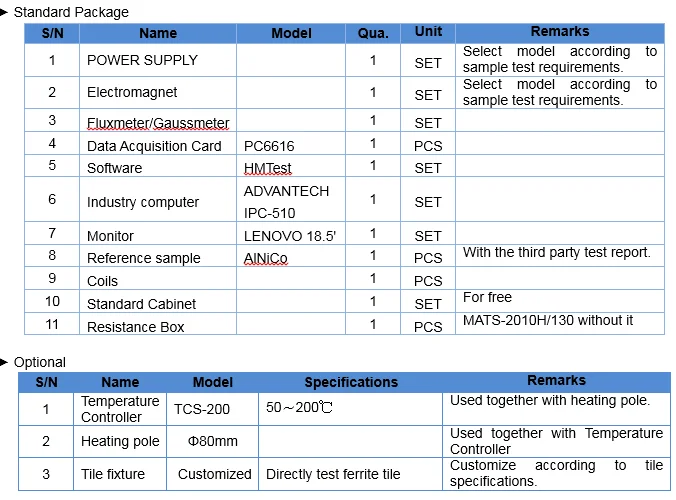

Model Selection
