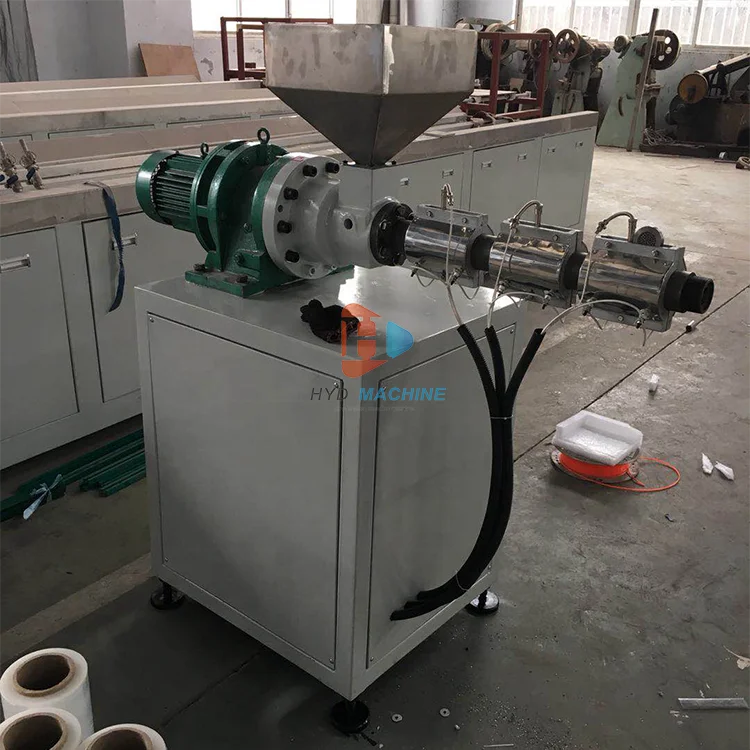

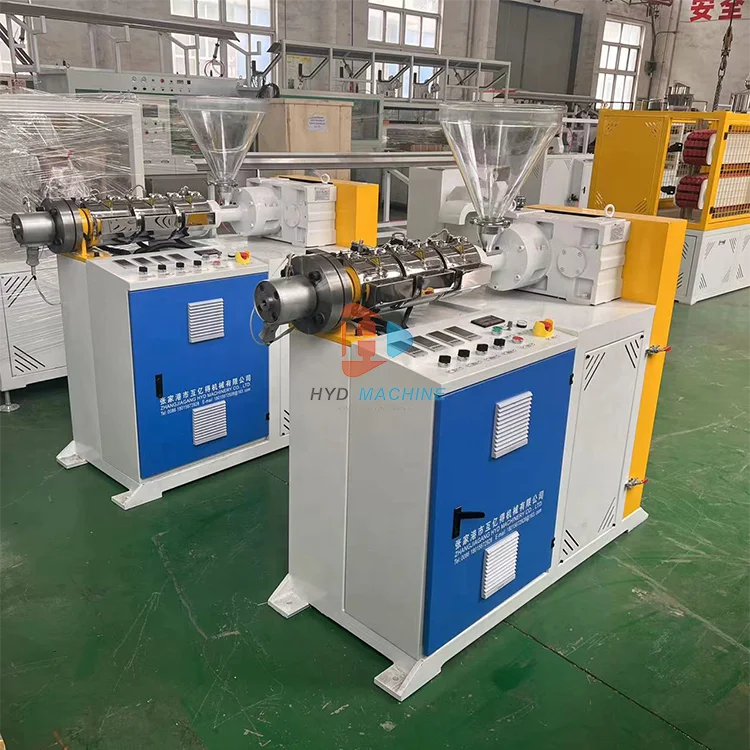

SJ30 SJ35 Small Single Screw Mini Plastic Extruder/ Small Lab PVC Mini Plastic Extruder
- Category: >>>
- Supplier: Zhangjiagang Hyd Machine Co. Ltd.
Share on (1600908338087):
Product Overview
Description
Machine Introduction

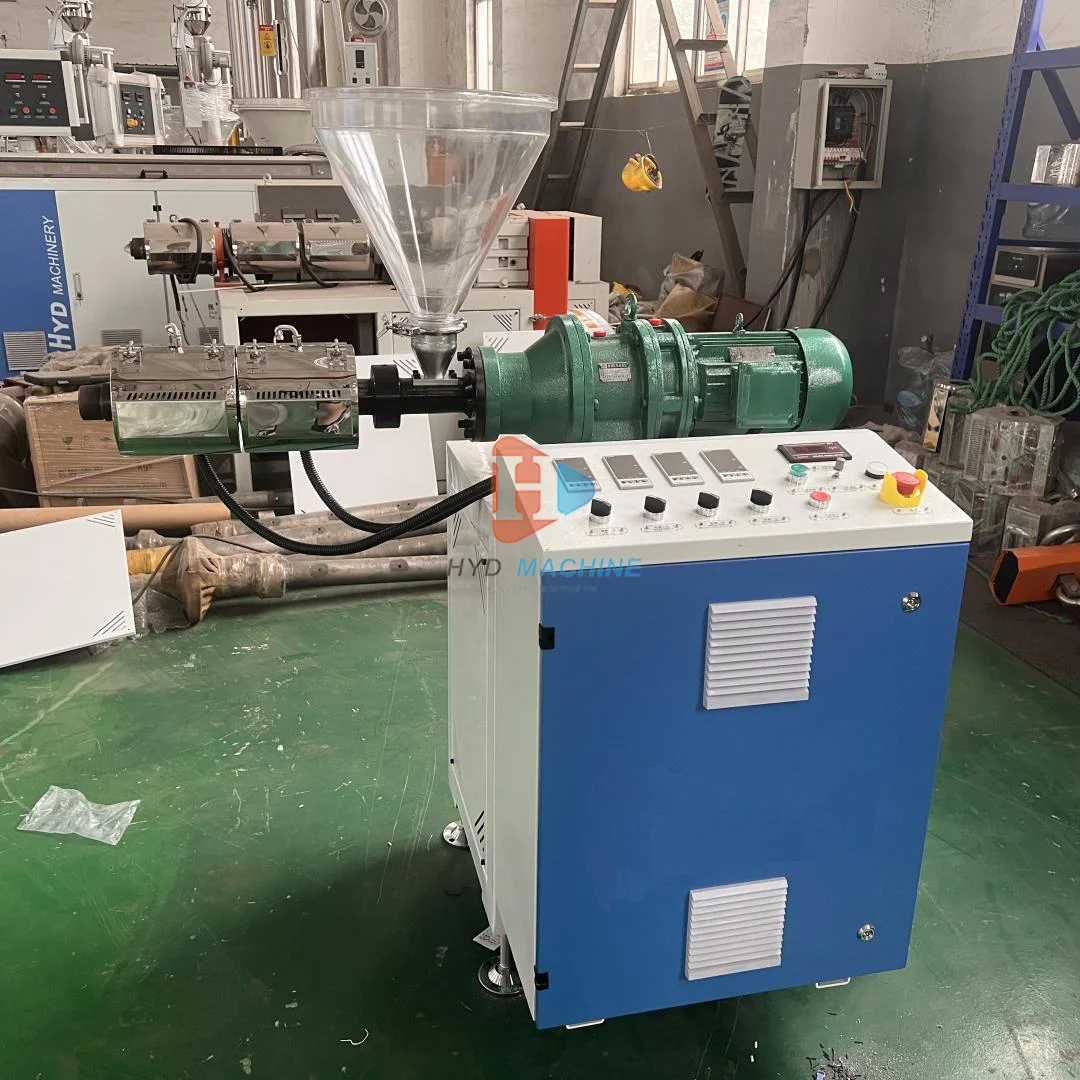

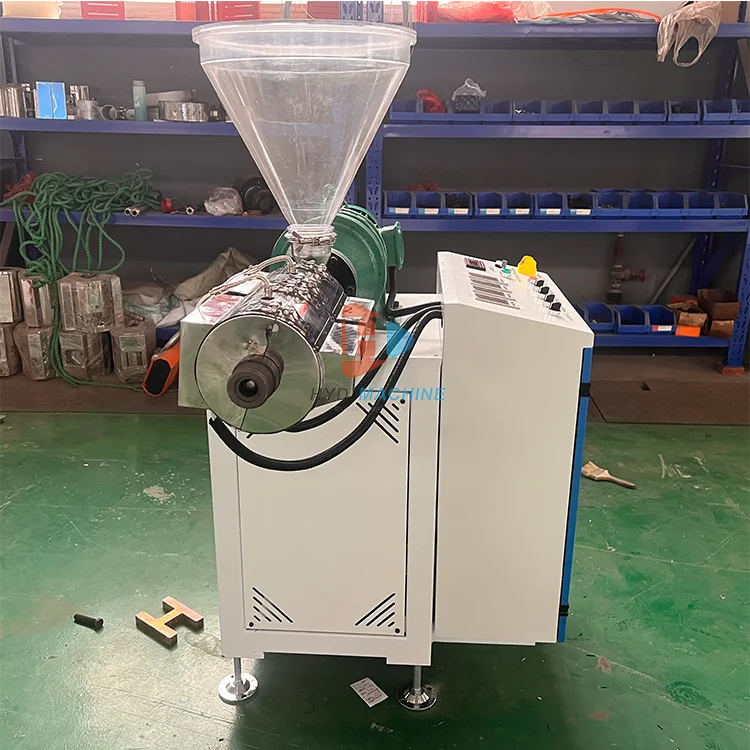

Small lab single screw plastic extruder
The Mini Plastic Extruder is mainly used for experiment, that used for testing and extruding thermo-plastic .It's also can coordinated with the appropriate auxiliary machine,(including the die). This Mini Plastic Extruder is advanced in design, good in plasticization and low in energy consumption. The extruder is characterized by low noise, stable working, big bearing capacity and long service life.
We can customize the screw size according to your requirements
Machine Introduce

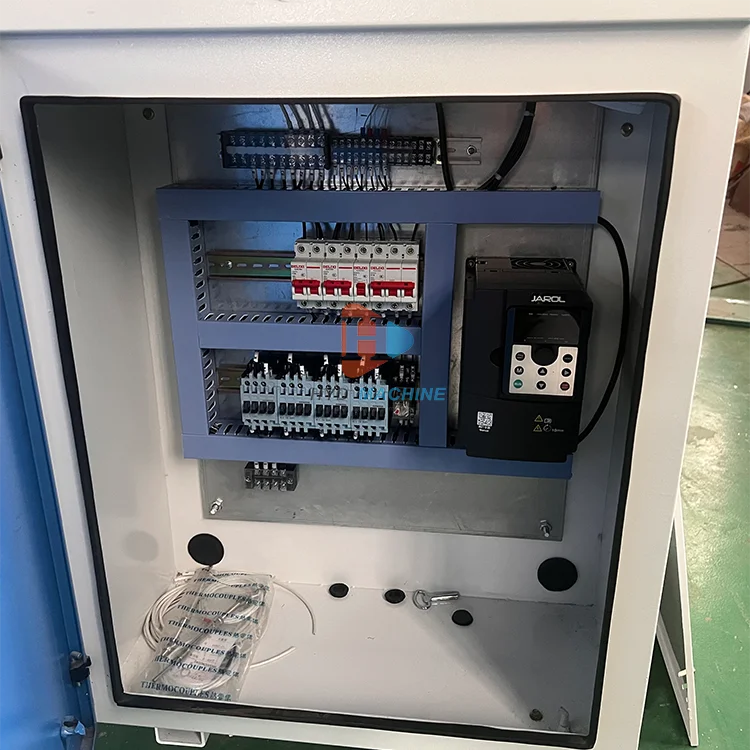

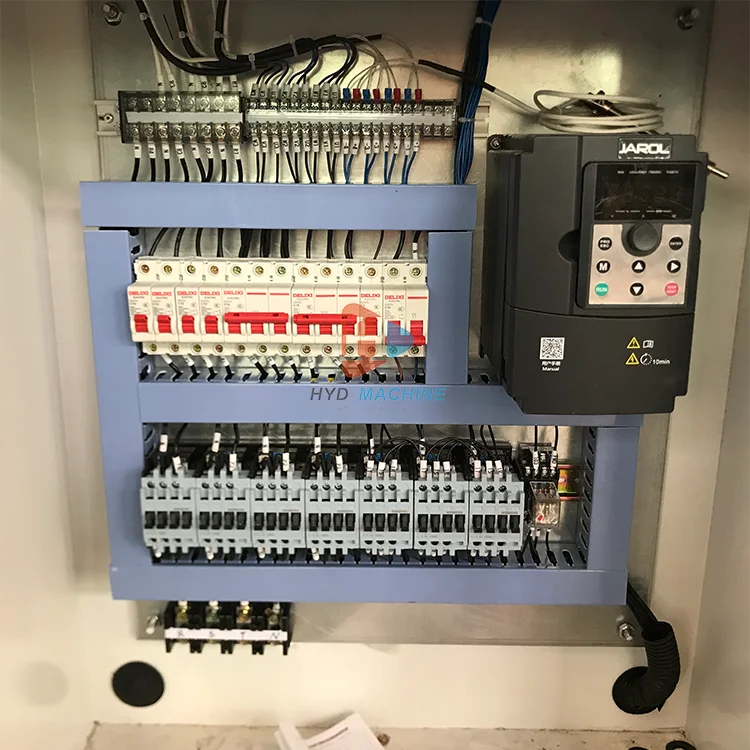

The extruder is mainly composed of: screw, barrel, transmission system, head joint, electrical control box and other parts.
① Screw
It is a key part to complete the conveying and plasticizing of plastics. Because of its rotation, it pushes the plastics
forward, so as to achieve the purpose of compaction, melting, mixing and homogenization. The screw thread is composed of different functional sections to achieve good conveying, compacting, mixing and plasticizing effects and high output. The screw material is made of high-quality nitrided steel (38CrMoALA), which is finished by nitriding and grinding, which has high corrosion resistance and wear resistance and long service life.
forward, so as to achieve the purpose of compaction, melting, mixing and homogenization. The screw thread is composed of different functional sections to achieve good conveying, compacting, mixing and plasticizing effects and high output. The screw material is made of high-quality nitrided steel (38CrMoALA), which is finished by nitriding and grinding, which has high corrosion resistance and wear resistance and long service life.
②Barrel
It is a part paired with the screw. The barrel is made of nitrided steel, and the inner hole is nitrided to achieve higher

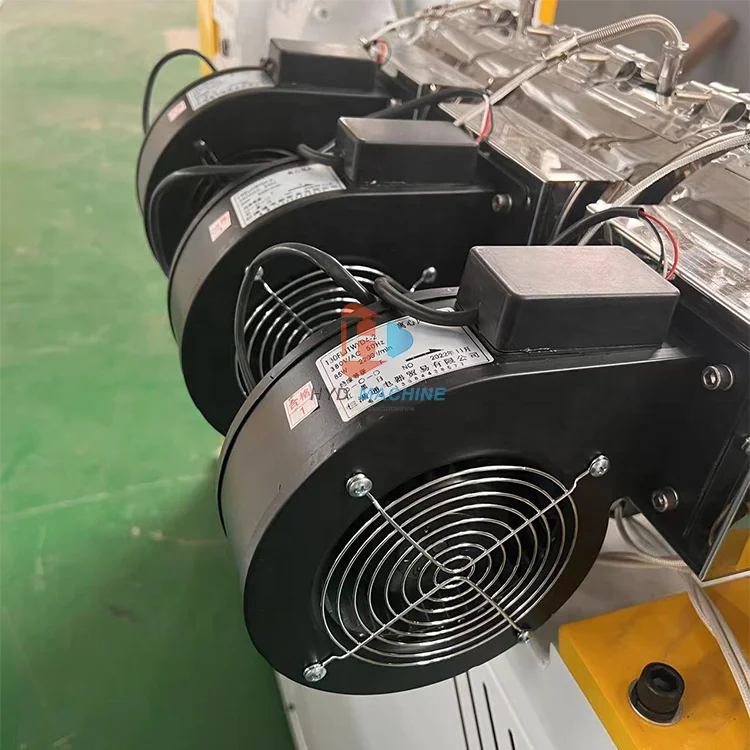

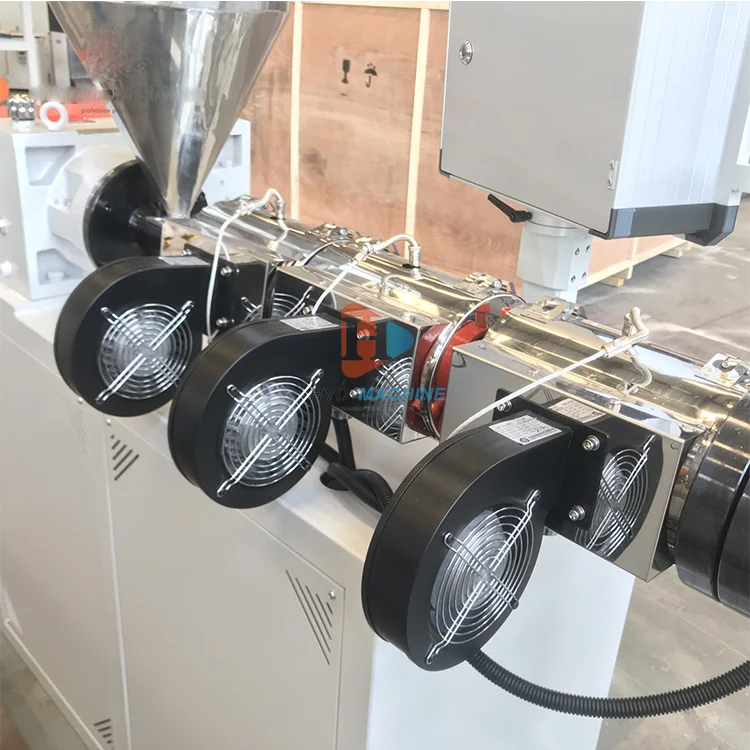

hardness and better wear resistance, and has a certain corrosion resistance. There are five sets of heaters on the surface, and the heat is transferred from the barrel to the plastic to melt and plasticize the plastic. There are five temperature measuring points in each part of the barrel where the heater is installed, which can be automatically controlled within the plastic processing temperature range. The fifth heating zone is equipped with air circulation cooling, which can accelerate the cooling of the barrel and improve the accuracy of temperature control.
It is a part paired with the screw. The barrel is made of nitrided steel, and the inner hole is nitrided to achieve higher
hardness and better wear resistance, and has a certain corrosion resistance. There are five sets of heaters on the surface, and the heat is transferred from the barrel to the plastic to melt and plasticize the plastic. There are five temperature measuring points in each part of the barrel where the heater is installed, which can be automatically controlled within the plastic processing temperature range. The fifth heating zone is equipped with air circulation cooling, which can accelerate the cooling of the barrel and improve the accuracy of temperature control.

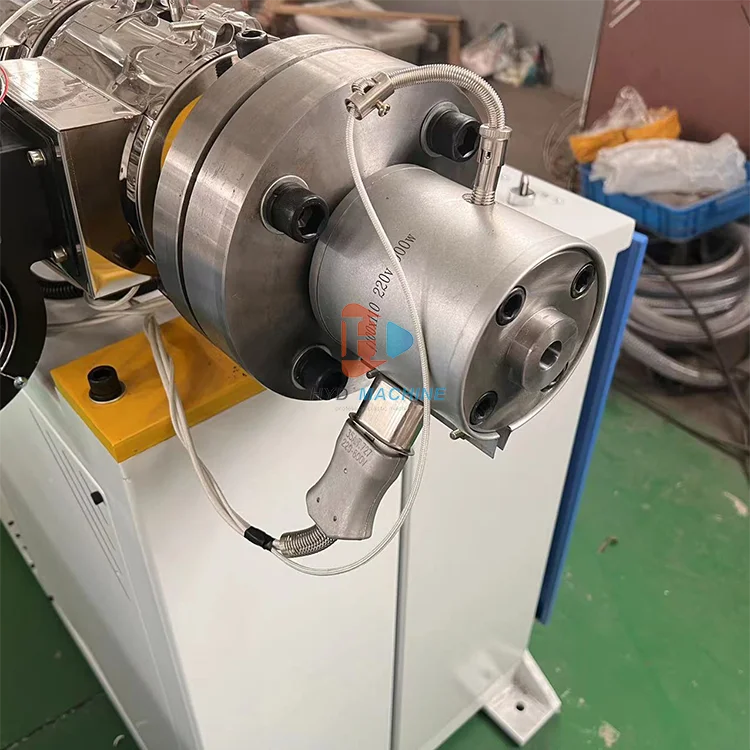

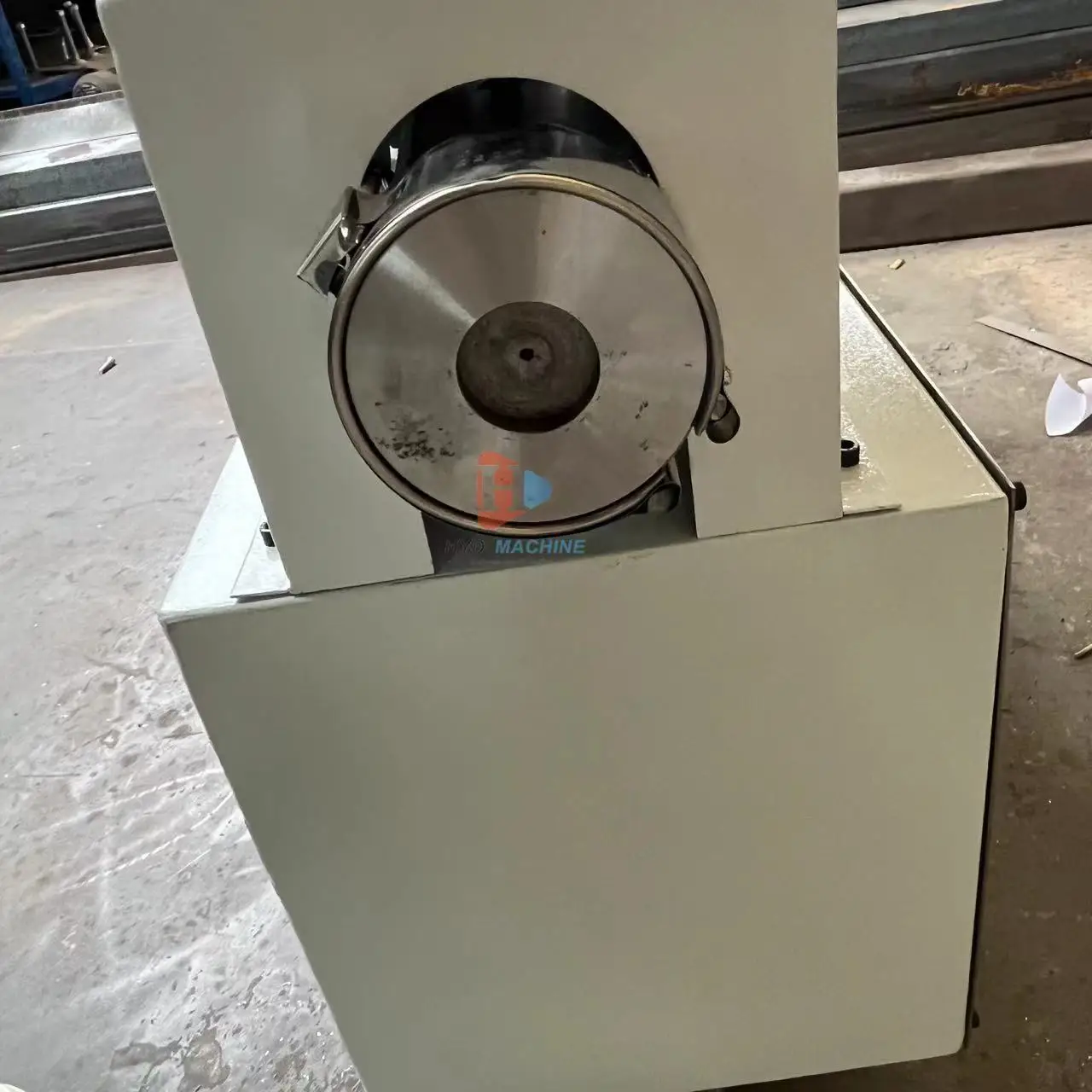

③ Machine head flange connection body
It is the part that connects the machine head and the barrel, and there is a heating ring inside to prevent the cooling of the molten plastic.

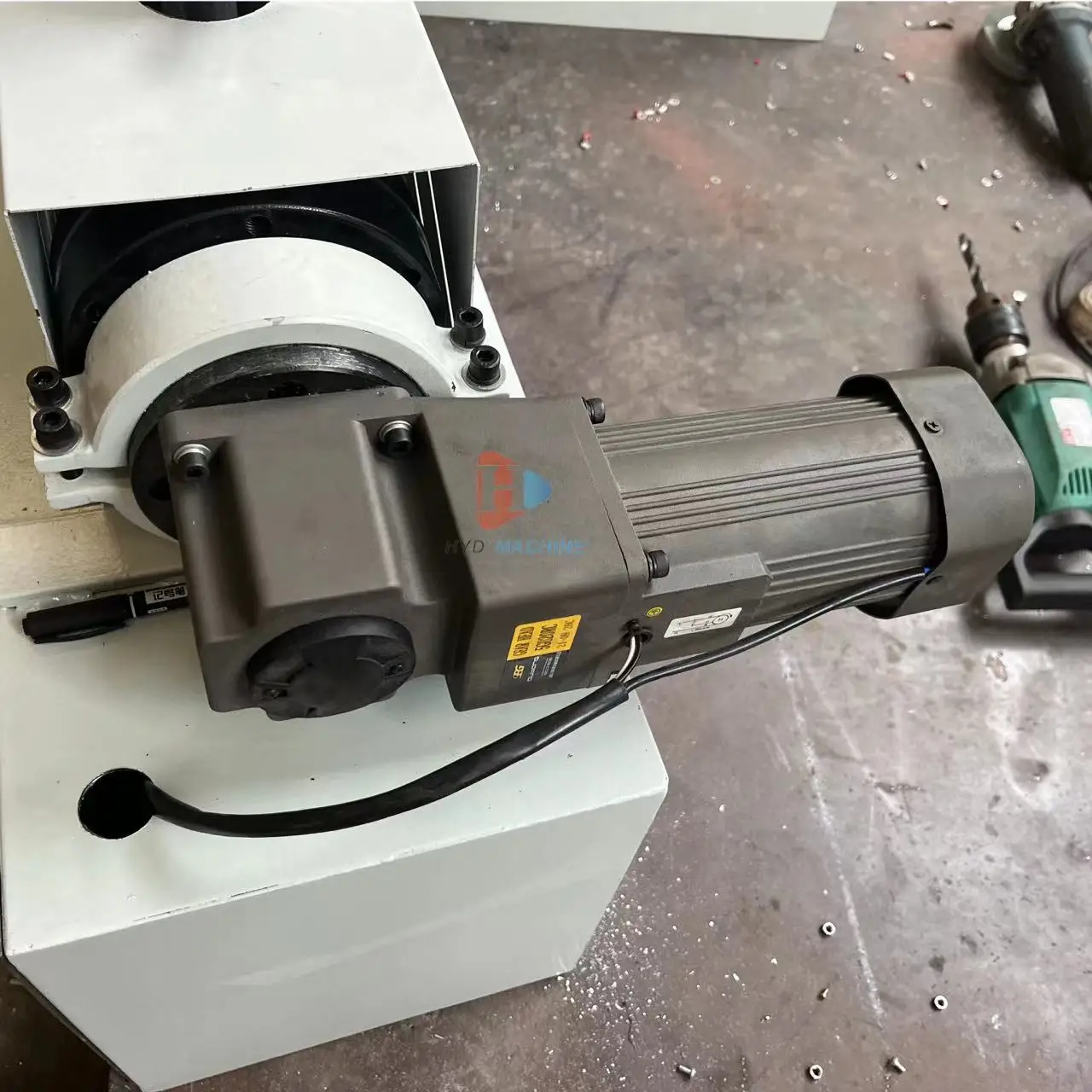

④ Transmission

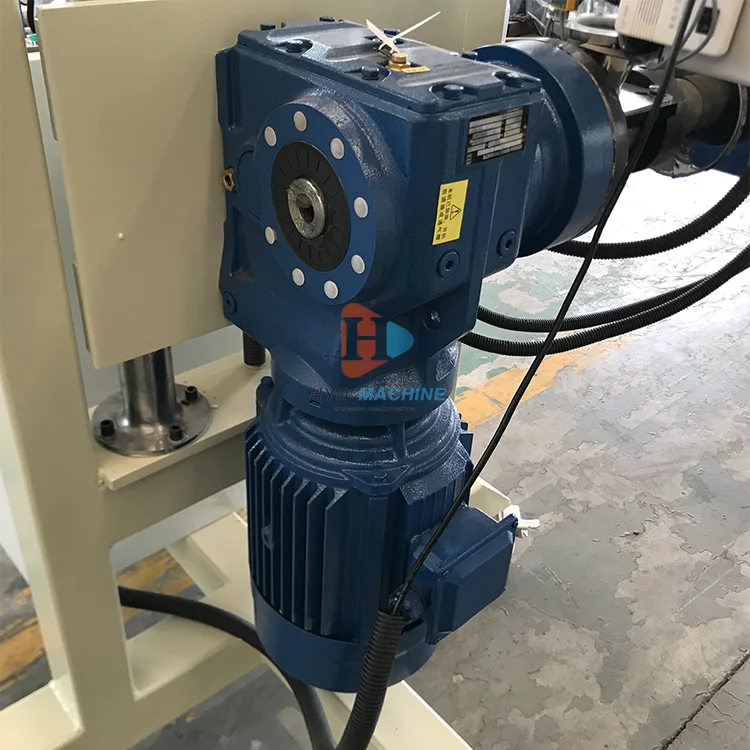

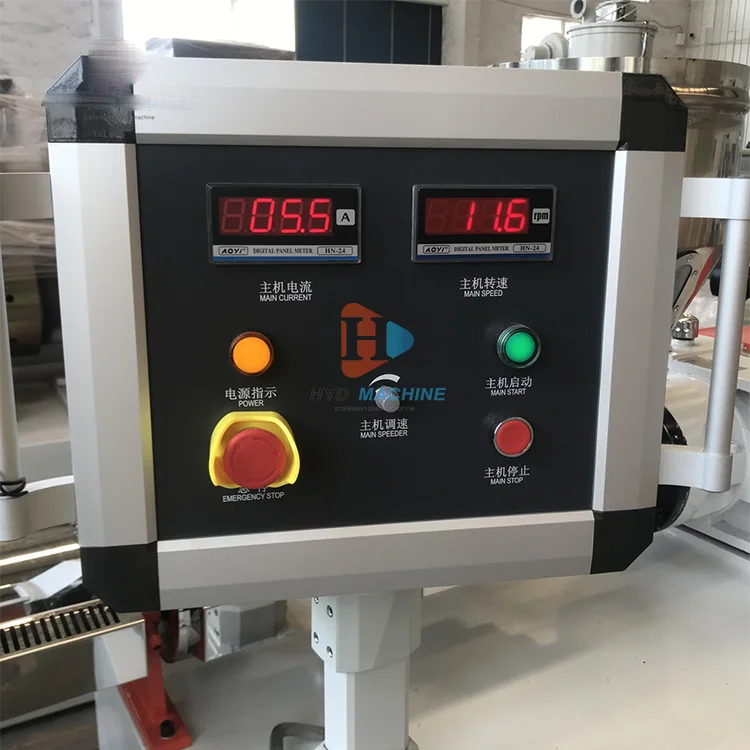

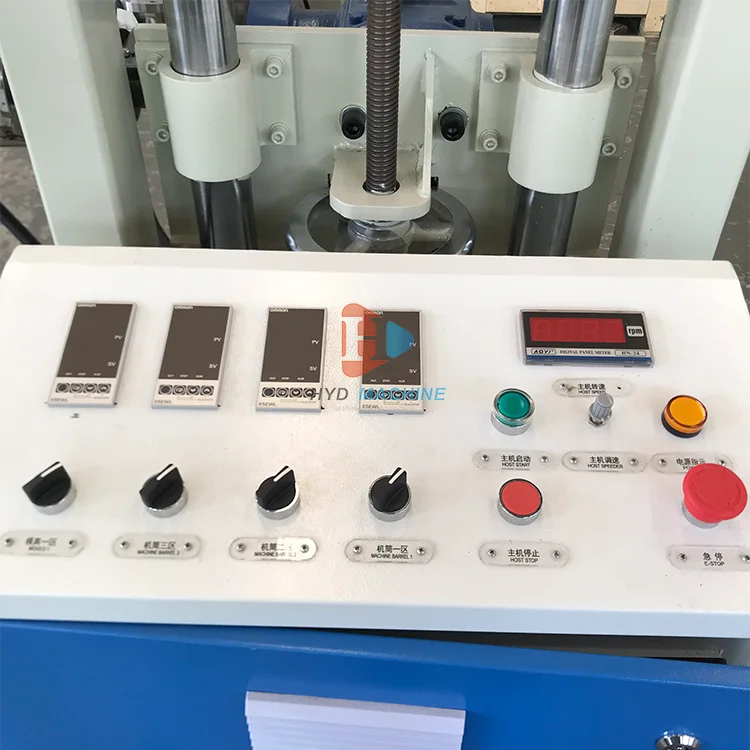

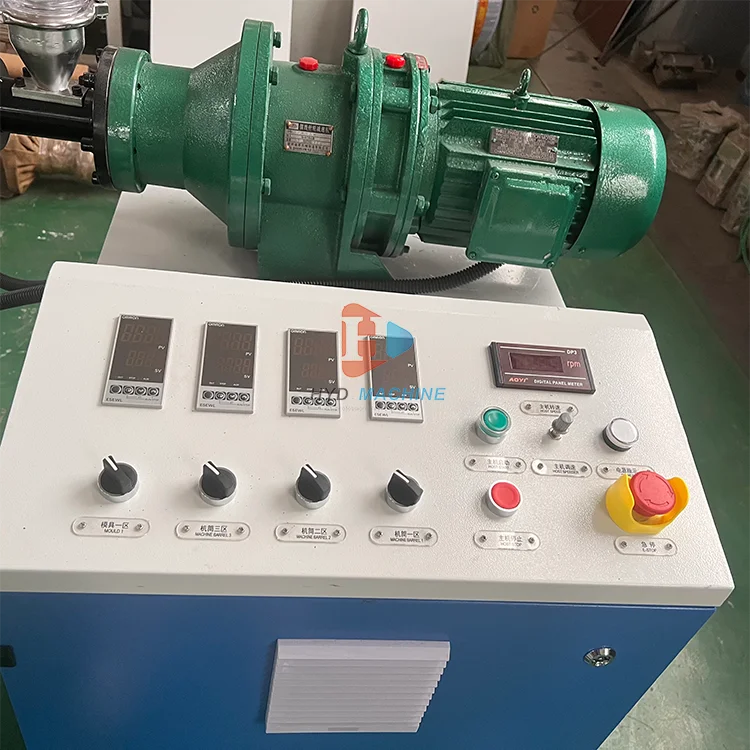

system The transmission system is to make the screw rotate uniformly with the necessary torque under the selected process conditions to complete the plasticization and transportation of the plastic by the screw. In order to meet the production requirements of various specifications of plastic products, the screw should have different speeds. The machine adopts a variable frequency motor to directly drive the gearbox through a coupling, and uses a governor to realize speed regulation, so that the screw speed can be smoothly and steplessly adjusted within the speed regulation range, and the screw speed can be directly read from the tachometer on the control panel. , can also be read directly on the governor.
system The transmission system is to make the screw rotate uniformly with the necessary torque under the selected process conditions to complete the plasticization and transportation of the plastic by the screw. In order to meet the production requirements of various specifications of plastic products, the screw should have different speeds. The machine adopts a variable frequency motor to directly drive the gearbox through a coupling, and uses a governor to realize speed regulation, so that the screw speed can be smoothly and steplessly adjusted within the speed regulation range, and the screw speed can be directly read from the tachometer on the control panel. , can also be read directly on the governor.

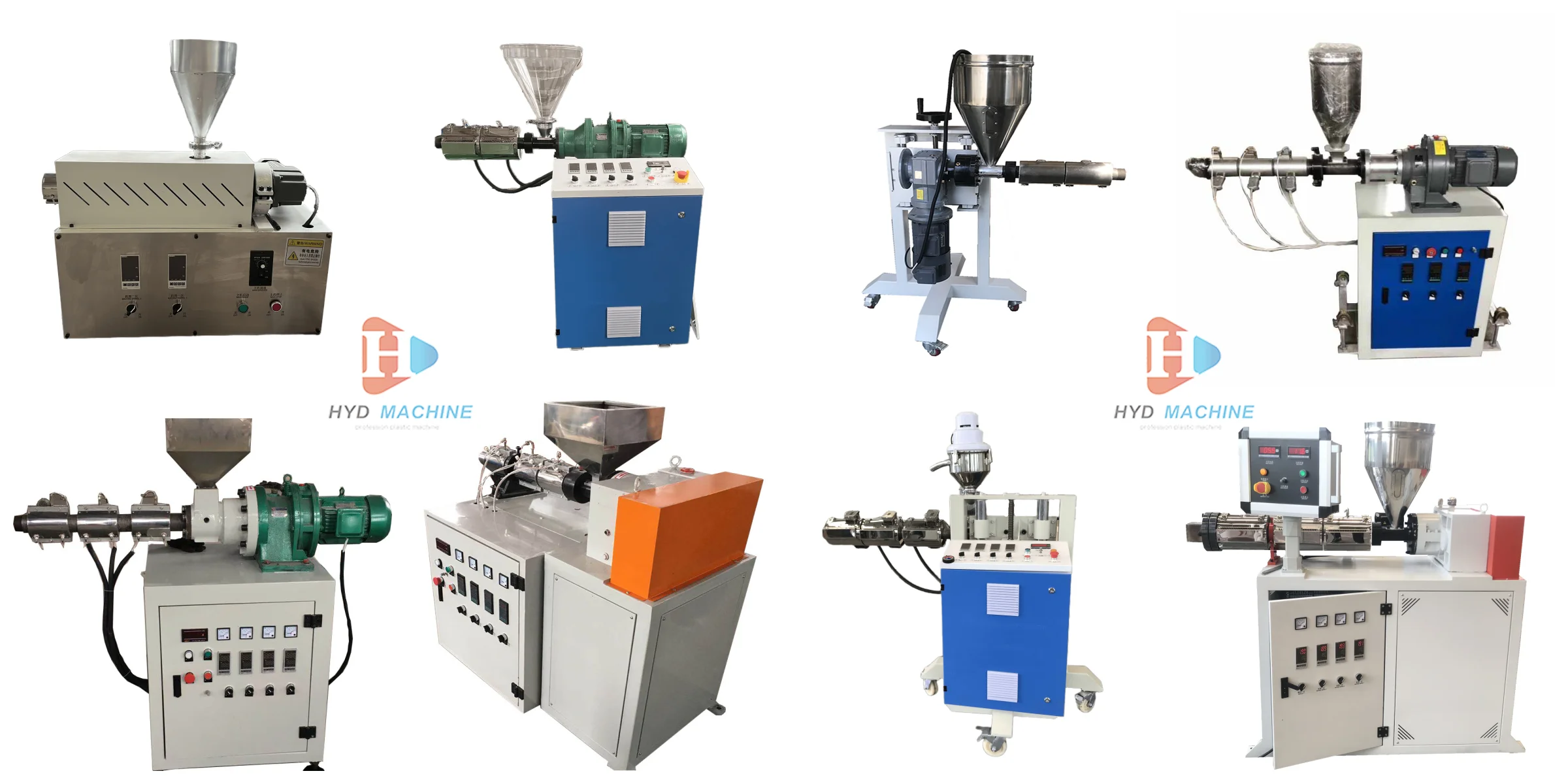

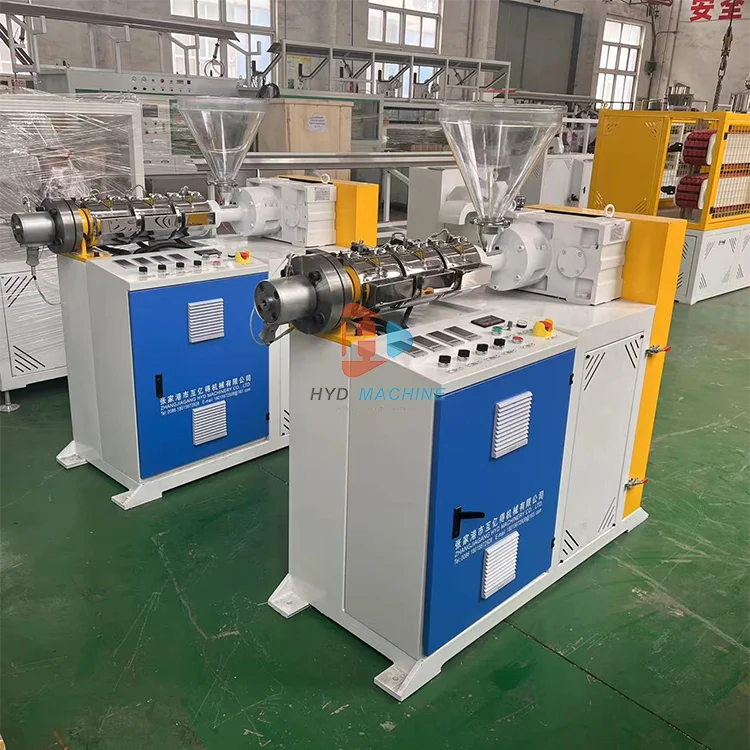

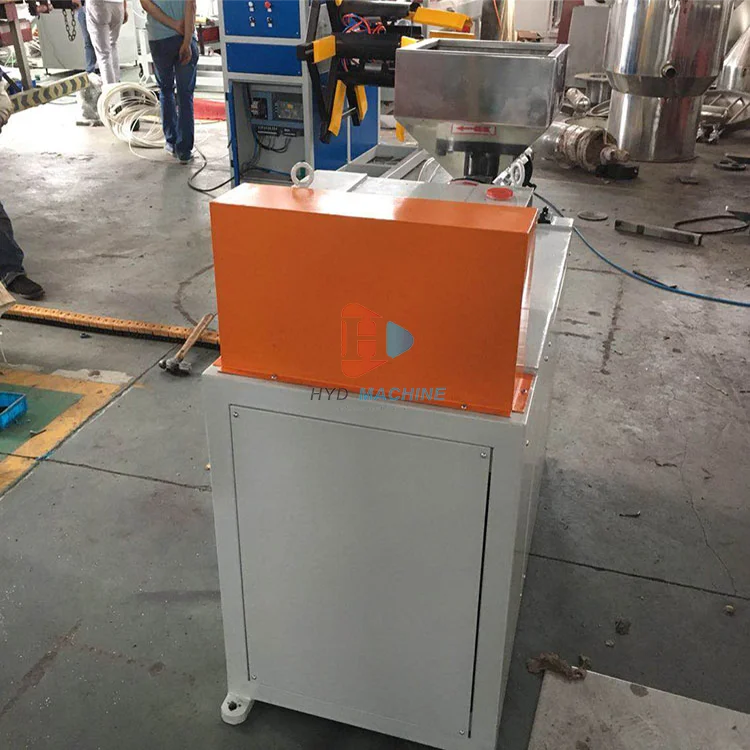

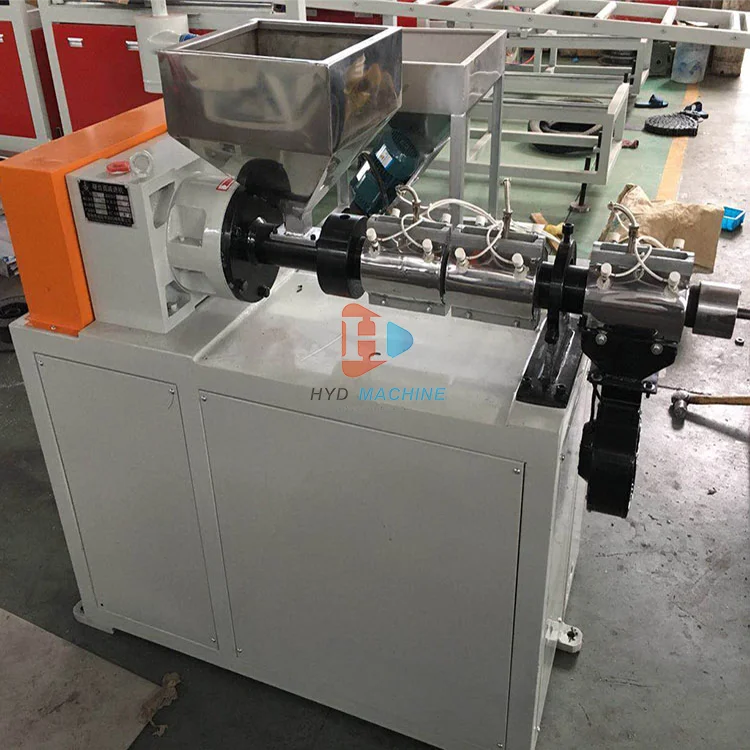

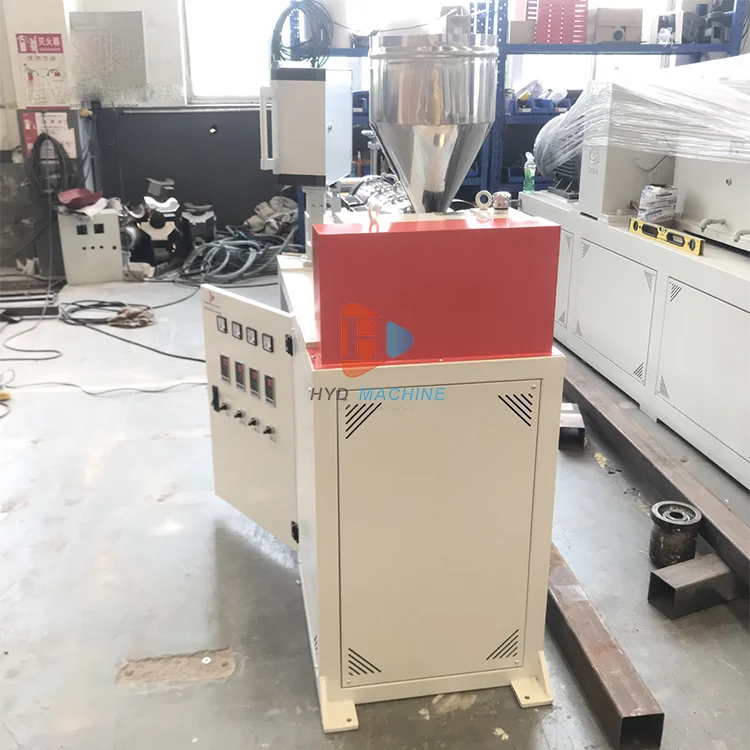

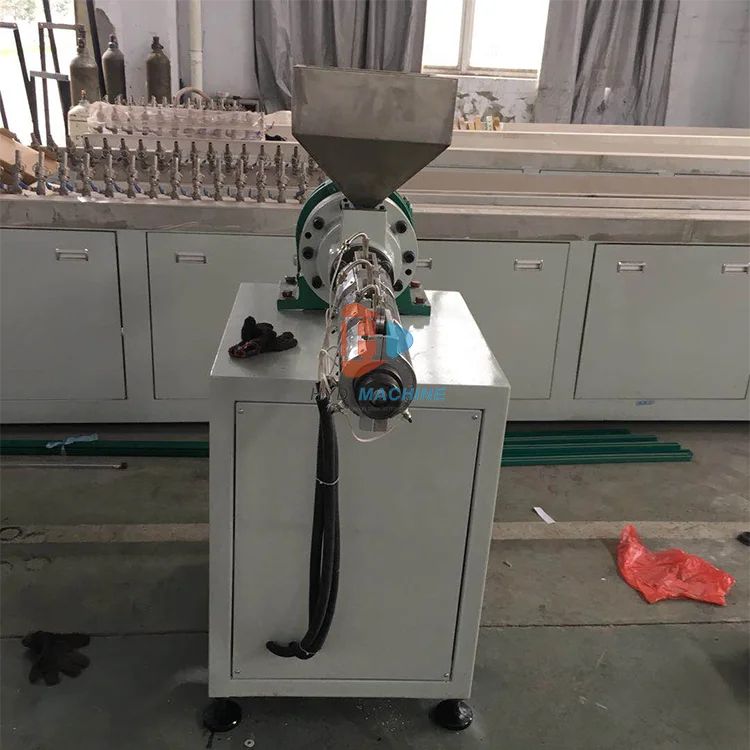

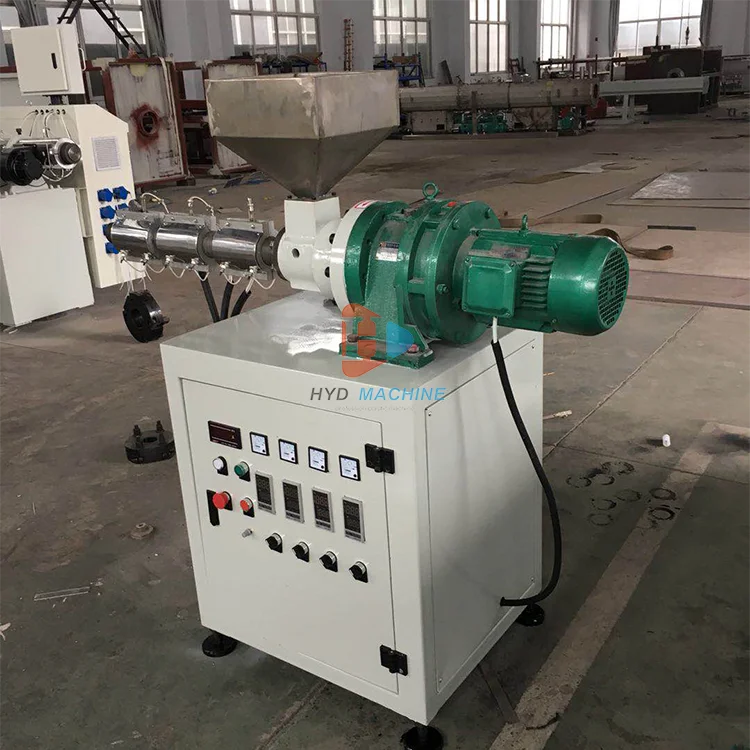

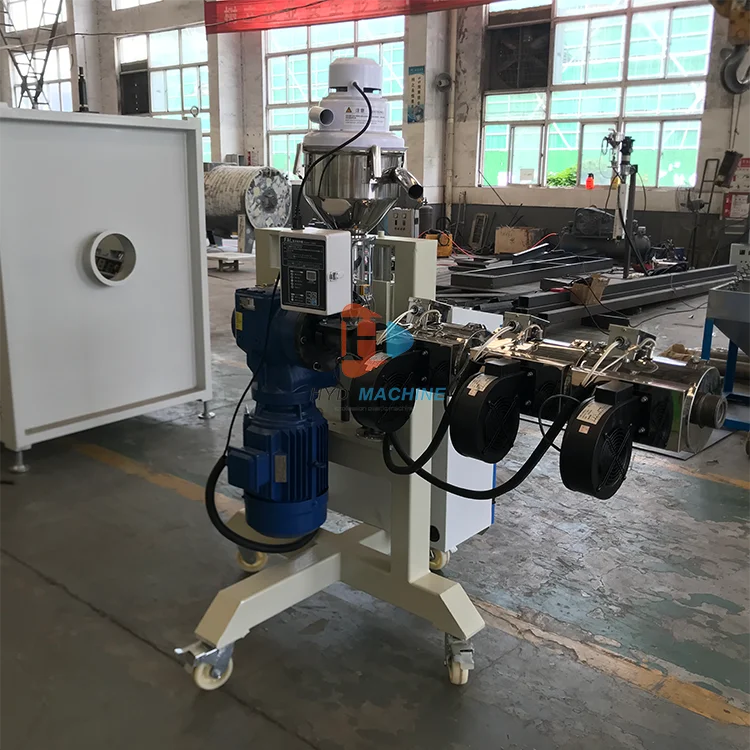

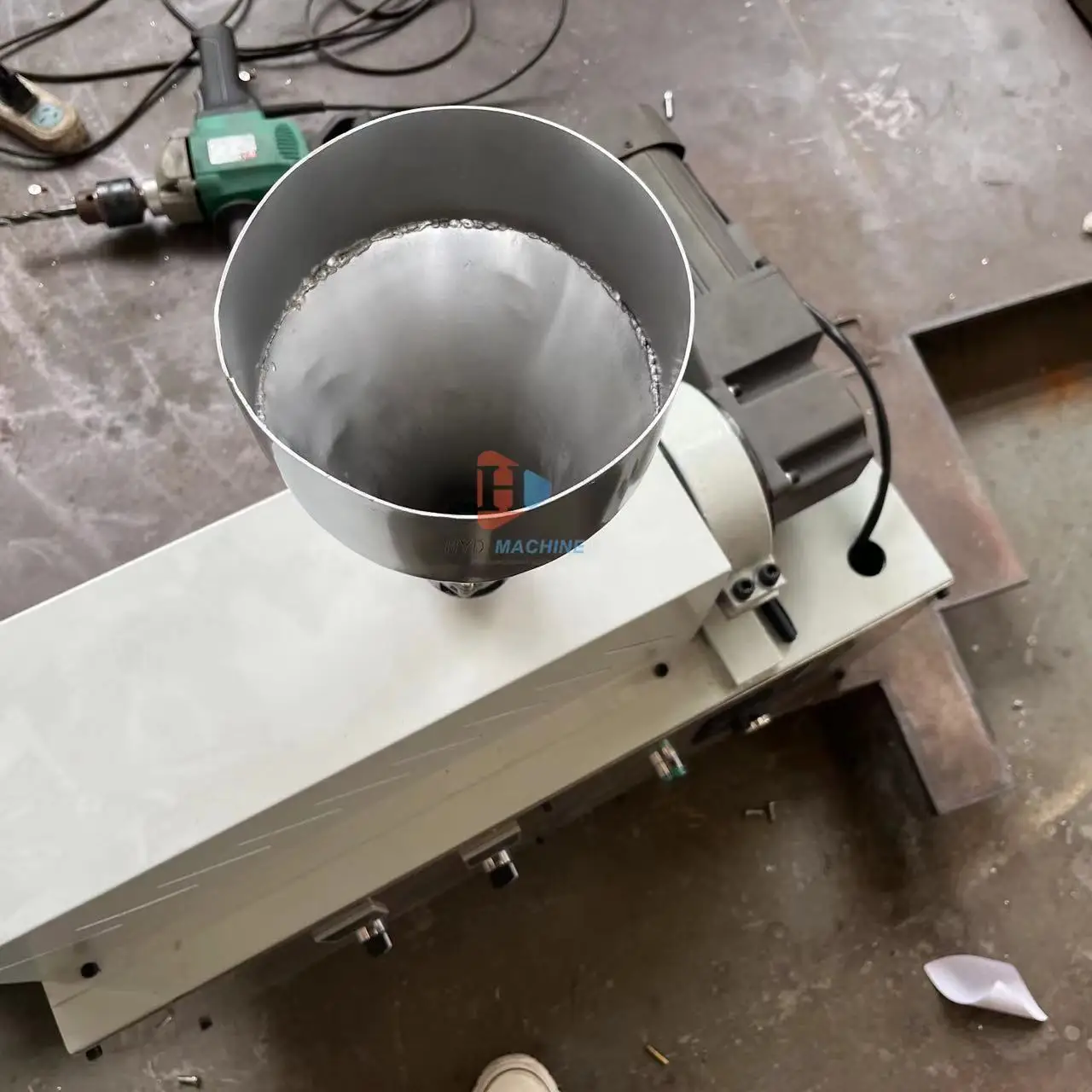

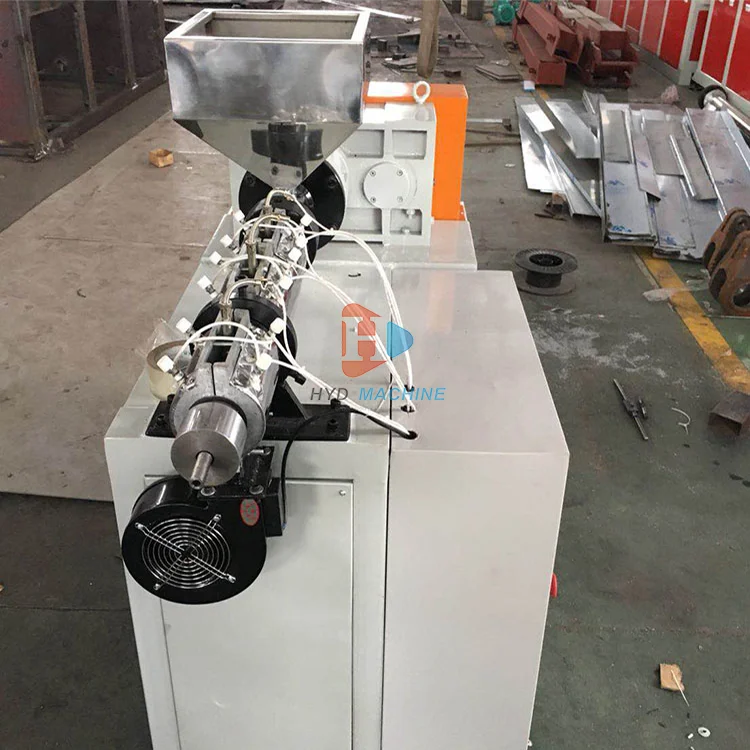

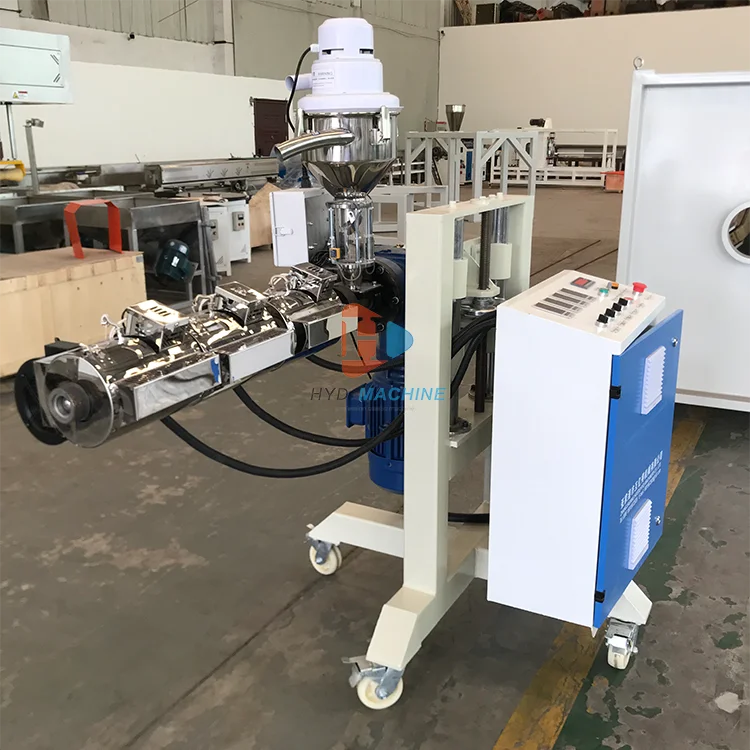

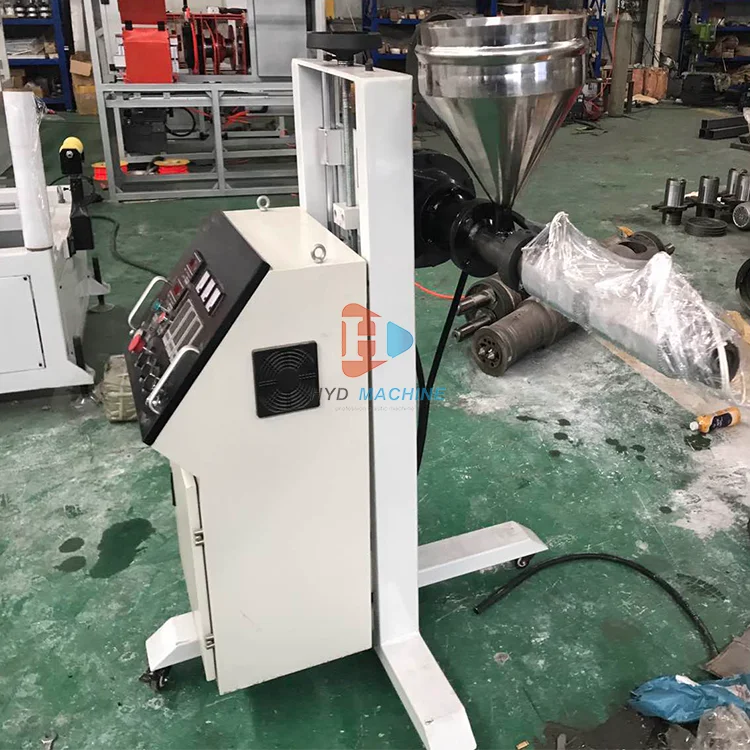

Details Images
SJ16
SJ25
SJ30
SJ35
Product Paramenters
Model | SJ16 | SJ25 | SJ30 | SJ35 | |||
Screw diameter (customizable) | 16mm | 25mm | 30mm | 35mm | |||
Screw L/D (customizable) | 25:1 | 25:1 | 25:1 | 25:1 | |||
Screw material | 38CrMoAlA | ||||||
Driving motor | ABB Brand | ||||||
Driving motor power | 0.75kw | 2.2kw | 5.5kw | 7.5kw | |||
Temperature meter brand | Omron | ||||||
Heating power | 3kw | ||||||
Speed Reducer | spindle wheel swinging reducer | ||||||
Capacity | 0.5-1kg | 2-5kg | 5-10kg | 10-20kg | |||
Packing&Delivery

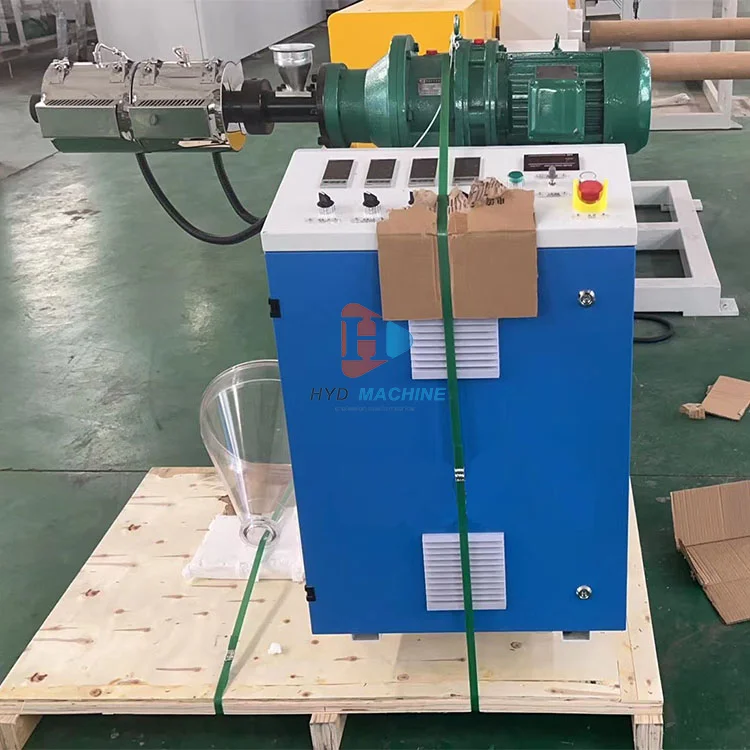

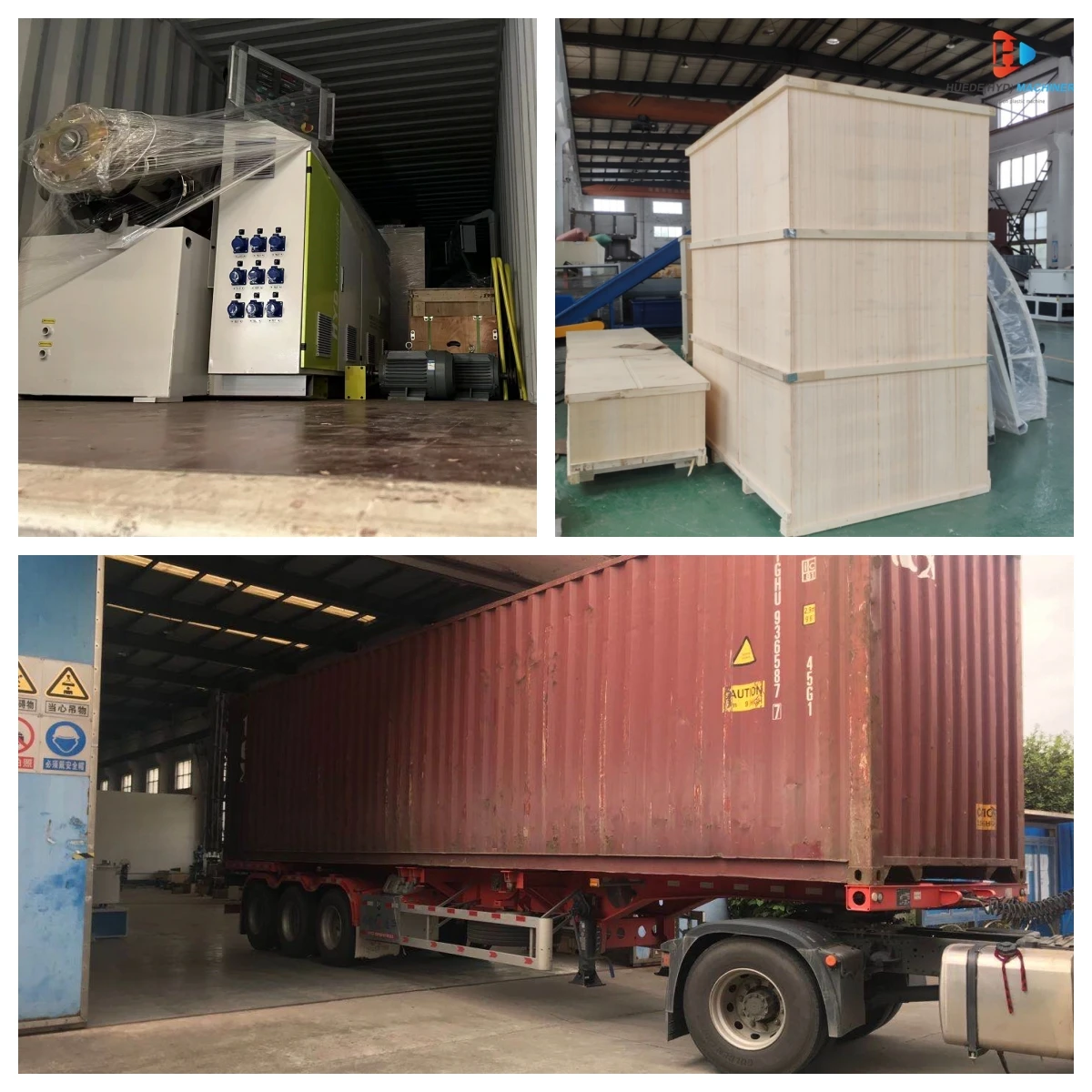

Packaging & Shipping:
1.For the loose cargo we will packing by wooden box
3.We can shipping the goods by air or by sea
2.For the full container loading we are packing the machine by film and some on pallet accordingly
3.We can shipping the goods by air or by sea
4.We will send pictures of cargo loading to our client to check and keep recording
5.We can send cargo to client's
warehouse to loading
6.We have free spare parts with the machine.
FAQ
Q:Are you machinery factory or trading company?
A:We have our own factory,which means we can strictly guarantee product quality and lead time.
Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
Q: Do you provide material testing service?
A:We have our own factory,which means we can strictly guarantee product quality and lead time.
Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
Q: Do you provide material testing service?
A: Yes, we offer testing service on our machine. An additional testing fee will becharged depends on the testing costs(electricity, labor), however, if you eventually made a purchase with us ,the testing fee will counts to deduction of machine purchase cost.
Q: How can I make sure the machine running good in my plants?
A: First we will have a home commissioning in our factory for your inspection. If you need assistance in installing and staff training , we can also send engineers to service overseas and solve all problems.
Q: How to get a quote efficiently?
A: Please kindly click on ' Sent An Inquiry ' Button at the bottom of page,or click "Chat now"on the right side of the page. Leave a message to describe details of your final products ( better with a picture and size drawing), Capacity requirements, We will reply to your inquiry within 12 hours
Q: How can we visit your company and machines?
A : Our factory is in Jinfeng Town, Zhangjiagang City, Jiangsu Province, China. About 2.5hours from Shanghai Pudong International Ariport.
Q:What`s the payment method?
A: T/T, L/C,Western Union,etc
Q: How can I make sure the machine running good in my plants?
A: First we will have a home commissioning in our factory for your inspection. If you need assistance in installing and staff training , we can also send engineers to service overseas and solve all problems.
Q: How to get a quote efficiently?
A: Please kindly click on ' Sent An Inquiry ' Button at the bottom of page,or click "Chat now"on the right side of the page. Leave a message to describe details of your final products ( better with a picture and size drawing), Capacity requirements, We will reply to your inquiry within 12 hours
Q: How can we visit your company and machines?
A : Our factory is in Jinfeng Town, Zhangjiagang City, Jiangsu Province, China. About 2.5hours from Shanghai Pudong International Ariport.
Q:What`s the payment method?
A: T/T, L/C,Western Union,etc

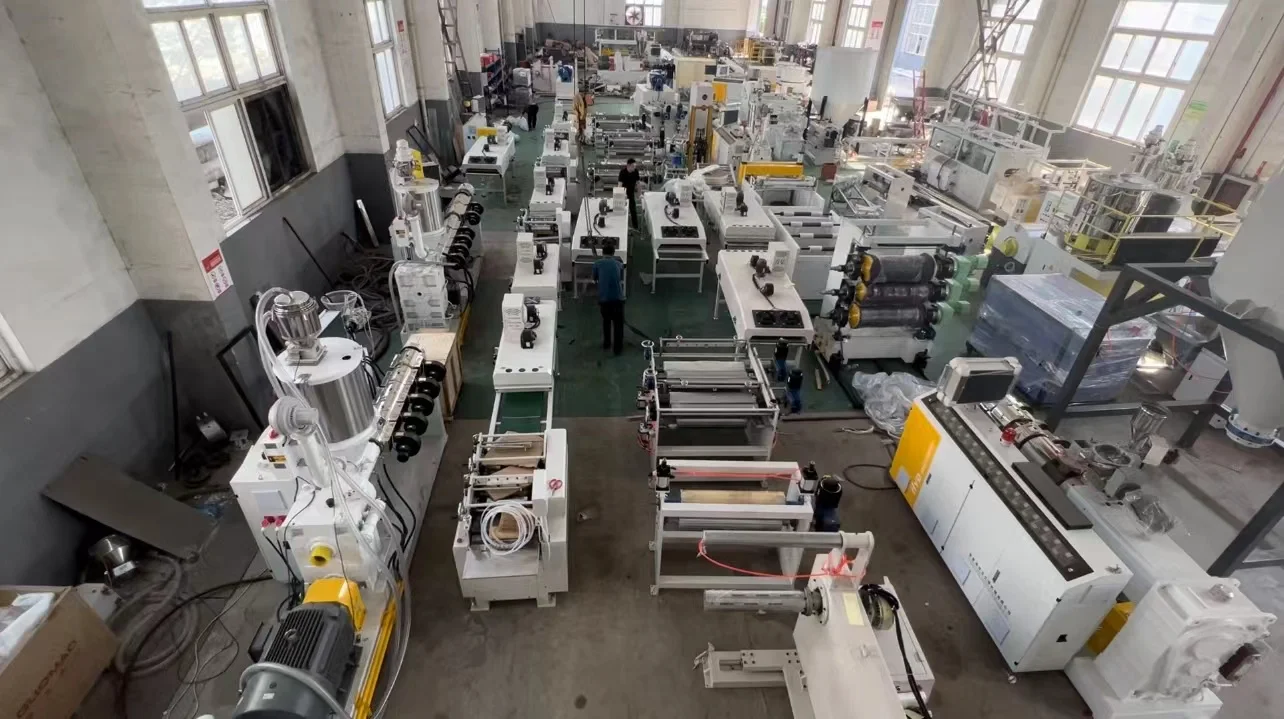

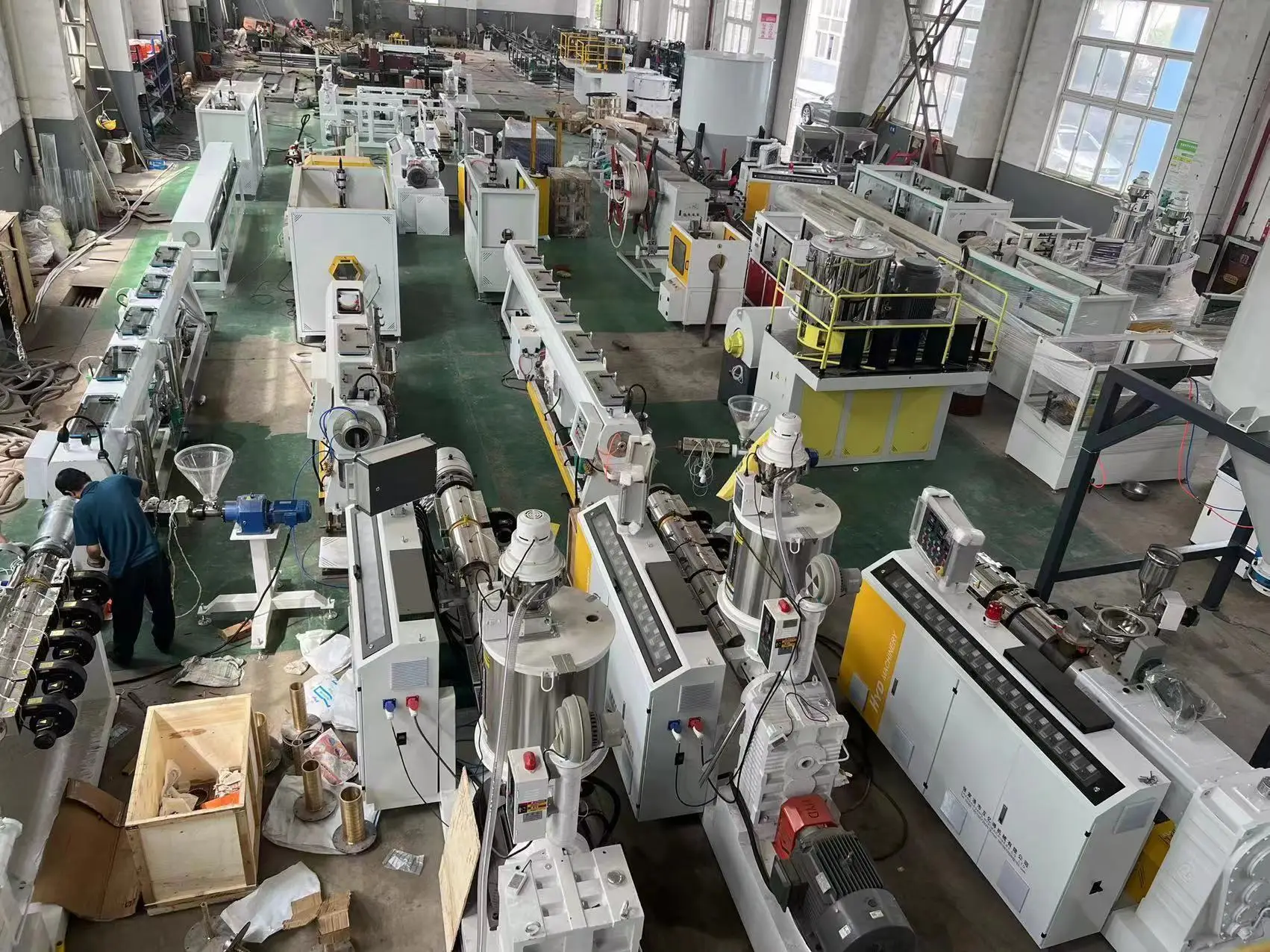

Zhangjiagang HYD Machine Co., Ltd. is the professional manufacturer for kinds of plastic machines, such as 3D printer filament extruder, plastic pipe extrusion line, plastic profile extrusion line, waste plastic recycling machine, plastic crusher & Shredder and plastic process auxiliary machines, etc.
