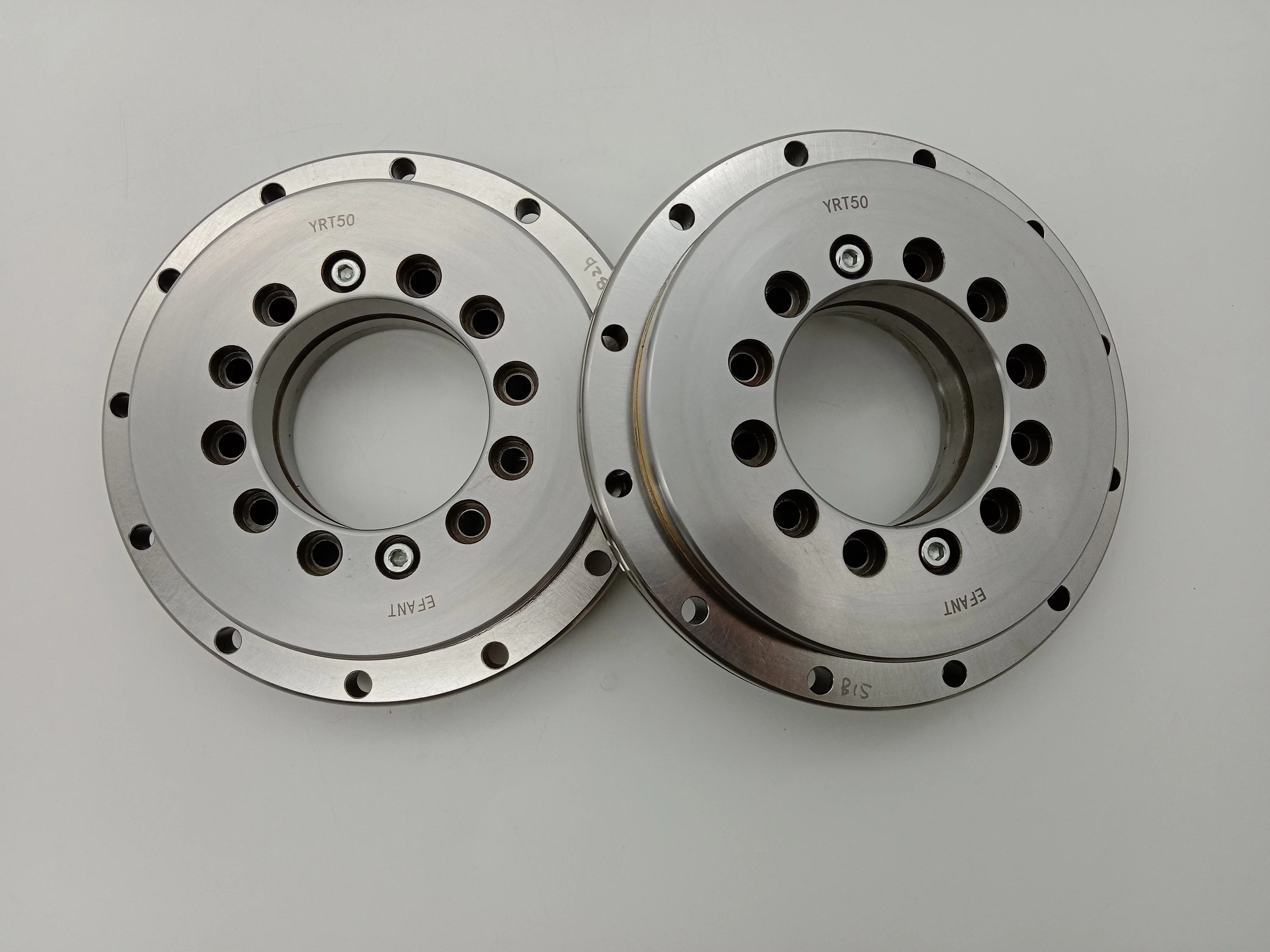

Factory custom Mechanical arm P4 precision YRT50 rotary table bearing
- Category: >>>
- Supplier: Luoyang E-Find Precision Bearing Manufacturing Co. Ltd.
Share on (1600908340429):
Product Overview
Description
Products Description

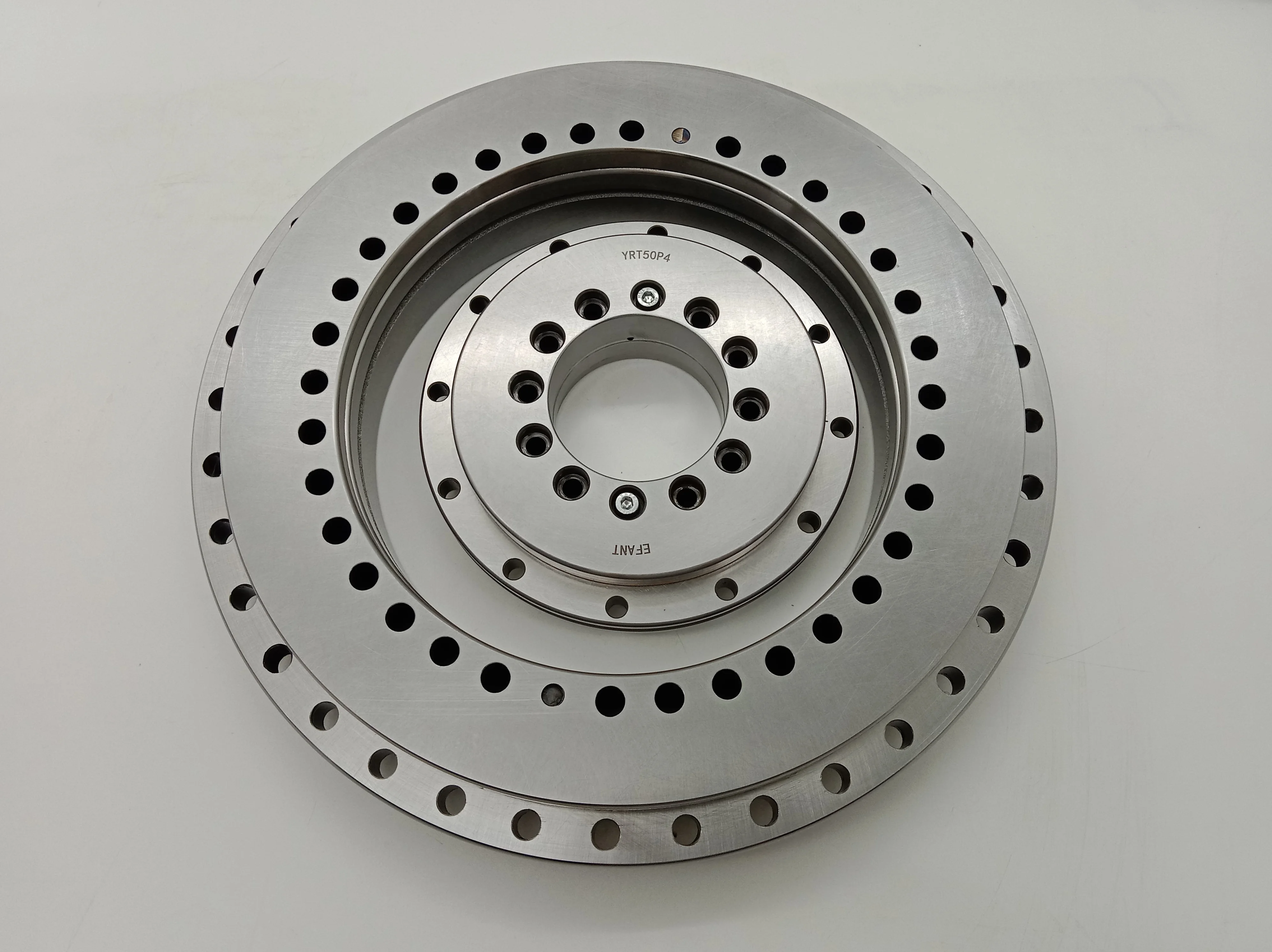

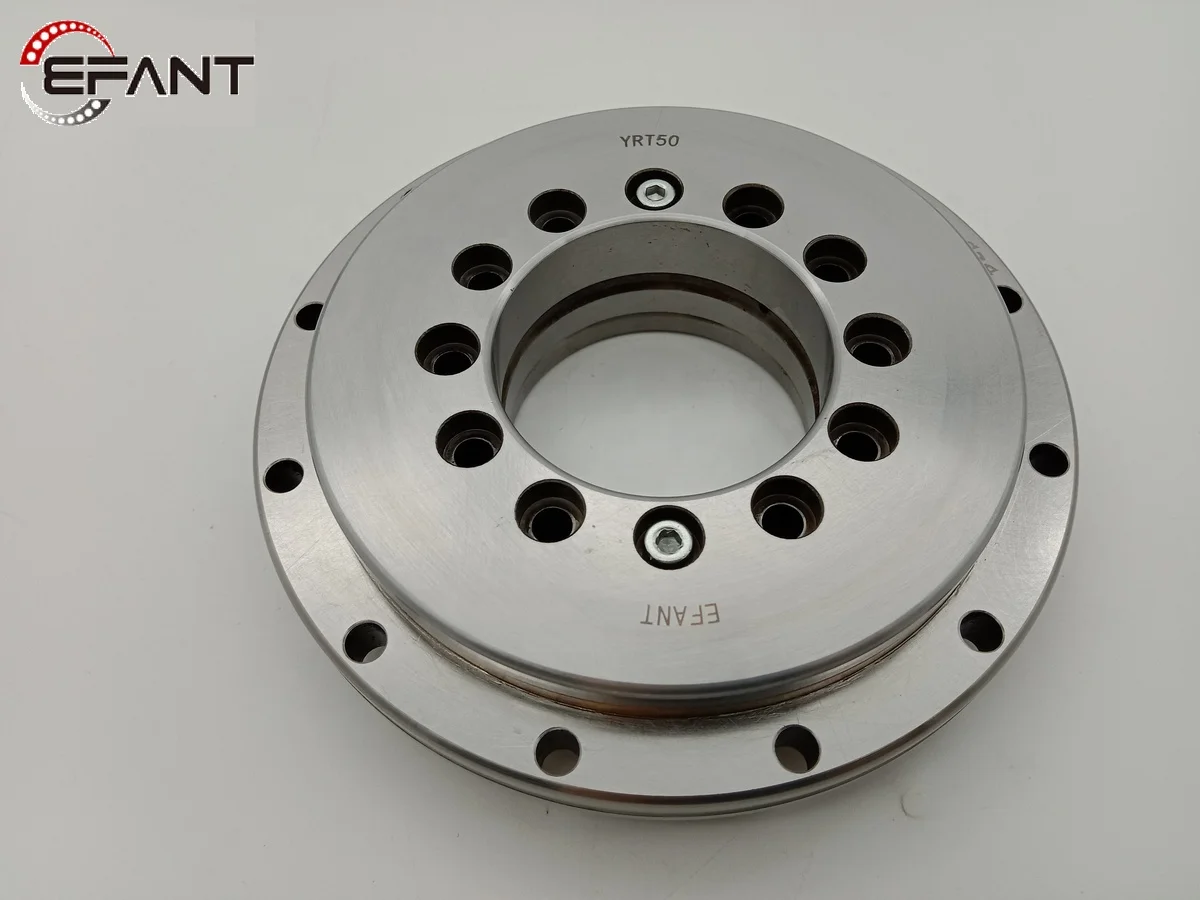

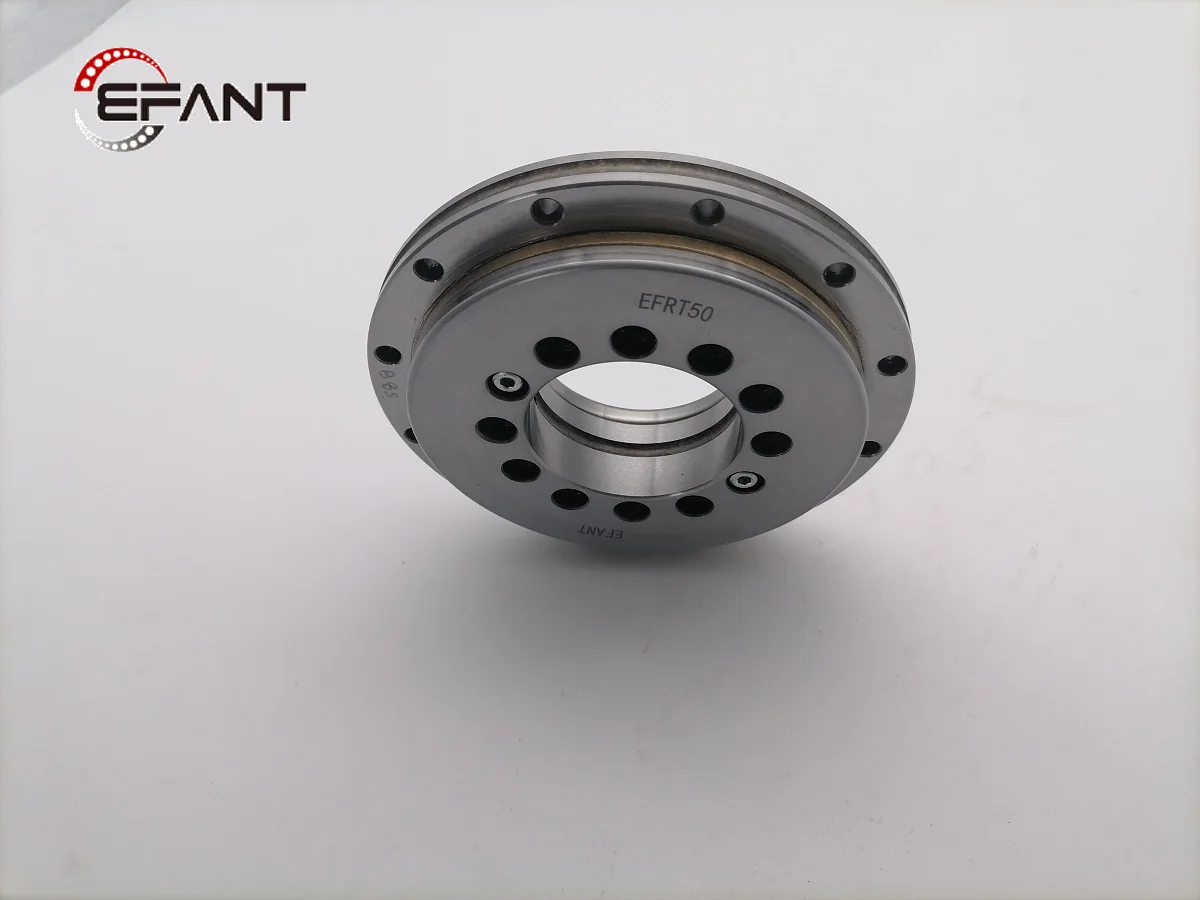

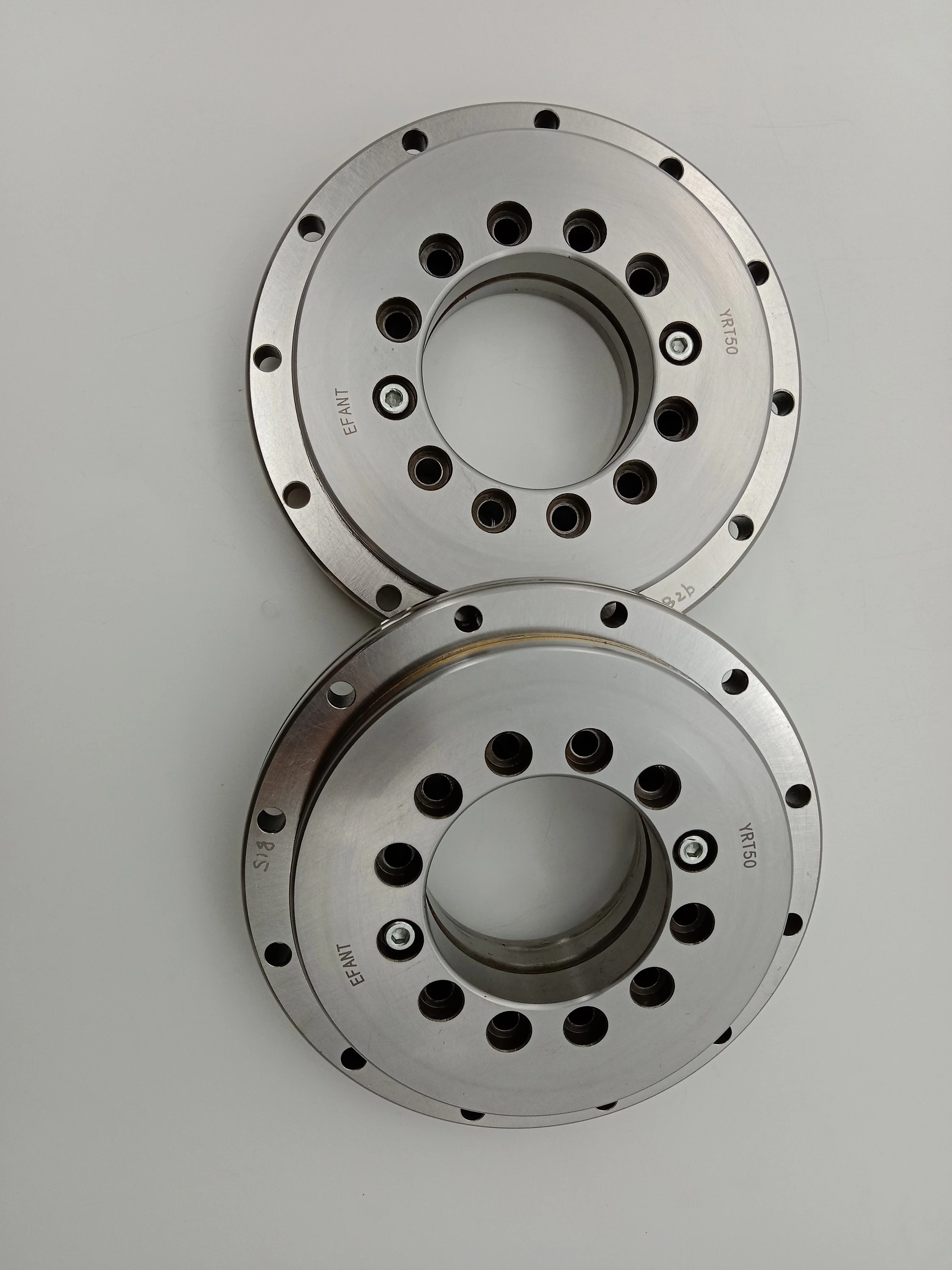

High Stability Military radar P4 precision YRT50 rotary table bearing
YRT rotary table bearings are axial and radial combined cylindrical roller bearings, which are fixed by a bidirectional thrust bearing and a centripetal-guided bearing.
They can support radial loads, axial loads from both directions and tilting moments free from clearance.
For the convenience of transportation and fixing, two or three symmetrical screws are fastened to the two rings in order to
prevent rollers and rings generating collisions which influence bearing accuracy.
For the convenience of transportation and fixing, two or three symmetrical screws are fastened to the two rings in order to
prevent rollers and rings generating collisions which influence bearing accuracy.
YRT ROTARY TABLE BEARING SERIES AND MODEL:
YRT50 | YRT80 | YRT100 | YRT120 |
YRT150 | YRT180 | YRT200 | YRT260 |
YRT325 | YRT395 | YRT460 | YRT580 |
YRT650 | YRT850 | YRT950 | YRT1030 |
型号(model) | YRT50 | ||||||
外形 尺寸(mm) Boundary dimensions) | d (mm) | 50 | |||||
D (mm) | 126 | ||||||
H | 30 | ||||||
H1 | 20 | ||||||
C | 10 | ||||||
D1 | 105 | ||||||
J | 63 | ||||||
J1 | 116 | ||||||
基本额定载荷（轴向） Basic load rating（axial load) | 动dynamic Ca | 38 | |||||
静static Coa | 158 | ||||||
基本额定载荷（径向） Basic load rating（radial load) | 动dynamic Cr | 28.5 | |||||
静static Cor | 49.5 | ||||||
极限转速 （脂）limiting speed（grease） | r/min | 440 | |||||
重量(kg) weight | 1.6 | ||||||
固定孔（fixing holes） | 内圈孔（holes of inner ring） | 固定孔（fixing holes） | d1 | 5.6 | |||
d2 | -- | ||||||
a | -- | ||||||
数量（quantity） | 12 | ||||||
外圈孔（holes of inner ring | 固定孔（fixing holes） | d3（mm） | 5.6 | ||||
数量（quantity） | 12 | ||||||
螺纹拔取孔（extraction thread hole） | G | -- | |||||
数量（quantity） | --- | ||||||
节距（pitches） | 数量×1（quantity×1） | 12×30° | |||||
拧紧力矩（tightening torque） | Nm | 8.5 | |||||
摩擦力矩（firctional torque） | Nm | 2.5 | |||||
旋转精度（rotation accuracy） | μm | 2 | |||||
配合轴颈（mm）shaft diameter | 公称尺寸nominal dimension | 50 | |||||
上偏差upper | 0 | ||||||
下偏差lower | -0.011 | ||||||
圆度（O)roundness | t1(μm) | 4 | |||||
垂直度（⊥）perpendicularity | T3(μm) | 3 | |||||
平行度（∥）parallelism | T4(μm) | 3 | |||||
表面粗糙度Raroughness | Ra(μm) | 0.4 | |||||
配合座孔（mm） Housing diameter | 公称尺寸nominal dimension | 126 | |||||
上偏差upper | 0.018 | ||||||
下偏差lowe | - 0.007 | ||||||
圆度（O)roundness | t1(μm) | 8 | |||||
垂直度（⊥）perpendicularity | T3(μm) | 5 | |||||
平行度（∥）parallelism | T4(μm) | 5 | |||||
表面粗糙度Raroughness | Ra(μm) | 0.8 | |||||
Product Process

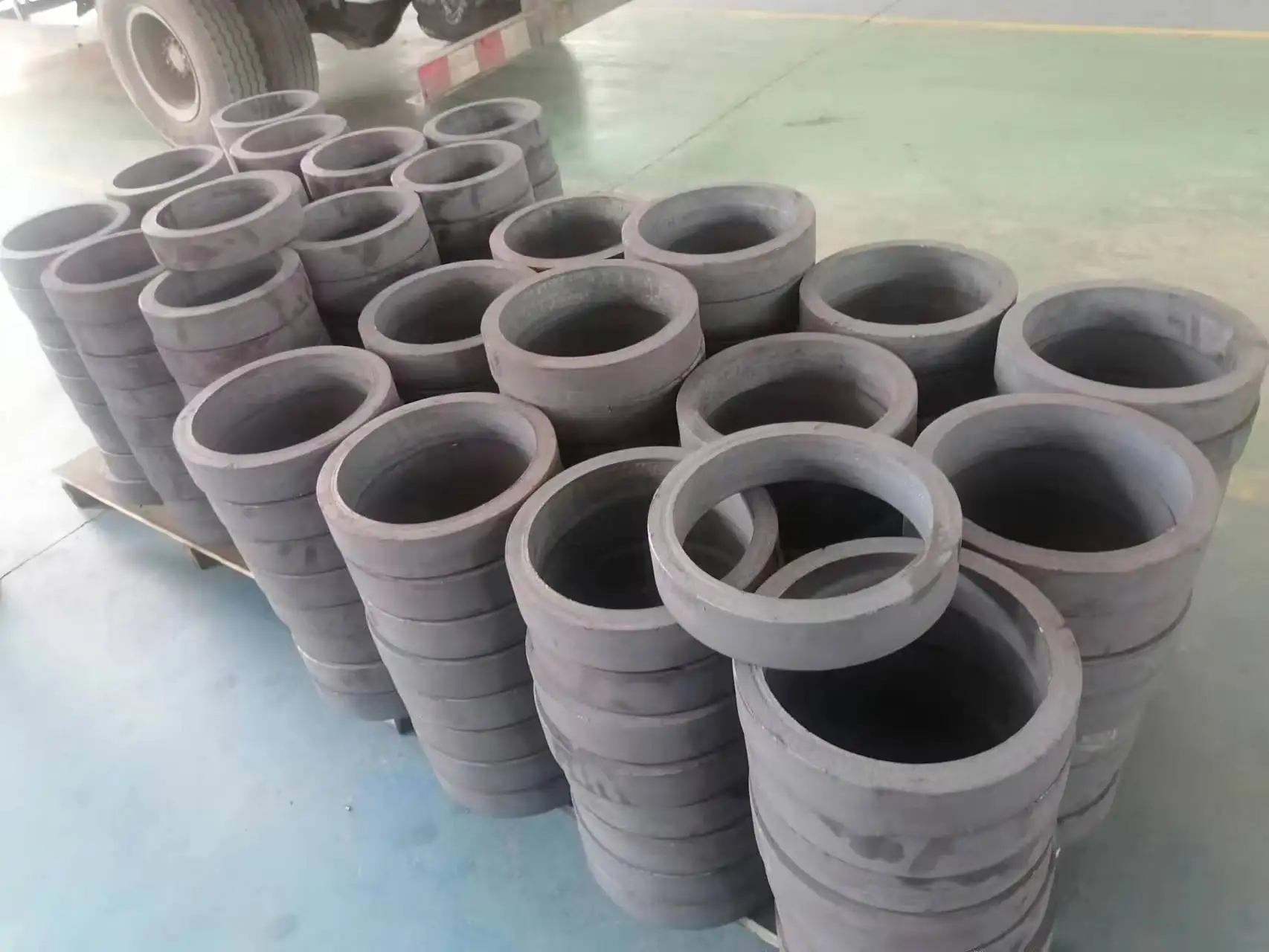

Raw material
Using high-quality raw materials to ensure product quality from the source and long service life
GCr15, GCr15SiMo and GCr15SiMn etc. These steels have high hardness, high strength, good toughness and wear resistance, and can withstand large loads and high-speed rotationOne year warranty
Heat treatment
Salt bath heat treatment is a special heat treatment method, compared with ordinary heat treatment, it has the following
advantages:
1. More uniform heating effect: In salt bath heat treatment, the workpiece is completely immersed in molten salt, and the salt bath can conduct heat more evenly to the surface and interior of the workpiece. In contrast, the air or other heat transfer medium used in ordinary heat treatment has poor heat transfer effect and is prone to temperature gradients, resulting in uneven heating of the workpiece.
2. Better surface quality: In salt bath heat treatment, due to the fast and uniform heating speed, the oxidation and deformation of the workpiece surface can be effectively reduced. This improves the surface quality of the workpiece
4. Higher hardness and strength: Salt bath heat treatment can change the crystal structure in the workpiece by controlling the
heating temperature and holding time, thereby improving the hardness and strength. In contrast, the heating temperature and
holding time of ordinary heat treatment are limited, and the control of hardness and strength is relatively low.
advantages:
1. More uniform heating effect: In salt bath heat treatment, the workpiece is completely immersed in molten salt, and the salt bath can conduct heat more evenly to the surface and interior of the workpiece. In contrast, the air or other heat transfer medium used in ordinary heat treatment has poor heat transfer effect and is prone to temperature gradients, resulting in uneven heating of the workpiece.
2. Better surface quality: In salt bath heat treatment, due to the fast and uniform heating speed, the oxidation and deformation of the workpiece surface can be effectively reduced. This improves the surface quality of the workpiece
4. Higher hardness and strength: Salt bath heat treatment can change the crystal structure in the workpiece by controlling the
heating temperature and holding time, thereby improving the hardness and strength. In contrast, the heating temperature and
holding time of ordinary heat treatment are limited, and the control of hardness and strength is relatively low.
FAQ
Q: Delivery time?
A: For Rotary Table Bearing, we have many on stock. If without stock, the delivery time is 7~40days. Also can be negotiated for urgent order.
Q: How to get quick quotation?
A: Just copy" i want to know Rotary Table Bearing price, my mobile number is ..." then we will call you or add your whatsapp.
Q: This is my first time to buy goods from China, can you help me?
A: Congrats! You find the right partener!
I know well all kinds of test report, documents for exporting and importing.
A: For Rotary Table Bearing, we have many on stock. If without stock, the delivery time is 7~40days. Also can be negotiated for urgent order.
Q: How to get quick quotation?
A: Just copy" i want to know Rotary Table Bearing price, my mobile number is ..." then we will call you or add your whatsapp.
Q: This is my first time to buy goods from China, can you help me?
A: Congrats! You find the right partener!
I know well all kinds of test report, documents for exporting and importing.
About us
Luoyang E-find Precision Bearing specializes in the production of high-precision high-rigidity, heavy-load crossed roller
bearings, rotary table bearings, harmonic bearings and customized bearings for 17 years. we have ISO, SGS certification, and professionally replaces IKO THK INA SKF and other foreign imported brands.
bearings, rotary table bearings, harmonic bearings and customized bearings for 17 years. we have ISO, SGS certification, and professionally replaces IKO THK INA SKF and other foreign imported brands.

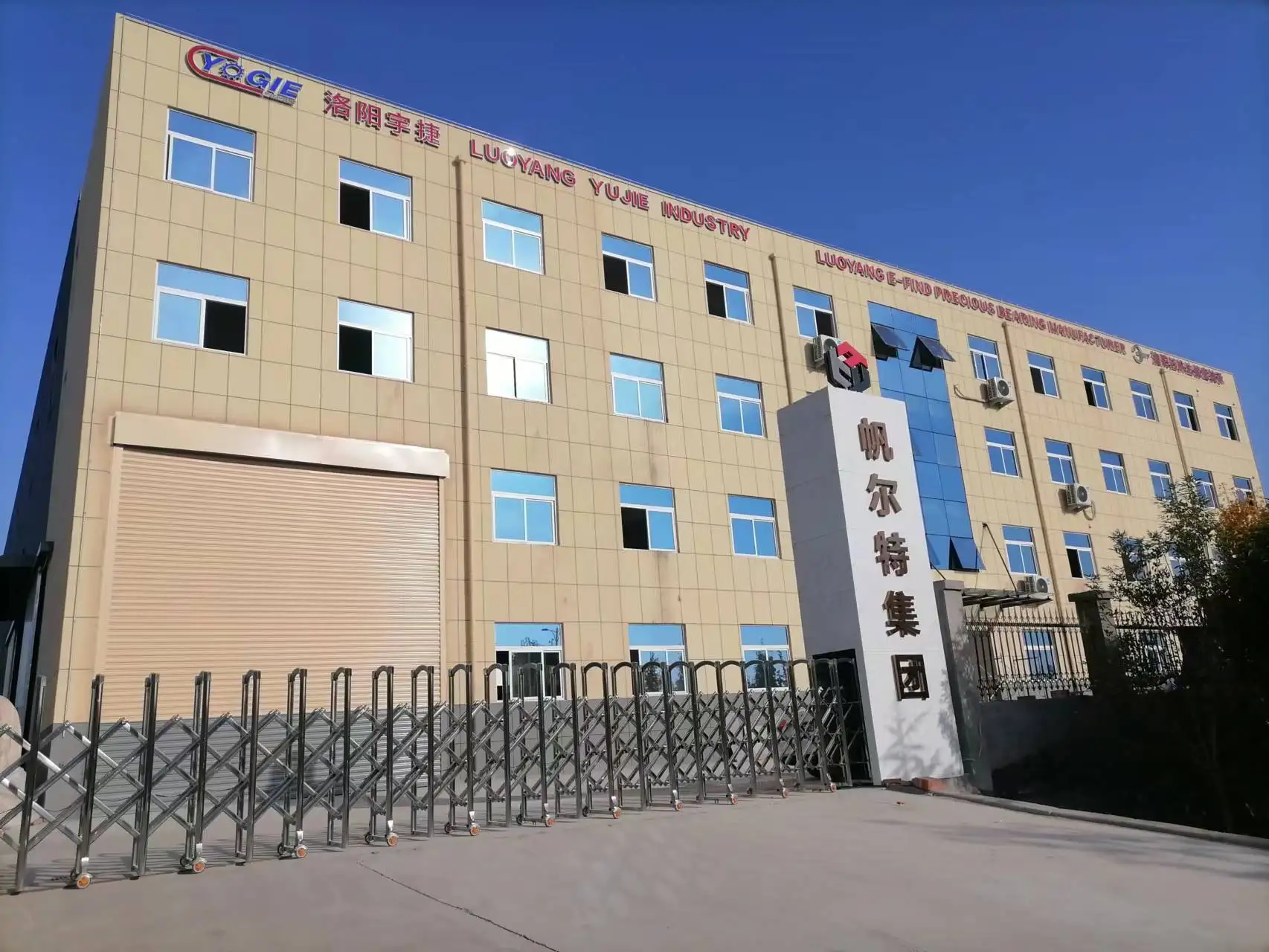

Company Profile
*Have been professional in researching, developing, producing & marketing high precision bearings since the year 2004;
* Many YRT & ZKLDF series bearings are on stock; Factory directly provide, most competitive price;
* Advanced CNC equipment, guarantee product accuracy & stability;
* One stop purchasing, product include cross roller bearing, rotary table bearing, robotic bearing, slewing bearing, angular
contact ball bearing, large and extra large custom made bearing, diameter from 20~9800mm;
* Excellent pre-sale & after sale service. We can go to customers’ project site if needed.
* Professional technical & exporting team ensure excellent product design, quotation, delivering documentation & custom clearance.
* Many YRT & ZKLDF series bearings are on stock; Factory directly provide, most competitive price;
* Advanced CNC equipment, guarantee product accuracy & stability;
* One stop purchasing, product include cross roller bearing, rotary table bearing, robotic bearing, slewing bearing, angular
contact ball bearing, large and extra large custom made bearing, diameter from 20~9800mm;
* Excellent pre-sale & after sale service. We can go to customers’ project site if needed.
* Professional technical & exporting team ensure excellent product design, quotation, delivering documentation & custom clearance.
Certificates
FAQ
Q: Delivery time?
A: For Rotary Table Bearing, we have many on stock. If without stock, the delivery time is 7~40days. Also can be negotiated for urgent order.
Q: How to get quick quotation?
A: Just copy" i want to know harmonic Bearing price, my mobile number is ..." then we will call you or add your whatsapp.
Q: This is my first time to buy goods from China, can you help me?
A: Congrats! You find the right partner!
I know well all kinds of test report, documents for exporting and importing.
A: For Rotary Table Bearing, we have many on stock. If without stock, the delivery time is 7~40days. Also can be negotiated for urgent order.
Q: How to get quick quotation?
A: Just copy" i want to know harmonic Bearing price, my mobile number is ..." then we will call you or add your whatsapp.
Q: This is my first time to buy goods from China, can you help me?
A: Congrats! You find the right partner!
I know well all kinds of test report, documents for exporting and importing.
