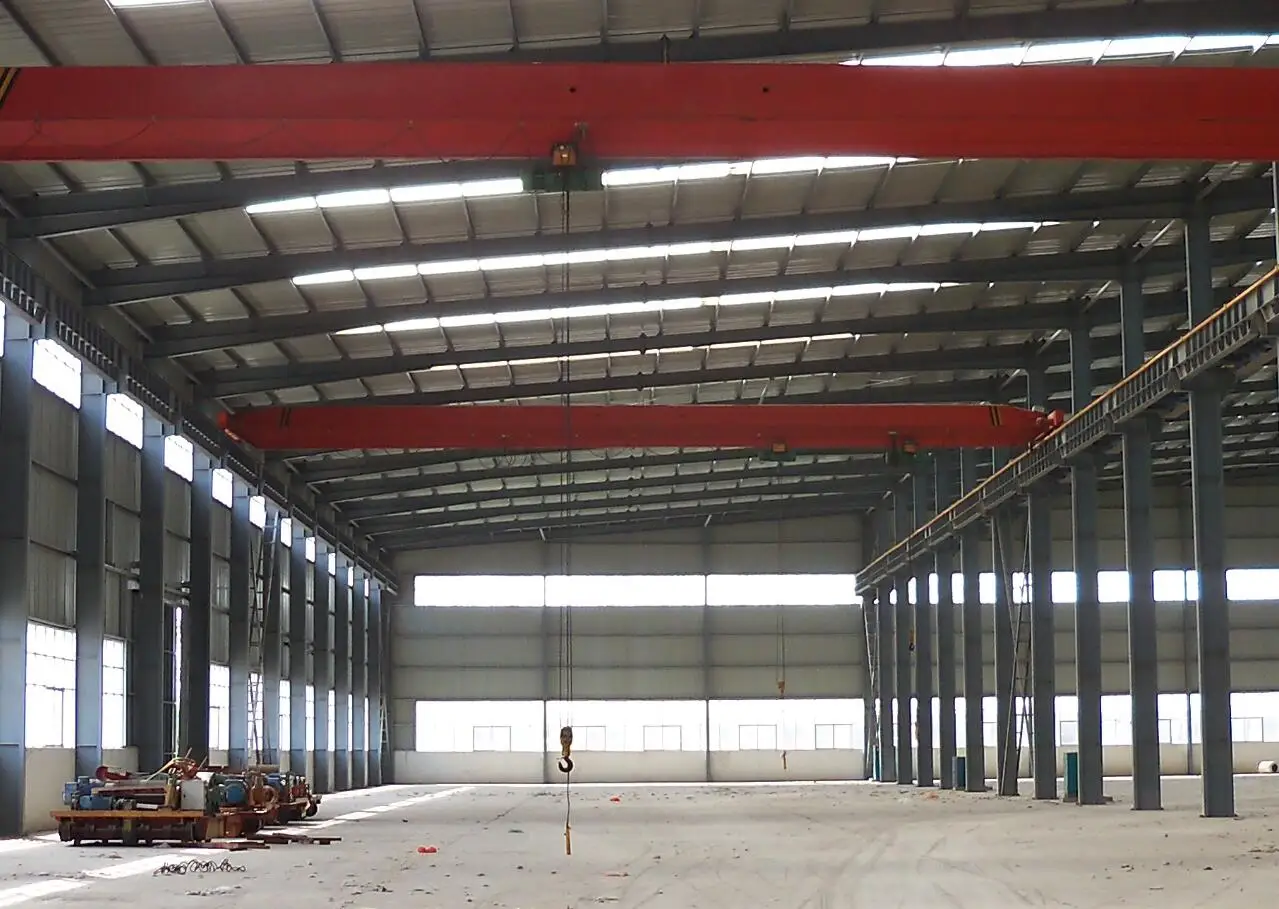

Workshop Single Beam LD Bridge Crane 2ton to 30 ton

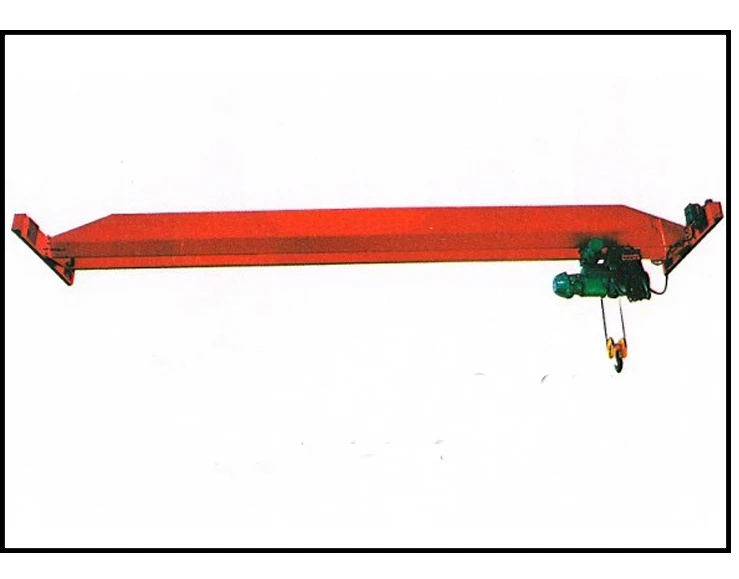

1. LDA model single girder overhead crane (bridge crane) is improved and designed on the basis of LD model overhead crane.

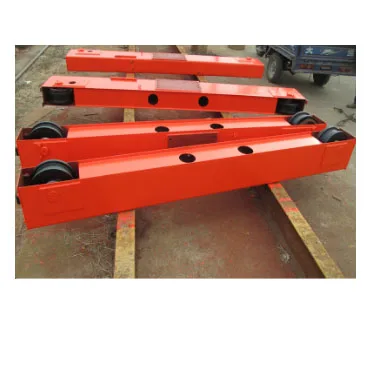

2. This overhead crane (bridge crane) is characterized by more reasonable structure and higher strength steel as a whole, the main beam and end carriage are made by U-section steel plate.
3. This overhead crane (bridge crane) is used together with CD1/MD1 model or HC/HM model wire rope electric hoist as a complete set.




Main feature:
All the standards which required for the crane is the Chinese national standard, and we also passed the CE, ISO
certificates with high quality.
Appearance: compact size, building headroom low light self-weight.
Using environment: mechanical processing workshop, metallurgical plant auxiliary workshops, warehouses, the field and power stations of transport, assembly and maintenance and handling.
Temperature: - 25°c ~ 40°c
Bridge crane working duty : A3 ~A4

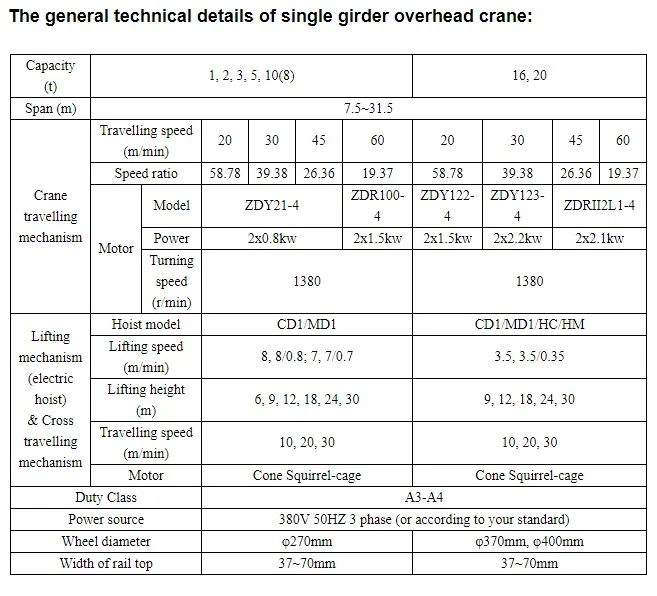

Specification


Specification Of LDA Model Single Girder Overhead Crane


Product name
LD single beam bridge crane
Loading Capacity
1-20 ton
Lifting Height
3 ~ 30 m or customized
Lifting Speed
Single speed : 8 m/min Double speed : 0.8/8 m/min
Span
7.5 ~ 31.5 m
Lifting Mechanism
Wire rope electric hoist or electric chain hoist
Working Class
A3, A4, A5
Working Temperature
-20 ~ +40 degree
Power Supply
A.C 3Phase, 220/230/380/400/415/440V, 50/60HZ
Control Voltage
D.C 36/48V
Motor Protection Class
IP44 or IP54
Safety Device
Ground handle control (Push button), wireless remote control
Applications
Factory ,workshop ,warehouse ,power station ,logstic ,etc .
Applications
Orange ,Yellow ,Red or customized

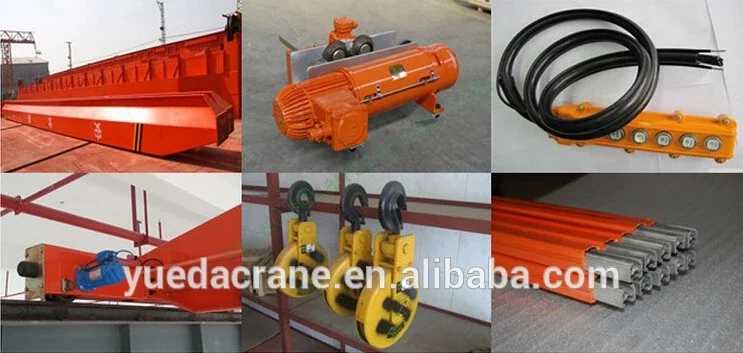

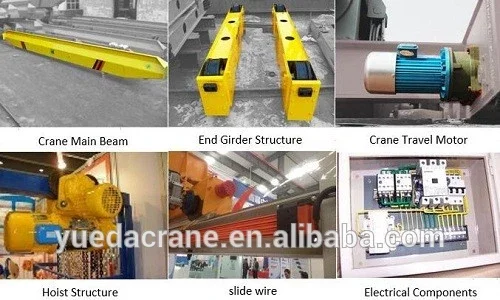

Product Details








Safety Features


Ø Upward and downward limit switch for hook
Ø Low-voltage protection function
Ø Phase sequence protection function
Ø Overload protection
Ø Emergency stop protection
Ø Hook with latch
Ø Rubber buffers

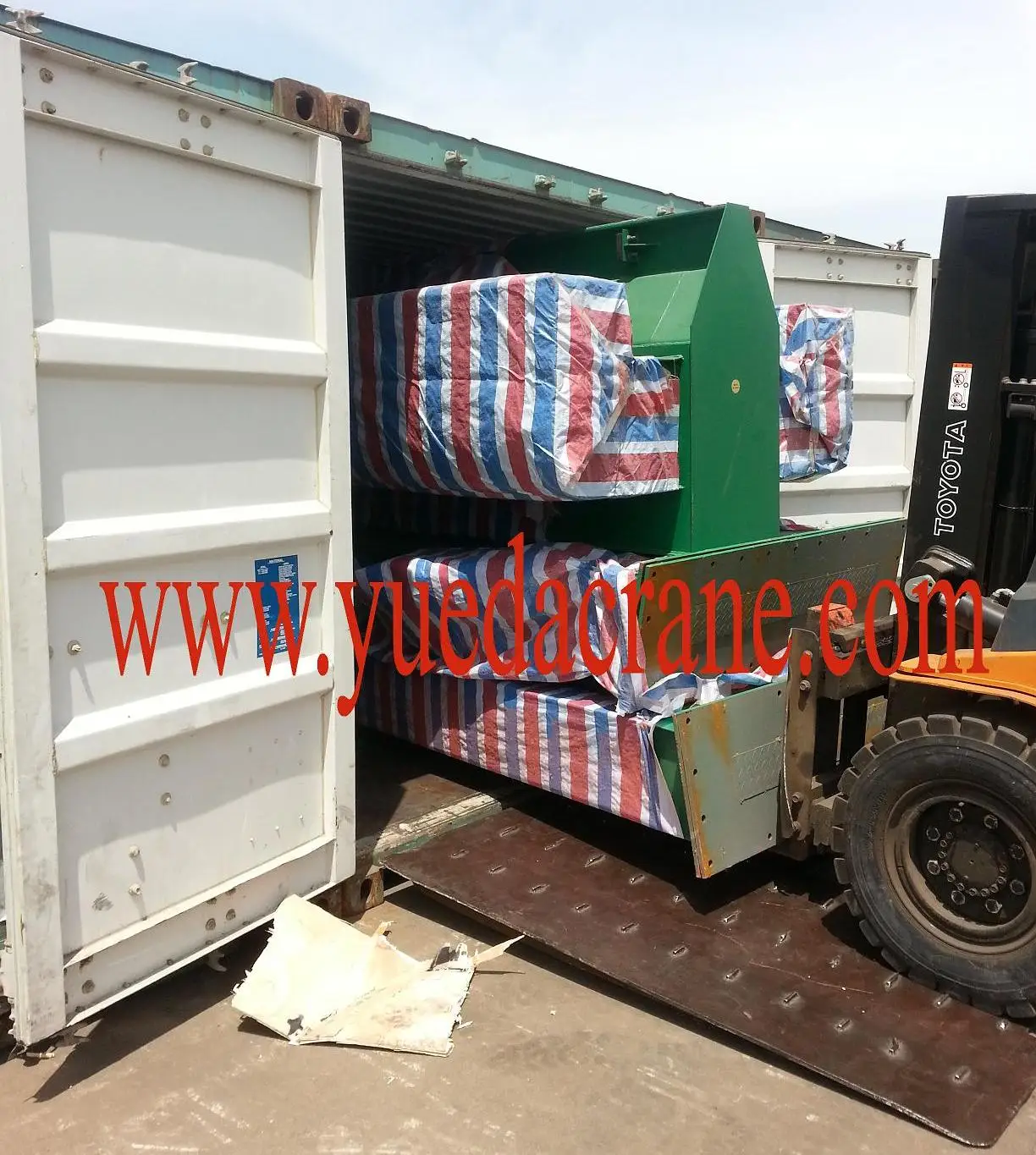

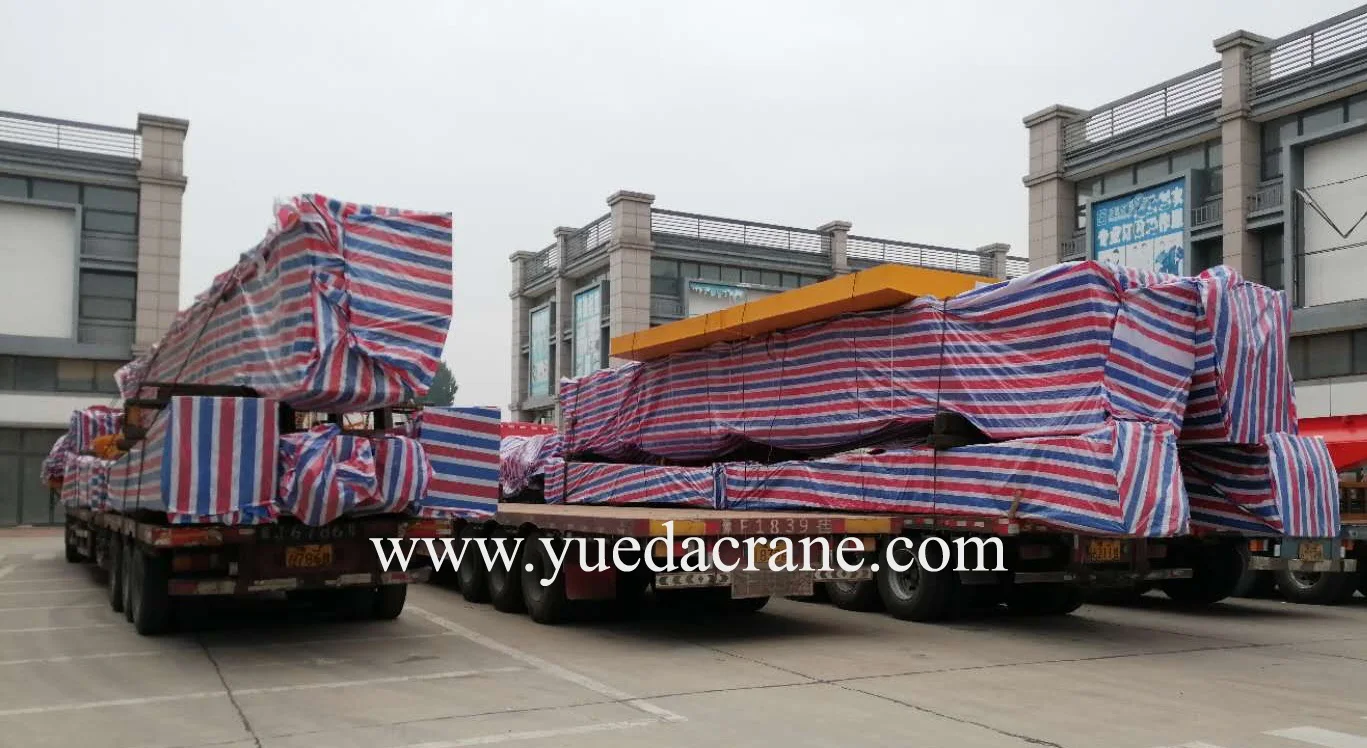

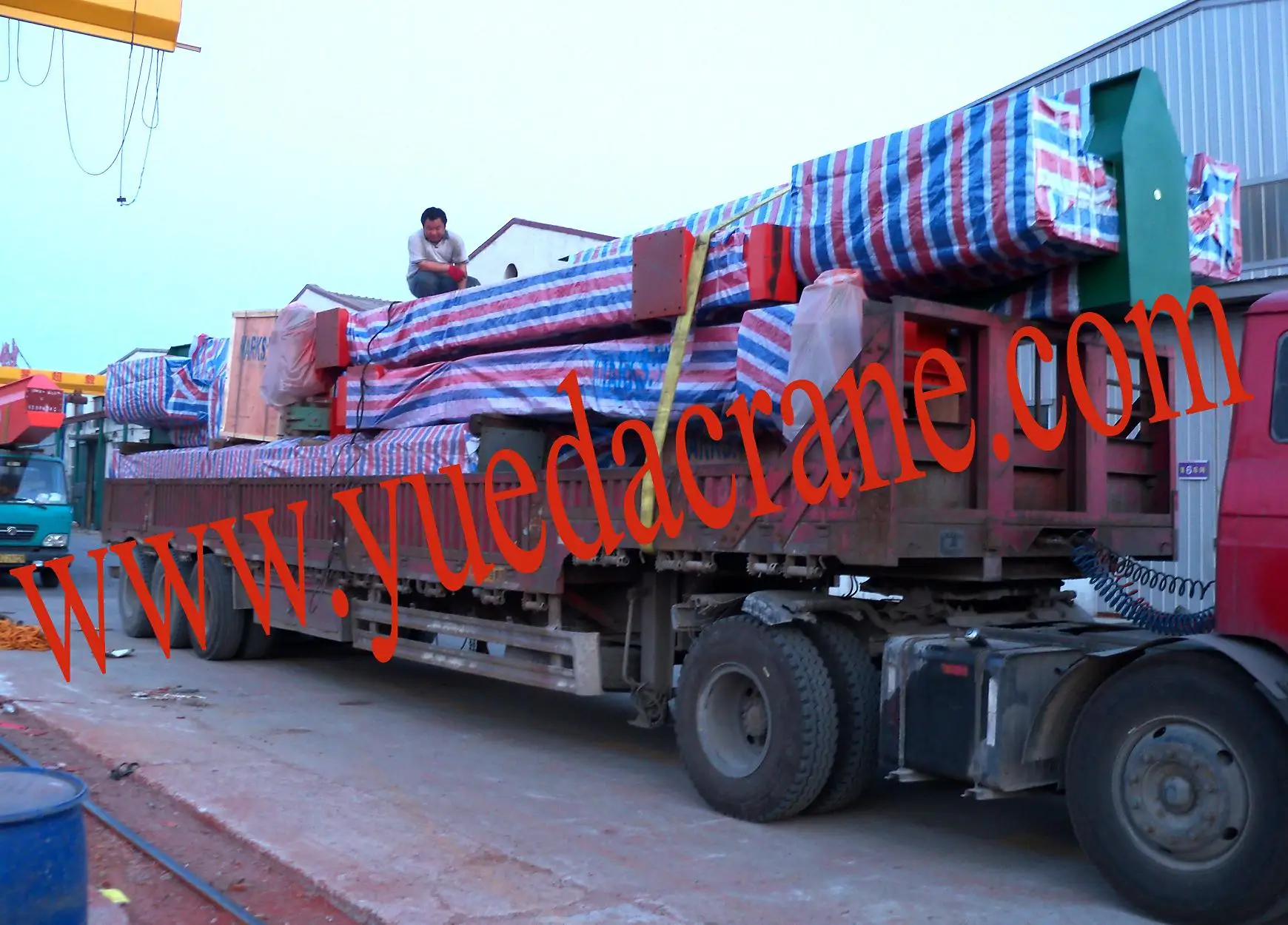

Packing & Delivery






2 ton 3 ton workshop 5 ton electric bridge crane in Bulk ship or Container

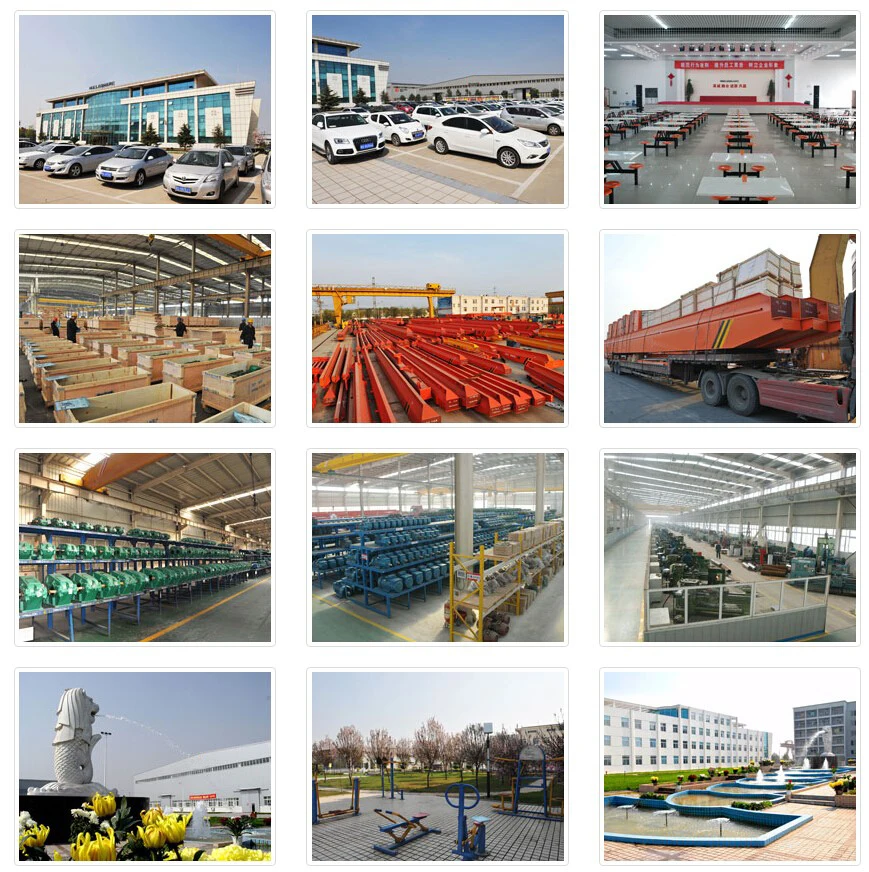

Company Profile


Xinxiang Yueda Crane Co.,Ltd was founded in 2009.There are more than 80 experienced engineers, technicians and sales staff. As a manufacturer with rich practical experience,we committed to the production, manufacture and sale of gantry crane, bridge crane, electric winch, electric hoist, jib crane and so on. To provide customers with the best solutions and services is our biggest goal.
