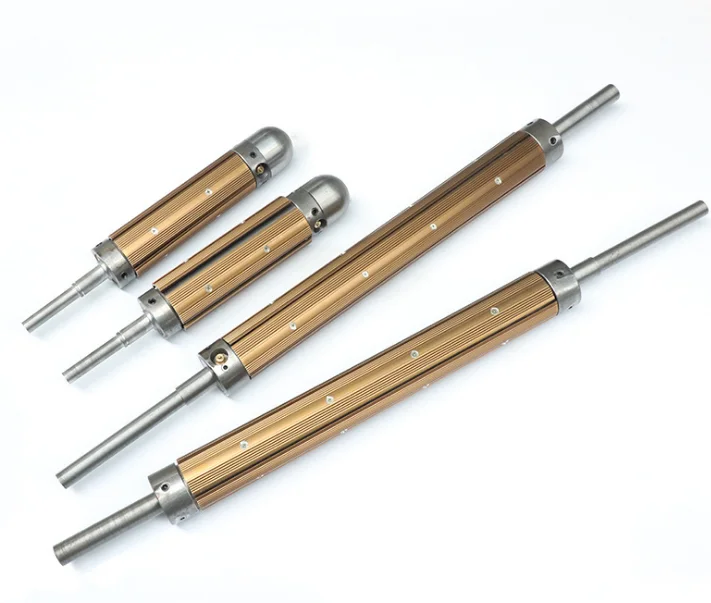

aluminum and steel key strip leaf type air expand inflatable shaft for flexo graphic printing machine

Share on (1600908351101):


Price:$60.00 - $100.00

Quantity:


Product Overview

Description





Products Description

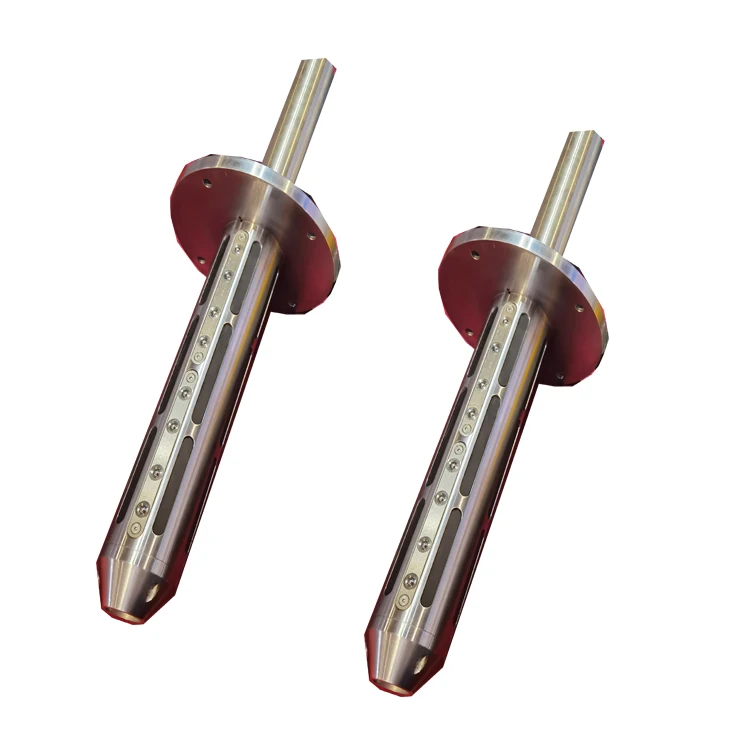

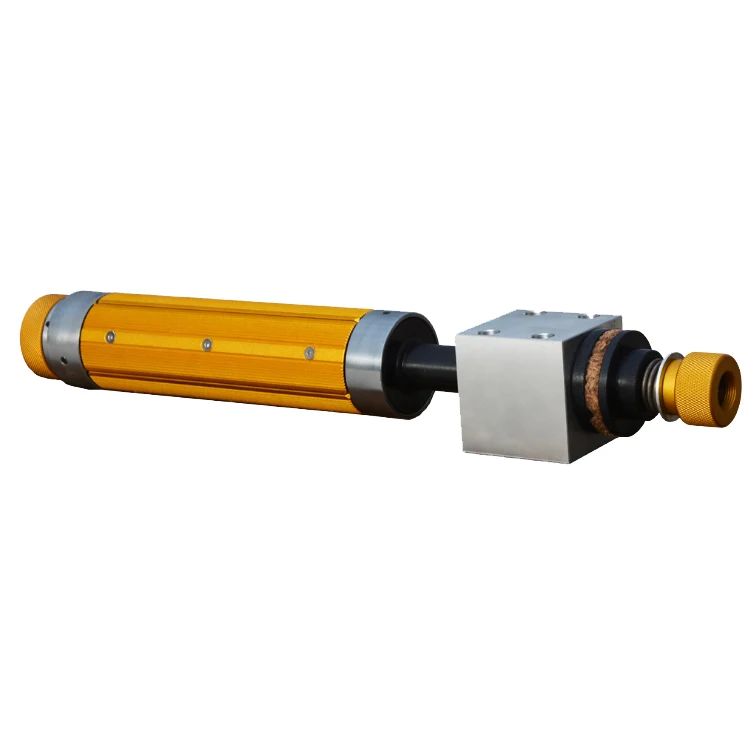

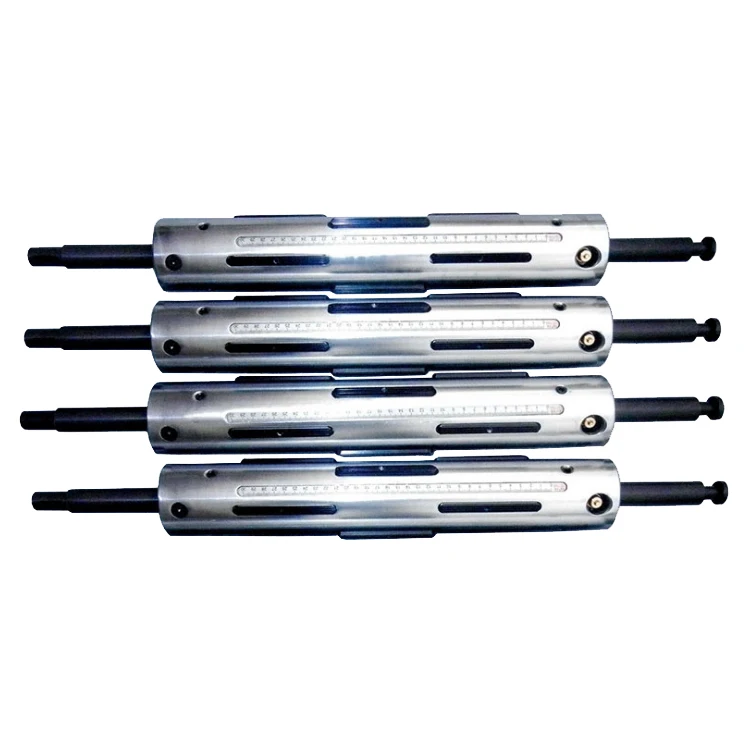

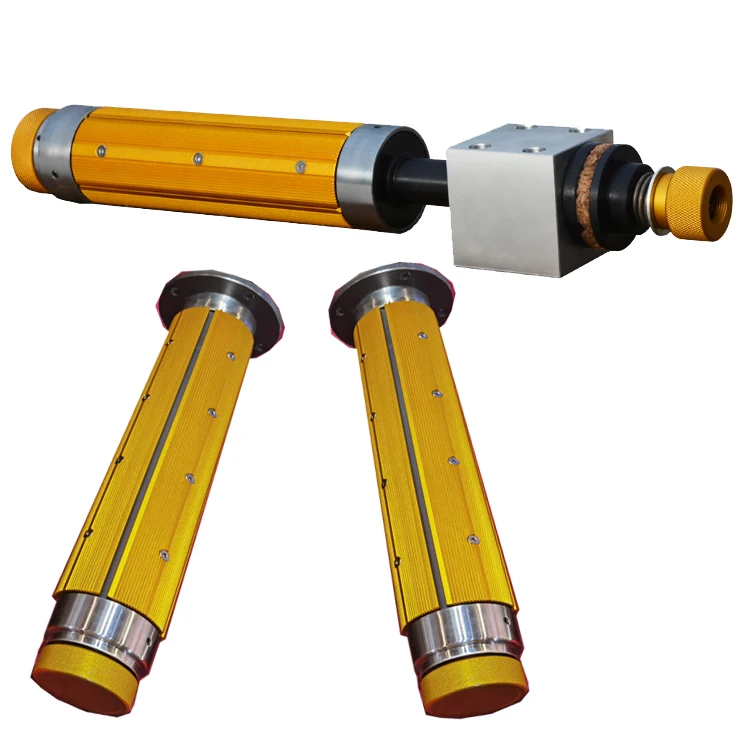

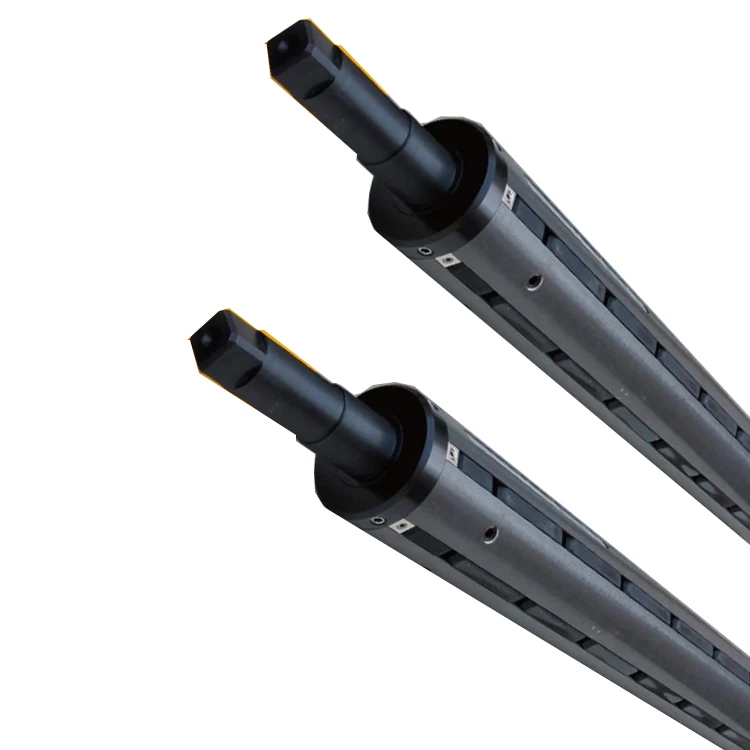

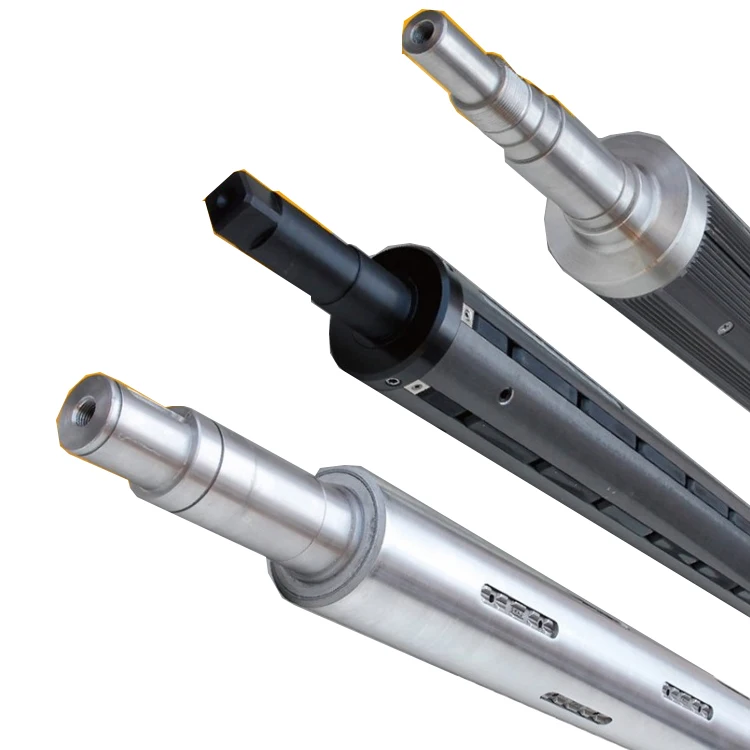

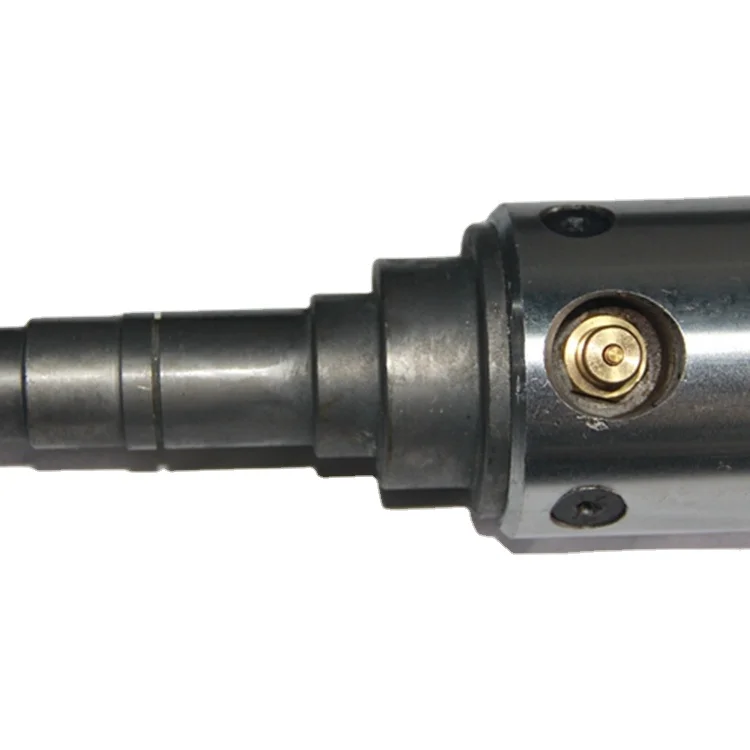

Key strip type air shaft is a special shaft (steel-made or ally-made) for winding and unwinding. The shaft is created by the keys on the surface, which will be expand when the high-pressure gas filled in the shaft. Air shaft is easy to operate, the user only have the air supply with the air pressure controlled within 68kg/cm2. Just aired the shaft through the air valve and when user want to lock the web. Just push the core activities of the air valve to deflate, the keys will revert to its original appearance, then web can be removed easily.




AIR SHAFT-3 INCH
Non inflating air shaft diameter:74mm
After inflating air shaft diameter:79-81mm
Working Length:100-6000mm
Thickness:8mm/10mm/12mm/18mmLoad-bearing:50-400kg
Material:steel/Aluminum
Paper core inner diameter:76mm




AIR SHAFT-1 INCH
Non inflating air shaft diameter:24mm
After inflating air shaft diameter:26-27mm
Working Length:100-6000mm
Thickness:8mm/10mm/12mm/18mm
Load-bearing:50-400kg
Material:steel/Aluminum

Paper core inner diameter:25mm

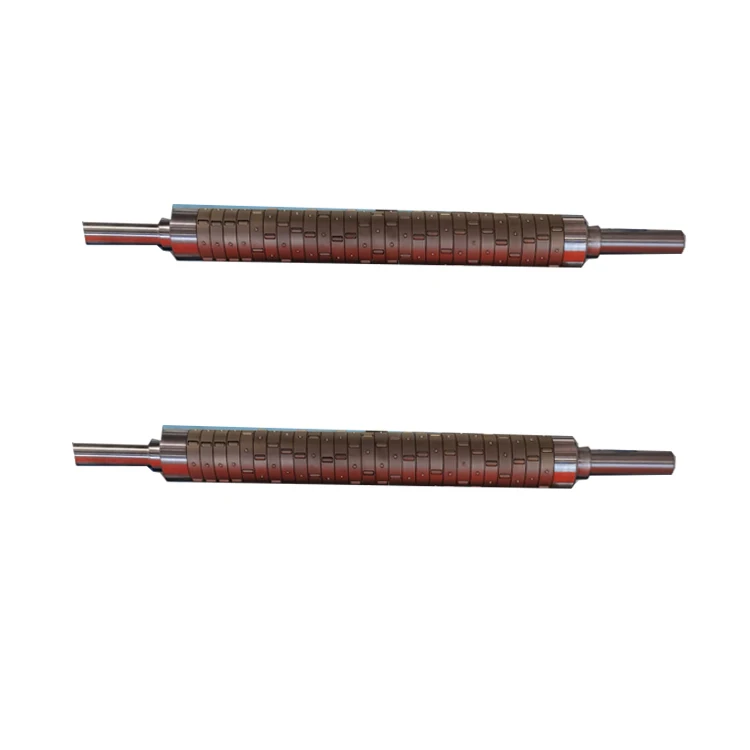

TILE TYPE AIR SHAFT
Non inflating air shaft diameter:74mm
After inflating air shaft diameter:79-81mm
Working Length:100-6000mm
Thickness:8mm/10mm/12mm/18mmLoad-bearing:50-400kg
Material:steel/AluminumPaper core inner diameter:76mm








paper core inner diameter
non inflating
air shaft diameter
after inflating
air shaft diameter
1 inch
25mm
26-27mm
1.5 inch
37mm
41-43mm
2  inch
50mm
55-56mm
3 inch
74mm
79-81mm
6 inch
150mm
156-158mm


main products






usage industry




Company Profile






our Certificate




our Exhibition






FAQ


Q 1.When can I get the quotation?
We usually quoted within 12 hours after receiving your inquiryment.If you are urgented,please whatsappus or email us,we will reply your inquiryment immediately.
Q 2.How should I place an order?
Please send us shaft roller drawings or more requirement,we will write back unit price base on all of your requirements.
Q 3.What's your MOQ basis?
MOQ depend on customized rollers drawings.normally MOQ≥1.
Q 4.What about the delivery time for production?
Depend on rollers drawings and quantity.normally 7-15 working days after receive deposit.
Q 5.What is the term of shipment?
EXW/FOB/CIF/CFR etc.always follow customer requirement.
