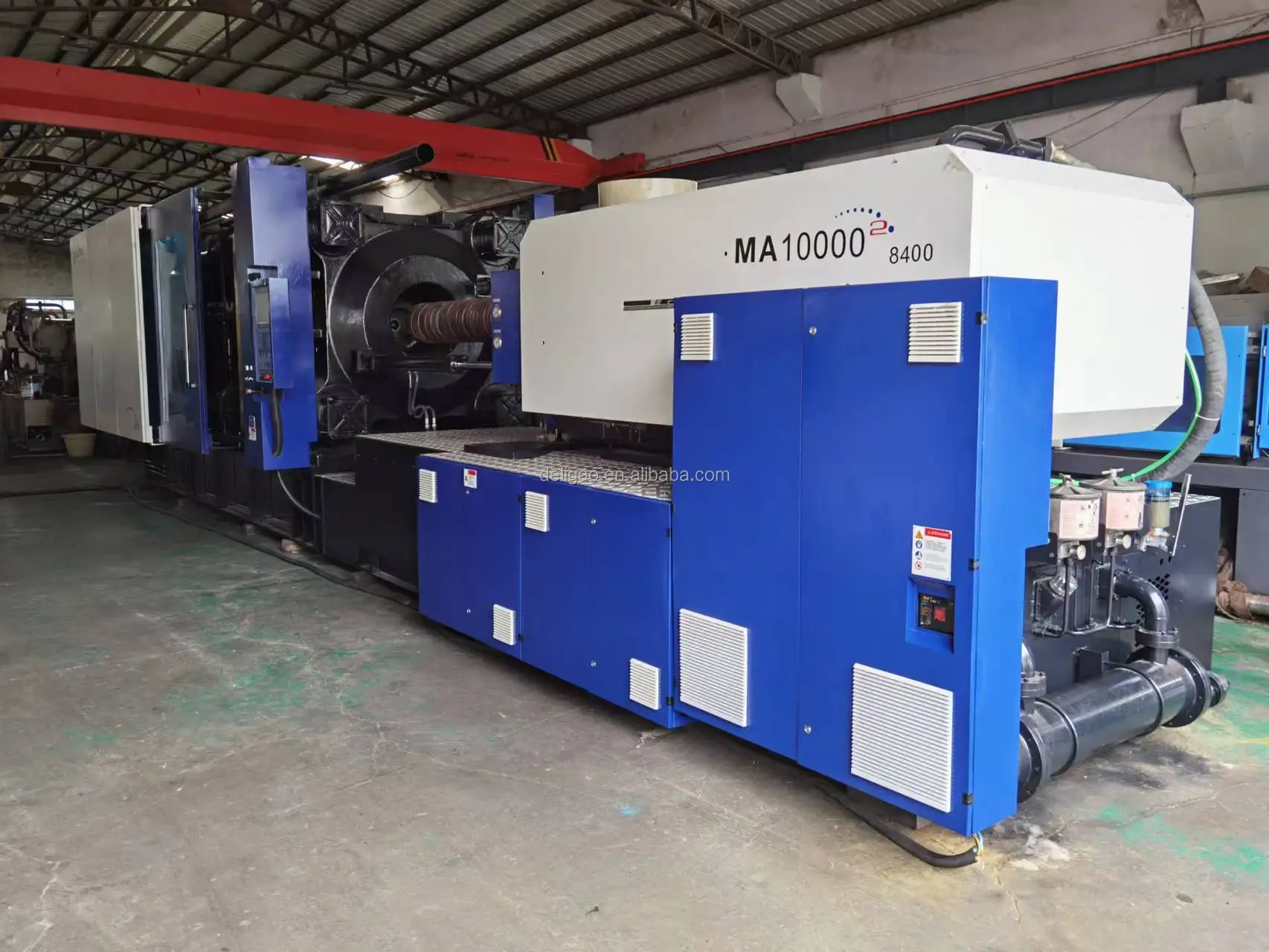

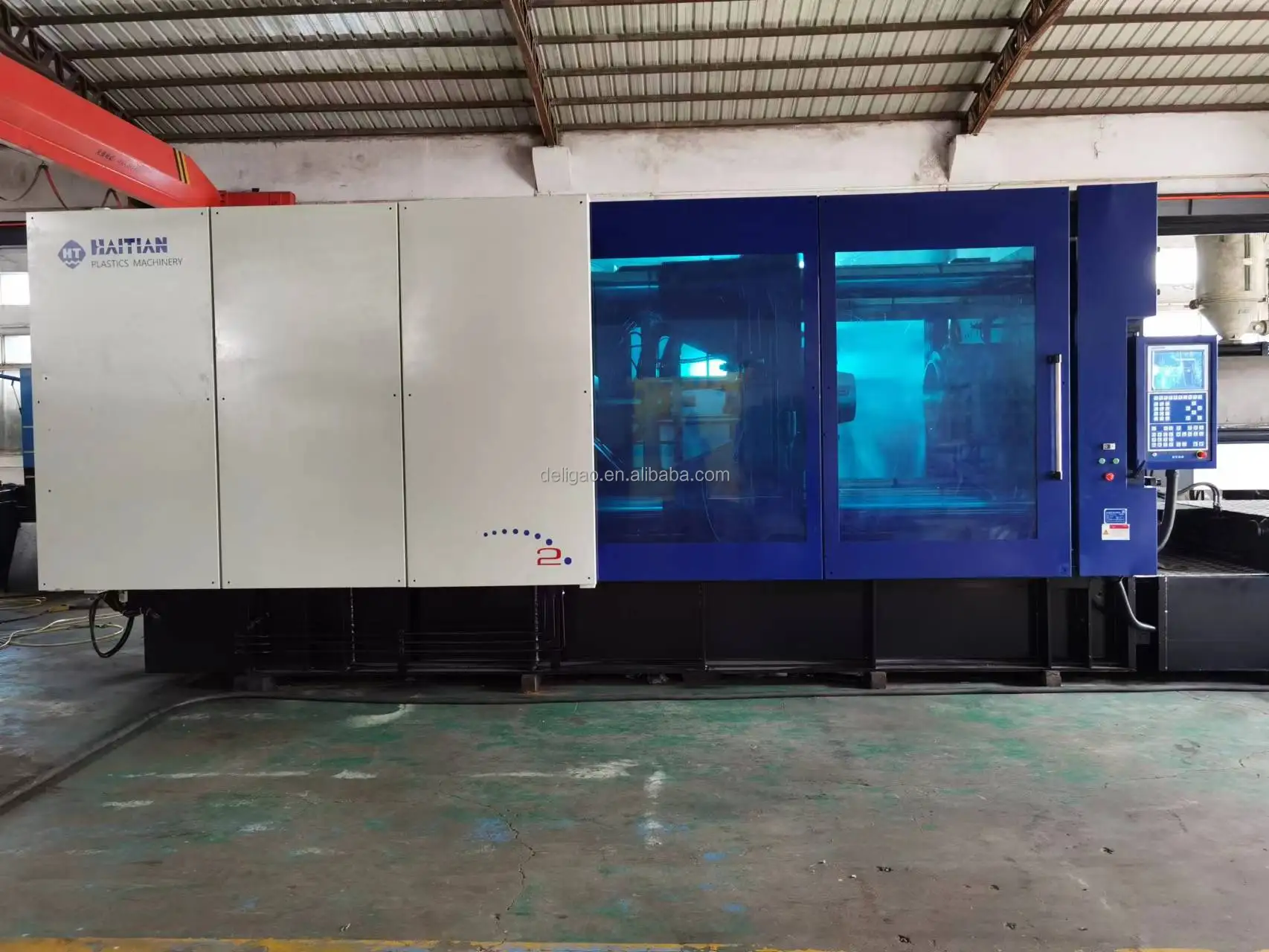

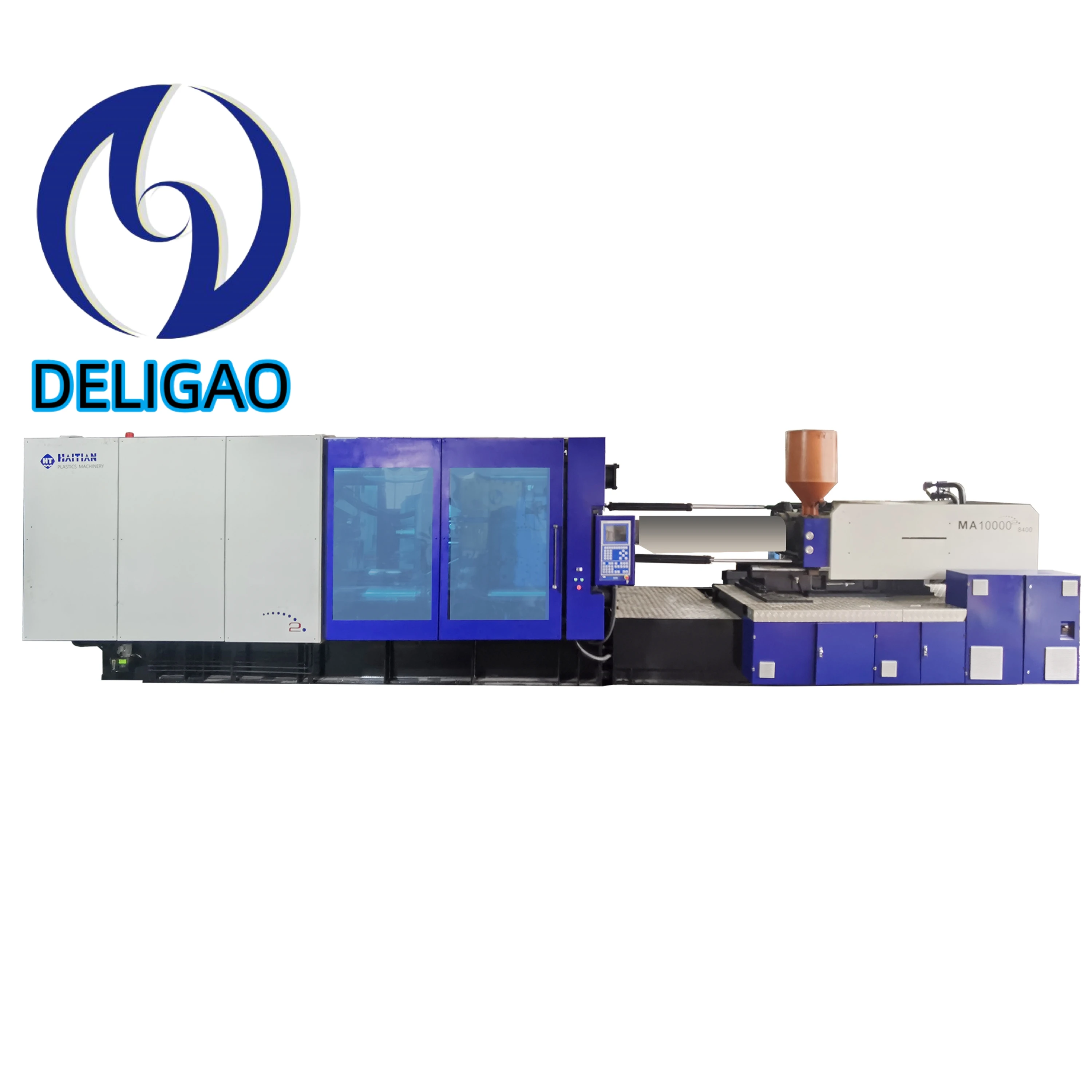

silicone injection machine 1000 ton used injection molding machine MA10000II used plastic Injection moulding Machine for sale
- Category: >>>
- Supplier: Shenzhen Deligao Mould Plastic Co. Ltd.
Share on (1600908352041):
Product Overview
Description
Product Introduction
Production product
Increase Production Capacity: The high-speed production capability of the injection molding machine significantly boosts theproduction capacity of plastic chairs. The automated injection process enables large-scale production, reduces production cycles,and meets the demands of more customers.Improve Production Rate: The automation and high efficiency of the injection moldingmachine greatly enhance the production rate. The injection technology completes a cycle in a very short time, enabling rapid production of a large quantity of plastic chairs, facilitating efficient production, and timely order fulfillment.Consistent
Product Quality: The injection molding machine ensures consistent and high-quality plastic chairs by precisely controlling the injection process.
Product Quality: The injection molding machine ensures consistent and high-quality plastic chairs by precisely controlling the injection process.
High-quality molds: The production of backrest plastic chairs requires the use of complex molds, injection molding machines can handle these high-quality molds, to ensure that the mold life is long, and the quality of the production of backrest plastic chairs is stable. Reduce manual operation: The production of backrest plastic chairs requires a complex injection molding process,and the use of injection molding machines can automatically complete most of the production steps, reduce manual operation and improve production efficiency.

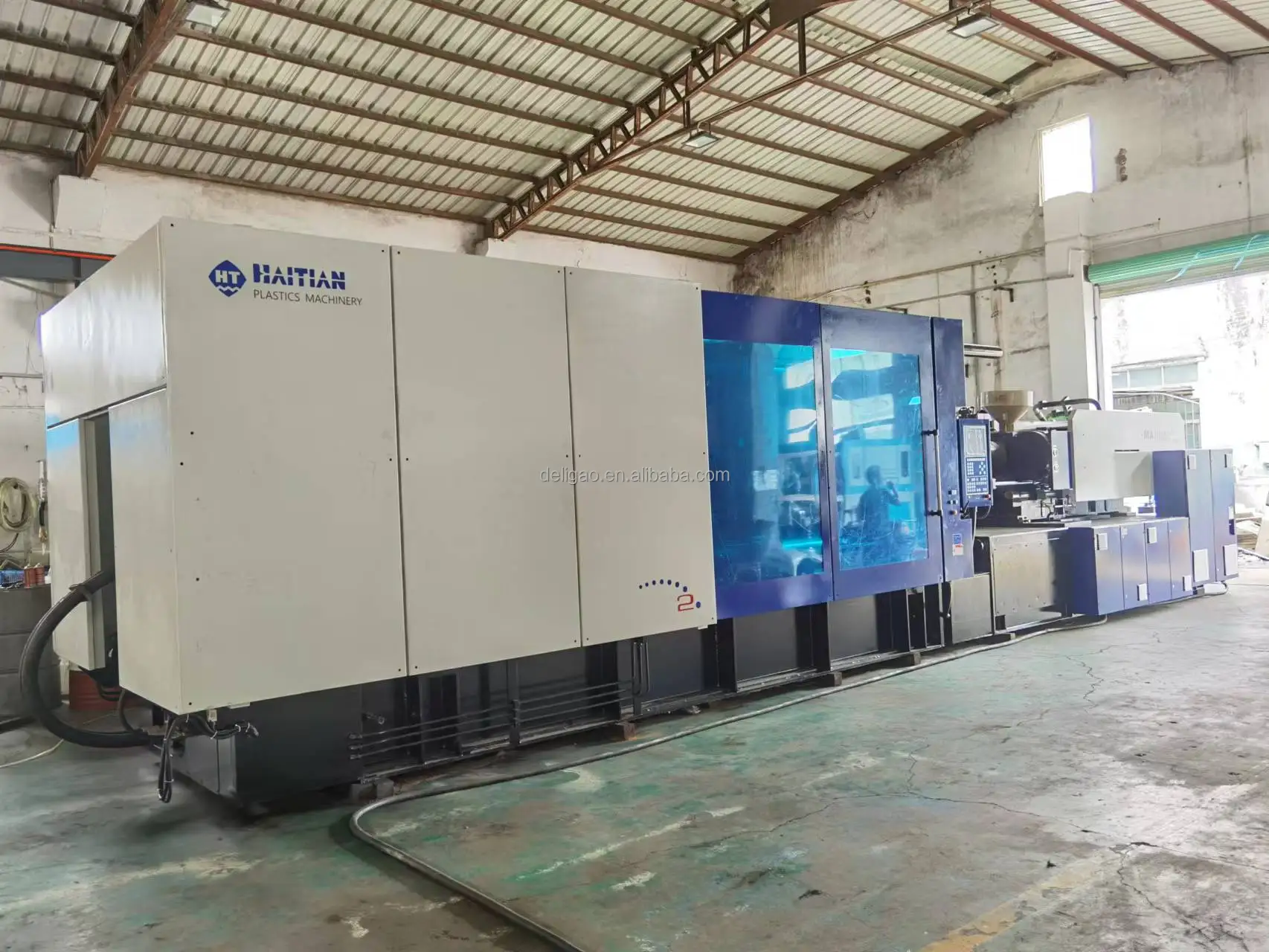

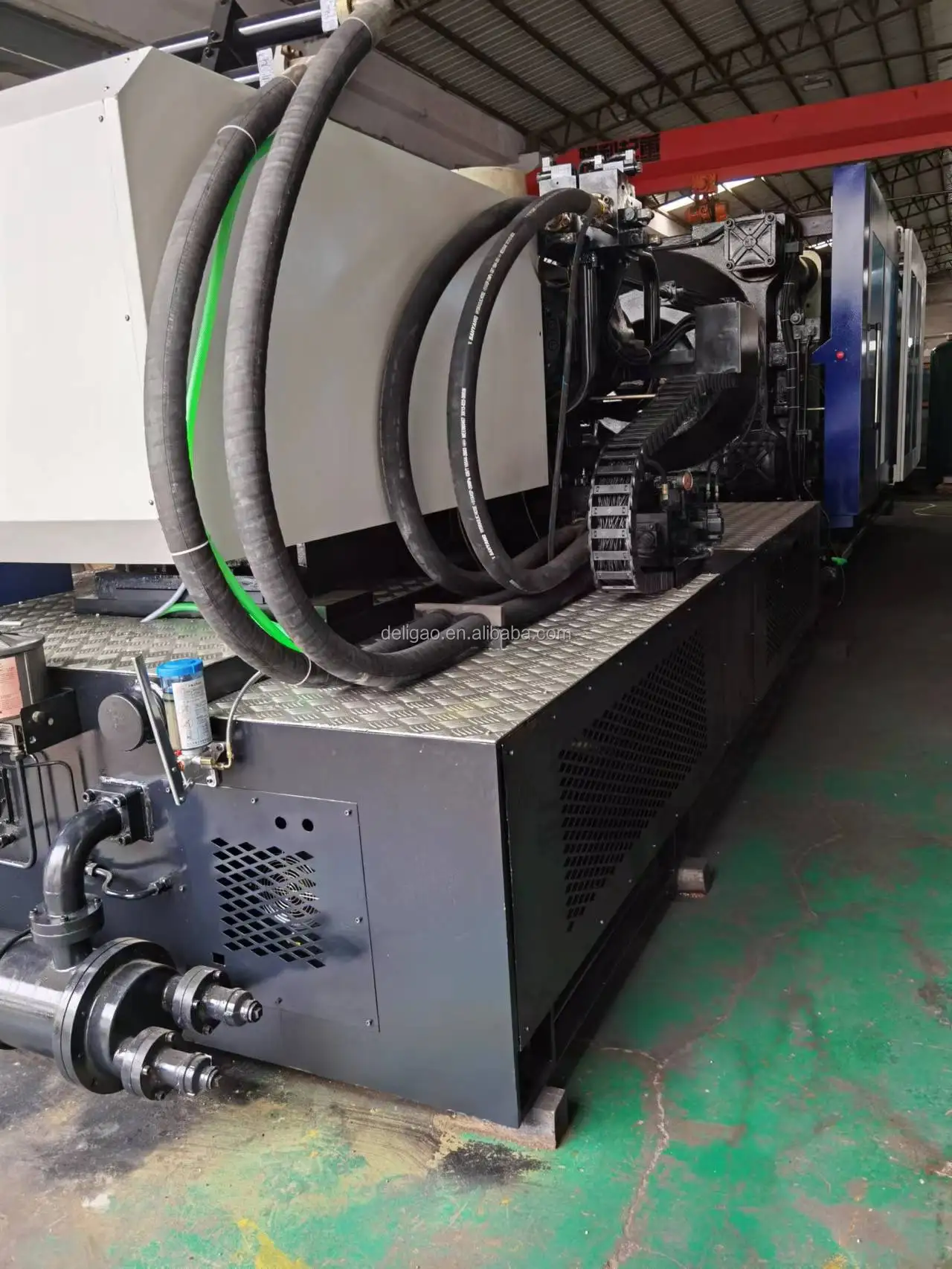

Machine details
The PLC host can automatically control the operation of the injection molding machine according to the preset program and logic conditions, including opening and closing the motor, hydraulic system, heater and other components of the injection molding machine. Support flexible programming, can be customized according to different production needs and process requirements, to
adapt to different types and specifications of plastic products production.
adapt to different types and specifications of plastic products production.

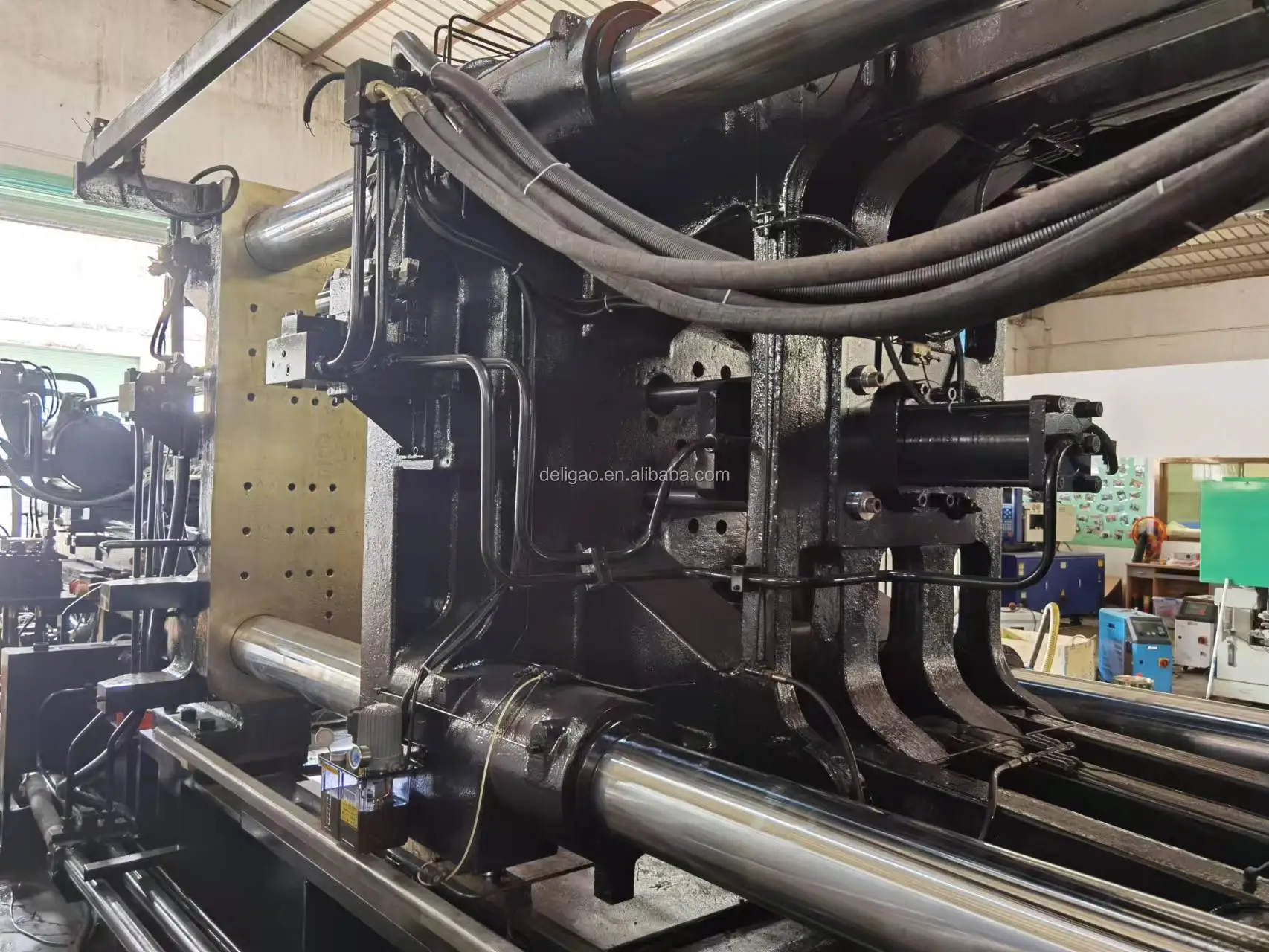

Tie bars are made of imported Japanese high tensile steel with specially-hardened, chrome-plated surface; Diameter is lengthened to minimize wear-out and maximize durability. Robust in-house manufactured ductile iron-casted platens guarantee durability and
minimize platen deformation.
minimize platen deformation.
Greater control and coordination enable the injection molding machine to carry out the injection molding process efficiently and stably, producing high-quality plastic products. The high performance and efficiency of the motor can improve the production capacity of the injection molding machine and reduce the operating cost.
Technical Parameters
INJECTION UNIT | INJECTION UNIT | A | B | C | D | |
Screw Diameter | Screw Diameter | mm | 100 | 110 | 120 | 130 |
Screw L/D Ratio | Screw L/D Ratio | L/D | 24.4 | 22 | 20.2 | 18.6 |
Shot Size(Theoretical) | Shot Size(Theoretical) | cm3 | 3770 | 4562 | 5429 | 6371 |
Injection Weight(PS) | Injection Weight(PS) | g | 3431 | 4145 | 4940 | 5798 |
Injection Pressure | Injection Pressure | Mpa | 211 | 174 | 146 | 125 |
Screw Speed | Screw Speed | rpm | 0～101 | |||
CLAMPING UNIT | CLAMPING UNIT | |||||
Clamp Tonnage | Clamp Tonnage | KN | 10000 | |||
Toggle Stroke | Toggle Stroke | mm | 1100 | |||
Space Between Tie Bars | Space Between Tie Bars | mm | 1090x1090 | |||
Max.Mold Height | Max.Mold Height | mm | 1100 | |||
Min.Mold Height | Min.Mold Height | mm | 500 | |||
Ejector Stroke | Ejector Stroke | mm | 320 | |||
Ejector Tonnage | Ejector Tonnage | KN | 215 | |||
Ejector Number | Ejector Number | Piece | 21 | |||
OTHERS | OTHERS | |||||
Max.Pump Pressure | Max.Pump Pressure | MPa | 17.5 | |||
Pump Motor Power | Pump Motor Power | kw | 37+55 | |||
Heater Power | Heater Power | kw | 68.75 | |||
Machine Dimension(LxWxH) | Machine Dimension(LxWxH) | m | 11.9x2.8x4.0 | |||
Machine Weight | Machine Weight | t | 49 | |||
Hopper Capacity | Hopper Capacity | kg | 200 | |||
Oil Tank Capacity | Oil Tank Capacity | L | 1730 |

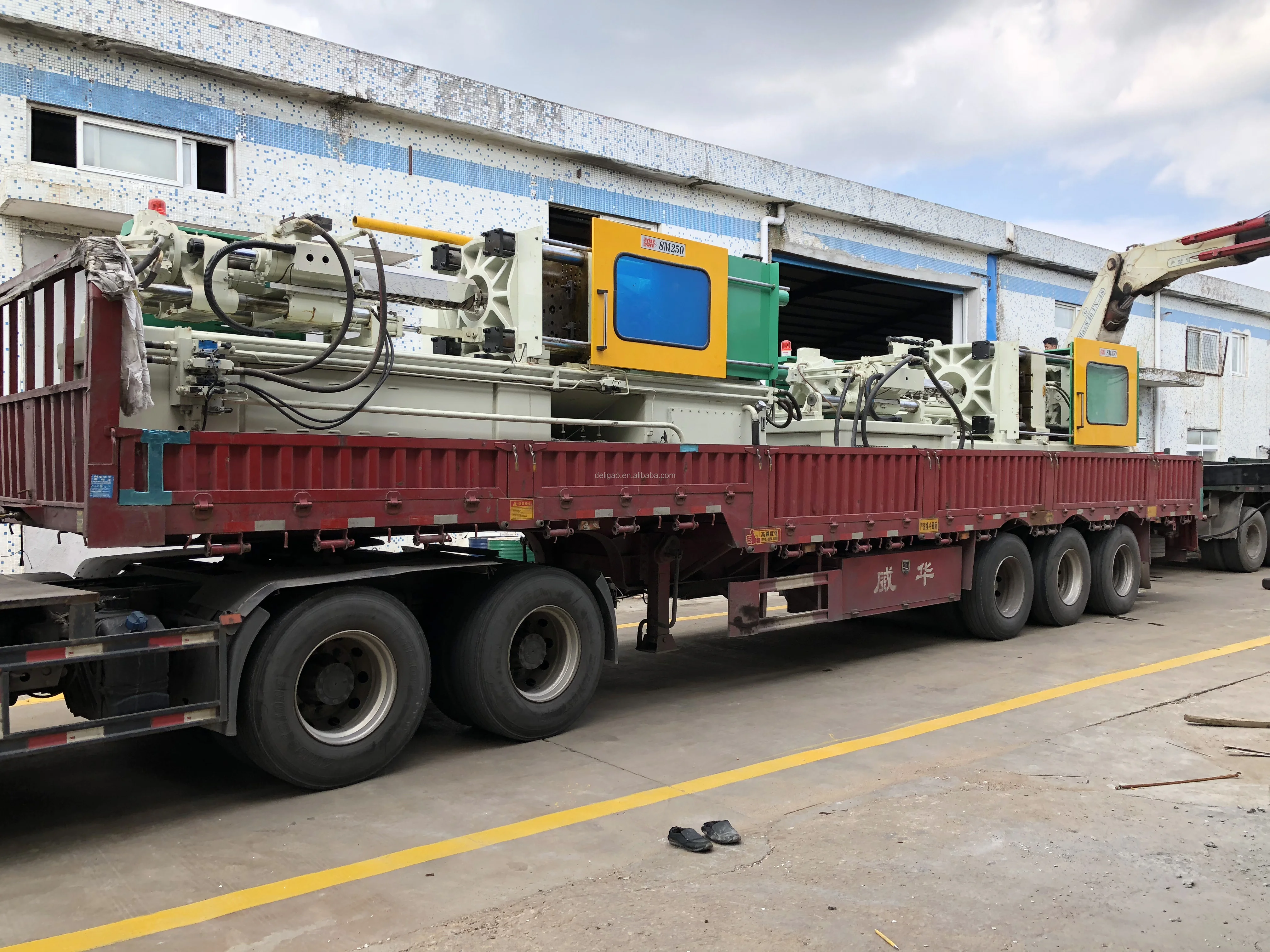

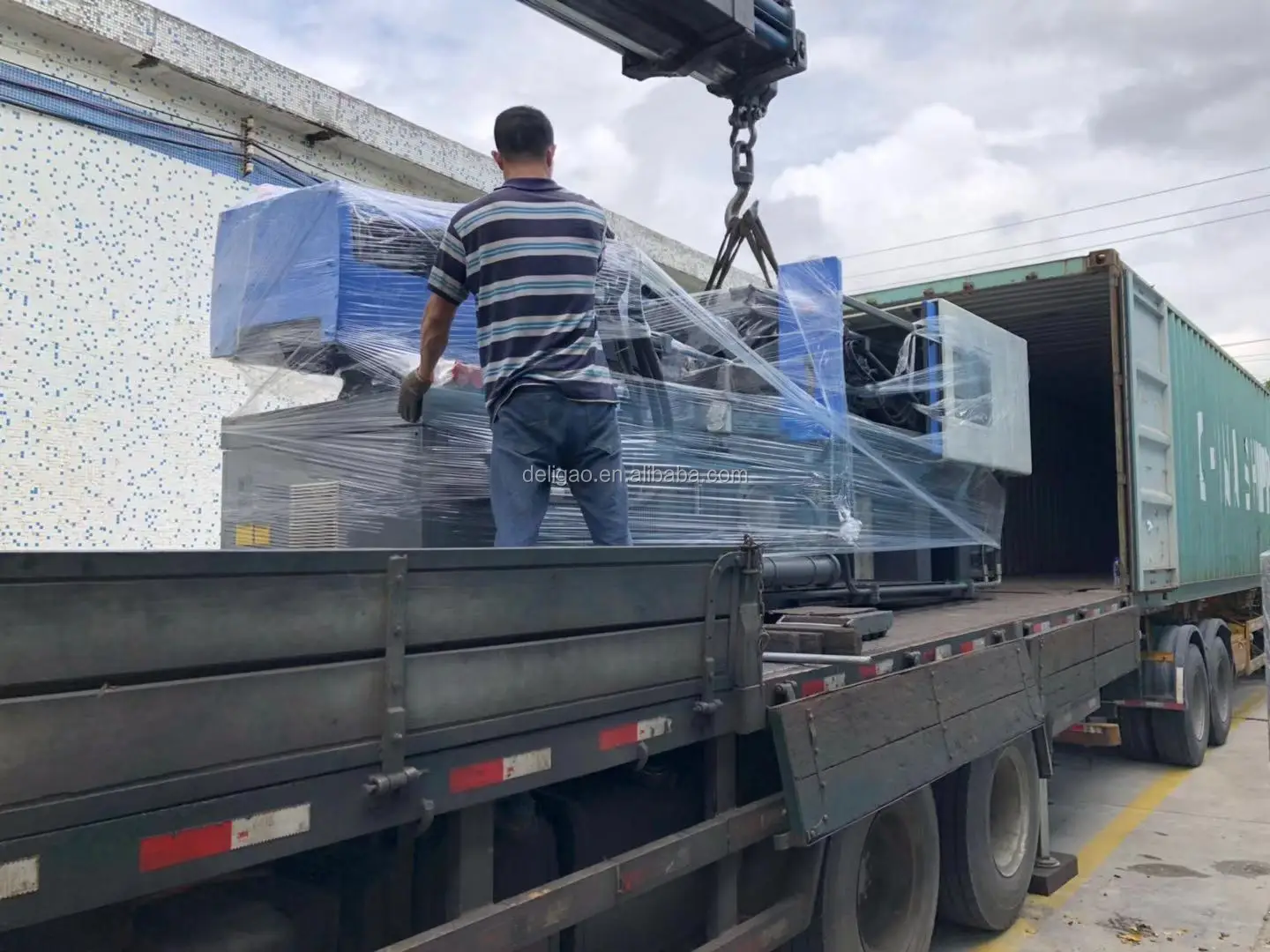

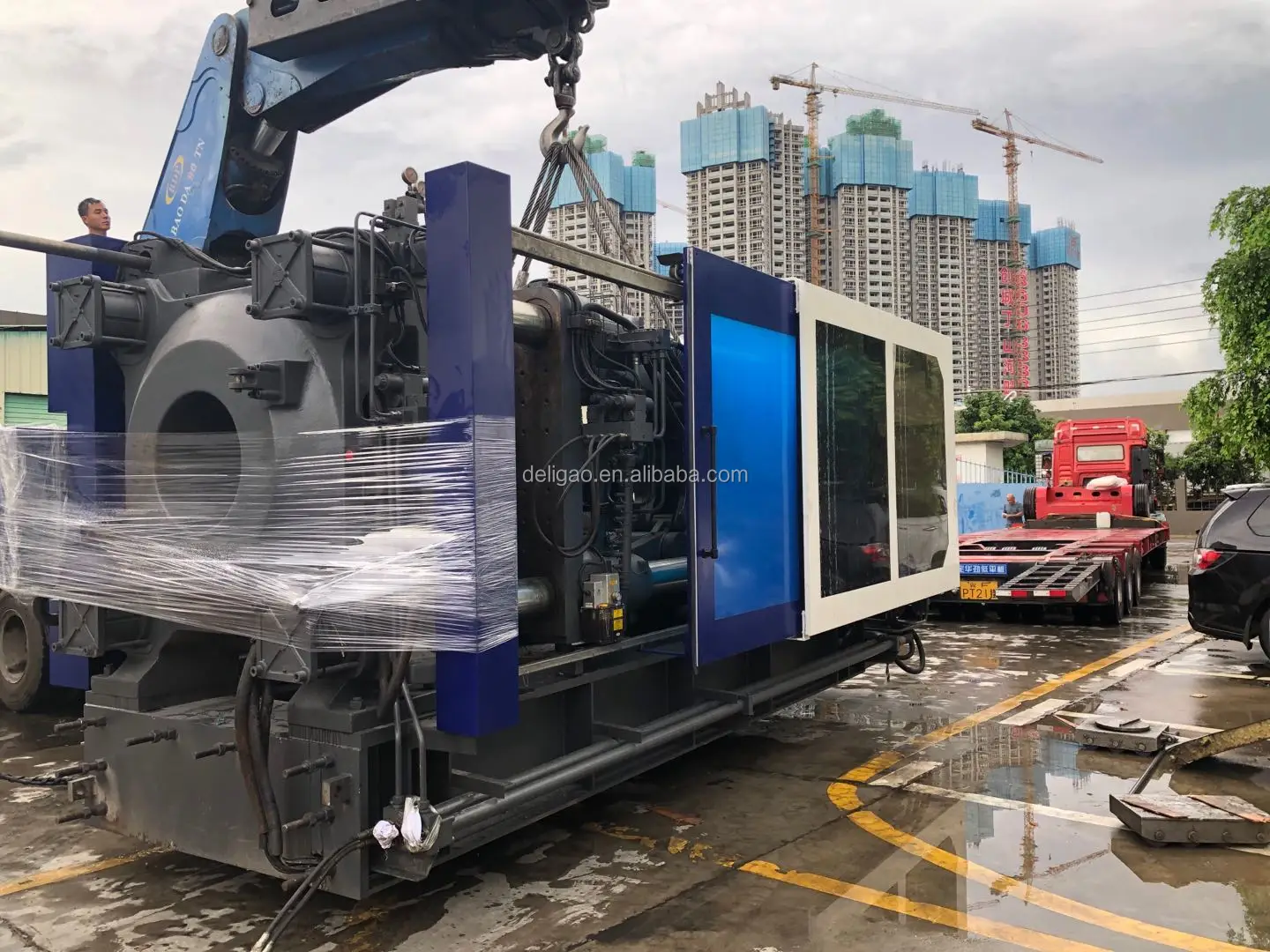

Product packaging
