factory price high capacity YK circular vibrating sieve screen for stone crusher price for sale

Describe:

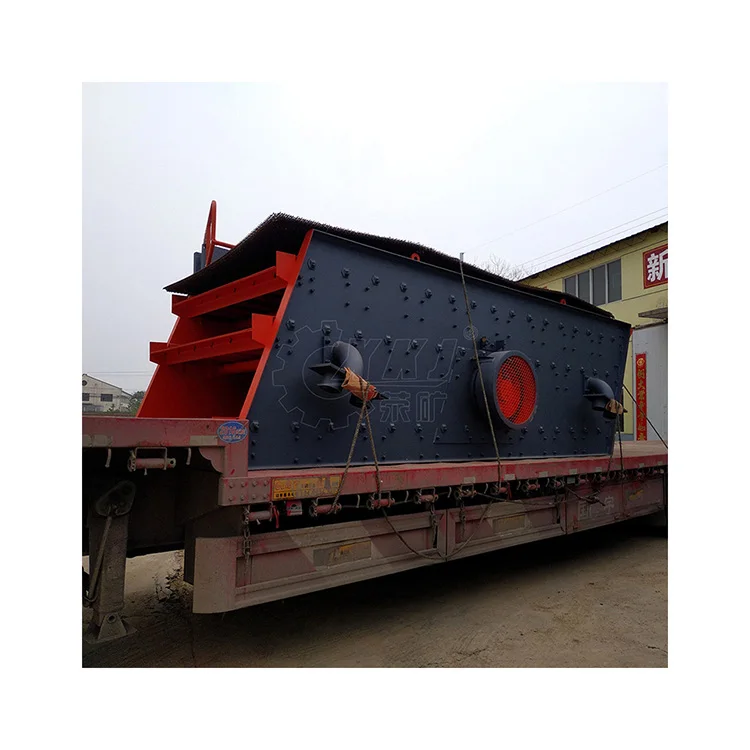

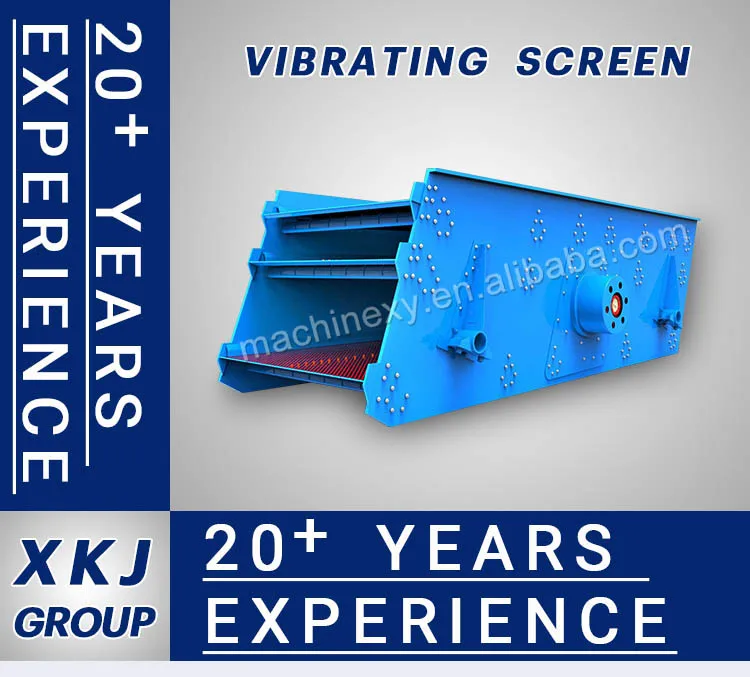

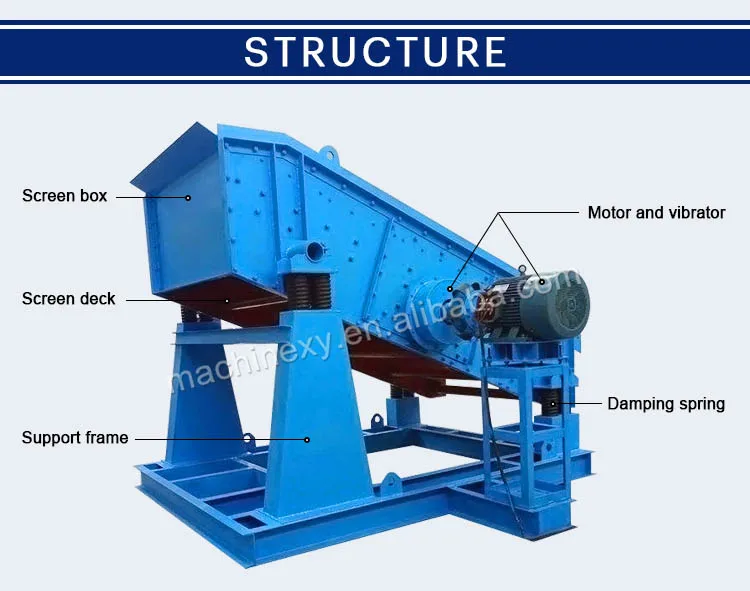

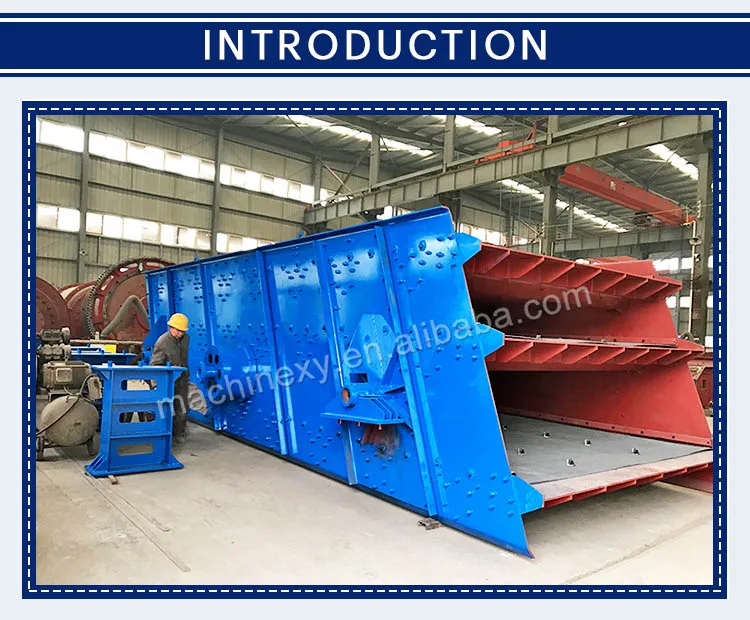

YK series circular vibrating screen, also known as YK series circular vibrating screen, is the use of internal eccentric shaft as the driving force, the use of motor driven eccentric shaft rotation after the linkage vibrating screen do up, front, down, after the circular motion track, so that the material screened uniform, quickly slip through the screen and complete the screening work.

Advantage:

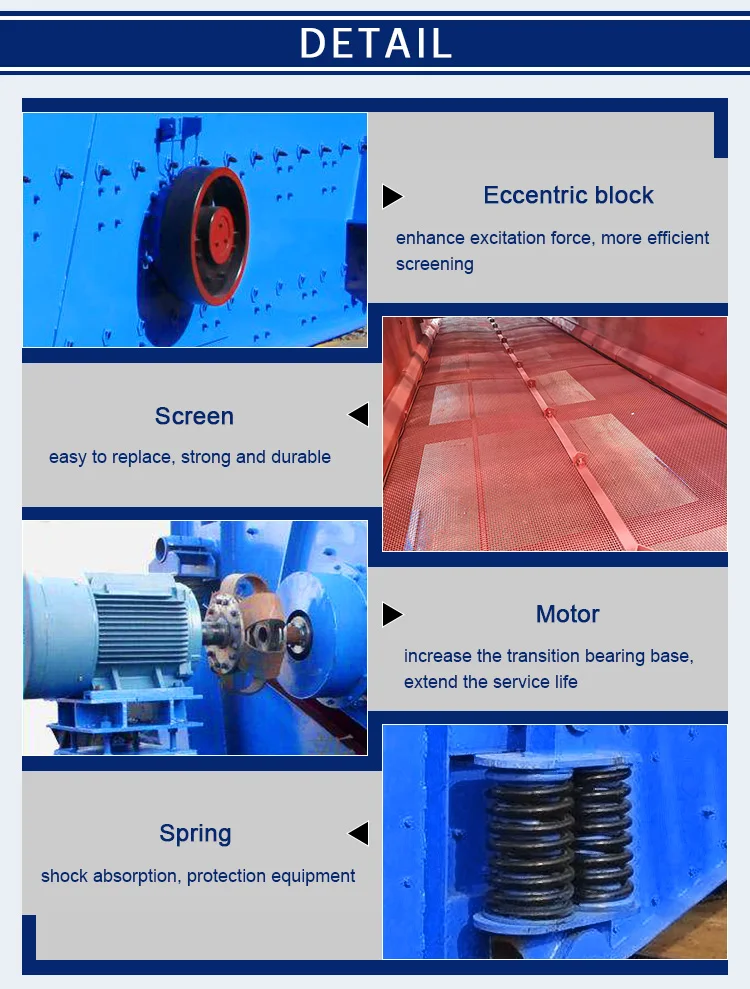

1. Block eccentricity is adopted as the excitation force with strong excitation force.

2. The sieve beam and the sieve box are connected by high-strength bolts without welding.

3. Screen machine structure is simple, easy to operate.

4. The screen adopts unique design, and it only takes 3-5 minutes to replace the screen quickly.

5. The use of small amplitude, high frequency, large inclination structure, so that the screening efficiency of the machine, long life, low power consumption, low noise.

Note:

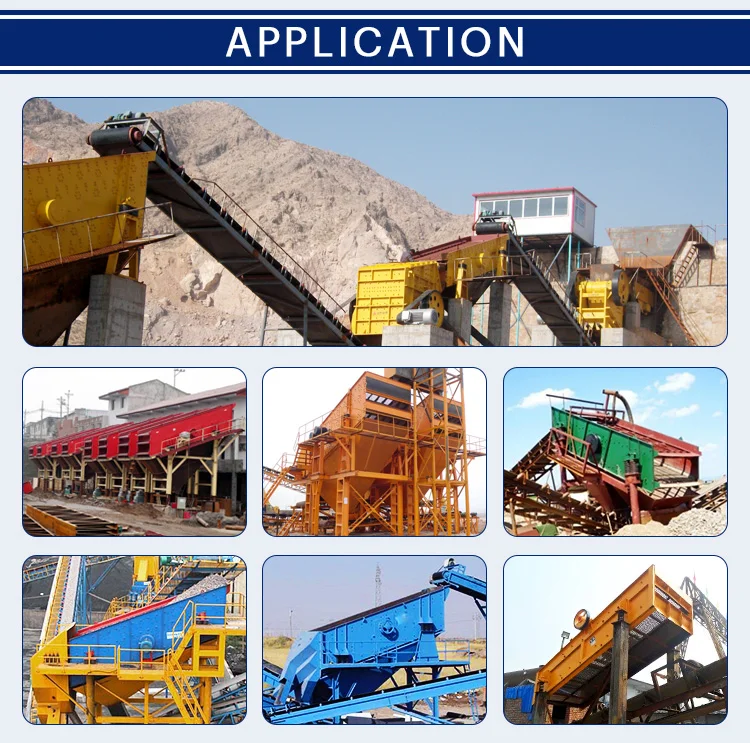

It is widely used in the separation of Quartz stone, River pebbles, Calcite, Dolomite, Granite, Basalt, Limestone, Diabase , gold, tin, titanium, hematite, iron ore, coal and other minerals,etc.

Model

Specification of screen

(mm)

Capacity

(m³/h)

Motor power

(kW)

Inclination

(°)

Weight

(t)

(without motor)

YK1236

1200x3600

30-160

5.5

20

3.2

2YK1236

5.5

20

3.6

3YK1236

7.5

17.5

4.2

2YK1245

1200x4500

11

15

4.3

3YK1245

11

20

4.5

YK1536

1500x3600

11

20

3.7

2YK1536

11

20

4.5

YK1545

1500x4500

11

20

3.9

2YK1545

15

20

5.4

3YK1545

44-258

15

15

 5.8

4YK1545

18.5

20

6.9

YK1836

1800x3600

30-200

11

20

6.8

YK1860

1860x6000

15

20

7.8

2YK1860

22

20

9.6

3YK1860

22

14.5

10.7

4YK1860

30

20

11.3

YK2160

2100x6000

18.5

20

9.9

Working principle:

The mineral particles with different specific gravity are stratified according to their specific gravity in the vertically moving medium, and the mineral particles with higher specific gravity are located in the lower layer, that is, the heavy product (concentrate).Smaller mineral particles are found in the upper layers, which are light products (tailings).

Packaging detail:

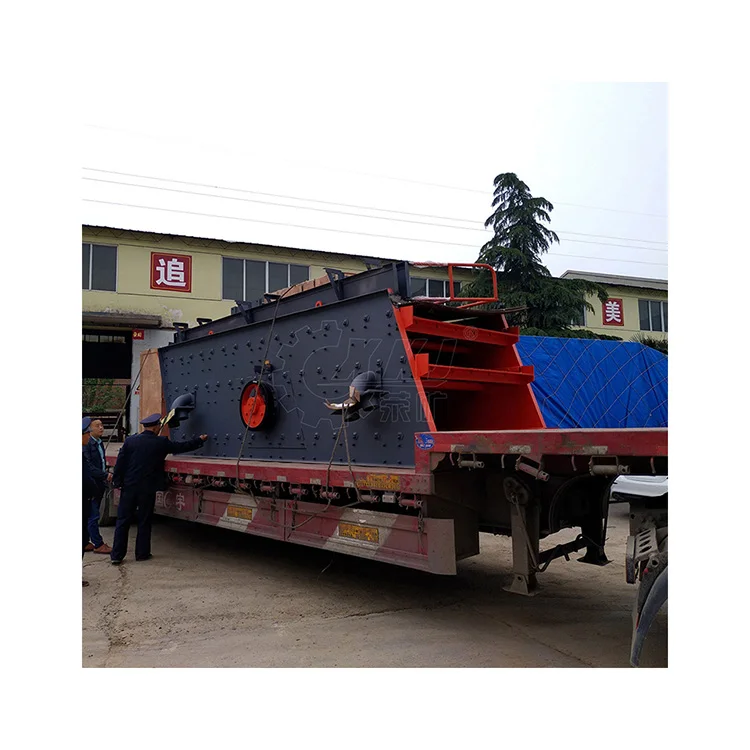

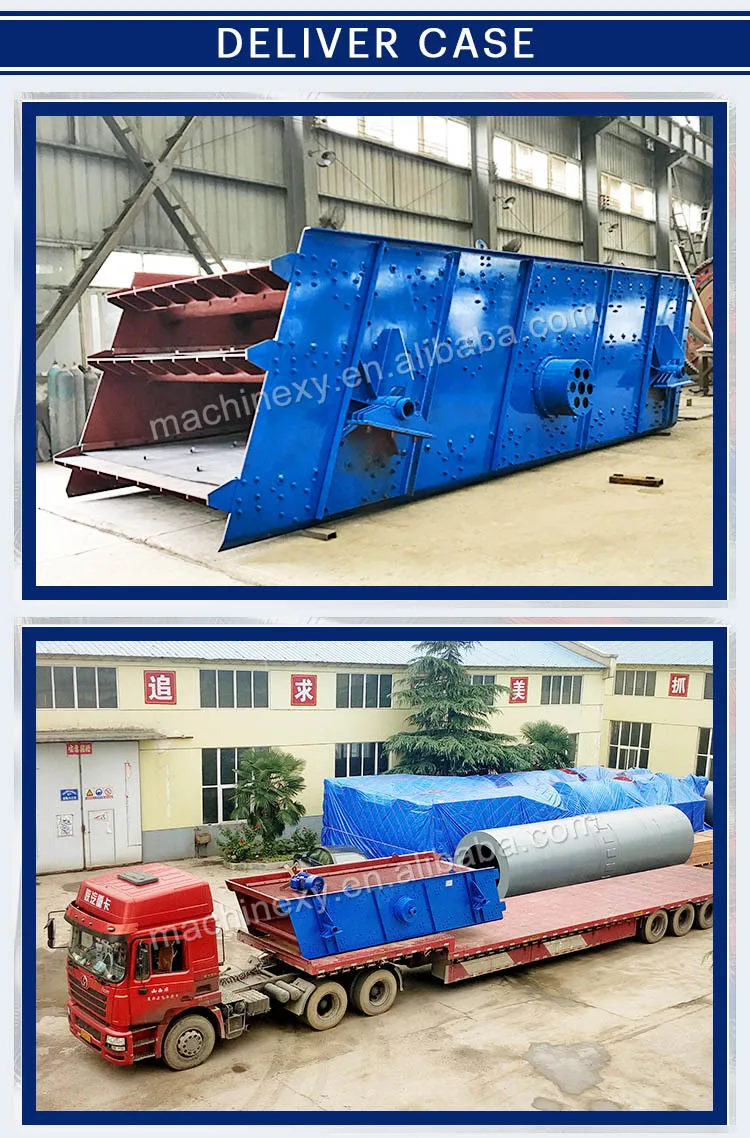

Standard containers, bare main machine, motors and small parts are packed in wooden cases.

Delivery port:

Within 45 days Qingdao,Shanghai,Tianjin and other ports.
