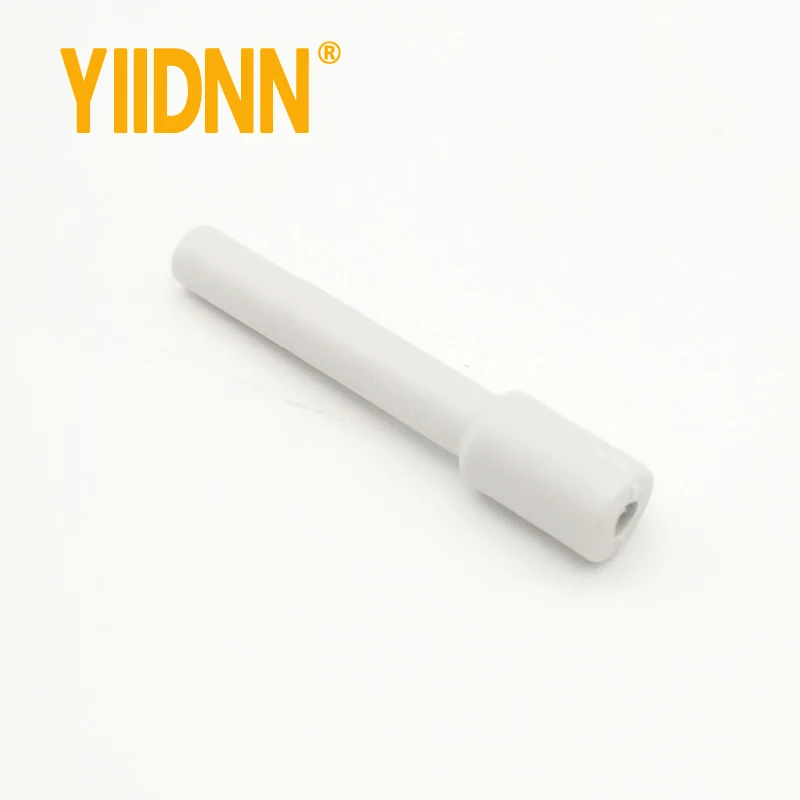

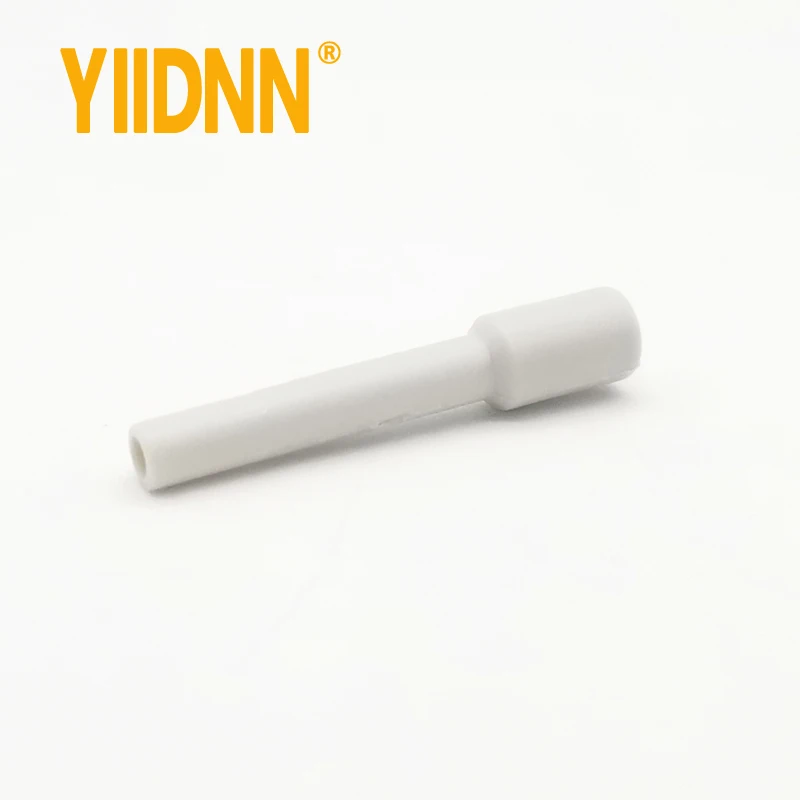

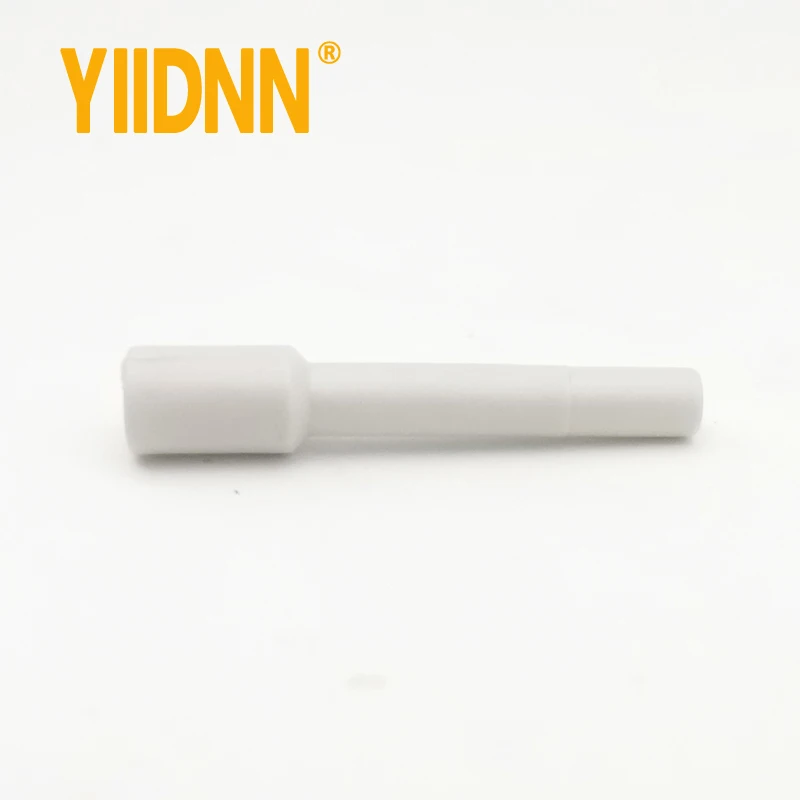

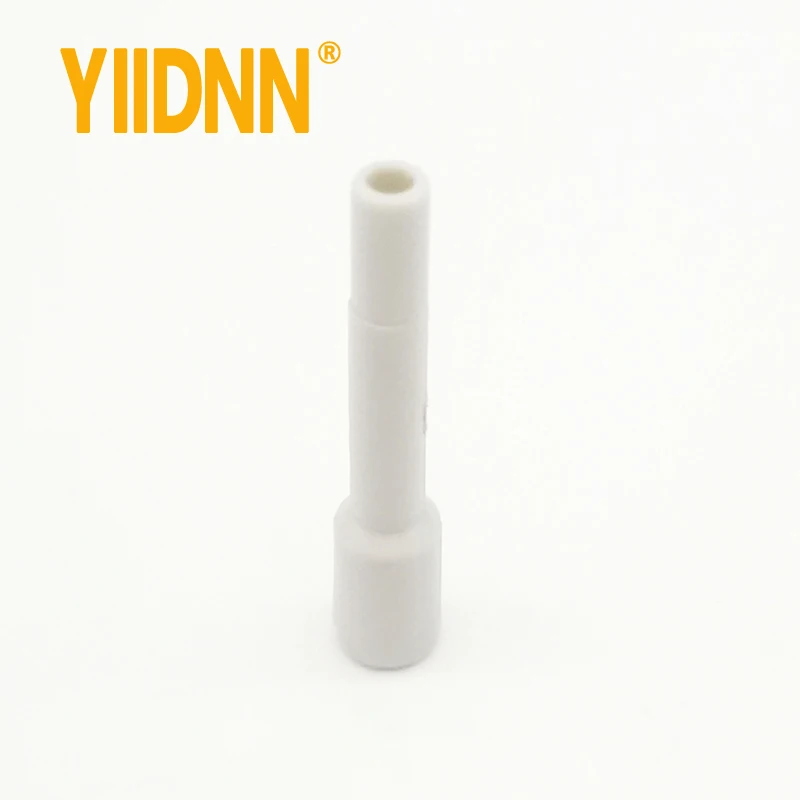

SMC type KQ2P series Pneumatic Quick Connector Straight Plastic Fittings One Touch Plastic Fittings Plug
- Category: >>>
- Supplier: Shanghai YIIDNN Industrial Co. Ltd.
Share on (1600908374641):
Product Overview
Description
Products Description
Product Feature
1.High Strength, Wear Resistance, Corrosion Resistance, High Density, Not Easy to Burst.
2.The Product is Sturdy and Durable and Has a Long Service Life.
3.Easy Installation and Disassembly, Good Sealing Performance.
4.It Can be Used for The Connection of pipes and The Use of Different Pneumatic Components, and Has a Wide Range of Uses.
5.You Can Easily Insert or Pull out the Trachea Without Any Tools
6.The Clip of Connecting Air Pipe is Made of Strong Plastic Material, Which is Not Easy to Fall off After Connection Adopt Sealing Component, Keep Good Sealing, Not Easy to Leak.
7.Freely Change Pipeline Direction After Installation,Easy to Insert or Pull Trachea Manually Without Tools.
8.4 Types of Pipe Fittings of Different Styles, Including Tee, Elbow,y Branch, Straight. Different Styles Can Meet Different Needs.
Fluid Type: | Air,Water(Not1) | ||||||||||
Max.operating pressure | 1.0MPa | ||||||||||
Operating vacuum pressure | -100kPa | ||||||||||
Proof pressure | 3.0MPa | ||||||||||
Ambient and fluid temperature | -5 to 60"C, In case of water: 0 to 40°C (With no condensaion) | ||||||||||
Thread | Mounting | JIS B0203 (Toper thread for piping) JIS B0209, Class 2 (Metric coarse thread) | |||||||||
Nut | JIS B0211, Class 2 (Metric fine thread) | ||||||||||
Sealant(Thraed portion) | With / Without sealant | ||||||||||
Sealant(Thraed portion) | With / Without sealant | ||||||||||

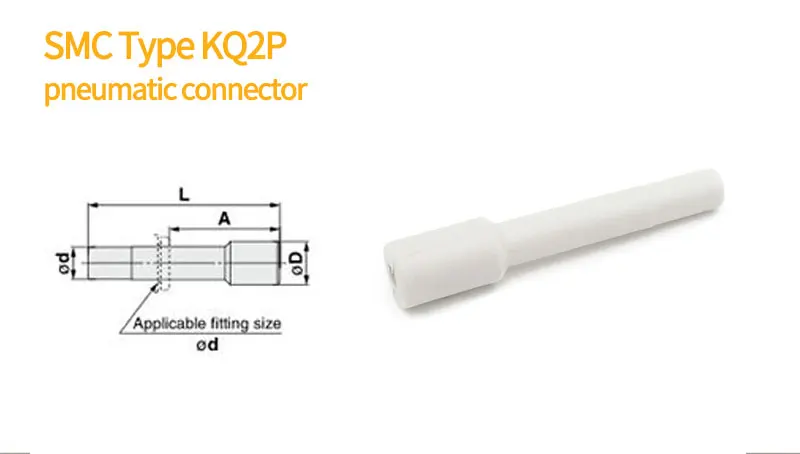

Applicable fitting size φd | Model | φD | L | A | Weight [g] | |
φ2 | KJP-02 | 3 | 17 | 5.1 | 0.1 | |
φ3.2 | KQ2P-23 | 5 | 31.5 | 18.2 | 1 | |
φ4 | KQ2P-04 | 6 | 32 | 18.7 | 1 | |
φ6 | KQ2P-06 | 8 | 35 | 21.7 | 1 | |
φ8 | KQ2P-08 | 10 | 39 | 24.8 | 2 | |
φ10 | KQ2P-10 | 12 | 43 | 27.4 | 3.5 | |
φ12 | KQ2P-12 | 14 | 45.5 | 28.5 | 5 | |
φ16 | KQ2P-16 | 20.9 | 47 | 26.4 | 8 |
About Color Difference: We All Items Are for Real Shooting; for Technology, Display, Light, Environmental Reasons May Be a Slight Deviation Phenomenon, Please in Kind Prevail.

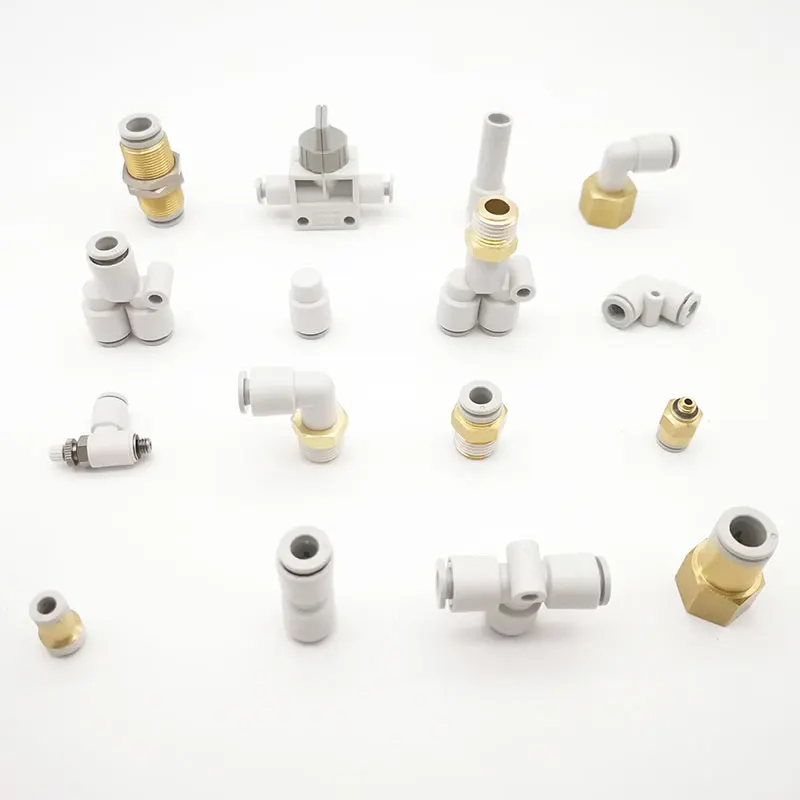

We Provide Different Pneumatic Fittings to Meet Your Different Needs
We Provide Different Pneumatic Fittings to Meet Your Different Needs
