Product Overview
Description

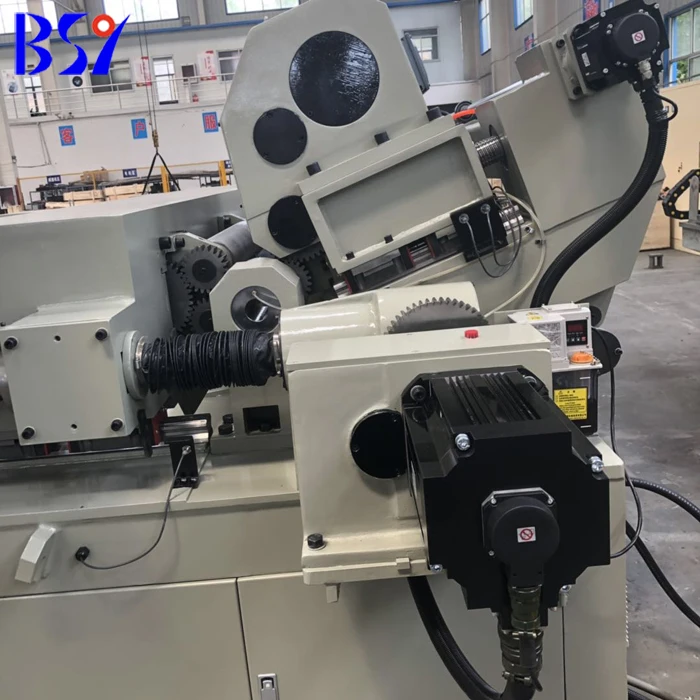

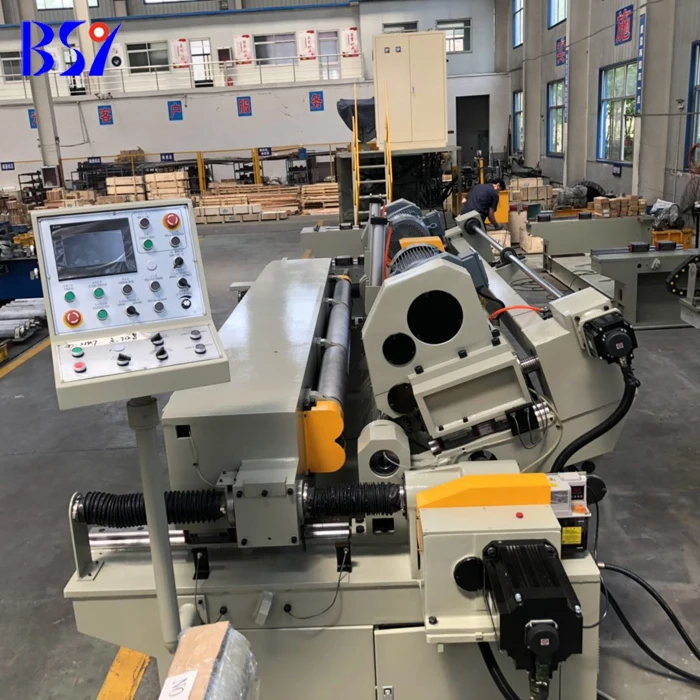

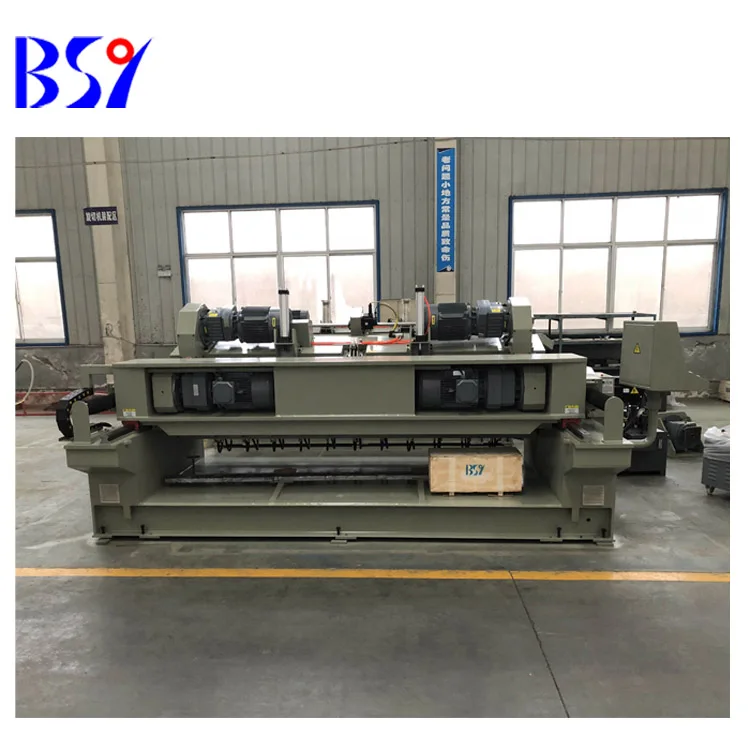

High-Speed CNC Spindless Rotary Peeling Machine
This is spindless rotary peeling lathe with CNC blade gap adjustment and gear transmission system.

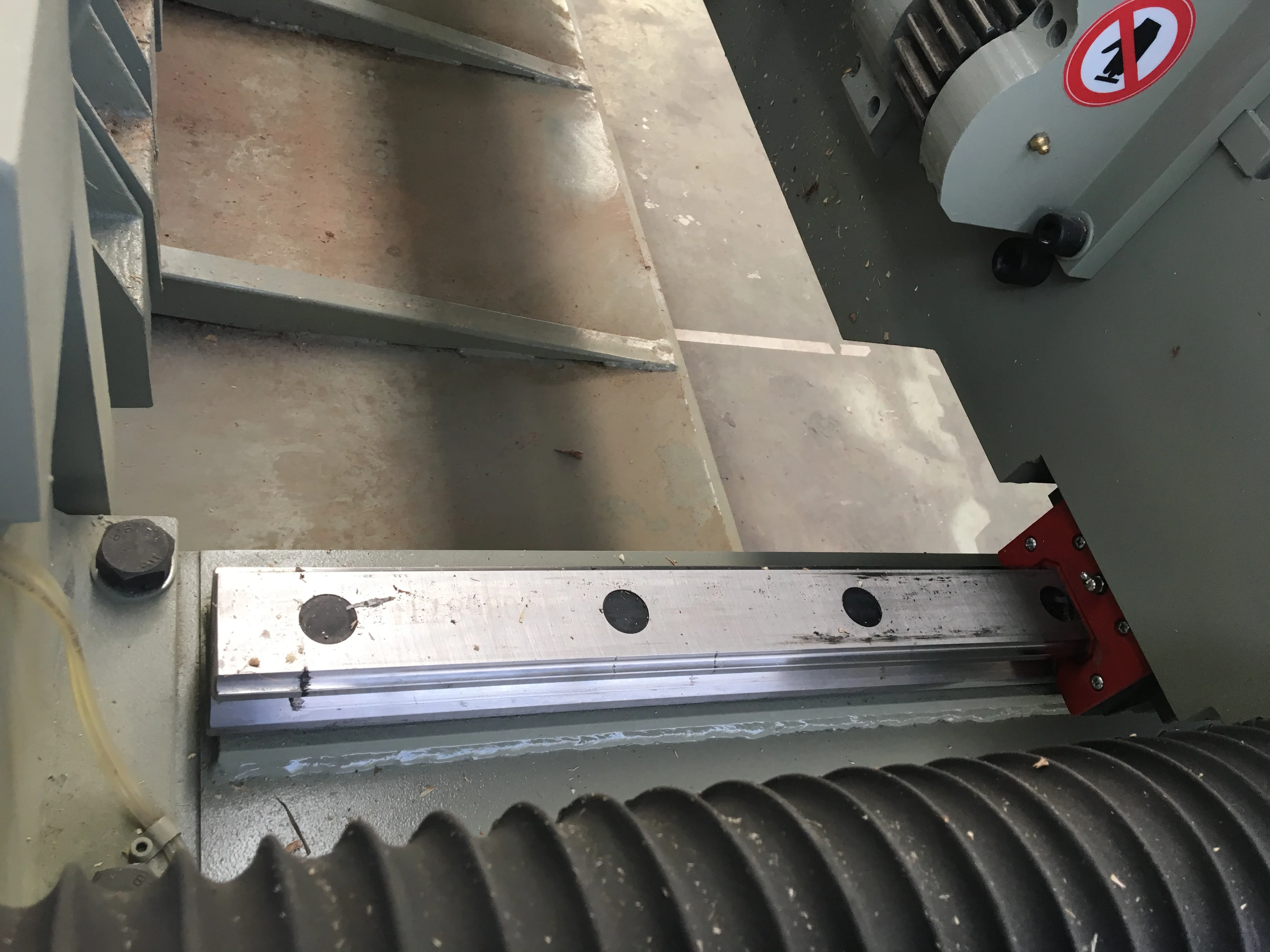

1.With Mitsubishi system, linear guide and ball screw feeding, it can guarantee the veneer evenness and minimized the torlerance
2.With nose bar, the spindless peeling machine has the same function as spindle peeling lathe, but the log core is only 60mm.

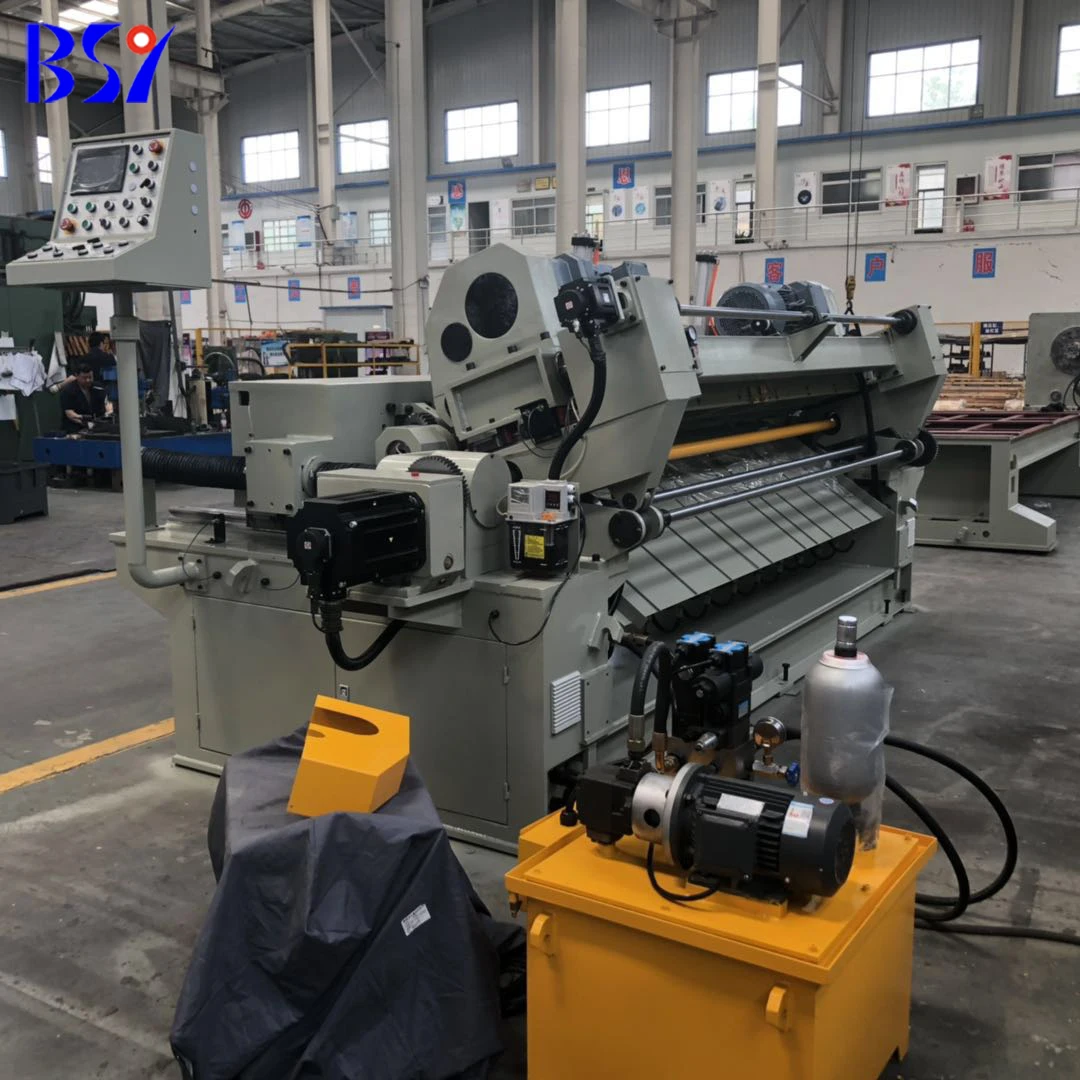

3.With hydraulic system for knife installation, it can make easy to change knife when need to grind and save time.
It is very popular for veneer and plywood factory.
We have 4f, 6f and 8f to meet different requirement. You can choose it according to your demand
We have 4f, 6f and 8f to meet different requirement. You can choose it according to your demand.
MODEL | SL2600/5E | SL2600/5B | SL1350/5E | SL1350/5B |
Max. cutting length (mm) | 2600mm | 2600mm | 1350mm | 1350mm |
Max. cutting diameter (mm) | 500mm | 480mm | 500mm | 480mm |
Log-core diameter (mm) | 60mm | 60mm | 60mm | 40mm |
Peeling speed | 30-80m/min | 30-80m/min | 30-80m/min | 30-80m/min |
Veneer thickness | 0.8-3.0mm | 0.8-3.0mm | 0.8-3.0mm | 0.8-3.0mm |
Driven rollers motor power | 44 kw | 44 kw | 30kw | 44 kw |
Feeding servo motor power | 11 kw | 11 kw | 7 kw | 7 kw |
Blade gap servo motor power | 3.5 kw | 1.5 kw | 3.5 kw | 3.5 kw |
Hydraulic motor power | 1.5 kw | 1.5 kw | 1.5 kw | 1.5 kw |
Total Power | 60kw | 58kw | 42kw | 40kw |
Overall dimensions (mm) | 4600x2220x1900mm | 4750x2150x1870mm | 3350x2200x1900mm | 3500x2150x1870mm |
Weight (kg) | 13500kg | 11500kg | 12000kg | 10000kg |
Our Services
Our technicians can go to custmer's factory to install and test running, also can train operators for them. Warranty One Year, out of warranty period we offer technical service.
Detailed Images
Company Information
1. Leading manufacturer of woodworking machinery in China, found in 1956. specialize in this field for more than 60 years.
2. Almost 30 year export experience, exported dozens of countries in Asia, Europe, Africa and America. All products are quite popular among clients.

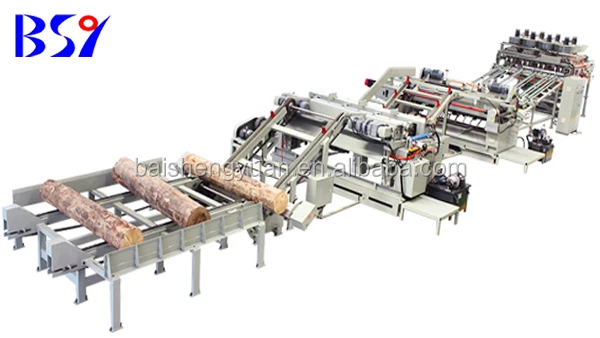

3.Specializing in plywood production line and finger joint board production line. We have our own designers to meet any of your requirement.
4. Having own after –sale maintenance center, our engineer can go to overseas for installation and commissioning.
The main productions include: log debarker, log charger, double-spindle veneer peeling lathe, single-spindle veneer peeling lathe, CNC non-spindle veneer peeling lathe, veneer clipper, press machine, veneer dryer, glue spreader, size trimming saw, Four-Side Moulder , sanding machine etc.

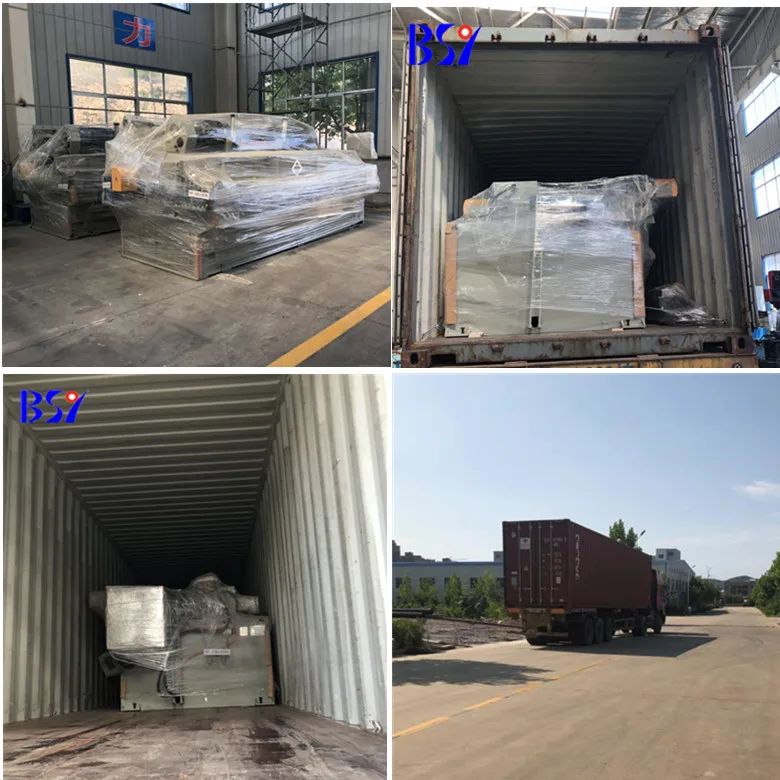

Packaging & Shipping
