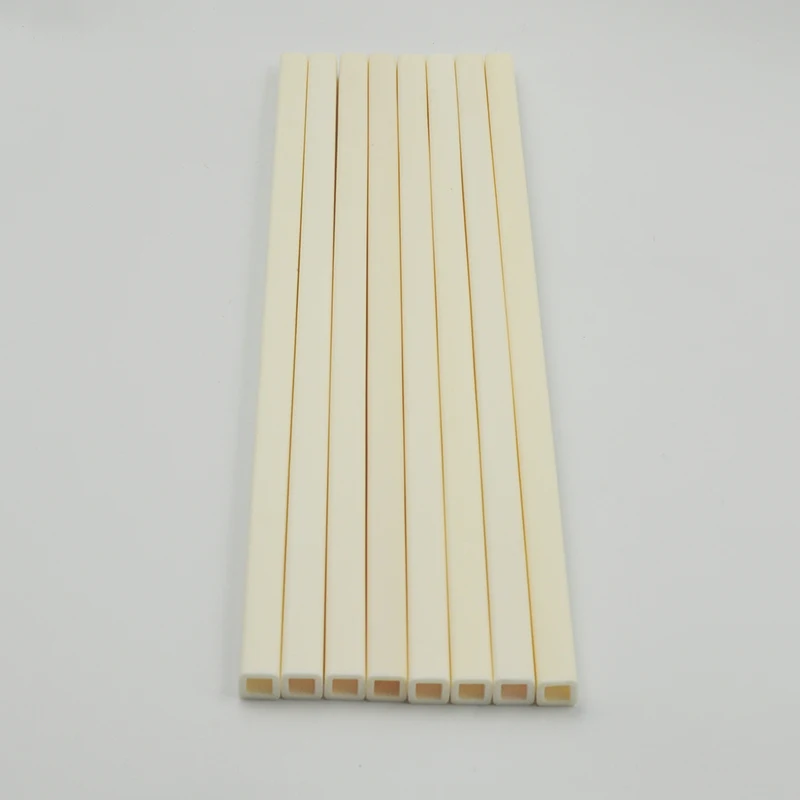

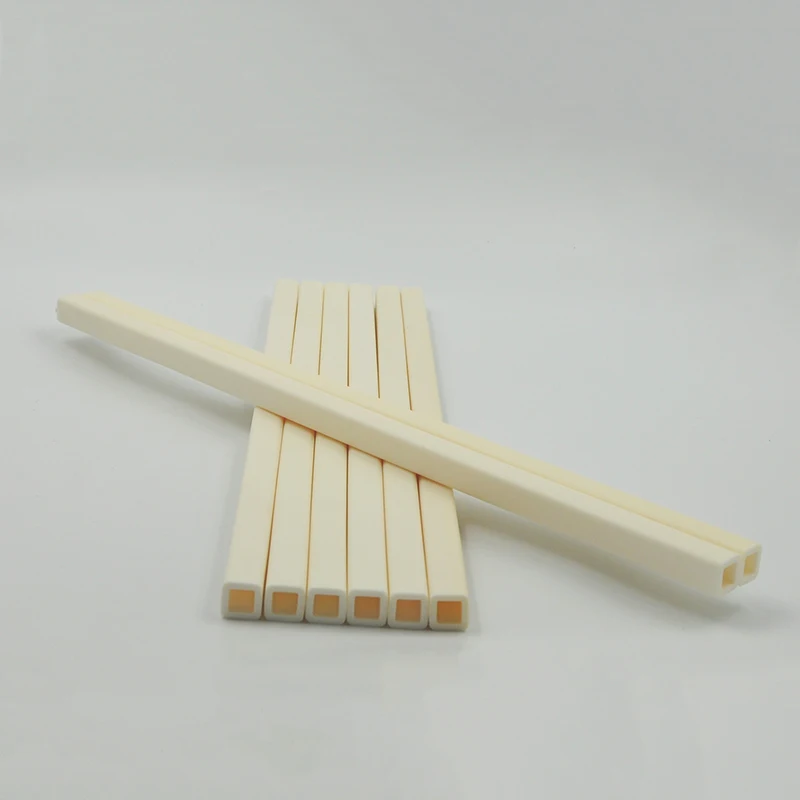

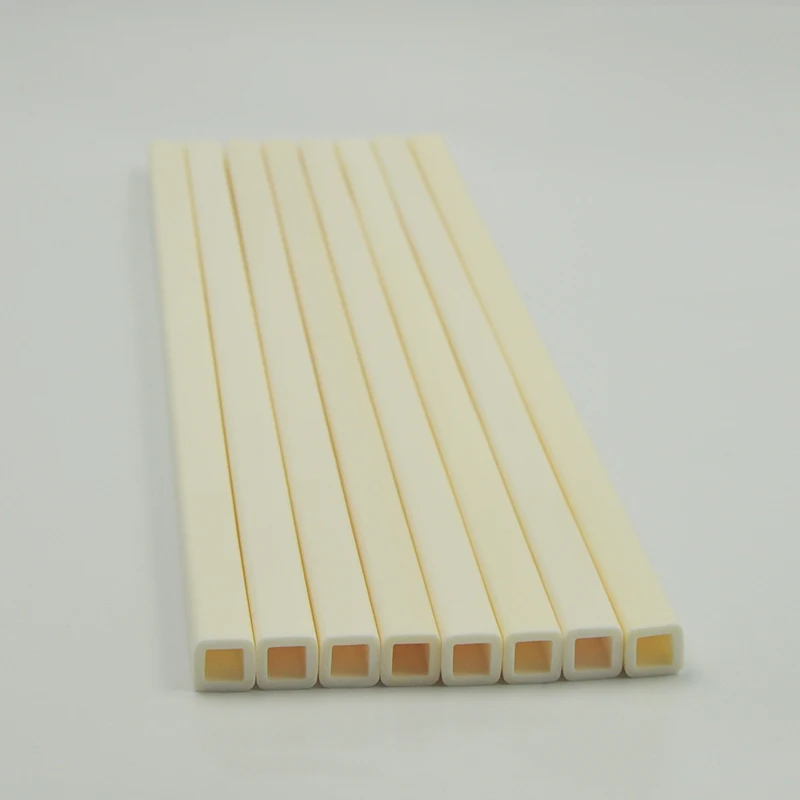

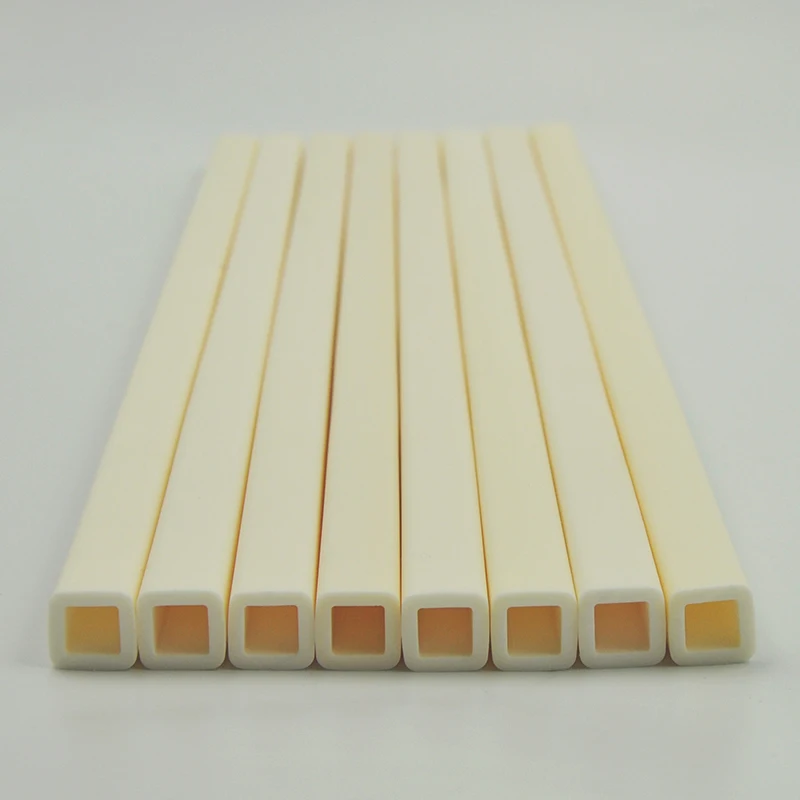

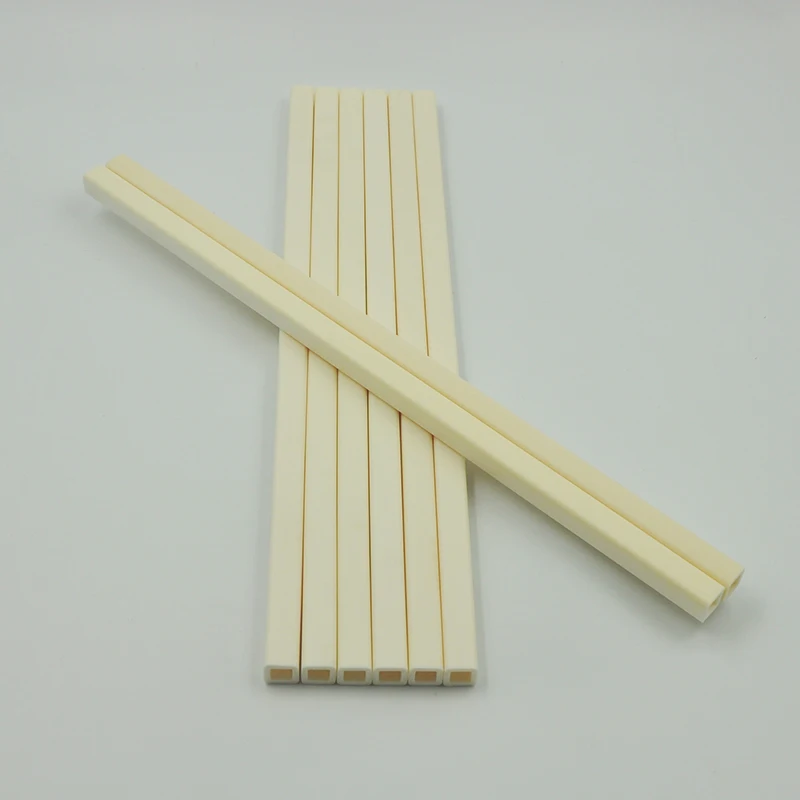

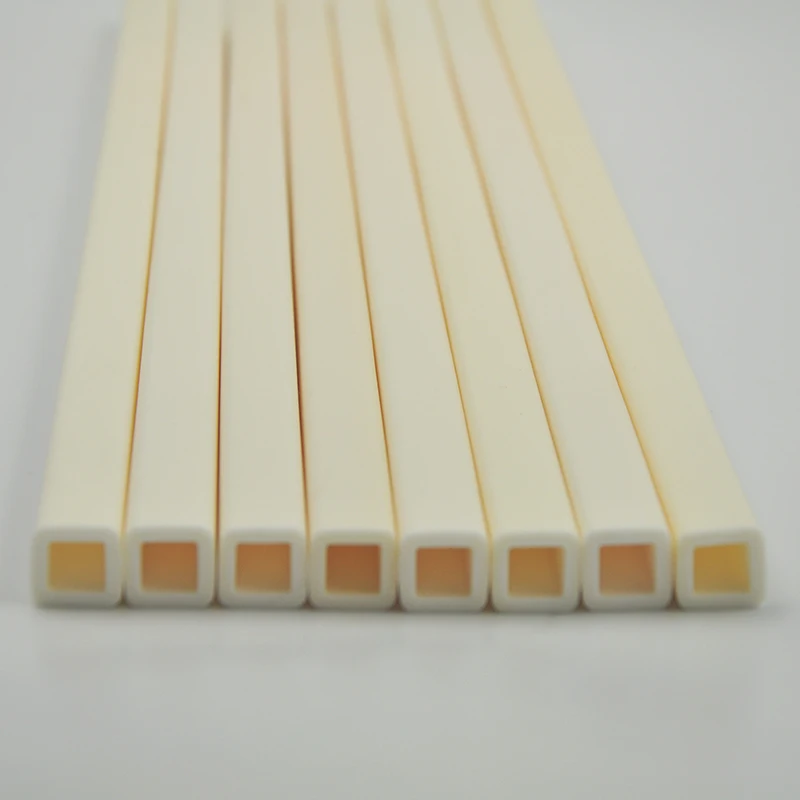

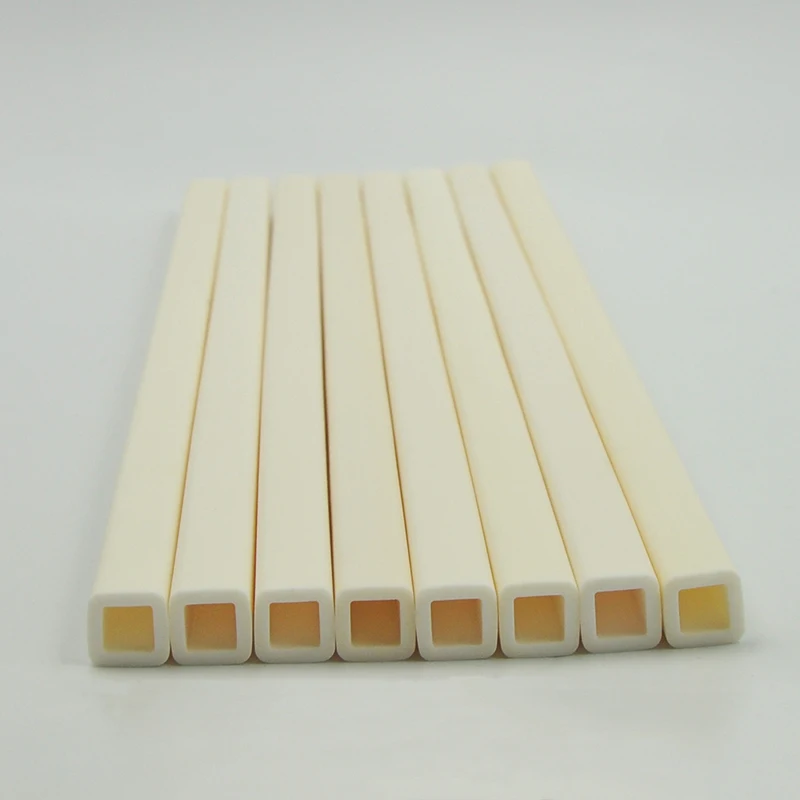

High Temperature Alumina Ceramic Square Tube for Electric Heating Products
- Category: >>>
- Supplier: Jiangsu Fist Special Ceramic Co. Ltd.
Share on (1600908393225):
Product Overview
Description
Products Description
Introduction：
Product name: Alumina Ceramic Square Tube for Corona Treaters
Color: white/Ivory
Product name: Alumina Ceramic Square Tube for Corona Treaters
Color: white/Ivory
Size: Various/ customized
Ceramic alumina tube and insulator are used in thermocouple assembly which applied for high temperature messuring.
Al2O3 content determines the measuring temperature level, Al2O3 content higher, the temperature is higher.
Alumina Tubes is the the workhorse of the advanced technical ceramic tubes. It has good mechanical and electrical properties, wear resistance and corrosion resistance. It has relatively poor thermal shock resistance.
Ceramic alumina tube and insulator are used in thermocouple assembly which applied for high temperature messuring.
Al2O3 content determines the measuring temperature level, Al2O3 content higher, the temperature is higher.
Alumina Tubes is the the workhorse of the advanced technical ceramic tubes. It has good mechanical and electrical properties, wear resistance and corrosion resistance. It has relatively poor thermal shock resistance.
Features:
-Hard, wear-resistant
-Excellent dielectric properties from DC to GHz frequencies
-Resists strong acid and alkali attack at elevated temperatures
-Excellent size and shape capability
-High strength and stiffness
-High thermal shock resistance
-Resists strong acid and alkali attack at elevated temperatures
-Excellent size and shape capability
-High strength and stiffness
-High thermal shock resistance
Application:
Mainly used in thermocouple temperature sensor, continuous temperature sensor of molten steel, various industrial furnaces (including vacuum furnace, carburizing furnace, wire winding furnace, atmosphere furnace, etc.). It is widely used in petrochemical, textile, electronics, instrumentation, machining, military and other industries. Among them, the protection tube for thermocouple temperature sensor is mainly used to protect the temperature sensor element, isolate the temperature sensor element from the outside, and reduce or prevent the element from being corroded, oxidized or damaged by external substances during use. In use, the temperature sensor element with good insulation protection is set in the protective tube, and then the open end and the coupling head are glued and sealed together with high temperature cement. When measuring temperature, insert the sealed end into the temperature sensor area, and avoid rapid cold and rapid heat when using, so as to avoid excessive damage to the protection tube.
Mainly used in thermocouple temperature sensor, continuous temperature sensor of molten steel, various industrial furnaces (including vacuum furnace, carburizing furnace, wire winding furnace, atmosphere furnace, etc.). It is widely used in petrochemical, textile, electronics, instrumentation, machining, military and other industries. Among them, the protection tube for thermocouple temperature sensor is mainly used to protect the temperature sensor element, isolate the temperature sensor element from the outside, and reduce or prevent the element from being corroded, oxidized or damaged by external substances during use. In use, the temperature sensor element with good insulation protection is set in the protective tube, and then the open end and the coupling head are glued and sealed together with high temperature cement. When measuring temperature, insert the sealed end into the temperature sensor area, and avoid rapid cold and rapid heat when using, so as to avoid excessive damage to the protection tube.
Size Specification
One End Close Open Both Ends 15*15*2.5mmOD16mmOD16mm; 16*12*2.5mmOD20mmOD20mm; 16*16*2.5mmOD25mmOD25mm. Length≤3000mm
Material | Alumina | Zirconia | Recrystallization Silicon carbide | ||||||||
Properties | Units | AL997 | AL995 | AL99 | AL95 | Zro2 | RSiC | ||||
%Alumina | -- | 99.70% | 99.50% | 99.00% | 95% | -- | -- | ||||
Color | -- | lvory | lvory | lvory | lvory&White | lvory White | black | ||||
Permeability | -- | Gas-tight | Gas-tight | Gas-tight | Gas-tight | Gas-tight | -- | ||||
Density | g/cm³ | 3.94 | 3.9 | 3.8 | 3.75 | 5.89 | 2.7 | ||||
Straightness | -- | 1‰ | 1‰ | 1‰ | 1‰ | 1‰ | 1‰ | ||||
Hardness | Mohs Scale | 9 | 9 | 9 | 8.8 | 8.5 | 9.5 | ||||
Water Absorption | -- | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | 0 | 0 | ||||
Flexural Strength (Typical 20ºC) | Mpa | 375 | 370 | 340 | 304 | 1200 | 90 | ||||
Compressive Strength (Typical 20ºC) | Mpa | 2300 | 2300 | 2210 | 1910 | 5700 | 600 | ||||
Coefficient of Thermal Expansion (25ºC to 800ºC) | 10-6/ºC | 7.6 | 7.6 | 7.6 | 7.6 | 10 | 4.7 | ||||
Dielectric Strength (5mm Thickness) | AC-kv/mm | 10 | 10 | 10 | 10 | -- | -- | ||||
Dielectric Loss 25ºC@1MHz | -- | <0.0001 | <0.0001 | 0.0006 | 0.0004 | 0.001 | -- | ||||
Dielectric Constant | 25ºC@1MHz | 9.8 | 9.7 | 9.5 | 9.2 | 29 | -- | ||||
Volume Resistivity (20ºC) (300ºC) | Ω·cm³ | >1014 2*1012 | >1014 2*1012 | >1014 4*1011 | >1014 2*1011 | >1013 5*108 | -- | ||||
Long-term operating temperature | ºC | 1700 | 1650 | 1600 | 1400 | 2200 | 1650 | ||||
Thermal Conductivity (25ºC) | W/m·K | 35 | 35 | 34 | 20 | 3 | 23 | ||||
Production Flow
Raw material
Pressing
Sintering
Polishing
QC/Inspecting
Packing
Company Introduction
Yixing City is the famous pottery capital in China. Most of Chinese ceramic industry is in Yixing. Jiangsu Fist Special Ceramic Co., Ltd is located in Yixing, established in 2016. We are also one of Alibaba's certified high-quality suppliers.
Superiorgeographical location and mature industrial chain of ceramic, we are a manufacturer specialized in developing, producing and selling ceramic materials and products which meet the market demand. We can provide professional OEM & ODM service. Our main products are alumina ceramic, zirconia ceramic, steatite ceramic, cordierite ceramic, mullite ceramic, electronic ceramic, industrial ceramic, daily ceramics, etc. With good quality, reasonable prices and stylish designs, our products are extensively used in machinery, textiles, electronics, automotive, plumbing, seal, humidification, new light source, household appliances, electric heating, solar power and other industries. Good quality and experience service win many customers including domestic and foreign. We warmly welcome new and old customers from all walks of life in the whole world to contact us for future business relationships to achieve mutual success!
Certifications
Our Service
1. We support OEM and ODM； |
2. We have professional R & D team and technical support； |
3. We provide real-time logistics update information； |
4. We have professional QC team to check the quality before delivery; |
5. Our customer service will be online 24 hours a day. |
FAQ
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock or customeriziation, it is according to quantity.
Q: How about the payment terms?
A: T/T or L/C are okay. We can negotiate.
Q: How can you get quotation?
A: Please kindly send me your drawing with technical requirement and demand quantity.
If you don't have the drawing,please kindly courier samples to us.We will quote our best price as soon as possible.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock or customeriziation, it is according to quantity.
Q: How about the payment terms?
A: T/T or L/C are okay. We can negotiate.
Q: How can you get quotation?
A: Please kindly send me your drawing with technical requirement and demand quantity.
If you don't have the drawing,please kindly courier samples to us.We will quote our best price as soon as possible.
Q: How about the shipping&package?
A: The package usually includes bubble wrap, carton, pallent, wooden case, etc. The shipping mode includes express, air and sea transportation. Both we can negotiate and choose the best way.
