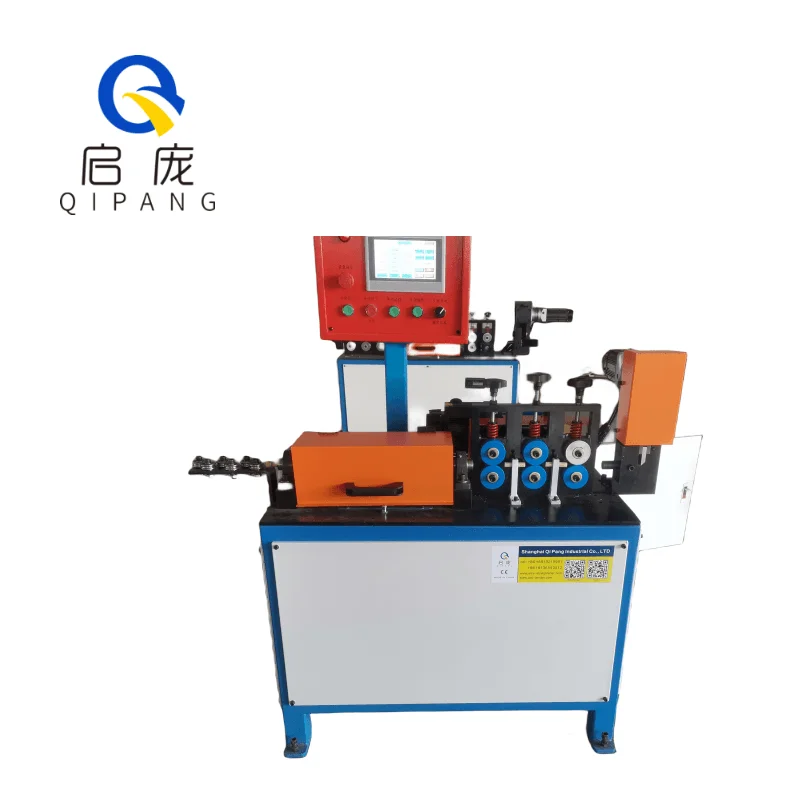

QIPANG high speed steel coil wire straightener and cutter machine wire steel metal wire straightening and cutting machine
Description:

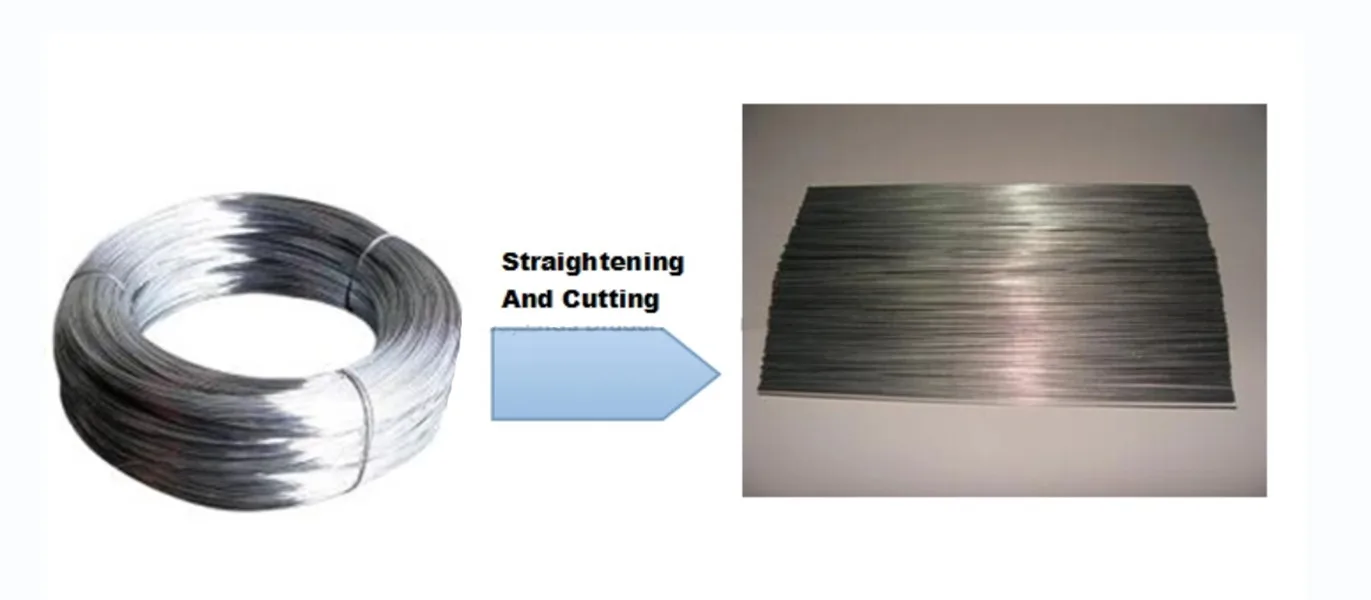

This cnc wire straightener and cutter machine can be suitable for all kinds of metal wire straightening cutting, surface, no scratches, cutting length error of 0.2-0.5 mm, the cutting length range is 80mm to 6000mm. Human-machine incorporate touch screen control system, can save manpower for the customer. Company's main range of wire 1 mm to 5 mm can be customized, fastest of up to 150 meters per minute,available for copper, iron, aluminum, gold, silver, stainless steel, high carbon steel and plastic coated wire, metal wire.If you want faster speed, please contact customer service.If you are concerned about the straightening effect, we can provide free proofing.
Specifications
Configuration parameters of automatic straightening and cutting machine:
1 two servo motors, 1.5 kw traction and 1:10 planetary reducer, cut off 1.5 kw,
2 cut off the PLC touch screen electronic CAM system,
3 servo motor brand, servo motor straightening and cutting machine,
4 fuselage length 1850mm wide 780mm total height 1300mm.It weighs about 498 kilograms,
5 the total weight of the automatic spreader is 90kg,
6. The control mode includes inverter analog control system,
7. Minimum diameter: 250mm; maximum diameter: 500mm,
8 the weight of the spreader is about 90kg.
Specifications
Configuration parameters of automatic straightening and cutting machine:
1 two servo motors, 1.5 kw traction and 1:10 planetary reducer, cut off 1.5 kw,
2 cut off the PLC touch screen electronic CAM system,
3 servo motor brand, servo motor straightening and cutting machine,
4 fuselage length 1850mm wide 780mm total height 1300mm.It weighs about 498 kilograms,
5 the total weight of the automatic spreader is 90kg,
6. The control mode includes inverter analog control system,
7. Minimum diameter: 250mm; maximum diameter: 500mm,
8 the weight of the spreader is about 90kg.
Type and wire diameter: | QP-φ0.2-1mm | QP-φ1-6mm | QP-φ7-12mm | ||
Cutting range: | 10mm – 99999mm cnc wire straightener and cutter machine | ||||
Max cutting speed: | 200pcs/min 400 pcs/min | ||||
Wire feeding speed: | 20-60m/min | 20-80m/min | 20-60m/min | ||
Length error: | ±0.2mm cnc wire straightener and cutter machine ±0.2mm for uniform speed | ||||
Wire material: | Common carbon steel wire and stainless steel wire | ||||
Accessories: | Withdrawable wire rack, Movable receiving pocket, Recommended automatic wire rack for lines above 3.0 | ||||
Feeding stand: | 1000*300*150 cnc wire straightener and cutter machine | ||||
Feeding motor: | 2.0kw servo motor cnc wire straightener and cutter machine | ||||
Straightening motor | Custom adjustable speed motor 3KW/2880r | ||||
Cutting shear motor: | 2.8KW Cut off servo motor cnc wire straightener and cutter machine | ||||
Rail module: | Nextron straightening and cutting machine | ||||
Number of feeding rollers: | 2 group (4 pairs rollers) cnc wire straightener and cutter machine | ||||

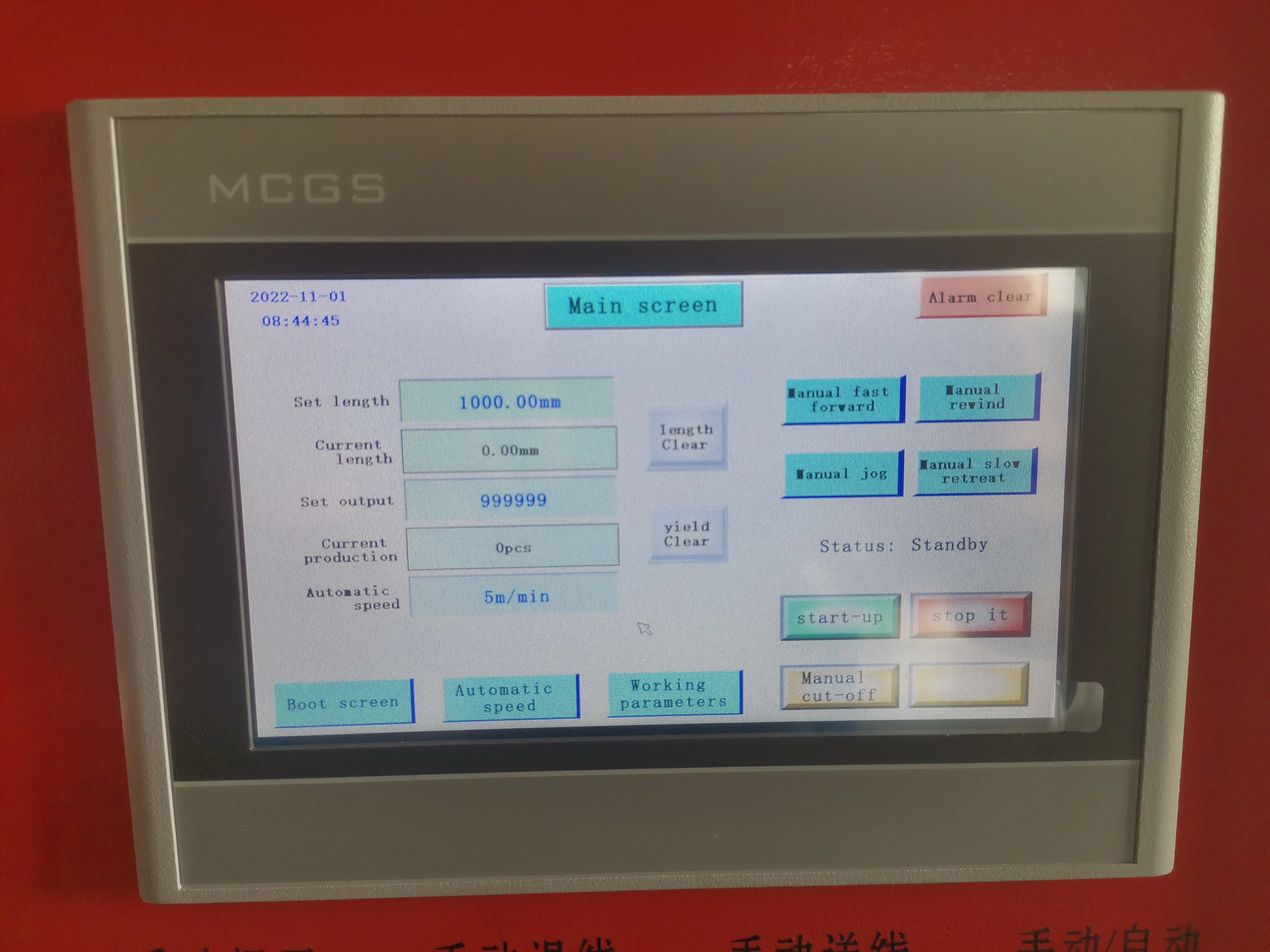

HMI: | 7 inch touch screen cnc wire straightener and cutter machine | ||||
Number of straightening rollers: | 8 pcs cnc wire straightener and cutter machine | ||||
Material of shear: | Cr12 Steel, partly made by Nextron cnc wire straightener and cutter machine | ||||
Electric box brand: | Relay—IDEC, contactor--CHINT switching power supply—DELTA, Motion Controller—Guangzhou shifu | ||||
Measurement(length*width*height) | 1700*700*1350（mm) cnc wire straightener and cutter machine | ||||

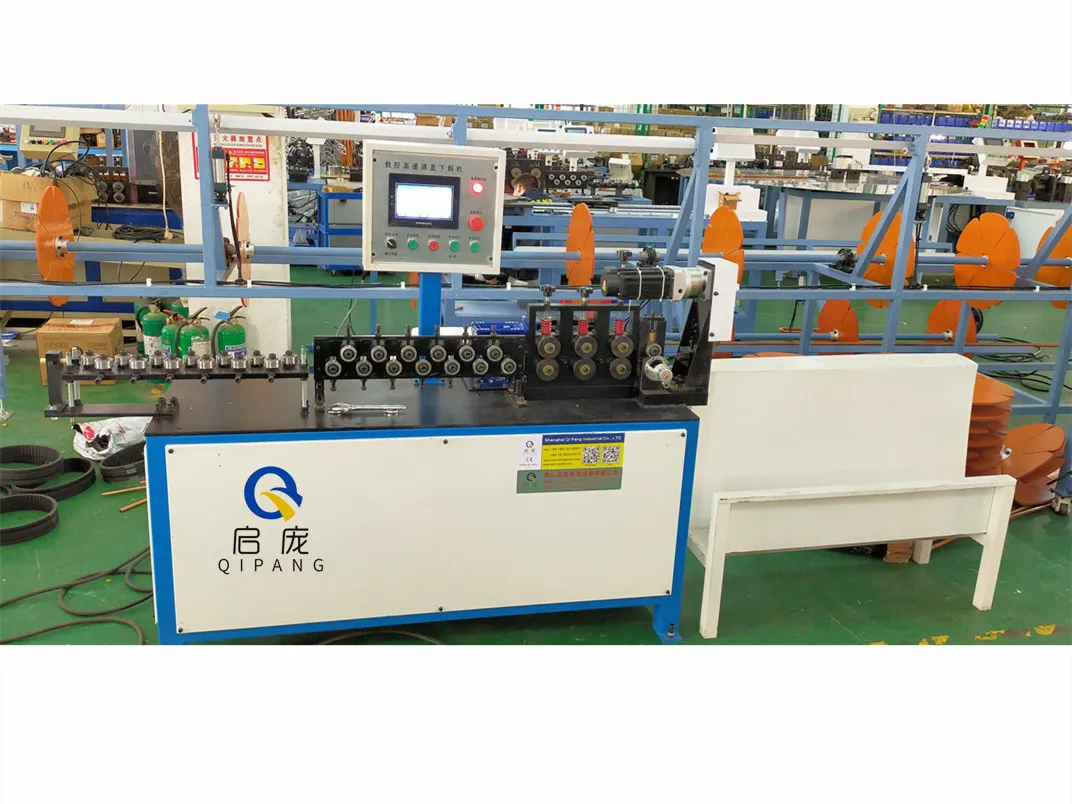

Detailed Images
