Solar Enphase Micro Inverter Mother Board 3500w Solar Inverter 3.5kva
- Category: >>>
- Supplier: Sunboost Technology Co. Ltd.
Share on (1600908433590):
Product Overview
Description
Product Description

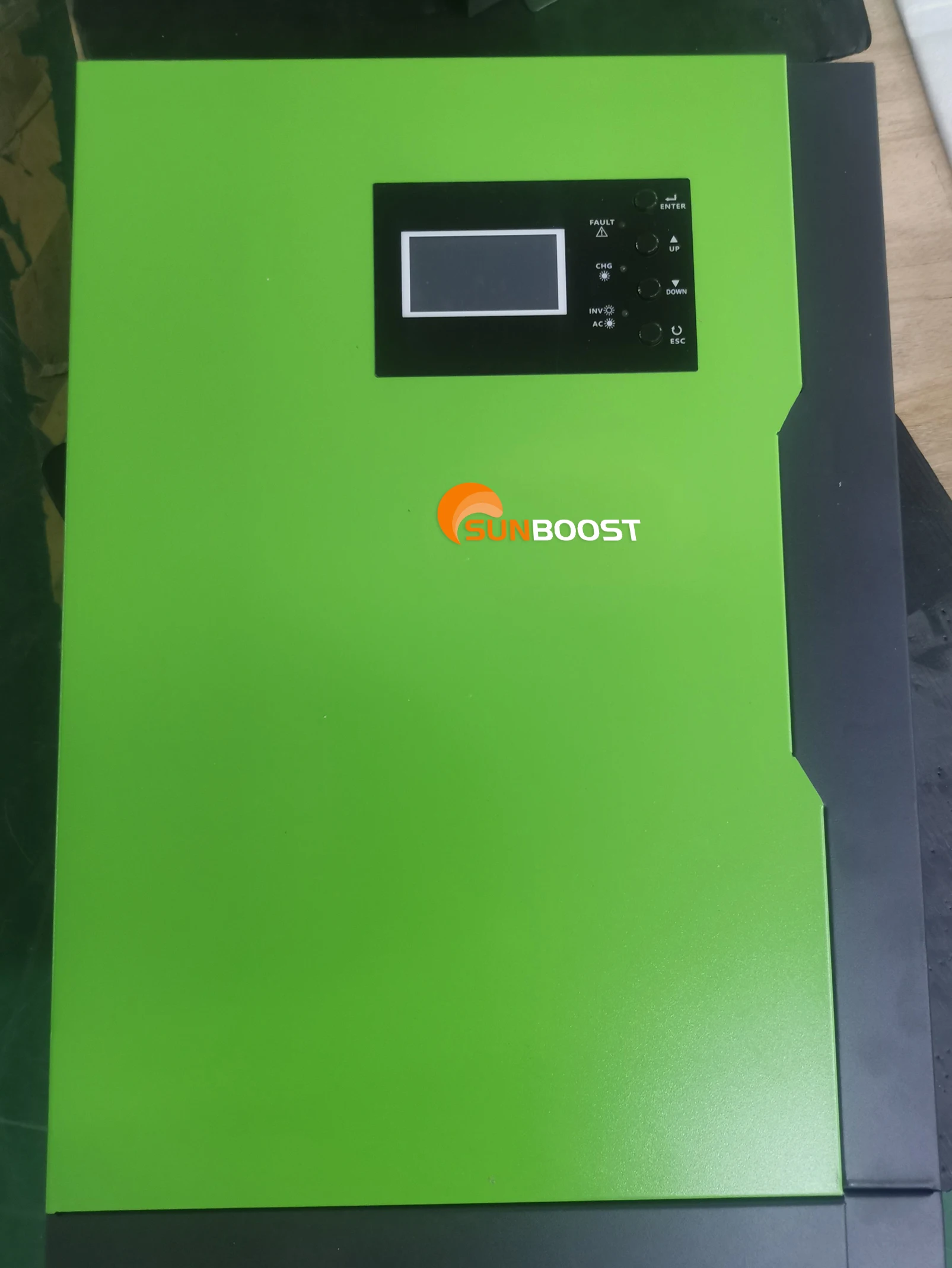

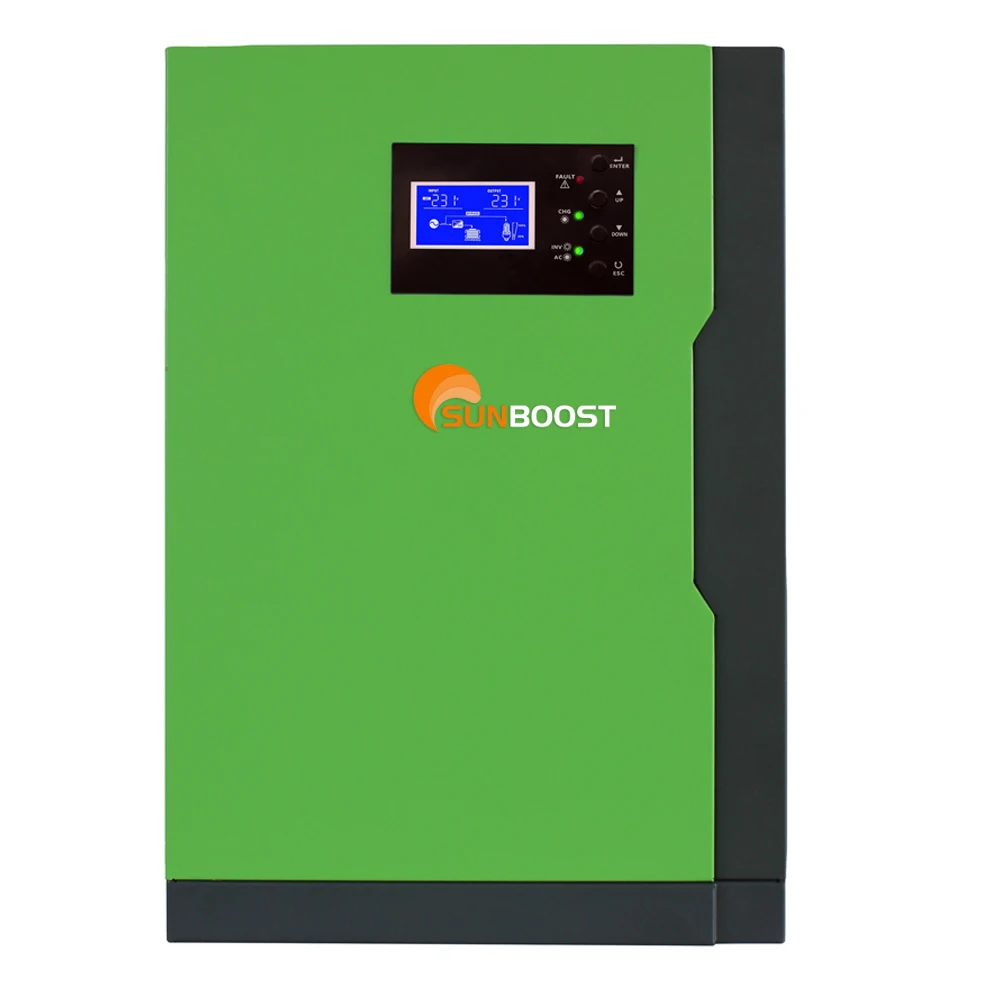

Solar Enphase Micro Inverter Mother Board 3500w Solar Inverter 3.5kva
1. Pure Sine wave solar inverter2..Output power factor 1
3. High PV output voltage range 120-450V
4. Battery equalization function to optimize battery performance and extend life-cycle
5. Built-in anti-dust kit for harsh environment
6. Supporting working without battery.
3. High PV output voltage range 120-450V
4. Battery equalization function to optimize battery performance and extend life-cycle
5. Built-in anti-dust kit for harsh environment
6. Supporting working without battery.
Specification
Model | SC-VM II PLUS 3.5KW-24V | VM II Plus 5.5KW-48V | |||||
Rated Power | 3500VA/3500W | 5500VA/5500W | |||||
Input | |||||||
Voltage | Voltage | ||||||
Voltage Range | 170-280VAC for Personal Computer 90-280VAC for Home Appliances | ||||||
Frenquncy Range | 60/50Hz (Auto sensing) | ||||||
AC Voltage Regulation (Bat Mode) | 230VAC ± 5% | ||||||
Surge Power | 6000VA | 10000VA | 8000VA | 14000VA | |||
Efficiency (peak) | 90%-93% | ||||||
Transfer Time | 10ms for Personal Computer; 20ms for Home Appliances | ||||||
Waveform | Pure sine wave | 27VDC | 27VDC | 54VDC | |||
Battery | |||||||
Battery Voltage | 24VDC | 48VDC | |||||
Floating Charging Voltage | 27VDC | 54VDC | |||||
Overcharge Protection | 33VDC | 63VDC | |||||
Solar Charger & AC Charger | |||||||
Solar Charger Type | MPPT | ||||||
Max PV Array Open Circuit Voltage | 500VDC | 500VDC | |||||
Max PV Array Open Circuit Power | 5000W | 500VDC | |||||
MPPT Range @Operating Voltage | 120-450VDC | 120-450VDC | |||||
Maximum Solar Charge Current | 100A | 100A | |||||
Maximum AC Charge Current | 100A | 100A | |||||
Maximum Charge Current | 100A | 100A | |||||
Physical | |||||||
Dimension (L*W*H) mm | 100*300*400mm | ||||||
Net Weight (kgs) | 10 kg | 10.5 kg | |||||
Communication Interface | USB / RS232 | ||||||
Environment | |||||||
Humidity | 5%-95% Relative Humidity (Non-condending) | ||||||
Operation Temperature | －10℃ to 50℃ | ||||||
Storage Temperature | —15℃ to 60℃ | ||||||
Standard | |||||||
Compliance Safety | CE | ||||||
Company Introduction
Sunboost is a professional in the research and development of solar inverters with dedicated R&D team in the industry and a broad product portfolio offering PV inverter solutions and energy storage systems for utility-scale, commercial & industrial, and residential applications,
Sunboost is an industry-leading hybrid inverter manufacturer with over 15 years of experience in R&D and manufacturing. We provide standardized hybrid inverters, residential energy storage, microgrid, and grid-side energy storage, and ODM services.
Sunboost is an industry-leading hybrid inverter manufacturer with over 15 years of experience in R&D and manufacturing. We provide standardized hybrid inverters, residential energy storage, microgrid, and grid-side energy storage, and ODM services.
Production SMT Line PCB Testing Line
PCB Testing line Prouct testing line
Assembling Line 1 Assembling Line 2
