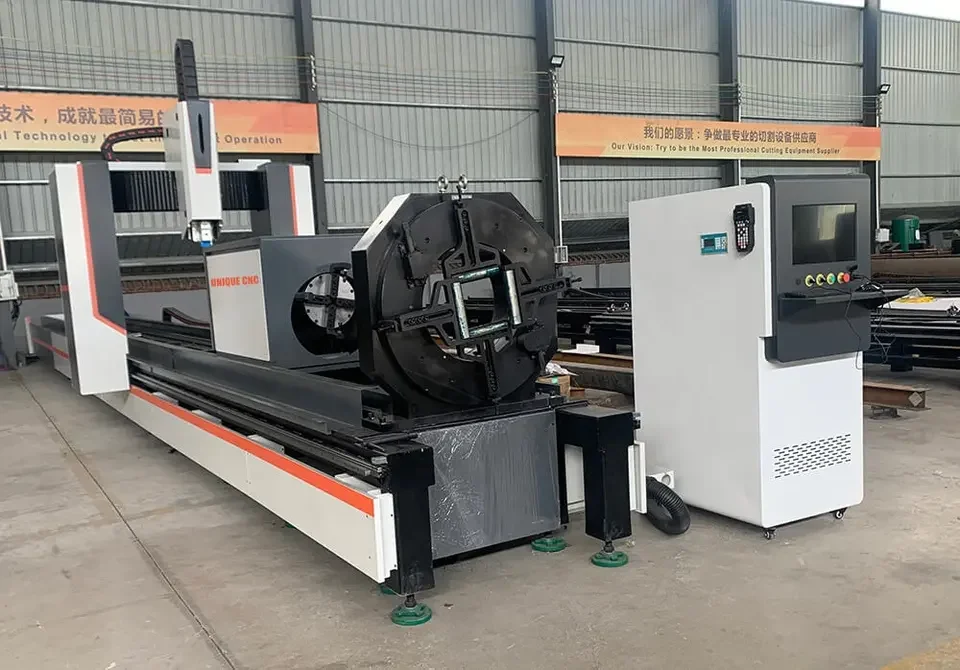

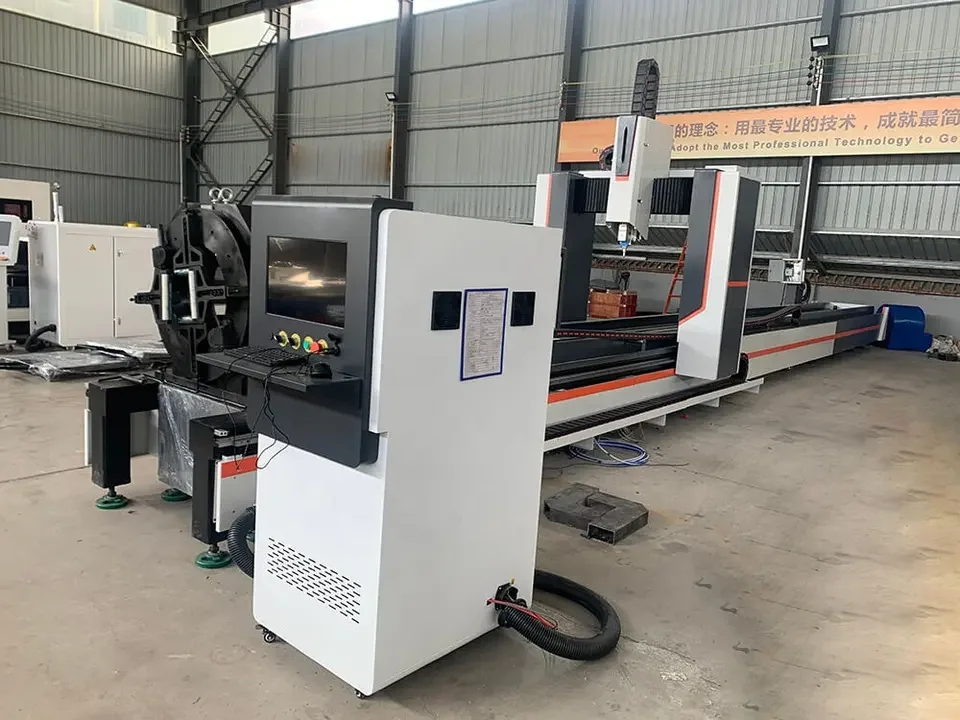

Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00
Fiber laser metal cutter Heavy duty laser fiber cutter high precision fiber laser cutter tube with Gear racks rails
- Category: >>>
- Supplier: Jinan Unique Cnc Equipment Co. Ltd.
Share on (1600908434666):
Product Overview
Description
Fiber laser metal cutter Heavy-duty laser fiber cutter high precisio

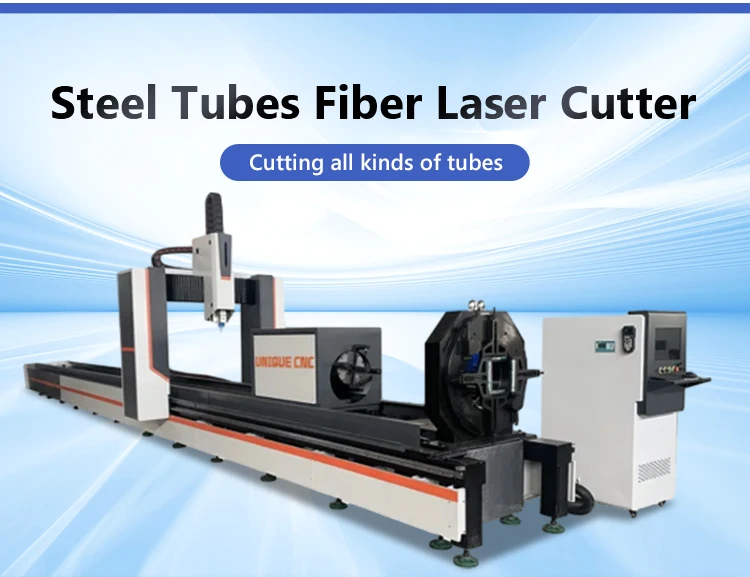

Advantages of Unique CNC Tubes Fiber Laser Cutting Machines:
* Not only cut normal round and square tubes, but also angle steel, channel steel and H beam,etc.
* Designed for large sizes steel pipes. Cutting length 6-12M while diameter can reach 800mm at most.
* Heavy-duty structure, quenching treatment, no deformation, high precision. Machine weight more than 6000kg.
* Rear chuck automatic feeding.
* Machine adopts 21-inch high-resolution LCD color monitor, which can display the cutting graphics and cutting running track, key operation mode, supports U disk to transfer files, and it is able to edit the cutting program manually.
* Save tail material (the tail material can be controlled in 3-5CM), can be retrofitted with a special intelligent support, to prevent the long material sagging.
* Machines use high efficiency servo motor drive, fast speed, high efficiency, high precision and smooth running.
* Adopt high flexible shielded wire, resist high frequency interference.
* Designed for large sizes steel pipes. Cutting length 6-12M while diameter can reach 800mm at most.
* Heavy-duty structure, quenching treatment, no deformation, high precision. Machine weight more than 6000kg.
* Rear chuck automatic feeding.
* Machine adopts 21-inch high-resolution LCD color monitor, which can display the cutting graphics and cutting running track, key operation mode, supports U disk to transfer files, and it is able to edit the cutting program manually.
* Save tail material (the tail material can be controlled in 3-5CM), can be retrofitted with a special intelligent support, to prevent the long material sagging.
* Machines use high efficiency servo motor drive, fast speed, high efficiency, high precision and smooth running.
* Adopt high flexible shielded wire, resist high frequency interference.

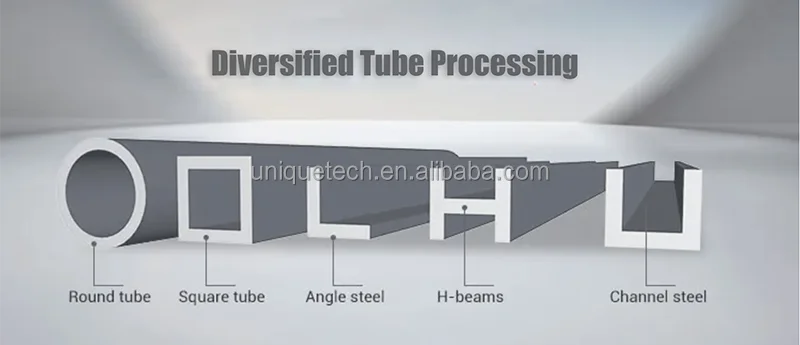

Applications of Tubes Fiber Laser Cutting Machine:

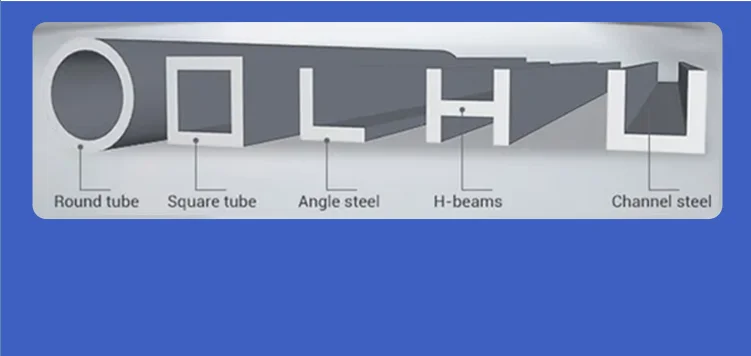

Unique CNC 5 Axis fiber laser tube cutting machines can easily cut various tubes. It can cut round pipes, square pipes, rectangular pipes, angle steel, channel steel, H-shaped steel and other profiles.
Machine | Tubes Fiber Laser Cutting Machine |
Cutting materials | Various shapes steel and aluminum |
Max.Cutting length | 6/12M |
Max.cutting diameter options | 320mm/420mm/500mm/600mm/800mm |
Cutting machine axis | 5 axis |
Transmission system | Gear racks+rails |
Driving motors | Servo |
X.Y maximum moving speed | 60m/min |
X, Y axis positioning accuracy | ±0.03/1000mm |
X, Y, Z axis repeat positioning accuracy | ±0.03/1000mm |
Cutting precision | 0.1-0.5mm |
Acceleration | 1.0G m/s² |
Fiber laser source | Max/Raycus/IPG 1000W-12000W |
Cutting thickness | Depends on different fiber source and materials |
Working voltage | 220V/380V |
Machine weight | More than 6000kg (12m length machines) |

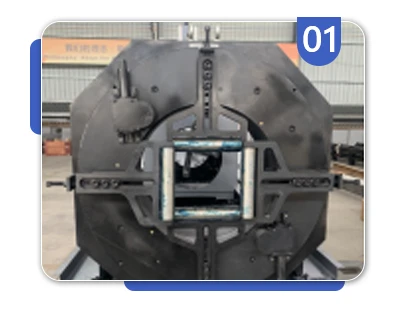

Heavy-duty and intelligent chucks
For standard machines, front chuck is manual type while rear chuck is pneumatic type. Both sides of the clamping can find the center of the pipes automatically. When the steel tubes are non-standard, the size will have a certain deviation, the manual chuck is more close to the pipe, to ensure cutting precision.

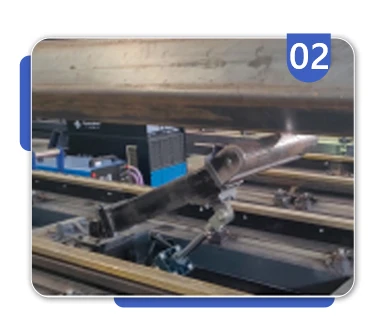

Pneumatic supports
Support the heavy metal tubes,especially long tubes.Steel structure, heavy-duty and rigid

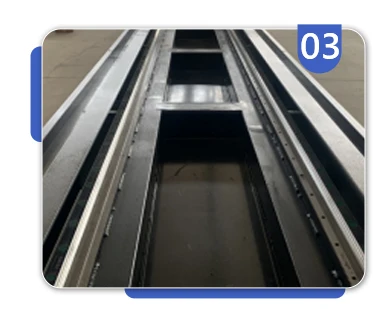

Strong Steel Base and high
precision transmit
precision transmit
This machine features an all -steel frame, which is stress relieved to ensure the highest quality and no deformation.Famous brand top quality guide rails and rack.

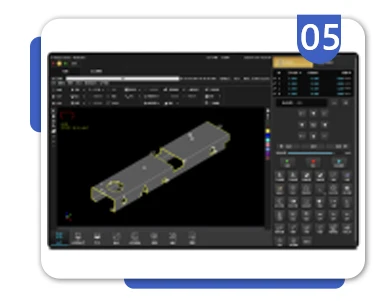

Professional Tubes Cutting Controller
File speed setting supports line speed and synthesized speed.
The power clamp displays the maximum size of the machining pattern, which is intuitive and convenient.
Graphics can be zoomed in and out.
The power clamp displays the maximum size of the machining pattern, which is intuitive and convenient.
Graphics can be zoomed in and out.

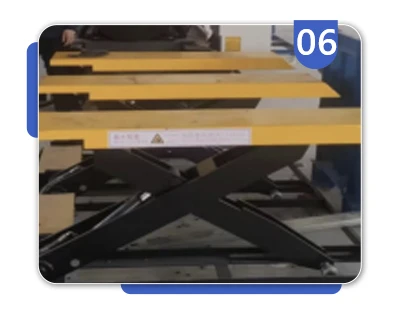

Receiving table
Capacity: 3 tons
Hydraulic type
Hydraulic type
Unique CNC Fiber laser cutting machines are used in various industries, such as fitness equipment manufacturing, automobile manufacturing, medical equipment manufacturing, kitchenware and bathroom, steel and wood furniture, tubes fabrication, etc.
After-sales service
We have a strong after-sales service team, which visits our customers regularly to provide customers with good after-sales service.
*The fiber laser cutting machine is guaranteed for 2 years, except for wearing parts;*Provide various support of metal cutting;
*Fast spare parts and technical support;
*Detailed manuals.
Product categories
Our Advantages
01 Professional Advantage
Nearly 13 years of professional production and export experience. Cooperation with the largest customers from some countries.
02 Quality Assurance
All the products have the cetificate of ISO and CE approval, Guaranteed quality.
03 Fast Delivery
There are a large number of products in stock, so generally we can ship goods in about 3-5 days.
04 Price Advantage
Good quallity, resonable price, on time shipping and best service for each customers.
05 Customized Service
Tailor-made for each customer's requirements.
06 After-Sale Advantages
Long time guarantee period and 24 hours online service.
Our certificate

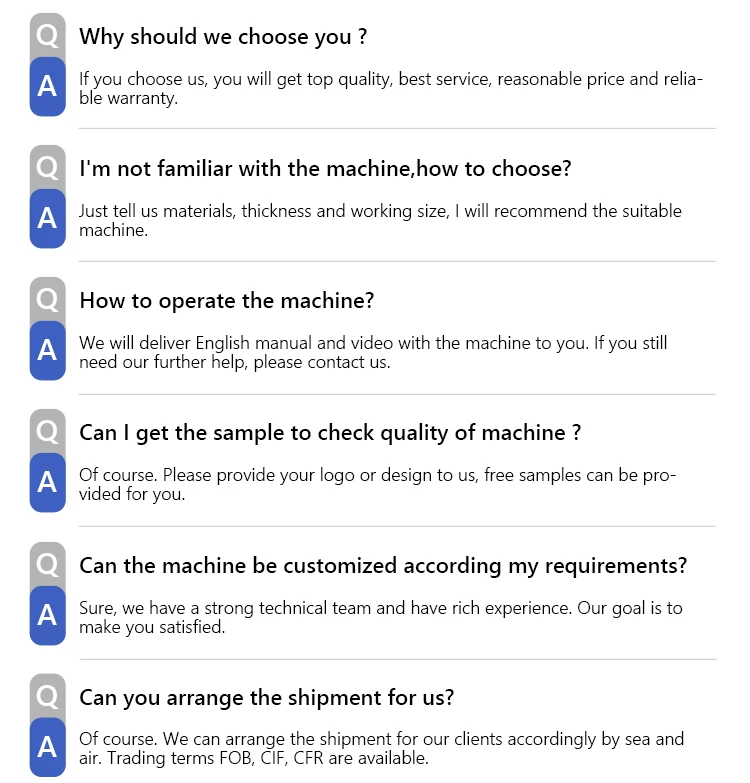

FAQ
Q Why should we choose you ?
A If you choose us, you will get top quality, best service, reasonable price and reliable warranty.
Q I'm not familiar with the machine,how to choose?
A Just tell us materials, thickness and working size, I will recommend the suitable machine.
Q How to operate the machine?
A We will deliver English manual and video with the machine to you. If you still need our further help, please contact us.
Q Can I get the sample to check quality of machine ?
A Of course. Please provide your logo or design to us, free samples can be provided for you.
Q Can the machine be customized according my requirements?
A Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
Q Can you arrange the shipment for us?
A Of course. We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, CFR are available.
