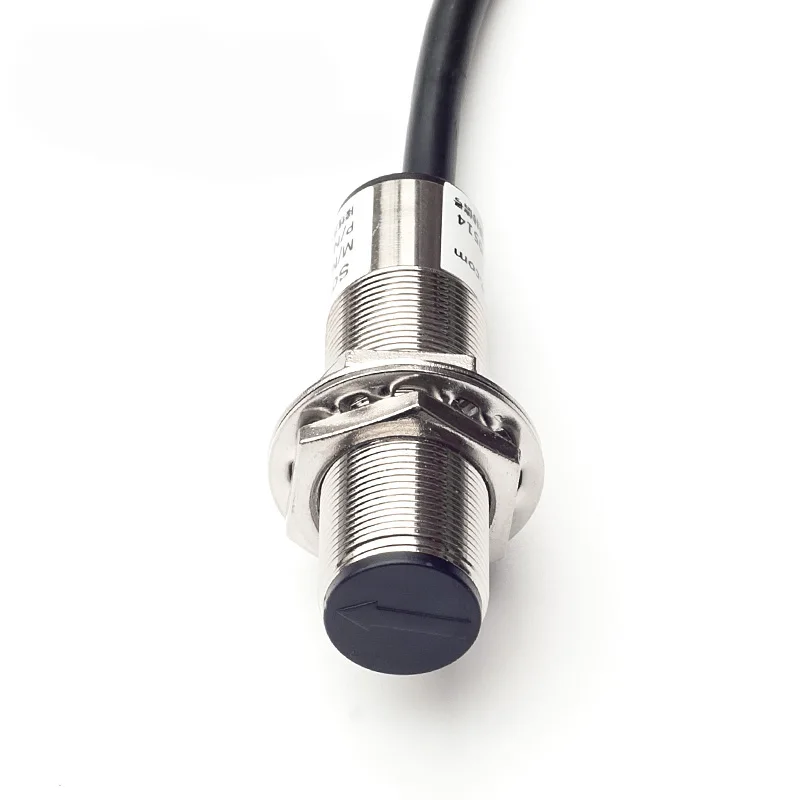

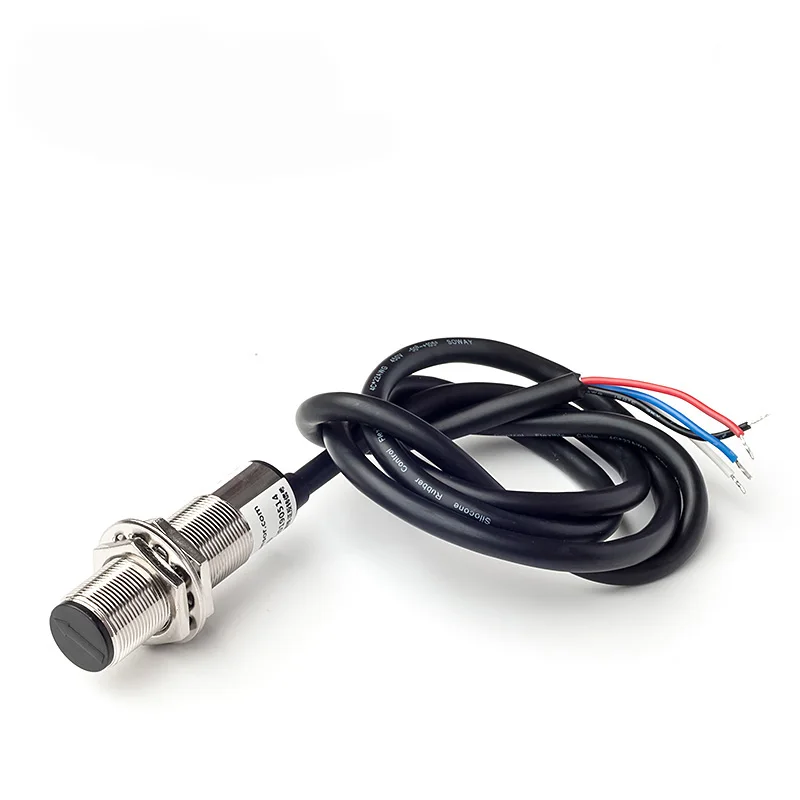

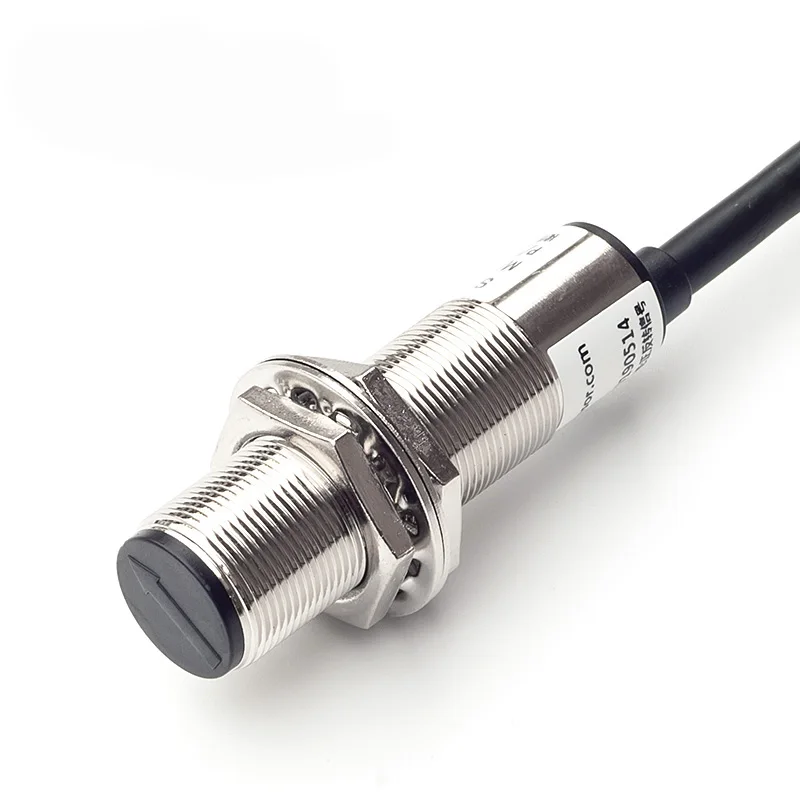

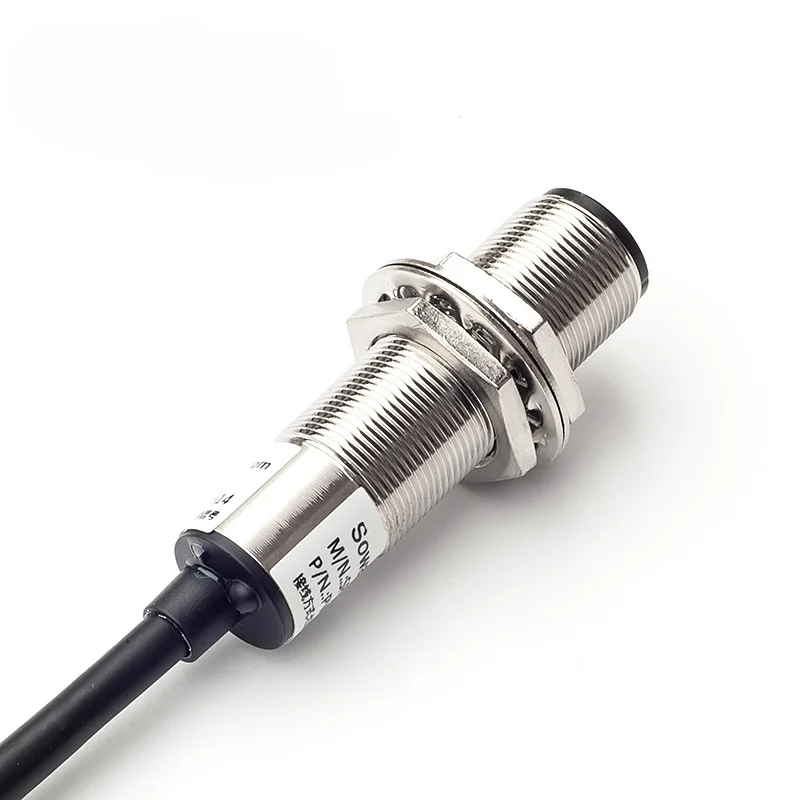

SPH318 Series Analog Digital Type 5 VDC Generator Truck Forward Reverse Rotation RPM Speed Sensor For Equipment Speed Detection
- Category: >>>
- Supplier: Shenzhen Perfect Precision Product Co. Ltd.
Share on (1600908485072):
Product Overview
Description
Typology | SPH318 Series Analog Type | SPH318 Series Math Type | |||||
Supply Voltage | 5~28V DC | 5V DC | |||||
Detection Distance | 5~10mm（Mounting distance） | ||||||
Operating Temperature | -20°C~+80°C , Humidity ≤ 90% | ||||||
Output Method | Open collector output | RS485(Modbus ASCII) | |||||
Frequency | 10K HZ | ||||||
Signal State | Line 2 (blue) output high and low level signals, representing the direction of rotation, the initial state in the positive rotation when the output is low, the green light is on, the direction of positive rotation in the direction of the arrow is the same. When it is reversed, it is high level, red light is on, and the direction of reversal is opposite to the direction of arrow. Line 4 (white) output speed pulse signal, square wave signal, standard with 2 magnets, rotate 1 circle output 1 pulse. Note: For numerical output value, please refer to the communication protocol. | ||||||
Protection Level | IP65 | ||||||
Seismic Capacity | Compound amplitude 1.5mm 10~50Hz (2 hours in each direction X , Y, Z) | ||||||
Accessories | The complete set includes one set of forward and reverse speed sensor, 2 magnets, and 1 mounting bracket. | ||||||

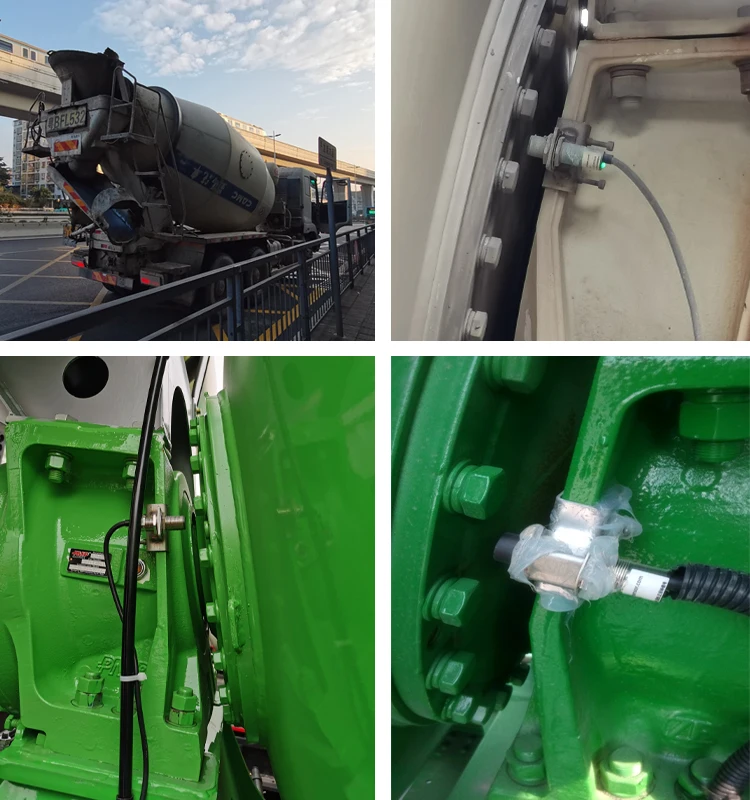

Application
Factory display
Shenzhen Perfect Precision Products Co., Ltd. is precision engineering manufacturer located in South China Shenzhen, specializing
in the supply of high quality sensor, We are a group company setting R&D, manufacture, sales and service as one.
We have rich experience in many industries and we are proud to work closely with our customers to enhance their products.
We feature an experienced engineering team with IATF16949& ISO 9001:2015 quality system that is adaptable enough to cater for
one-off prototypes through to production in volume. Our dedicated “Planning and Estimating Team' can evaluate and price all your
requirements in a timely fashion. Always based on perfect quality and good service, we are highly praised by foreign investors.
We sincerely welcome you and look forward to cooperating with you for a bright future.
in the supply of high quality sensor, We are a group company setting R&D, manufacture, sales and service as one.
We have rich experience in many industries and we are proud to work closely with our customers to enhance their products.
We feature an experienced engineering team with IATF16949& ISO 9001:2015 quality system that is adaptable enough to cater for
one-off prototypes through to production in volume. Our dedicated “Planning and Estimating Team' can evaluate and price all your
requirements in a timely fashion. Always based on perfect quality and good service, we are highly praised by foreign investors.
We sincerely welcome you and look forward to cooperating with you for a bright future.
Certifications
Our Advantages
FAQ
1. Q: What payment method your company accepts?
A: We accept T/T (Bank Transfer), Western Union, Paypal, Alipay, Wechat pay, L/C accordingly.
2. Q: How long for the production time?
A: For the in stock products, we usually take about 7~10 days, it still depends on order quantity.
3. Q: You said we can use our own logo?
A: Yes, we support customized logo.
4. Q: How long for delivery?
A: Usually take 3-7 days on delivery via express shipping methods.
5. Q: How do you control the quality?
A: We accept T/T (Bank Transfer), Western Union, Paypal, Alipay, Wechat pay, L/C accordingly.
2. Q: How long for the production time?
A: For the in stock products, we usually take about 7~10 days, it still depends on order quantity.
3. Q: You said we can use our own logo?
A: Yes, we support customized logo.
4. Q: How long for delivery?
A: Usually take 3-7 days on delivery via express shipping methods.
5. Q: How do you control the quality?
A: (1)Material inspection--Check the material surface and roughly dimension.
(2)Production first inspection--To ensure the critical dimension in mass production.
(3)Sampling inspection--Check the quality before sending to the warehouse.
(4)Pre-shipment inspection--100% inspected by QC assistants before shipment.
6. Q: What will you do if we receive poor quality parts?
A: Please kindly send us the pictures, our engineers will find the solutions and remake them for you asap.
7. Q: How can I make a order?
A: You can send a inquiry to us, and you can tell our what's your requirement, then we can quote for you ASAP.
(2)Production first inspection--To ensure the critical dimension in mass production.
(3)Sampling inspection--Check the quality before sending to the warehouse.
(4)Pre-shipment inspection--100% inspected by QC assistants before shipment.
6. Q: What will you do if we receive poor quality parts?
A: Please kindly send us the pictures, our engineers will find the solutions and remake them for you asap.
7. Q: How can I make a order?
A: You can send a inquiry to us, and you can tell our what's your requirement, then we can quote for you ASAP.
