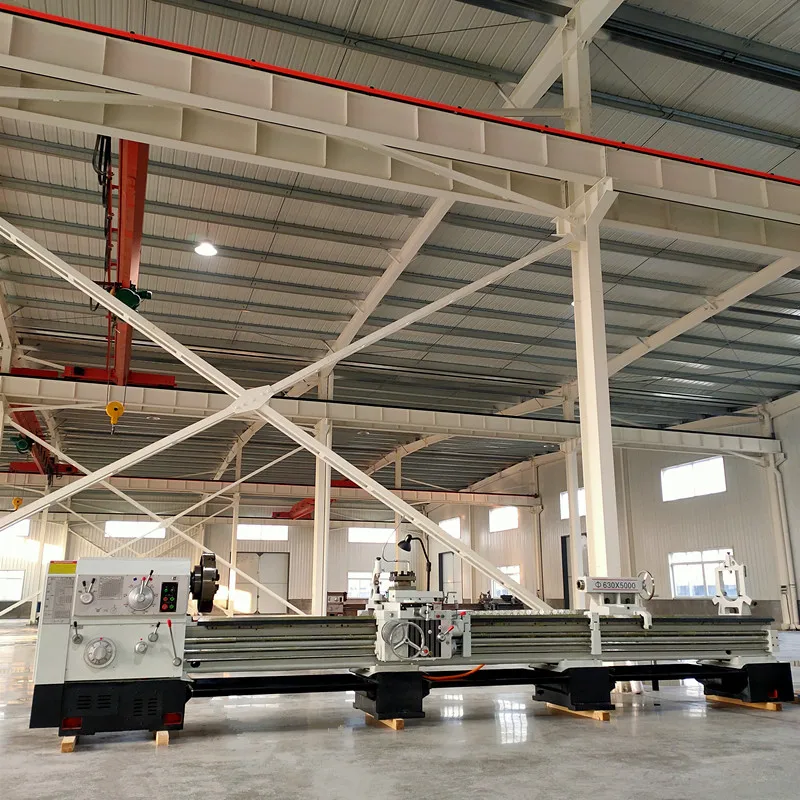

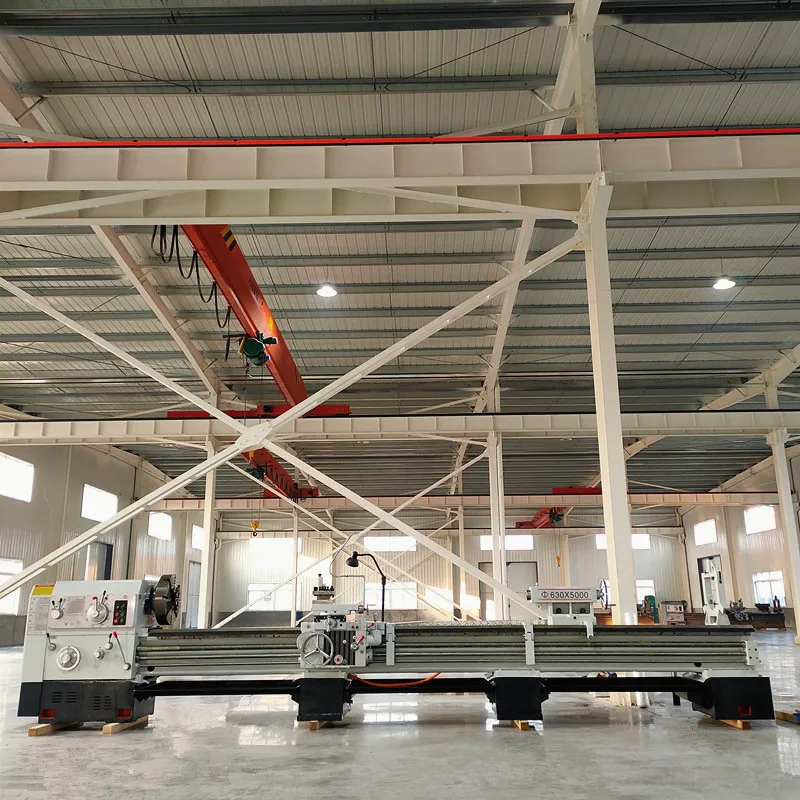

CW6163x5000 New price China for metal Heavy duty Lathe Turning Machine universal lathe machine
- Category: >>>
- Supplier: Shanghai Ants Machine Equipment Co. Ltd.
Share on (1600908489489):
Product Overview
Description
Professional industrial Lathe mathines machinery and tooling machines exporter
Project | Unit | CW6163*5000 | ||
Swing over bed | mm | 630 | ||
The max swing over the tool post | mm | 350 | ||
Max workpiece length | mm | 5000 | ||
Diameter of spindle through hole and type of spindle head | mm | 105，C11 | ||
Diameter and tip taper of spindle front end taper | mm | 120, Morse No.6 | ||
Spindle speed series and range | r/min | 7.5-1000 (18 species) | ||
Number and range of feed | Range 1：1 | mm/r | 0.06-1.52 (32 species) | |
Range 16：1 | 1.6-24.3 (32 species) | |||
Micro feed range with exchange gear | mm/r | 0.06-0.912 | ||
Ratio of transverse feed rate to longitudinal feed rate | — | 1/2 | ||
Screw pitch of machine tool lead screw | mm | 12 | ||
Thread type and range | Metric thread | mm | 1-240 (50 species) | |
Inch screw thread | tpi | 14-1 (26 species) | ||
Module thread | mm | 5-120 (53 species) | ||
Diametral pitch thread | tpi | 28-1 (24 species) | ||
Max lateral travel of lower tool rest | mm | 315 | ||
Max stroke of upper tool rest | mm | 200 | ||
Travel of bed tail sleeve | mm | 250 | ||
Taper of bed end sleeve | — | Mo's No.6 | ||
Width and quenching hardness of bed guide rail | mm | 550 RC52 | ||
Hardness of bed guide rail | RC | 52 | ||
Main motor power | kW | 11 | ||
Fast motor power | kW | 1.1 | ||
Cooling pump motor power | kW | 0.9 | ||
Lathe weight | kg | 6000 | ||
Outline dimension of machine tool (length × width × height) | mm | 7100×1380×1450 | ||
ABOUT US
ANTS Machine is a leading Chinese industrial lathe machinery andtooling machines supplier, located in the downtown of Shanghai City.Since our company was founded, based on the advantage of BOCHI which is the No.1 Chinese machine tool manufacturer, we continuallyintroduce top Chinese lathe machinery enterprises and their productsto international markets and export them to approximately 30countries and several regions across the globe, such as BOCHI,Shanghai Machine Tool, SPARK etc. Today we stand tallamidst a number of competitors across the world.
