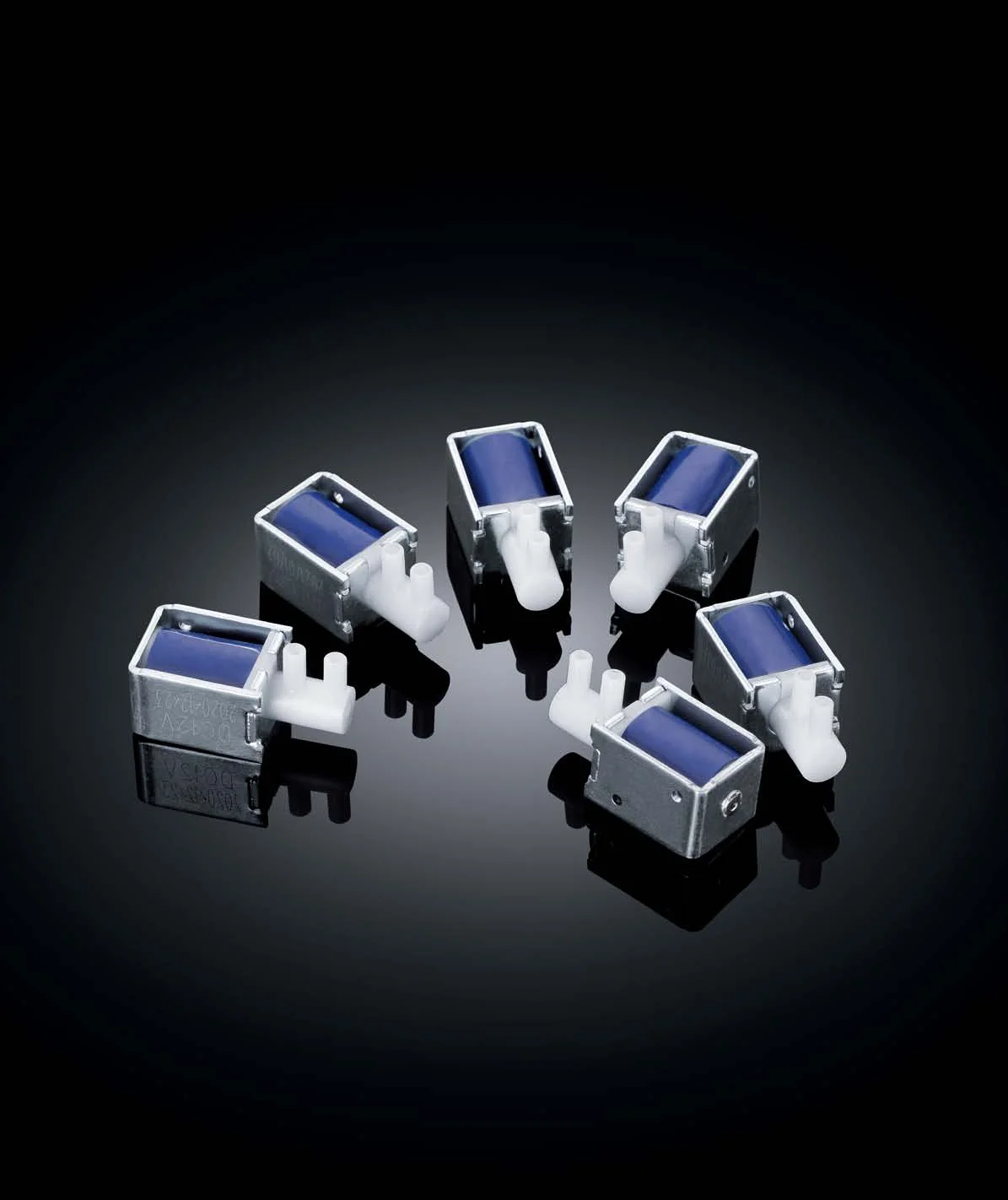

High Performance Standard Flow 12v Normally Closed Type Mini Pneumatic Solenoid Valve
- Category: >>>
- Supplier: Ningbo JD Pump&Valve Co Ltd.
Share on (1600908497437):
Product Overview
Description
Products Description
PRODUCT FEATURES
• Single valve design with compact size, space-saving.
• Precision structural design，nice appearance.
• Unique silencer structural design，low operation noise.
• Electrical performance is safe and reliable.
• Stable pressure and air flow output, steadily and evenly on air inlet outlet.
• Long service life, the valve could work more than 1 million times without abnormal condition.
• Materials of product meet EU ROHS environmental protection requirements
• Precision structural design，nice appearance.
• Unique silencer structural design，low operation noise.
• Electrical performance is safe and reliable.
• Stable pressure and air flow output, steadily and evenly on air inlet outlet.
• Long service life, the valve could work more than 1 million times without abnormal condition.
• Materials of product meet EU ROHS environmental protection requirements
Product Paramenters
Conventional Voltage | DC3.7V | DC 12V | |
Service Voltage Range | DC 3.0V-4.4V | DC 10.8V-14.4V | |
Load Current | 185±10%mA | 80±10%mA | |
DC Resistance | 150Ω±10% | 150Ω±10% | |
Pressure range | MAX350mmHg | MAX350mmHg | |
Standard flow | ≥ 20L/Min | ≥ 20L/Min | |
Leakage | ≤2Kpa/Min | ||
Work Noise | ≦ 55dB | ≤ 53dB | |
Use form | Normally closed | Normally closed | |

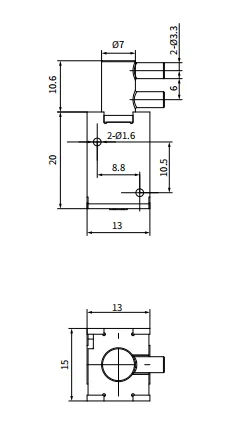

Interface diameter | φ3.3MM | φ3.3MM | |
Insulation Grade | E level | ||
