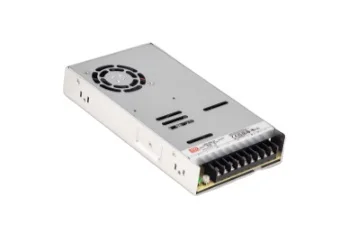

12V 24V 600W High Quality power supplier for Flexible RGB RGBW Led strip Light
- Category: >>>
- Supplier: Shenzhen Bright Lite Lighting Limited
Share on (1600908560307):
Product Overview
Description
Product Introduction
Voltage | 5V/12V/15V/24V/27V/48V |
Power | 600W |
Color | Silver |
WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") |
Application | *Industrial automation machinery *Industrial control system *Mechanical and electrical equipment *Electronic instruments, equipments or apparatus |
Features
*AC input range selectable by switch
*Withstand 300VAC surge input for 5 second
*Protections:Short circuit/ Overload/ Over voltage/Over temperature
*Forced air cooling
*Withstand 5G vibration test
*High operating temperature uo to
70°C
*Built-in cooling Fan ON-OFF control
*1U low profile
*3years warranty
*High efficiency,long lifa and high reliablity
*MTBF>1KK hrs

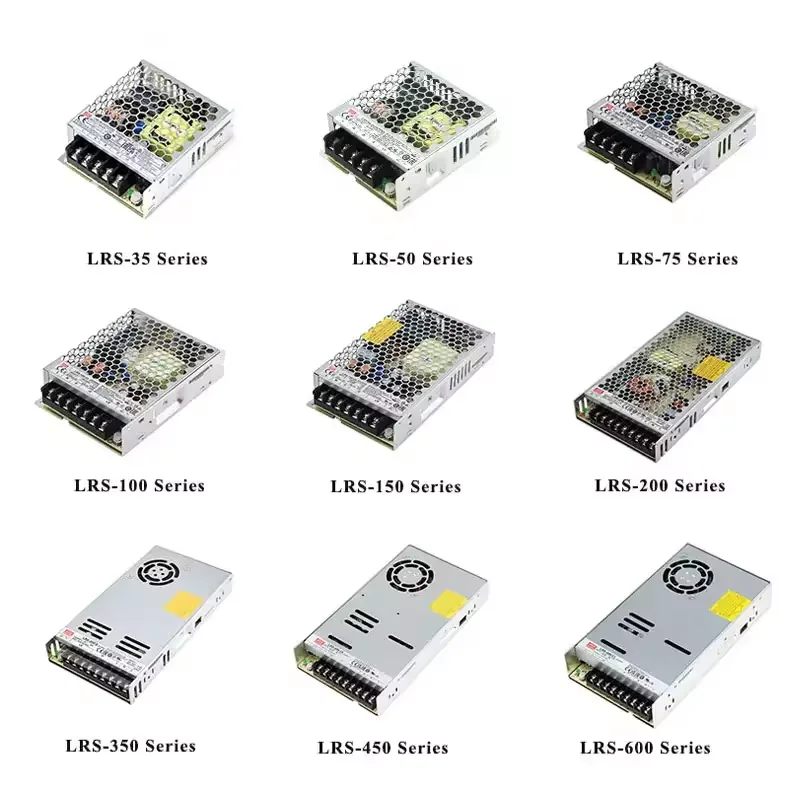

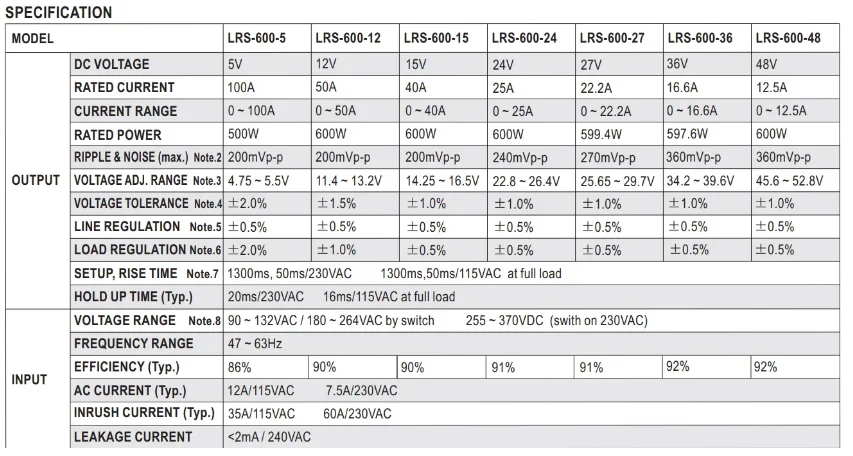

LRS Series Power Supply (more details pls contact us) | ||||||||

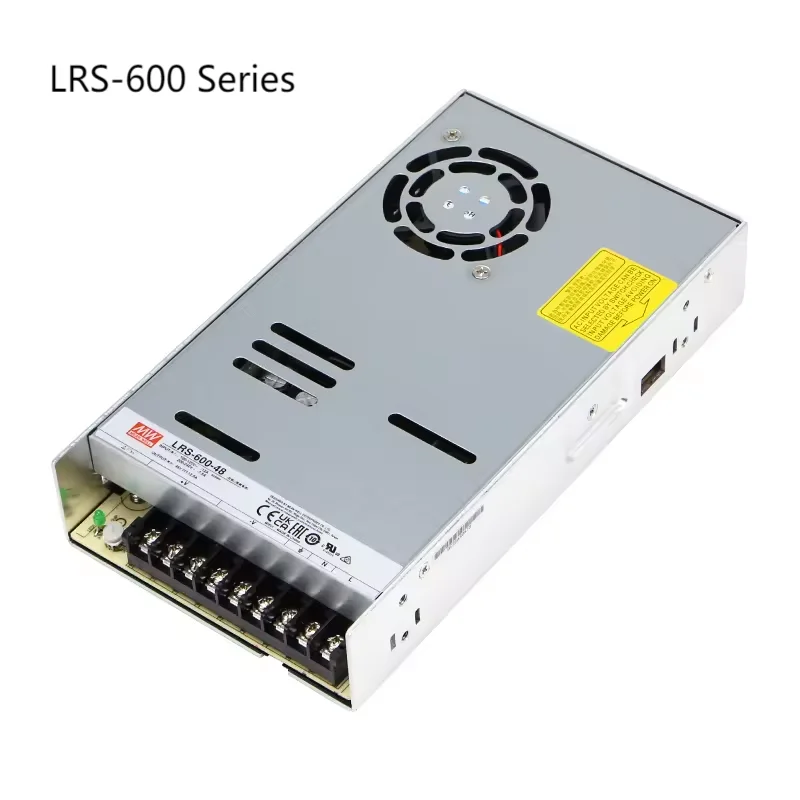

Module | LRS-600-12/24 | LRS-450-12/24 | LRS-350-12/24 | LRS-200-12/24 | ||||
DC Voltage | 5V/12V/15V/24V/36V48V | |||||||
Efficiency(Typ.) | 80%-95% | |||||||
Frequency rating | 47-63Hz | |||||||
DC Current | 0-100A | |||||||
IP rating | IP20 non waterproof | |||||||
1. All parameters NOT specially mentioned are measured at 230VAC input,rated load and 25℃ of ambient temperature. 2. Ripple &noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3.Voltage adjustment can only be operated within the input range of 100~120VAC or 200-240VAC. If the voltage adjustment is performed outside this range,it may cause abnormal output. 4. Tolerance :includes set up tolerance, line regulation and load regulation. 5.Line regulation is measured from low line to high line at rated load. 6. Load regulation is measured from 0% to 100% rated load. 7.Length of set up time is measured at cold start. Turning the power supply on/off frequently may lead to increase of the set up time. 8. Derating may be needed under low input voltages.Please refer to "Static Characteristics"sections for details. 9.Once protections are triggered,3min(Typ.）of cold down time is required before restart. 10.The ambient temperature derating of 5°C/1000m is needed for operating altitude greater than 2000m(500ft). 11.This Power supply does not meet the harmonic current requirements outlined by EN61000-3-2. Please do not use this poewr supply under the following conditions: a) the end-devices is used within the European Union,and b)the end-devices is connected to public mains supply with 220Vac or greater rated nomonal voltage,and c)the power supply is: -installed in end-devices with average or continuous input power than 75W,or -belong to part of a lighting system Exception: Power supplies used within the following end-devices do not need to fulfill EN61000-3-2 a)professional equipment with a total rated input power greater than 1000W; b)symmetrically controlled heating elements with a rated power less than or equal to 200w | ||||||||
Applications:
* Path & Contour Marking
* DIY lighting for indoor use
* Stairway and walkway lighting
* Decorative lighting for festivals, events, shows and exhibitions
* Widespread use in accessorial light for indoors, medical, landscape.
* General lighting, task lighting, household appliances, architectural lighting
* Architectural lighting, villa, restaurant, hotel, meeting room, show room, shop, counter and so on.
Cove Lighting; Sign Lighting;Bar Top Lighting;Accent Lighting;Club Lighting;TV back Lighting;
* Path & Contour Marking
* DIY lighting for indoor use
* Stairway and walkway lighting
* Decorative lighting for festivals, events, shows and exhibitions
* Widespread use in accessorial light for indoors, medical, landscape.
* General lighting, task lighting, household appliances, architectural lighting
* Architectural lighting, villa, restaurant, hotel, meeting room, show room, shop, counter and so on.
Cove Lighting; Sign Lighting;Bar Top Lighting;Accent Lighting;Club Lighting;TV back Lighting;
Company Introduction
Bright Lite Lighting Limited,founded in 2013,is a professional manufacturer of led strip light and led neon light,which is located in Shenzhen,China. Based on high quality,medium-small quantities market orientation,we focus on a full range of led strip lights, such as SMD3528, SMD2835, SMD5050, SMD3014, SMD2216, digital WS2812b led strip light etc. Also accessory services like led controller, led dim- mer, power supply, led connector etc are available here.
Providing high quality products is always one of our advantages.Especially,we have super brightness 140-180lm/w led strip light,CRI>95 led strip light,5 color in 1(RGB+WW+CW) led strip, low SDCM, dual color temperature led strip,20 meters per roll constant current led strip,waterproof led neon strip light and so on.
Customized led strip lights are also available in our factory. We welcome esteemed you here.
Customized led strip lights are also available in our factory. We welcome esteemed you here.
Company Photo
Factory Photo
FAQ:
1.Q:Can I have a sample order?A:Yes,we welcome sample order to test and check quality.Mixed sample are also available.
2.Q:How about the lead time?
A:Generally sample needs 5-7 days(except some regulars in stock),mass production time needs for
order quantity more than 100pcs.
3.Q:What is the MOQ?
A:For regular one we have in stock,there is no MOQ;For special one,please contact our sales.
4.Q:How do you ship the goods and how long does it take to arrive?
A:We usually ship goods by DHL,UPS,FedEx or TNT.It usually takes 3-5 days to arrive.Airline and sea shipping also option.
5.Q:Is it OK to print my logo on PCB or Packing?
A:Yes,of course.And we also support PCB,Light Color ,Package...customization.
6.Q:What is the life span and the warranty for our strips?
A:Our strips are with 50000 hours long life span and 3 years warranty.
7.Q:Do you also provide a complete set of accessories?
A:Yes,we can also provide adapter,dimmer,controller,connector and so on.
