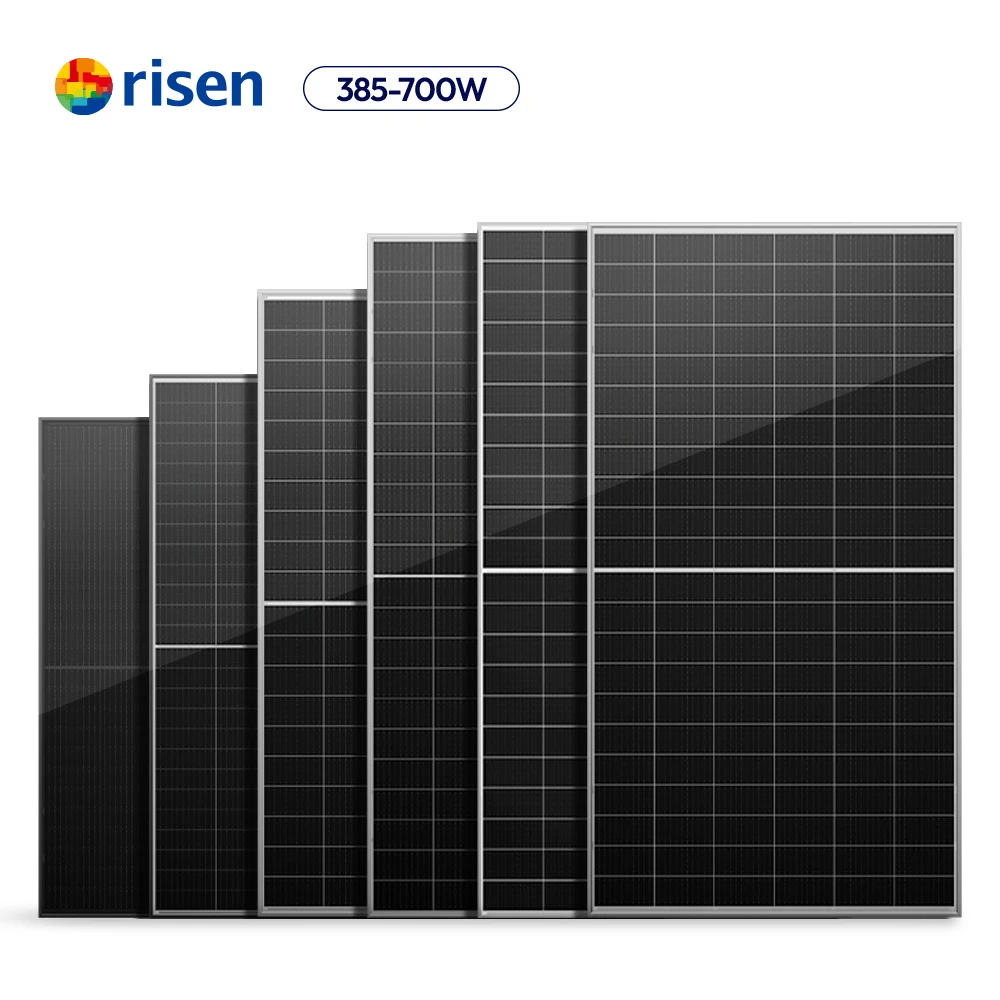

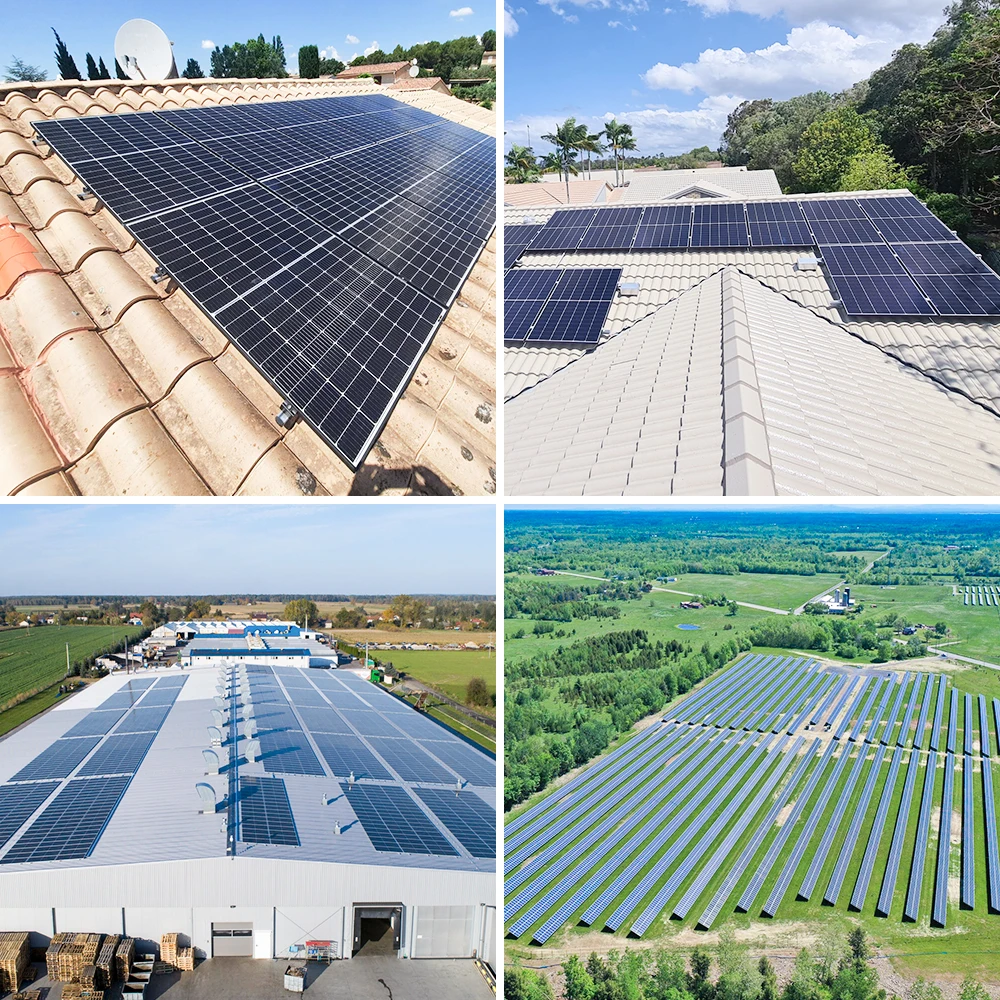

Risen Solar Panels 400 Watt 410W 415 W 420Watt Black Frame Roof PV Module for Home
- Category: >>>
- Supplier: Sunevo Solar Co. Ltd.
Share on (1600908778974):
Product Overview
Description
Products Description
Model Number | RSM40-8-xxxM | RSM40-8-400M | RSM40-8-405M | RSM40-8-410M | RSM40-8-415M | RSM40-8-420M | |||||
Rated Power in Watts-Pmax(Wp) | 395 | 400 | 405 | 410 | 415 | 420 | |||||
Open Circuit Voltage-Voc(V) | 41.00 | 41.30 | 41.60 | 41.90 | 42.20 | 42.49 | |||||
Short Circuit Current-Isc(A) | 12.27 | 12.34 | 12.40 | 12.47 | 12.53 | 12.59 | |||||
Maximum Power Voltage-Vmpp(V) | 34.14 | 34.39 | 34.64 | 34.89 | 35.14 | 35.38 | |||||
Maximum Power Current-Impp(A) | 11.58 | 11.64 | 11.70 | 11.76 | 11.82 | 11.88 | |||||
Module Efficiency (%) ★ | 20.5 | 20.8 | 21.1 | 21.3 | 21.6 | 21.8 | |||||

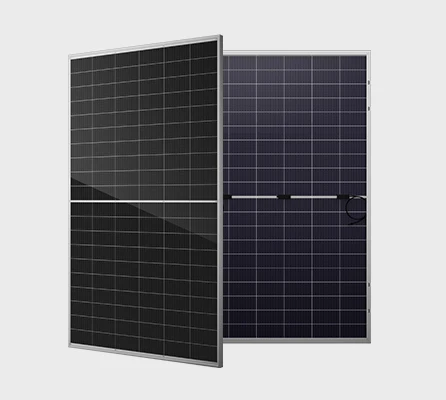

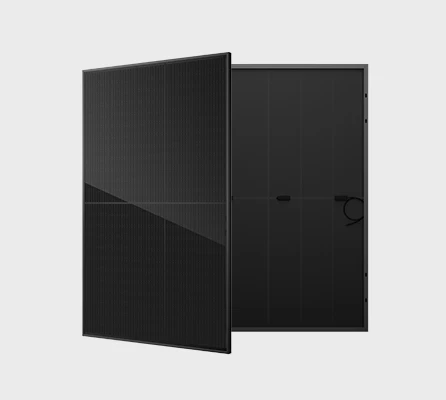

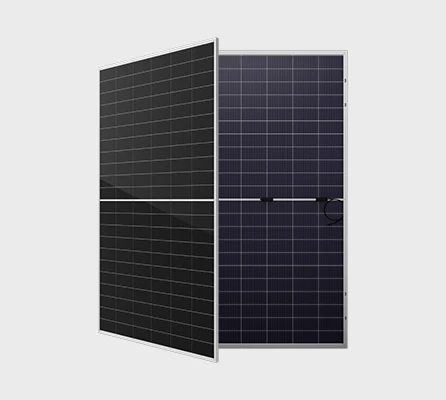

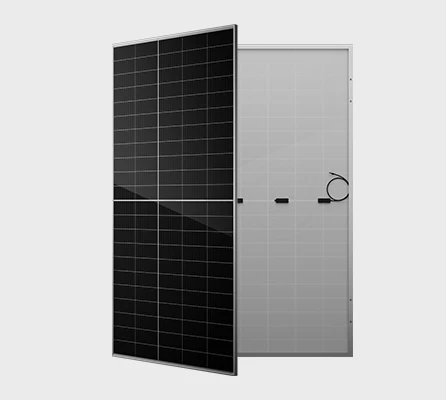

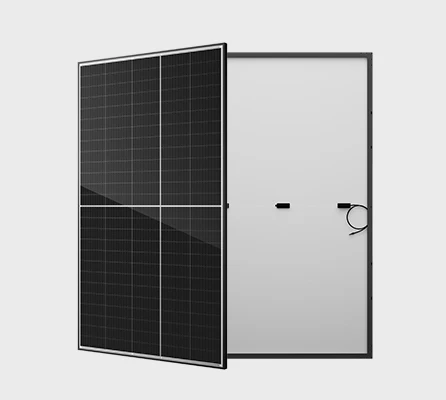

Products Series
RSM132-8
Power Range: 650-700W
No. of Cells: 132 cells
Dimension: 2384×1303×35mm
Weight: 41 kg
Modules per box: 31pcs
Modules per 40' container: 558pcs
Dimension: 2384×1303×35mm
Weight: 41 kg
Modules per box: 31pcs
Modules per 40' container: 558pcs
RSM120-8
Power Range: 585-590W
No. of Cells: 120 cells
Dimension: 2172×1303×35mm
Weight: 30 kg
Modules per box: 31pcs
Modules per 40' container: 558pcs
Dimension: 2172×1303×35mm
Weight: 30 kg
Modules per box: 31pcs
Modules per 40' container: 558pcs
RSM110-8
Power Range: 535-560W
No. of Cells: 110 cells
Dimension: 2384×1096×30mm
Weight: 28.5 kg
Modules per box: 36pcs
Modules per 40' container: 720pcs
Dimension: 2384×1096×30mm
Weight: 28.5 kg
Modules per box: 36pcs
Modules per 40' container: 720pcs
RSM130-8
Power Range: 430-450W
No. of Cells: 130 cells
Dimension: 1894×1096×30mm
Weight: 22.5kg
Modules per box: 36pcs
Modules per 40' container: 864pcs
Dimension: 1894×1096×30mm
Weight: 22.5kg
Modules per box: 36pcs
Modules per 40' container: 864pcs

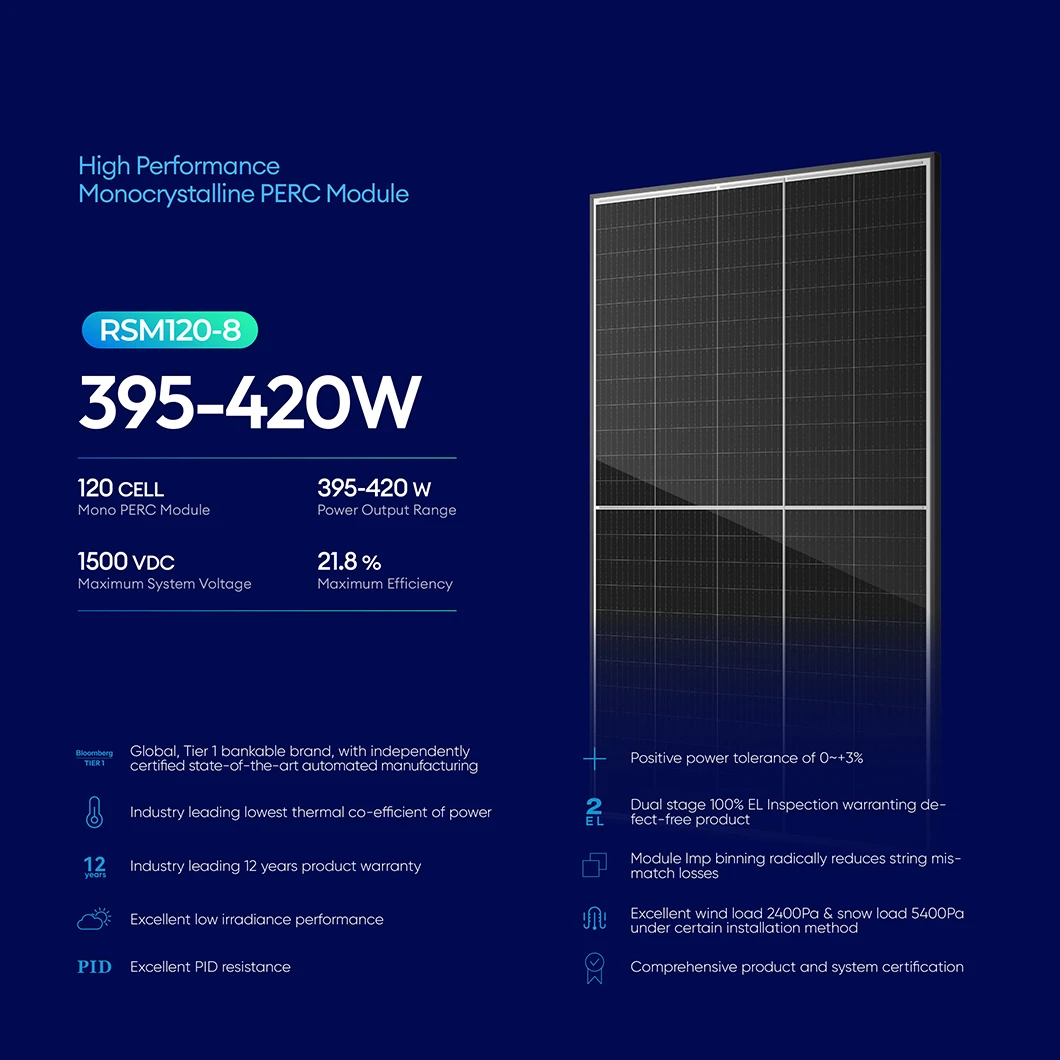

RSM40-8
Power Range: 385-420W
No. of Cells: 120 cells
Dimension: 1754×1096×30mm
Weight: 21kg
Modules per box: 36pcs
Modules per 40' container: 8936pcs
Dimension: 1754×1096×30mm
Weight: 21kg
Modules per box: 36pcs
Modules per 40' container: 8936pcs

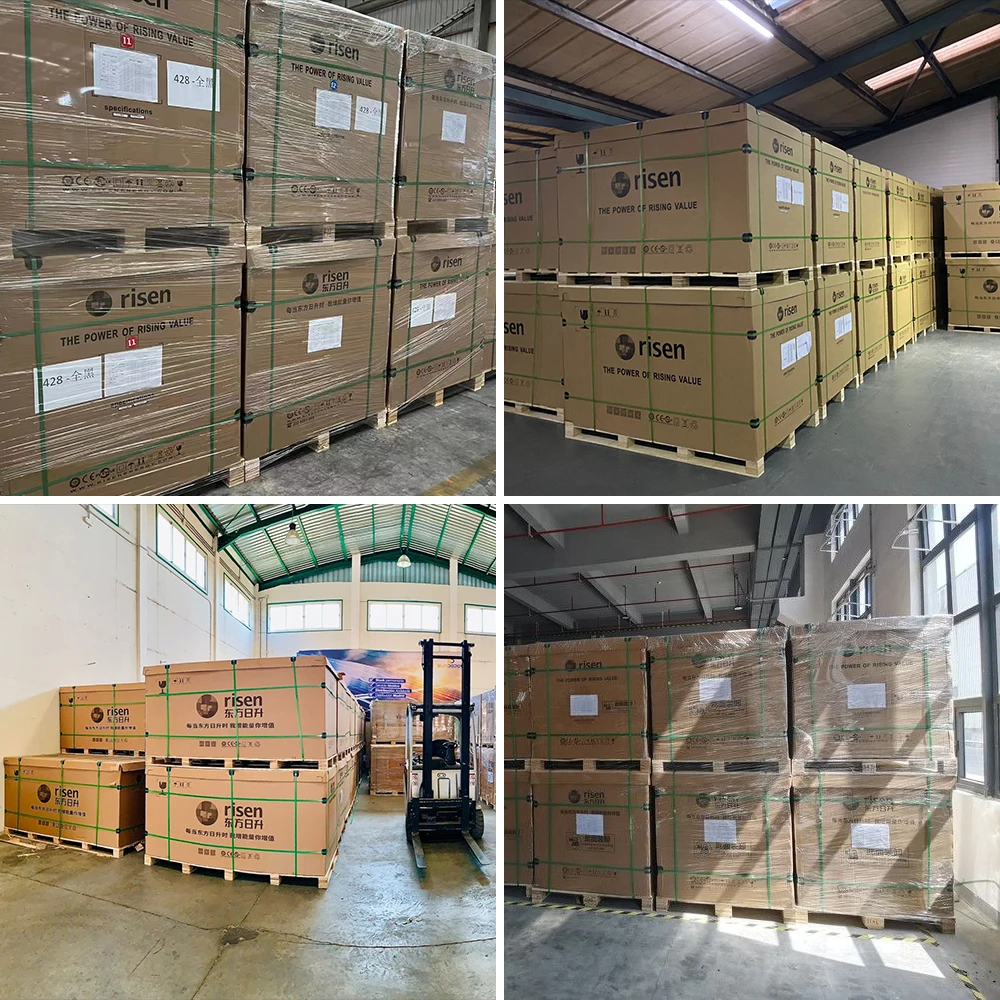

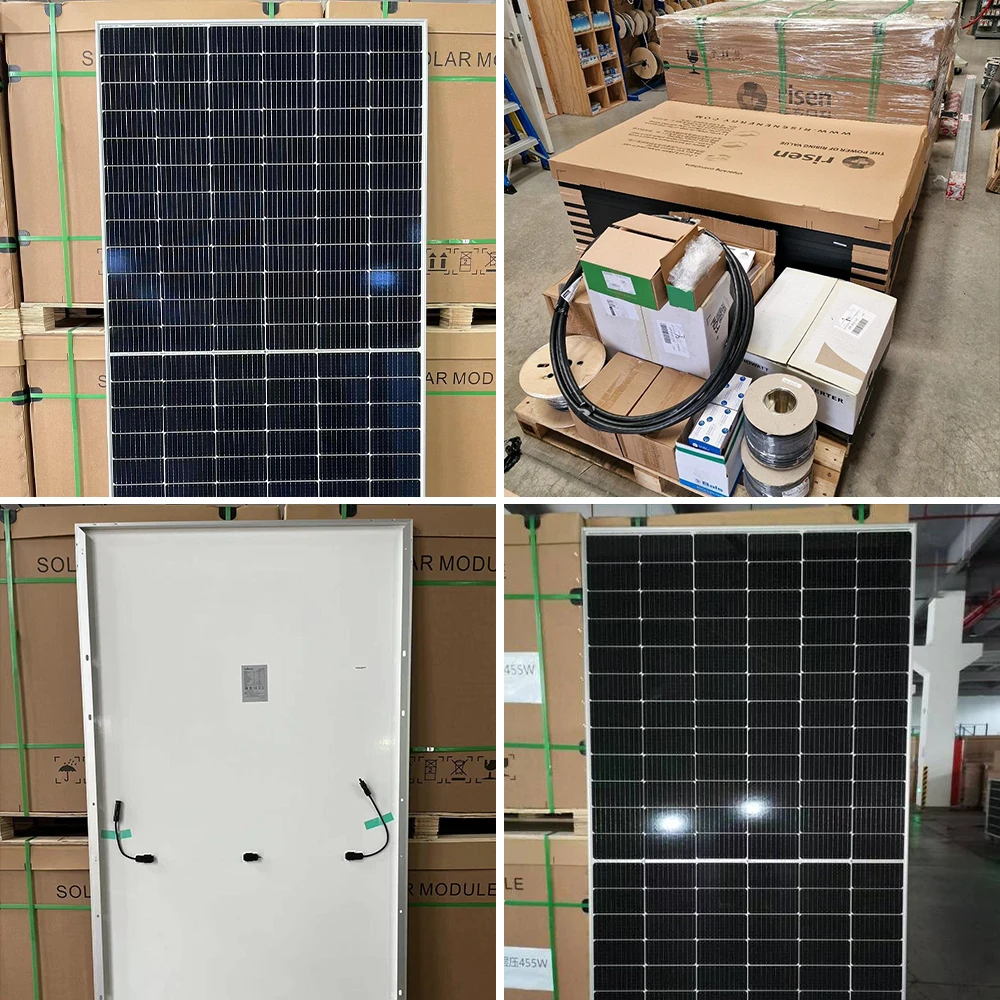

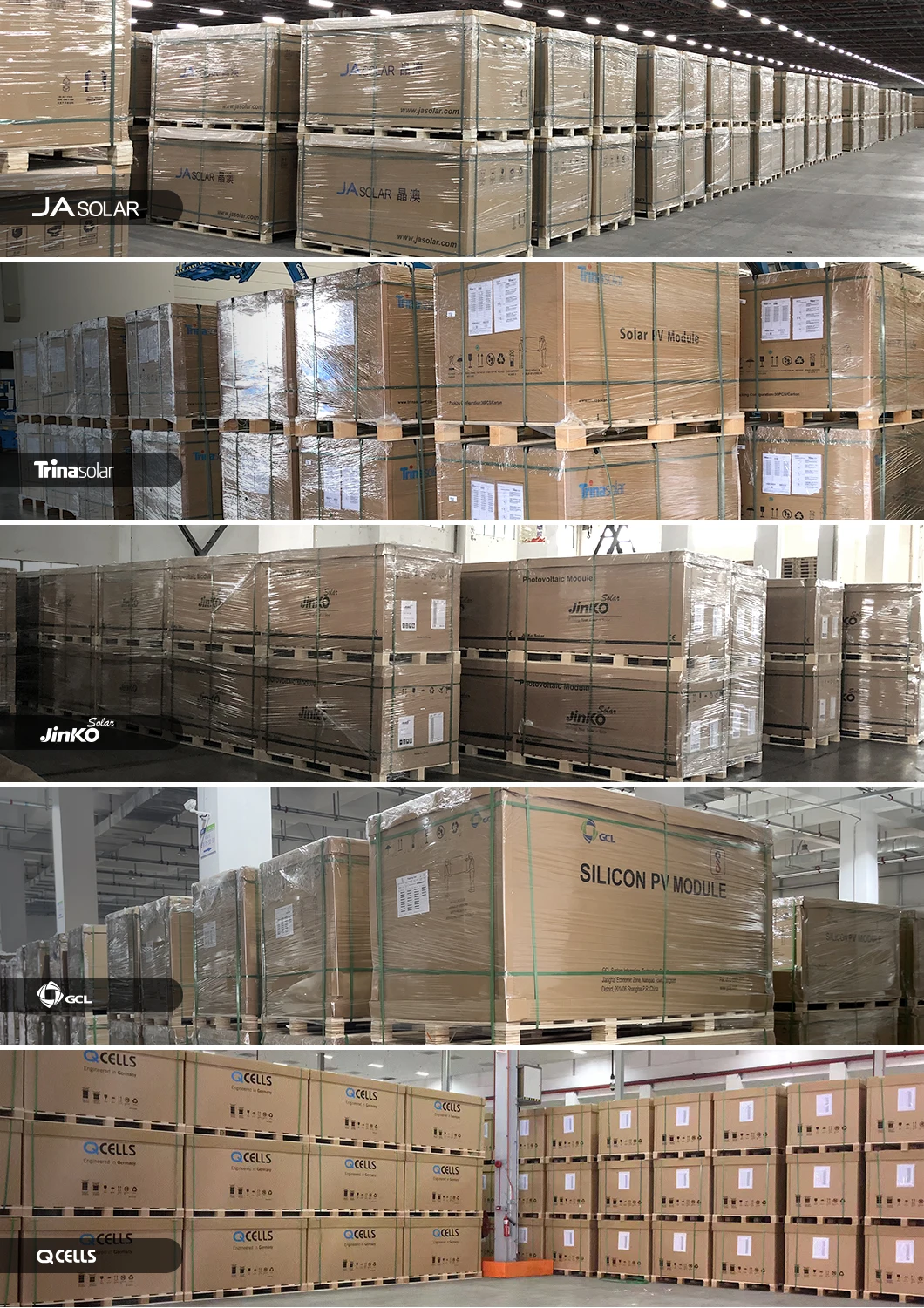

Pictures and Packages
Tier 1 Solar Module
About Us

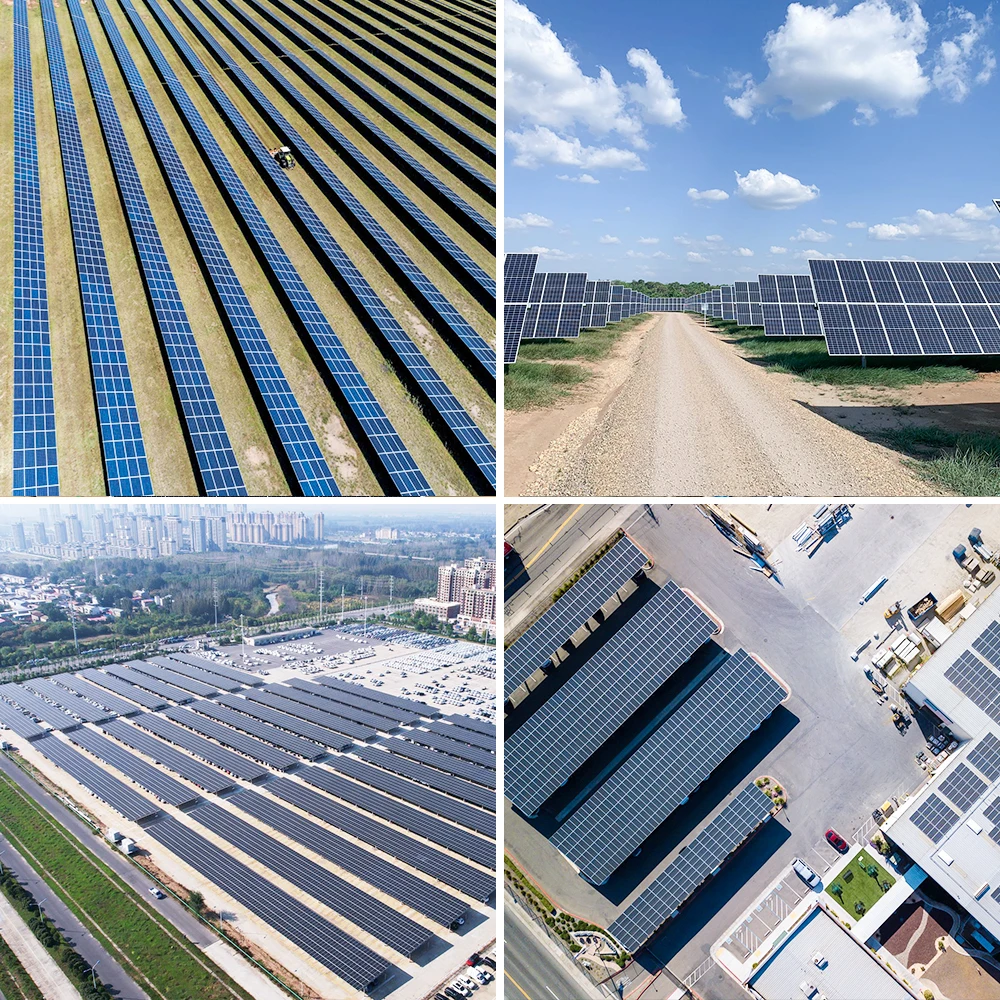

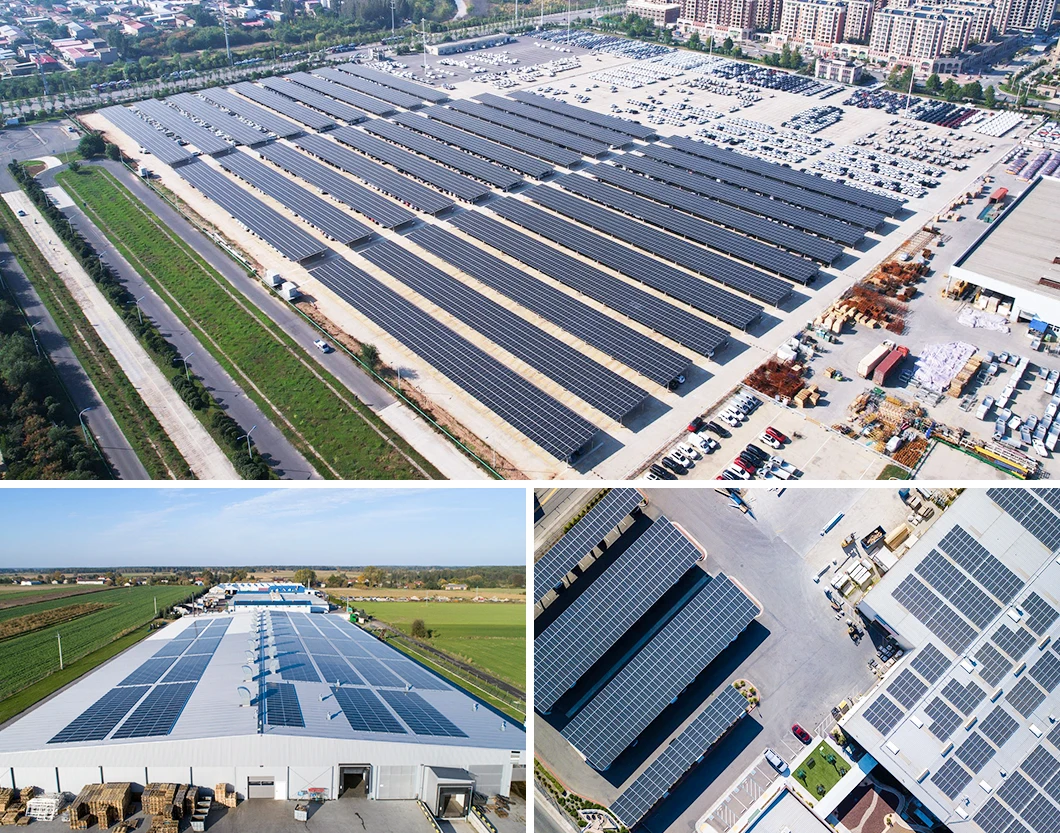

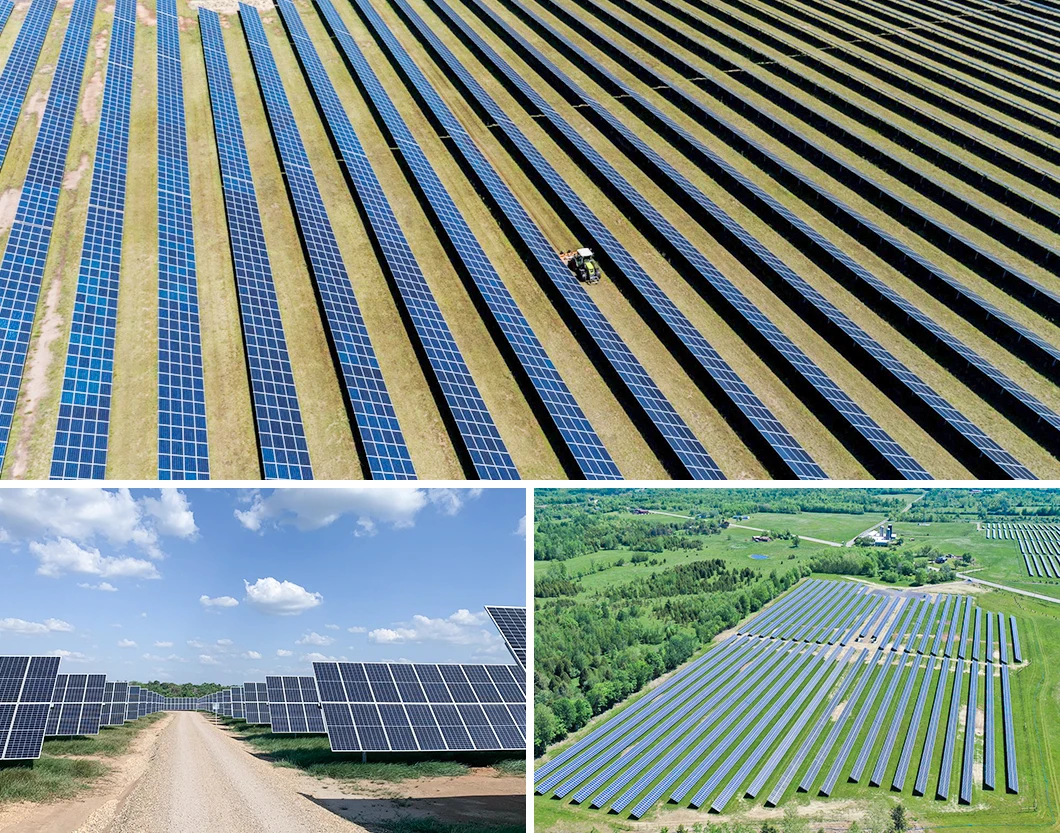

Project Case
