High heat resistance thermal storage regenerative Honeycomb Ceramic for rto
- Category: >>>
- Supplier: Tianhua Institute of Chemical Machinery and Automation Co. Ltd.
Share on (1600908818641):
Product Overview
Description
Product Description

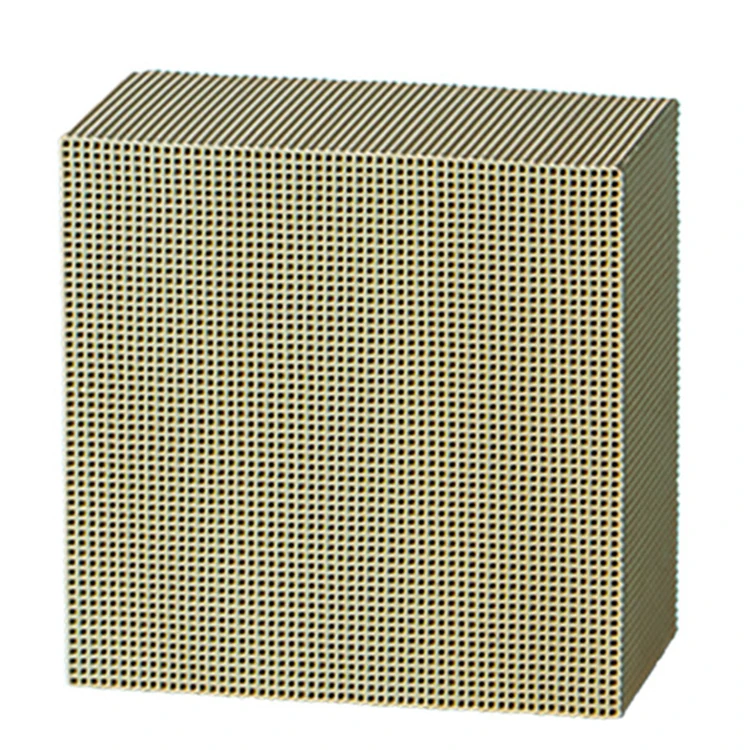

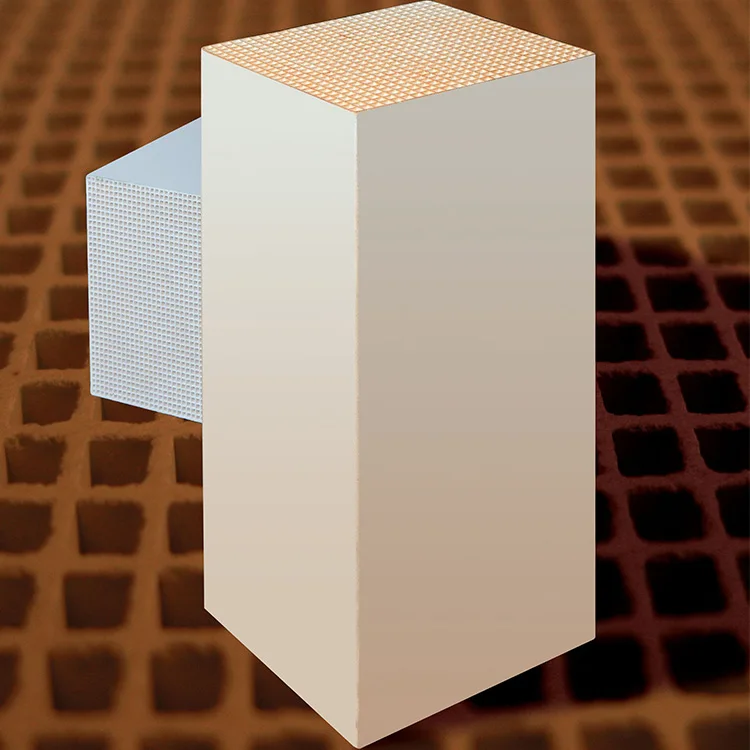

Ceramic honeycomb could enhance efficiency, say energy , increase output and improve quality, as important and effective measure of dealing with energy and environment. They are applied on thermal equipment of energy saving in industry widely. The shapes of pores of ceramic honeycomb are square and hexagon, and the channels of pores are straight and parallel each other. This structure reduces the resistance of passing air and enhances the heat exchange efficiency of every channel.

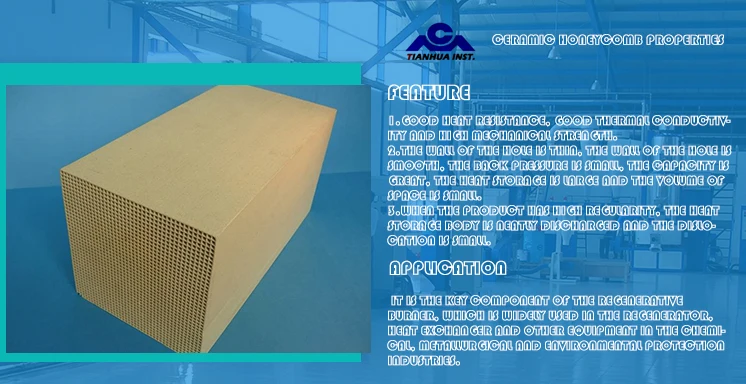

The Advantage:
1.Good heat resistance, good thermal conductivity and high mechanical strength.
2.The wall of the hole is thin, the wall of the hole is smooth, the back pressure is small, the capacity is great, the heat storage is large and the volume of space is small.
3.When the product has high regularity, the heat storage body is neatly discharged and the dislocation is small.
The Application :
It is the key component of the regenerative burner, which is widely used in the regenerator, heat exchanger and other equipment in the chemical, metallurgical and environmental protection industries.Regular honeycomb ceramic fillers designed for regenerative heat oxidizer and regenerative heat exchanger for organic waste gas treatment equipment.
Name | Alumina | Dense Cordierite | Cordierite | Dense Alumina | Mullite | Corundum mullite | |
Density(g/cm3) | 2.0~2.3 | 2.1 ~2.5 | 1.5 ~1.9 | 2.4 ~2.7 | 2.0 ~2.5 | 2.3 ~2.7 | |
Coefficient of heat expansion (20~800℃) | ≤5 | ≤3.5 | ≤3.0 | ≤5 | ≤5 | ≤6 | |
Specific Heat (J/Kg.K) (20~1000℃) | 900-1150 | 900 ~1100 | 900~1150 | 1000~1150 | 1000~1150 | 1100 ~1300 | |
Thermal Conductivity (W/m.k) | 1.5~2.0 | 1.5~2.5 | 1.2~1.8 | 1.5~2.5 | 1.5~2.0 | 1.5~2.5 | |
Impact Thermal Resistance(℃/min) | ≥300 | ≥350 | ≥350 | ≥300 | ≥350 | ≥300 | |
Max. Working Tem.(℃) | 1350 | 1320 | 1320 | 1350 | 1450 | 1550 | |
water absorption(%) | ≤20 | ≤1 | 15~25 | ≤2 | 15~25 | 15 ~25 | |
compressive strength (MPa) | A axis | ≥32 | ≥32 | ≥29 | ≥34 | ≥28 | ≥39 |
B axis | ≥8 | ≥8 | ≥6 | ≥8 | ≥8 | ≥10 | |
chemical composition (%) | Al2O3 | 55 ~65 | 25 ~38 | 28 ~38 | 55 ~65 | 60~70 | 70 ~80 |
SiO2 | 25~35 | 50 ~60 | 45 ~55 | 25 ~35 | 25 ~35 | 15 ~25 | |
MgO | 1~3 | 5 ~10 | 11 ~14 | 3~5 | 0 ~1 | 0 ~2 | |
others | <5 | <5 | <5 | <5 | <5 | <5 | |

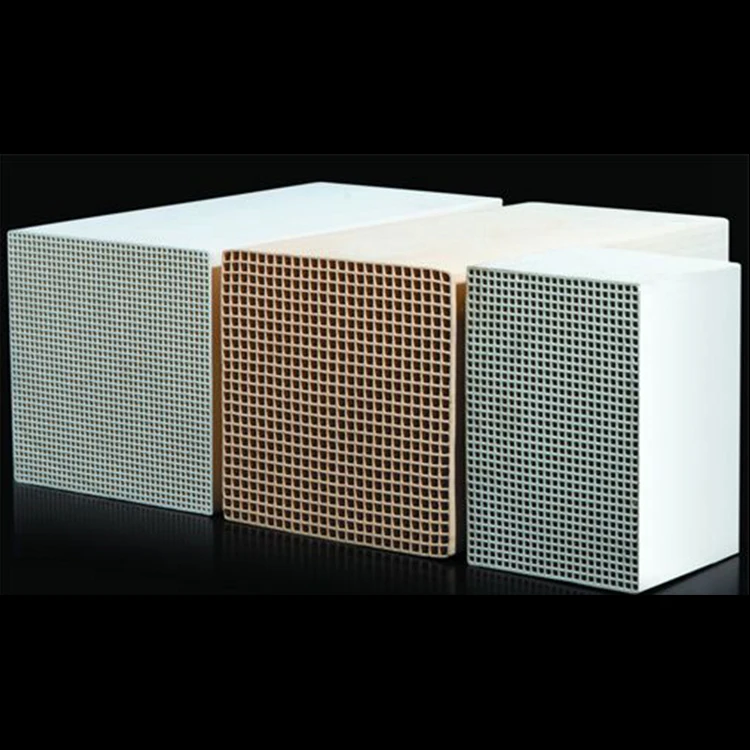

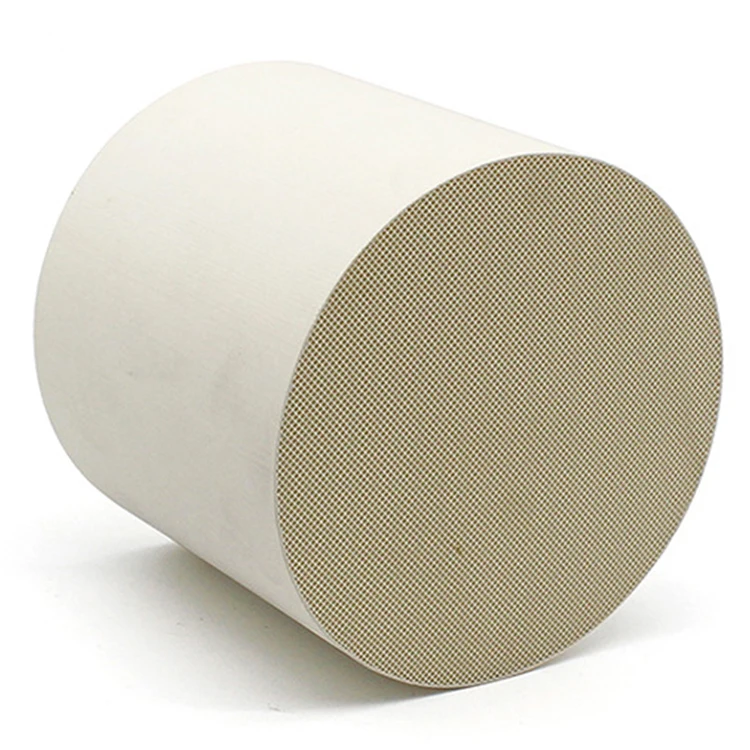

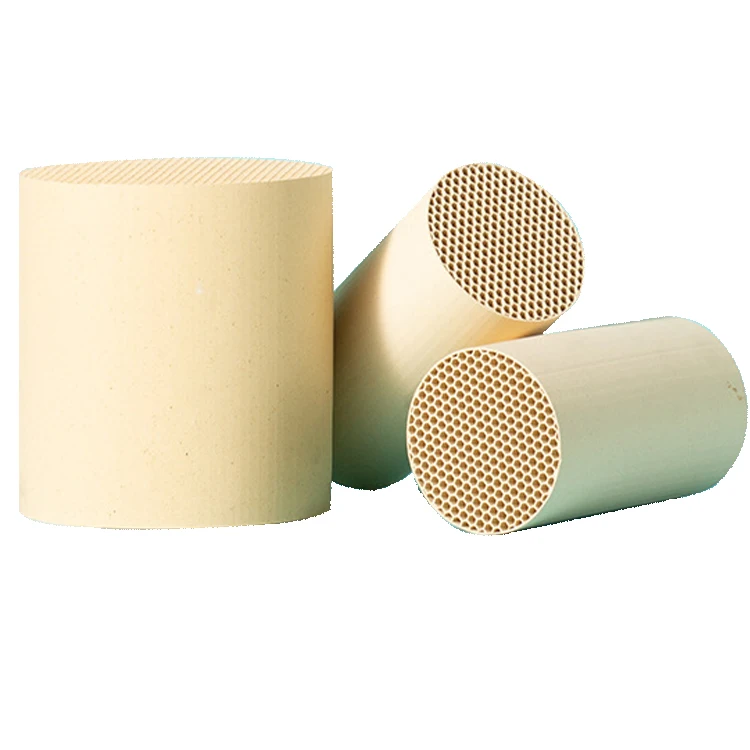

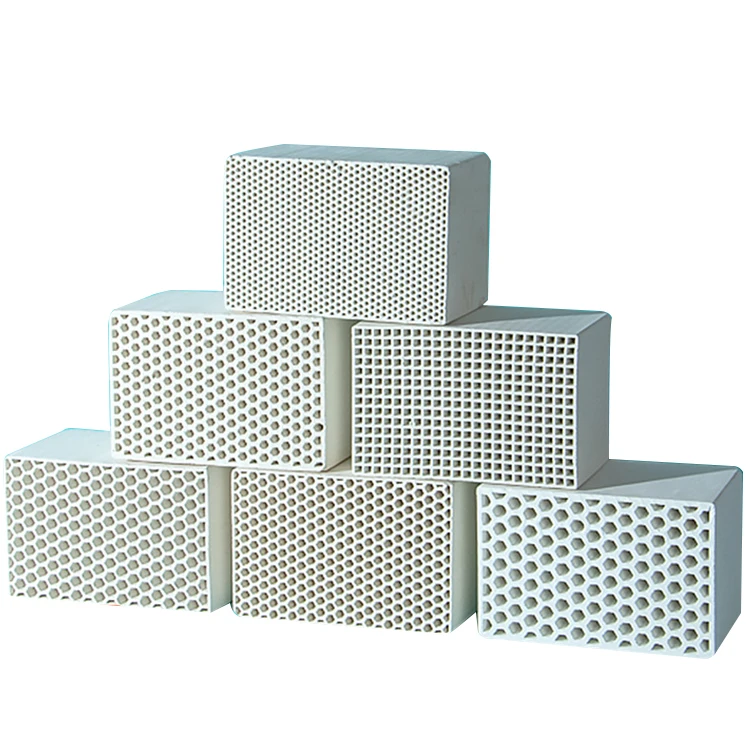

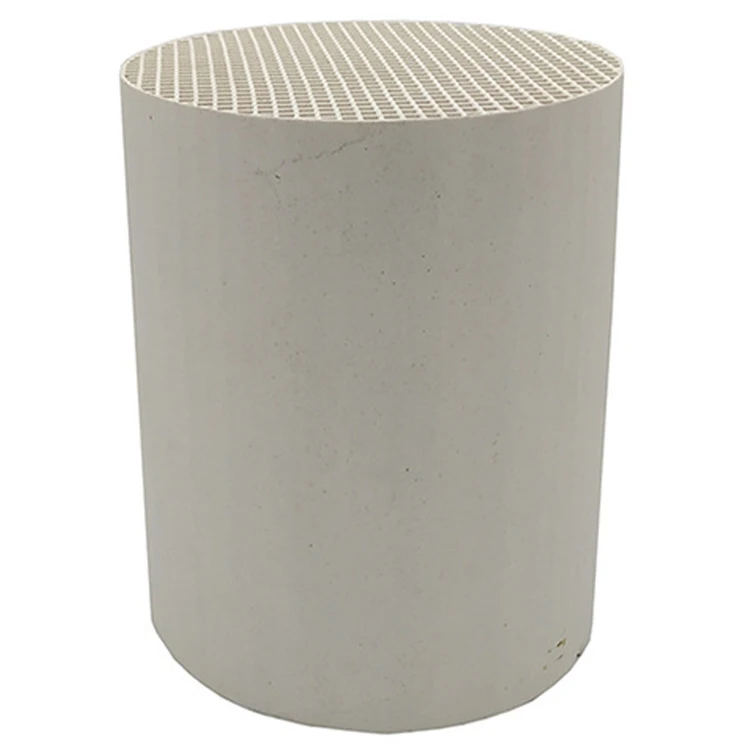

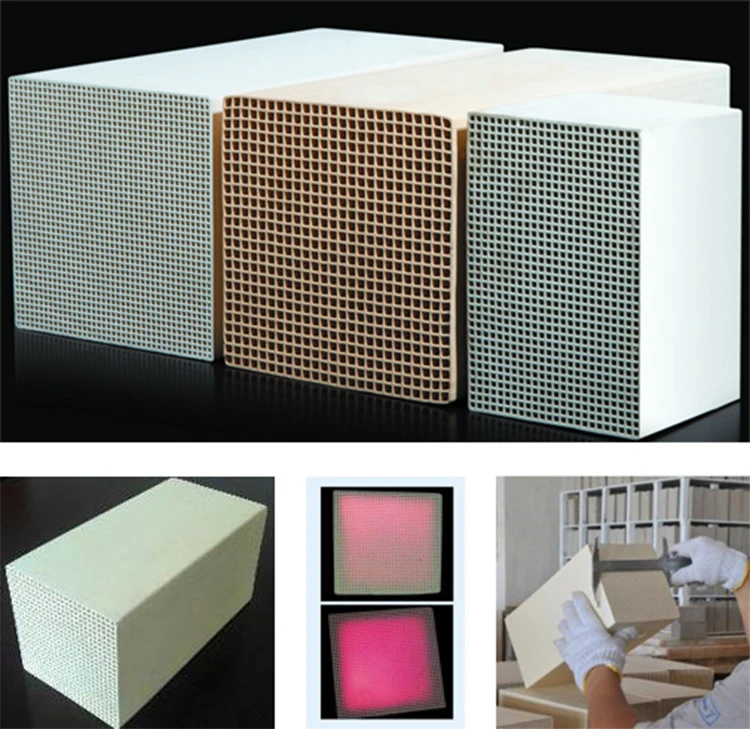

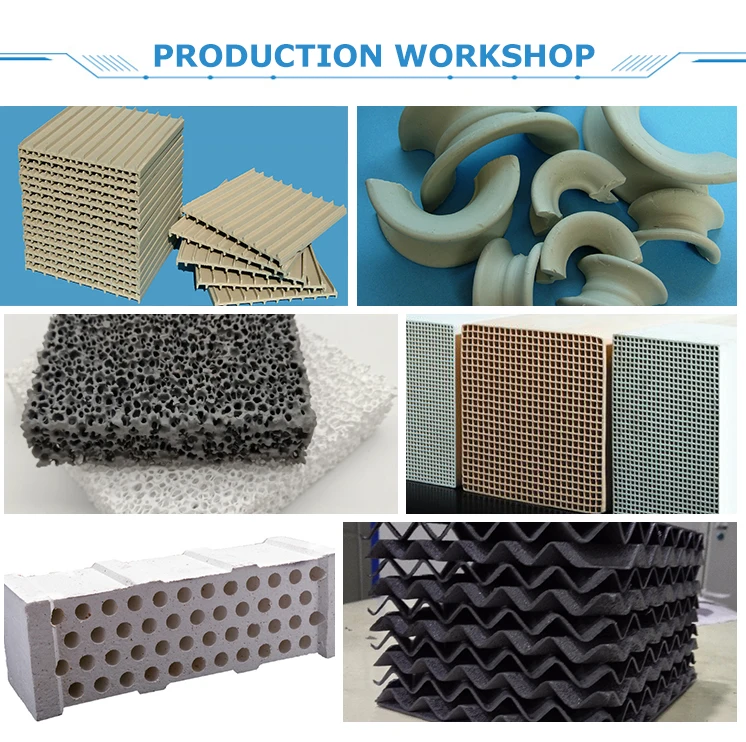

Product Display
We are industry TOP-level professional manufacturers to support various forms of customization. If you want to know more, please click here.
