Ozone Diffuser Sintered Air Sparger 0.5Micron 0.2 Micron Stainless Steel Powder Sintered Filter
- Category: >>>
- Supplier: Hebei Aegis Metal Materials Co. Ltd.
Share on (1600908826964):
Product Overview
Description
Ozone Diffuser Sintered Air Sparger 0.5Micron 0.2 Micron Stainless Steel Powder Sintered Filter
Specification

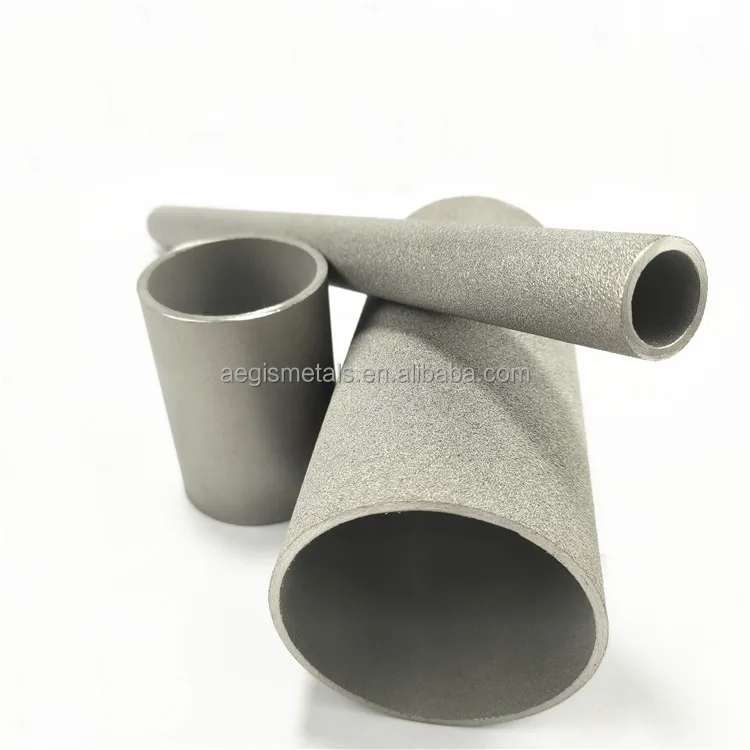

The Sintered Porous Metal Filter Tube can be customized for various applications and specifications. Tube can design to be different Inner and outer diameter, Height and Aperture, also can be designed to be welded together with aluminum or stainless steel housings .So you can easy to Customized such as Diameter, Aperture,Thickness, Alloys, and Media Grades, can be altered to meet various filtration, flow, and chemical compatibility requirements for your product or project.
Specifications Of Sintered Powder Porous Filters | ||||||||
Material | stainless steel, alloy, titanium, bronze, copper ect... | |||||||
Outer diameter | Inner diamter | Wall thickness | Length | Micron size | ||||
10-350mm | 10-340mm | 1.0 2.0 2.5 3 -- 5mm | 2000mm or custom | 0.3um-100um | ||||
Tolerance | +-0.5mm | |||||||
Fitting or thread | various fitting or threads options for choosing | |||||||
Customized | Can be produced according to your drawings and requirements. | |||||||
Stainless Steel Sintered Powder Filter Element is sintered by high-temperature stainless steel powder with high filtration precision,good gas permeability, high mechanical strength, high material utilization rate, suitable for high working temperature and thermal shock resistance, and rust and acid and alkali corrosion resistance. Widely used in pneumatic components, chemical industry, environmental protection and other fields, can produce various shapes, structures, different particle size, porosity of porous components.
Noted: Any special sizes with different shape, different fittings, can be custom produce as per your requirements.
(please contact us with your drawing or detailed specifictaions. ^^)
Sintered powder porous filters disc & sheets & plates:
(Diameter can be from 5mm to 500mm; Thickness 1-10mm; Micron size 0.5-100um)
Product packaging
Sinterd Porous Filters is packed with air-bubble films inside, then wooden box outside.
Custom design packing is acceptable.
Company Profile
HEBEI AEGIS METAL MATERIALS CO.,LTD owns over 10 years experience in manufacturing and exporting the wire mesh filters, titanium wire mesh, pure nickel mesh, sintered wire mesh, sintered filters, nickel alloy mesh, monel mesh, inconel wire cloth, nichrome screen. copper brass wire mesh, and stainless steel wire mesh, Porous filters elements. and deep processed custom filters.
