removable fiberglass sleeve glass fiber silicone jacket for high temperature equipment
- Category: >>>
- Supplier: Zibo Yaoxing Fire-Resistant And Heat-Preservation Material Co. Ltd.
Share on (1600908826973):
Product Overview
Description
Product Description
1. Product Introduction：

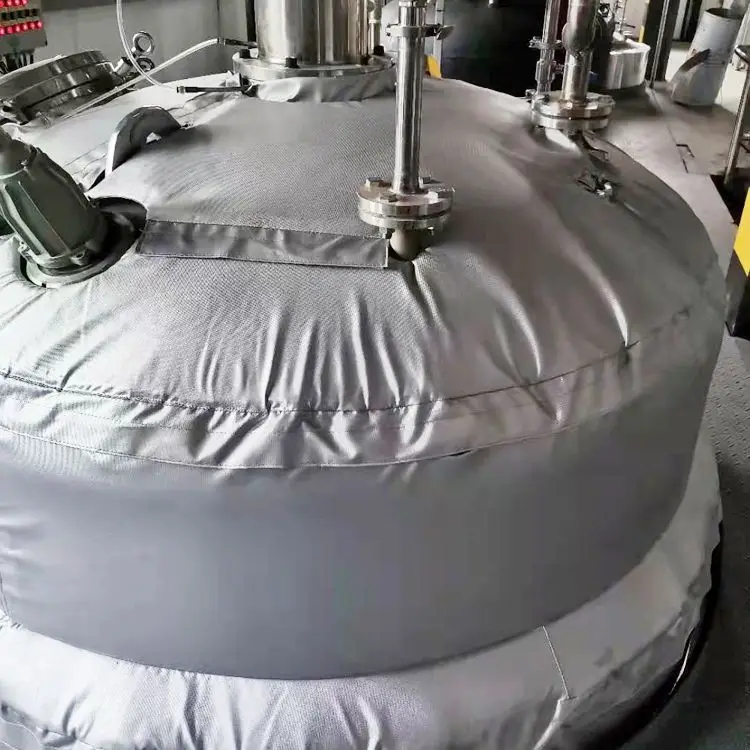

The reactor insulation jacket (insulation cover, insulation jacket) is made of inorganic non-metallic insulation materials. It
can be closely attached to the reactor body. The lightweight insulation jacket reduces the overall weight of the reactor, and its detachable design makes it easier for maintenance and inspection of the reactor.
3. Applicable Equipment: Suitable for insulation of various materials and models of reactors. It can be custom-made for
capacities ranging from L100 to L10000, and can also be customized for laboratory glass reactors.
The reactor insulation jacket (insulation cover, insulation jacket) is made of inorganic non-metallic insulation materials. It
can be closely attached to the reactor body. The lightweight insulation jacket reduces the overall weight of the reactor, and its detachable design makes it easier for maintenance and inspection of the reactor.
2. Product Features:
* Easy to install and dismantle.
* High temperature resistance.
* The reactor insulation jacket achieves greater insulation performance with a lower thickness.
* Significant sound absorption effect.
* Lightweight, reducing weight load.
* Good flexibility, suitable for different reactor insulation to prevent personnel burns.
* Adjustable tightness.
* Material can withstand high tensile strength.
* Close fit between the reactor insulation jacket and the equipment.
* Waterproof, oil-resistant, corrosion-resistant, and weather-resistant.
* Attractive appearance of the reactor insulation jacket.
* Asbestos-free and environmentally friendly.
* Easy to install and dismantle.
* High temperature resistance.
* The reactor insulation jacket achieves greater insulation performance with a lower thickness.
* Significant sound absorption effect.
* Lightweight, reducing weight load.
* Good flexibility, suitable for different reactor insulation to prevent personnel burns.
* Adjustable tightness.
* Material can withstand high tensile strength.
* Close fit between the reactor insulation jacket and the equipment.
* Waterproof, oil-resistant, corrosion-resistant, and weather-resistant.
* Attractive appearance of the reactor insulation jacket.
* Asbestos-free and environmentally friendly.
3. Applicable Equipment: Suitable for insulation of various materials and models of reactors. It can be custom-made for
capacities ranging from L100 to L10000, and can also be customized for laboratory glass reactors.
Specification
Product Parameters:
* Maximum temperature: below 500°C.
* Temperature after insulation: below 50°C.
* Density: 70-130 kg/m3.
* Thermal conductivity: 0.035 W/m·k.
* Breaking strength: 3500 N/50 mm.
* Weather resistance: waterproof, rainproof, etc.
* Fire rating: GB8624-2012 Class B1.
* Acid and alkali corrosion resistance, as well as resistance to other organic solvent corrosion.
* Maximum temperature: below 500°C.
* Temperature after insulation: below 50°C.
* Density: 70-130 kg/m3.
* Thermal conductivity: 0.035 W/m·k.
* Breaking strength: 3500 N/50 mm.
* Weather resistance: waterproof, rainproof, etc.
* Fire rating: GB8624-2012 Class B1.
* Acid and alkali corrosion resistance, as well as resistance to other organic solvent corrosion.
Packing & Delivery
PVC Box&Carton Packing
Company Profile
Yao Xing is a professional company specialized in alumina-silica ceramic fiber, glass fiber, light and high temperature resistant material development and manufacturing. Our company has two branches, including Qing Dao Yao Xing Fire-Resistant and Heat-Preservation Protection Product Co., Ltd. and Zibo Yao Xing Fire-Resistant and Heat-Preservation Material Co., Ltd.
We also have Ceramic Fiber and Ceramic Fiber Textile Products Factory, Ceramic Fiber Vacuum Formed Product Processing Factory, Rock Wool Product Factory and Fire-Resistant and Heat-Preservation Protection Product Factory. International Business Division Department, Industrial furnace lining design and construction department and Domestic Sales Department are under our marketing Center. Yao Xing has been an industrial high-tech organization integrating production, sales, processing and after-sales service.
We are the main draft unit of national standard of ceramic fiber as well as national level high & new technology enterprise. So far, we have owned nine series of products including Yao Xing ceramic fiber, soluble fiber, environment-protection fiber, light weight firebricks, light weight castable items, insulation dopes, anchors and adhesives. Our products have covered four temperature classes of 1050, 1260, 1400 and 1600. We can produce 28000 tons of products with more than 80 kinds per year, including blankets, felt, boards, special-shape products, modules, papers, textiles and non-shape products. All of our products have been widely sold in the home market and exported to more than 80 countries in Asia, America, Africa and Europe, winning praises of the users.
We have passed ISO9001:2000 Quality system certification and ISO14001 environment quality system certification.
We seriously promise and guarantee that our refractory fiber products will be supplied on time and ensure the quality and stability as contract required.
We also have Ceramic Fiber and Ceramic Fiber Textile Products Factory, Ceramic Fiber Vacuum Formed Product Processing Factory, Rock Wool Product Factory and Fire-Resistant and Heat-Preservation Protection Product Factory. International Business Division Department, Industrial furnace lining design and construction department and Domestic Sales Department are under our marketing Center. Yao Xing has been an industrial high-tech organization integrating production, sales, processing and after-sales service.
We are the main draft unit of national standard of ceramic fiber as well as national level high & new technology enterprise. So far, we have owned nine series of products including Yao Xing ceramic fiber, soluble fiber, environment-protection fiber, light weight firebricks, light weight castable items, insulation dopes, anchors and adhesives. Our products have covered four temperature classes of 1050, 1260, 1400 and 1600. We can produce 28000 tons of products with more than 80 kinds per year, including blankets, felt, boards, special-shape products, modules, papers, textiles and non-shape products. All of our products have been widely sold in the home market and exported to more than 80 countries in Asia, America, Africa and Europe, winning praises of the users.
We have passed ISO9001:2000 Quality system certification and ISO14001 environment quality system certification.
We seriously promise and guarantee that our refractory fiber products will be supplied on time and ensure the quality and stability as contract required.
