Touch Screen ASTM D971 Interfacial Tension of Transformer Oil Tester by Du Nouy Ring Method

Product Overview

Description

Touch Screen ASTM D971 Interfacial Tension of Transformer Oil Tester by Du Nouy Ring Method

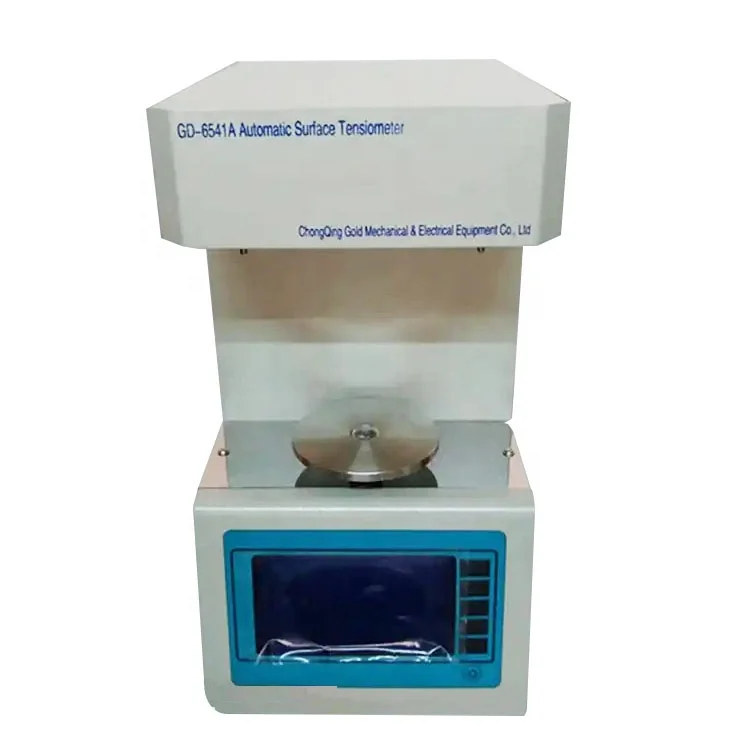

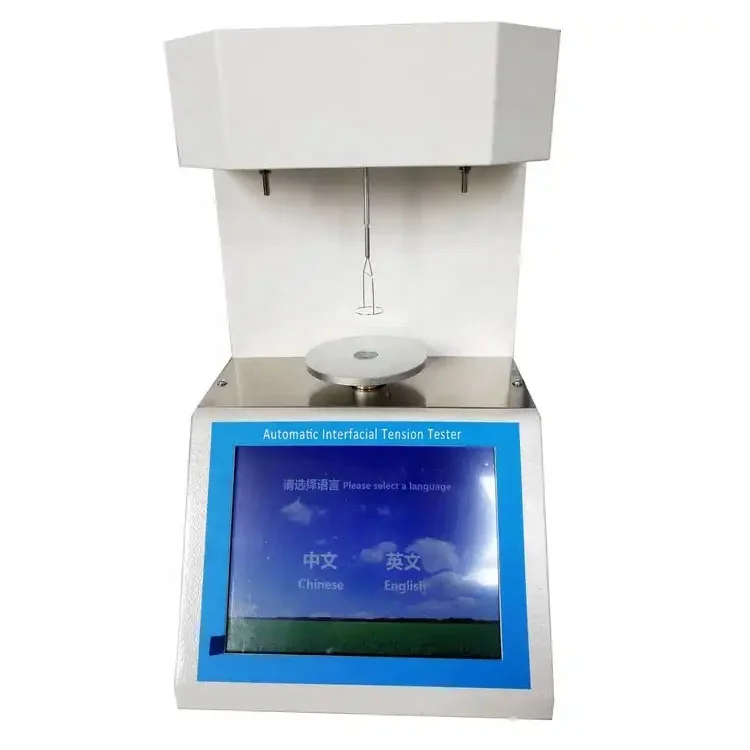

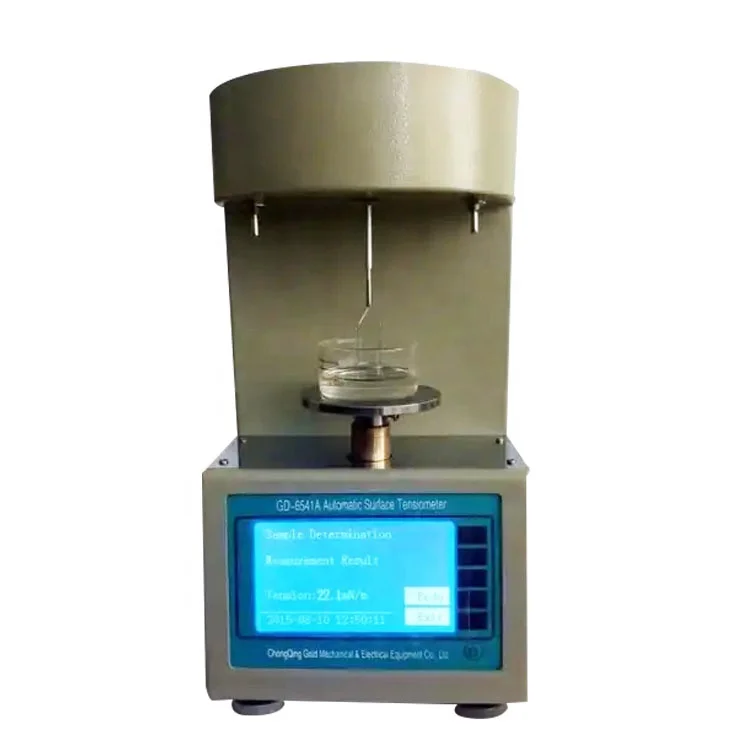

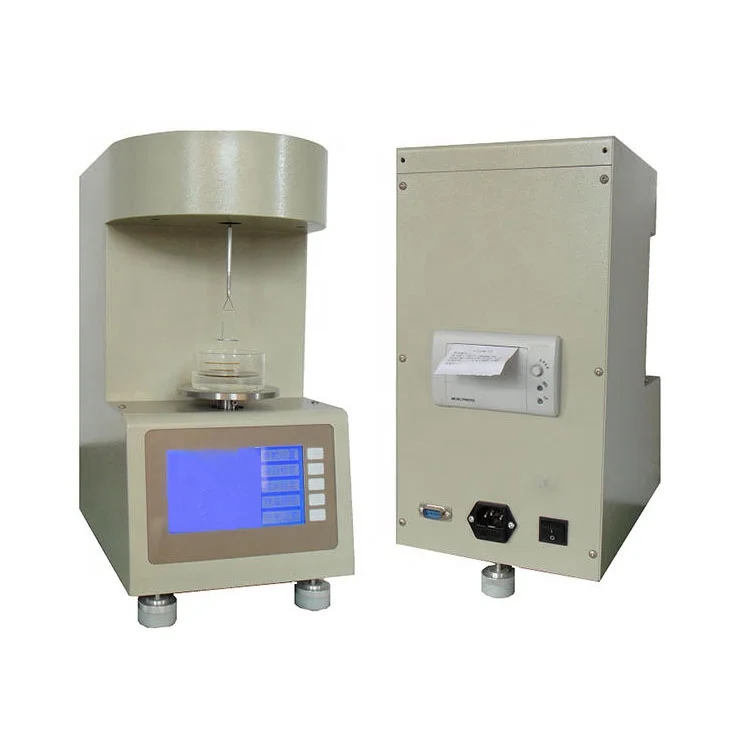

Structure of Automatic Surface Tension Meter:

1. Large-screen LCD display

2. Sample cup: used to hold the foreign matter to be tested

3. Zero fine-tuning

4. Ring frame rod

5. Platinum ring: for measuring samples

6. Sample tray

7. Button without logo

9. Machine foot: adjust the instrument level

10. Printer, computer interface

11. Power switch

12. Power socket

13. Fuse box



Application Field of Automatic Surface Tension Meter:

1.  Oil aging test, especially transformer oil (ASTM D-971)

2. Determination of Surfactant Effectiveness in Wetting Agents and Cleaners Test Surfactant Solution Concentration.

3. Canning approval and cleaning validation in the food industry.

4. surface tension measurements for quality control and optimization of emulsifiers.

5. Cooling lubricant surface tension test.



Principle of Automatic Surface Tension Meter:

The working principle of this instrument is to apply the high-frequency induction micro-displacement automatic balance measurement system to the torque balance, when the force acting on the platinum ring changes, the balance rod connected to the platinum ring is in the two eddy current probes. Displacement is generated, so that the inductance generated in the two eddy current probes changes: this causes the differential transformer to lose balance, and the input signal of the differential amplifier in the circuit also loses balance. The electrical signal changes and changes, and the signal is sent to the microprocessor for processing and automatically calculates the actual tension of the tested ocean according to ASTM D971



Installation and Leveling of Automatic Surface Tension Meter:

Put the host on a stable platform without wind flow and unscrew the two fixing screws on the back side of the instrument, remove the upper top plate, and install the control magnet, ring frame rod, platinum ring (platinum ring and ring frame rod insertion and installation is completed, put the outer flame of the alcohol lamp burns clean, before installation. (Note: the hand can not touch the burn clean platinum ring). Adjust the three feet so that the sample plate on the water push bubble in the centre, after the top plate back to the original place, and fixed with screws.



Cleaning of Automatic Surface Tension Meter:

Clean the sample cup with petroleum ether, followed by acetone and water respectively, and then soak it in hot chromic acid wash to remove oil, and then rinse it with water and distilled water, if the sample is not to be used immediately, it should be inverted on a piece of clean cloth, and the platinum ring should be cleaned with petroleum ether, and then rinsed with ketone, and then heated in the oxidizing flame of an alcohol lamp. Note: The platinum ring should be cleaned by removing it from the ring holder rod, and the power supply of the instrument must be switched off when the platinum ring is removed and installed, and after installing the platinum ring, the platinum ring should be made to be on the same plane in each part.



Our Services:

Pre-sales consulting	We promise to provide you professional consulting for any of your laboratorial needs. We will help you select the most suitable instruments according to your requirement. We also offer free sample testing service before you placing order.
Order processing	We promise a rapid delivery time to you after we receive your order to make sure the instruments can be delivered to your laboratory at the fastest. You can contact us at any time to get an update of your production and logistics information.
After-sales service	We promise to give you a prompt response(with 24 hours) to any questions. We provide you a free training in our factory. We also provide chargeable onsite training according to your order value. The guarantee period of our products is 18 months. All of our products are lifetime maintained.



Packaging & Shipping:

Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.

Contact Us:

If you are interested in our Touch Screen ASTM D971 Interfacial Tension of Transformer Oil Tester by Du Nouy Ring Method product or have any questions, please feel free to contact us.
