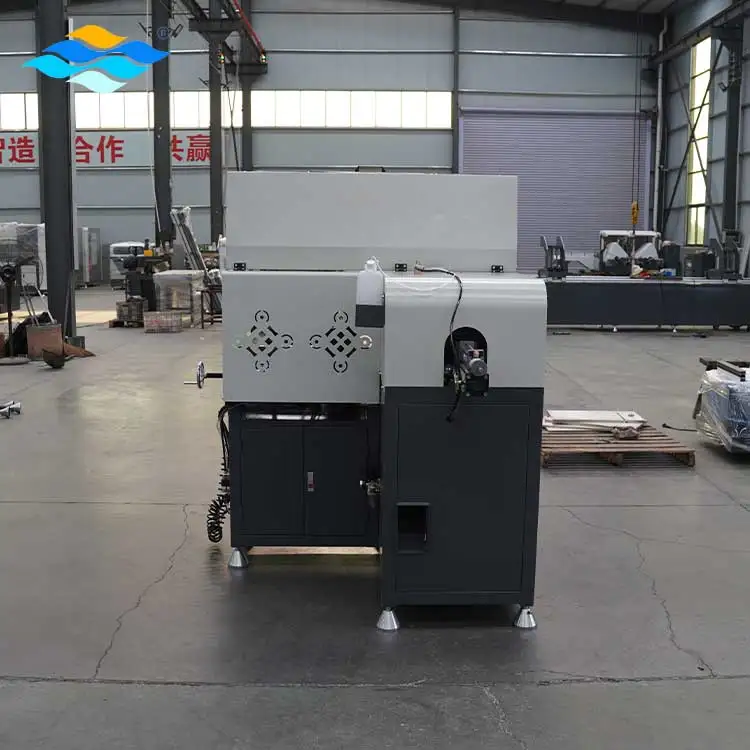

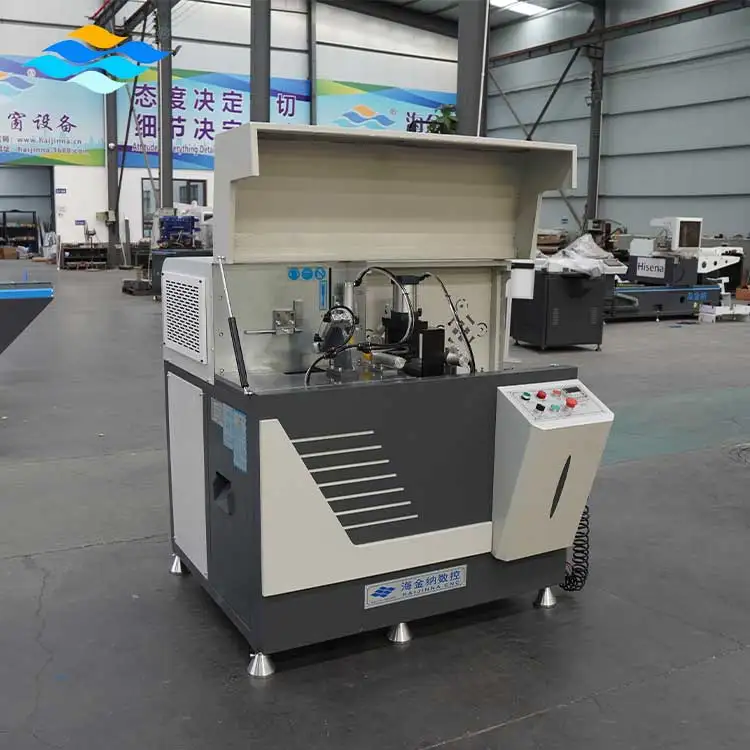

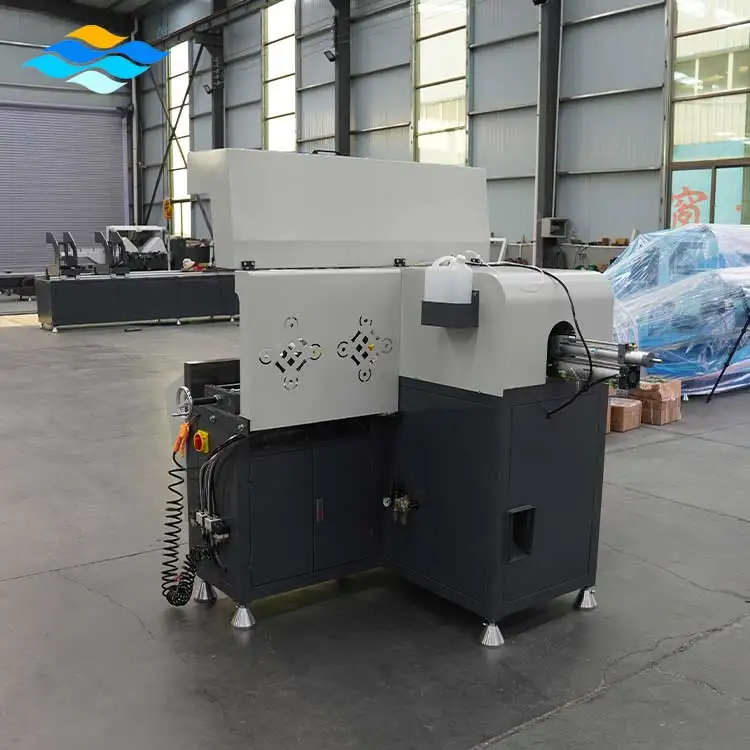

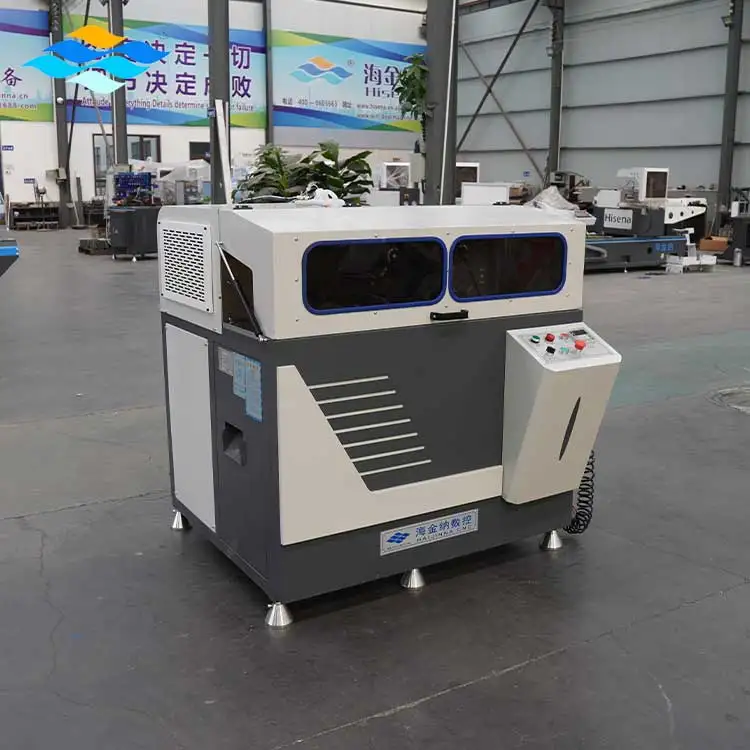

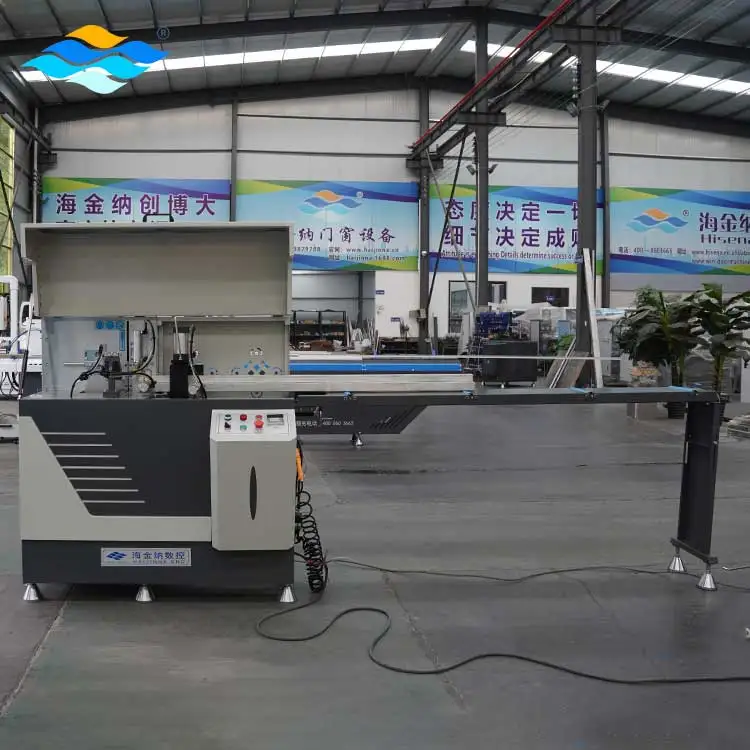

Aluminum window door automatic corner cleat cutting machine
• Used for aluminum corner cleat profile cutting.
• Saw blade feeding speed and travel adjustable,adopt imported linear guide pair,with high accuracy smaller resistance.
• Automatic feeding profile, cutting one profile each time.
• Carbide saw blade ,dimension ∅ 450 mm,with Spraying cooling system.
• Auto-opening guard shield ensured safety operation.
• Saw blade feeding speed and travel adjustable,adopt imported linear guide pair,with high accuracy smaller resistance.
• Automatic feeding profile, cutting one profile each time.
• Carbide saw blade ,dimension ∅ 450 mm,with Spraying cooling system.
• Auto-opening guard shield ensured safety operation.
Specification | ||||||||
Model | LJZZ-100 | |||||||
Power supply | 380v/50hz | |||||||
Working air pressure | 0.6-0.8Mpa | |||||||
Main motor rotation speed | 2840r/min | |||||||
Power punching type | hydraulic | |||||||
Saw blade dimension | ∅450×∅30×4.4×Z120 | |||||||
Blade feeding speed | 0-3m/min | |||||||
Cutting angle | 90° | |||||||
Cutting width | 110mm | |||||||
Cutting height | 150mm | |||||||
Cutting length | Select Manual without restriction | |||||||
Auto profile feeding length | 3-120mm | |||||||
Overall dimension | 1500×1500×1400 mm | |||||||
Weight | 300 kg | |||||||
The equipment and process required for aluminum window door making
Hisena CNC，since 2008
Our Team
Our Customers
FAQ
• Are you factory or trading company?
We are a factory with more than 10 years experience in manufacturing door and window equipmen
• What kind of payment methods do you have?
We support T/T and L/C payment.
• Do you have customized service?
Yes, we can do customized order.
• How about shipping time and method?
The delivery time of our regular stock machines is 10-15 days, and the shipping method is mainly by sea. Small machines, tools and accessories can be shipped by air.
• How long is the service life and warranty?
The designed service life of our machines can be more than ten years, and all machines have one year warranty except consumables.
• How to install and use the machine after arrival?
Our equipment has been debugged before leaving factory to meet production standard requirements.
We can provide engineers on-site installation training, remote videophone installation guidance, installationand commissioning videos, user manuals and variety methods.
• How to do the maintenance for machine?
Please carry out daily maintenance, monthly and annual maintenance and inspection for the machine according to the requirements in product instruction manual.
