High precision Oil Country Lathe Q 280F is widely used in machinery manufacturing, auto parts, aerospace
- Category: >>>
- Supplier: Zhengzhou Timeway Machine Tool Co. Ltd.
Share on (1600908889501):
Product Overview
Description
Products Description

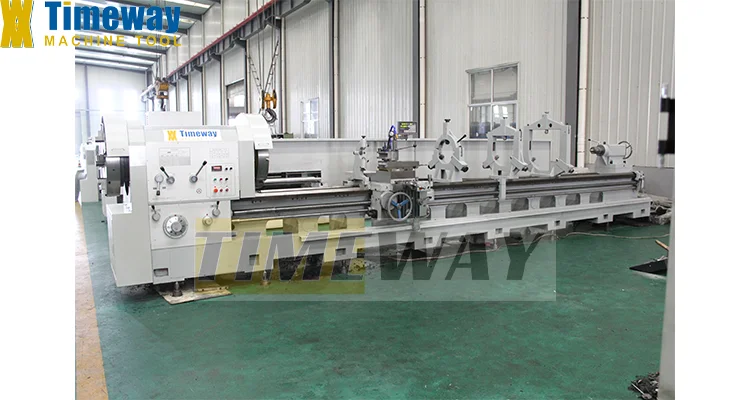

Q-280F
Oil Country Lathe:
Specification | Unit | Q-280F |
Max. swing over bed | mm | 800 |
Max. swing over cross slide | mm | 480 |
Distance between centers | mm | 1500/3000 |
Pipe threading range | mm | 130-270 |
Bed width | mm | 600 |
X-axis travel | mm | 420 |
Z-axis travel | mm | 1350/2850 |
Max. load capacity | kg | 4000 |
Spindle bore | mm | 280 |
Spindle speed steps | steps | 4steps (inverter) |
Spindle speed | rpm | 20-400 |
Chuck size | mm | 630 |
Chuck type (manual) | - | 3-jaw |
Turret type (manual) | - | V4 |
Tool shank size | mm | 32x32 |
X-axis feed range (steps) | mm/r | 0.02-0.45 (22) |
X-axis rapid feed speed | mm/min | 2300 |
Z-axis feed range (steps) | mm/r | 0.07-1.33 (26) |
Z-axis rapid feed speed | mm/min | 4000 |
No. of Metric thread and range | mm | 1-15 |
No. of Inch thread and range | TPI | 14-1 |
Tailstock quill diameter | mm | 120 |
Tailstock quill taper | - | MT5 |
Tailstock quill travel | mm | 250 |
Main motor power | kw | 15 |
Rapid motor power | kw | 1.1 |
Coolant motor power | kw | 0.125 |
Machine dimensions (LxWxH) | mm | 4100/5600x1700x1600 |
Machine weight | kg | 8000/9000 |
Positive Comments From Customers
Company Introduction

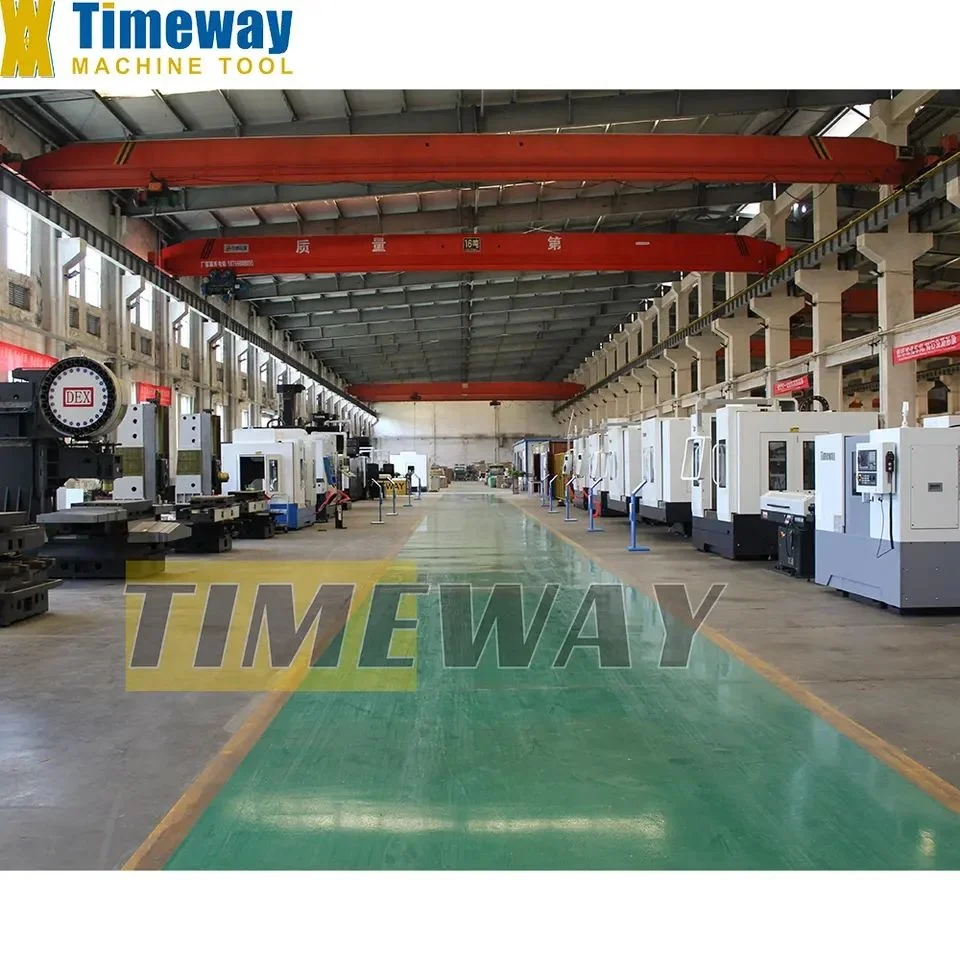

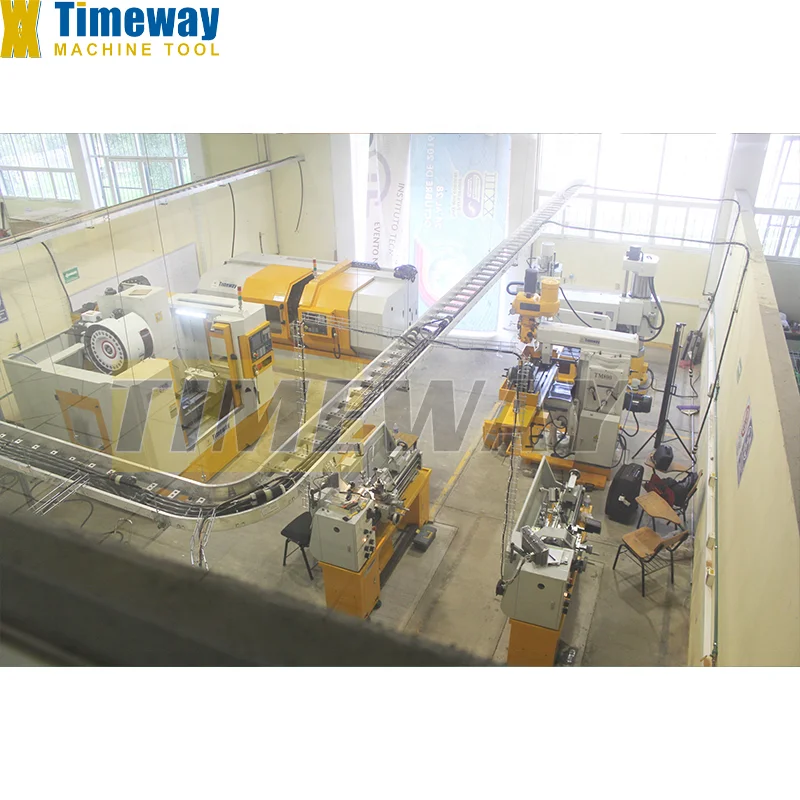

Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
