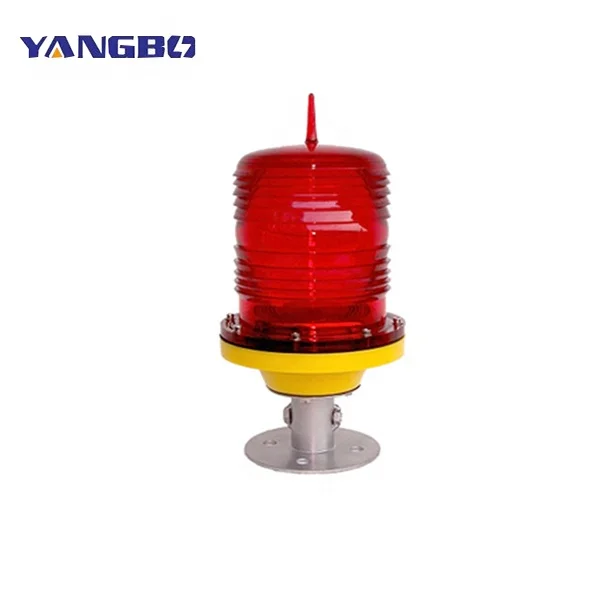

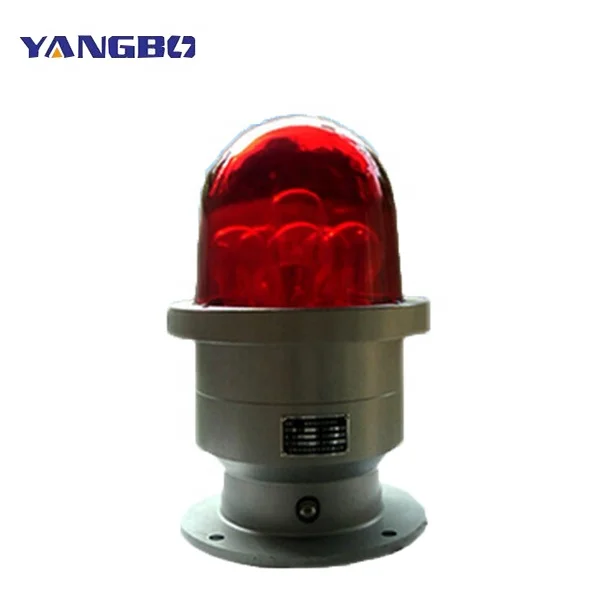

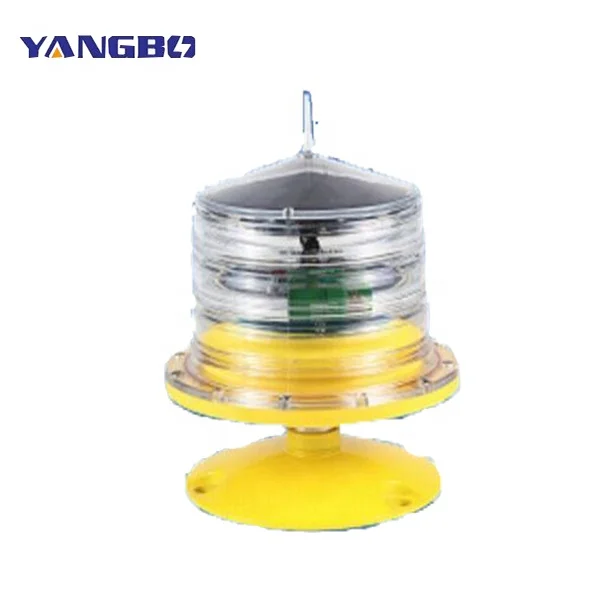

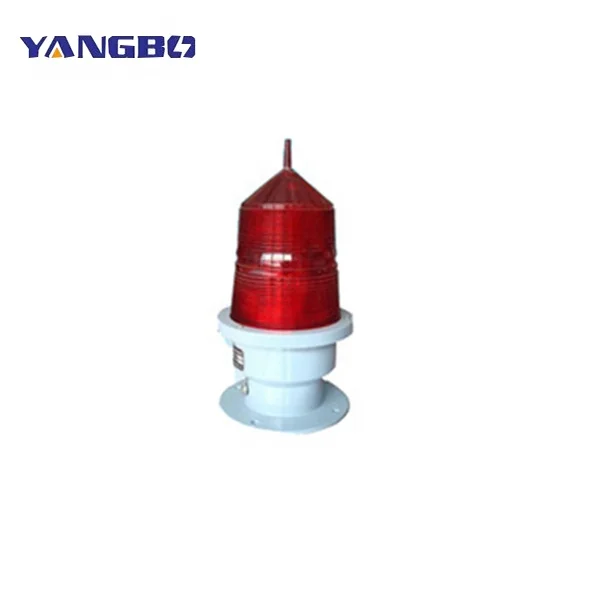

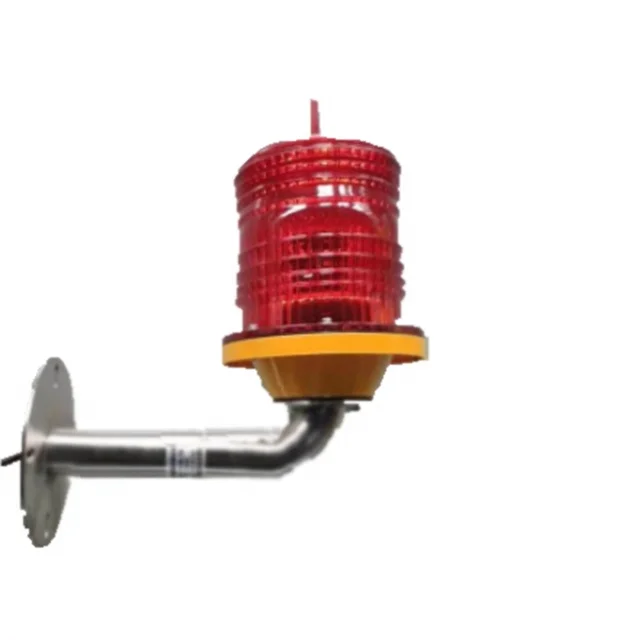

Long Pole Type Aviation Obstruction Light AC 220v White Red IP65 LED Warning Safety Aviation Obstacle Light for Buildings
Long Pole Type Aviation Obstruction Light AC 220v White Red IP65 LED Warning Safety Aviation Obstacle Light for Buildings
Long Pole Type Aviation Obstruction Light AC 220v White Red IP65 LED Warning Safety Aviation Obstacle Light for Buildings
Long Pole Type Aviation Obstruction Light AC 220v White Red IP65 LED Warning Safety Aviation Obstacle Light for Buildings
Long Pole Type Aviation Obstruction Light AC 220v White Red IP65 LED Warning Safety Aviation Obstacle Light for Buildings
Long Pole Type Aviation Obstruction Light AC 220v White Red IP65 LED Warning Safety Aviation Obstacle Light for Buildings
Long Pole Type Aviation Obstruction Light AC 220v White Red IP65 LED Warning Safety Aviation Obstacle Light for Buildings

Long Pole Type Aviation Obstruction Light AC 220v White Red IP65 LED Warning Safety Aviation Obstacle Light for Buildings

Share on (1600908914464):


Price:$90.00 - $115.00

Quantity:


Product Overview

Description







PRODUCT DESCRIPTION




The high-intensity aviation obstruction light consists of a 155mm diameter beacon lens, an aluminum alloy cast lamp holder, a microcomputer chip integrated circuit controller, and an imported long-life pulse xenon lamp. It can produce extremely strong flash at an instant. The 155mm diameter monocone lens is a Fresnel lens injection-molded from polyacrylic plastic. When the lamp is focused, the lens can focus, which can greatly increase the intensity of light and expand the angle of emission. GZ-155B aviation obstruction light has automatic daylight control switch function. It automatically turns off during the day and automatically turns on at night or on cloudy days.


model
High Intensity Aviation Obstruction Light
Operating Voltage
220V
frequency
50hz
Quiescent Current:
10MA
Initial light intensity
20000CD-200000CD
Light source
4 xenon lamp (imported) or 1 high power
Flash frequency
20 times/minute Adjustable
Flash life
2*108 times or 1*108 times
Light control sensitivity
50 ～ 100LX
Protection level
IP65
Ambient temperature
-40°C~+60°C
Weight
5kg
Dimensions
480mm×220mm
Installation size
Outer diameter 220mm pitch circle 195mm uniform 4 holes χф 14mm
Scope of application
90 meters ≤ H ≤ 150 meters (H is the building height)


Part of the product material is PC (such as lampshade and lamp shell), so it cannot directly or indirectly contact with organic solvents, such as industrial alcohol, banana water, isopropyl alcohol, carbon tetrachloride, cyclohexanone, etc., otherwise, the product will corroision . Please read the instruction manual carefully and check. To protect the battery during transportation and storage, install the sleep switch at the bottom of the lamp and set it to sleep mode, please check if the lamp is in normal working condition, and then install or test, turn on the switch according to the instruction. Bottom switch control: press for 3 to 5 seconds, the light starts to sleep (stop working); press for 1 to 2 seconds, the light starts to work); test and operate the switch in a dark environment, or covered with a black shade cloth for proper operation. Any questions, please in operation, please contact our company,
