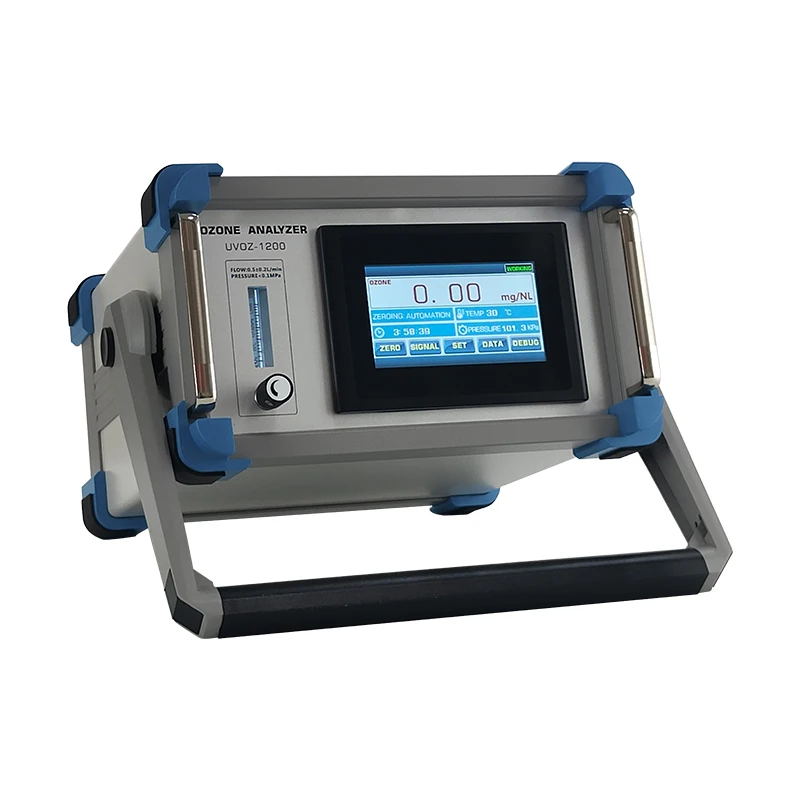

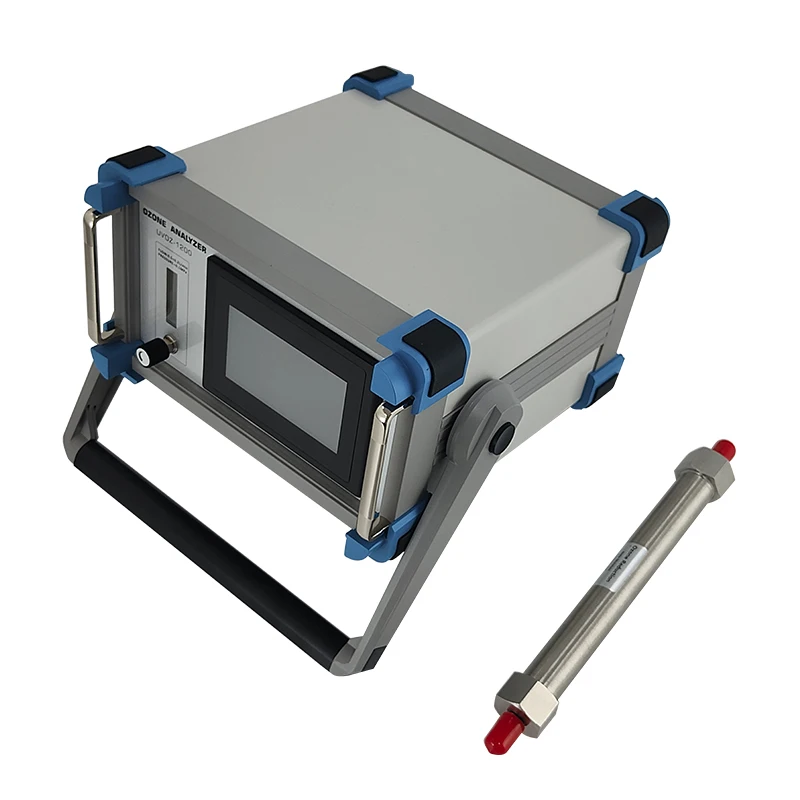

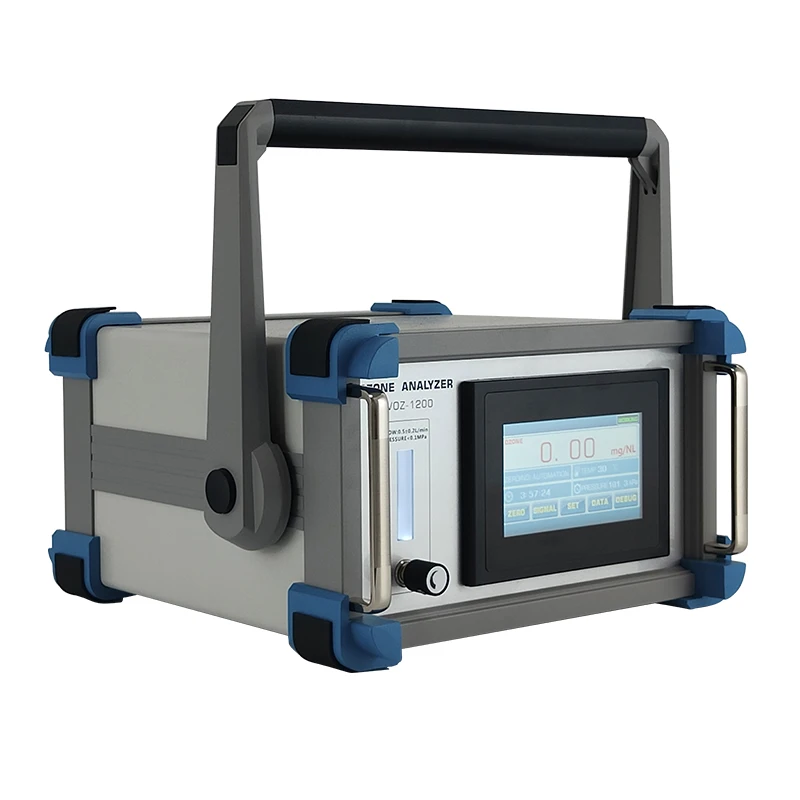

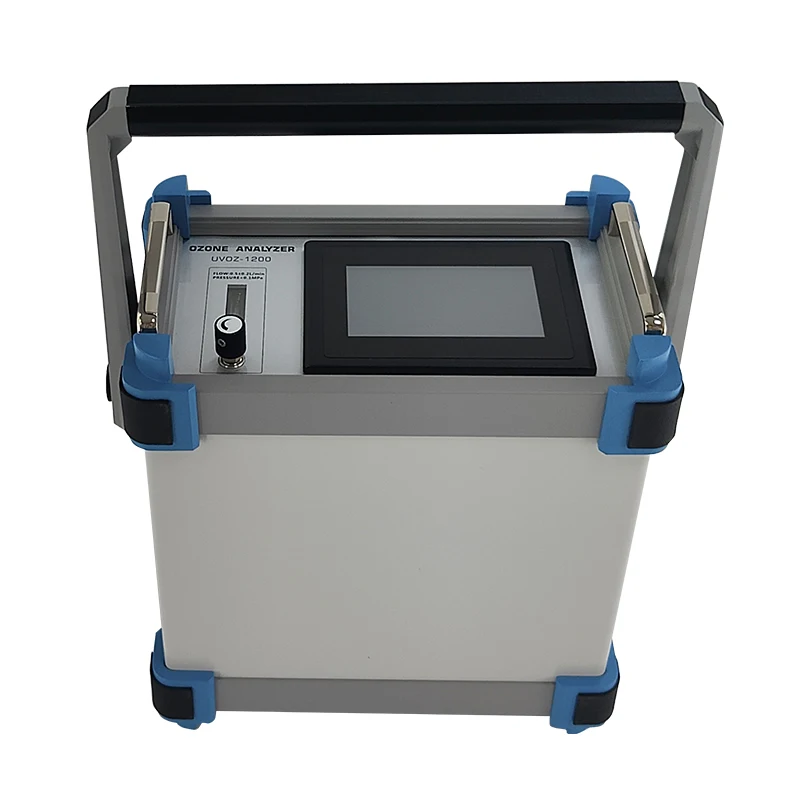

Portable high precision professional ozone meter uvoz 1200 gas ozone analyzer ozone detector
- Category: >>>
- Supplier: Dino Trading (Guangzhou) Co. Ltd.
Share on (1600908914587):
Product Overview
Description
Product Description
Product characteristics
1) Test method: dual-light path ultraviolet light absorption method, long-life light source system, high measurement accuracy.
2) Measurement principle: according to the Lambert-Bill law, accurately measured through the luminosity absorption principle.
3) Light source system: long-life ultraviolet light source system (wavelength 253.7nm).
4) Usage: indoor installation and use, equipped with power supply and signal terminals.
5) Optical pool system: separated optical pool technology, no leakage, high pressure resistance, high flow resistance to sampling gas impact.
6) Intelligent compensation: built-in temperature and pressure compensation and display, with light source automatic compensation function.
7) Operation mode: users can select manual and automatic zero according to the operation status, and set automatic zero time.
8) Display units: g / Nm3, mg / NL,%WT, ppm, mg / Nm3 is optional.
9) Data display: high-definition color touch screen, high concentration range set into the gas mass flow, real-time display
output.

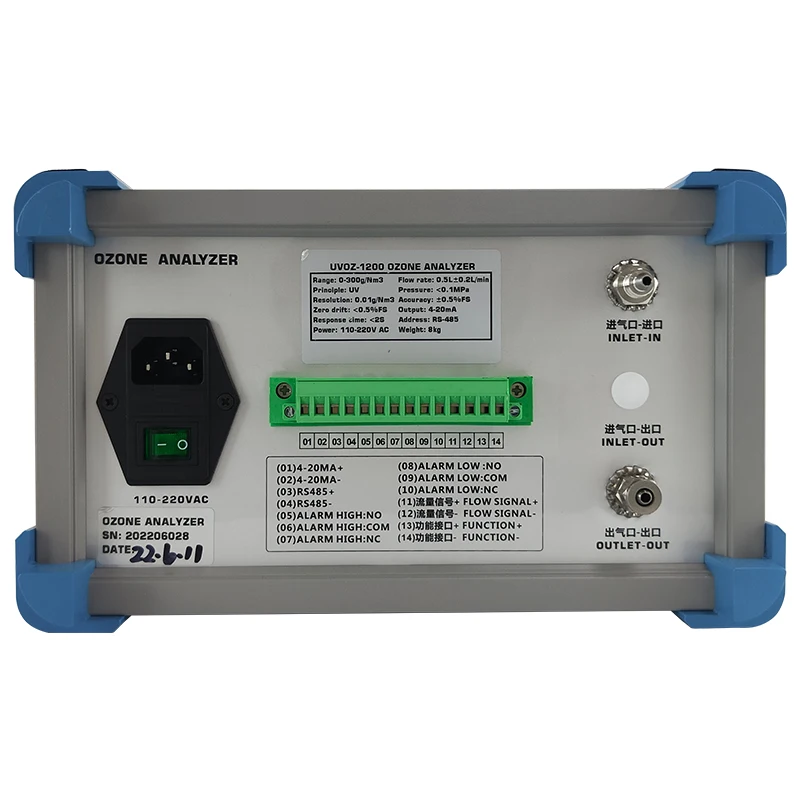

10) Output function: 4-20mA, RS485 communication, two groups of alarm point output, electronic flow meter input, etc.
2) Measurement principle: according to the Lambert-Bill law, accurately measured through the luminosity absorption principle.
3) Light source system: long-life ultraviolet light source system (wavelength 253.7nm).
4) Usage: indoor installation and use, equipped with power supply and signal terminals.
5) Optical pool system: separated optical pool technology, no leakage, high pressure resistance, high flow resistance to sampling gas impact.
6) Intelligent compensation: built-in temperature and pressure compensation and display, with light source automatic compensation function.
7) Operation mode: users can select manual and automatic zero according to the operation status, and set automatic zero time.
8) Display units: g / Nm3, mg / NL,%WT, ppm, mg / Nm3 is optional.
9) Data display: high-definition color touch screen, high concentration range set into the gas mass flow, real-time display
output.
10) Output function: 4-20mA, RS485 communication, two groups of alarm point output, electronic flow meter input, etc.

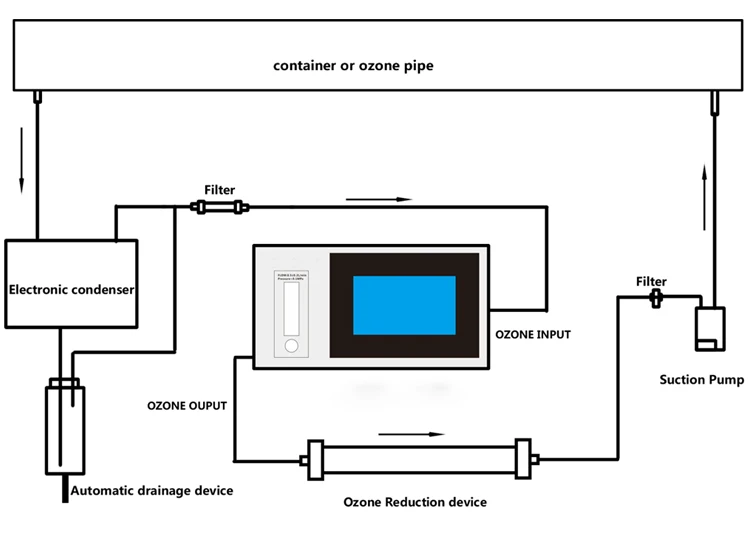

Ozone Gas Concentration Analyzer-Positive Pressure Sampling Connecting Process
Specification
Measuring range | 0-300g / Nm3 |
Optional range | 0-200g / Nm3,0-100g / Nm3,0-50g / Nm3,0-1000ppm, 0-100ppm |
Light source life | about 30000-50000 hours |
Sampling method | positive pressure sampling, negative pressure sampling (optional) |
Display interface | 4.3-inch touch screen operation interface |
Content interface | Ozone concentration, temperature and pressure |
Auxiliary functions | temperature compensation, pressure compensation |
Display units | g / Nm3, mg / NL,%WT, ppm, mg / Nm3 is optional |
Display resolution | 0.01 g/m3,0.01ppm |
Gas flow rate | 0.5L±0.2L/min |
Input pressure | ＜0.1Mpa |
Concentration error | maximum of 0.3%FS |
Linear error | maximum of 0.2%FS |
Zero-point drift | ＜± 0.3%.FS |
Reaction time | 0.03 seconds of signal, 0.3 seconds of display |
Ambient temperature | -20~50℃ |
Pipeline interface mode | quick twist (stainless steel) |
Series joint sample diameter | 8 (8mm * 6mm) (optional) |
Bypass sampling diameter | 6 (6mm * 4mm) |
Communication mode | RS-485 |
Output mode | 4-20mA (active) |
Secondary telecom signal | high alarm point relay telecom signal, low alarm point relay telecom signal |
Power supply | AC 110-220V |
Dimensions | 160mm (height) 260mm (width) 300mm (depth) |
Note | 1 mg/L = 1 g/m3=467PPM |
Free warranty | 24 months (host) |
Note | Standard configuration (built-in): flowmeter, ozone tail gas catalyst, intake filter |
