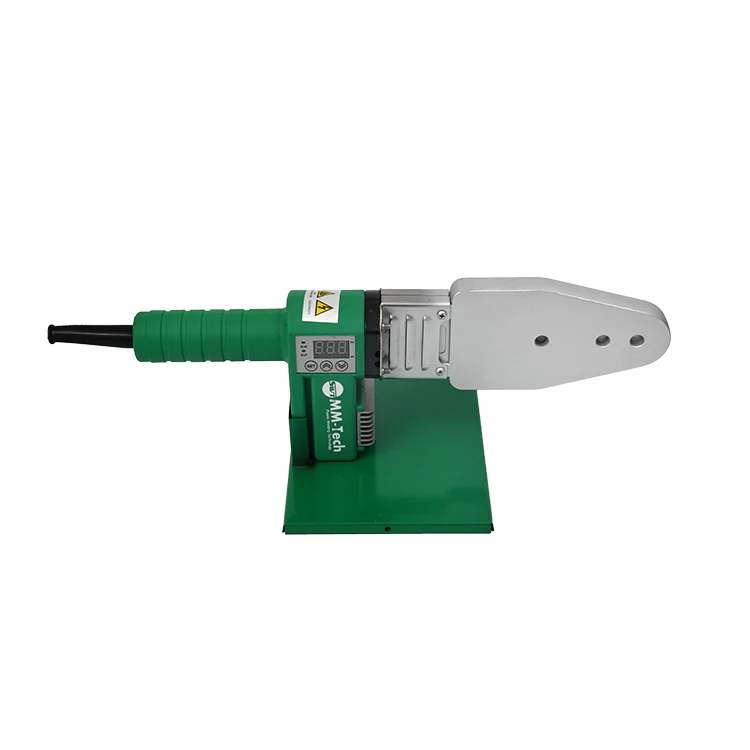

20 63mm Electric Plastic Pipe Socket Fusion Welding Machine For Pe Ppr Pipe
- Category: >>>
- Supplier: Hebei Boda Plastic Technology Co. Ltd.
Share on (1600908932709):
Product Overview
Description
Product Specification

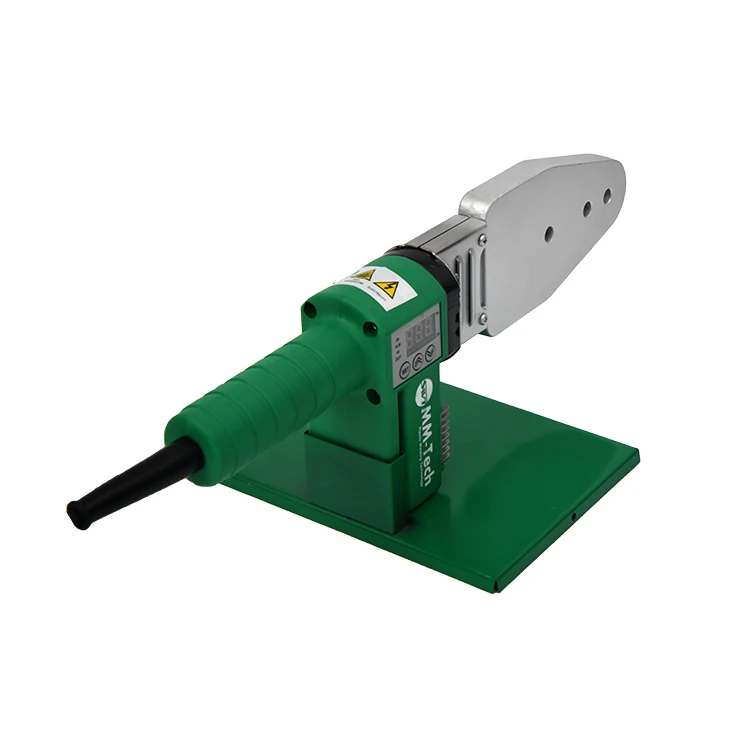

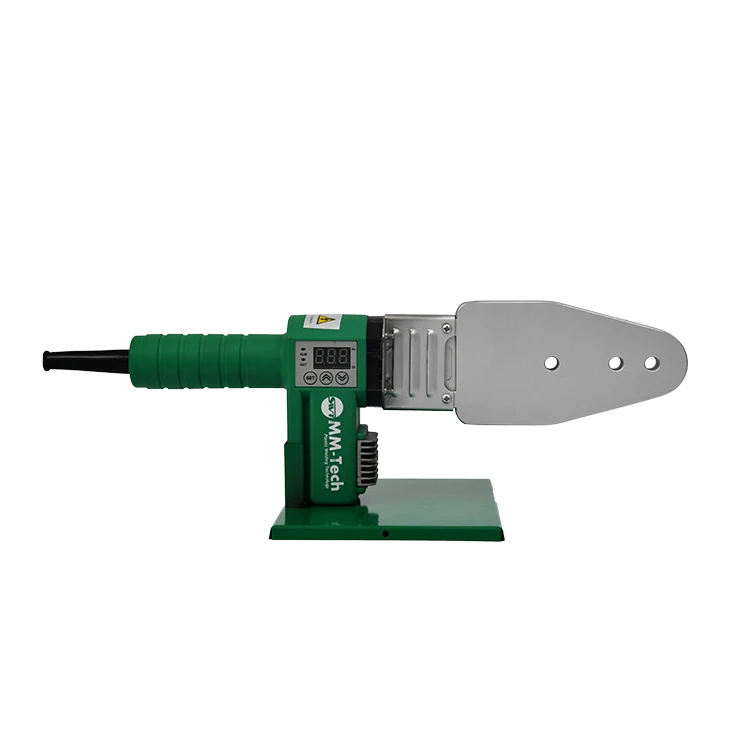

20-63mm Electric Plastic Pipe Socket Fusion Welding Machine For Pe Ppr Pipe
Fusing Pipe Scope | 20MM~63MM |
Rateed voltage | 110V / 220V |
Rated power | 50Hz/60Hz |
Power | 800W |
Working Temperature | 260°C |
Temp.Tolerance | ≦5°C |
Warning temp | 295°C |
Suit material: | PP - R |
Net Weight Of Mchine | 1.8Kgs |
PCS/carton | 5PCS |
Carton Size | 440*270*270（mm) |
Weight/carton | 15.2Kg |

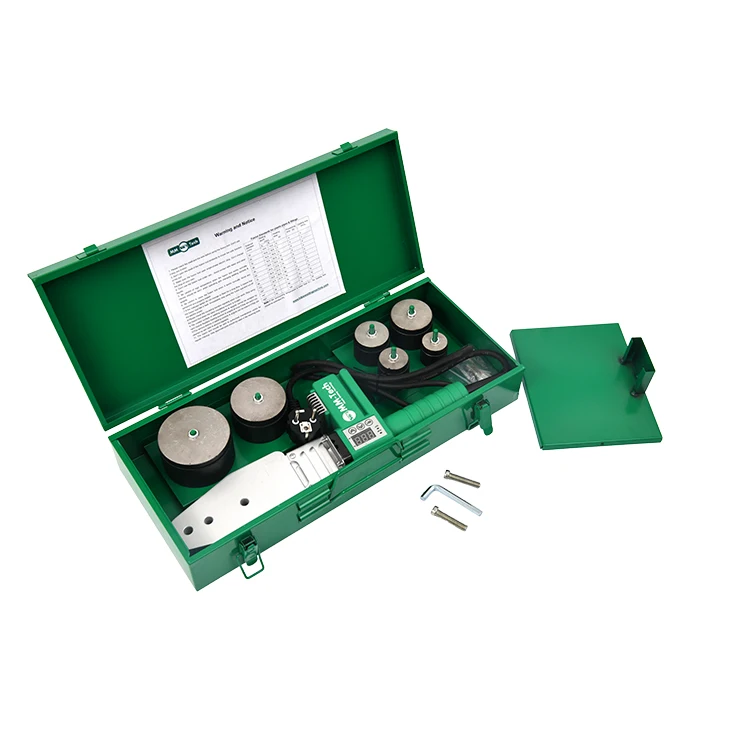

Lnciuding the following accessorirs：
1PCS fusion tool、1PCS metal case、1PCS underpin stand、1purchase table-board clamp(optional)、1bag of bolts ang hex key wrench、Socktes D20、D25、D32、D40（optional)
1PCS fusion tool、1PCS metal case、1PCS underpin stand、1purchase table-board clamp(optional)、1bag of bolts ang hex key wrench、Socktes D20、D25、D32、D40（optional)
Product Details

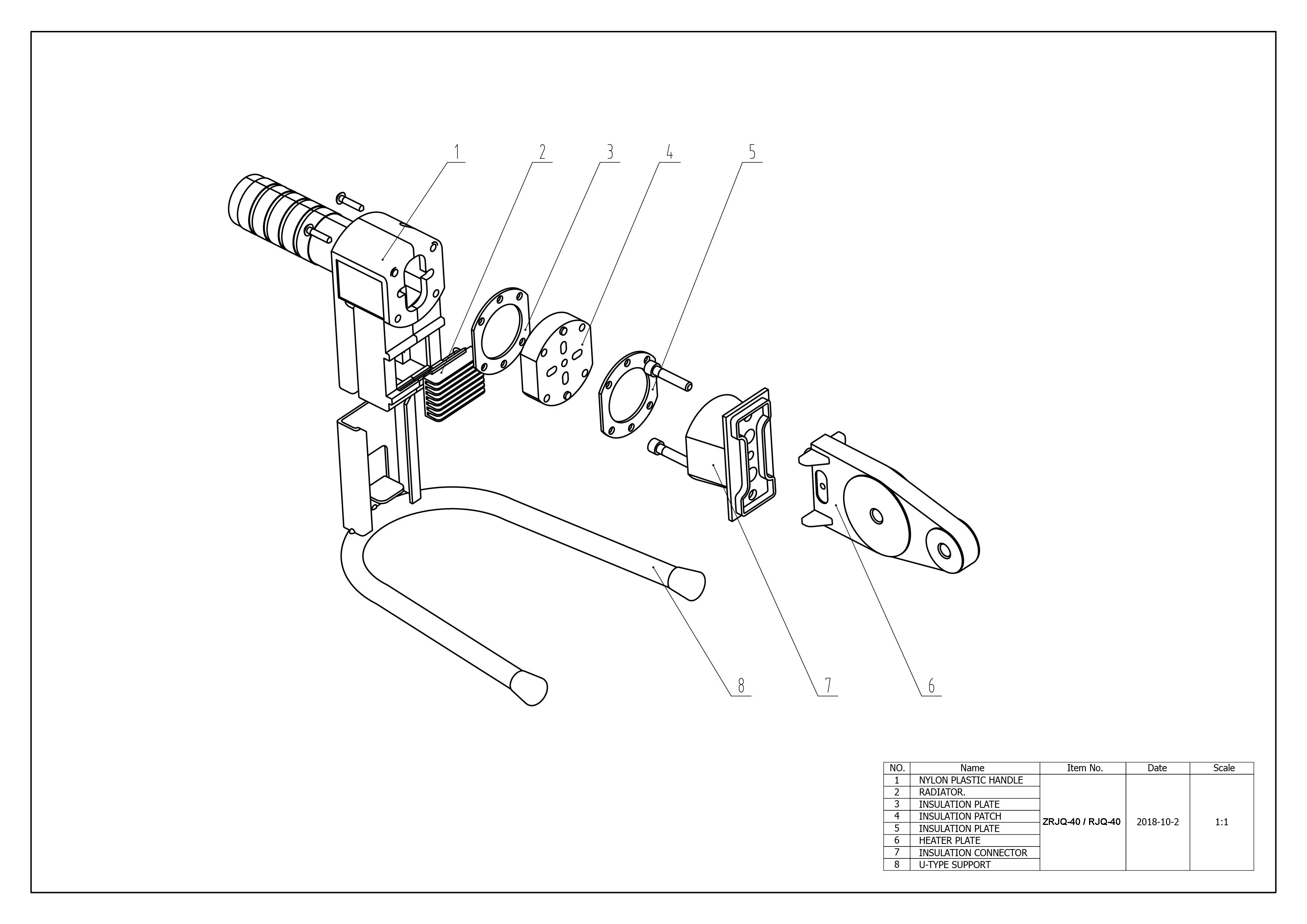

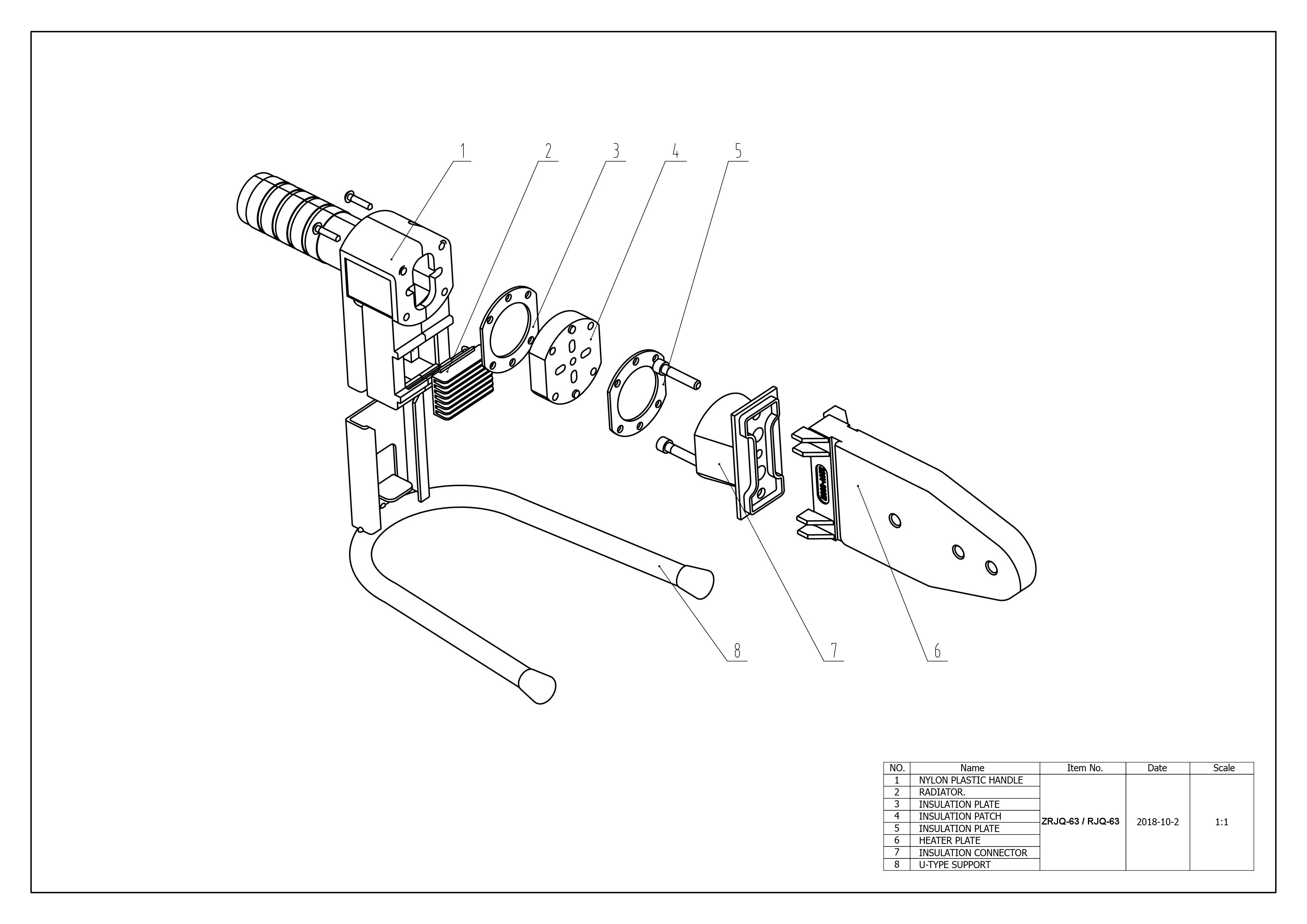

Product Features
Strong aluminum heater plate,
Thickness to 19mm,
Teflon surface is optional,
Inside heating element 110V and 220V optional.
ABS+Strong Nylon handle,
LED working light and digital screen,
Aluminum moulded insulation cover,
Magnesium material cooling fin.
VDE copper wire and rubber cover cable,
Cable long to 3m,
Support worldwide plugs,
Plug cover protective.
Strong and stable U type machine support,
Special use table clamps,
Stainless steel wrench and screw.
Aluminum material with Daikin teflon, Size support DVS and ASTM standard, Heating sockets, repair sockets and saddle sockets are
provided.
provided.

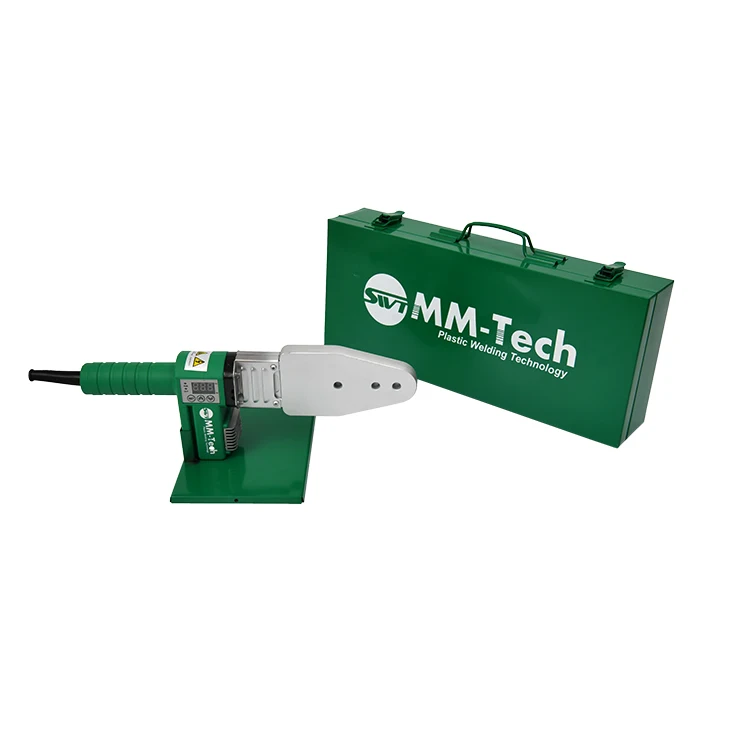

Steel box, thickness 1.0mm,
Support OEM color paint,
Support OEM LOGO engrave and sticker.
1. Fusion Preparation
Choose the suitable machine and sockets Prepare the cutter, fusion material.
2. Cutting the pipe
Cutting the necessary pipe length with the plastic pipe cutter.
3. Clearing the pipe
Clearing the fusion surface of pipe with alcohol.
4. Measure fusion depth
Measure the fusion depth according the fusion standard table and mark.
5. Heating
Put the pipe and fitting into the socketshorizontal, Heating time refer standard.
6. Connecting and cooling
Connect the heated pipe and fitting exactly and adjustment finish in 5s.
