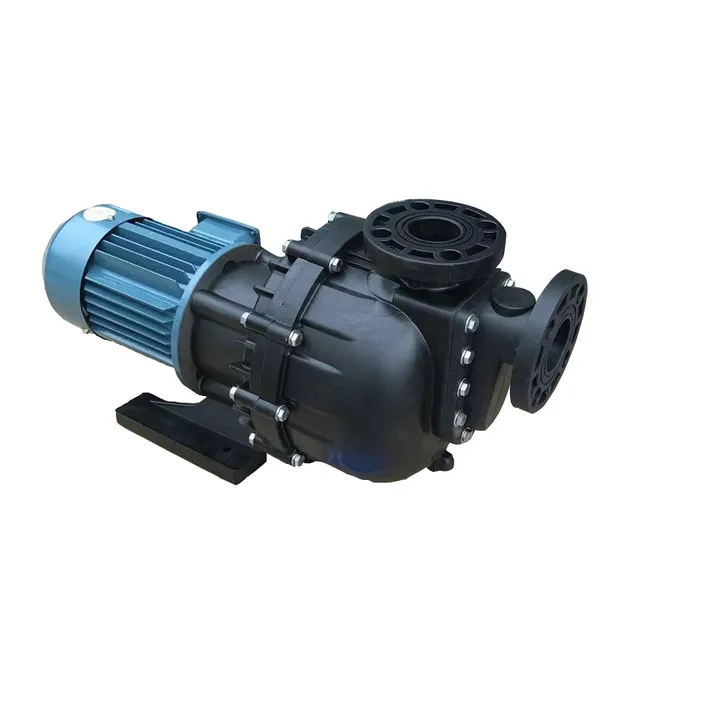

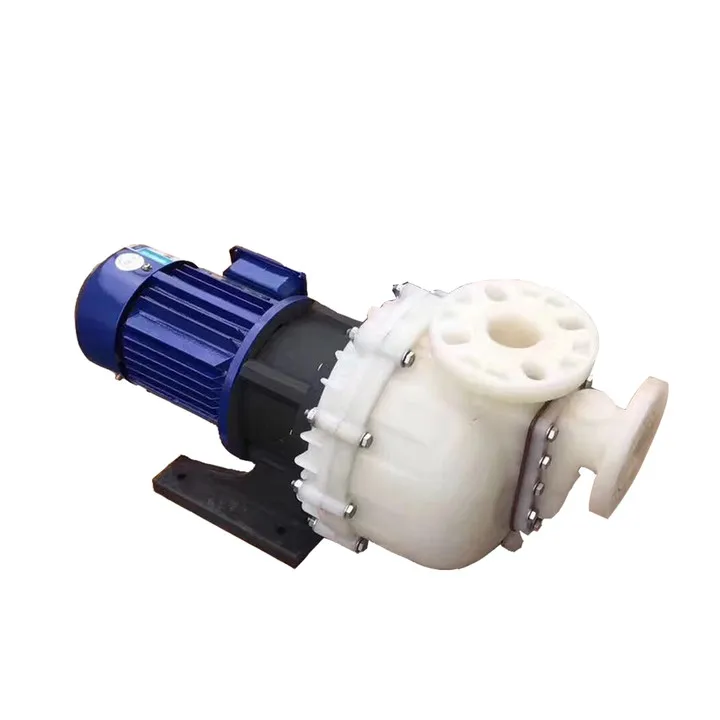

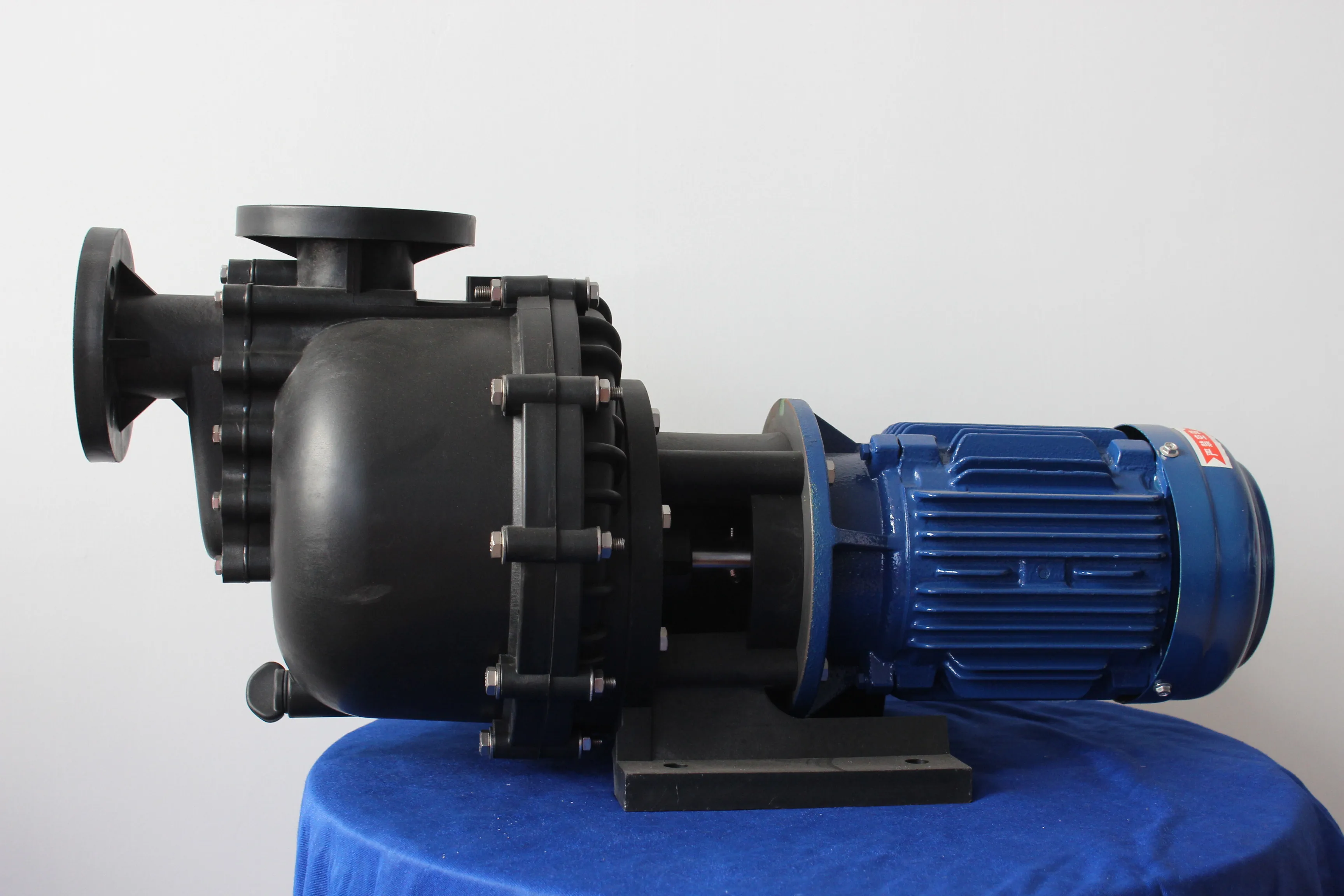

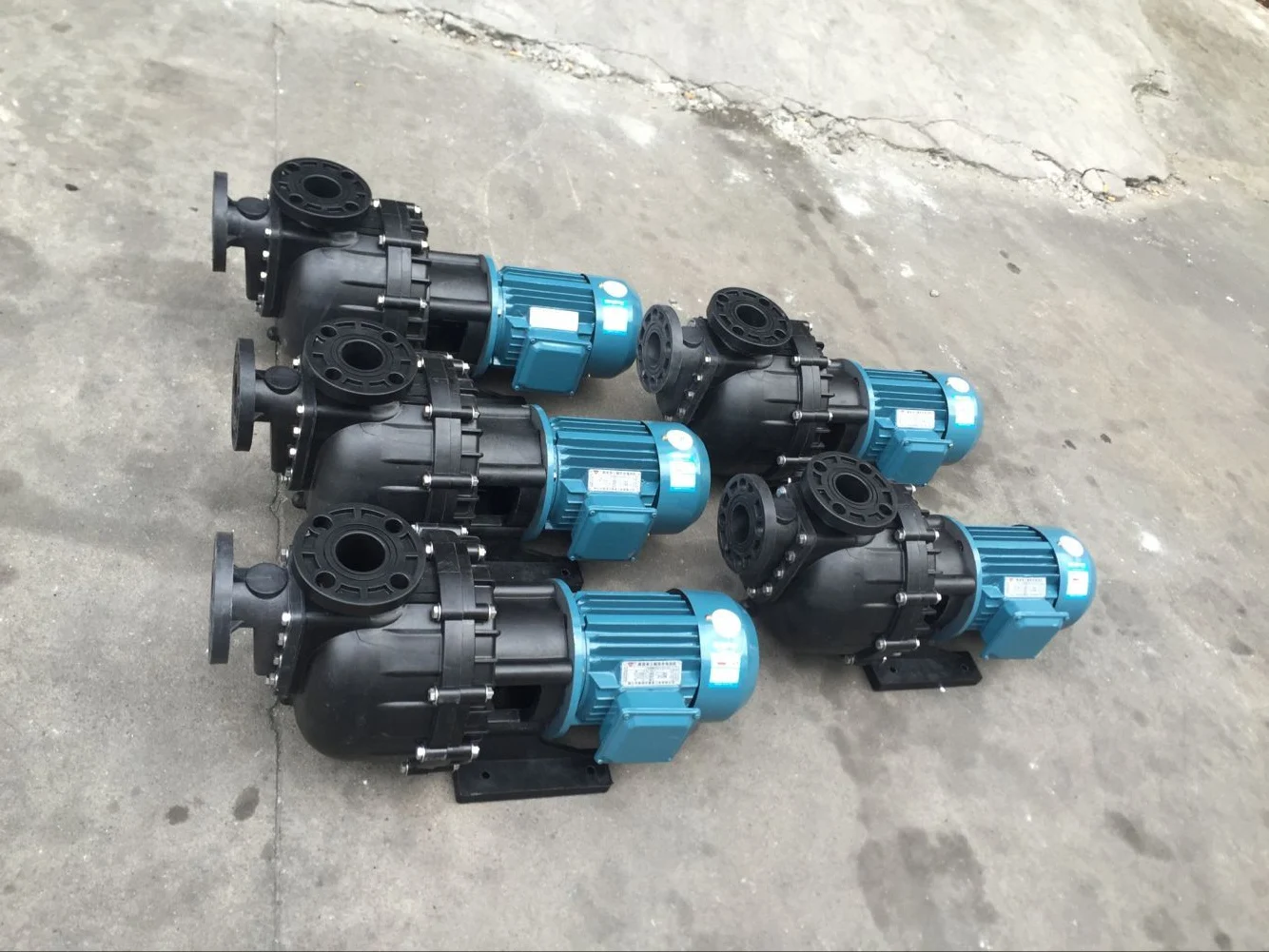

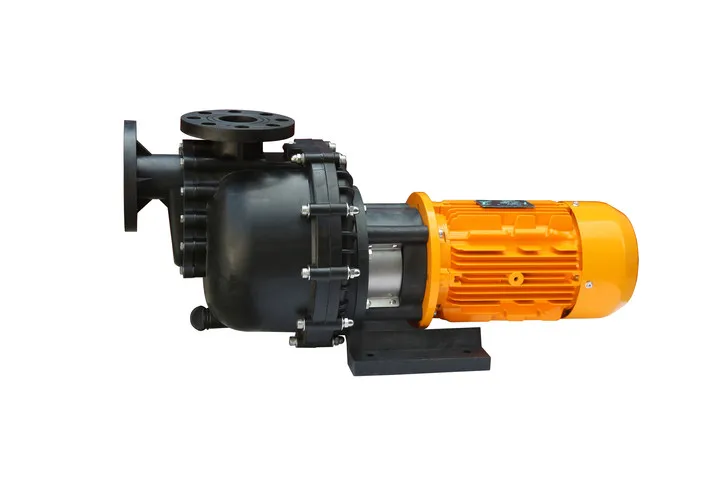

High efficiency centrifugal self priming electric water pump

Product Overview

Description

FRPP  Self-priming  mechanical  pump

Size No PP/PVDF	Curve No	In xOut	Power				Lift	Flow	Weight
		Dia(m/m)	Phase	Grade		Motor(HP)	(M)	(L/min)	(KG)
4005	A	1.5”x1.5”	3P		2	1/2	5.5	180	24
4012	B	1.5”x1.5”	3P		2	1	9	210	26
4022	C	1.5”x1.5”	3P		2	2	16.5	360	33
5032	D	2”x2”	3P		2	3	17	430	42
5052	E	2”x2”	3P		2	5	24.5	530	68
7552	F	2.5”x2.5”	3P		2	5	25	750	102
7572	G	2.5”x2.5”	3P		2	7	27	1050	104
7512	H	2.5”x2.5”	3P		2	10	30	1350	115

feature:

1,  applicable temperature: 70℃.

2,  the unique seal design: a self cooling design with the new Teflon, without additional cooling pipe.

3,  self-priming ability, and check valve design, to prevent liquid backflow in the pump.

4,  FRPP strengthen polypropylene material, strong corrosion resistance, acid and alkali resistance.

5,  special strengthening structure design, no temperature rise or long time operation deformation, leakage defects.

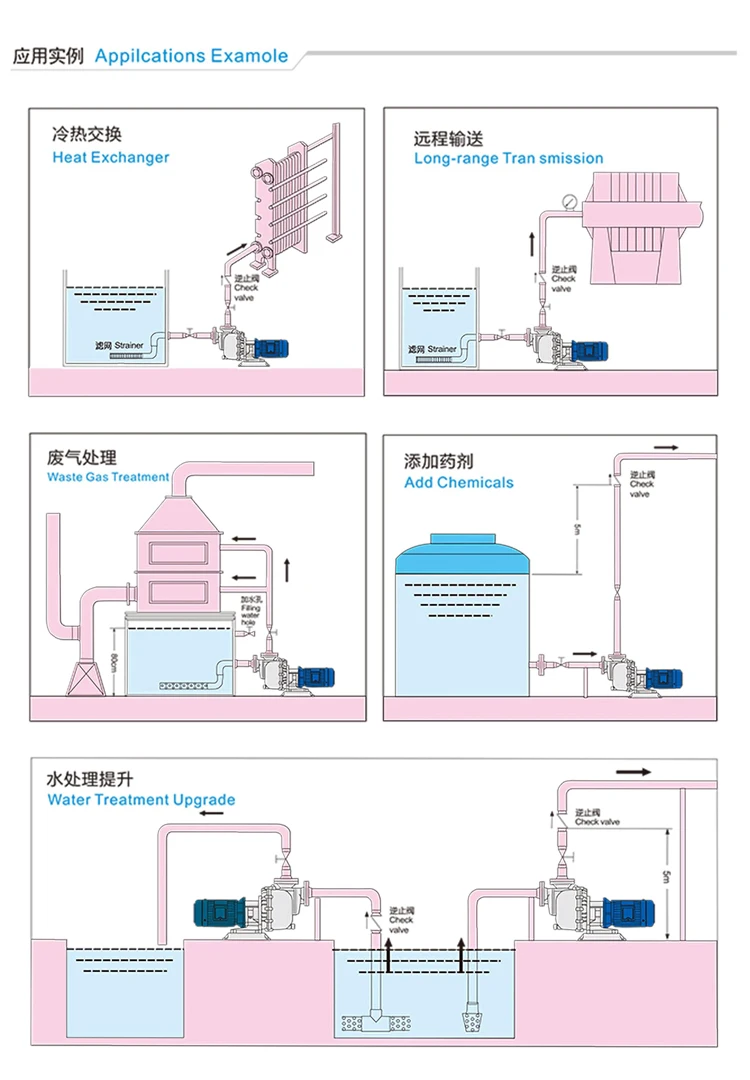

application:

1,  1. Chemical liquid circulation or transportation process, electroplating industry, chemical industry, leather, dyeing and finishing wastewater treatment.

2,  according to the chemical liquid pH value, concentration, temperature and so on, choose different material pumping

3,our company pumps can be used anywhere in the world power supply, customers only need to provide motor voltage and frequency can be.
